Dirt Devil DDST14V User manual

2IN1 CORDLESS
VACUUM
USER GUIDE
DDST14V
2 Year Warranty

2
WARNING
BASIC SAFETY PRECAUTIONS
• This vacuum cleaner is intended
for household use only and NOT
for commercial or industrial use.
• Only use the vacuum cleaner
indoors and keep the area you’re
cleaning well lit.
•Keepngers,hairandloose
clothing from moving parts
and openings whilst using
the vacuum cleaner.
• This appliance is not intended
for use by children and persons
withreducedphysical,sensory
or mental capabilities or lack
ofexperienceandknowledge,
unless they have been given
supervision or instruction
concerning use of the appliance
in a safe way and understands
the hazards involved.
• Only Dirt Devil recommended
charger,toolsandaccessories
should be used with this
vacuum cleaner.
• The vacuum cleaner should
not be used to absorb or
vacuum up liquids.
• Don’t charge the vacuum cleaner
outdoors or leave the charger
connected to the mains when
not in use.
• Don’t use this vacuum cleaner
ifithasbeendropped,damaged,
immersed in water or left outdoors.
• Don’t handle the charger plug
or use the vacuum cleaner with
wet hands.
• Do not use this vacuum cleaner
with a damaged cord or plug.
If the supply cord is damaged call
us on AU: 1300 361 505 / NZ:
0800 800 900 for your nearest
Dirt Devil authorised service agent.
• Don’t use the charger cord as
ahandle,pullthechargercord
around corners or sharp edges
or close a door over the charger
cord. Don’t unplug charger by
pulling on the charger cord.
• Don’t attempt to remove
blockages with sharp objects
as this may cause damage to
your vacuum cleaner.
• Don’t use the charger with
incorrect voltage as this may
result in damage or injury to the
user. The correct voltage is listed
on the ratings label.
DON'TS

3
WARNING
•Don’tvacuumuphotcoals,
cigarettebutts,matchesor
smoking hot burning items or
use in an area where there may
beharmfuluids(chlorine,bleach,
and ammonia drain cleaner).
DON'TS CONTINUED...
•Alwaysmakesurethelterand
dirtcontainerarettedcorrectly
before using your vacuum cleaner.
• Always turn off and unplug
the vacuum cleaner from the
charger before carrying out
any maintenance.
• Turn off all controls on the vacuum
cleaner before disconnecting or
connecting the charger.
• Take extra care when cleaning
on the stairs.
• Always protect the charger cord
from heated surfaces or near
openames.
• If charging the vacuum cleaner
through an extension cord use
only SAA approved 10amp
extension cords. Non-approved
cords may overheat. Care should
be taken to arrange the cord
so that the cord cannot be
tripped over.
• Always carry the vacuum
cleaner/handheld by the
correct carry handle.
• Store your vacuum cleaner
inacool,dryarea.
• Before any user maintenance
isundertaken,refertothe
appropriate section in the user
guide to understand necessary
precautions required.
• Always use the charger supplied
with the vacuum cleaner.
• Always remove the charger
from the mains and charging
port on the vacuum cleaner
before using the vacuum cleaner
or carrying out any maintenance
or troubleshooting.
PLEASE KEEP INSTRUCTIONS
FOR FURTHER USE AND USE
ONLY AS INSTRUCTED IN
THIS GUIDE.
DO'S

4

5
TABLE OF
CONTENTS
Overview 6
Quick Start Assembly 7
How to 8
Accessories 17
Troubleshooting 18

6
On/Off and suction
control switch
2-in-1 crevice tool/
dusting brush holder
Handle recline button
Handheld release button
LED Power/charge lights
Handheld On/Off button
Dirt container
release button
Floorhead
Machine charging port
Floorhead
release button
TECHNICAL SPECIFICATIONS
DDST14V
14.4V
115W
100-240V ~ 50/60Hz
25V 0.5A
Rechargable Ni-MH
Model number:
Voltage:
Power:
Charger Input:
Charger Output:
Battery:
0.4L
5 hours
Up to 25 minutes
3kg
Dirt bin capacity:
Charge time:
Run time:
Weight:
We reserve the right to make changes to technical and design specifications in the
interest of continuous product improvement. © Dirt Devil.
Double
Insulated
This product
meets applicable
regulatory
requirements
Indoor
Use
Read
Instructions

77
QUICK START
ASSEMBLE YOUR 2IN1 VACUUM CLEANER
2. Lift the handle in a hinge like
manner and secure onto the
main body.
1. Line up the floorhead with
the main body and push firmly
into place.
3. Store the 2-in-1 tool on board
the vacuum cleaner by pushing
the tool firmly into the tool holder
located on the handle.
4. Fix the wall clip to your wall using
the screw and wall plug provided.
During storage and charging,
secure your vacuum cleaner
handle into the wall clip.
0.4L
5 hours
Up to 25 minutes
3kg
NOTE: To fold the handle for storage, push in the handle recline button and fold handle all the way back.
PLEASE READ ‘BASIC SAFETY PRECAUTIONS’ BEFORE USE
CAUTION: Always switch off the vacuum cleaner before connecting or disconnecting the handheld/attachments
or removing and emptying the dirt container.
CAUTION: Ensure the battery is removed from the vacuum cleaner before it is scrapped. The vacuum cleaner must
be disconnected from the supply mains when removing the battery. The battery must be recycled or disposed of in
an environmentally sound manner.
IMPORTANT: The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does
overheat the thermostat will automatically turn the vacuum cleaner off. If this happens, switch the vacuum cleaner off.
Remove and empty the dirt container also check the vacuum cleaner for blockages. Allow the vacuum cleaner to cool
for approximately 1 hour (if you have cleaned the filter please wait 24 hours for the filter to fully dry before putting
back into the machine). For best cleaning results, filters require cleaning at least every 3 to 6 months. If the vacuum
cleaner is blocked, switch off before removing the blockage.
CAUTION: This vacuum cleaner has a constantly rotating brushbar. Never leave the vacuum cleaner in one spot for
an extended period of time as this may damage the floor surface.

8
CARRY YOUR 2IN1 VACUUM CLEANER
CHARGE YOUR 2IN1 VACUUM CLEANER
CAUTION: To prolong battery life remove the vacuum from charge after 5 hours. Battery to be fully
depleted prior to next charge.
1. Make sure the handle is secured
in the upright position and use
the handle to carry the 2-in-1
vacuum cleaner.
2. Use the handle to carry as a
handheld vacuum cleaner.
1. Plug the charger
lead into the
charging port
located on the side
of the handheld
and then plug the
charger into
the mains.
3. When the vacuum
needs recharging
the LED lights on
the handheld will
illuminate red and
the machine will
cut out.
2. Once fully charged
the LED indicator
lights on the
handheld will
illuminate green.
NOTE: Initial charge is 5 hours, charging will be required before first use. The vacuum can be charged
with the handheld either attached to or detached from the main body.

The brushbar will constantly rotate. Never leave the
vacuum cleaner in one spot for an extended period of time
as this may damage the floor surface. Dirt Devil cannot
be held responsible for damage to the floor surface if this
recommendation is not followed.
CAUTION
7
9
HOW TO
CAUTION: Always unplug the charger from the mains and charging port on the vacuum cleaner
before using or carrying out any maintenance of troubleshooting.

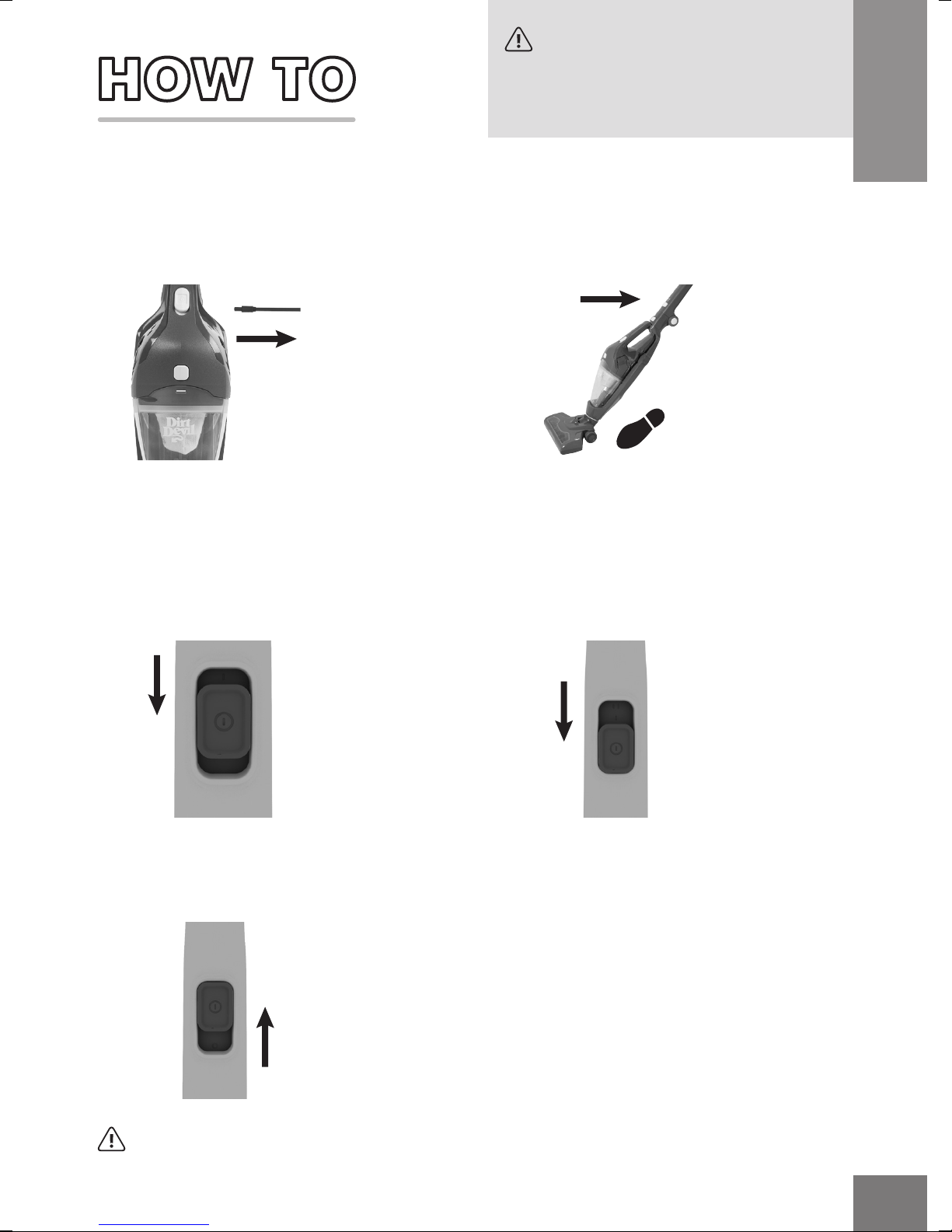

USE AS AN UPRIGHT VACUUM CLEANER
2. Place foot on the floorhead
and pull the handle backwards
to recline.
1. Unplug the charger from the
mains and from the side of
the handheld.
3. Slide the On/Off suction control
switch forward once for low
suction. The LED lights on the
handheld will illuminate green,
indicating the power is on and
the brushbar will spin.
4. Slide the On/Off suction
control switch forward again
for high suction.
5. Slide the On/Off suction control
switch all the way back to switch
the power and LED lights Off.

10
USE AS A HANDHELD VACUUM CLEANER
Always take extra care when cleaning stairs.
Always switch the handheld off before connecting
or disconnecting the accessories and before
returning the handheld to the main body.
CAUTION
1. Press the handheld
release button.
2. Lift to remove the handheld
from the main body.
3. Slide the On/Off suction control
forward to switch the handheld
on. The LED lights will illuminate
green indicating the power is on.

Always switch the vacuum cleaner off before removing
any blockages.
CAUTION
7
11
HOW TO

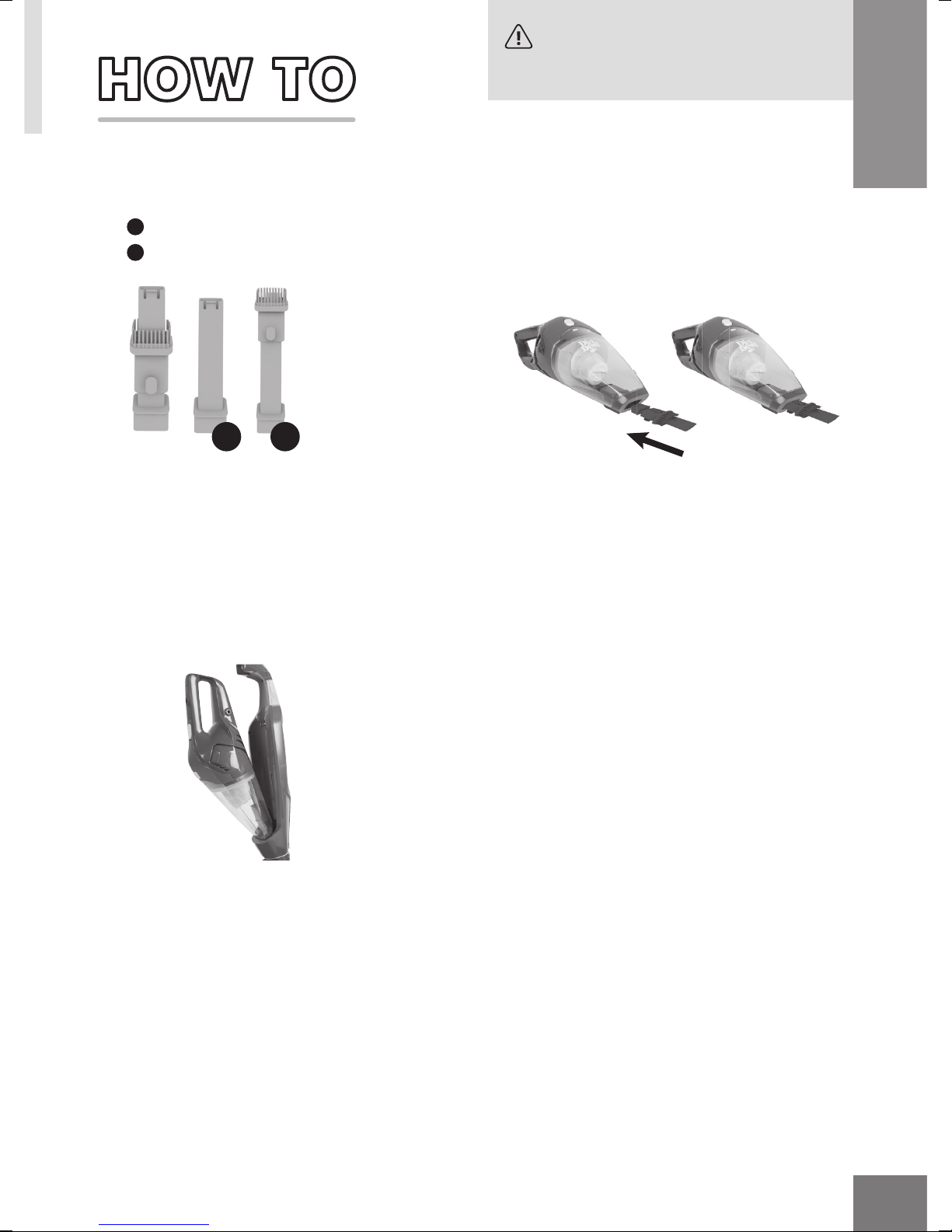

USE THE 2IN1 TOOL
1 2
1. The 2-in-1 converts into:
= Crevice tool
= Dusting brush
2. For a more detailed clean, line up
the 2-in-1 tool the with the nozzle
on the handheld and push firmly
into place.
3. Before returning the handheld
to the main body, slide the On/Off
suction control backwards, to
switch the handheld off. Pull
to remove 2-in-1 tool from the
handheld nozzle.
2
1

12
EMPTY THE DIRT CONTAINER
Always switch off the vacuum cleaner before carrying out any
maintenance or troubleshooting.
CAUTION
1. Press the handheld
release button.
2. Lift to remove the handheld
from the main body.
4. Pull to separate the dirt
container from the handheld.
6. Hold the dirt container over a bin
allowing dirt/debris to fall out.
3. Press the dirt container
release button.
5. Remove the filter from the dirt
container by gently pulling the
filter frame.

For best cleaning results filters require cleaning every
4-6 uses or as needed depending upon use.
Do not use your vacuum cleaner without the filter in place.
CAUTION
7
13
HOW TO

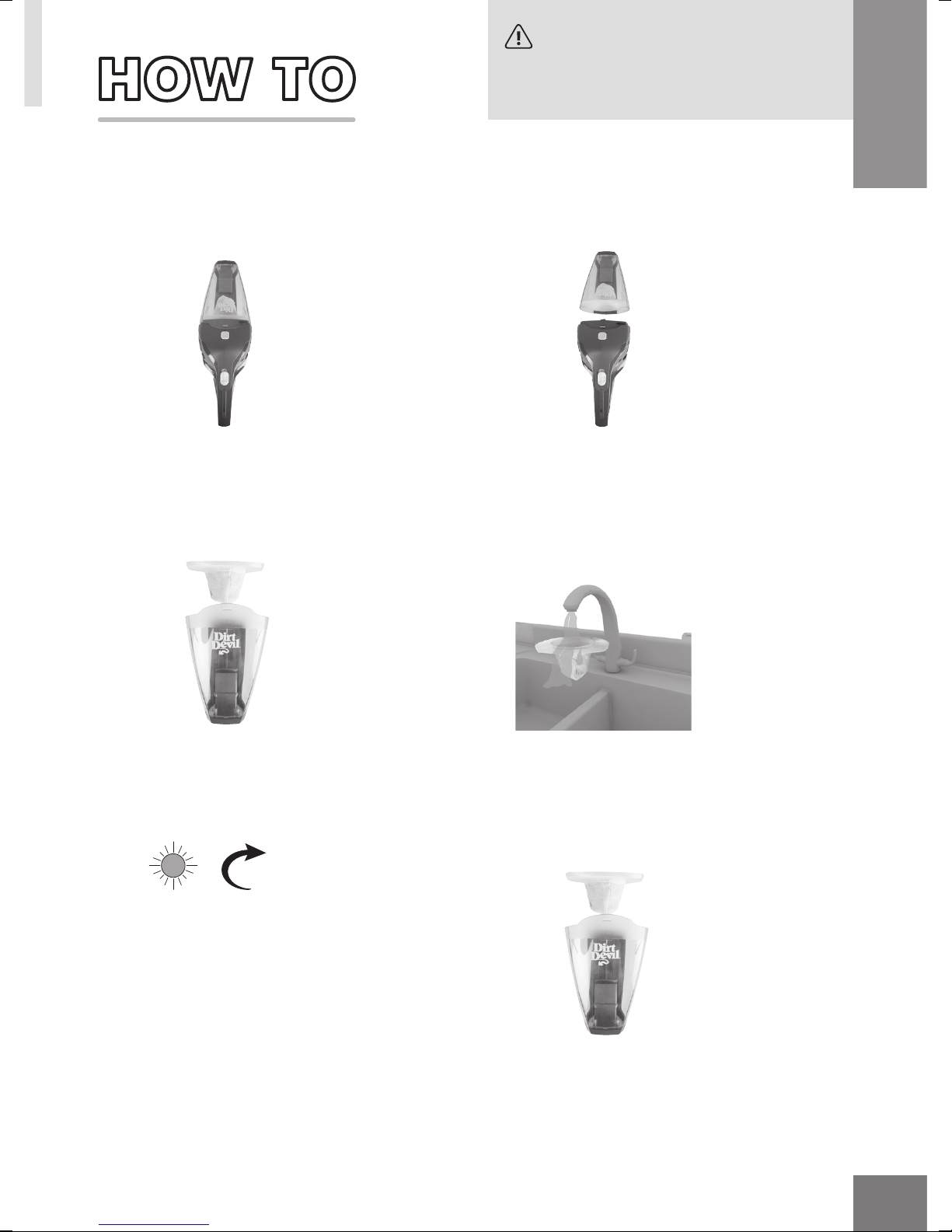

CLEAN THE FILTER
24hr
1. Press the dirt container
release button.
2. Pull to separate the dirt
container from the handheld.
4. Tap the filter over a bin to remove
any dirt/debris. Wash the filter
under running water
(40 degrees max).
6. Refit the filter making sure the
filter frame is correctly lined up
in the dirt container.
3. Remove the filter from the dirt
container by gently pulling the
filter frame.
5. Leave for 24hrs or until fully
dry before replacing.

14
CLEAN THE TERMINALS
For best performance all terminals must be free from
dust and dirt.
CAUTION
CLEAR BLOCKAGES
CAUTION: Use a blunt instrument such as a broom handle or something similar when removing
a blockage from the main body or floorhead.
1. Using a dry cloth or soft dusting brush remove any dust/debris from
terminals on main body and handheld.
1. Press the handheld
release button.
2. Lift to remove the handheld
from the main body.
4. Pull to remove the floorhead
from the main body.
3. Press the floorhead
release button.

715
HOW TO

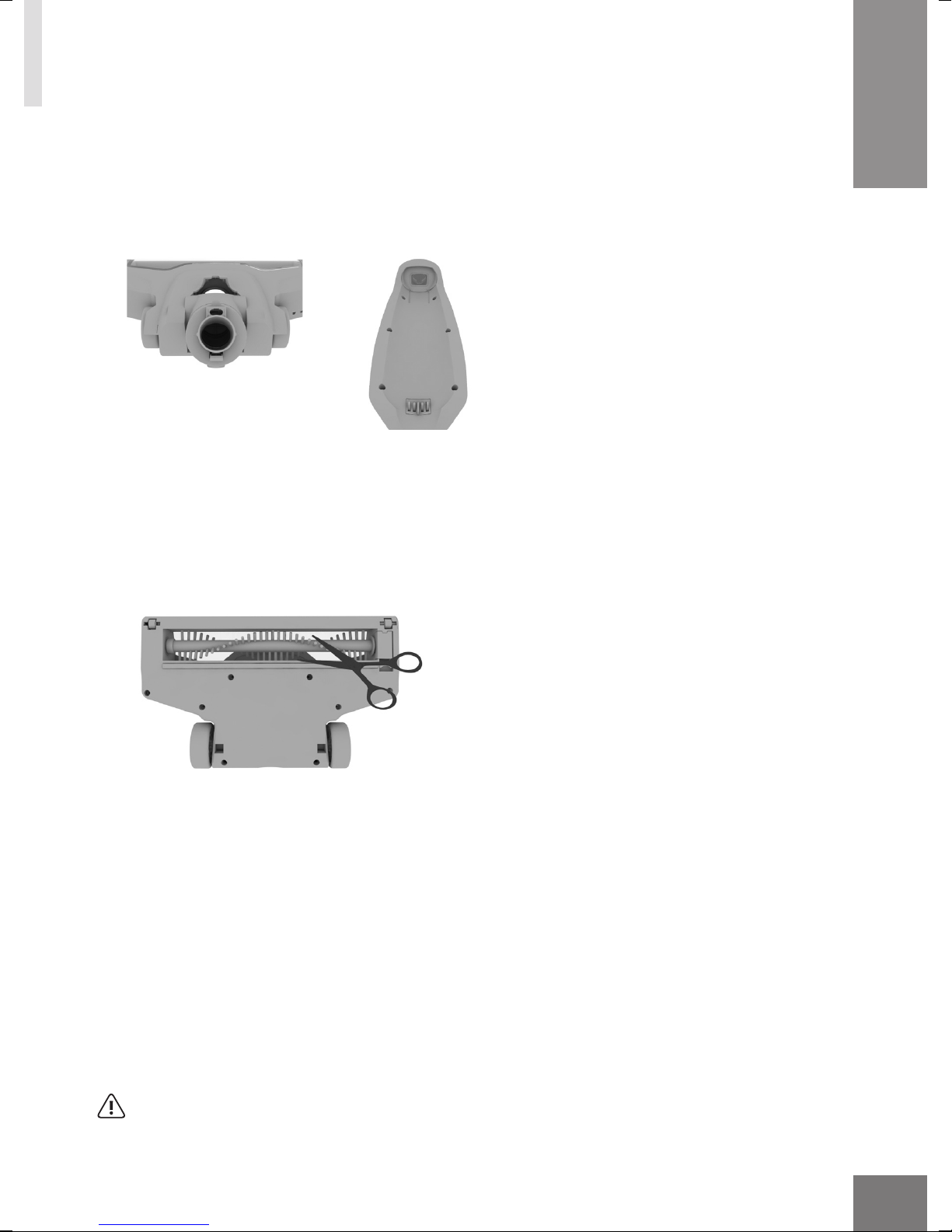

CLEAR A BLOCKAGE FROM THE BRUSHBAR
CAUTION: If the brushbar has been obstructed, the Motor Protection Sensor may have been
activated. Remove the handheld and floorhead and clear any obstruction from the brushbar. Replace
the handheld and floorhead, wait 30 minutes for the vacuum cleaner to reset itself and retry.
1. Using a pair of scissors remove
any threads or hair caught around
the brushbar.
5. Remove any blockage from the
main body or floorhead.

16
REPLACE THE BRUSHBAR
1. To release the brushbar pull
and lift the release lock located
underneath the floorhead.
2. Remove the brushbar lifting the
side of the brushbar nearest the
release lock first.
3. Replace the brushbar. Fit the
inverted round end of the
brushbar first, then line up and
push the other side of brushbar
into the floorhead. Refit the
release lock.

HOW TO / ACCESSORIES
717
Pre-motor filter
Model: DDST14FLT

18
Why does my vacuum
cleaner have no power?
The vacuum cleaner may need
recharging.
The handheld may not be
correctly fitted into the main body.
The terminals may have
gathered dust/debris.
Go to 'How to charge your 2-in-1
vacuum cleaner'.
Go to 'How to assemble your
2-in-1 vacuum cleaner'.
Go to 'How to clean the terminals'.
The brushbar has been obstructed. If the brushbar has been obstructed,
the Motor Protection Sensor may
have been activated. Remove the
handheld and floorhead and clear any
obstruction from the brushbar.
Replace the handheld and floorhead,
wait 30 minutes for the vacuum
cleaner to reset itself and retry.
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
Why won’t the vacuum
cleaner pick up?
Why isn’t my vacuum
cleaner charging?
Why won’t the
brushbar turn?
Why has the LED light
turned red?
The dirt container may be full or
the filters may be clogged.
The terminals may have
gathered dust/debris.
Go to 'How to empty the dirt
container' or 'How to clean the filter'.
Go to 'How to clean the terminals'.
There may be a blockage in the
vacuum cleaner.
The charger cable may be damaged.
Go to ‘How to clear blockages’.
Check the charger cable for damage.
If damaged please contact our
Customer Service AU: 1300 361 505
NZ: 0800 800 900
The brushbar may not be turning.
The vacuum cleaner may need
recharging.
Go to 'How to charge your 2-in-1
vacuum cleaner'.
Low suction has been selected,
increase to high suction.
Go to 'How to use as an upright
vacuum cleaner'.
The brushbar has been obstructed. If the brushbar has been obstructed,
the Motor Protection Sensor may
have been activated. Remove the
handheld and floorhead and clear any
obstruction from the brushbar.
Replace the handheld and floorhead,
wait 30 minutes for the vacuum
cleaner to reset itself and retry.
The vacuum cleaner needs
recharging.
Go to 'How to clear a blockage from
the brushbar'.
Go to 'How to charge your 2-in-1
vacuum cleaner'.
CAUTION: To reduce the risk of personal injury, unplug the charger from the mains and vacuum
cleaner before carrying out any maintenance or troubleshooting checks.

719
TROUBLESHOOTING

Distributed by Techtronic Industries Australia Pty. Ltd.
31 Gilby Road, Mt Waverley
Victoria, 3149, Australia
www.dirtdevil.com.au
Service Line:
AU: 1300 361 505 / NZ: 0800 800 900
LET’S GO.
