PARTS LIST MANUAL
MODEL 2-EC and 2-GC
Two-Disc Concrete Floor Grinder
REVISED STARTING SERIAL # 23735
~ Discount
Equipment
I3•Ii•J
Go to Discount-Equipment.com to order your parts

Discount-Equipment.com is your online resource for quality parts & equipment.
Florida: 561-964-4949 Outside Florida TOLL FREE: 877-690-3101
Need parts?
Click on this link: http://www.discount-equipment.com/category/5443-parts/ and
choose one of the options to help get the right parts and equipment you are looking
for. Please have the machine model and serial number available in order to help us
get you the correct parts. If you don’t find the part on the website or on one of the
online manuals, please fill out the request form and one of our experienced staff
members will get back to you with a quote for the right part that your machine needs.
We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman,
Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto,
Power Blanket, Nifty Lift, Atlas Copco, Chicago Pneumatic, Allmand, Miller Curber, Skyjack,
Lull, Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic,
Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti,
Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S.
Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin,
Rice, CH&E, General Equipment ,Amida, Coleman, NAC, Gradall, Square Shooter, Kent,
Stanley, Tamco, Toku, Hatz, Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air,
APT, Wylie, Ingersoll Rand / Doosan, Innovatech, Con X, Ammann, Mecalac, Makinex, Smith
Surface Prep,Small Line, Wanco, Yanmar

Printed in USA
©2004
Page 2
E-2ECGC-PL-0104
READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING
TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly.
SAFETY
MESSAGES
The safety instructions are proceeded by a graphic alert message of
DANGER, WARNING, or CAUTION.
Indicates an imminent hazard which, if not avoided,
will result in death or serious injury.
Indicates an imminent hazard which, if not avoided,
can result in death or serious injury.
Indicates hazards which, if not avoided, could result
in serious injury and or damage to the equipment.
GASOLINE
Powered Equipment
• Do not operate gasoline powered equipment without adequate ven-
tilation. Carbon monoxide is an invisible, odorless gas that can kill.
ELECTRICAL
Powered Equipment
•ELECTRICAL HAZARD - Be sure equipment is properly grounded.
Failure to comply could kill or result in serious injury.
The engine exhaust from this product contains chemicals known to
the State of California to cause cancer, birth defects or other reproduc-
tive harm.
!!
!!
!
GENERAL INSTRUCTIONS
•You must read and understand the operators instruction manual and
all other manuals associated with this machine. For your safety
and the safety of others around you, it is extremely important to fully
understand how to operate this machine in the way it was intended.
Different model machines or older/newer versions of the same model
may have different parts and controls that you need to understand.
If instructions are not readable or available DO NOT USE this
machine and contact Discount-equipment for a replacement
Manual.
•You must be able to physically handle the bulk weight and power of
this machine. If not properly controlled this machine can cause
death or serious injury.
•Do not operate this machine in an impaired mental state. You must
be able to exercise good judgement and reactions to maintain a safe
working environment.
• This is a “one person” machine which means only one operator can
be operating the machine at any one time. For the safety of others,
maintain a safe operating distance to other personnel. Your work
area should be defined and appropriately marked so bystanders
and coworkers do not stand or walk near this machine and end up
seriously injured by flying debris or exposing them to harmful noise
or dust.
•This equipment is for Commercial use. Although this is a “one
person” machine your work team should understand how to shut
this machine off and quickly get medical help if an accident strikes
the operator.
•Keep all guards in place during operation. The guards are to pro-
vide protection from inadvertent contact with dangerous moving
parts, pinch points, or hot surfaces.
•Wear appropriate Personal Protective Equipment (PPE) including
safety glasses, safety boots, work gloves, respiratory protection,
!!
!!
!
hearing protection, and head protection. Do not wear loose clothing
that can get tangled in moving parts. Failure to do so could result in
dismemberment or death. Wear an approved respirator when re-
moving hazardous materials or when grinding/cutting dry materials.
Some dust particles such as concrete dust can contain silicate
particles which can cause silicosis (a very serious lung disease).
Contact NIOSH or OSHA for further details. When wet grinding/
cutting, avoid contact with the concrete/asphalt slurry which can
cause serious skin irritations.
•You must maintain this machine per the maintenance schedule in
the operator manual. Remember before adjusting, servicing, or
fueling this machine, disconnect the source of power to the machine
by disconnecting the spark plug (Gas models), or by unplugging the
electrical power cord (electric models) or air hose (Pneumatic
models) AT THE MACHINE so you can assure yourself it remains
unplugged while you are working on it. Do not modify this machine.
Use only genuine EDCO parts and accessories. Repairs and ser-
vice should be performed by approved EDCO dealers or authorized
technicians.
•You should look carefully around the area before you begin work so
you can identify potential hazards such as deck inserts, pipes,
columns, openings, electrical cords or outlets, or any other objects
protruding from the slab surface.
•This machine has no brain so you must use your own. There is no
substitute for safety. The safety decals on the machine are to serve
as a reminder for information you must already know before you
begin using this machine. Take a moment to reread the safety
decals each time you use the machine. If your machine is missing
any decals, contact the Discount-equipment.
GARNINfil
I CAUTION I
ffiARNIN])
ICAUTIONI ffiARNIN]]
I =I •Ik•I
Go to Discount-Equipment.com to order your parts

Printed in USA
©2004
Page 3
E-2ECGC-PL-0104
PARTS LIST MANUAL
EDCO MODELS 2-EC and 2-GC
Section Page Number
Safety Messages & General Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
How To Order Replacement Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Illustration 1: Main Grouping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4,5
Illustration 2: Multi-Accessory Disc Grouping. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Illustration 3: Optional Pad Driver Disc Grouping . . . . . . . . . . . . . . . . . . . . . . . . . 7
Illustration 4: Optional Surfacer Disc Grouping . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Illustration 5: Water Valve Grouping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Illustration 6: Engine & Belt Drive Grouping (5.5 HP) . . . . . . . . . . . . . . . . . . . . . 10,11
Illustration 7: Engine & Belt Drive Grouping (11 HP) . . . . . . . . . . . . . . . . . . . . . . 12,13
Illustration 8: Propane Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14,15
Illustration 9: Motor & Belt Drive Grouping (1.5&2 HP) . . . . . . . . . . . . . . . . . . . . . 16,17
Illustration 10: Motor & Belt Drive Grouping (3 HP) . . . . . . . . . . . . . . . . . . . . . . . 18,19
Limited Equipment Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . back cover
2-DISC CONCRETE FLOOR GRINDER
PART NO. MODEL POWER OPTION
51800 2GC-5.5H HONDA 5.5 HP, GASOLINE
51400 2GC-11H HONDA 11.0 HP, GASOLINE
54800 2GC-11P HONDA 11.0 HP, PROPANE
50800 2EC-3B BALDOR 3.0HP-1 PHASE-60HZ-230V
50100 2EC-1.5B BALDOR 1.5HP-1 PHASE-60HZ-115/230V
51300 (EXPORT) 2EC-2B/50H BALDOR 2.0HP-1 PHASE-50HZ-220V
I =I •Ik•J
Go to Discount-Equipment.com to order your parts

Printed in USA
©2004
Page 4
E-2ECGC-PL-0104
ILLUSTRATION 1 : MAIN GROUPING
52
51 50
49
48
47
46
45
45
44
43
42
41
40
39 38
37
36
35
34
33
32
31
30
29
28
27
26
2
16
17
18
18
17
16
22
21
19
25
23
24
15
1
3
5
6
7
8
9
10
11
12
13
16
14
44
22
21
19
16
23
9
20
!
! ' !! i
I ~ 11:.11
/ i
\ ! .
\ ! i~
\ ~ 1 1
\ i
\ 1
\
------------, =I •I -C •J
Go to Discount-Equipment.com to order your parts
SKIRT & VACUUM PORT PANEL,
ITEMS 31 AND 42 ARE REVISED.

SELECT HERE FOR NEW STYLE 
WITH RUBBER SEALS AND 
REMOTE VACUUM PORT

Printed in USA
©2004
Page 5
E-2ECGC-PL-0104
ITEM# PART# DESCRIPTION QTY.
1 74010 HANDLE BAR 1
2 61108 GRIP, HAND 1" MODEL SX 2
3 10029 SCREW, CAP 3/8-24 X 1-3/4 4
4 10025 WASHER, FLAT 3/8 8
5 10004 NUT, LOCK 3/8-24 4
6 77077 HOOD, GRINDER 1
7 10860 BOLT, TAP 1/4-20 X 1-1/4 2
8 10013 NUT 1/4-20 2
9 10602 WASHER, FLAT 1/4 4
10 10861 NUT, KEPS 1/4-20 2
11 77007 COVER, GEAR CASE 1
12 10018 SCREW, CAP 1/4-20 X 3/4 10
13 10038 WASHER, LOCK 1/4 10
14 10602 WASHER, FLAT 1/4 10
15 10005 PLUG, HOLE 7/8" (CHROME) 1
16 77008 BEARING, BALL 1" 4-HOLE FLANGE, ND 4
17 10450 WASHER, LOCK 7/16 16
18 10481 NUT 7/16-20 16
19 77009 BEARING, BALL 3/4" 4-HOLE FLANGE 2
20 10309 SCREW, CAP 3/8-24x1-1/4 4
21 10811 WASHER, LOCK 3/8 8
22 10014 NUT 3/8-24 8
23 77012 GEAR, SPUR 112 TOOTH 2
24 77013 SHAFT, LARGE GEAR 1"DIA X 7-13/16"L 2
25 10007 PIN, ROLL 3/8 X 2-1/2 2
26 77053 GEAR, SPUR 25 TOOTH (PINION) 1
27 77011 SHAFT, PINION GEAR 3/4DIA X 7-3/8"L 1
28 10037 PIN, ROLL 1/4 X 1-1/2 1
29 10009 WASHER, FLAT 3/4 1
30 77022 MAIN FRAME & GEAR CASE 1
31 77001 CG228 DUST & SAFETY SHIELD (SKIRT) 1
32 10806 SCREW, CAP 5/16-18x1 1
33 10801 WASHER, LOCK 5/16 1
34 10213 WASHER, FLAT 5/16 1
35 9999 DISC ASSY. COMPLETE, MULTI-ACCY. LH 1
(SEE ILLUSTRATION 2 FOR BREAKDOWN)
36 10063 PIN, ROLL 3/8 X 2 2
37 8888 DISC ASSY. COMPLETE, MULTI-ACCY. RH 1
(SEE ILLUSTRATION 2 FOR BREAKDOWN)
38 10806 SCREW, CAP 5/16-18 X 1 4
39 10801 WASHER, LOCK 5/16 4
40 10213 WASHER, FLAT 5/16 4
41 10113 SPACER, STEEL 9/16OD X 3/8ID X 7/32" 2
42 77112 PANEL, VACUUM PORT 2" 1
43 65021 PLUG, CAP 2" 1
44 10321 SCREW, CAP 1/2-20 X 1-1/4 2
45 10312 WASHER, FLAT 1/2 4
46 10205 NUT, LOCK 1/2-20 2
47 86305 FLIP-HOLDER, WHEELAXLE 2
48 10139 SCREW, SET 1/4-20x5/16 2
49 77214 SPACER, WHEEL 3/8"L 1
50 79013 WHEEL 8 X 2-1/2 X 3/4"BRG. 2
5152 77215 AXLE SPACER 9-13/16"L 1
5251 77209 AXLE SHAFT 3/4"DIA. X 17"L 1
PARTS LISTING - ILLUSTRATION 1 : MAIN GROUPING
Go to Discount-Equipment.com to order your parts

SKIRT & VACUUM
PORT PANEL,
ITEMS 31 AND 42 
ARE REVISED.

SELECT HERE FOR 
NEW STYLE WITH 
RUBBER SEALS 
AND REMOTE 
VACUUM PORT

Printed in USA
©2004
Page 6
E-2ECGC-PL-0104
ITEM # PART# DESCRIPTION QTY.
1 DISC, MULTI-ACCESSORY
77088 R.H. FOR #8888 ASSY. 1
77099 L.H. FOR #9999 ASSY. 1
2 77020 RING, HUB CARRIER, 6-HOLE 1
3 10112 RING, NEOPRENE, 4-1/2”ODx1/2"THK 2
4 77010 HUB, ALUMINUM 6-HOLE (GRINDER) 1
5 10114 SCREW, SKT. HD. CAP 3/8-24 X 2-1/4 6
6 10113 SPACER, STEEL 9/16OD X 3/8ID X 7/32" 6
7 10011 SPACER, STEEL 5/8OD X 3/8ID X 3/8” 6
8 10004 NUT, LOCK 3/8-24 6

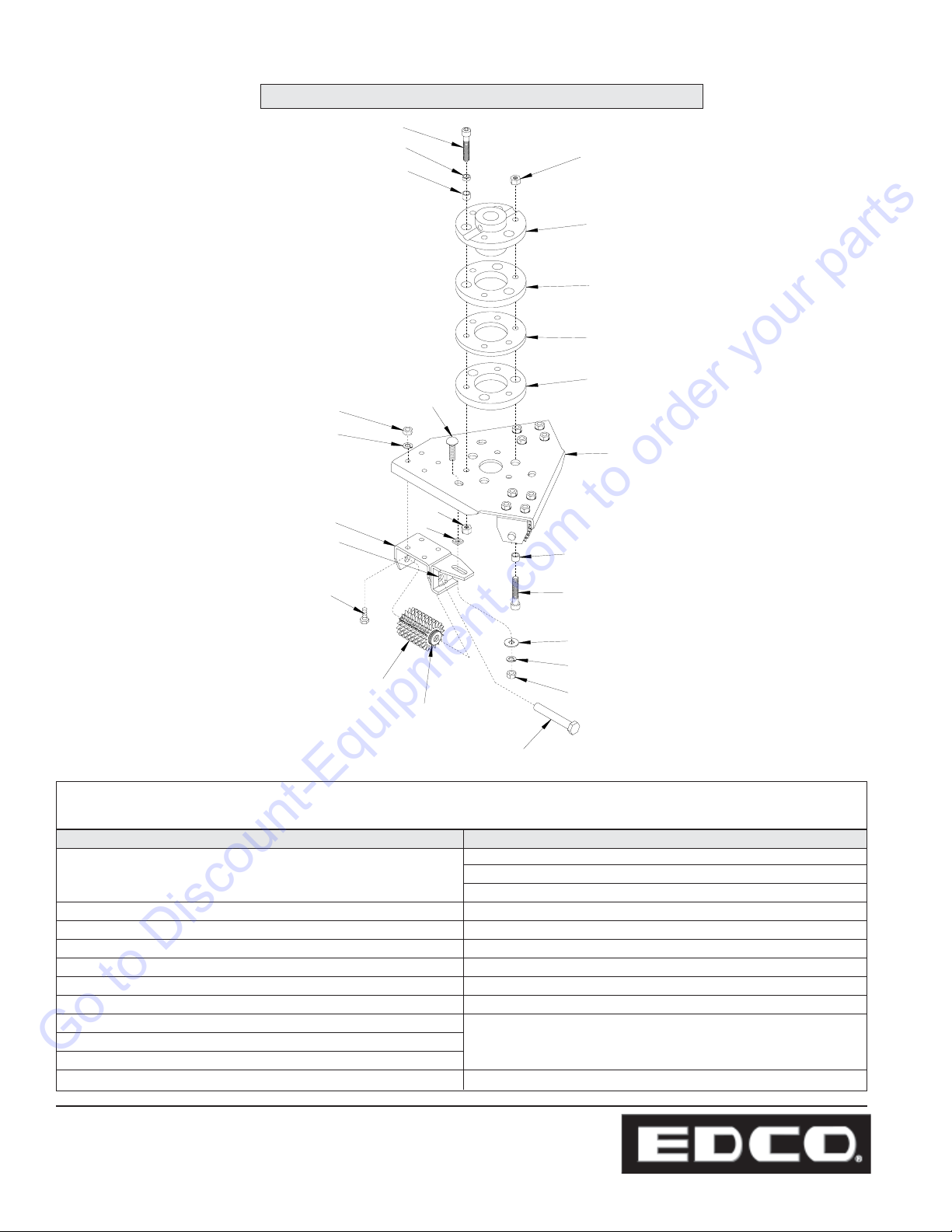

ILLUSTRATION 2 : MULTI-ACCESSORY DISC GROUPING
#8888 DISC ASSEMBLY COMPLETE, RIGHT HAND (1 REQ’D.)
#9999 DISC ASSEMBLY COMPLETE, LEFT HAND (1 REQ’D.)
1
5
6
7
8
8
7
6
5
32
4
/
: 0 :
oocb
G) 0
0
!-
Go to Discount-Equipment.com to order your parts

Printed in USA
©2004
Page 7
E-2ECGC-PL-0104
ITEM # PART# DESCRIPTION QTY.
1 76040 PAD DRIVER DISC ASSEMBLY (INCLUDES ITEMS 2-5) 2
2 76042 HUB STUD, PAD DRIVER 1
3 76041 DISC ONLY 11", PAD DRIVER 1
4 10312 WASHER, FLAT 1/2 1
5 10304 SCREW, CAP 1/2-20 X 1 1
6 13013 SILABIDE PAD, 11" MEDIUM 2
ILLUSTRATION 3 : OPTIONAL PAD DRIVER DISC GROUPING
6
5
4
3
2
1
MULTI ACCESSORY
DISC ASSEMBLY
(SEE ILLUSTRATION
2 FOR BREAKDOWN)
ii ----- - -
I --- - -
I =I •1-t•J
Go to Discount-Equipment.com to order your parts

Printed in USA
©2004
Page 8
E-2ECGC-PL-0104
ITEM# PART# DESCRIPTION QTY.
1 DISC, SURFACER
77122 R.H. FOR #2222 ASSY. 1
77133 L.H. FOR #3333 ASSY. 1
2 10112 RING, NEOPRENE, 4-1/2”ODx1/2"THK 2
3 77020 RING, HUB CARRIER, 6-HOLE 1
4 77010T HUB, CAST IRON 6-HOLE 1
5 10114 SCREW, SKT. HD. CAP 3/8-24 X 2-1/4 6
6 10113 SPACER, STEEL 9/16OD X 3/8ID X 7/32" 3
7 10011 SPACER, STEEL 5/8OD X 3/8ID X 3/8” 6
8 10004 NUT, LOCK 3/8-24 6
9 10054 NUT 5/16-18 12
10 10801 WASHER, LOCK 5/16 12
11 10806 SCREW, CAP 5/16-18 X 1 12
ILLUSTRATION 4 : OPTIONAL SURFACER DISC GROUPING
ITEM# PART# DESCRIPTION QTY.
12 77074 HOLDER, CUTTER SHAFT, SURFACER DISC 3
13 10802 BOLT, CARRIAGE 3/8-16 X 1 3
14 10089 CLIP, SPEED NUT 3/8" 3
15 10025 WASHER, FLAT 3/8 3
16 10811 WASHER, LOCK 3/8 3
17 10404 NUT 3/8-16 3
18 77075 RETAINER, CUTTER SHAFT, SURF. DISC 3
19 77048 CG226 CUTTER SHAFT, 1/2 X 3-1/4 3
20 12230 CG227 SPACER 1/2"ID 33
21 CUTTER WHEEL
12206 JRS501-P, POINTED (STANDARD) 24
20156 CP206T, 1-3/4" CARBIDE (OPTIONAL) 18
21
20
19
18
17
16
15
14
13
12
11
9
10
5
7
8
8
7
6
5
1
2
3
2
4
#2222 SURFACER DISC ASSEMBLY, RIGHT HAND (1 REQ’D)
#3333 SURFACER DISC ASSEMBLY, LEFT HAND (1 REQ’D)
~ . e ~
~ ~
C;J '
' .
"'
0
'
' :
0
: :
'
0
: '
' '
~ \! ' .... ···
~ :
, o • ® 'ea ®
Q o , :e G !
0 l,""
Oe
\, ®----__
\ ~
~
I =I •1-C•J
Go to Discount-Equipment.com to order your parts

Printed in USA
©2004
Page 9
E-2ECGC-PL-0104
ILLUSTRATION 5 : WATER VALVE GROUPING
ITEM# PART# DESCRIPTION QTY.
1 56022A VALVE SUBASSY., w/ BRACKET 1
(INCL. ITEMS 2-5)
2 56022 BRACKET, WATER VALVE 1
3 10711 VALVE, BALL 1/2 FPT 1
4 80021 CONN., SWIVEL FEMALE 3/4 HOSE x 1/2 MPT 1
10070 WASHER, HOSE 3/4 (INCLUDED W/ CONNECTOR)
5 10799 BARB ELBOW 90° 3/8 HOSE x 1/4 MPT 1
6 10846 SCREW, CAP STSHW 1/4-20 X 1/2 2
7 50069 CLAMP, HOSE, SAE #6, ADJ. to 13/16 2
8 65081 HOSE, WATER 3/8” ID x 34” L 1
9 10694 BARB, 3/8 HOSE x 1/8 MPT 1
10 10772 ELBOW, STREET 1/8 NPT x 45° (BRASS) 2
11 10982 TIE, CABLE, BLACK NYLON 11-1/4’ 2
r
Go to Discount-Equipment.com to order your parts

Printed in USA
©2004
Page 10
E-2ECGC-PL-0104

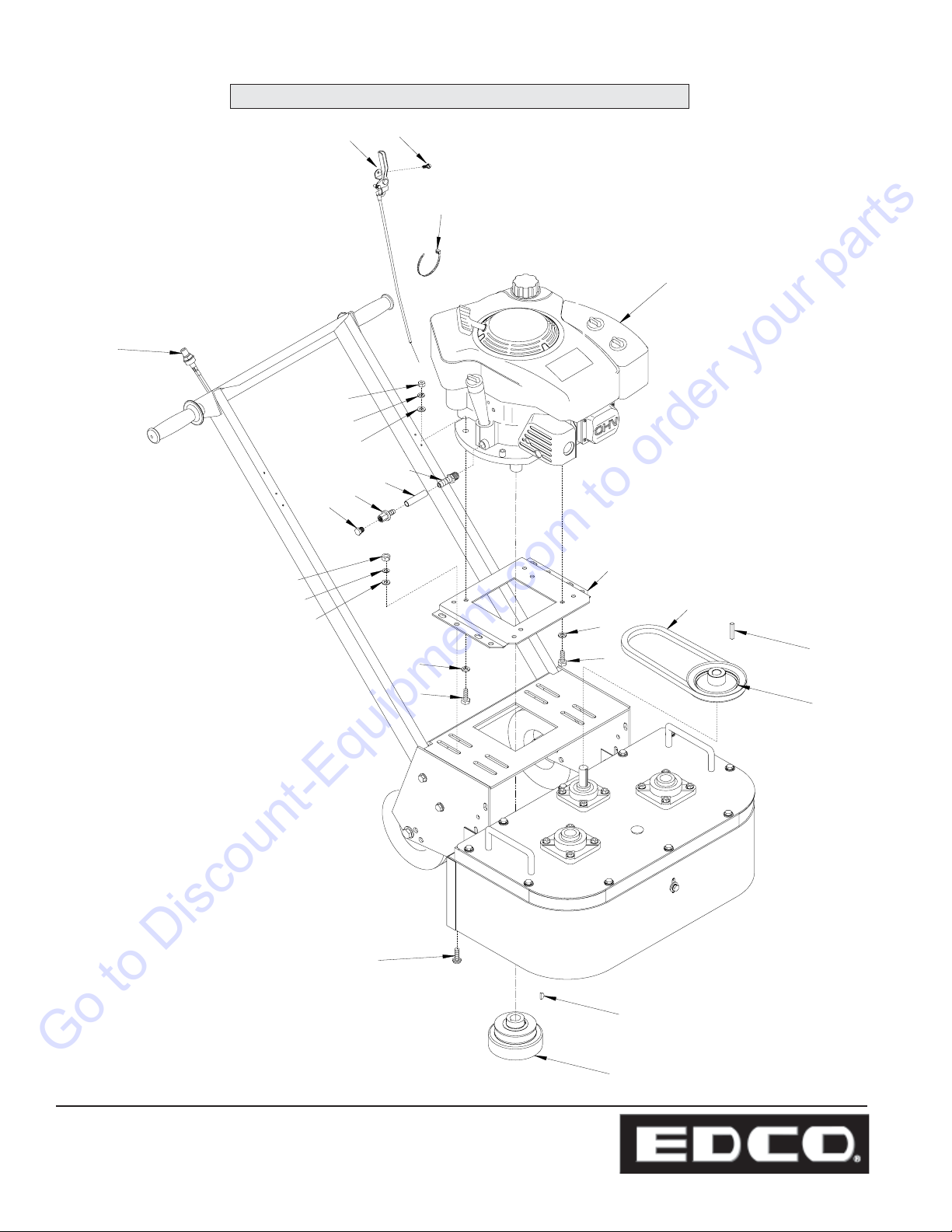

ILLUSTRATION 6 : ENGINE & BELT DRIVE GROUPING (5.5 HP)
19
6
5
25 24
23
22
21 20
18
17
16
15
14
13
8
7
6
12
11
10
9
4
3
2
1
I =i •Ik•J
Go to Discount-Equipment.com to order your parts
EFFECTIVE JUNE 2005
SERIAL NO. 24265 AND UP
ALL GASOLINE ENGINES HAVE A 
MANUAL CHOKE CONTROL.
SELECT HERE FOR PARTS LIST 
ADDENDUM FOR CHOKE KIT TO 
UPGRADE UNITS PRIOR TO SERIAL 
NO. 24265 OR TO REPLACE PARTS.

Printed in USA
©2004
Page 11
E-2ECGC-PL-0104
ITEM# PART# DESCRIPTION QTY.
1 76020 ENGINE, HONDA 5.5 HP GXV160KN12 1
2 76023 MOUNT, ENGINE 1
3 10048 SCREW, CAP 5/16-24 X 3/4 3
4 10801 WASHER, LOCK 5/16 3
5 10342 SCREW, CAP 5/16-18 X 1-1/2 1
6 10025 WASHER, FLAT 3/8 2
7 10811 WASHER, LOCK 3/8 1
8 10054 NUT 5/16-18 1
9 10802 BOLT, CARRIAGE 3/8-16 X 1 4
10 10025 WASHER, FLAT 3/8 4
11 10811 WASHER, LOCK 3/8 4
12 10404 NUT 3/8-16 4
13 50010 SWITCH KIT, STOP BUTTON, 7/8" HOLE 1
14 77024 CLUTCH, CENTRIFUGAL 3.5 X 1GR X 7/8 1
15 10019 KEY, WOODRUFF 5/32 X 5/8 (#505) 1
16 3654 SHEAVE 5"OD X 1GR.B X 3/4"BORE 1
17 10016 KEY 3/16SQ X 1-1/2 1
18 10051 BELT 5L-270 1
19 11541 BARB, PUSH-ON 3/8HOSEX10MMX1.25 1
20 72106 HOSE, PUSH-ON 3/8"ID X 2-1/4"L 1
21 11544 BARB, PUSH-ON 3/8HOSE X 1/4FPT 1
22 10776 PIPE PLUG 1/4 NPT (BRASS) 1
23 10982 TIE, CABLE, BLACK NYLON 11-1/4" 1
24 10877 SCREW, CAP STSHW 10-24 X 1/2 2
25 40388 CABLE, THROTTLE, LEVER-TYPE 24" 1
PARTS LISTING - ILLUSTRATION 6 : ENGINE & BELT DRIVE GROUPING (5.5 HP)
I =i •I 8 •J
Go to Discount-Equipment.com to order your parts

Printed in USA
©2004
Page 12
E-2ECGC-PL-0104
ILLUSTRATION 7 : ENGINE & BELT DRIVE GROUPING (11 HP)
13
24
6
5
3
4
2
10
11
12
25
23
1
6
8
7
22
21
20
19
15
17
18
14
16
9
J
I =I •1-C•J
Go to Discount-Equipment.com to order your parts
EFFECTIVE JUNE 2005
SERIAL NO. 24265 AND UP
ALL GASOLINE ENGINES HAVE A 
MANUAL CHOKE CONTROL.
SELECT HERE FOR PARTS LIST 
ADDENDUM FOR CHOKE KIT TO 
UPGRADE UNITS PRIOR TO SERIAL 
NO. 24265 OR TO REPLACE PARTS.

Discount-Equipment.com is your online resource for quality parts & equipment.
Florida: 561-964-4949 Outside Florida TOLL FREE: 877-690-3101
Need parts?
Click on this link: http://www.discount-equipment.com/category/5443-parts/ and
choose one of the options to help get the right parts and equipment you are looking
for. Please have the machine model and serial number available in order to help us
get you the correct parts. If you don’t find the part on the website or on one of the
online manuals, please fill out the request form and one of our experienced staff
members will get back to you with a quote for the right part that your machine needs.
We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman,
Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto,
Power Blanket, Nifty Lift, Atlas Copco, Chicago Pneumatic, Allmand, Miller Curber, Skyjack,
Lull, Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic,
Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti,
Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S.
Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin,
Rice, CH&E, General Equipment ,Amida, Coleman, NAC, Gradall, Square Shooter, Kent,
Stanley, Tamco, Toku, Hatz, Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air,
APT, Wylie, Ingersoll Rand / Doosan, Innovatech, Con X, Ammann, Mecalac, Makinex, Smith
Surface Prep,Small Line, Wanco, Yanmar

Printed in USA
©2004
Page 13
E-2ECGC-PL-0104
ITEM# PART# DESCRIPTION QTY.
1 76004 ENGINE, HONDA 11 HP GXV340K2-DX3 1
2 76023 MOUNT, ENGINE 1
3 10048 SCREW, CAP 5/16-24 X 3/4 2
4 10801 WASHER, LOCK 5/16 2
5 10606 SCREW, CAP 5/16-18 X 1-1/4 2
6 10213 WASHER, FLAT 5/16 4
7 10801 WASHER, LOCK 5/16 2
8 10054 NUT 5/16-18 2
9 10802 BOLT, CARRIAGE 3/8-16 X 1 4
10 10025 WASHER, FLAT 3/8 4
11 10811 WASHER, LOCK 3/8 4
12 10404 NUT 3/8-16 4
13 50010 SWITCH KIT, STOP BUTTON, 7/8" HOLE 1
14 76024 CLUTCH, CENTRIFUGAL 3.5 X 2GR X 1 1
15 10307 KEY 1/4SQ X 2-1/4 1
16 77058 SHEAVE 5"OD X 2GR.B X 3/4"BORE 1
17 10016 KEY 3/16SQ X 1-1/2 1
18 10051 BELT 5L-270 2
19 11543 BARB, PUSH-ON 3/8HOSEX20MMX1.50 1
20 56116 HOSE, PUSH-ON 3/8"ID X 3"L 1
21 11544 BARB, PUSH-ON 3/8HOSE X 1/4FPT 1
22 10776 PIPE PLUG 1/4 NPT (BRASS) 1
23 10982 TIE, CABLE, BLACK NYLON 11-1/4" 1
24 10877 SCREW, CAP STSHW 10-24 X 1/2 2
25 40388 CABLE, THROTTLE, LEVER-TYPE 24" 1
PARTS LISTING - ILLUSTRATION 7 : ENGINE & BELT DRIVE GROUPING (11 HP)
I =I •I 8 •J
Go to Discount-Equipment.com to order your parts

Printed in USA
©2004
Page 14
E-2ECGC-PL-0104

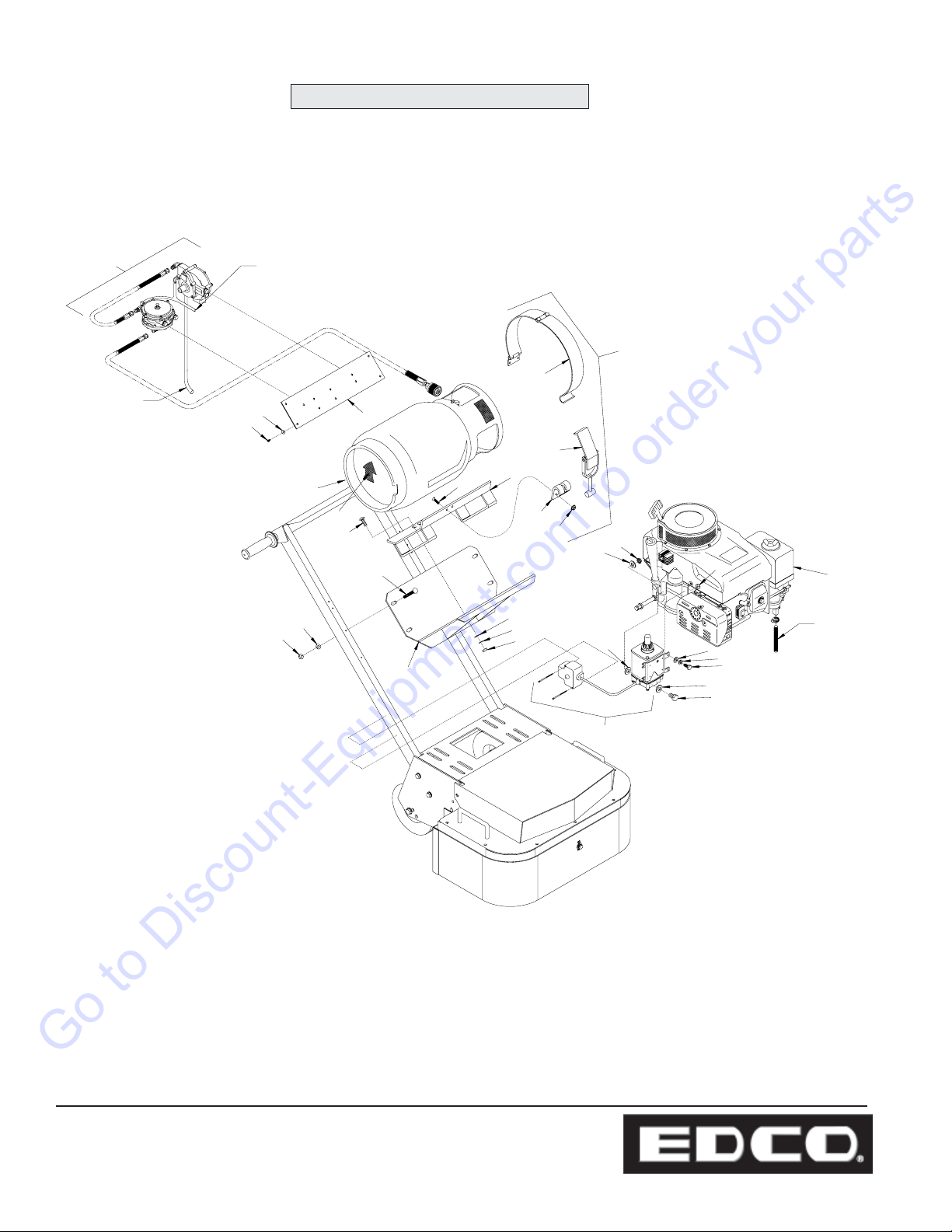

ILLUSTRATION 8 : PROPANE OPTION
16
15
14
24
27
26
25
28
29
30
23
19
21
18
22
20
17
11
12
13
10
9
5
4
48
76
4
3
1
2
TO SPUD-IN
ON CARBUETOR
TO VACUUM NIPPLE
BOTTOM OF CARBURETOR
TO BEAM 50B
REGULATOR
------------, =I •I k •J
Go to Discount-Equipment.com to order your parts

Printed in USA
©2004
Page 15
E-2ECGC-PL-0104
ITEM# PART# DESCRIPTION QTY.
1 15012 ENGINE, HONDA 11. HP GXV340-DAP2 1
2 15126 STARTER KIT, ELECTRIC 120 VOLTAC 1
3 10031 SCREW, CAP 1/4-20 X 1 2
4 10602 WASHER, FLAT 1/4 6
5 10861 NUT, KEPS 1/4-20 2
6 77262 SCREW, CAP M6 X 1.0P X 18MM 2
7 10038 WASHER, LOCK 1/4 2
8 10602 WASHER, FLAT 1/4 2
9 77251 NUT M6 X 1.0MM PITCH 2
10 15102 VAPOR KIT FOR HONDA GXV340-DAP2 1
11 77063 PROPANE REGULATOR MOUNT PLATE 1
12 10846 SCREW, CAP STSHW 1/4-20 X 1/2 4
13 10038 WASHER, LOCK 1/4 4
14 15130 PROPANE TANK 20LB. HORZ. 1
15 91122 DECAL, ARROW, RED, 3 X 3 1
16 77061 PROPANE TANK MOUNT COMPLETE 1
(INCLUDES ITEMS 17-22)
17 77061-2 PROPANE TANK STRAP W/ HINGE 1
18 77061-4 PROPANE TANK TOGGLE CLAMP 1
19 77061-1 PROPANE TANK CRADDLE BRACKET ONLY 1
20 77061-3 PROPANE TANK CLAW BRACKET 1
21 11661 SCREW, FLAT HD SLOTTED 1/4-20 X 1 4
22 10861 NUT, KEPS 1/4-20 4
23 10802 BOLT, CARRIAGE 3/8-16 X 1 4
24 77062 PROPANE TANK MOUNT 1
25 10025 WASHER, FLAT 3/8 4
26 10811 WASHER, LOCK 3/8 4
27 10404 NUT 3/8-16 4
28 10908 BOLT, CARRIAGE 3/8-16 X 2-1/2 4
29 10025 WASHER, FLAT 3/8 4
30 10810 NUT, LOCK 3/8-16 4
PARTS LISTING - ILLUSTRATION 8 : PROPANE OPTION
I =I •lk•J
Go to Discount-Equipment.com to order your parts

Printed in USA
©2004
Page 16
E-2ECGC-PL-0104
ILLUSTRATION 9 : MOTOR & BELT DRIVE GROUPING (1.5 & 2 HP)
30
29
4
27
16
14
12
15
13
8
9
10
7
3
4
2
5
6
11
17
1
26
23
22
24
25
21
20
20
19
28
18
~ ··· ·· ....
,. ~ ..
I =i •1-t•J
Go to Discount-Equipment.com to order your parts
EFFECTIVE MARCH 2011
STARTING SERIAL # 110310069
SEE PARTS BULLETIN FOR
MOTOR TYPE. CLICK HERE.

Printed in USA
©2004
Page 17
E-2ECGC-PL-0104
ITEM# PART# DESCRIPTION QTY.
1 MOTOR 1
16070 1.5HP-1 PHASE-60HZ-115/230V 1740RPM (REV. OCT. 2009)
16019 2.0HP-1 PHASE-50HZ-110/220V 1425RPM (EXPORT MODEL)
2 77037 MOUNT, MOTOR 1
3 10021 SCREW, CAP 3/8-24 X 1 4
4 10025 WASHER, FLAT 3/8 4
5 10811 WASHER, LOCK 3/8 4
6 10014 NUT 3/8-24 4
7 10802 BOLT, CARRIAGE 3/8-16 X 1 4
8 10025 WASHER, FLAT 3/8 8
9 10811 WASHER, LOCK 3/8 4
10 10404 NUT 3/8-16 4
11 10005 PLUG, HOLE 7/8” (CHROME) 1
12 SHEAVE 1
77017 3”OD X 1GR.B X 7/8”BORE (BALDOR 1.5HP)
77030 3”OD X 1GR.B X 1-1/8”BORE (LEESON 1.5HP & BALDOR 2HP)
13 ------ KEY 3/16 SQ. (INCLUDED WITH MOTOR) 1
14 3654 SHEAVE 5”OD X 1GR.B X 3/4”BORE 1
15 10016 KEY 3/16SQ X 1-1/2 1
16 10051 BELT 5L-270 1
17 76002 SWITCH, TOGGLE DPDT (VOLTAGE SELECTOR) 1
USED ON 1.5 HP MOTOR ONLY
18 77028 SWITCH & WIRE HARNESS ASSY. 1
(INCLUDES ITEMS 19 THRU 26)
19 77043 SWITCH, ROTARY CAM ON/OFF, LOVATO 1
INCLUDES (2) 1/2 NPTADAPTERS
20 41130 STRAIN RELIEF 1/2NPT X .550-.650” 2
21 77044 PLUG W/ 12/3 WIRE HARNESS, LOCKING 1
22 77042 BRACKET, LOVATO SWITCH BOX 1
23 11663 SCREW, MACHINE 8-32 X 1/2 4
(LOCATED INSIDE SWITCH BOX)
24 10461 WASHER, LOCK, INT. TOOTH #8 4
25 10462 NUT 8-32 4
26 77045 WIRE HARNESS, 12/3 X 39”LOA 1
*27 10982 TIE, CABLE, BLACK NYLON 11-1/4” 2
*28 10959 STRAIN RELIEF 3/4NPT X .550-.650” 1
*29 10846 SCREW, CAP STSHW 1/4-20 X 1/2 2
*30 40000 PLUG CONNECTOR, LOCKING 20A/250V 1
*NOTE: ITEMS 27 THRU 30ARE NOT INCLUDED WITH ASSEMBLY
PARTS LISTING - ILLUSTRATION 9 : MOTOR & BELT DRIVE GROUPING (1.5&2 HP)
I =I •13•1
Go to Discount-Equipment.com to order your parts

Printed in USA
©2004
Page 18
E-2ECGC-PL-0104
ILLUSTRATION 10 : MOTOR & BELT DRIVE GROUPING (3 HP)
4
65
17
20
18
12
16
18
17
19
22
23
27
26 25
21
17
19
18
28
29
30
2
4
3
24
7
10
9
8
14
13
11
15
.--- ~ •••••••••••••..
I =i •1-t•J
Go to Discount-Equipment.com to order your parts
