Ditch Witch 100SX User manual

100sx
Operator’s
Manual
Issue 1.0
Original Instruction 053-2815

100sx Operator’s Manual Overview - 1
Overview
Chapter Contents
Serial Number Location . . . . . . . . . . . . . . . . . . . . . . 2
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Unit Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operator Orientation. . . . . . . . . . . . . . . . . . . . . . . . . 5
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 5
• Bulleted Lists. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
• Numbered Lists. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Overview - 2 100sx Operator’s Manual

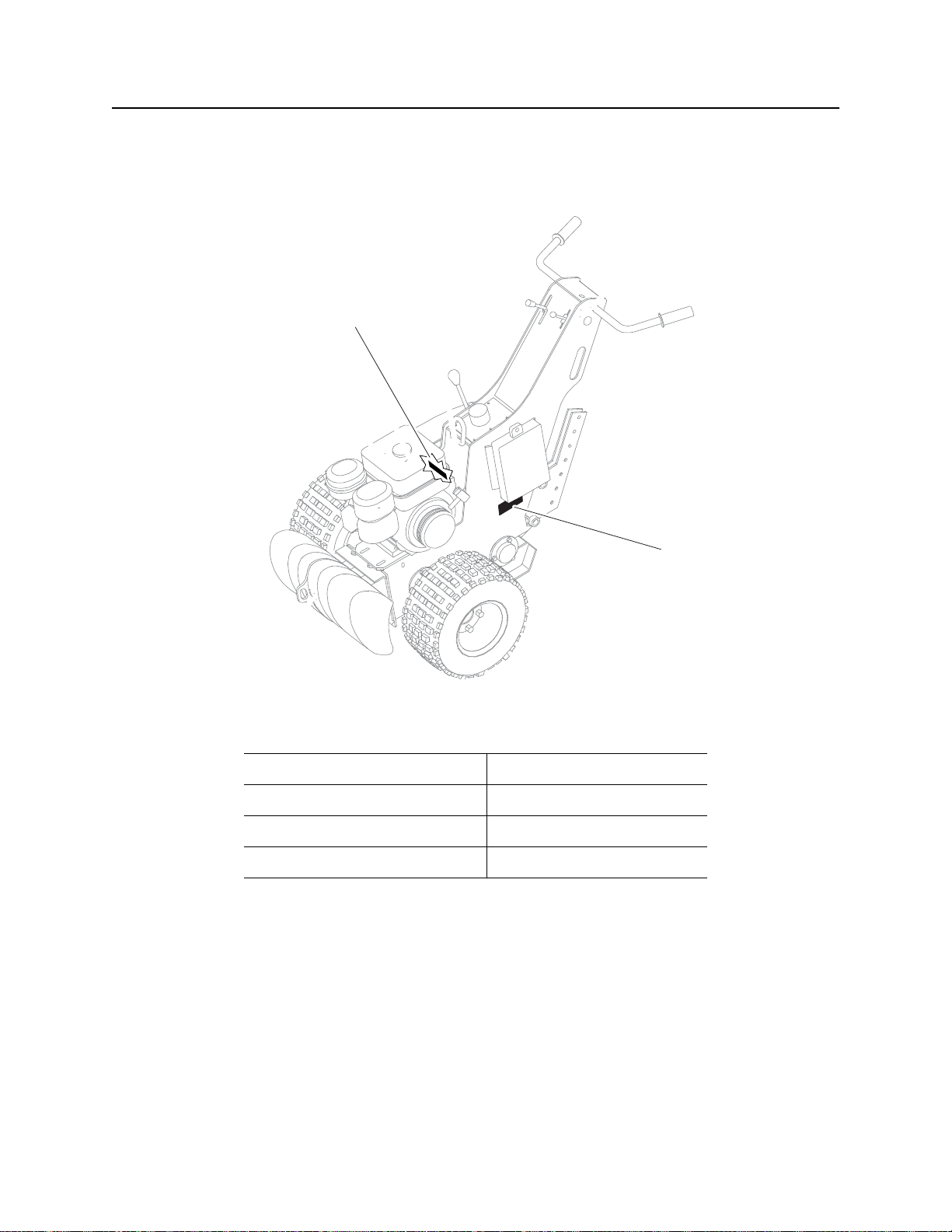

Serial Number Location
Serial Number Location
Record serial numbers and date of purchase in the spaces provided.
Date of manufacture
Date of purchase
100sx plow serial number (2)
Engine serial number (1)
t44om002w.eps
1
2

100sx Operator’s Manual Overview - 3
Intended Use
Intended Use
The 100SX is a self-propelled, walk-along vibratory plow. The 100SX is powered by a 13 hp (9.7 kW)
Briggs & Stratton®engine and is designed to operate in a variety of soil conditions with either a pull or feed
blade.
The unit is designed for operation in temperatures typically experienced in excavation and construction
work environments. Provisions may be required to operate in extreme temperatures. Contact your Ditch
Witch®dealer. Use in any other way is considered contrary to the intended use.
The 100sx should be operated, serviced, and repaired only by persons familiar with its particular
characteristics and acquainted with the relevant safety procedures.

Overview - 4 100sx Operator’s Manual
Unit Components

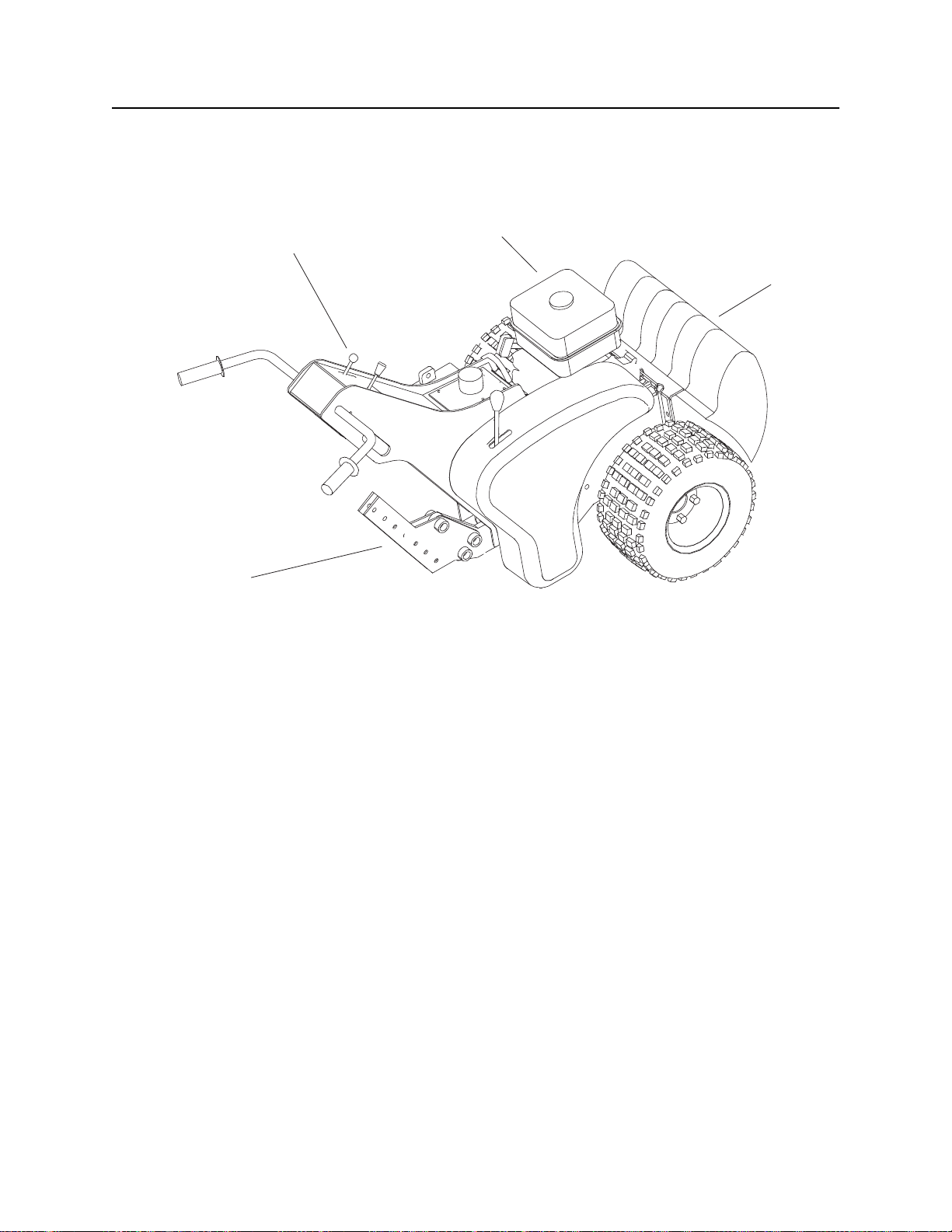

Unit Components
1. Control panel/operator position
2. Engine
3. Weight assembly
4. Blade mount bracket
t44om004w.eps
12
3
4

100sx Operator’s Manual Overview - 5
Operator Orientation

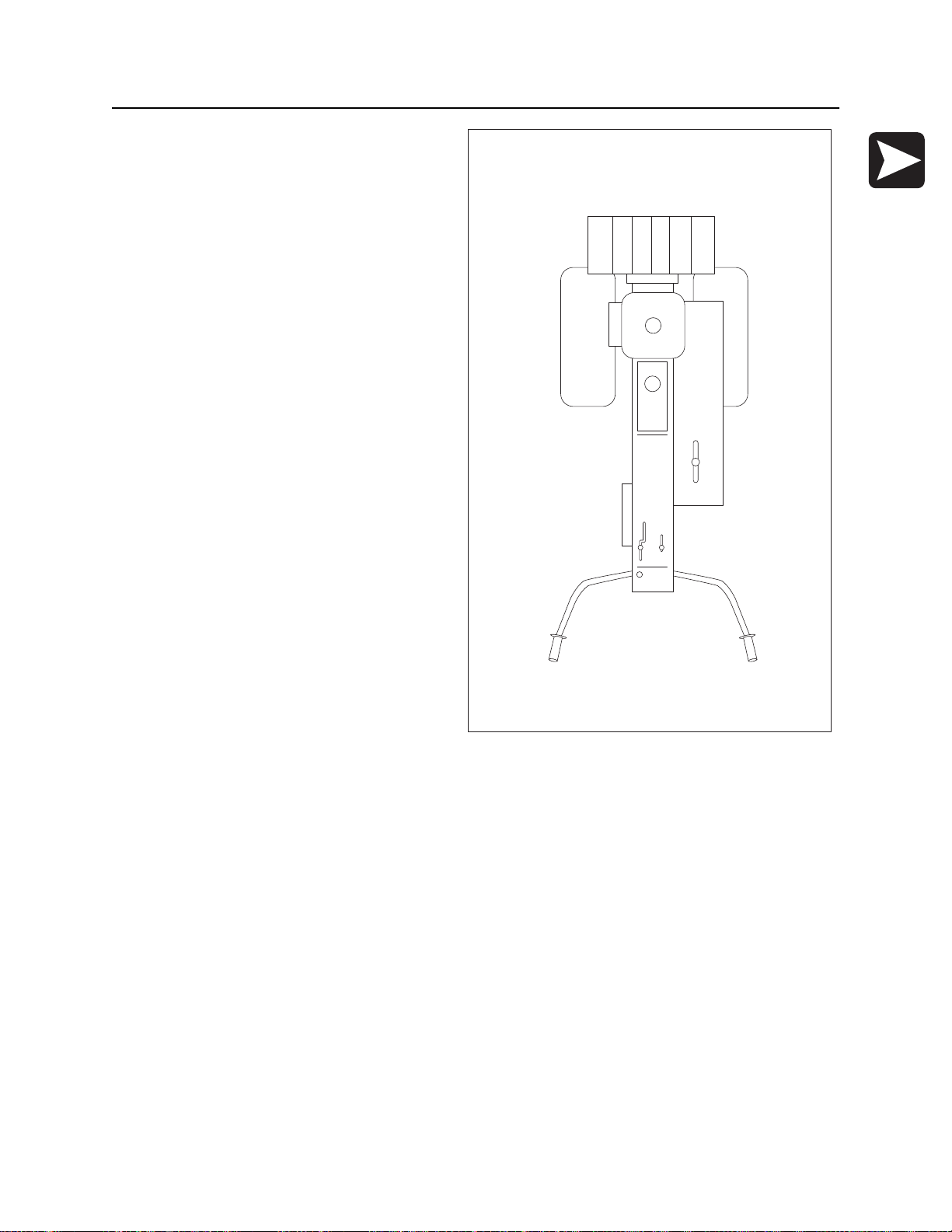

Operator Orientation
Right and left sides of machine are determined by
facing front of unit while standing at the controls.
About This Manual
This manual contains information for the proper
use of this machine. See Operation Overview
for basic operating procedures. Cross references
such as “See page 50” will direct you to detailed
procedures.
Bulleted Lists
Bulleted lists provide helpful or important
information or contain procedures that do not
have to be performed in a specific order.
Numbered Lists
Numbered lists contain illustration callouts or list steps that must be performed in order.
1. Front of unit
2. Left of unit
3. Rear of unit
4. Right of unit
1
1
3
3
4
4
2
2
t44om003w.eps

Overview - 6 100sx Operator’s Manual
About This Manual

100sx Operator’s Manual Foreword - 7
Foreword
This manual is an important part of your equipment. It provides safety information and operation
instructions to help you use and maintain your Ditch Witch®equipment.
Read this manual before using your equipment. Keep it with the equipment at all times for future reference.
If you sell your equipment, be sure to give this manual to the new owner.
If you need a replacement copy, contact your Ditch Witch dealer. If you need assistance in locating a
dealer, visit our website at www.ditchwitch.com or write to the following address:
The Charles Machine Works, Inc.
Attn: Marketing Department
PO Box 66
Perry, OK 73077-0066
USA
The descriptions and specifications in this manual are subject to change without notice. The Charles
Machine Works, Inc. reserves the right to improve equipment. Some product improvements may have
taken place after this manual was published. For the latest information on Ditch Witch equipment, see your
Ditch Witch dealer.
Thank you for buying and using Ditch Witch equipment.

Foreword - 8 100sx Operator’s Manual
100sx
Operator’s Manual
Issue number 1.0/OM-03/15
Part number 053-2815
Copyright 2015
by The Charles Machine Works, Inc.
, Ditch Witch, CMW, and Roto Witch are registered trademarks of The Charles
Machine Works, Inc.

100sx Operator’s Manual Contents - 9
Contents
Overview
machine serial number, information about the type of work this machine is designed
to perform, basic machine components, and how to use this manual
1
Foreword
part number, revision level, and publication date of this manual, and factory contact
information
7
Safety
machine safety alerts and emergency procedures 11
Controls
machine controls, gauges, and indicators and how to use them 21
Operation Overview
an overview for completing a job with this machine: planning, setting up, installing
product, and restoring the jobsite; with cross references to detailed procedures
25
Prepare
procedures for inspecting and classifying the jobsite, planning the installation path,
and preparing the jobsite for work
27
Drive
procedures for startup, cold start, driving, and shutdown 33
Transport
procedures for lifting, hauling, and towing 37
Plow
procedures for plowing 43
Systems and Equipment
ROPS, plow blades, and optional equipment 49
Complete the Job
procedures for backfilling and restoring the jobsite and rinsing and storing
equipment
53
Service
service intervals and instructions for this machine including lubrication, replacement
of wear items, and basic maintenance
55

Contents - 10 100sx Operator’s Manual
Specifications
machine specifications including weights, measurements, power ratings, and fluid
capacities
71
Support
the warranty policy for this machine, and procedures for obtaining warranty
consideration and training
75
Service Record
a record of major service performed on the machine 79

100sx Operator’s Manual Safety - 11
Safety
Chapter Contents
Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Emergency Procedures . . . . . . . . . . . . . . . . . . . . . 13
• Electric Strike Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
• If an Electric Line is Damaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
• If a Gas Line is Damaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
• If a Fiber Optic Cable is Damaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
• If Machine Catches on Fire. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Safety Alert Classifications . . . . . . . . . . . . . . . . . . 17
Machine Safety Alerts . . . . . . . . . . . . . . . . . . . . . . 18

Safety - 12 100sx Operator’s Manual
Guidelines
Guidelines
Follow these guidelines before operating any jobsite equipment:
• Complete proper training and read operator’s manual before using equipment.
• Contact your local One-Call (811 in USA) or the One-Call referral number (888-258-0808 in USA and
Canada) to have underground utilities located before digging. Also contact any utilities that do not
participate in the One-Call service. Mark proposed path with white paint prior to contacting One-Call or
utilities.
• Classify jobsite based on its hazards and use correct tools and machinery, safety equipment, and work
methods for jobsite.
• Mark jobsite clearly and keep spectators away.
• Wear personal protective equipment.
• Review jobsite hazards, safety and emergency procedures, and individual responsibilities with all
personnel before work begins. Safety videos are available from your Ditch Witch®dealer or at
ditchwitch.com/resources/safety.
• Replace missing or damaged safety shields and safety signs.
• Use equipment carefully. Stop operation and investigate anything that does not look or feel right.
• Do not operate unit where flammable gas may be present.
• Contact your Ditch Witch dealer if you have any question about operation, maintenance, or equipment
use.
• Complete the equipment checklist located at www.ditchwitch.com/resources/safety.

100sx Operator’s Manual Safety - 13
Emergency Procedures

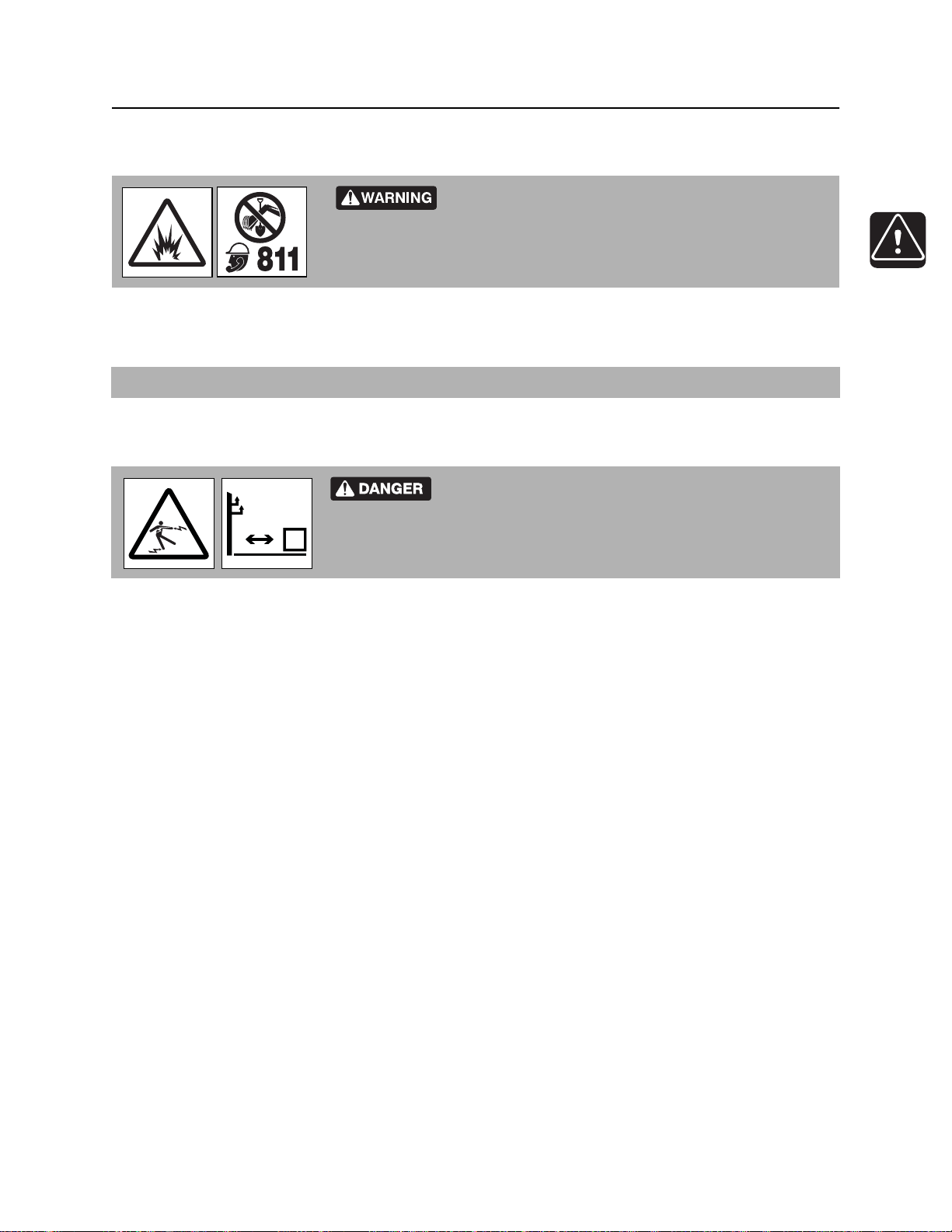

Emergency Procedures
Before operating any equipment, review emergency procedures and check that all safety precautions have
been taken.
Electric Strike Description
When working near electric cables, remember the following:
• Electricity follows all paths to ground, not just path of least resistance.
• Pipes, hoses, and cables will conduct electricity back to all equipment.
• Low voltage current can injure or kill. Many work-related electrocutions result from contact with less
than 440 volts.
Most electric strikes are not noticeable, but indications of a strike include:
• power outage
• smoke
• explosion
• popping noises
• arcing electricity
If any of these occur, assume an electric strike has occurred.
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment. 274-050
EMERGENCY SHUTDOWN - Release all controls and turn ignition switch to STOP.
Electric shock. Contacting electric lines will cause death
or serious injury. Know location of lines and stay away.

Safety - 14 100sx Operator’s Manual
Emergency Procedures
If an Electric Line is Damaged
If you suspect an electric line has been damaged and you are near pedestrian unit, DO NOT MOVE and
do not touch unit. Take the following actions. The order and degree of action will depend upon the
situation.
• Warn people nearby that an electric strike has occurred. Instruct them to leave the area and contact
utility.
• Do not allow anyone into area until given permission by utility company.
• Do not allow anyone to touch equipment.
If a Gas Line is Damaged
If you suspect a gas line has been damaged, take the following actions. The order and degree of action will
depend on the situation.
• Immediately shut off engine(s), if this can be done safely and quickly.
• Remove any ignition source(s), if this can be done safely and quickly.
• Warn others that a gas line has been cut and that they should leave the area.
• Leave jobsite as quickly as possible.
• Immediately call your local emergency phone number and utility company.
• If jobsite is along street, stop traffic from driving near jobsite.
• Do not return to jobsite until given permission by emergency personnel and utility company.

100sx Operator’s Manual Safety - 15
Emergency Procedures
If a Fiber Optic Cable is Damaged
Do not look into cut ends of fiber optic or unidentified cable. Vision damage can occur. Contact utility
company.
If Machine Catches on Fire
Perform emergency shutdown procedure and then take the following actions. The order and degree of
action will depend on the situation.
• Immediately move battery disconnect switch (if equipped and accessible) to disconnect position.
• If fire is small and fire extinguisher is available, attempt to extinguish fire.
• If fire cannot be extinguished, leave area as quickly as possible and contact emergency personnel.

Safety - 16 100sx Operator’s Manual
Emergency Procedures

100sx Operator’s Manual Safety - 17
Safety Alert Classifications
Safety Alert Classifications
These classifications and the icons defined on the following pages work together to alert you to situations
which could be harmful to you, jobsite bystanders or your equipment. When you see these words and
icons in the book or on the machine, carefully read and follow all instructions. YOUR SAFETY ISAT
STAKE.
Watch for the three safety alert levels: DANGER, WARNING and CAUTION. Learn what each level
means.
indicates a hazardous situation that, if not avoided, will result in death or serious injury.
This signal word is to be limited to the most extreme situations.
indicates a hazardous situation that, if not avoided, could result in death or serious injury.
indicates a hazardous situation that, if not avoided, could result in minor or moderate
injury.
Watch for two other words: NOTICE and IMPORTANT.
NOTICE indicates information considered important, but not hazard-related (e.g., messages relating to
property damage).
IMPORTANT can help you do a better job or make your job easier in some way.

Safety - 18 100sx Operator’s Manual
Machine Safety Alerts

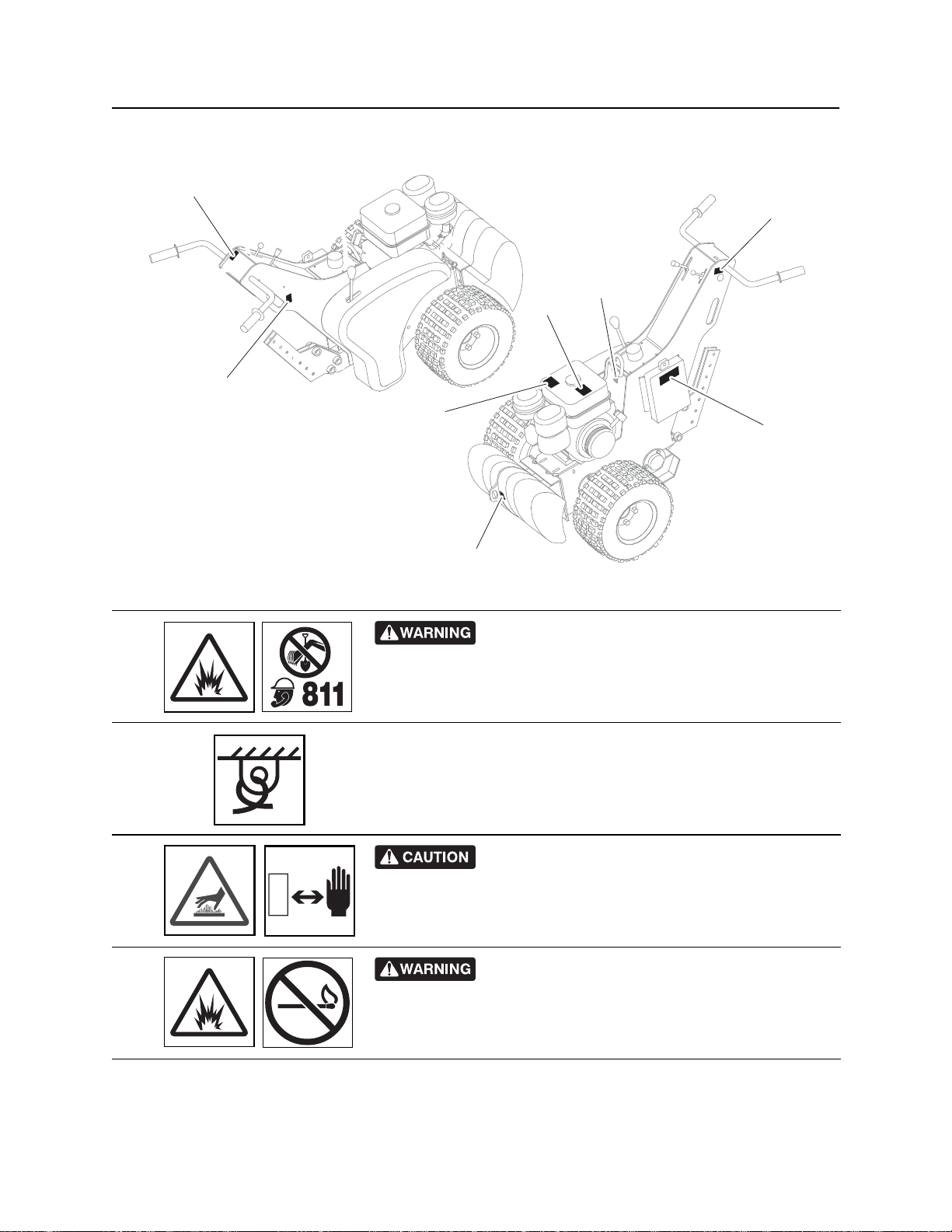

Machine Safety Alerts
1
Jobsite hazards could cause death or serious
injury. Use correct equipment and work methods. Use and maintain
proper safety equipment. 274-050; 274-724 (2P)
2
Tiedown location. See Transport chapter for more information.
274-318
3
Hot parts may cause burns. Do not touch until cool
or wear gloves. 275-355 (2-P), 273-423 (2-P)
4
Fire or explosion possible. Fumes could ignite and
cause burns. No smoking, no flame, no spark. 275-419 (2P)
t44om001w.eps
2
2
2
2
3
3
4
4
2
2
6
6
5
5
1
1

100sx Operator’s Manual Safety - 19
Machine Safety Alerts
5
Lift point. See Transport chapter for more information. 274-442
6
Read operator’s manual. Know how to use all
controls. Your safety is at stake. 273-475
