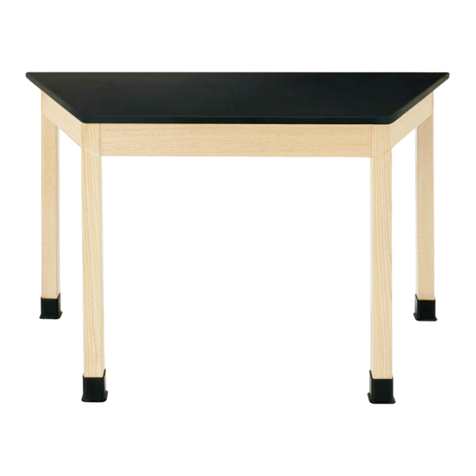

PLAIN APRON TABLES
ASSEMBLY INSTRUCTIONS
*Model views may not represent exact model purchased

[2]
TABLE OF CONTENTS
ASSEMBLY COMPONENTS_______________________________________3
APRON TO LEG ATTACHMENT___________________________________4
LEG ASSEMBLY_________________________________________________5
LEG BRACES & STRETCHERS_____________________________________6

[3]
ASSEMBLY COMPONENTS
ITEMS INCLUDED
PART #
PART#
1-LEG KIT,TABLE
1-APRON ASSY,TABLE
1-TOP,TABLE
BOX,TABLES
1--SCREW,#12.00X1 1/2
100062
8-SCREW,7MMX90MM
227578
OPTION FOR LEG BRACES
4-SCREW,7MMX50MM,
228564
OPTION FOR STRETCHERS
REV DESCRIPTION DATE
---
Original Created
5-15-09
NAM

[4]
Assembly Instructions for
Tables
Items not included but needed for assembly:
1. ½” wrench
Instructions:
1. Lay the table on the floor with the apron side up. (Be sure to lay the table on a
clean surface so you don’t damage the tabletop.)
2. Take each of the table legs and insert the stud bolt through the hole in the steel
corner brace.

[5]
3. Apply a lock washer and a 5/16” nut onto each stud bolt. Tighten each nut using a
minimum of 12 foot-pounds but not exceeding 17 foot-pounds of torque.
4. Slide leg boots onto the legs with the flared end toward the bottom of the leg.
5. Screw leg levelers into t-nut in the bottom of the leg.
6. Turn the table over so the top is up. Set your table in place and adjust the leg
levelers to level the table.
7. Slide the leg boot down to the floor.
8. NOTE: TABLES WITH LEG BRACES AND STRETCHERS SEE
FIGURE 8A.

[6]
FIGURE 8A
9. Attach leg braces with: (SCREW,7MMX90MM,CONN,ALLENHEAD,BLACK)
Provided
10. Attach stretcher with: (SCREW,7MMX50MM,CONN,ALLENHEAD,BLACK)
Provided
Stretcher
Leg Brace
