DIVIN DV5 Series User manual

User Manual
Dual-Zone Wine Fridge DV-568DSD
www.divinwinefridges.com.au

Thank you very much for choosing DIVIN wine fridge
to store your precious collections! We hope you may enjoy using it.
Purchase Date:
Serial Number:
*The serial number is located on the data plate, which can be
found on the inner wall of the wine fridge. Please write down your
serial number in the blank.
*The purchase date is the date when the warranty begins.

General Instructions Before Usage
● This appliance is not intended for children, please pay attention to their safety.
● ● Check the conditions of the product and take photos as you are receiving it from the
delivery company. Inform them immediately when noticing any damages caused
during transportation.
● Install the appliance only on a sturdy, flat, and level surface and be cautious during the
installation at all times.
● Keep any packaging materials if needed for the future and keep them away from
children.
● Make sure your power supply sources have met all the electrical standards required by
laws. DO NOT use extension cords; use an exclusive and properly installed outlet
instead.
For safety and a better user experience, please read all instructions before using this product
and retain the user manual for future reference.
Further assistance from DIVIN
Website-Support: https://divinwinefridges.com.au/support/
E-mail: [email protected]
Tel: [phone]
Business Hours: 7:30-16:00 (Mon.-Thu.) | 7:30-14:00 (Fri.)
To ensure the cooling system may function properly, after this wine fridge has been
laid down during transportation and delivered, allow it to rest unplugged in a standing
position (with the base situated on the floor) for at least 24 hours before turning on
for use.
1

2
2
3
5
6
7
8
12
13
15
16
Table of Contents
General Instructions Before Usage..........................................
Installation................................................................................
Important Safeguards & Warnings...........................................
DV-568DSD Smart control panel.............................................
Wine Shelves & Bottle Configurations.....................................
Temperature Adjustment..........................................................
Bottle Capacity.........................................................................
Troubleshooting Guide.............................................................
Cleaning and Maintenance......................................................
Warranty and Terms.................................................................

Important Safeguards & Warnings
3
● Read all of the instructions before using this appliance.
● Please make sure the environment is well-ventilated.
● This product is designed for commercial or general home use (indoor only) to store
a wide variety of wines. If the wine fridge is used for purposes other than wine
storage, we cannot provide any warranty.
● To avoid electric shock, please do not use the wine fridge or wire plug near water
puddle. Please use it in a dry and flat indoor environment (not including the
garage). Do not operate the product with wet hands.
● Your wine fridge was designed to operate in room temperature settings between
5°C-35°C). If the temperature is higher or lower than this range, the function of the
wine fridge will be affected and the temperature of the wine fridge may be unstable
or may not reach the desired temperature.
● Do not place the wine fridge or its components near any heated electrical
appliances (such as gas stoves, heaters, etc.), sources of ignition, and expose to
direct sunlight.
● We recommend cleaning the wine fridge before using it for better maintenance.
Please do not use flammable liquids to clean the wine fridge to avoid fire or
explosion caused by vapors.
● Extension cords are not recommended. Please use a separate outlet that complies
with safety regulations. Never unplug your wine fridge by pulling on the power cord.
Always grasp the plug firmly and pull straight out from the outlet.
● This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
●Please keep the interior and exterior of your wine fridge clean and tidy to avoid any
spillage of wine in the fridge.
● If you need to stop using this product for a long time, please open the wine fridge
door to ventilate and dry it after shutting down the machine (to avoid excessive
water vapor staying inside).
After that, you can lock the door to prevent children from being injured.
● Please ensure the front exhaust openings right under the product is well-ventilated
and no object is preventing proper air circulation.

4
● Before moving the wine fridge, please remove the wine stored in the
fridge first to reduce the weight for safety concerns during transportation.
● The warranty applies only to the wine fridge itself and does not cover the
items stored in it.
● If you wish to dispose of this product, please send it to an authorized
large electrical recycling facility.
The wine fridge is equipped with an auto defrost system. Please do not use other
methods to speed up the defrosting process.
●

5
Installation
*Reserve 3cm extra distance
only when the power outlet is
right behind the wine fridge.
*The reserved built-in space does
not include the projection of the
handles (4.7 cm).
*Power chord length:about
150 cm.
67cm
59.5cm
115°
84.5cm
71 cm
59.5 cm
172 cm
3 cm
A
B
73 cm
60.5 cm
173 cm
●Photos may appear slightly different from actual items in terms of color
due to different types of monitor display and settings.
Note:
Max.

Lower Level Temperature Zone
Temperature Adjustment - Up Arrow (5-20°C)
DV-568DSD Smart control panel
*Smart control panel is touch-sensitive, just touch the buttons to operate, no need to press hard.
Power Button
LED Side Light / °F / °C Switch
Upper-level Temperature Zone
Power ON: Press for 3 seconds and the wine fridge will start to operate
and ready for various settings.
The screen below the lower level temperature zone icon shows the current
temperature and the set temperature of the lower level of the wine fridge.
* The up arrow and down arrow keys to the right of the lower level
temperature zone image are used to set the lower level temperature.
Press once and the current setting temperature on the screen will flash,
each click can increase 1°C. Stop clicking when you reach the desired
temperature. The number will blink to indicate a successful temperature
setting, and the screen will show the current temperature of the wine fridge.
Click this button once when you want to check the set temperature again.
The number flashing on the screen indicates the set temperature.
LED side light: Touch lightly to turn light ON and OFF
The screen below the upper-level temperature zone icon shows the
current temperature and the set temperature of the upper level of the wine
fridge.
*The up arrow and down arrow keys to the left of the upper level
temperature zone icon are used to set the upper level temperature.
°F / °C switch: Press for 3 seconds to switch to °F and press for another
3 seconds to switch back to °C
Power OFF: Keep pressing for 3 seconds and the wine fridge will be
closed.
6

Temperature Adjustment - Down Arrow (5-20°C)
Temperature Alert
Temperature Adjustment
H H
L L
The wine fridge can be set to accommodate your wine collections and storage
requirements.
If your collections include age-worthy and ready-to-drink wines, we recommend the
upper zone of the fridge stores for ready-to-drink wine and the lower zone use for
wine maturation.
The temperature of ready-to-drink section can be set to one close to the ideal
temperature in that area. In general, the ideal serving temperature for red wine is
anywhere between 15-18°C, 10-12°C for pink and white wine, 6-8°C for sweet wine,
and 5-10°C for sparkling.
However, the actual optimal temperature depends on the characteristics of the wine
(body, vintage, whether it has been aged in oak barrels, etc.). Therefore, please refer
to the information and recommendations provided by wineries and wine merchants
for the ideal temperature of each wine. The best temperature for maturing wines is
around 12-14°C. Low temperatures are better for achieving ideal maturation at a
normal rate, while high temperatures will speed up the maturation process but do not
necessarily result in good maturation.
Press once and the current setting temperature on the screen will flash,
each click can reduce 1°C. Stop clicking when you reach the desired
temperature. The number will blink to indicate a successful temperature
setting, and the screen will show the current temperature of the wine fridge.
Click this button once when you want to check the set temperature again.
The number flashing on the screen indicates the set temperature.
Temperature memory function: In the event of a power outage, this
appliance can memorize your previous temperature setting and revert to it
after the power resumes. Do not need to reset it again.
“H H" will be displayed on the screen to alert users when the temperature
inside the wine fridge is over 23°C. Wwhen the temperature inside the wine
fridge is over 23°C, and will start flashing and beeping after the high
temperature lasts for an hour. When the temperature inside the fridge is
lower than 23°C, the alarm will turn off automatically, or press any button to
turn off the alarm. The compressor will stop working automatically when the
alarm goes off for over 30 minutes.
“L L"will be displayed on the screen to alert users when the temperature
inside the wine fridge is below 0°C, and will start flashing and beeping after
the low temperature lasts for 30 minutes. When the temperature inside the
fridge is greater than 1°C, the alarm will turn off automatically, or press any
button to turn off the alarm.
7

The following is our recommendation on proper wine storage,
which can also be used as a reference for other similar size bottles.

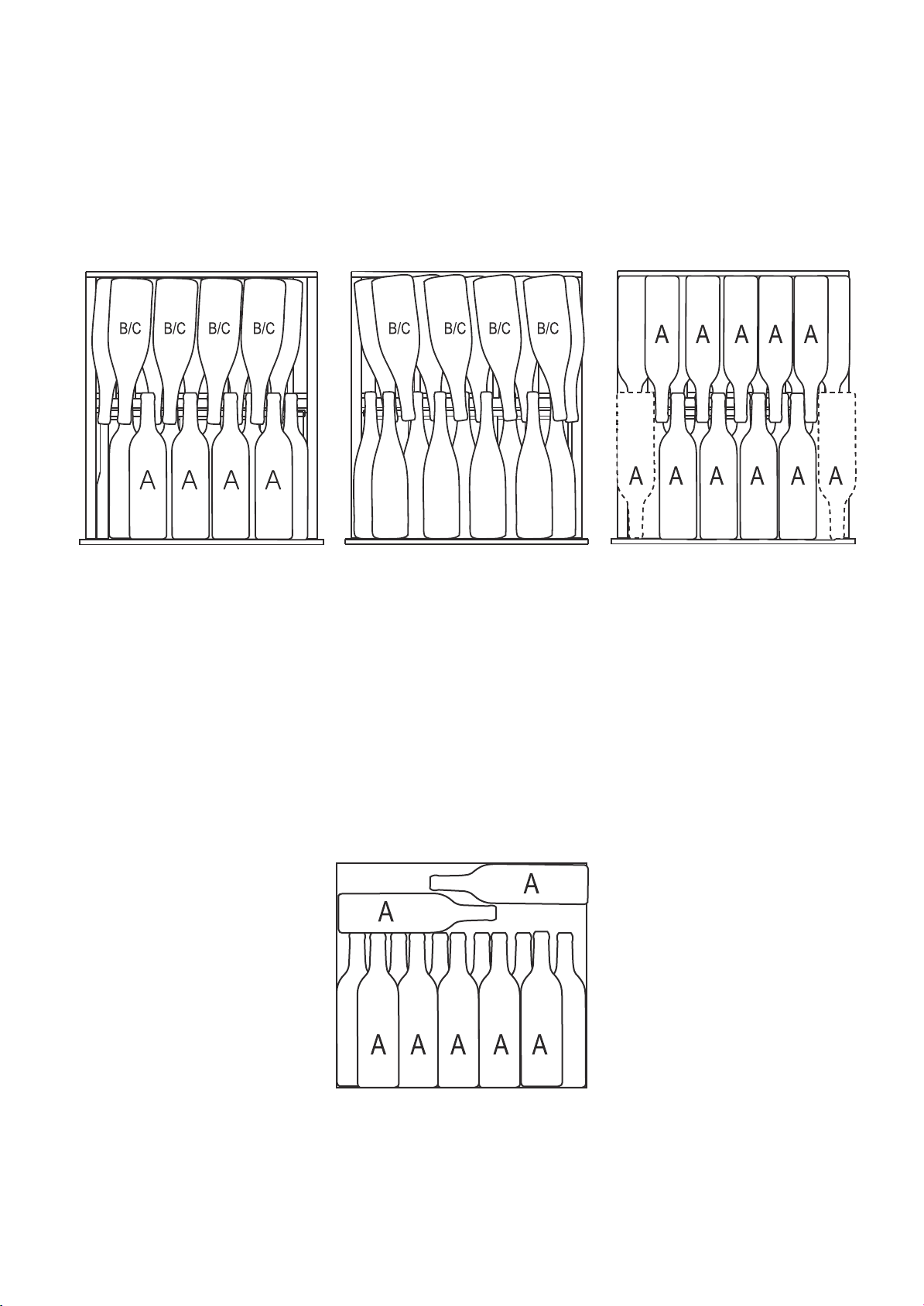

Wine Shelves & Bottle Configurations
Standard Bordeaux
750mL
Burgundy
750mL
Burgundy
750mL
Barolo, Brunello di Montalcino
750mL
Riesling
750mL Unit: cm
Detachable Beechwood Shelves
8

E E E E E
9

Display Shelves (single layer)
E E E E E
DDDDD
DDDDD
BBBBB
B B B B B
B B B B B
10

Bottom Fixed Shelf
Display Shelves (stacking)
9 Bordeaux bottles (A) in
the front row
9 large/small Burgundy
bottles (B/C) in the back
row
11 Bordeaux bottles (A) in the front row
2 Bordeaux bottles (A) in the back row
9 small Burgundy bottles in
the front row (B)
9 large/small Burgundy
bottles (B/C) in the back
row
11 Bordeaux bottles (A) in
the front row
11 Bordeaux bottles (A) in
the back row
*Before pulling out the display
shelfshelves, please take out
the leftmost and rightmost
bottles in the front row to avoid
slipping.
B B B B
11

Bottle Capacity
130bottles
(Standard Bordeaux 750mL) 166bottles (Standard Bordeaux 750mL)
16
16
16
16
16
16
10
13
11
22
22
22
22
22
22
10
13
11
Display Mode
Storage Mode
*Before pulling out the display shelves,
please take out the leftmost and rightmost
bottles in the front row to avoid slipping.
12

Problems
Possible Causes & Solutions
Wine fridge does not operate
Not cold enough
LED lights are not working
Noise
Troubleshooting Guide
● Check if the unit is plugged into a working power outlet.
● Try turning on the unit (refer to p. 6) after connecting to a
working outlet.
● The circuit breaker is tripped or the fuse is blown. Call a
professional electrician for help.
● It takes some time for the wine fridge to cool down after
it has just been turned on. Also, the air inside cools
downfaster than the wines.
● Check to see if the set temperature is too high.
● The doors may have been opened frequently or for an
extended period of time so it is losing cold air.
● The doors are not fully closed.
● The sealing strip is not fully sealed and leaving gaps in
between the doors. Use a hair dryer to heat up around
the unsealed parts of the strip to bring back its original
shape.
● Make sure the unit is plugged into a working outlet.
● Select the correct Lights On/Off button. Touch it once to
turn on and touch again to turn off.
● The LED lights are burned out and need to be replaced.
● The circuit breaker is tripped or the fuse is blown.
● Wine fridges are not noiseless products and may
produce different sounds when in use, which does not
affect the operation of the unit.
● The compressor makes noises when operating for the
cooling process and it stops when the temperature
reaches the set temperature.
● When the refrigerant is flowing through the piping it can
generate the sound of a water stream. Sometimes the
sound may vary due to the internal structure of the wine
fridges.
● The fans inside the wine fridge can create a fan noise
when operating.
13

The doors cannot be shut
properly
The control panels are
showing higher or lower
temperatures than the set
temperatures
Compressor runs too
frequently when...
How to deal with power
outage?
● Check to see if the door were tilted.
● Wine fridge doors are not properly installed
● Check whether the set temperature is too high
● Problems with door sealing strips (such as magnetic
losses, deformation, etc.)
● The shelf is not pushed in all the way and causes the
doors to propped open.
● The wine fridge just turned on.
● The indoor temperature is too high.
● Just put in a large amount of wines.
● Doors may have been opened frequently or for an
extended period of time.
● In case of power outage, please do not open the door
to prevent the temperature from rising due to the loss of
cool air inside the wine fridge. DIVIN wine fridge is
equipped with a temperature memory feature, which
will automatically restore the temperature setting to that
before the power outage.
● Most power outages will be restored within a few hours
and will not affect the temperature of your wine fridge
as long as you leave the doors closed. If you are still
worried about power outages lasting a long period time,
you can seek advice from a professional electrician to
install an uninterruptible power supply (UPS).
● How the compressor works is that it operates as the
current temperature of the wine fridge is higher than the
set temperature and stops operation when the current
temperatures drops below the set temperature.
14

Note: Stainless steel is not a material that is completely free from rusting. Regular
cleaning and caring can prevent rust caused by grease and moisture.
Cleaning and Maintenance
● Please keep the interior and exterior of your wine fridge clean and tidy to avoid any
spillage of wine in the fridge. If there’s any spillage please clean up with clean rugs as
soon as possible.
● Glass Doors:
● Stainless Steel Door Frames, Shelf Trims, and Front Exhaust Grill:
We recommend using stainless steel cleaner to wipe them clean. (Please try out the
cleaning products first on small areas first.)
● Activated Charcoal Filter:
We recommend replacing your filter once every year. Replacement frequency is based
on the condition of your environment. For example, we recommend increasing the
frequency of replacement in heavy oil fumes environments.
We recommend using alcohol wipes, glass cleaning cloths, and also glass cleaner to
wipe and clean the outer layer. However, we do not recommend wiping the inner layer.
This can avoid the smell of the cleaning solution remaining inside the fridge and
affecting the wine collection.
● Drawer slides:
Cleaning is not necessary. Can apply lubricant for maintenance.
15

Warranty & Terms
Terms and Conditions:
● All the instructions of this user manual must be read and adhered carefully to ensure
safety, proper performance of the product, and the validity of DIVIN’s warranty.
● Once the warranty period expires, there will be charges for parts replacement,
service, and maintenance fee, according to the price list. Substitute part will be used
for repair when the replacement part is not available.
● Once the damage is caused by improper use of the wine fridge within the warranty
period, we will quote extra charges for inspection service and traveling fees.
● Once it is determined by our engineer, which is not covered by the warranty within
the warranty period, repairs will begin only if the client agrees with the quotation and
charges.
● Please provide the serial number and have invoice/sales confirmation ready when
booking an onsite service.
● The warranty is only available in Australia.
Warranty Disclaimer (the warranty does not cover the following):
● Defective product, provided by the client, is determined not to be the products of
Global.
● Defective products with expired warranty.
● Damages caused by unauthorized disassembly and reassembly, improper care and
maintenance, or any usage not described in the Operation Manual.
● Defective product form improper source or illegal acquisition.
● Product not purchased from DIVIN Australia or authorized distributors.
● Wear, scratch, stain, and deformation on appearance due to human factors.
● Damage caused by using device or accessory, which is not conforming to specifica-
tions.
The warranty of DIVIN wine fridges includes 2-year warranty for the products (except
for consumables like the activated charcoal filters) and 3-year for compressor (except
for solenoid valves) from purchase date. Any faulty parts will be repaired and/or
replaced at no charge under warranty conditions, due to manufacturing faults, which
do not extend to negligence or misuse caused by the users.
16

● Consumables: e.g. activated charcoal filters.
● Loss of any wine or other products, stored in the DIVIN wine fridges, due to
compressor failure.
● Damages caused by acts of God, pest and rat Infestation, or inadequate power
supply.
● Influenced by the special environment, which is high-corrosion areas, such as
brimstone area, high salinity coastal zone, marsh gas, chemical corrosion or on a
boat.
● Non-functional damages as a result of user’s expectation, audio frequency, volume,
etc.
● Warranty certificate is damaged, lost, altered, or illegible.
● Warranty covers only the wine fridge itself, not the contents of preservation.
● Any other possible risks that client should bear in the use of the wine fridge, such as
change in temperature or moisture, cork leak, fire, flood, mildew, corruption of
content, desiccation, etc.
17
