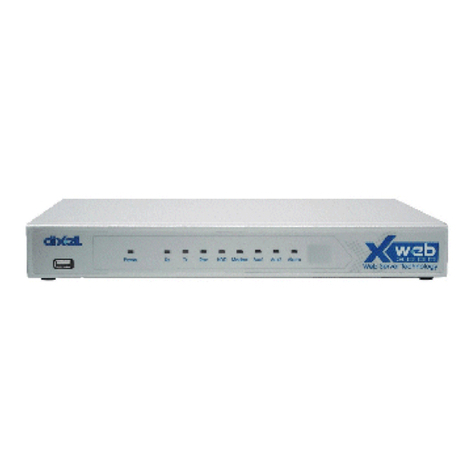

dixell XWEB 3000 User manual

OPERATION
MANUAL
Ver 1.0

XWEB 3000 – rel.1.0 –
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE, REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL,
WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF
UNINSULATED “DANGEROUS VOLTAGE” WITHIN THE
PRODUCT’S ENCLOSURE THAT MAY BE OF
SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF
ELECTRIC SHOCK TO PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL
TRIANGLE IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND
MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE APPLIANCE.

XWEB 3000 – rel.1.0 –
I
IN ND DE EX X
INTRODUCTION ...........................................................................................................................6
PACKAGING................................................................................................................................7
MINIMUM SYSTEM REQUIREMENTS FOR THE PC-CLIENT.........................................................8
1GENERAL INFORMATION.....................................................................................................9
2INSTALLATION....................................................................................................................11
2.1 HARDWARE......................................................................................................................11
2.1.1 Check the rs485 before starting....................................................................................11
2.1.2 Each instrument is provided with the address parameter adr..........................................11
2.1.2.1 The TTL output..........................................................................................................................................12
2.1.3 Serial address of the instruments.................................................................................12
2.1.4 Compatible Instruments...............................................................................................12
2.1.5 Local connectivity........................................................................................................13
2.1.5.1 Local connection with monitor, mouse andkeyboardRD...................................................................13
2.1.5.2 Local connection through personal Computer.....................................................................................13
2.1.6 remote connection from client PC.................................................................................13
2.1.6.1 Modem connection (“or point to point connection”).............................................................................13
2.1.6.1.1 Setting up dial-up connection for windows 98.................................................................................15
2.1.6.1.2 setting up dial-up connection for windows me................................................................................18
2.1.6.1.3 setting up dial-up connection for windows 2000.............................................................................22
2.1.6.1.4 SETTING UP dial-up connection for windows XP..........................................................................29
2.1.6.2 Intranet / ethernet connection.................................................................................................................37
2.1.6.3 Internet connection...................................................................................................................................37
2.2 CONFIGURATION..........................................................................................................38
2.2.1 XWEB 3000 accesses and configuration.......................................................................38
2.2.2 configuration System...................................................................................................39
3USING THE XWEB 3000.......................................................................................................50
3.1 SYSTEM LOG-IN.............................................................................................................50
3.2 HOME PAGE.....................................................................................................................50
3.2.1 System access information area...................................................................................51
3.2.2 Identification / Time.....................................................................................................52
3.2.3 Server property...........................................................................................................52
3.2.4 Alarms........................................................................................................................52
3.3 CONFIGURATION MENU...............................................................................................52
3.3.1 Device find of the instruments connected to the “485” serial line.....................................52
3.3.2 Categories..................................................................................................................53
3.3.2.1 Device Tipology.........................................................................................................................................54
3.3.2.2 Recording interval.....................................................................................................................................54
3.3.2.3 Defrost commands ...................................................................................................................................55
3.3.2.4 Light commands (for instruments provided with the function)...........................................................56
3.3.2.5 AUX command (for instruments provided with the function).............................................................57
3.3.2.6 Energy saving command (for instruments provided with the function)............................................58
3.3.2.7 Device stand-by command......................................................................................................................59
3.3.2.8 Calendar function......................................................................................................................................60
3.3.3 Alarms........................................................................................................................63
3.3.3.1 Alarm typology and alarm levels ............................................................................................................63
3.3.3.2 destination of the alarm messages ........................................................................................................64
3.3.3.3 Alarm levels ...............................................................................................................................................65
3.3.3.4 Alarm typology management..................................................................................................................66
3.3.4 Device configuration....................................................................................................67
3.3.5 XWEB 3000 archives...................................................................................................70
3.3.6 Devices ......................................................................................................................71
3.3.6.1 Display information of a device...............................................................................................................71
3.3.6.2 Display the graphs ....................................................................................................................................73
3.3.6.3 Parameters ................................................................................................................................................77

XWEB 3000 – rel.1.0 –
3.3.6.4 Run time.....................................................................................................................................................79
3.3.7 Alarm menù................................................................................................................ 83
3.3.7.1 Hystorical alarms......................................................................................................................................83
3.3.8 printing....................................................................................................................... 85
3.3.9 permissions ................................................................................................................ 86
3.3.9.1 managing the users..................................................................................................................................87
4SAFETY / AND ALLOWED USE........................................................................................... 90
4.1 SYSTEM SPECIFICATION..................................................................................................... 91
5APPENDIX........................................................................................................................... 92
Appendix A: DEVICE ADVANCED SECTION........................................................................... 93
Appendix B:GLOSSARY............................................................................................................ 96
Appendix C:ICONS AND SYMBOLS .........................................................................................100
Appendix D: ACCESSORIES ..................................................................................................101
Appendix E: SUPPORTED INSTRUMENTS................................................................................103

XWEB 3000 – rel.1.0 –
6
I
IN NT TR RO OD DU UC CT TI IO ON N
Congratulations! Reading this manual you are going to learn everything about XWEB 3000 server, the
most powerful and configurable tool for Controlling, Monitoring, and Supervising.
This book is a comprehensive guide to your XWEB 3000. In it you will find all the information you need
for your work.
The XWEB 3000 is based on the latest technology of the Internet world to display the WEB pages
contained into the unit itself. The Linux operative system guarantees maximum efficiency and stability
support for this kind of product.
All future software releases developed by Dixell have the possibility to be downloaded through the
XWEB 3000 server connection. Hardware inside the unit, based on high performance electronic
boards, does not need any maintenance.
The different kind of client connections are guaranted by a variety of connection sockets capable of
giving the best solution for each kind of application.

XWEB 3000 – rel.1.0 –
7
P
PA AC CK KA AG GI IN NG G
Unpack the unit carefully and make sure that all accessories are put aside so they will not be lost.
Examine the unit for any possibility of shipping damage. If your unit is damaged or fails to operate,
notify your dealer immediately. If your unit was shipped to you directly, notify the shipping company
without delay. Only the consignee (the person or company receiving the unit) can file a claim against
the carrier for shipping damage.
We recommend that you retain the original carton and packing materials for use should you transport
or ship the unit in the future.
Inside the box you must find these articles:
•The XWEB 3000 server unit.
•One power cord for power supply connection.
•A couple of brackets.
•Quick setup manual (Fast installation).
•One CD Rom containing the Operative manual and software.
If you find one of the above damaged items do not hesitate to contact your supplier.
MODEM (not included)
•When working with the modem connection always check the kind of modem you are going to
install by verifying, with Dixell, the complete compatibility with the XWEB 3000 unit.
•Dixell is not responsible for bad functioning of unknown or untested devices.

XWEB 3000 – rel.1.0 –
Caution: read this page carefully to ensure safe operation
8
M
MI IN NI IM MU UM M S SY YS ST TE EM M R RE EQ QU UI IR RE EM ME EN NT TS S F FO OR R T TH HE E P PC C- -C CL LI IE EN NT T
Connecting a local monitor, mouse and keyboard the user can execute any kind of operation allowed
by the XWEB 3000 server unit.
When connecting through the LAN, the PC client computer (see 2.1.6 remote connection from client
PC), must have installed these components:
Windows 98or higher
Pentium II 300MHz with 64 Mb-ram or higher
Java Virtual Machine
Explorer 5.5 or higher
If necessary, inside the CDROM you will find the Java Virtual Machine program distributed by Sun
Microsystems.
Dixell s.r.l. is not responsible for any kind of damage occurring after the loading of the Java Virtual
Machine program into the user’s PC.

XWEB 3000 – rel.1.0 –
9
1
1 G GE EN NE ER RA AL L I IN NF FO OR RM MA AT TI IO ON N
XWEB 3000 is a Controlling, Monitoring and Supervising system based on “WEB server” technology. It
is capable to communicate data to one or many external Clients with the same kind of procedure used
by the Internet Web Sites. Clients need only a standard Browser such as Microsoft Exploreror
Netscape.
The XWEB 3000 server is mounted inside a 19” rack. On the back side, it is provided with the terminal
connections for external devices (modem, printer etc.).
The Web Pages with all the information are contained into the server itself; Linux operative system
ensures maximum efficiency and security.
The server reads, logs and checks the data coming from the Dixell instruments connected to a RS485
line. The communication protocol is the Modbus-Rtu. The XWEB 3000 is capable of recognising also
most of the Modbus-Rtu compatible instruments not manufactured by Dixell.
ATTENTION: Always check the proper RS485 connections (see 2.1.1Check the rs485 before starting)
ATTENTION: Dixell s.r.l. reserves itself the right to analyse the Modbus-RTU compatibility of other
manufacturer’s devices before ensuring their integration into XWEB 3000 system.
Clients to Server connection possibility:
•Local: directly on the XWEB 3000 hardware, plugging in Monitor, Mouse and the Keyboard.
•Modem: point to point through local and remote modem devices (“Creating a Remote Access
under Windows”);
•Intranet / Internet: where available a static IP, using the standard socket 10 Base-T with RJ45
connector.
•Bridge network cable: You can plug a bridge network cable into RJ45 socket of XWEB 3000 and
on the other side into your PC network adapter. Ask your network administrator to properly setup
your PC to be able to access XWEB 3000 web pages.
The User interface is defined by the Browser program and it is the same for all kind of connections.
The PC-client needs only a standard Browser, there is no need to install any kind of software
Some of the pages created by the web server are dynamics and needs the Java Virtual Machine
program that is normally installed in the latest Browsers and operative systems.
Check the different connection under “§2.1.5 Local connectivity” and “§2.1.6 remote connection from
client PC”.
Features and functions included into the XWEB 3000 management:
•Data monitoring and recording, alarm detection and recording of the instrument connected.
•Alarm management defined by the User with visible signals, and remote transmission via Fax or
E-mail.
•Interactive commands to work with the connected instruments.
•“Run Time” function to show in real time all the information coming from the instruments.
•Parameter table programming.
•Graphic or table viewing and printing of the recorded data.
•Other service functions.

XWEB 3000 – rel.1.0 –
11
2
2 I IN NS ST TA AL LL LA AT TI IO ON N
2.1 HARDWARE
ATTENTION: to protect both yourself and the computer from electrical hazards the XWEB 3000
should remain turned off until you are finished connecting all electrical devices to the unit.
To avoid accidental start of the unit, remember to plug in electrical cable only when you have
finished setting up all other connection.
2.1.1 CHECK THE RS485 BEFORE STARTING
To be connected to the serial line all the Dixell Modbus instruments must be provided with direct
RS485 terminals or the “TTL”-RS485 interface (XJRS485 or XJ485). Check the instrument manuals
for more information.
The RS485 line is mainly based on two polarised terminals. Please pay attention to respect the right
sequence for all the devices connected to the serial line.
Follow these important advises:
•The RS485 serial line must reach all the instruments where they are installed.
•Pay attention and respect the wire polarities when screwing them into the instrument terminals.
2.1.2 EACH INSTRUMENT IS PROVIDED WITH THE ADDRESS PARAMETER
ADR
•The cable must have 2 or 3 wires with shield, minimum section 0,5mm2(eg. the BELDEN 8772).
•From the XWEB 3000 position the cable reaches all the instrument positions.
•Do not execute loops or derivations:
Right connection

XWEB 3000 – rel.1.0 –
12
Wrong connection
•Always keep the serial cable away from power cables.
•Always keep the serial cable away from electro-magnetic or frequency sources.
•Do not connect shield to ground.
•Do not connect the “Gnd” terminal.
•Remember to draw a map of the line. This will help you to find errors if something is wrong.
•The instrument with RS485 have “+” and “-“ terminals, respect the polarity.
•To keep the line balanced it is necessary a 100 Ohm resistor at the end of the line (you ca use the
RS 485+ and RS 485- terminals of the last instrument connected).
2.1.2.1 THE TTL OUTPUT
•The instrument with RS485 on board do not need any kind of external interface module.
•For instruments with external interface: keep the TTL cable away from power cables or frequency
sources.
•The XJ485 external interface must be connected with TTL cable to the instrument with TTL
compatibility.
2.1.3 SERIAL ADDRESS OF THE INSTRUMENTS
•Each instrument must be defined by its unique address.
•Check the address into the Adr parameter value. Take reference to the instruction manual of the
instrument itself to find the right procedure to enter the programming and set the value.
•The easiest way to work with the category functions is to set the addresses progressively for
similar groups of instruments which have the same application.
2.1.4 COMPATIBLE INSTRUMENTS
Instrument family Type of serial port Protocol
XR100/500 with RS485 RS 485 ModBUS-RTU
XR700 with RS485 RS 485 ModBUS-RTU
WING Series RS 485 ModBUS-RTU
XW700 Series TTL + XJ485 ModBUS-RTU
XM400 Series RS 485 ModBUS-RTU
XM600 Series RS 485 ModBUS-RTU
XC400/600 Series TTL + XJ485 ModBUS-RTU
XC700 800/900M Series RS 485 ModBUS-RTU
XJP – XJA Series RS 485 ModBUS-RTU
XT100 Series RS 485 ModBUS-RTU
IC100 e IC200 Series TTL + XJ485 ModBUS-RTU
XH200/300/400/500 Series TTL + XJ485 ModBUS-RTU
For a more complete list please read Appendix E.

XWEB 3000 – rel.1.0 –
13
2.1.5 LOCAL CONNECTIVITY
2.1.5.1 LOCAL CONNECTION WITH MONITOR, MOUSE AND KEYBOARDRD
On the back side, the XWEB 3000 is provided with the sockets for a monitor, a mouse and a
keyboard. Please connect all the peripherals before powering-on the unit otherwise the system may
fails to recognise them. This means that , for example, if you do not plug the monitor cable now, you
won’t see anything displayed on it.
The unit can also work without these three elements therefore if the user intend to work just with the
remote, he can definitively remove them after the setup operations.
In any case inside XWEB 3000 is loaded a standard browser to allow the user setting up the unit.
If necessary check the instructions manual of each device connected to the unit.
The operative procedure to work with XWEB 3000 is the same for all connection method.
2.1.5.2 LOCAL CONNECTION THROUGH PERSONAL COMPUTER
It is allowed the local connection with a single PC, provided with LAN card, by using the net connector
RJ 45 (LAN). Due to the PC-client power, this kind of connection is more suitable for the setup
procedures.
Remember that the PC must be provided with internal LAN card or external adapter for LAN.
IMPORTANT: the cable between the Server and the PC must be with crossing wires (“Bridge Cable”).
The connection procedure from the remote PC is made simply by launching the Browser program and
inserting the default address of the XWEB 3000 unit http://192.168.0.200 into the address bar.
2.1.6 REMOTE CONNECTION FROM CLIENT PC
2.1.6.1 MODEM CONNECTION (“OR POINT TO POINT CONNECTION”)
It represents the most common method where the LAN (intranet / Ethernet / internet) is not available.
It is strongly advised to use a dedicated telephone line.
IMPORTANT: Use exclusively modem devices approved by Dixell.
Remember that many modems are not compatible with Linux.
The list of compatible models can be found under the menu: Configuration – System - Modem.
USB Modem (recommended).

XWEB 3000 – rel.1.0 –
14
Connect the USB Modem to the USB Port on the back side using the modem cable commonly
included into the modem packaging itself.
There is no need to give power supply to the modem because the Server provides it through the USB
port.
The modem reset is directly controlled by the XWEB 3000 Server through the USB port by turning off
and then on the modem device.
Connect the modem to the telephone line with the phone cable included into the modem packaging.
Remember to check if there is a switching machine.
The connection procedure is divided in two parts:
In the first part it is necessary to create the Remote Access, in your remote PC, set with the telephone
number of the line where the XWEB 3000 is connected to. You have to use Dixell as Username and
Password.
The second is the procedure you will ever use: after launching the new Remote Access that will
engage the line through the modem, start the Browser from your PC and insert the address
http://192.168.1.200 into Explorer/Netscape address bar.

XWEB 3000 – rel.1.0 –
15
2.1.6.1.1 SETTING UP DIAL-UP CONNECTION FOR WINDOWS 98
1. Double-click on the "My Computer" icon on your Desktop, then double-click on "Dial-Up
Networking".
2. If this is the first time Dial-Up Networking has been run, the Welcome screen will open. Click on
"Next" and proceed to step 4.
3. If you don't get the Welcome screen, double-click on "Make New Connection".

XWEB 3000 – rel.1.0 –
16
4. Type “XWEB 3000 DIRECT MODEM” in the first box. When you finish the New Connection wizard,
the connection icon will be named “ XWEB 3000 DIRECT MODEM ”. Chose “digicom Botticelli web” or
another modem approved dy Dixell.
Click "Next".
5. Do not type the area code, insert telephone number with the area code of XWEB 3000 as a prefix.
E.G: If telephone number is 555789 and area code is 099, put this Telephone number: 099555789.
If there is a switching machine and you have to dial a digit to get the line ( 0 or 9 for example, it
depends on the switching machine), put this telephone number: 0, 099555789 or 9, 099555789.
Chose your country.
Click "Next".

XWEB 3000 – rel.1.0 –
17
6. Click "Finish".

XWEB 3000 – rel.1.0 –
18
2.1.6.1.2 SETTING UP DIAL-UP CONNECTION FOR WINDOWS ME
1. From the Start menu, click Settings, and choose Dial-Up Networking
2. Double-click the Make New Connection icon.
3. In the Type a name for the computer you are dialing field, type
XWEB 3000 DIRECT MODEM.
4. Click the down arrow on the Select a device drop-down list and choose “digicom botticelle web” or
another modem approved dy Dixell.
5. Click the Next button.
6. Do not type the area code, insert telephone number with the area code of XWEB 3000 as a prefix.
E.G: If telephone number is 555789 and area code is 099, put this Telephone number: 099555789.
If there is a switching machine and you have to dial a digit to get the line ( 0 or 9 for example, it
depends on the switching machine), put this telephone number: 0, 099555789 or 9, 099555789.
Chose your country.
7. Click the Next button.

XWEB 3000 – rel.1.0 –
19
8. Click the Finish button.
9. Click the XWEB 3000 DIRECT MODEM icon with your right mouse button, then choose Properties.
10. Click on the Networking tab.
11. Click the down arrow on the Type of Dial-Up Server: drop-down list and choose PPP: Internet,
Windows 2000/NT, Windows Me.
12. Uncheck all the boxes except for Enable software compression and TCP/IP.
13. Click the TCP/IP Settings... button.

XWEB 3000 – rel.1.0 –
20
14. Select Server assigned IP address
15. Select Server assigned name server addresses.
16. Click the OK button.
