DJG Scenera Versa-Fit Overhead Barrier User manual

SScceenneerraaVVeerrssaa--FFiitt
OOvveerrhheeaaddBBaarrrriieerr
IInnssttrruuccttiioonnMMaannuuaall
www.djgusa.com
Read all instructions
BEFORE USING
this child restraint.
KEEP INSTRUCTIONS FOR FUTURE USE.
Para recibir las instrucciones en español,llame al
1-800-544-1108 o solicitarse por escrito al dirección por arriba.
IMPORTANT!
Failure to follow the warnings on the labels
and in the instruction manual can result in
the death or serious injury of your child.
Weight:
5-40 pounds
(2.3-18 kg)
Height:
19-43 inches
(48-110 cm)
This child
restraint is
designed for
use by children
whose:
50
Replacement Parts List
NOTE: If requested color is not available, similar color will be
substituted.
PartCost Quantity Total Cost
Crotch Strap/Buckle $4.99 X______= $ ______________
Seat Pad . . . . . . . . .$42.00 X______= $ ______________
Harness Retainer . . .$1.50 X______= $ ______________
Cup Holder . . . . . . .$4.99 X______= $ ______________
Locking Clip . . . . . . .$2.50 X______= $ ______________
Tether Kit . . . . . . . .$9.99 X______= $ ______________
Latch Kit . . . . . . . .$24.99 X______= $ ______________
Instructions . . . . . . .$0.00 X______= $ ______________
MerchandiseTotal $______________
Shipping and handling: $______________
SalesTax $ ____________
(Indiana,California,Arkansas, and Massachusetts residents add applicable
sales tax.
GrandTotal $ ______________
No shipping and handling on instructions for quantities under 6. Add $.50 for
each instruction over 6,then add applicable shipping and handling.
Fill Out For Credit Card
KVisa KMastercard
Card Exp. Date:______________________________
Cardholder’s Name:__________________________
Card Number: ______________________________
Signature____________________________________
Up to $25.00 . . . . . . . . . .$5.95
$25.01 to $50.00 . . . . . . .$6.95
$50.01 to $75.00 . . . . . . .$8.95
$75.01 to $100.00 . . . . . .$9.95
$100.01 to $150.00 . . . . .$10.95
$150.01 to $200.00 . . . . .$11.95
$200.01 and up . . . . . . . .$13.95
Outside Continental USA $10.00
CUT ON DOTTED LINE
Eng.4358-3775B
4358-3775B Scenera OHB 5/30/06 2:09 PM Page 1

Table of Contents
Warnings..........................................................................................2-4
General andWarmWeather Use..................................................4
Registration and Recall....................................................................5
Aircraft Installation..........................................................................5
UnderstandingYourVehicle ........................................................6-7
Child Restraint Parts....................................................................8-9
Choosing Restraint and Position ................................................10
Preparing Child Restraint to FitYour Child ............................11
Harness Height..................................................................12-13
Accessories (on select models) ..................................................14
SecuringYour Child in Child Restraint................................15-16
Removing Child From Child Restraint ......................................17
Reclining the Child Restraint ......................................................18
Choosing LATCH orVehicle Belts..............................................19
KnowingYourVehicle Belts ....................................................20-21
Locking Clip ..............................................................................22-23
Rear-Facing Use ..............................................................................24
Rear-Facing Installation..................................................................25
Vehicle Belt ........................................................................26-27
LATCH................................................................................28-31
Forward-Facing Use ......................................................................32
Forward-Facing Installation ..........................................................33
Vehicle Belt ........................................................................34-35
LATCH................................................................................36-39
Adjusting theTop Anchorage (Tether) Strap............................40
Removing Seat Pad for Cleaning ..........................................41-43
Reinstall Harness ......................................................................44-45
Trouble Shooting ............................................................................46
InstallationTips................................................................................47
Warranty ..........................................................................................48
Replacement Parts Order Form ..........................................49-50
1
Thank you for choosing this car seat,referred to
throughout this manual as a child restraint.The DJG
family is committed to creating a child restraint with the
most comfort and convenience available today.
Remember,parents are a child’s first teachers and
examples.If you always buckle your seat belt, your child
will think it is the natural thing to do. Make it a firm rule
that the vehicle does not go until everyone is buckled
up. Make no exceptions.
No one can predict if use of a child restraint will
prevent injury or death in a particular crash. However,
combined with careful driving,proper use of a child
restraint can lower a child’s risk of injury or death in
most crashes.
Your child’s safety is worth the time it will take to read
and follow these instructions.After reading,if you still
have questions or have any problems with this child
restraint,please contact our Consumer Relations
Department at:
Before You Begin...
Dorel Juvenile Group,Inc.
Website: www.djgusa.com
Fax: [phone]
MailingAddress: Dorel Juvenile Group,Inc.
P.O. Box 2609
Columbus,IN 47202-2609
Telephone: [phone]
7A.M.to 6 P.M. EST M-TH
7A.M.to 4:30 P.M. EST FRI
On the back of the shell there is an expiration date for
use of this child restraint. Do not use this seat after
the expiration date.
4358-3775B Scenera OHB 5/30/06 2:09 PM Page 3

WARNING
!
The vehicle or LATCH belt must stay
tight at the belt path.When you switch from
one mode to the next,review the sections of
this instruction manual that apply to that
mode. If you don’t,your child could be
injured or killed.
Never take your child out of the child
restraint or try to tend to your child’s needs
while the vehicle is moving. Never leave
child unattended.
Do not use a child restraint with damaged
or missing parts.
Do not use cut,frayed or damaged
harnesses.
Do not substitute parts or try to modify
the child restraint in any way.
Do not use a child restraint that has been
in a crash.You must get a new child
restraint.
Use the child restraint only on vehicle
seats that face forward.Do not use on seats
that face the sides or rear of the vehicle.
Check the vehicle or LATCH belt before
each use. Use only if the belt can be
tightened properly and securely.
This child restraint should be securely
belted in the vehicle even when not in use.In
a crash or sudden stop, an unsecured child
restraint could injure other occupants.
Do not use this child restraint without the
seat pad.
3
WARNING
!
According to accident statistics,children
are safer when properly restrained in the
rear seating positions than in the front
seating positions.
Never place a child rear-facing in a
seating position with an active
frontal airbag.
This child restraint must always face the
rear of the vehicle and be in the fully
reclined position when the child weighs
between 5-35 lbs.(2.3-16 kg) and is less than
one year old.
Never place a child less than one-year old
forward facing.
Check vehicle instructions for more
information about air bag/child restraint use.
For vehicles with an air bag,but without a
back seat,refer to your vehicle owners
manual.
Make sure the harness height is correct
for your child’s size.
The harness must be snug.
Do not lubricate buckles and fasteners.
Failure to follow these warnings can result in
the serious injury or death of your child. To
help you recognize those instructions which
are most critical for your child’s safety,we
use this symbol :
2
4358-3775B Scenera OHB 5/30/06 2:09 PM Page 5

WARNING
!
Do not use this child restraint if the
midpoint of your child’s head is above the
top of the child restraint.
Dorel Juvenile Group does not recommend
the use of any child restraint accessories
except those provided by DJG.
Never allow any child to play with this
child restraint;it is not a toy.
Secure the top anchorage strap (tether)
provided with this child restraint as specified
in both the vehicle and child restraint
manufacturer's instructions.
Do not remove any of the warning labels
or other labels on the child restraint.
Placing your child in a hot child restraint
may result in burns.
Read instructions for other warnings.
Child restraints could be recalled for safety reasons.You
must register this restraint to be reached in a recall.
Send your name,address and the restraint’s model
number and manufacturing date to:
Dorel Juvenile Group,Inc.
PO Box 2609,Columbus,IN 47202-2609
Attn:Consumer Relations or visit www.djgusa.com
or call 1-800-544-1108
For recall information,call the U.S.Government's
Vehicle Safety Hotline at 1-888-327-4236 (TTY:1-800-
424-9153),or go to http://www.NHTSA.gov.
Registration and Recall Information
This restraint is certified for aircraft use. Use on
forward-facing aircraft seats only and in a position where
the lap belt can be tightened securely.This child restraint
is installed in an aircraft seat the same way it is installed
in the vehicle.
Use the child restraint only with F.A.A. certified
equipment.Contact the airline prior to taking a child
restraint on board in order to comply with their specific
regulations.
Aircraft Installation
5
General and Warm Weather Use
To help protect your vehicle seat’s upholstery from
damage, use a towel underneath and behind child
restraint.
To avoid your child being seriously burned,take
the following precautions:
1.Park in the shade or where sun does not
directly hit the child restraint.
2.Cover the child restraint with a sheet or blanket
when not in use.
3.Check for hot seat and buckles before placing child in
child restraint. 4
4358-3775B Scenera OHB 5/30/06 2:09 PM Page 7

6

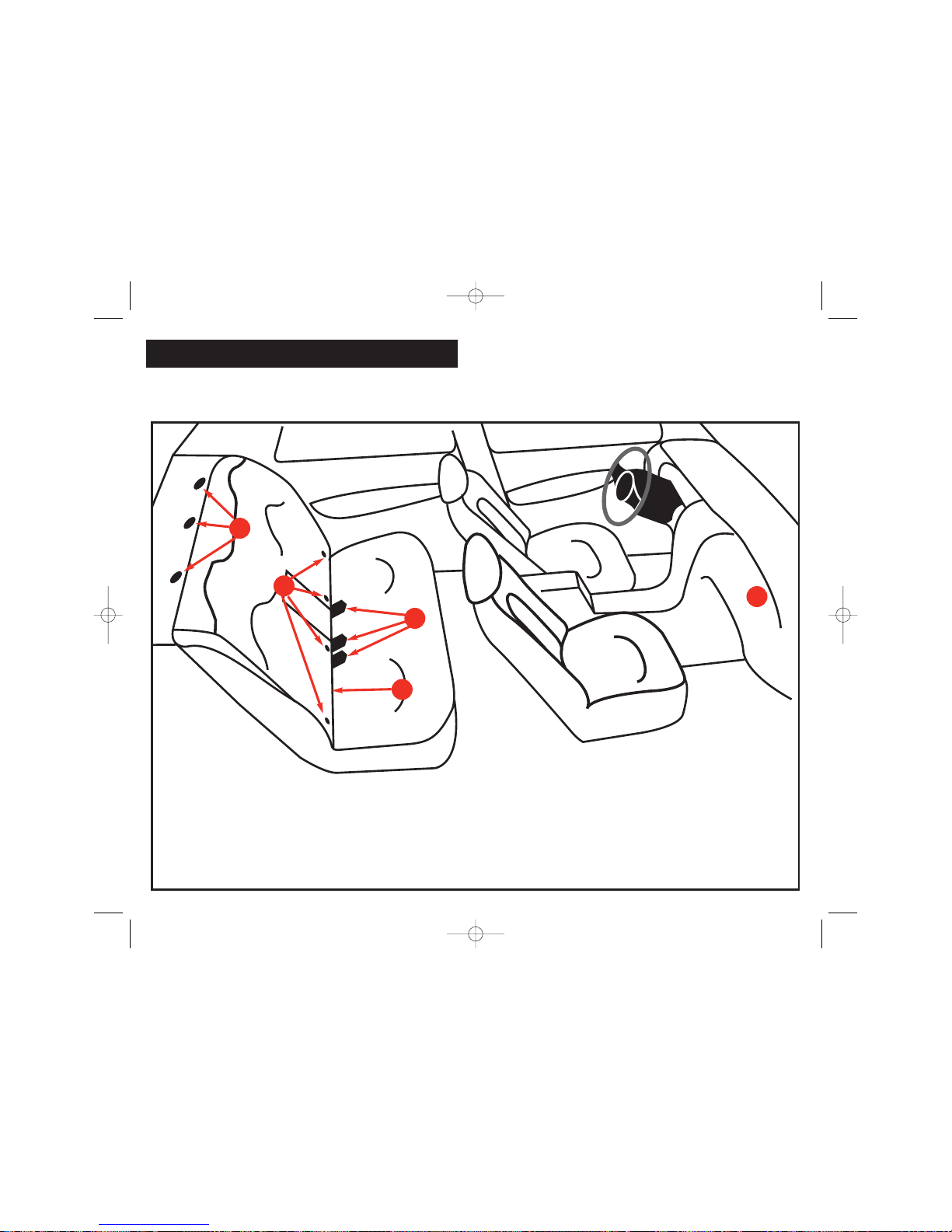

Your vehicle’s features may be considerably different than
those pictured here.Consult your vehicle owner’s manual
to help identify your vehicle’s specific features.
Understanding Your Vehicle
A
B
C
E
7
D
A.Anchor Bracket
ForTopAnchorage Strap
(Forward-Facing Only)
B. LATCH Anchors
(In seat bight)
C.Seat Buckles
D.Air Bag
(Consult your vehicle
owner’s manual for all air
bag locations)
E.Seat Bight
(Where seat cushions
meet)
4358-3775B Scenera OHB 5/30/06 2:09 PM Page 9

8
Child Restraint Parts
A. Pillow
(on select models)
B. Infant Insert
(on select models)
C. Harness Covers
(on select models)
D. Harness Retainer
E. Versa-Fit Overhead
Barrier
F. Buckle
G. Harness Release
Lever
H. Harness
Adjustment Strap
I. Cup Holder
(on select models)
Front
G
H
A
B
D
E
F
9
J. Top Anchorage
(Tether) Strap &
Hook
K. Locking Clip
L. Splitter Plate
M. Instructions
N. Recline Stand
O. LATCH Belt
Back
J
K
L
M
N
I
O
C
4358-3775B Scenera OHB 5/30/06 2:09 PM Page 11

10

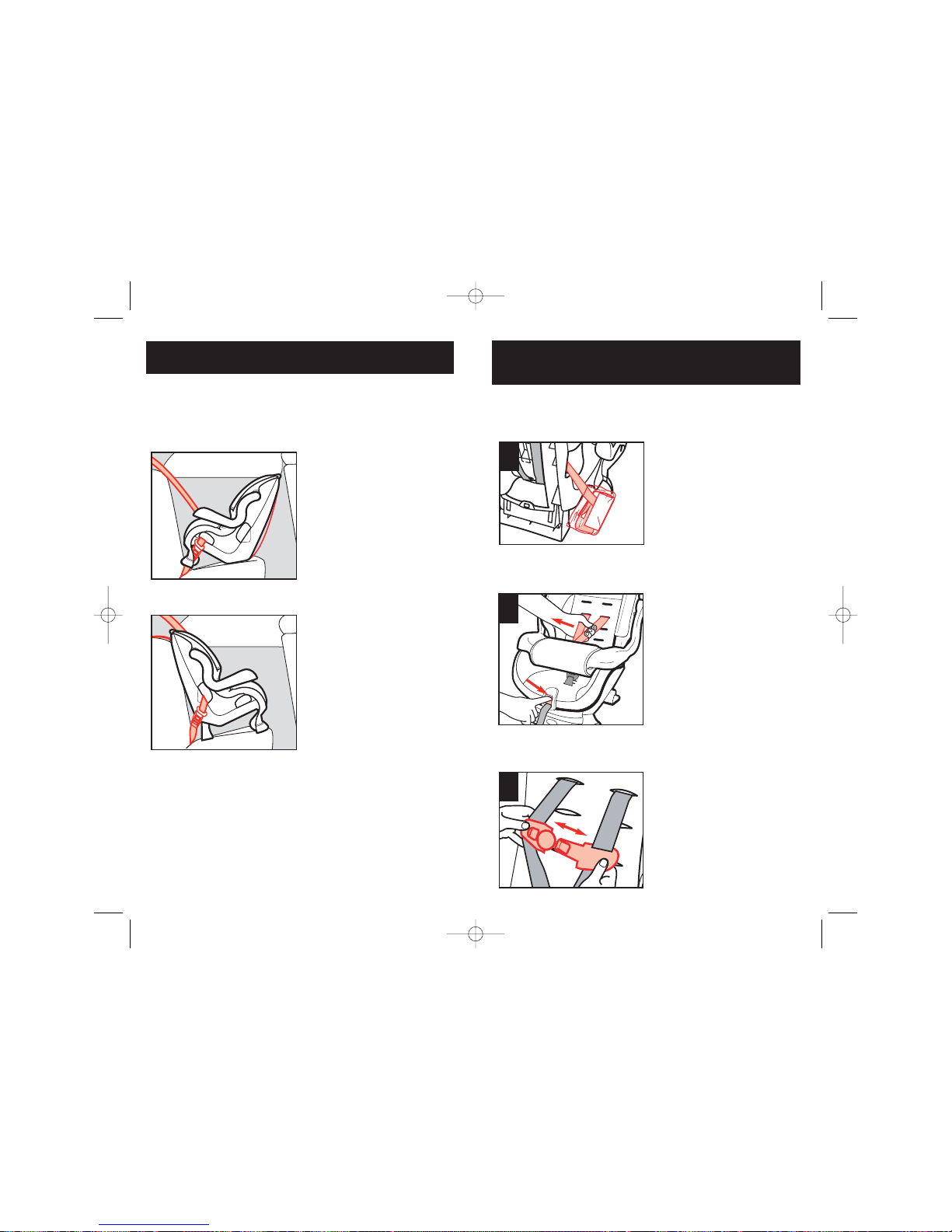

Choosing Restraint and Position
Your child’s height,weight and age determine how your
child restraint should be placed in the vehicle and which
restraint should be used.
5-35 lbs (2.3-16 kg)
19-36 in.(48-91 cm)
Rear-Facing Use
Child and child restraint
face the back of the
vehicle and are placed in
the back seat.
22-40 lbs (10.1-18 kg)
34-43 in.(85.1-110 cm)
and Over 1Year Old
Forward-Facing Use
Child and child restraint
face the front of the
vehicle and are placed in
the back seat.
11
2Loosen harness by pushing
down on the harness
release lever while pulling
out on the harness.
Preparing Child Restraint to Fit
Your Child
You MUST make these adjustments with your
child before you install the child restraint in the
vehicle.
Make sure LATCH belt
packaging is pulled free of
child restraint shell.
1
3Press on harness retainer
release button and pull
apart.
continued on next page.
4358-3775B Scenera OHB 5/30/06 2:09 PM Page 13

12

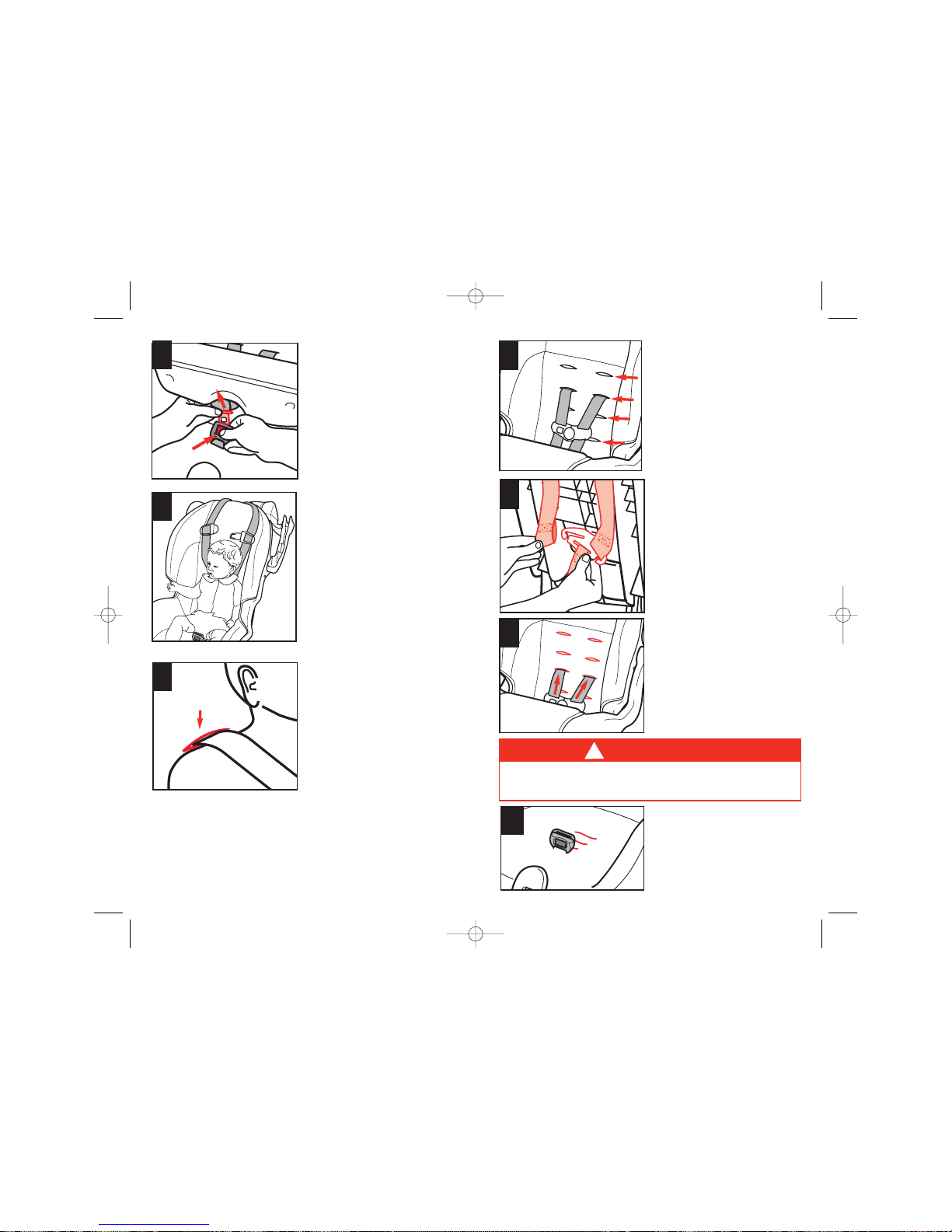

5Place the child’s bottom
and back flat against the
child restraint.This will
increase comfort and
allow the harness to
properly tighten.
13
Rear-Facing Position:
Harness slot must be
even with or just below
the shoulders.
If the bottom harness
slots are above the child’s
shoulders,do not use this
child restraint.Use an
infant child restraint
instead.
Forward-Facing Position: Harness slots must be
even with or just above the shoulders.
If the top harness slots are below the child’s shoulders,
do not use this child restraint.Use a belt-positioning
booster instead.
Harness
Slot
6
Check Harness Height
Press red button on
buckle to release the
buckle plate. Raise barrier
above child restraint.
4
To change harness
location:
From the back of the seat,
remove harness from
splitter plate.
Pull harness through the
harness slots from the
front.
Rethread harness into new
harness guide location.
Refasten harness to
splitter plate. Make sure
harness does not twist.
WARNING
!
Failure to reattach the harness correctly,
can result in serious injury or death.
8
9
Determine which of the
three available crotch strap
slots is both comfortable
and snug.Refer to
“Removal of Harness” to
adjust buckle.
10
7Determine which set of
harness slots works best
for your child. Adjust if
needed.
4358-3775B Scenera OHB 5/30/06 2:09 PM Page 15

15
14

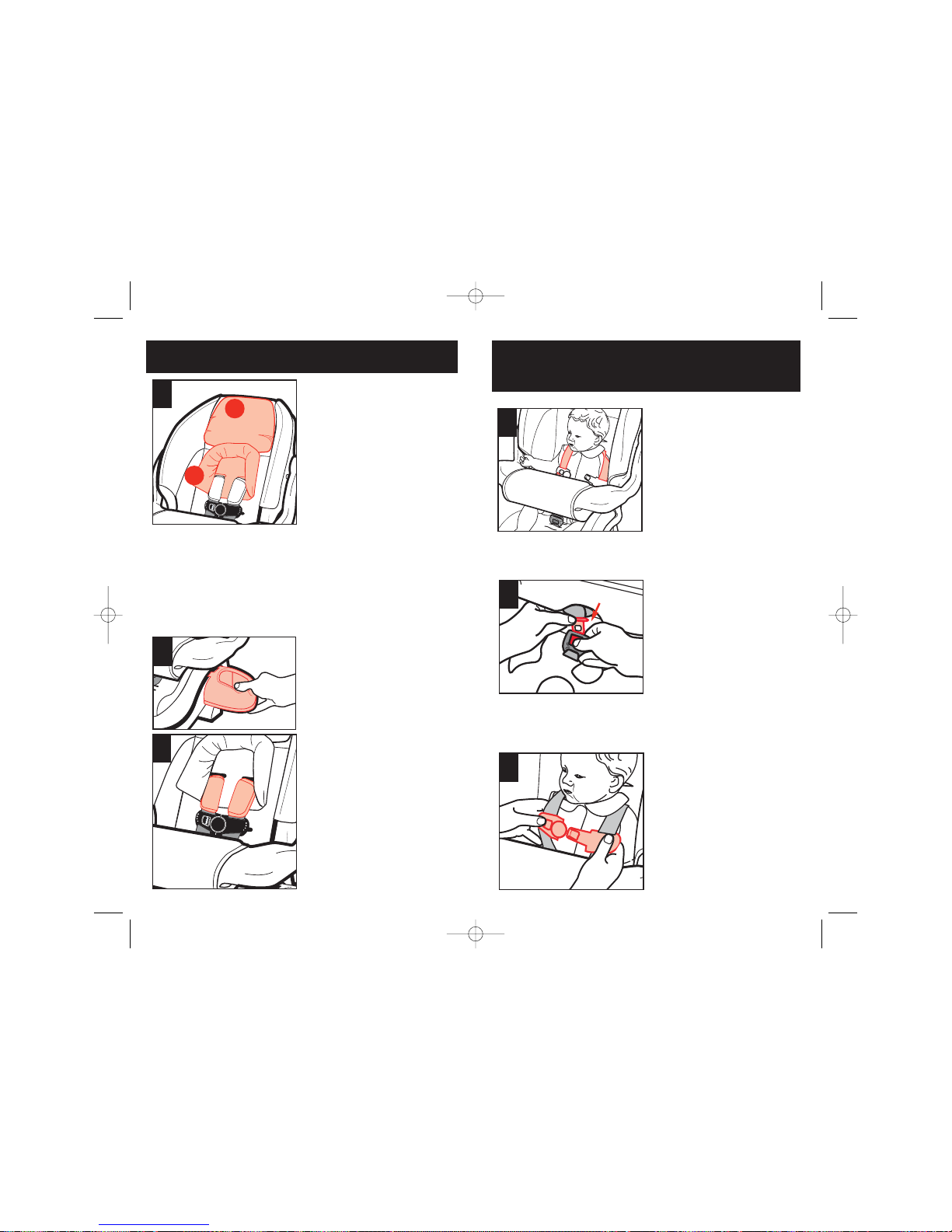

Pillow (on select
models): The pillow (A)
provides extra comfort for
your toddler.
To remove pillow: Pull
fastening strips off top of
pad and remove pillow. To
replace,pull top fastening
straps over top of pad and
attach on the back side of
pad.
Infant Insert (on select models):When using insert
(B),make sure insert does not cover your infant’s face in
any way.Remove the insert for older babies and
toddlers.
To remove insert: Unthread the harness from the
splitter plate.Remove insert (see section“To Change
Harness Location”).Rethread harness and reattach to
splitter plate. Reverse to replace infant insert.
A
B
Accessories (on select models)
Harness Covers (on
select models):Harness
covers help provide
comfort to the neck.For
harness covers to fit
correctly,you may have to
fit the upper ends of the
covers through the harness
slots. To remove,unthread
harness from harness
bracket. Slide covers off
and reattach harness.
1
Install Cup Holder (on
select models): Hook
cup holder on side of shell.
Make certain bottom of
cup holder snaps into
place.Cup holder can be
on either side.
2
3
1Lower overhead barrier
and position harness straps
over the child’s shoulders.
Securing Your Child in the Child
Restraint
Push buckle plate into
buckle until you hear a
“click”.Remember to
always pull up on barrier
to make sure buckle is
locked tightly with each
use.
2
continued on next page.

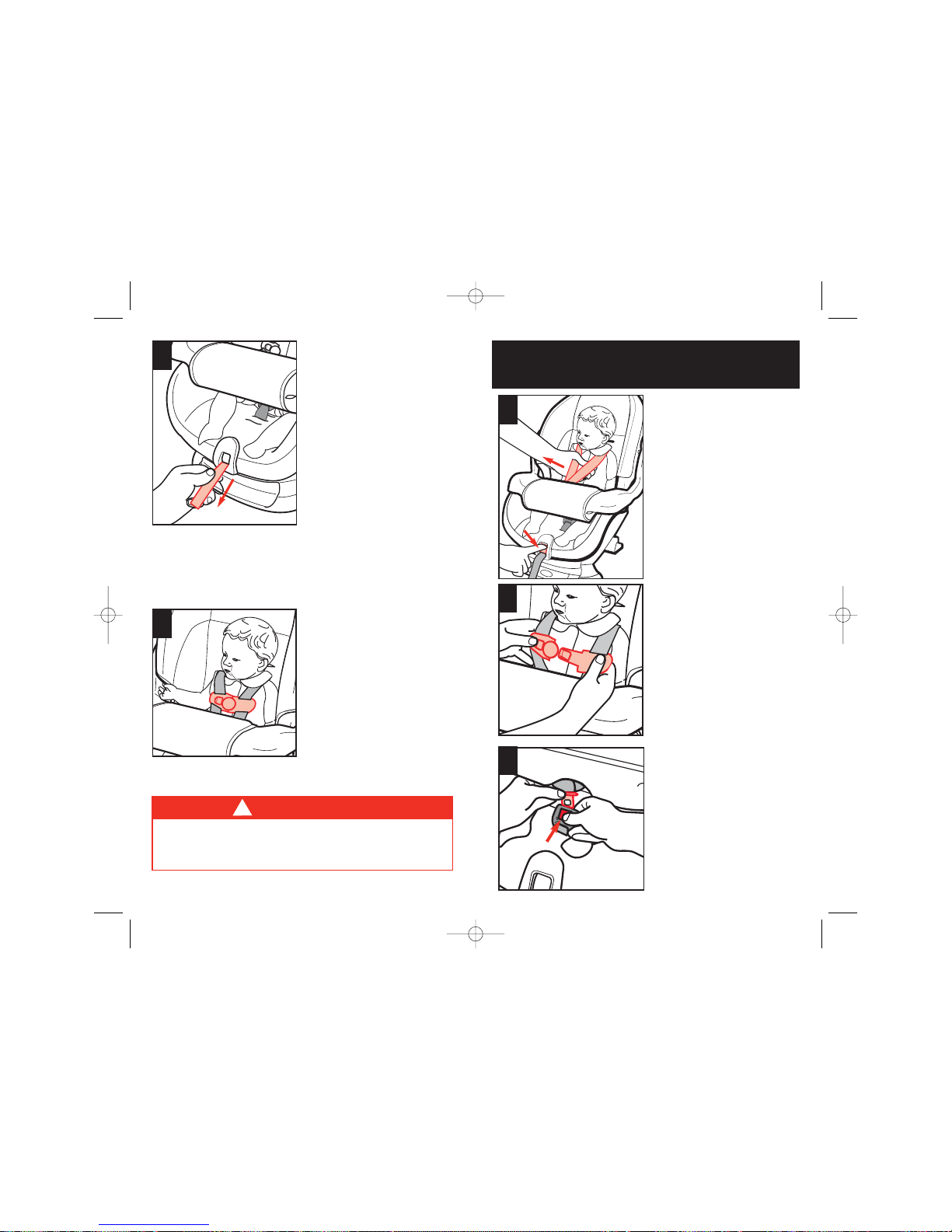

3Snap the harness retainer
together.
4358-3775B Scenera OHB 5/30/06 2:09 PM Page 17

16 17
WARNING:
Failure to fasten and tighten the harness
system correctly with each use can result in
serious injury or death.
Position the harness
retainer at mid-chest (even
with arm pits),away from
the child’s neck.
5
!
Removing Your Child From the
Child Restraint
Press on release button
and pull apart.
2
1Loosen harness by pushing
down on the harness
release lever while pulling
out on the harness. Raise
barrier above child
restraint. Remove child.
Press red button on
buckle to release the
buckle plate. Remove
child.
3
4Pull on harness adjustment
strap to tighten harness
snugly.
NOTE: A snug strap
should not allow any slack.
It lies in a relatively
straight line without
sagging.It does not press
on the child’s flesh or push
the child’s body into an
unnatural position.
4358-3775B Scenera OHB 5/30/06 2:09 PM Page 19

18 19
This child restraint has 2
recline positions:Upright
(forward-facing only) and
Reclined.
Rear-facing - Must be
fully reclined.
Forward-Facing -
Reclined or upright.
Reclining the Child Restraint
To recline, pull down on
recline stand and rotate up
into shell.
For upright position,rotate
out on recline stand and
push upward to lock into
position.
1
2

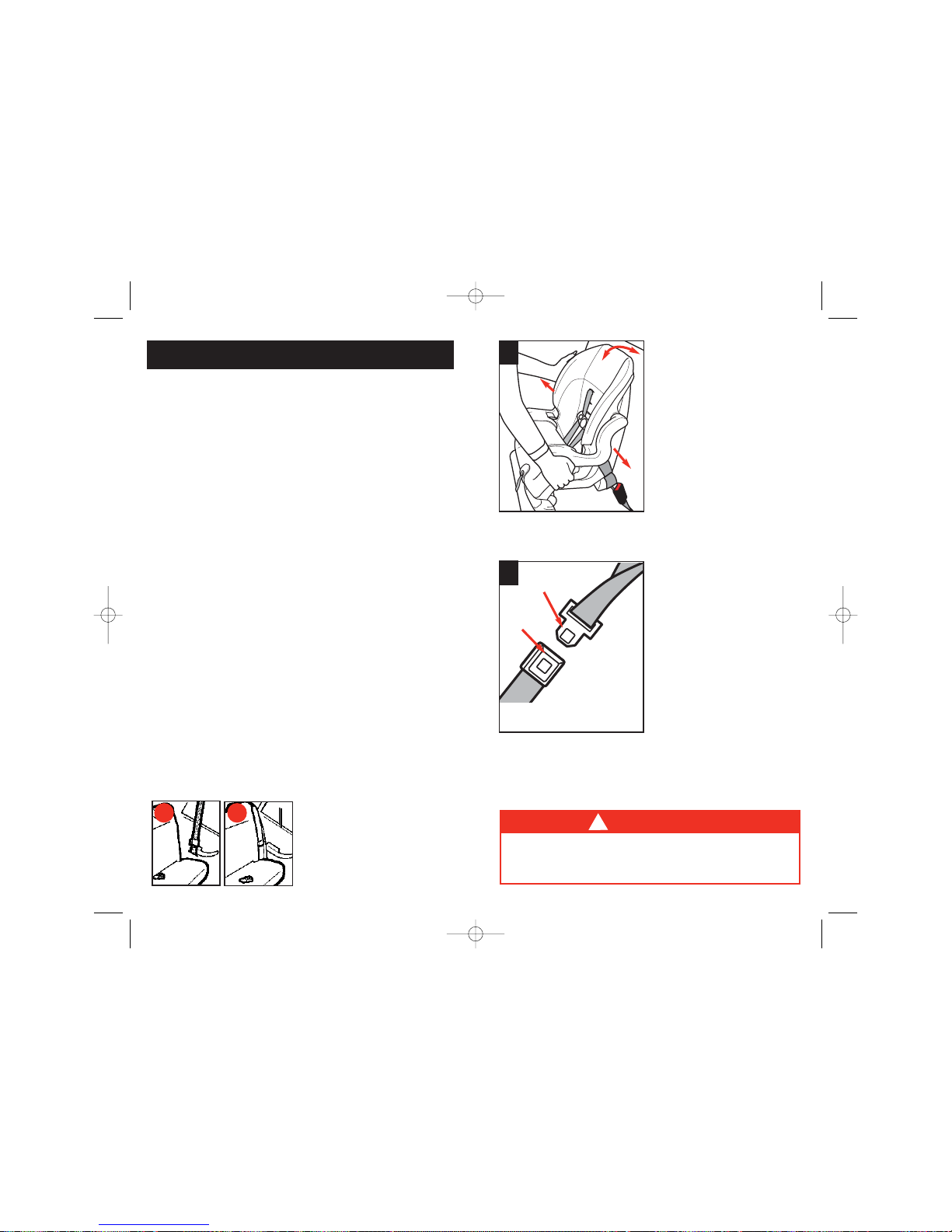

Choosing LATCH or Vehicle Belts
The LATCH System
Anchor bars
Vehicle Belts
If LATCH is not an
option,you will use your
vehicle’s belts. In most
cases you will use the
lap/shoulder belt
combination. There are
some vehicle belts that
will not work with a child
restraint or will require
special attention. See
next page for specific
instructions.
LATCH means Lower
Anchors and Tethers for
CHildren.Not all vehicles
manufactured before
September 2002 were
equipped with LATCH.
The LATCH system allows
a child restraint to be
secured in the vehicle
without using the vehicle
belt system and can ONLY
be used in vehicles that
have the anchor bars
installed.
Check your vehicle
owners manual to see
which seating positions
may be equipped with the
LATCH system.
4358-3775B Scenera OHB 5/30/06 2:09 PM Page 21

20 21
Not all vehicle belts will work with this child restraint.
You must determine if your vehicles belts are compatible
with this child restraint. If you will use the LATCH
system,refer to the LATCH section.
ELR - Emergency Locking Retractor Belts
Definition:These belts only lock in a sudden stop or
crash.To see if you have this type of belt,pull on the lap
belt,let it return part way, then pull on it again. If it
moves freely,it is an ELR belt and the child restraint
could work loose during normal driving.Refer to your
vehicle owner’s manual.
ELR shoulder belts either require a locking clip or
cannot be used with any child restraint.
ELR lap-only belts must be replaced with a manual belt;
contact your vehicle dealer. A locking clip will not
correct this problem.
Automatic/Passive vehicle seat belts
Automatic (passive) 2-point belt has no lap belt.You
must install a lap belt to secure a child restraint.You may
also need to install an extra lap belt for an automatic 3-
point belt.Refer to the vehicles owner’s manual. A
locking clip will not correct this problem.
Vehicle belt too short
Contact your vehicle dealer for a seat belt extender.
Belts in center of the door or side panel (A) or
middle of the vehicle seat cushion (B).
You must move the child restraint to another seating
location.A locking clip will not fix this problem.
See“Locking Clip” section.
Knowing Your Vehicle Belts
AB
Buckle
Twist vehicle seat belt and
latch plate (or buckle)
Latch plate
WARNING
!
Failure to check and adjust the manual belt
as described above can result in serious
injury or death.
1
2
Manual Belts
Manual lap belts are
common in the center
rear seat and can allow
the child restraint to
loosen when it is tilted or
jarred. After tightening the
lap belt securely, tilt and
push the child restraint
forward and to both sides.
If no loosening occurs,
your child restraint should
be secure.
If loosening does occur,try
the following:If the buckle
plate slides on the belt,
turn the buckle plate over.
If the buckle slides,turn
the buckle. Refasten the
vehicle lap belt.The release
button should face out
after twisting so that it is
easy to reach in an
emergency.
If the lap belt continues to
loosen,the child restraint
must be moved to
another location in the
vehicle.A locking clip will
not correct this problem;
see your vehicle owner’s
manual.
4358-3775B Scenera OHB 5/30/06 2:09 PM Page 23

22 23
Locking Clip
NOTE: Remove the locking clip when the seat belt is not
being used with a child restraint. The locking clip is located
on the back of the seat.A locking clip will not fix all types
of seat belt problems.
Before you put your child restraint in the vehicle, buckle the
lap/shoulder belt.Pull on the lap belt portion.If it loosens or
slips,you must either use a locking clip to hold the seat belt
tight or move the child restraint to another seating location.
1
2
Thread both vehicle lap
and shoulder belts through
the slot (as shown) and
out other side. Buckle.
Pull up on shoulder belt
until all slack is out and lap
belt is tight.
Grasp both vehicle belts
together just behind the
buckle plate and unbuckle.
NOTE: If the buckle plate
ends up behind the child
restraint,grasp the belts to
the outside of the child
restraint,as close to the
buckle plate as possible.
3
5Rebuckle belt.Lap belt
portion should now be
tight. If not,remove
locking clip and repeat all
steps.
Thread both portions of
the vehicle belt onto the
locking clip.
Position locking clip about
1 in.(2.5 cm) from vehicle
belt’s buckle plate.
4
4358-3775B Scenera OHB 5/30/06 2:09 PM Page 25

Rear-Facing Use
Lap/Shoulder Belt
LATCH Belt
WARNING:
Lap Belt
!
Refer to the“Choosing
Restraint and Position”
section to determine if
your child should be in
the rear-facing position.
This child restraint must always face the
rear of the vehicle and be in the fully
reclined position when the child weighs
between 5-35 lbs.(2.3-16 kg) and is less
than one year old.
Never place a child rear-facing in a
seating position with an active
frontal airbag.
24 25
Rear Facing Use:5-35 lbs.(2.3-16 kg),19-36” (48-91 cm)
Rear Facing Use:5-35 lbs.(2.3-16 kg),19-36” (48-91 cm)
To use rear-facing the
child restraint MUST be
fully reclined.
To fully recline, pull down
on recline stand and
rotate up into shell.
A loose top anchorage (tether) strap can
result in serious injury or death.
Loose LATCH hooks can result in serious
injury or death.
After deciding whether to use yourVehicle Belts or
LATCH,be sure to read the warnings below as they
pertain to both systems.
Rear-Facing Installation
When LATCH is not
available,fasten LATCH
hooks on side of child
restraint as shown.
Do Not Use the top
anchorage strap in the
rear-facing position.
Hook top anchorage
strap to recline stand
(see“Adjusting theTop
Anchorage Strap”
section).
WARNING:
!
4358-3775B Scenera OHB 5/30/06 2:09 PM Page 27

26
Rear Facing Use:5-35 lbs.(2.3-16 kg),19-36” (48-91 cm)
27
3

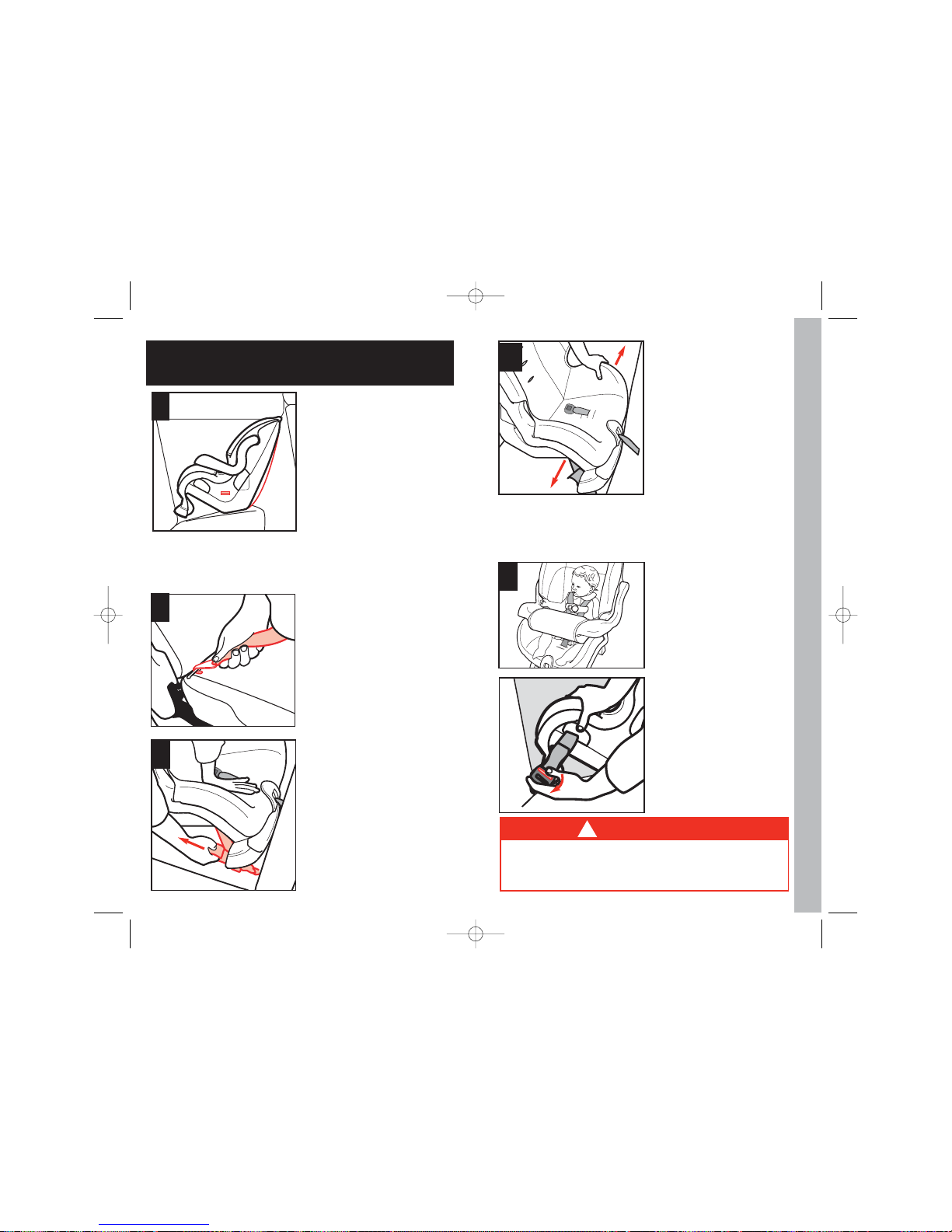

Rear-Facing Installation with
Vehicle Belt:
Thread the vehicle lap or
lap/shoulder belt
combination through the
rear-facing belt slot.
Thread UNDER seat pad in
front of crotch strap and
out opposite side.Buckle
vehicle belt.
Do not place vehicle
belt over child’s legs.
2
Connect and tighten
harness straps prior to
installing in vehicle.
Place child restraint rear-
facing in the back seat.
With child restraint in the
reclined position,make sure
level line on side of shell is
level with ground. Adjust
child restraint if needed.
NOTE: Hook the top
anchorage strap’s hook to
recline stand.
1
With weakest hand at
belt path,tilt and push
the child restraint
forward and back,and
from side to side.If the
seat belts do not loosen,
your child restraint
should be secure.
NOTE: Some “play”
from front to back or
about an inch from side
to side is acceptable. If it
moves more, review
“Knowing yourVehicle
Belts” and“The Locking
Clip” sections.
After checking for hot
seat and buckles,secure
child as described in
“SecuringYour Child in
the Child Restraint”
section.
5
WARNING
!
Using this child restraint in any vehicle
seat where the lap belt cannot be
tightened securely and properly or where
it can be loosened by pulling on it can
result in serious injury or death.
4Push down firmly on the
child restraint and pull
up on belt to tighten.
For a manual belt,refer
to“Knowing your
Vehicle Belt” section.
Pull up on shoulder
strap to remove any
slack.
NOTE: Locking clip is
shown installed.
6
4358-3775B Scenera OHB 5/30/06 2:09 PM Page 29

28 29
Rear Facing Use:5-35 lbs.(2.3-16 kg),19-36” (48-91 cm)
Push LATCH hook
through the rear-facing
belt path slot.
1
2
3

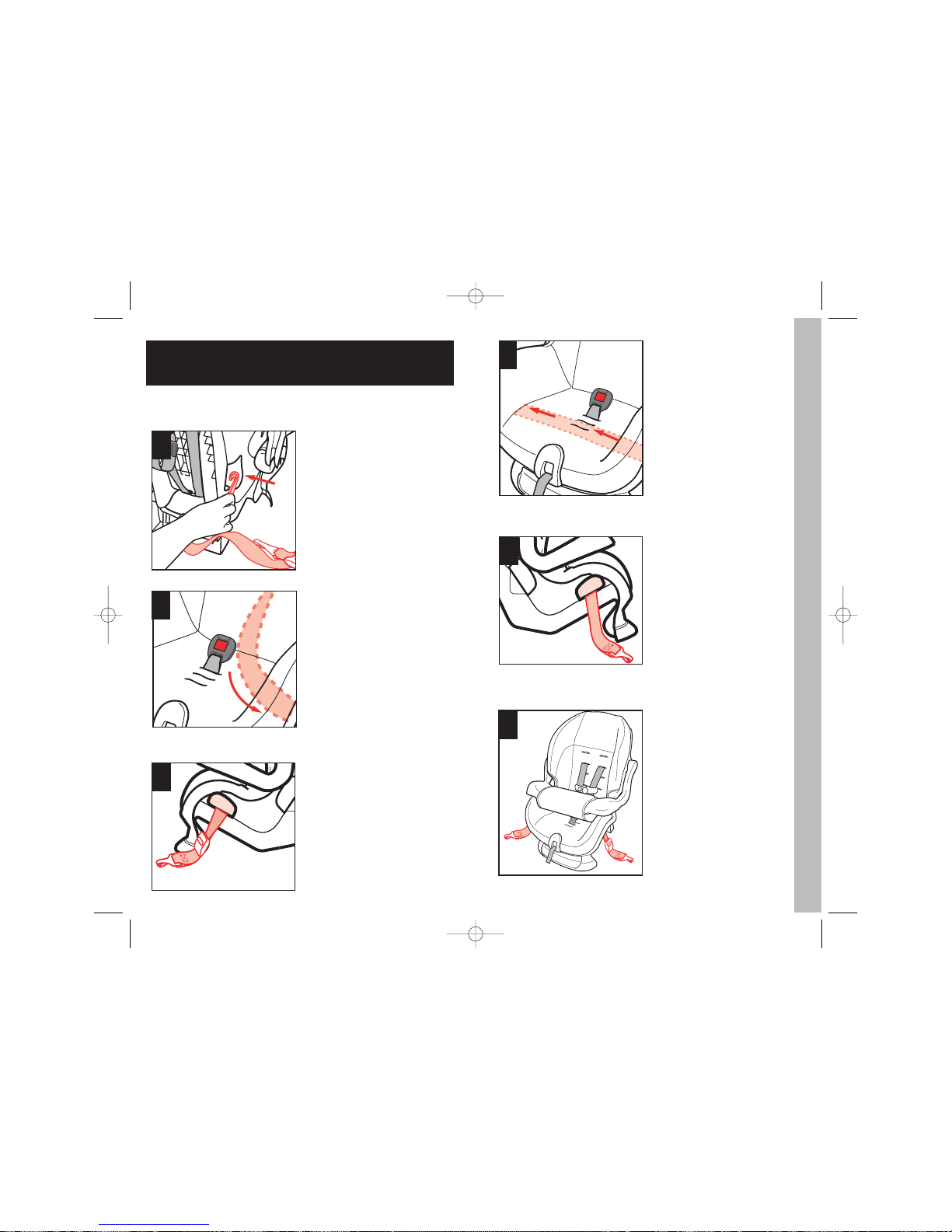

Rear-Facing Installation with
LATCH: Install LATCH Belt
LATCHadjuster can be
on either side, but belt
should not be twisted.
Route entire LATCH belt
through the upper slot in
side of shell.
Reach under pad,pull one
LATCH hook towards
rear-facing belt path slot.
NOTE: Do not use the LATCH system along with the
adult lap or lap/shoulder belt.
Pull other end of
LATCH hook in front of
crotch strap and across
seat to other side.
4
Push LATCH hook
through the other rear-
facing belt path slot.
5
6Completed threading of
the LATCH system.
4358-3775B Scenera OHB 5/30/06 2:09 PM Page 31

30
Rear Facing Use:5-35 lbs.(2.3-16 kg),19-36” (48-91 cm)
Rear-Facing Installation with
LATCH: Install in Vehicle
2
3
Fasten one LATCH belt
hook to the anchor in the
vehicle seat located in the
vehicle seat bight. Repeat
for other side of child
restraint. See your vehicle
owner’s manual for more
information.
Push down firmly on the
child restraint and pull up
on the loop to tighten belt.
31
Connect and tighten
harness straps prior to
installing in vehicle.
Place child restraint rear-
facing in the back seat.
With child restraint in the
reclined position,make
sure level line on side of
shell is level with ground.
Adjust child restraint if
needed.
NOTE: Hook the top
anchorage strap’s hook to
recline stand.
1
With weakest hand at
belt path,tilt and push
the child restraint
forward and back,and
from side to side.If the
LATCH belts do not
loosen,your child
restraint should be
secure.
NOTE: Some “play”
from front to back or
about an inch from side to side is acceptable.
If the child restraint does not remain tight,do not use
the child restraint in this seating location with this
LATCH system.
WARNING
!
5
To release LATCH:
Remove child from
restraint. Press down
firmly on adjuster side of
child restraint and push
in on release button on
adjuster to release
tension as shown.
Unhook LATCH from
bar.
After checking for hot
seat and buckles,place
child in child restraint.
See“SecuringYour Child
in the Child Restraint”
section.
LATCH hooks MUST be securely
fastened. Failure to do this can result in
serious injury or death.
4
4358-3775B Scenera OHB 5/30/06 2:09 PM Page 33

32
Forward-Facing Use
Lap/Shoulder Belt
LATCH Belt
Lap Belt
WARNING:
!
Using this child restraint in any vehicle
seat where the lap or LATCH belts cannot
be tightened securely and properly or
where it can be loosened by pulling on it
can result in serious injury or death.
Check vehicle owner’s manual for more
information about airbag/child restraint
use.
Refer to the“Choosing
Restraint and Position”
section to make sure your
child is at the proper
weight and height to face
forward.
Forward-Facing Use: 22-40 lbs. (10.1-18 kg), 34-43” (85.1-110 cm), Over 1 year of age.
Forward-Facing Use: 22-40 lbs. (10.1-18 kg), 34-43” (85.1-110 cm), Over 1 year of age.
Forward-Facing Installation
WARNING:
!
After deciding whether to use yourVehicle Belts or
LATCH,be sure to read the warnings below as they
pertain to both systems.
Loose LATCH hooks can result in serious
injury or death.
When LATCH is not
available,fasten LATCH
hooks on side of child
restraint as shown.
In the forward-facing
position,the child
restraint can be used in
either reclined or upright
position.
For upright mode,rotate
recline stand down and
out,then push up to
lock.
To recline, pull down on
recline stand and rotate
up into shell.
33
4358-3775B Scenera OHB 5/30/06 2:09 PM Page 35

Connect and tighten
harness straps prior to
installing in vehicle.
Place child restraint flush
against the back of the
vehicle seat forward-
facing in the back seat.
The recline position is to be
used only to install the child
restraint flush against the
back of the vehicle seat back,if needed.
Thread the vehicle lap belt or lap/shoulder belt
combination through the belt path and out other side.
Buckle.
With knee still in child
restraint,attach hook to
anchor in vehicle. Push
down firmly and tighten
top anchorage strap.
To adjust top anchorage strap: See “AdjustingTop
Anchorage Strap” section.
NOTE: If your vehicle does not have an anchor
bracket, hook the top anchorage strap’s hook to
recline stand (see“Adjusting theTopAnchorage Strap”
section).
Forward-Facing Use: 22-40 lbs. (10.1-18 kg), 34-43” (85.1-110 cm), Over 1 year of age.
35
34
Forward-Facing Installation with
Vehicle Belts:
1
2
3
Place one knee in the child
restraint and push down
firmly while pulling up on
belt to tighten. For a
manual belt,refer to
“Knowing yourVehicle
Belt” section.
With weakest hand at
belt path,tilt and push
the child restraint
forward and back,and
from side to side.If the
seat belts do not
loosen,your child
restraint should be
secure.
NOTE: Some “play”
from front to back or
about an inch from side
to side is acceptable. If it
moves more, review
“KnowingYourVehicle
Belts” and“The Locking
Clip” sections.
4
WARNING
!
After checking for hot
seat and buckles,place
your child in the child
restraint as described in
the“SecuringYour Child
in the Child Restraint”
section.
5
Using this child restraint in any vehicle
seat where the lap belt cannot be
tightened securely and properly or where
it can be loosened by pulling on it can
result in serious injury or death.
NOTE: Locking clip is
shown installed.
4358-3775B Scenera OHB 5/30/06 2:09 PM Page 37

37
Forward-Facing Use: 22-40 lbs. (10.1-18 kg), 34-43” (85.1-110 cm), Over 1 year of age.

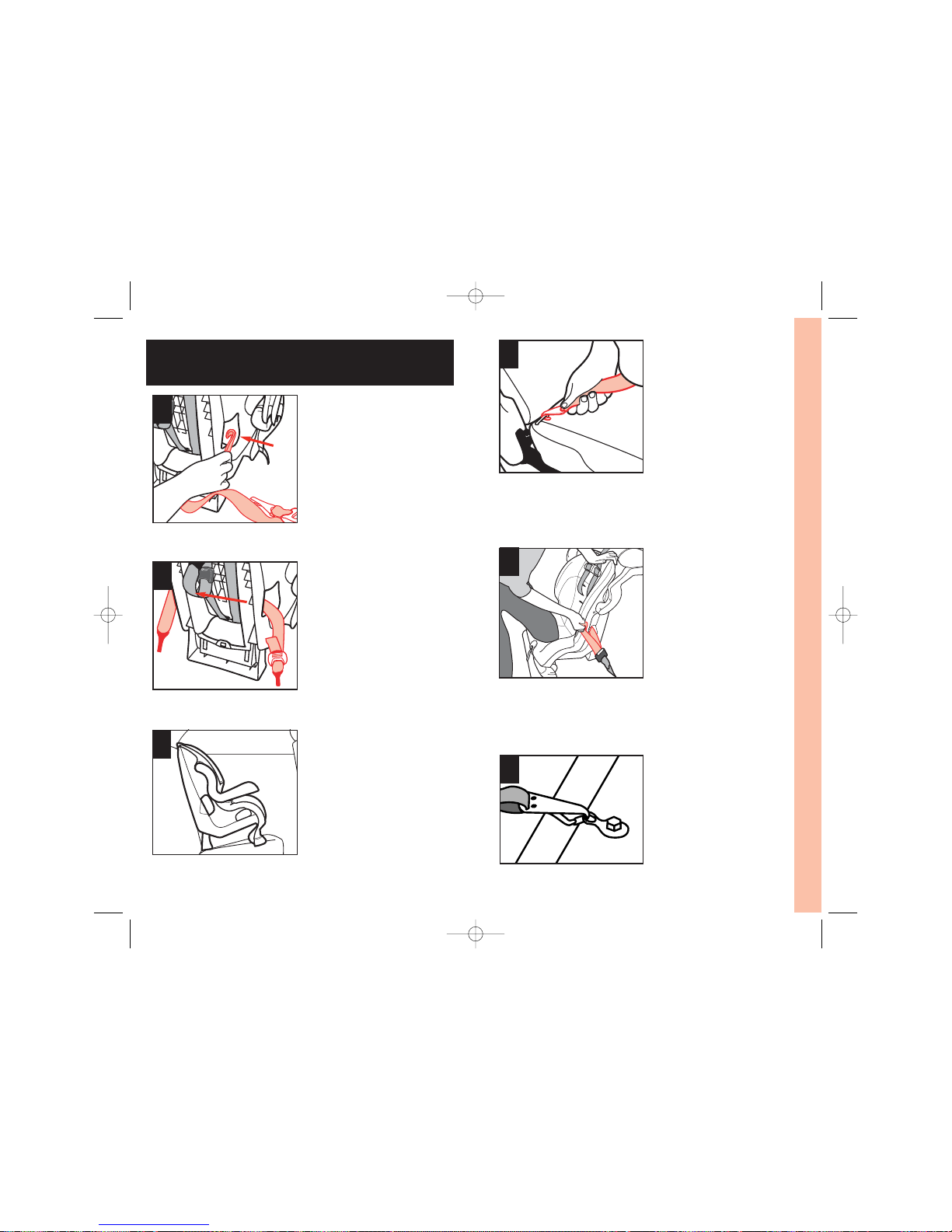

Forward-Facing Installation with
LATCH Belt: Install LATCH Belts
1
2
4
NOTE: Do not use
LATCH system along with
the adult lap or
lap/shoulder belt.
Route LATCH belt
through upper slot in side
of shell.
Pull one LATCH hook
across the back and out
the other side.
The LATCH adjuster can
be on either side, but the
belt should not be twisted.
Fasten one LATCH belt
hook to the anchor in
the vehicle seat located
in the vehicle seat bight.
Repeat for other side of
child restraint. See your
vehicle owner’s manual
for locations and more
information.
continued on next page.
Connect and tighten
harness straps prior to
installing in vehicle.
Place child restraint flush
against the back of the
vehicle seat forward-
facing in the back seat.
The recline position is to
be used only to install the
child restraint flush against
the back of the vehicle seat
back,if needed.
3With knee still in child
restraint,attach hook to
anchor in vehicle. Push
down firmly and tighten
top anchorage strap.
To adjust top anchorage
strap:See“AdjustingTop
Anchorage Strap”
section.
5Place one knee in the
child restraint and push
down firmly while pulling
up on the loop to
tighten belt.
6
36
4358-3775B Scenera OHB 5/30/06 2:09 PM Page 39
