Cambria®2XT
Booster Seat
Instruction Manual

Cambria® 2XT
2
CONTENTS
FRENCH
SPANISH
REGISTRATION
OUR STORY
SAFE USE GUIDE
WARNINGS
VEHICLE SEATING LOCATIONS
VEHICLE SEAT BELT SYSTEMS
CAR SEAT USE AFTER A COLLISION
PARTS
SEAT ASSEMBLY
INSTALLATION
SECURING THE CHILD
BACKLESS BOOSTER
COMFORT FEATURES
CARE & MAINTENANCE
WARRANTY
SAFE USE REQUIREMENTS
CERTIFICATIONS
EXPIRATION
SAFE PARCTICES
ATTACHING THE BACKREST
ADJUSTING THE RECLINE ANGLE
DISENGAGING LOWER ANCHOR INSTALLATION
ADJUSTING THE HEAD SUPPORT
PROPER BUCKLE POSITION
USING THE SHOULDER BELT GUIDE STRAP
CUP HOLDER
REMOVING THE COVER
CLEANING FABRICS
CLEANING PLASTICS
34
66
4
5
67
811
12
13
14
16
17
1821
2224
25
28
29
3033

diono.com | diono.ca 3
WE LOVE TO HELP
Hello there, Welcome to the Diono family!
We’ve created this lovingly engineered car seat to help
keep your child comfortable and safe with all of the
goods and none of the gimmicks.
We look forward to lending a helping hand
each and every day.
Any questions?
Diono US: 1-855-463-4666
Diono Canada: 1-866-954-9786
BEFORE YOU BEGIN

Cambria® 2XT
4
For recall information, call the U.S. Government’s Vehicle
Safety Hotline at 1-888-327-4236 (TTY: 1-800-424-9153),
or go to http://www.NHTSA.gov.
For future reference, in the case of a change of address,
please take a moment to fill out the following information:
This information can be found either on the registration
card or on the manufacturing label located on the seat.
BLACK
6 C
PANTONE CALLOUTS:
PROJECT NAME: Registration Card STICKER — NA
PROJECT:
SCALE: TO SCALE 1:1
DRAWN BY: Technical Compliance — S Staub
DATE: 10/11/2019 © Diono LLC 2019
Radian Q
106 mm
24 mm
DO NOT SCALE - ART CANNOT BE SCALED
year/année/año month/mois/mes day/jour/día
Model Name / Nom de modéle: / Nombre de modelo:
Model Number / Numéro de modè / Número de Modelo:
Serial Number / Numéro de serie / Número de Serie:
Manufacture Date / Date de fabrication /
Fecha de fabricacion:
Diono U.S.
PO Box 77129
Seattle, WA 98177
or call 1-855-463-4666
or register online at:
https://diono.com/product-registration
Diono Canada ULC
2160 S. Service Rd., W.
Oakville, ON L6L 9Z9 Canada
or call 1-866-954-9786
or register online at:
https://diono.ca/product-registration
Please take a moment to fill out the prepaid registration
card attached to the booster seat and mail it in today or
register online at:
Diono U.S.: https://diono.com/product-registration
Diono Canada: https://diono.ca/product-registration
Child restraints could be recalled for safety reasons. You
must register this restraint to be reached in a recall. Send
your name, address, e-mail address if available, and the
restraint’s model number and manufacturing date to:
REGISTER THIS CAR SEAT

diono.com | diono.ca 5
OUR STORY
Time. It goes so fast... Who would have thought that over
two decades have passed since we first stepped out into
the world and started a business dedicated to family travel.
Well the world has changed a lot, but we’re proud to say
that we haven’t (sure we’ve grown up), but we are still as
passionate about what we do today as we were back then.
Our story is ‘made of Seattle’, a city like no other. This is
a place where creative minds & innovators rub shoulders
within a landscape of adventure; a place where being ‘a
little dierent’, is the everyday norm.
With a love for design and an understanding of modern
parenting, we strive to create amazing products, so that
you and your little ones can celebrate the joy in every journey.
People who own Diono products can be found in all
four corners of the big, blue, green ball we all call
home. Some are fans & followers, some are supporters,
tweeters, social media magicians, miracle moms and
devoted dads.
Without your passion, pictures, words and stories, we
would never hear your voice. So tell us about your patch
of grass, and join in the hustle and bustle at diono.com.
share your journey @diono social
or find the latest news

Cambria® 2XT
6
WARNING  Carefully read and understand all
instructions and warnings in this manual, and those
labeled on your child restraint. Failure to do so can
result in the SERIOUS INJURY or DEATH of your child.
SAFE USE REQUIREMENTS:
This child restraint is designed for use ONLY with children
who weigh 40–120 lb (18–54 kg) AND whose height is
38–63 in (97–160 cm).
WARNING! Use ONLY the vehicle’s lap and shoulder belt
system when restraining the child in this booster seat.
DO NOT use a lap belt only!
SAFE USE GUIDE

diono.com | diono.ca 7
UseUse ONLY with children whose earswith children whose ears
are below the top of either the fullyare below the top of either the fully
raised child restraint head support orraised child restraint head support or
the fully raised vehicle headrest.the fully raised vehicle headrest.
CERTIFICATIONS:
This child restraint system conforms toThis child restraint system conforms to
all applicable requirements of U.S.all applicable requirements of U.S.
Federal Motor Vehicle Safety StandardsFederal Motor Vehicle Safety Standards
(FMVSS) 213 and Canadian Motor(FMVSS) 213 and Canadian Motor
Vehicle Safety Standards (CMVSS) 213.2Vehicle Safety Standards (CMVSS) 213.2
and is certified for use in passenger cars,and is certified for use in passenger cars,
multi-purpose passenger vehicles, andmulti-purpose passenger vehicles, and
trucks only.trucks only.
THIS RESTRAINT IS NOT CERTIFIED
FOR USE IN AIRCRAFT.
Aircraft seats do not have shoulder
belts which are required for use with
this child restraint.
SAFE USE GUIDE

Cambria® 2XT
8
WARNING!
DEATH or SERIOUS INJURY can occur
• Read all instructions before using this child restraint.
You can store these instructions in the pocket
provided under the seat cover of your booster seat.
• Before installing this child restraint in a vehicle, be
sure to also check the vehicle owner’s manual for
information on proper installation.
• DO NOT use child restraint in any configuration not
shown in the instructions.
• Use ONLY with children who weigh 40–120 lb (18–54 kg)
AND whose height is 38–63 in (97–160 cm).
• WARNING! Use ONLY the vehicle’s lap and shoulder
belt system when restraining the child in this booster
seat. NEVER use with ONLY a vehicle lap belt to restrain
a child. This could result in serious injury or death.
• ALWAYS make sure the vehicle seat belt can
properly retract before each use.
• NEVER leave your child unattended.
• NEVER install in rear-facing, side-facing or on the
back of a folded down vehicle seat.

diono.com | diono.ca 9
 ALWAYS install this child restraint in the rear vehicle seat.
• DO NOT use this child restraint backless unless there
is a vehicle headrest for that seating position.
• DO NOT use this child restraint with any other
backrest or cushions.
 ALWAYS secure the child restraint using the vehicle
seat belt or LATCH/UAS (Lower Anchors and Tether
for CHildren/Universal Anchorage System)
connectors even when it is unoccupied. It could
injure other occupants in a sudden stop or collision.
• DO NOT use any accessories, inserts or products not
included with this child restraint, unless approved by
Diono. Items not tested with this child restraint could
injure your child.
• DO NOT modify your child restraint.
• NEVER provide this child restraint to another person
without also providing them with the instruction manual.
WARNING!
DEATH or SERIOUS INJURY can occur

Cambria® 2XT
10
EXPIRATION
• DO NOT use the child restraint if any part is damaged
or broken, expired (over 8 years from date of
purchase), missing instructions, or missing parts. Call
to find out if the parts can be replaced.
Diono U.S.: 1-855-463-4666
Diono Canada: 1-866-954-9786
SAFE PRACTICES
• DO NOT leave loose objects, such as books, bags,
etc., in the back of the vehicle. In the event of a sharp
turn, sudden stop, or crash, loose objects can be
thrown around and possibly cause serious injury to
vehicle occupants.
• DO NOT use with hot liquids as this could burn a child.
WARNING!
DEATH or SERIOUS INJURY can occur

diono.com | diono.ca 11
DO NOT PLACE A CHILD RESTRAINT IN
THE FRONT SEAT OF A VEHICLE WITH A
PASSENGER AIR BAG. DEATH OR
SERIOUS INJURY MAY OCCUR.
If an air bag inflates, it can hit the child or child restraint
with enough force to cause SERIOUS INJURY OR
DEATH TO YOUR CHILD.
The back seat is the safest place for children 12 and
under. Refer to your vehicle owner’s manual for
information on your child restraint installation.
WARNING!
 ALWAYS check all surfaces of restraint before
securing your child. In warm weather, child restraints
can become very hot. Do not allow children to play
with vehicle seat belts.
• Some vehicle seat belt systems cannot be used with
this booster seat. Read vehicle owner’s manual and
“Vehicle Seat Belt Systems” section of this manual.

Cambria® 2XT
12
According to accident
statistics, children are
safer when properly
restrained in the rear
seating positions than in
the front seating positions.

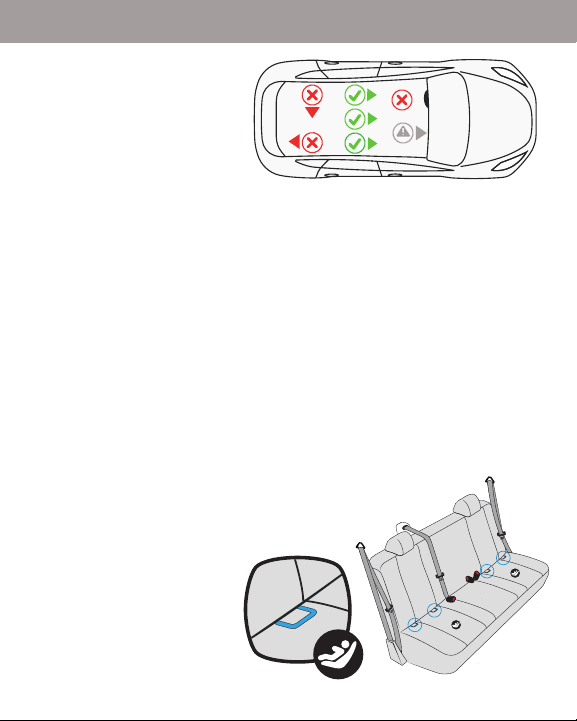

The safest seating position is one that works best for
your specific child restraint, family and vehicle model.
Before installing this child restraint you must determine
the method of installation and the best vehicle seating
position for that method.
When determining whether the child restraint can be
used with vehicle LATCH/UAS anchors in the rear center
seating position, it is critical that you refer to your vehicle
owner’s instruction manual. If the child restraint does not
install best in the rear center seating location,
it is recommended to move to one of the
outboard seating positions.
Vehicle
LATCH/UAS
Anchors
VEHICLE SEATING LOCATIONS

diono.com | diono.ca 13
IMPORTANT: Some vehicle seat belt
systems cannot be used with this
booster seat.
1. ALWAYS install this booster seat in
vehicle seats with 3-point (Lap and
Shoulder) belts. If your vehicle is
equipped with lower anchors, Diono
always recommends installation
utilizing the LATCH/UAS connectors
with this booster seat.
2. DO NOT install this booster seat in
vehicle seats with a Lap Belt Only.
3. DO NOT install this booster seat in
vehicle seats with Motorized (Automatic)
Vehicle Lap and Shoulder Belts.
4. DO NOT install this booster seat in
vehicle seats with Door Mounted
Vehicle Belts.
5. DO NOT install this booster seat
in vehicle seats with Inflatable
Vehicle Belts.
VEHICLE SEAT BELT SYSTEMS
1
2
3
4
5

Cambria® 2XT
14
CAR SEAT USE AFTER A COLLISION
UNITED STATES
The U.S. National Highway Trac Safety Administration
(NHTSA) recommends that car seats be replaced
following a MODERATE or SEVERE collision in order to
ensure a continued high level of collision protection for
child passengers. In the U.S., car seats do not
automatically need to be replaced following a MINOR
collision.
NHTSA defines a MINOR crash as one in which ALL of
the following apply:
• The vehicle was able to be driven away from the
collision site; AND
• The vehicle door nearest the car seat was not
damaged; AND
• No vehicle occupants were injured; AND
• There is no visible damage to the car seat; AND
• The air bags (if present) did not deploy.
NEVER use a car seat that has been involved in a
MODERATE or SEVERE collision.

diono.com | diono.ca 15
CAR SEAT USE AFTER A COLLISION
CANADA
 DO NOT USE THIS CHILD RESTRAINT SYSTEM IF
IT HAS BEEN IN A VEHICLE ACCIDENT.
• Transport Canada designates that you MUST
replace this child restraint if it has been involved in
a collision.
• You must dispose of your child seat or booset seat if
the child seat was in a vehicle during a crash. Even if
the child seat was empty or was not directly hit, it
may be damaged.
• You must dispose of your child seat or booset seat if
the shell is cracked or the webbing of the child car
seat is frayed, torn or discolored.

Cambria® 2XT
16
PARTS
7. CUP HOLDER
8. INSTRUCTION MANUAL
STORAGE POCKET.
LOCATED UNDER THE
SEAT COVER.
9. BACKLESS BOOSTER
SHOULDER BELT GUIDE
STRAP. LOCATED UNDER
THE SEAT COVER.
1. HEAD SUPPORT
2. HEAD SUPPORT ADJUSTER
3. UPPER BELT GUIDE
4. LOWER BELT GUIDE
5. LATCH/UAS CONNECTORS
6. LATCH/UAS
ADJUSTER STRAPS
3
2
9
8
7
5
5
6
6
44
1
3
3
3
7
7

diono.com | diono.ca 17
SEAT ASSEMBLY
ATTACHING THE BACKREST
1. With seat lying flat on the
floor, place hooks at seat
bottom as shown.
2. Attach the backrest hooks to
seat mounting points.
3. Push down on backrest just
above hooks until fully engaged.
4. Rotate backrest to an upright
position while maintaining
pressure just above the hooks.
1
2
3
4

Cambria® 2XT
18
WARNING! Unsecured objects can become flying
hazards and can cause serious injury in an accident. If
your vehicle is equipped with lower anchors, Diono
always recommends installation utilizing the LATCH/
UAS connectors with this booster seat.
To improve safety and performance, this booster seat is
equipped with a lower anchorage system that allows
secure attachment to a vehicle’s lower anchor locations.
1. Disengage LATCH/UAS connectors from storage
slots and lay booster seat on its side. While
DEPRESSING the cam lock lever, PULL LATCH/UAS
connectors away from the booster seatand extend
both straps. Do not overextend connector straps.
2. Attach both LATCH/UAS connectors to the vehicle
anchors, starting with the connector that is
furthest from you. For ease of use, make sure open
end of hooks face upward during use.
INSTALLATION
1
2

diono.com | diono.ca 19
3. While pushing booster against
vehicle seat, pull one adjuster
strap tight and then the other.
Make sure that both LATCH/UAS
connectors are securely attached
to the vehicle’s lower anchors.
4. Booster seat should rest firmly
on vehicle seat bottom and
touching the vehicle seat back. A
gap is acceptable as long as the
head support is touching the
vehicle seat back or headrest. The
entire seat bottom should sit flat
on the vehicle seat.
IMPORTANT: Try to position backrest in full contact with
vehicle seat back. It may also be necessary to adjust the
recline angle of the booster seat to match that of the
vehicle seat.
NOTE: Even with LATCH/UAS connectors properly
attached and adjusted, the booster seat will still have
movement against the vehicle seat back and bottom.
IMPORTANT: DO NOT use LATCH/UAS if installation
interferes with vehicle seat belt.
IMPORTANT: When using booster seat in center seating
position, make sure it is does not rock from side-to-side,
otherwise choose a dierent seating position.
INSTALLATION
3
4

Cambria® 2XT
20
ADJUSTING THE RECLINE ANGLE
IMPORTANT: It may also be necessary to adjust the
recline angle of the booster seat to match that of the
vehicle seat.
This booster seat features a recline angle that can adjust
to match that of the vehicle seat:
1. Push booster seat backrest
backwards until it moves freely.
2. Push seat bottom and backrest
of booster seat down and back
into vehicle seat until there
is secure positioning with the
booster seat and vehicle seat
bottom and vehicle seat back.
A gap is acceptable as long as
the head support is touching the
vehicle seat back or headrest.
INSTALLATION
