User Manual
SOLUNA Home Storage System
S12 EU
DLG Energy (Shanghai) Co.,Ltd.
July.2019| Revision A.0
2
About this manual
This manual describes how to install the DLG Energy (Shanghai) Co.,Ltd of
SOLUNA Home Storage System S12 EU. Read this manual before you attempt to
install the product, and follow the instructions throughout the installation process. If
you are uncertain about any of the requirements, recommendations, or safety
procedures described in this manual, contact DLG Energy (Shanghai) Co.,Ltd
immediately for advice and clarification. The information included in this manual is
accurate at the time of publication. however, with regards to the product design and
technical specification updates, our company reserves the right to make changes at
any time without prior notice. e. In addition, the illustrations in this manual are meant
to help explain system configuration concepts and installation instructions. The
illustrated items may differ from the actual items at the installation location
3
Content
1 Safety precautions 4
1.1 Warning signs 5
1.2 Safety guide 6
2 Product Introduction 9
2.1 Features 9
2.2 Application 9
2.3 Outline Dimensions 10
2.4 Functional description 11
2.5 Technical data 12

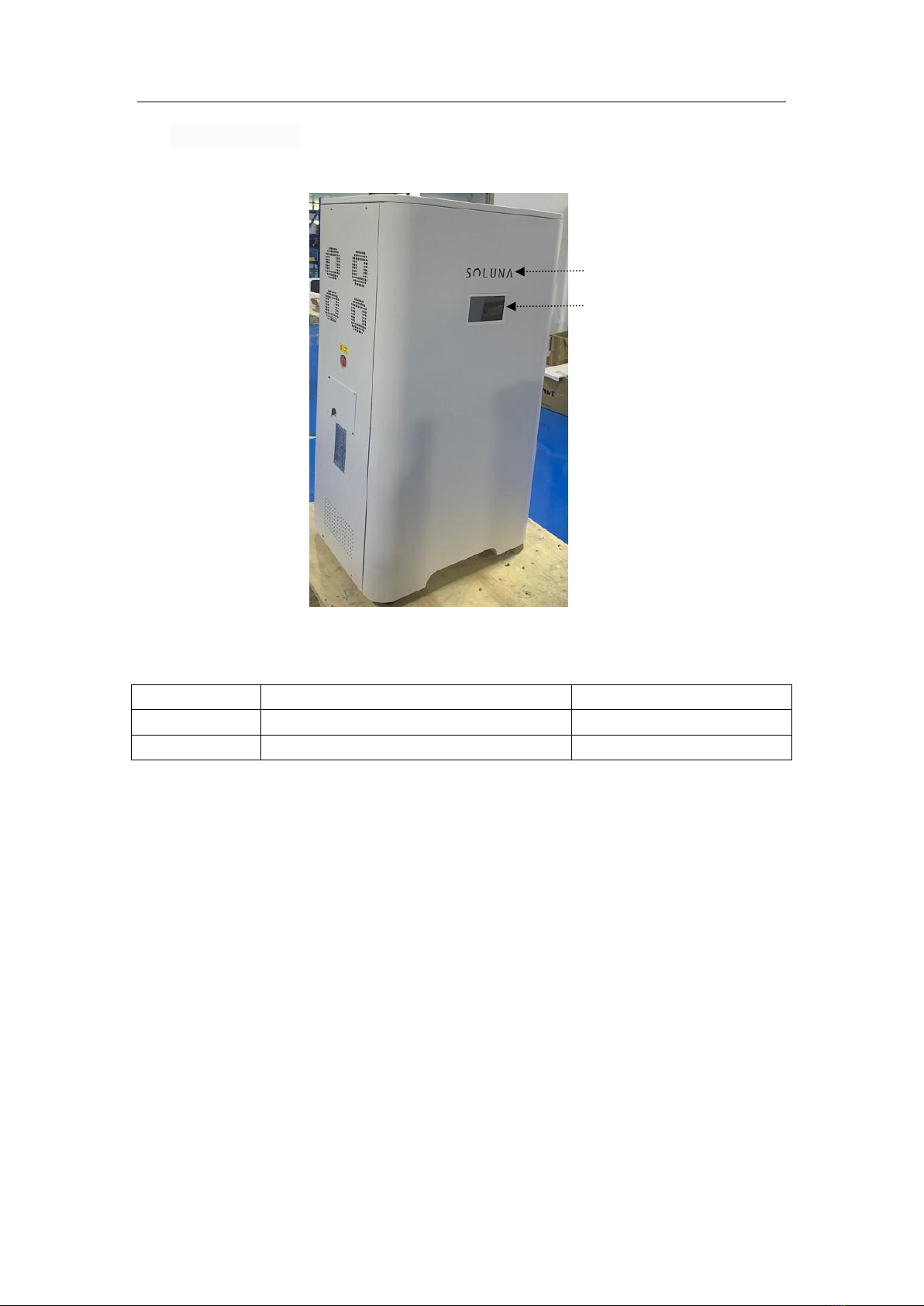

2.6 Appearance 15
3 Installation 18

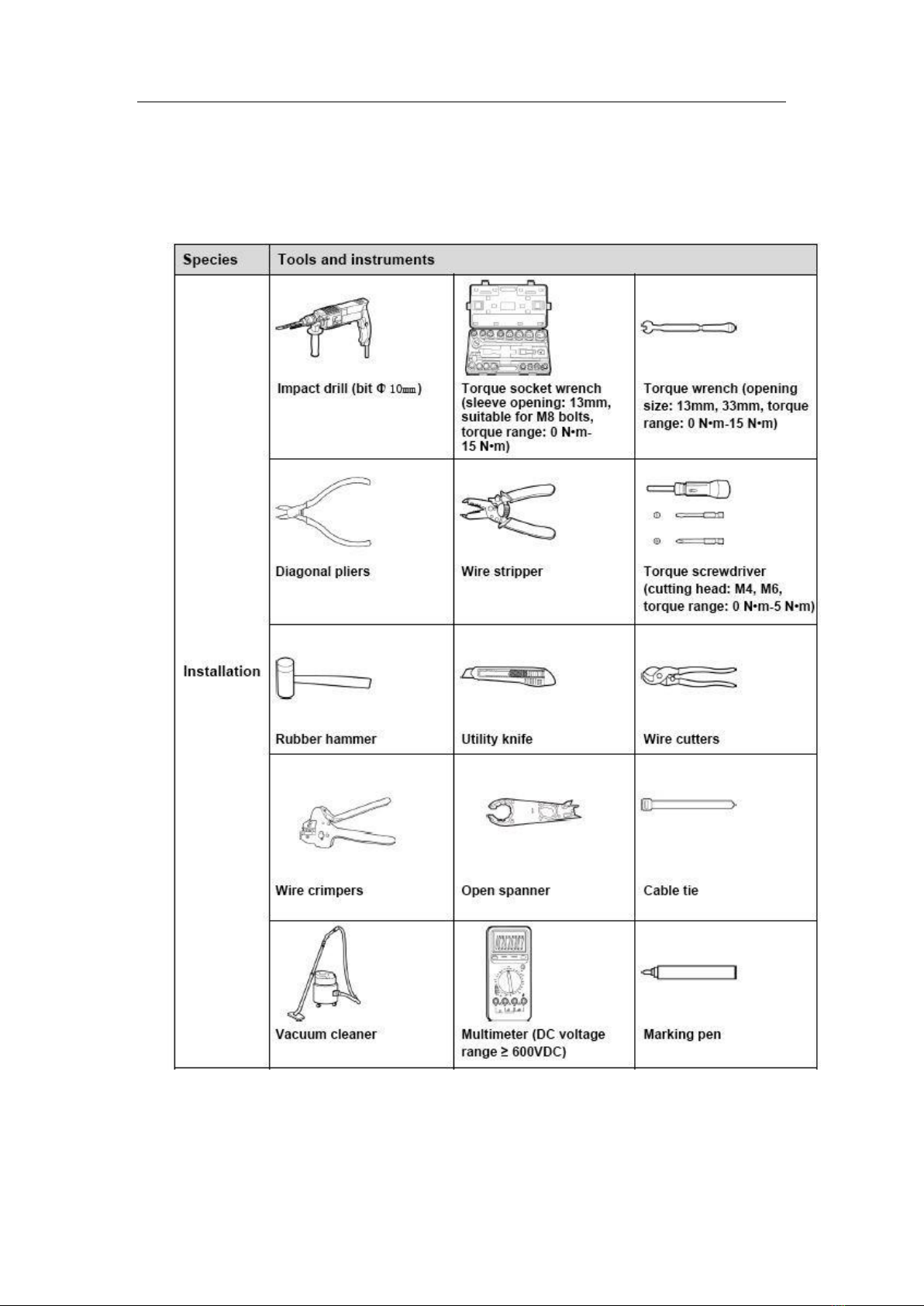

3.1 Installation tools 18
3.2 Installation spacing 20
3.3 Wire specifications 20
3.4 Installation step 20
4 How to operate Soluna 30
4.1Turn on or turn off Soluna 30
4.2 How to operate LCD 31
4.2.1 Place of LCD 31
4.2.2 How to check the information of LCD screen 32
4.2.3 How to check the informations of system 32
4.2.4 How to Set Parameter 36
5 How to maintain 40
5.1 FAN maintenance 40
5.2 Clearance 40
5.3 Fault information handling 40
6 Contact us 41
4
1 Safety precautions
Energy storage integrated machines are designed and tested strictly in accordance
with relevant international safety standards. As an electrical and electronic device,
all relevant safety regulations must be strictly complied during installation, operation,
and maintenance. Incorrect use or misuse may result in:
●Injury to the life and personal safety of the operator or other people.
●Damage to the machine or other property belonging to the operator or otherpeople.
●This chapter mainly various warning symbols in operation manual and provides
safety instructions for the installation, operation, maintenance and use of energy
storage integrated machines.
Statement
Our company shall not be liable for any consequence caused by any of the following
events.
●Damage caused by transportation.
●The storage conditions do not meet the requirements specified in the manual,
resulting in damage.
●Incorrect storage, installation, and use.
●Unqualified personnel install and operate the machine.
●Failure to comply with the operation instructions and safety precautions in this
manual.
●Operate in extreme environments which are not covered in this manual.
●Exceed the operation range of parameters that specified in the technical
specification.
●Unauthorized disassembly, modification, or modification of the software code.
●Device damage caused by abnormal natural environment (force majeure, such as
lightning strikes, earthquakes, fires, storms, etc.)
●Warranty expiration without extension of the warranty service.
●Installation or use in environment which are not specified in related international
standards
5
1.1 warning signs
Warning signs are used to warn you about the conditions that may cause severe
injury or damage to the device. They instruct you to exercise caution to prevent
danger. The following table describes the warning signs used in this manual.
Sign
Name
Description
Danger
Serious physical injury or even death may occur if
related requirements are not followed
Warning
Physical injury or damage to the devices may occur if
related requirements are not followed.
Electrostatic
discharge
Damage may occur if related requirements are not
followed
Hot sides
Sides of the device may become hot. Do not touch.
Note
Note
Steps to take for ensuring the proper running of the
device.
6
1.2 Safety guide
• After receiving this product, first confirm the product package is intact. If
any question, contact the logistic company or local distributor
immediately.
• The installation and operation of the machine must be carried out by
professional technicians who have received professional trainings, and
thoroughly familiar with all the contents in this manual and the safety
requirements of the electrical system.
• Do not carry out connection/disconnection, unpacking inspection and
unit replacement operations on the machine when power source is
applied. Before wiring and inspection, users must confirm the breakers
on DC and AC side of inverter are disconnected and wait for at least 5
minutes
• Ensure there is no strong electromagnetic interference caused by other
electronic or electrical devices around the installation site.
• Do not refit the machine unless authorized.
• All the electrical installation must conform to local and national electrical
standards.
• Ground with proper technics before operation
• Do not open the surface cover of the machine unless authorized. The
electronic components inside the machine are electrostatic sensitive. Do
take proper anti-electrostatic measures during authorized operation.
• Do not touch the housing of the machine or the radiator to avoid scald
as they may become hot during operation
• The machine needs to be reliably grounded.
• Ensure that DC and AC side circuit breakers have been disconnected
and wait at least 5 minutes before wiring and checking.
Note: Technical personnel who can perform installation, wiring, commissioning,
maintenance, troubleshooting and replacement of the energy storage inverters must
meet the following requirements:
• Operators need professional training.
• Operators must read this manual completely, and master the related safety
precautions.
• Operators need to be familiar with the relevant safety regulations for electrical
systems.
• Operators need to be fully familiar with the composition and operating principle of the
entire energy storage system, and related standards of the countries/regions in which
the project is located.
• Operators must wear personal protective equipment.
7
1.2.1 Transportation and installation
1.2.2 Grid-tied operation
Note
• Only qualified electricians are allowed to operate the machine under
the permission of local power departments.
• All electrical connections must meet the electrical standards of the
countries/regions in which the project is located.
• Ensure reliable installation and electrical connection before operation.
• Do not open the cover of the machine when the machine is working or
any circuit is connecting to the machine.
• Keep the package and unit complete, dry and clean during storage
and transportation.
• This machine is heavy. Please remove and install it with at least
Two people.
• To ensure the normal and safe operation of the energy storage
integrated machine and avoid personal injury, please select proper
handling and installation tools, and take mechanical protection
measures to protect personal safety, such as wearing smashing
shoes, coverall and so on.
• Only qualified electricians are allowed to install the machine.
• Do not put and install the machine on or close to flammable or
explosive materials.
• Do not install the machine in a place where children and other people
can easily touch it.
• To avoid a risk of electric shock, please remove rings, bracelets, and
other metal jewelry on your hands before installation and electrical
connection.
• The solar cell modules exposed to the sunlight may generate
dangerous voltage. Users must cover the cell modules with fully light
shading materials before electrical connection.
• The input voltage of the machine should not exceed the maximum
input voltage, otherwise damage may occur.
• The machine is not suitable for the positive or negative grounding
systems of solar cell modules.
• Ensure the proper grounding of the inverter.
• Ensure reliable installation and electrical connection.
8
1.2.3 Maintenance and replacement
• Only qualified electricians are allowed to perform the maintenance,
inspection, and component replacement of the machine.
• Please contact the distributor or manufacturer for maintenance.
• In order to avoid irrelevant personnel from entering the maintenance
area during maintenance, temporary warning signs must be placed
to warn non-professionals to enter or use fence for isolation.
• Before carrying out any maintenance operations, all input power to
the machine must be disconnected first, and wait for at least 5
minutes until the internal parts of the machine are fully discharged.
• Please follow the electrostatic protection norms, and take correct
protective measures because there are mostly electrostatic
sensitive circuits and devices in the machine.
• Do not use parts and components not provided by our company
during maintenance.
• Restart the machine after eliminating the faults and problems which
may affect the safety and performance of the machine.
• Do not get close to or touch any charged metal conductor parts of
the grid or running system, otherwise electric shock or fire may
occur. Please do not ignore the warning icons and instructions with
“electric shock”.
1.2.4 What to do after scrapping
• Do not dispose of the machine together with household waste. The
user has the responsibility and obligation to send it to the designated
organization for recycling and disposal.
9
2 Product Introduction
Soluna S12EU Home Energy Storage System can connect with solar power
generation system, which ensure the users can use environmentally-friendly energy
24 hours at any time. ESS store the energy generated by PV, and uses it whenever
needed, not only reduce the purchase of electricity from the grid, improves the
household energy self-consumption and saves the electricity cost. SOLUNA
integrated energy storage solve solution, help users with achieving maximize the
self-use of green energy.
2.1 Features
●intelligent power management
●Simple user controls, power data history analysis, and programming
●Capacitive touch screen interface
●Secure battery access door
●height-adjustable threaded appliance-grade feet for stability and level appearance
2.2 Application
●Self use
●Peak Shaving
●Emergency power
10

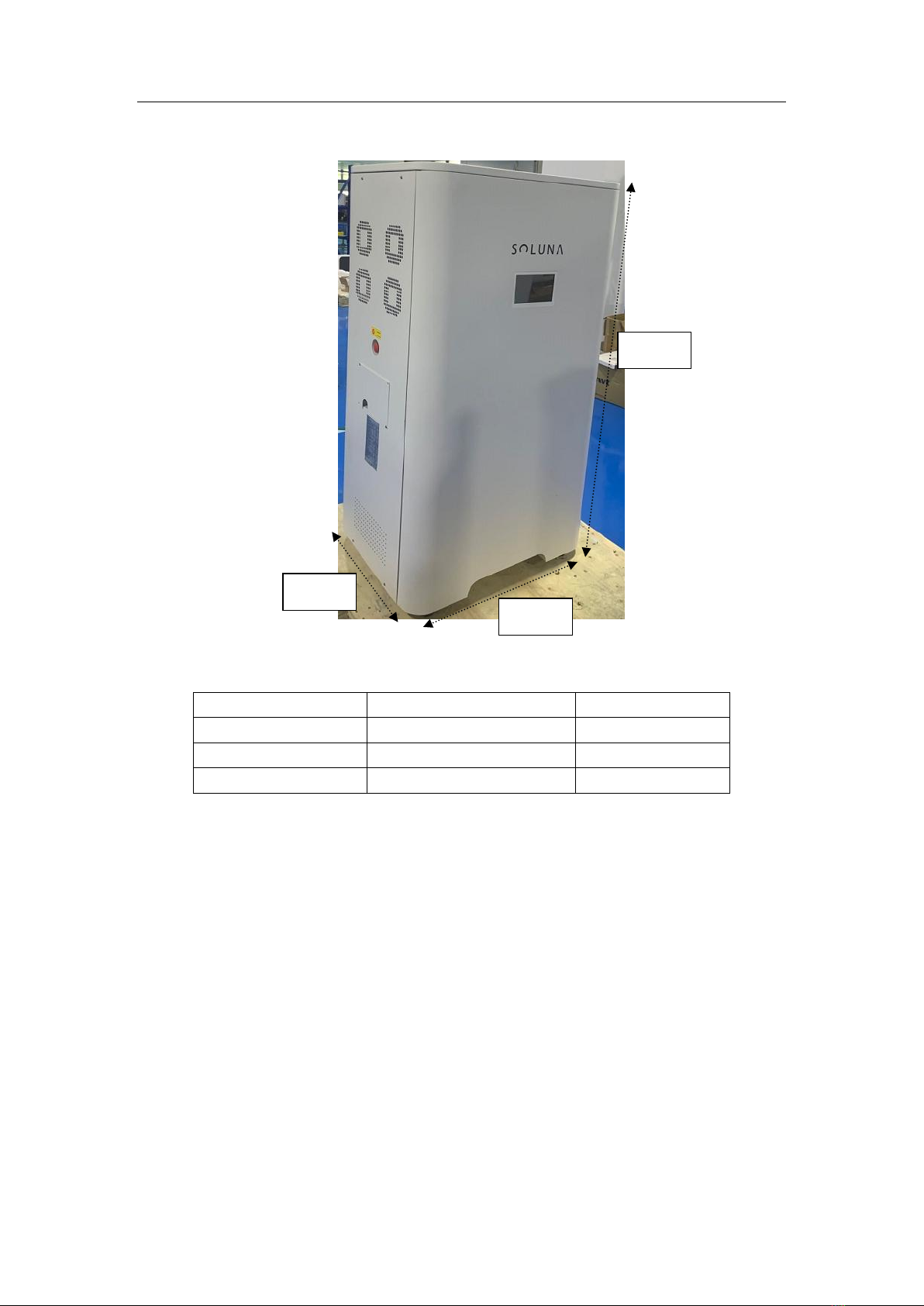

2.3 Outline Dimensions
Figure 2.1 outline dimension
Width
750
mm
Depth
565
mm
Height
1330
mm
Weight
280
kg
Height
Width
Depth
11
2.4 Functional description
2.4.1 Basic principle of Soluna S12 EU
Figure2.2 basic principle of Soluna S12 EU
No
Name
Description
A
PV array
B
PV breaker
C
Soluna S12 EU
D
GRID & LOAD breaker
E
Power meter
F
GRID
G
LOAD
H
APP
12
2.4.2 Working mode
SOLUNA S12 EU have the below working modes for your home made energy
storage system.
●Self Use
In the “Self Use” mode the priority of the PV generated power will be :local
load>battery >public grid. It means the PV generated power will be used in local
load then the battery charging and the redundancy power will be delivered to the
public grid.
●Peak shaving Use
In the “Force Time Use” mode ,user can set the charging and discharging time
according to his wishes and also can chose if charge from grid if allowed.
●EPS mode
The SOLUNA S12 EU version integrated with EPS function. The inverter will
automatically switch to EPS output when the grid if off. User need to set the battery
remaining value for the EPS. When use the EPS function, need to fit the load
power rating with the EPS power rating
2.5 Technical data
2.5.1 Technical data of System
System capacity
Unit
Nominal Storage capacity
11.52
kWh
Usable Storage Capacity
10.35
kWh
PV
Max. recommended DC power
6600
W
Max. DC voltage
500
VDC
Nominal DC operating voltage
360
VDC
MPPT voltage range
120-450
VDC
Max. input current
13*2
A
Max. short current
15.6*2
A
Number of MPPT trackers
2
Strings per MPPT tracker
1
AC Output
AC nominal power
4600
W
Max. AC current
20
A
Max. AC short current
30
A
Max. AC protection current
30
A
Nominal AC voltage/Range
230 ;180~270
VAC
Grid Frequency/Range
50(45-54) / 60(55-65)
Hz
Power factor (rated power)
≥0.99
13
Displacement Power Factor
±0.95
Grid type
Single phase(L/N/PE)
Total harmonic distortion (THD)
<3%
Off-Grid AC Output
Max. AC power
4600
W
Off-Grid AC Rated voltage
220/230/240
VAC
AC nominal current
20
A
Frequency
50 / 60
Hz
Max. AC short current
30
A
Switching time (ms)
20
Total harmonic distortion (THD)
<3%
Grid type
Single phase(L/N/PE)
Battery data
Battery type
Lithium(LFP)
Battery capacity
225 (3*75)
Ah
Normal voltage
51.2
VDC
Voltage range
42-58
VDC
Max. charge current
100
A
Max. discharge current
100
A
DOD
90%
Cycle life
6000
cycle
Regular parameters
Dimension
L*W*H=750*565*1330
mm
Weight
280
kg
Display
7'' graphic LCD
Communication
CAN,WIFI
Operating temperature range
-10～+45
°C
Storage stability range
-20～+60
°C
Relative humidity
0~95%
Altitude
<2000
m
Cooling methods
Forced airflow
Degree of protection
IP20
Certificates
TBD
Warranty
5year
14
2.5.2 Technical data of battery module
Parameter of Battery module unit
Model
Soluna 4K Pack
Nominal Voltage
51.2V
Weight
Approx. 60Kg
Pack Dimension
L678*W205*H436mm
Standard Charge
Constant Current 15AConstant Voltage 58.4V
1.5A Cut-off（255℃）
Maximum Continuous
charge Current
Constant Current 50AConstant Voltage 58.4V
1.5A Cut-off（255℃）
Standard discharge
Constant Current 15A end Voltage 40V （255℃）
Maximum Continuous
Discharge Current
Constant Current 50A end Voltage 40V （255℃）
Rated Capacity
75Ah
Typical Capacity Range
75Ah (0.5C Charge and Discharge)
Impedance（25℃5℃）
≤60mΩ
Storage Temperature Range
-20~60℃
Charge Temperature Range
0~45℃
Operation Temperature Range
-10~45℃
Delivery Capacity
≥30%
Delivery Voltage
≥51.2V
Cycle Life
Standard Charge，rest 10min, Standard discharge.
As cycles defined as one charge and discharge.
Carry out cycles until discharge capacity ＞80%
SOC ，cycle life ≥6000
15
2.6 Appearance
Figure 2.3 Appearance
Number
Name
Remark
①
Soluna bread
②
LCD panel
①
②
16
Figure 2.4 Appearance
Number
Name
Remark
①
System outlet
②
System outlet
③
Emergency Stop
④
System inlet
⑤
Label
①
③
②
④
⑤
17
Figure 2.5 Appearance
Number
Name
Remark
①
Door lock of system
②
Key
①
②
18
3 Installation
3.1 Installation tools
19
3.2 Installation spacing
In order to ensure good ventilation of the energy storage integrated machine,
please reserve enough installation spacing around the machine during
installation.
Position
Min spacing
Remark
Side spacing
200cm
Black spacing
10cm
It needs to be installed against the wall
Note: For detailed requirements about the narrowest maintenance channel, escape
route, etc., refer to the applicable standards of the country/ region where the project
is located.
20
3.3 Wire specifications
In order to standardize the specification of ac and dc connectors or terminals of
compatible inverters, the following requirements are required for connecting ac and dc
wires of corresponding types of inverters
PV side
GRID side
Load
It is recommended to use 4
mm²of wire
It is recommended to use 6
mm²of wire
It is recommended to use 6
mm²of wire
3.4 Installation step
3.4.1 Unpacking confirmation
Before unpacking, check carefully whether the product information in the order is
consistent with that on the nameplate of the package box, and whether the product
package is intact. If there is any question, please contact the supplier timely.
Store the idled machine in its original package, and take anti-moisture and anti-dust
measures. after taking the machine out of the box, check the following items:
Item
Name
Qty (pcs)
Remark
1
System case
1
2
Battery module
1
3
key
2
Use to open the door of system
4
PV connector
4
5
Hexagon wrench
2
6
M8*100 Expansion screws
4
7
M8*16 Outer hexagon screw
2
8
CAN1 communication line
2
9
CAN2 communication lie
2
10
Fixed bracket
2
Use to fix system
11
Fixed bracket
1
Use to fix battery module
12
APP user manual
1
3.4.2 Basic installation requirement
The energy storage integrated machine cabinet is IP20 and suitable for
installation in dry, dusty environments. According to EMC standards, the
energy storage integrated machine cabinet is designed to meet the installation
requirements in a home environment. Select the installation site according to
the following requirements:
●The installation site shall be well ventilated, free from rain and direct sunlight;
●The installation floor shall be dry and flat. It is strictly forbidden to have water on
the ground; ensure that the ground level is not shaken and can fully carry the
Table of contents
