DMC 176 User manual

OWNER’S MANUAL
Red Giant
Grain Stir-Ator
Model 176
PNEG-1358
Date: 9-20-06
1004 East Illinois Street • Assumption, IL 62510 • Ph:[phone]
PNEG-1358

3
PNEG-1358 Red Giant Stir-Ator
1004 East Illinois Street • Assumption, IL 62510 • Ph:[phone]
TABLE OF CONTENTS
Safety Guidelines.....................................................................................4
Final Inspection Checklist.......................................................................8
Operator Qualifications ...........................................................................9
Decals ................................................................................................10-12
Installation Procedures .........................................................................13
Bin Wall Stresses...................................................................................32
Overall Size and Dimensions.........................................................33-34
Parts, Wiring Diagrams, & Drawings ............................................35-58
Operations...............................................................................................59
Drying Recommendations ....................................................................60
Stir-Guard Operation.............................................................................62
Maintenance & Adjustment ..................................................................63
Troubleshooting......................................................................................65
Storage & Installation Data...................................................................68
Warranty......................................................................Inside Back Cover
All information, illustrations, photos, and specifications in this manual
are based on the latest information available at the time of publication.
The right is reserved to make changes at any time without notice.

4PNEG-1358 Red Giant Stir-Ator
This manual contains information that is important for you, the owner/operator, to know and
understand. This information relates to protecting personal safety and preventing
equipment problems. It is the responsibility of the owner/operator to inform anyone
operating or working in the area of this equipment of these safety guidelines. To help you
recognize this information, we use the symbols that are defined below.
Please read the manual and pay attention to these sections. Failure to read this manual
and it’s safety instructions is a misuse of the equipment and may lead to serious injury or death.
SAFETY GUIDELINES
DANGER indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow
this symbol to avoid possible injury or death.
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
CAUTION used without the safety alert symbol indicates a potentially
hazardous situation which, if not avoided, may result in property
damage.
NOTE indicates information about the equipment that you should pay
special attention to.

5
PNEG-1358 Red Giant Stir-Ator
FOLLOW SAFETY INSTRUCTIONS
Carefully read all safety messages in this manual
and on your machine safety signs. Keep signs in
good condition. Replace missing or damaged
safety signs. Be sure new equipment compo-
nents and repair parts include the current safety
signs. Replacement safety signs are available
from the manufacturer.
Learn how to operate the machine and how to
use controls properly. Do not let anyone operate
without instruction.
Keep your machinery in proper working condi-
tion. Unauthorized modifications to the machine
may impair the function and/or safety and affect
machine life.
If you do not understand any part of this manual
and need assistance, contact your dealer.
STAY CLEAR OF ROTATING PARTS
Entanglement in rotating augers will cause serious
injury or death. Make sure everyone is clear of Stir-
Ator before starting or operating the unit.
Keep all shields and covers in place at all times.
Wear close fitting clothing. Stop and lock out power
source before making adjustments, cleaning, or
maintaining equipment.
OPERATE MOTOR PROPERLY
Do not operate the Red Giant Stir-Ator unless the shut-off chain has been
properly installed.
Do not operate electric motor equipped units until motors are properly
grounded. All electrical connections should be in accordance to Local and
National Electrical Codes.
Disconnect power on electrical driven units before resetting motor overloads.
Do not repetitively stop and start the drive in order to free a plugged condition.
Jogging the drive in this type of condition can damage the equipment.

6PNEG-1358 Red Giant Stir-Ator
PRACTICE SAFE MAINTENANCE
Always disconnect and lockout all power
sources before servicing equipment.
Understand service procedures before doing
work. Keep area clean and dry.
Never lubricate, service, or adjust machine while
it is in operation. Keep hands, feet, and clothing
from rotating parts.
Keep all parts in good condition and properly
installed. Fix damage immediately. Replace
worn or broken parts. Remove any build up of
grease, oil, or debris.
Use
Ladders
Safely.
AVOID FALLS
When working using ladders be sure to have rubber pads or
some other method of keeping the ladder from slipping on
the bin or silo floor.
Because the Stir-Ator is suspended from chains in the
center, be cautious of positioning ladder against the Stir-Ator.
The Stir-Ator can move or swing from the weight of a person
climbing on the ladder.
Also, when setting a ladder against the Stir-Ator, a vise grip
or some other type of tie down should be used in the front
and back of the track drive unit. This keeps the Stir-Ator from
rolling or sliding around the bin while service work is being
performed.
During heavy service work, such as removing auger drive,
electric motors, or replacing electrical swivel, tying the ladder
to the main frame or some other solid component is advised.
Using a ladder in a partially filled bin is not recommended.
The ladder can sink into the grain allowing it to become
unstable and fall.
Climbing out on the main frame from either a ladder or roof
manhole should not be attempted. The Stirator can swing,
causing a fall.
Do not climb Stirator down augers to make adjustments or
re-pairs. Slipping could cause falling, bodily injury, or both.

7
PNEG-1358 Red Giant Stir-Ator
PREPARE FOR EMERGENCIES
Be prepared if fire starts.
Keep a first aid kit and fire extinguisher handy.
Keep emergency numbers for doctors, ambu-
lance service, hospital, and fire department near
your telephone.
WEAR PROTECTIVE CLOTHING
Wear close fitting clothing and safety equipment
appropriate to the job.
Safety glasses should be worn at all times to
protect eyes from debris.
Wear gloves to protect your hands from sharp
edges on plastic or steel parts.
A respirator may be needed to help prevent
breathing potentially toxic fumes and dust.
Wear hard hat and steel toe boots to help
protect your head and toes from falling debris.
Eye Protection
Gloves
Steel Toe
Boots
Respirator
Hard Hat

8PNEG-1358 Red Giant Stir-Ator
FINAL INSPECTION CHECK LIST
1. HAVE YOU READ THE OWNER’S MANUAL COMPLETELY - YOURSELF? STUDY IT.
2. Is there at least 7" clearance between the top of the track and the lowest part of the roof or roof
braces?
3. Are the track splices correctly installed? Consult the Drawings in the OWNER’S MANUAL?
4. Is the suspension tee properly hung, LEVEL, with the end loops down, with lead-in wire and
shut-off chain properly installed?
5. IstheframeoftheStiratorabout1"higheratthecenter of the bin for NEW BIN INSTALLATION,
and LEVEL WITH EXISTING BINS?
6. Are augers 3" off the drying floor at the bin wall?
7. Were the augers notched with a file (NOT A TORCH) where the clamp bolts serve as a driving
key?
8. Did you note the instructions NOT to weld flighting at the top end of the auger?
9. Are you keeping a record of the serial number of each owner?
10. IfyourRedGiantStir-atorisequippedwiththreephasepower,BESUREYOURELECTRICIAN
HAS INSTALLED ADEQUATE MOTOR PROTECTION, (either magnetic or manual starters
can be used) or you will void the warranty on your three-phase motors.
11. Didyoumakesurethattheownerreceivedhisowner’smanual,andwasinstructedthatreading
and understanding the manual will help immensely?
12. If electric motors other than the ones provided by David Manufacturing Company are used,
modification of the motor belt shield may become necessary. Cut to fit. Do not operate without
the shields being in place.
13. Did you put safety decals on bin; inside walk-in door; under side of man-hole cover?
14. NOTE: Operating the Stir-Ator during bin unloading can be beneficial, and can prevent auger
damage. When the grain no longer flows into the center sump, the Stir-Ator should be shut off
to prevent auger damage.
15. NOTE: BURYINGUNIT WILLDAMAGEBIN ANDWILLVOID YOUR REDGIANTWARRANTY.
DID YOU PUT #90 OIL IN THE GEAR BOXES?
PROPER INSTALLATION GREATLY REDUCES SERVICE CALLS

9
PNEG-1358 Red Giant Stir-Ator
Operator Qualifications
A. The User/Operator must be competent and experienced to operate this equipment. Anyone who works with or
around this equipment must have good common sense in order to be qualified. These persons must also know and
meet all other qualifications, such as:
1. Any person who has not read and/or does not understand all operation and safety
procedures is not qualified to operate this system.
2. Certain regulations apply to personnel operating power machinery. Personnel under
the age of 18 years may not operate power machinery, including augers. It is your
responsibility, as owner and/or supervisor, to know what these regulations are in your
area or situation.
3. Unqualified or incompetent persons are to remain out of the work area.
4. O.S.H.A. (Occupational Safety & Health Administration) regulations state:
"At the time of initial assignment and at least annually thereafter, the employer shall
instruct every employee in the safe operation and servicing of all equipment with
which the employee is, or will be involved." (Federal Occupational Safety & Health
Standards for Agriculture. Subpart D, Section 19287.57 (a) (6).
B. As a requirement of OSHA, it is necessary for the employer to train the employee in the safe operating and
safety procedures for this equipment. We included this sign-off sheet for your convenience and personal record
keeping. All unqualified persons are to stay out of the work area at all times. It is strongly recommended that
another qualified person who knows the shutdown procedure is in the area in the event of an emergency. A person
who has not read this manual and doesn’t understand all operating and safety instructions, is not qualified to operate
this machine.
DATE EMPLOYER'S SIGNATURE EMPLOYEE'S SIGNATURE

10 PNEG-1358 Red Giant Stir-Ator
Rotating flighting will
kill or dismember.
Flowing material will
trap and suffocate.
Crusted material will
collapse and suffocate.
Keep clear of all augers.
DO NOT ENTER this bin!
Failure to heed these
warnings will result in
serious injury or death.
DC-GBC-1A
1. Shut off and lock out all power.
2. Use a safety harness and safety line.
3. Station another person outside the bin.
4. Avoid the center of the bin.
5. Wear proper breathing equipment or respirator.
If you must enter the bin:
DC-GBC-1A & DC-GBC-1S
Should be located at any bin entry so it can be seen and read easily.
PLEASENOTE: 1. Decals on the page are not actual size.
2. Keep all decals wiped clean at all times.
3. All decals must be replaced if they are destroyed, missing, painted
over or can no longer be read.
Replacements are available upon request.
Write to: DMC, 1004 E. Illinois St., Assumption, IL 62510
[phone]
THE DECALS SHOWN ON THIS PAGE MUST BE
DISPLAYED AS SHOWN.
104L2013
Shouldbelocatedonoutsideofdoor.
RED GIANT
THIS DRYING BIN EQUIPPED WITH
DAVID MANUFACTURING CO. ASSUMPTION, IL
104L2013

11
PNEG-1358 Red Giant Stir-Ator
DC-889
Bothsidesofswivel box
plus junction box cover.
1067021
Both sides of trolley body.
1067022
Top of gear motor track frame.
DC-889
KEEP CLEAR OF ROTATING PARTS!
1067021
KEEP HANDS OUT!
1067022
PLEASENOTE: 1. Decals on the page are not actual size.
2. Keep all decals wiped clean at all times.
3. All decals must be replaced if they are destroyed, missing, painted
over or can no longer be read.
Replacements are available upon request.
Write to: DMC, 1004 E. Illinois St., Assumption, IL 62510
[phone]
THE DECALS SHOWN ON THIS PAGE MUST BE
DISPLAYED AS SHOWN.
104L0016
Decal on back side of frame.
104L0012
LIFT HERE
104L0016
DO NOT
OVERTIGHTEN CHAIN.
104L0012

12 PNEG-1358 Red Giant Stir-Ator
DC-889
Bothsidesofswivel box
plus junction box cover.
1067021
Both sides of trolley body.
1067022
Top of gear motor track frame.
DC-889
KEEP CLEAR OF ROTATING PARTS!
1067021
KEEP HANDS OUT!
1067022
104L0016
Decal on back side of frame.
104L0012
PLEASENOTE: 1. Decals on the page are not actual size.
2. Keep all decals wiped clean at all times.
3. All decals must be replaced if they are destroyed, missing, painted
over or can no longer be read.
Replacements are available upon request.
Write to: DMC, 1004 E. Illinois St., Assumption, IL 62510
[phone]
THE DECALS SHOWN ON THIS PAGE MUST BE
DISPLAYED AS SHOWN.
LIFT HERE
104L0016
DO NOT
OVERTIGHTEN CHAIN.
104L0012

13
PNEG-1358 Red Giant Stir-Ator
STEP 1
All Red Giant Grain Stir-Ators come
shipped as follows:
(1) Trolley Base Assembly - 4 Auger
and 6 Auger Units
(1) Trolley Extension Bundle -
6 Auger Only
(1) Frame Rail Bundle
(1) Track Bundle
(1) Electrical Parts Box 26" x 26" x 18"
(2) Parts Boxes 16" x 16" x 54"
STEP 2
Before starting to assemble the bin, the
complete Red Giant Stir-Ator, less augers,
should be laid in the center of the concrete
pad. The top ring and roof assembly of the
bin is assembled in the usual way. The
Stir-Ator wall track is then installed, as
shown in (Drawing A on page 33.) The
5/16" hole for the track bolts should be
drilled, or punched, in the bin metal
progressively; that is, starting with a
double-hole end of a track section, the first
hole is drilled or punched, and the three-
hole connector, track bracket, and bolt
installed. Then, using the holes in the track
as a guide, the rest of the bolts and
brackets can be installed around the bin.
Be sure to have track splices smooth and
aligned. See parts Drawing "O" on page
28.
ALL RED GIANT STIR-ATORS
REQUIRE 12-5/8" SPACING TRACK.
RED GIANT INSTALLATION PROCEDURES
Red Giant Stir-Ator
4 Auger Unit
PRIOR TO ASSEMBLY AND
INSTALLATION CONSULT THE
BIN ERECTION MANUAL OR
MANUFACTURER FOR ANY
SPECIAL UNIT HANGING OR
SUPPORT LOCATIONS.
NOTE

14 PNEG-1358 Red Giant Stir-Ator
STEP 3
NOTE THE SEVEN-INCH DISTANCE
FROM THE EAVE OF THE BIN TO THE
CENTER LINE OF THE HOLES IN THE
TRACK. Bins with steeply-pitched roofs
may allow the 7" distance to be reduced.
Roofs with the low or “flat” profiles may
require more clearance. Reinforcements
for the roof or inner ladders which might
interferewiththemovementofthe Stir-Ator
should be trimmed off as indicated in
Drawing A on page 33. If this cannot be
done, the 7" distance from the eave to the
bolt holes must be incresed
proportionately.
STEP 4
There should be slightly more track
materialthan isrequired.Uponmaking the
complete circuit of the bin, the end of the
last section should be cut off so as to fit
snugly against the forward end of the first
length and a 7/16" hole drilled, 5/8" from
the cut-off end. ALL TRACK JOINTS
SHOULD BE ALIGNED AS SMOOTHLY
AS POSSIBLE. Mis-alignment should be
correctedbyfilingor bending,ifnecessary.
STEP 5
Because the Stir-Ator augers run very
close to the bin wall, INSIDE WALL
LADDERS MUST BE MOUNTED VERY
CLOSETOTHE BIN WALL. If this cannot
be accomplished, the ladder must be
removed.Aportableladder isadvised,and
this can be obtained form your dealer. If
thewalk in door protrudes over 2-1/2" into
the bin itself, SKID PLATES SHOULD BE
PUT ON THE DOOR so that the augers
will not get caught during Stir-Ator
operation.
NOTE THE CLEARANCE REQUIREMENTS IN
DRAWING A AND B.

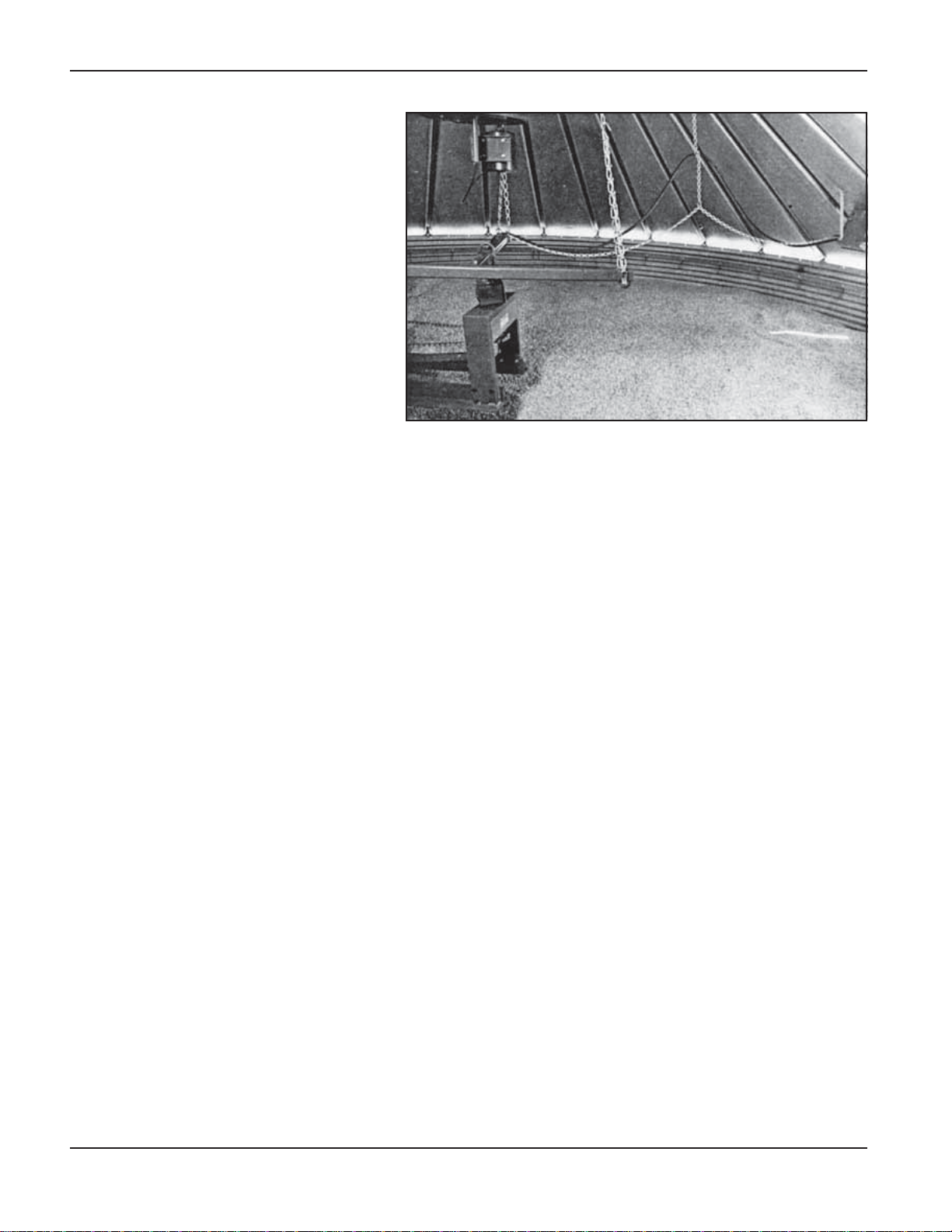

STEP 6
At this time, hook the three suspension chain hooks over the
top edge of the fill hole. Space them equally around the fill
hole. See Drawing B on page 36 or Photo 1.
STEP 7
Install the switch box above the inspection hole. Be sure the
Red Giant will not hit it,and do not forget the brace. See Photo
1 or Drawing A on page 33.
Lead-in cord and shut-off chain need to be positioned so that
the Stir-Ator will not catch them as it rotates around the bin.
Photo 1

15
PNEG-1358 Red Giant Stir-Ator

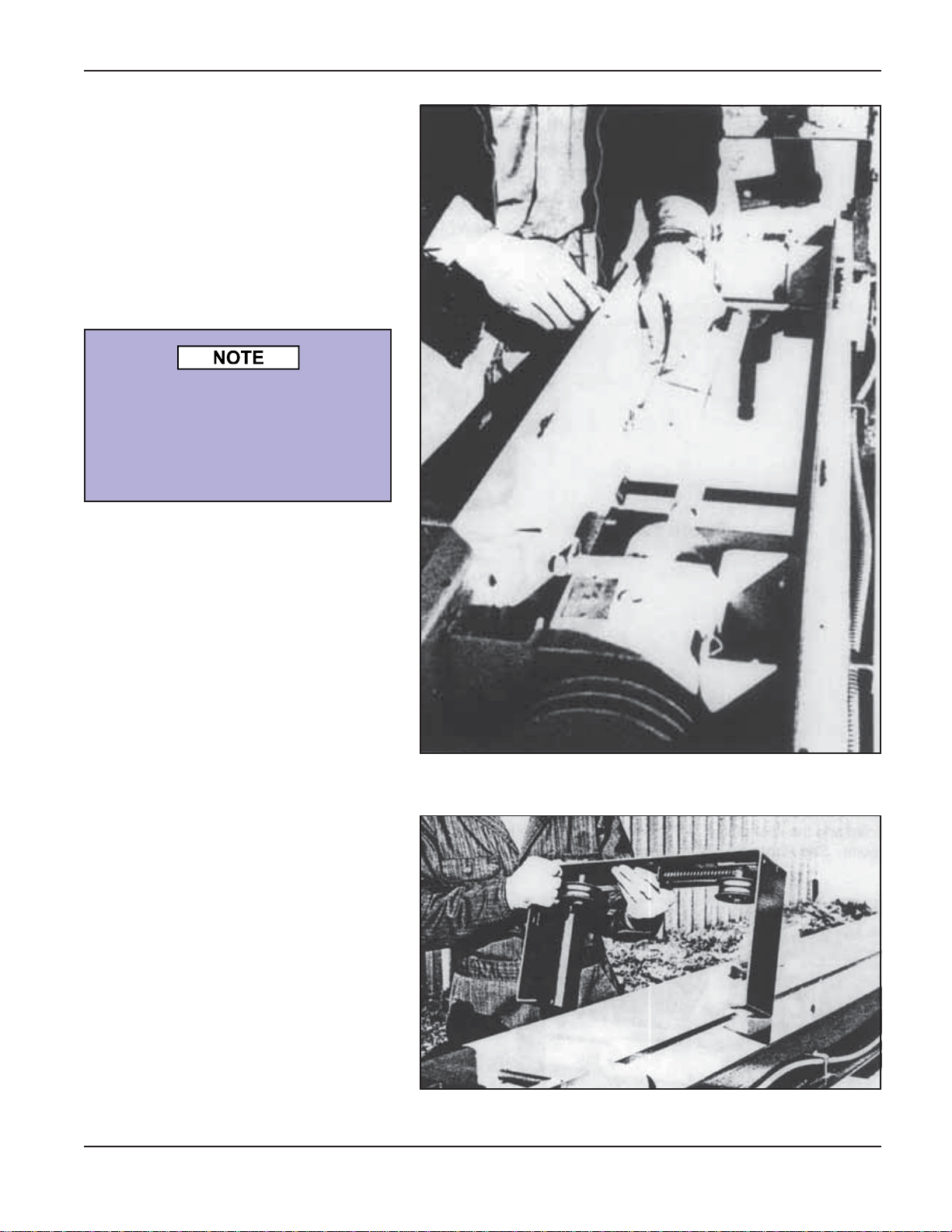

STEP 8
Put main frame on saw horses (two
pieces),asshown in Photo2.Thenspace
about 11-1/2 inches apart with angle
flanges outward. Be sure chain idler
support brackets are on the same end.
STEP 9
Place inboard pivot end over main frame
as shown in Photo 3. Be sure inboard
pivot is on the same end of the frame as
chain idler support brackets. See Photo
5 on page 16. Have the heavy electric
cords coming out of the center pivot on
the same side as the loops on the main
frame. These loops hold the heavy cords
in place.
Using two 3/8" x 1" hex head bolts, place
flatwasher onto bolt,putboltthroughyoke
and frame, and secure with lock-washer
and nut on inside of frame angle (Two on
each side). Using two 3/8" x 1" hex head
bolts for four-auger machine (Two 3/8" x
2" hex head bolts for six-auger machine),
bring bolts up from the bottom of the main
frame through yoke and secure with flat
washer, lock-washer, and nuts (Two on
each side). See Photo 3 or Drawing E
on page 42.
Large loops for both rubber
covered cords, small loops on
opposite end of frame for
14-3 cord only.
CHAIN IDLER
SUPPORT BRACKETS
Photo 2
Photo 3

16 PNEG-1358 Red Giant Stir-Ator
STEP 10
Place the outboard pivot end over main
framewithtrackdrive rollers’ toward the
outside. Secure with two 3/8" x 1" hex-
head bolts. Place flat washers on bolt,
putting bolt through outboard pivot end
and frame, securing with lock-washer
and nut on the inside (two on each side)
then place two 3/8" x 1" hex-head bolts
for four-auger machine (Two 3/8" x 2"
for six-auger machine) up through the
bottom of the frame, through the yoke
andsecure withflatwasher, lock-washer
and nut (Two on each side). See Photo
4 and Drawing D on page 40.
STEP 11
Threadmainpowercordandgearmotor
powercord (14-3) from the inboard pivot
throughthe loopsontheside of themain
frame, with the main power cord only
ending where the large loops stop. The
gearmotor cord continues to the
oppositeendofthemain frameas shown
in Photo 5.
Greenfield shown in photo has been
replacedwith14-3 rubber covered wire.
Photo 4
Photo 5

17
PNEG-1358 Red Giant Stir-Ator
STEP 12
FOR SIX AUGER UNITS ONLY: The six-
auger trolley comes in two sections; one
four-augersection plus an extension. First
remove the bolts holding the center gear
boxon the four-auger section. See Photo
7 or Drawing F on page 44. Then, place
two-augersectionoverfour-augersection
and replace gear box bolts. At this time,
installtwo additional 5/16" x3/4"hex-head
bolts,lockwashersand nuts in the lapped
section. Be sure bolts are tightened
securely. Cut loose extension drive shaft.
See Photo 7.Photo 6
Photo 7

18 PNEG-1358 Red Giant Stir-Ator
STEP 13
Place the 3/4" x 14" axle shaft through
thetrolleybodyaxlebushings.Twoaxles
are used on a four-auger trolley, and
three axles are used on all 36' four
auger,andallsix-augertrolleys.After the
axles have been installed, place one
3/4" S.A.E. washer, the poly-wheel and
another 3/4" S.A.E. washer on each
side. Secure with a 3/16" x 1-1/4" cotter
pin. See Photo 8 and Drawing C on
page 38.
STEP 14
Place trolley on to the main frame. Photo 8
Photo 9
Trolleys are marked ‘CENTER OF
BIN’. Be sure trolley is upon main
frame with the decal on the proper
end. Be sure poly-wheels are
setting properly on the rim of the
frame. See Photo 9.

19
PNEG-1358 Red Giant Stir-Ator
STEP 15
Next install the hold-down bracket, using
four 5/16" x 3/4" hex-head bolts with lock-
washers and nuts. Two sets of holes are
punched in the bracket. Use the TOP
HOLES when installing the hold-down
bracket on a SIX-AUGER UNIT and the
BOTTOM HOLES are provided for use
when installing a FOUR-AUGER UNIT.
Photo 10
Photo 11
Twohold-downs are used oneitherafour-
or six-auger unit. When hold-downs are
properly positioned, there will be 1/4"
clearancebetweenthe hold-down and the
main frame. See Photo 10.
STEP 16
CHAIN IDLER SUPPORT YOKE: Bolt
chain-idler support yoke on to the main
frame, positioning support yoke with
spring-loadedidler onthesameside of the
main frame as the heavy electrical wires.
Secure, using four 5/16" x 1" hex-head
bolts, lock-washers and nuts. See Photo
11 and Drawing E, page 42.
BESURE THE BOLTS ARE PUTIN
FROM THE OUTSIDE TO THE
INSIDEWITH THELOCK-WASHER
AND NUTS ON THE INSIDE OF
THE TROLLEY FRAME.

20 PNEG-1358 Red Giant Stir-Ator
STEP 17
Boltthedrive guide arm on to the center
inboard pivot and chain idler support
yoke, using three 1/4" x 3/4" carriage
bolts with lock-washers and nuts.
BE SURE THE GUIDE ARM IS
POSITIONED AS IN Photo 12. See
Drawing E on page 42. Theboltholding
the guide arm to the chain idler support
yoke needs to be positioned with round
head of the carriage bolt in the channel
of the drive arm guide.
STEP 18
Install center drive roller chain with
connecting angle to the outside as
shown in Photo 13. Photo 12
Photo 13
CONNECTING ANGLE MUST BE
AS SHOWN IN PHOTO or chain will
lock up when going around the
spocket and pulleys.
To assure proper chain tension, grasp
the chain at the halfway point between
the sprocket and the idler pulley. 3/4"
movement each way is all that is
advisableat this point.See Photo 13 or
Drawing K.
Drawing K
