dosatron DosaCart HS15-16 User manual

Part #: HS15-16
ASSEMBLY INSTRUCTIONS
(Portable Fertilizer System ts 14 GPM Dosatron models.
Dosatron, Quick Hook-Up Kit and Cart sold separately.)
DosaCart

CALL 1-800-523-8499 FOR SUPPORT CHAT AT WWW.DOSATRONUSA.COM

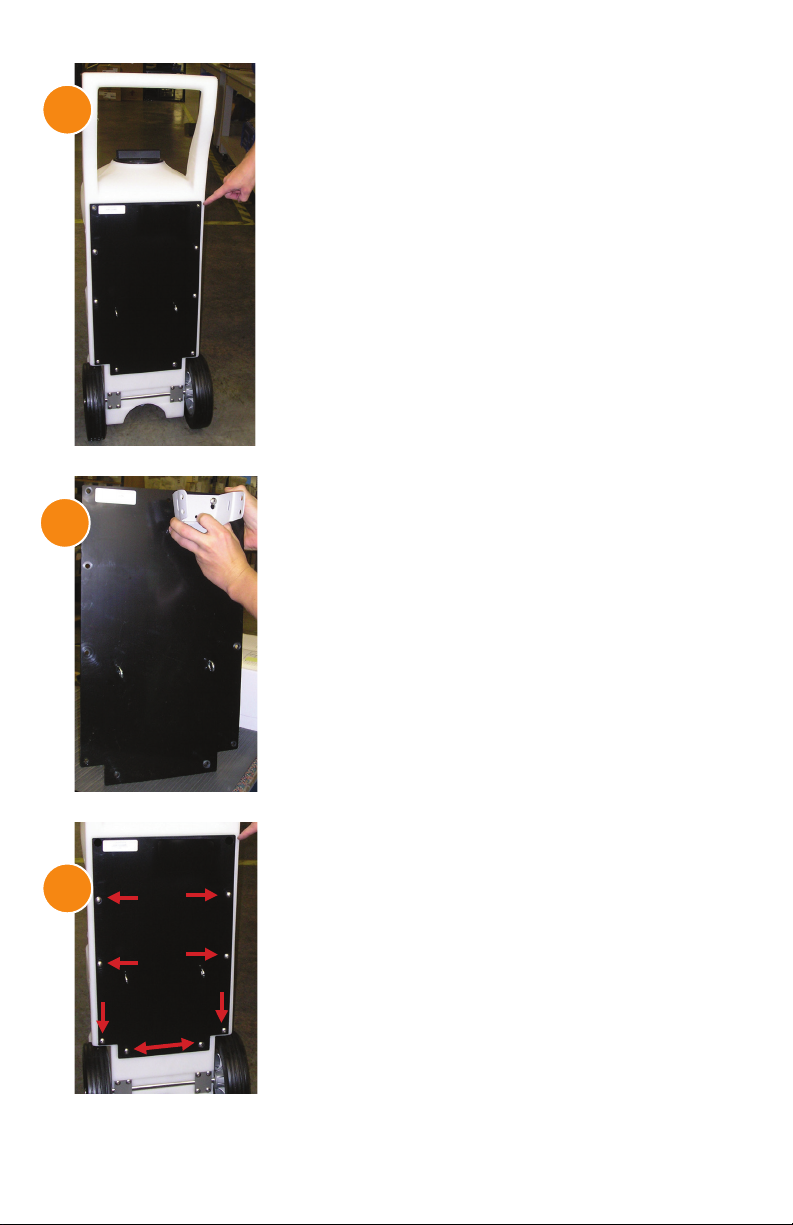

Remove the 10 screws from the
back plate, to remove from the
back of the DosaCart.
1
Attach the 14 GPM Dosatron unit
bracket on the eyebolts, with the
two screws and two nylon locking
nuts provided in the hardware bag.
Attach the plate back onto the
DosaCart by installing eight screws
around the plate except for the top
two screws (these will be used for
the crash bar, see step 7).
2
3

CHAT AT WWW.DOSATRONUSA.COM
Assemble the Quick Hook-Up Kit with
the D14 unit using the Quick Hook-Up
Kit instructions included with the kit.
NOTE: Be cautious not to use
excessive force when attaching the
ttings onto blue housing of the unit.
Attach the Dosatron unit and
Quick Hook-Up Kit assembly
onto the unit bracket.
Zip tie hoses to eye hooks.
4
6
5

Pull the Dosatron pickup hose through
the DosaCart lid, with the lter placed
on the inside of the lid
8
Insert lter end of pickup hose into
DosaCart tank and attach the lid to the cart.
9
Remove the hose nut from the unit. Insert
the pickup hose through the nut and attach
to the barb at the bottom of the unit.
Tighten the hose nut back to the unit.
10
Attach the crash bar into place using
the remaining two screws.
7
