DMP Electronics DIN PC-333x Series User manual

DINPC-333xSeries
User’s Guide

Copyright
The information in this manual is subject to change without notice for continuous
improvement in the product. All rights are reserved. The manufacturer assumes no
responsibility for any inaccuracies that may contain in this document, and makes no
commitment to update or to keep current information contain in this manual.
No part of this manual may be reproduced, copied, translated or transmitted, in whole
or in part, in any form or by any means without the prior written permission of
DMP Electronics Inc.
Copyright 2014 DMP Electronics Inc.
Special Notice to Users
DMP Electronics Inc. provides no warranty with regard to this manual, the software, or
other information contained herein and hereby expressly disclaims any implied
warranties of merchantability or fitness for any particular purpose with regard to this
manual, the software, or such other information. In no event shall DMP Electronics be
liable for any incidental, consequential, or special damages, whether based on tort,
contract, or otherwise, arising out of or in connection with this manual, the software, or
other information contained herein or the use thereof.
DMP Electronics reserves the right to make any modification to this manual or the
information contained herein at any time without notice. The software described herein
is governed by the terms of a separated user license agreement or label sticker.
This product contains software owned by DM&P and licensed by third parties. Use of
such software is subject to the terms and conditions of license agreements enclosed
with this product. Software specifications are subject to change without notice and may
not necessarily be identical to current retail versions.
Updates and additions to software may require an additional charge. Subscription to
online service providers may require a fee and credit card information. Financial
services may require prior arrangements with participating financial institution.

Trademarks Acknowledgment
The DIN PC-333x Series is the registered trademarks of DMP Electronics Inc.
Microsoft, Windows, and AMI are registered trademarks of Microsoft Corporation
and American Megatrends Inc. in the United States and/ or other countries respectively.
Other brand names, product names or trade names appearing in this document are the
properties and registered trademarks of their respective owners. All names mentioned
herewith are served for identification purpose only.

SafetyInformation
WARNING
DonotexposetheDINPCtorainormoisture,inordertopreventshockandfirehazard.
NeverinstalltheDINPCinwetlocations.
Donotopenthecabinetto avoidelectricalshock.Refertoyournearestdealerforqualified
personnelservicing.
Nevertouchun-insulatedterminalsorwireunlesspoweroftheDINPCanddisplaymonitor
aredisconnected.
LocatetheDINPCascloseaspossibletothesocketoutlineforeasyaccessandtoavoid
forcecausedbyentanglingofyourarmswithsurroundingcablesfromtheDINPC.
WhenusingtheDINPC,avoidusingorinstallingthemodemtotheserialport
during a stormora lightning.
Donotusethemodemoratelephonetoreportagasleakinthevicinityoftheleak.
USBconnectorsaresuppliedwithLimitedPowerSources.
DO NOT ATTEMPT TO OPEN OR TO DISASSEMBLE THE CHASSIS
(ENCASING)OF THIS PRODUCT.PLEASE CONTACT YOUR NEAREST
DEALER FOR SERVICING FROM QUALIFIED TECHNICIAN.

Regulatory
FCC Class ANote
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassAdigitaldevice,pursuant
toPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmful
interferencewhentheequipmentisoperatedinacommercialenvironment.Thisequipmentgenerates,
usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththe
instructionmanual,maycauseharmfulinterferenceinwhichcasetheuserwillberequiredtocorrectthe
interferenceathisownexpense.Testingwasdonewithshieldedcables. Therefore,inordertocomply
withtheFCCregulations,youmustuseshieldedcableswithyourinstallation.
WARNING
ThisproductcomplieswithEN55022classA.Inadomesticenvironmentthisproductmaycauseradio
interferenceinwhichcasetheusermayberequiredtotakeadequatemeasures.
Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsibleforcompliance
could void the user’s authority to operate the equipment.
ThisdevicecomplieswithPart15oftheFCCrules.Operationissubjecttothefollowingtwoconditions:
(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterference
received,includinginterferencethatmaycauseundesiredoperation.
ThisdigitalapparatusdoesnotexceedtheClassAlimitsforradionoiseemissionsfromdigital
apparatusassetoutintheinterference-causing equipment standard entitled “Digital Apparatus”,
ICES-003oftheDepartmentofCommunications.
Manufacturer’s Declaration of Conformity
Thisequipmenthasbeentestedand foundtocomplywiththerequirementsofEuropeanCommunity
CouncilDirectives89/336/EECand73/23/EECrelatingtoelectromagneticcompatibilityand
productsafetyrespectively.
Attention
Thisproducthasbeendesignedandcertifiedtocomplywithcertainregulatoryrequirementspertaining
toInformationTechnologyEquipment. Thisproducthasnotbeendesignedforuseasamedical
device. Withoutlimitationoftheforegoing,it isnotintendedandhasnotbeencertifiedforuseina
hospitalorclinicalenvironmenttodiagnose,treat,ormonitorpatientsundermedicalsupervision,andis
notintendedandhasnotbeencertifiedtomakephysicalorelectricalcontactwithpatients,norto
transferenergytoorfrompatientsand/ortodetectsuchenergytransfertoorfrompatients.

Purchase Agreement
Purpose:
InaccordancetothegeneralcommercialconductofTrustandFairTrade,herewithbelowisthe
agreementfortheprotectionforbothparties,DMPandUsersinpursuantoftrading.
Product Description:
Withthisproduct,herewithalsoknownasDINPC-333xSeries,whichisasimplified&aneconomical
designofanembeddeddeviceforSpecialPurposePersonalComputing.Thebasicspecificationof
thisproductiscomprisedofthex86technologydesign,andwithonboard1GB/2GBDDR2 System
memory,VGAdisplay,USB, and LANInterfaces.
Distribution Convention:
1. ThisProductincludesagiftbox,aninnercase,aPC,andapluggableTerminalBlock.Upon
receiving this product, kindly please refer to the User’ Manual to check for the contents and
appearance of this product; contact immediately your nearest dealeror DMP branchofficeif
anydefectiveormissingpartsfound.Thesupplierwillnotberesponsibleforanyreported
discrepancythereaftertheexpirationperiodof3-daysfromthereceiveddate.
2. Inconsiderationoftransportationandthecostofstorage,thesupplierprovidestothe
distributorsawarrantyof12-months.Thiswarrantycoversthefailurecausedbyhardware
breakdown(excludingharddrives),butdoesnotcovertheactofmisuseandmishandling.
3. Thesupplierwillnotacceptunknownpost,thereforeifyouwishtorepairortoreturnyour
goods–kindlypleasecontactyournearestdealertomakeyourdeclaration,andatthesame
time,applyforan RMAnumber(RMAstandsforReturnMerchandiseAuthorization–please
askforRMAformandfill-upforauthorization).
4. ThefreightforreturngoodsforrepairwillfollowtheInternationalcustomarypracticeand
convention:Bothpartiesaretopayforfreightofoneshipmenteach.Theshipperisrequiredto
prepay thefreightfromtheplaceoforigin(Thismeansthatthereturnee(user)coversthe
freightforreturngoods,whiletheSuppliercoversthefreightforgoodsaftertherepair).
5. Obsoletewarrantyisreferredtoas:(1)Expirationofwarrantyor(2)Damageduetomisuse
withinwarranty.TheSupplierwillbetakenintoconsiderationofthecircumstances,toprovide
repairservicewithchargesexpenseforobsoletewarranty.Thisexpenseincludesthecostof
materialandthecostoflabor.
Note:Ifthereare otherparticularissuesnotlistedintheaboveconditions,bothpartiesagreetofollowthe
GeneralLawofCommercewithfairandreasonablediscussioninhandlingandresolvingtheargument.

Contents
Chapter 1
02 UnpackingYourDINPC
Chapter 2
05 DINPC-333xSeriesOverview
07 SystemSpecifications
08 PeripheralsConnecting
Chapter 3
10 BIOSReconfiguring
11 InstalltheDriver
13 AdditionalInformation
14 LinuxInstallationGuide
Chapter 4
23 TechnicalSpecifications
Chapter 5
29 OnboardConnectorsSummary
30 PinAssignments
Chapter 6
33 TakingCareofYourDINPC
35 Troubleshooting
Chapter 7
38 TermsandCondition
38 Warranty
38 ServiceandSupport
38 ReturnMerchandiseAuthorization(RMA)Policy
38 ShippingPolicy

1
Chapter1

2
Unpacking Your DIN PC
Congratulation!YouhavejustacquiredDINPC-333x Seriesdevice, pleasecheckthefollowingitems:
Packing List
ItemNo.
Description
Q’ty
1
DINPC-333xSeriesDINRailMountablePC
1x
2
3-PinPlug-InTypeVerticalTerminalBlock
1x
Note: The accessories are subject to change without immediate notice.
Check Before Use
1. DINPC-333xSeriesUnit 2.3-Pin TerminalBlock

3
Preface
DIN PC-333x Series: DIN Rail Mounted Mini PC
The DIN PC-333x Series is an innovative device that provides a perfect balance
between performance and energy efficiency. The DIN PC-333x is Fanless designed
with wide operating temperature range of up to 50°C, making it suitable in warehouse
and factory environments.
The DIN PC-333x Series features DMP ultra low power 933MHz Vortex86DX2 CPU,
Onboard 1GB/ 2GB DDR2 RAM, two independent Ethernet, and various I/O ports.
Supported operating systems such as Microsoft Windows Embedded and Linux OS,
users can integrate applications easily with a platform that provides versatile functions
to fulfill diverse requirements.
With compact dimensions of 152 x 104 x 54 mm (W x H x D), the DIN PC-333x Series
fits in small control boxes, as well as directly in a machine or the machine stand.
With DIN rail form factor, it supports DIN rail in top hat rail section EN 50022 version.
All DIN PC-333x Series’interfaces are on the front side, so it can be cabled up easily.
The DIN PC-333x Series is an ideal choice as the front end embedded controllers for
industrial automation applications.

4
Chapter2

5
DIN PC-333x Series Overview
Front Panel
A: COM1 Port
RS-232/ RS-422/ RS485 port
B: COM2 Port
RS-232/ RS-422/ RS485 port
C & D: COM5 & COM6 Port
RS-232 port x 2
E & F: GPIO P8 & P9
8-bit GPIO port x 2
Available in DIN PC-333x Series GPIO Version
G: RJ-45 LAN
10/100 Mbps
H: RJ-45 G LAN
1 Gbps
I: USB V2.0 Port x 2
For connection to devices with USB interface
(HDD, CD/ DVD-ROM, Memory Stick, etc.)
J: Terminal Block Header
3-Pin pluggable type 5.00 mm Pitch
K: VGA Port
Integrated Graphics Chip/ D-Sub 15-Pin
Rear Panel
L: DIN Rail Mounting Clip
A
B
C
D
E
F
G
I
H
J
K
L

6

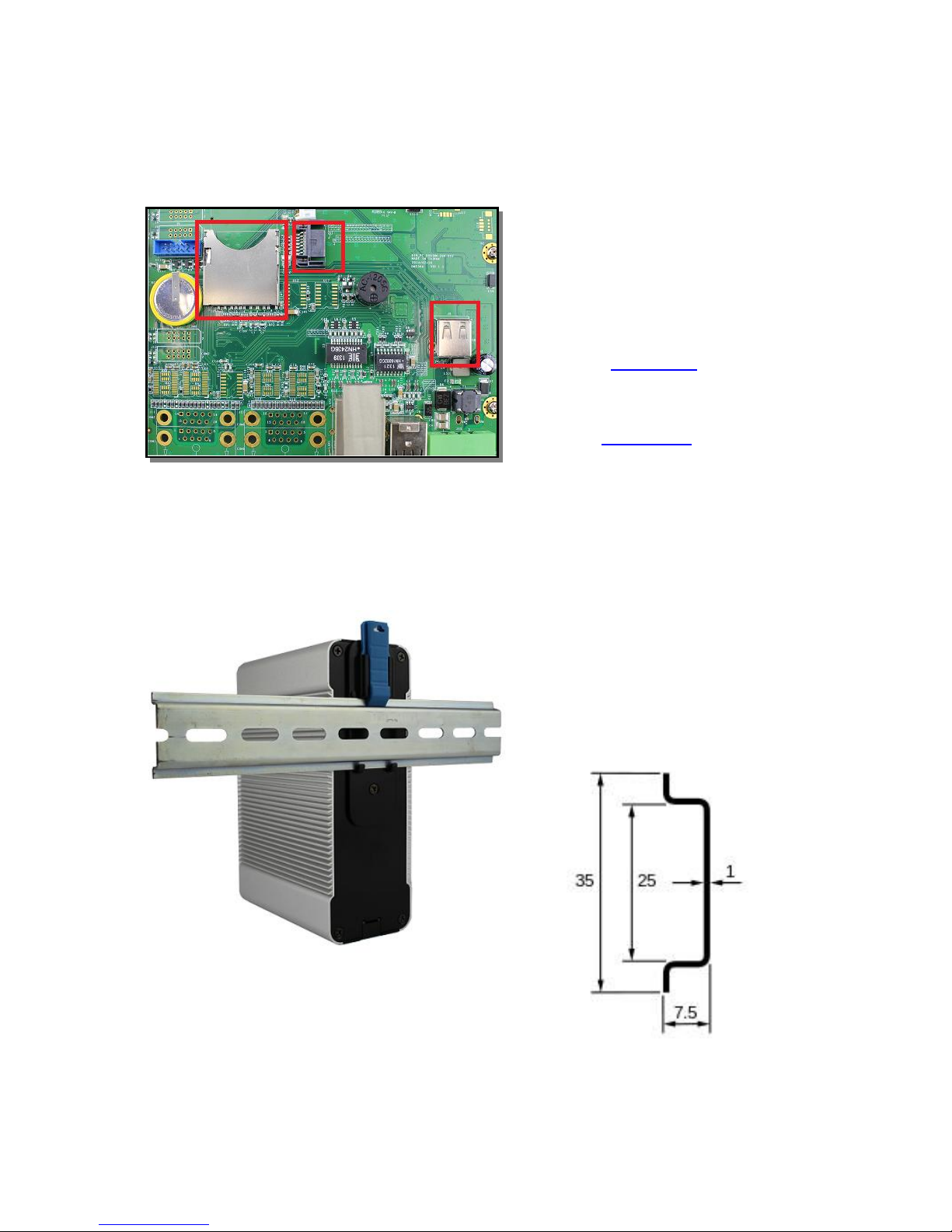

Inside DIN PC-333x Series
M: SD Card Slot
This system is bootable from SD card
N: 7-Pin SATA DOM Socket
Reserved for SATA DOM
O: USB V2.0 Port
Reserve for WiFi Dongle
DIN Rail Information
DIN PC-333x Series supports DIN rail in top hat
rail section EN 50022 version. Please see
dimension (mm) in picture shown below:
M
N
O

7
System Specification
CPU
Vortex86DX2(933MHz)
MainMemory
1GBDDR2
(32-bitDRAMbus,DINPC-3330Series)
2GBDDR2
(32-bitDRAMbus,DINPC-3332Series)
※For Windows 7 users, DIN PC-333x
Series supports 32-bit version only, 64-bit
version does not support
BIOS
AMIBIOS
VGA
Resolutionupto1920x1440 HighColors
On-BoardSATA
SATA2.0connectorx1(Internal)
Peripheral
1. USBV2.0portx3(Externalx2/Internalx1)
2. SDCardslotx1(Internal)
3. Serialportx4(availableinRS-232/RS-422/
RS-485/GPIOport,configurationvariesfrom
port toport,checkpage23to26for details)
Dimension &Weight
152x 104 x 54mm/760g
OperatingSystem
Windows7Home/Pro.
Windows7Embedded
WindowsXPHome/Pro.
WindowsXPEmbedded
WindowsEmbeddedCE
Supported Linux Distribution list
Gentoo 4.2
Ubuntu 10.04
Debian 4.0
OpenSUSE 11.4
Fedora Core 5
Whattos Warp30 (Ubuntu 8.10 base)

8
Peripherals
Connecting the Power Adaptor
Connecting the Monitor
A: 3-Pin 5.00 mm Pitch Terminal Block
To use DIN PC-333x Series immediately, please
attach the Plug-In type Terminal Block with
power DC +8V ~ +15V
Note: DIN PC-333x Series supports Auto Power
On function, when power & switch on, the
system will be turned on automatically
B: VGA out Connection
Connect your LCD display Monitor with a VGA
cable (It is not included in DIN PC-333x Series
console bundles) to the 15-pin D-Sub VGA port
A
B

9
Chapter3

10
BIOS Reconfiguring
1. AMIBIOSisusedintheDINPC-333xSeries.ToreconfiguretheDINPC-333x Series,
pressorhitthe<Del>keytoenteryourBIOSsetupmainmenuasbelow:
2. Selectfromthemenu,thedesiredsetupforchange.
3. Press<Esc>togobacktomainmenu.
4. Press<F9>toloadfactorydefaultsetting.
5. Press<F10>toandselect“Save Settings and Exit”, press “Y” to save the changesthat
youjustmade.DINPC-333xSerieswillrestartaccordinglytoyournewsetup.
6. ForWindowsXP,WindowsXPEmbedded,andWindowsEmbeddedCEOSplatform,
please set ACPI Configuration to “No”.
7. Remark:IfyouusedtheSDcardasmainstoragetobootWindows7OSor
Windows7EmbeddedOS,pleasesettheBIOSasbelow:
1. IDEOperatingmode=>Legacymode
2. PrimaryIDEPinSelect=>SDCard
3. StandardIDECompatible=>Disabled

11
INSTALL THE DRIVER:
UndertheWindowsSeriesOS,thefollowingdriversneedtobeinstalledmanually:
1. VGAdriver
2. Ethernetdriver
3. WirelessUSBWiFiDongledriver(Optional)
Note:
Please find the mating drivers from EBOXsupportpage
VGADRIVER:
Unzipthedownloadedfileanddoubleclickthesetting.exefile,then “Next”asbelowtoinstall:
AfterVGAdriverinstallationcompleted,youwillhavetorestartthecomputer.Thenyouwillbeableto
selecttheresolutionupto1920x1440pixels.

12
ETHERNET DRIVER:
1. FindtheyellowquestionmarkofEthernetintheDeviceManagerunderthecontrolpanel/system.
2. On1st questionmarkupdatewith10/100MLANdriver, rightclickandselect“UpdateDriver
Software”choosetherightpath,thenclick“Installthisdriversoftwareanyway”whenWindows
Securitypopsout.
3. Afterinstallationcompleted,theDeviceManagerwillupdateandshowthecorrectdevice.
4. Followingtheprocedureabove,update 2nd questionmarkwith1GLANdriver.
5. Followingtheprocedureabove,update 3rd questionmarkwithWiFidongledriver(optional).

13
Additional information:
For Windows7OSorWindows7EmbeddedOS,thesleepfunctionishiddenifyouselectedfrom
thestartmenu.
Tocustomizethesettings,firstgotoStart> ControlPanel> PowerOptions,orsimplysearchfor
"PowerOptions"(withoutquotes).Youwillseealistofdifferentpowerplansonyourcomputer.
Theplancurrentlyinusehasabluedotinfrontofit.Click"ChangePlanSettings"nexttothepowerplan
currentlyinuse.Clickonthedrop-downmenulist,thatisexactlynextto"PuttheComputertosleep:".
Fromtheoptions,youcansettheamountofidletimebeforeenteringsleepmode.
