DMT LS-120 User manual

LS-120 Video Processor
User Manual

CONTACT US
Address:Vestastraat 26468 EX Kerkrade The Netherlands
Phone: [phone]
Fax: [phone]
Email: [email protected]
Revision
Format Time ECO# Description Principal
1.0 2011-06-10 0000 Release Bing
1.1 2011-12-21 Change output connector:
previous VGA connector has
been replaced by DVI
connector.(Reuse with VGA
output )

CONTENT

1.0 Safety........................................................................................... 1
2.0 Specification .................................................................................. 2
3.0 Parameters.................................................................................... 2
4.0 Connectors and cables..................................................................... 4
4.1 LS 120 connectors and signals .................................................... 4
4.2 LS 120 size and installation ........................................................ 6
5.0 Front Panel Keyboard Operation........................................................ 7
5.1 LS 120 Operator Guideline.......................................................... 7
5.2 LS 120 Video Processor Menu...................................................... 8
6.0 Communication Software Guideline ..................................................14

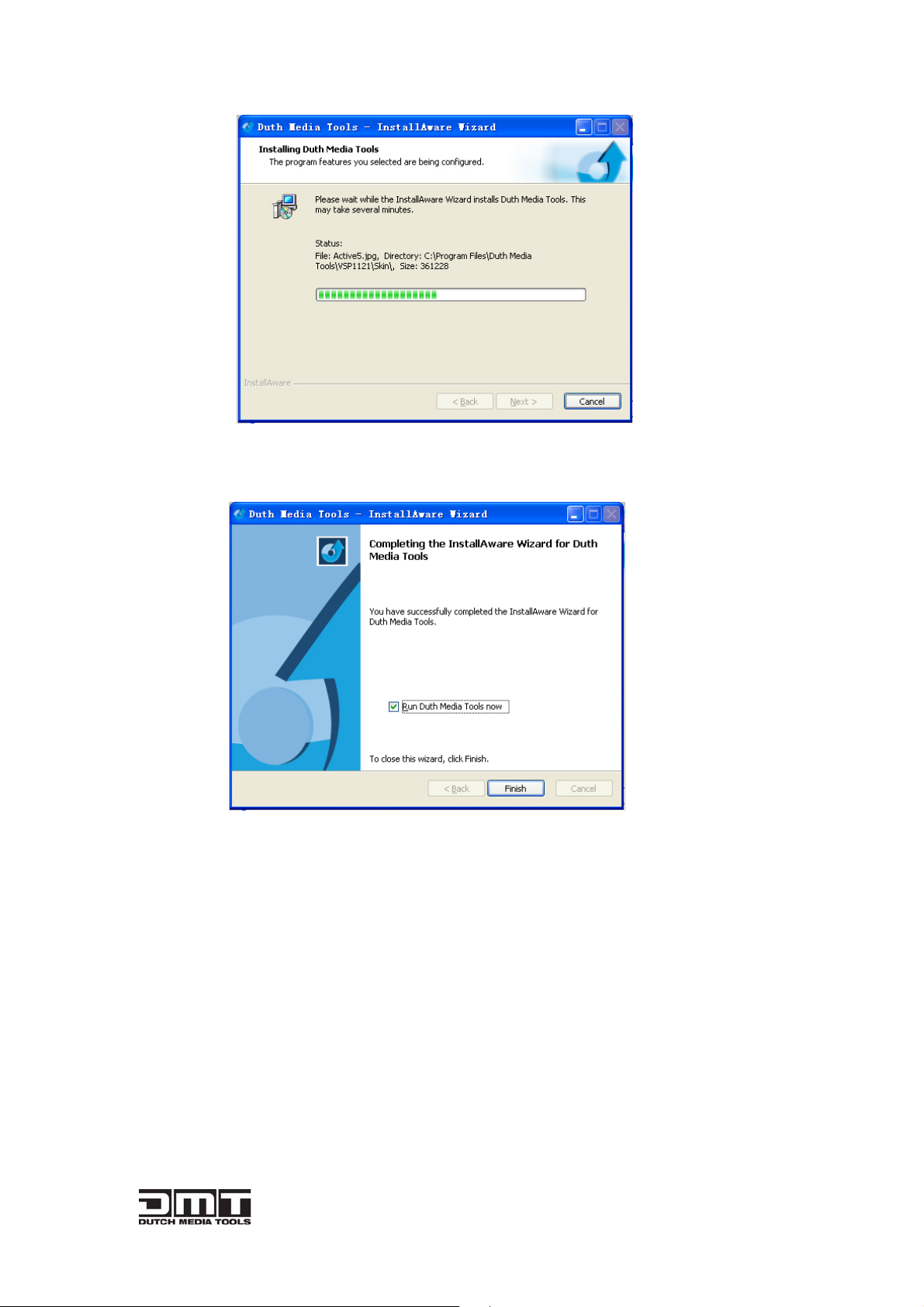

6.1 Install Software .......................................................................14
6.2 Run LS 120 Console..................................................................17
7.0 FAQ.............................................................................................29
7.1 No output in target display ........................................................29
7.2 VGA input could not work with LS 120 Console.............................29
7.3 DVI input could not work with LS 120..........................................29
7.4 User settings can not save.........................................................30
8.0 How to control processor with console softwore by USB .....................31
9.0 Appendix......................................................................................35
9.1 AppendixⅠDownload the IP software ..........................................35

LS-120 User Manual Doc. No：RGB-RD-UM-V112E001 1
1.0 Safety
The general safety information in this summary is for operating person.
Any requirement, please feel freely to contact our service engineer.
Power Source
This product is intended to operate from a power source
between 85~265 volts rms . This product is only workable under
correct power condition, which is already mark on the back
panel of the power.
High Voltage
There are many high voltage components inside.
Do not Remove Covers and Panels
Do not remove Covers in any conditions. There are not any
spare components inside for maintenance, so do not maintain
this product by userrselves, any requirement, please feel free to
contact our service engineer. Keep heavy device from power
cord.
Grounding the Product and Use the Proper Fuse
This product is grounded through the grounding conductor
of the power cord. To Avoid electrical shock, plug the power
cord into a properly wired receptacle before connecting to the
product input or output terminals.
Keep away from Magnet, Motor, TV and Transformer.
Guard Against Damp
Keep using inside clean and dryness environment, once the
device get wet, must remove power cord right now.
Keep away Exploder
Do not operate the device inside dangerous and easy
explosive gas, which it may make fire, blast or something
without expectation.
Keep away Pour Liquid and Fragment
It is forbid to pour liquid, metal fragment or anything else
inside this device to avoid fire and other accident. Once that
happens, must remove power cord and try to make it clean
before power on again.

LS-120 User Manual Doc. No：RGB-RD-UM-V112E001 2
2.0 Specification
DMT series video processors are designed by the latest high performance
image processing technology. LS 120 can handle following video without limit,
include CVBS（Composite）、S-Video (YC)、YCbCr、YPbPr、RGBHV（VGA）、
DVI-D、HDMI、SDI（SD-SDI、HD-SDI）and USB.
3.0 Parameters
Composite BNC Input
Number of Inputs 2
Supported
Standards PAL/NTSC
Signal Level 1Vpp±3db (0.7V Video+0.3v Sync ) 75 ohm
Number of Inputs 480i,576i
VGA DB15 Input
Number of Inputs 1
Connector Standard DB15 socket
Supported
Standards VGA-UXGA
Signal Level R、G、B、Hsync、Vsync:0 to1Vpp±3dB (0.7V Video+0.3v
Sync ) 75 ohm
black level：300mV Sync-tip：0V
Support input
Standards VGA-UXGA (800*600@60, 1024*768@60, 1280*1024@60,
1440*900@60,1600*1200@60)
DVI Input
Number of Inputs 1
Connector Standard DVI-I socket
Supported
Resolution SMPTE ：625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p
NTSC:1080i50,1080i59.94/60,720p50,720p59.94/60
VESA ：800×600×60Hz ，1024×768×60Hz ，
1280×768×60Hz，1280×1024×60Hz，1600×1200×60Hz，
1920×1080×60Hz
Signal Level TMDS pwl，single pixel input，165MHz bandwidth
Standard HDMI 1.3
USB Input
Number of Inputs 1
Connector Standard USB Connector

LS-120 User Manual Doc. No：RGB-RD-UM-V112E001 3
Supported
Standards Image: JPGE,BMP,PGN Audio: WMA,MP3,M4A(AAC)
Video: MPEG2,MPEG3, MPEG4,H264, RM,RMVB,MOV,
MJPEG, VC1,DivX,FLV
DVI Output
Number of Inputs 2
Connector Standard DVI-I Interface
Signal Level TMDS pwl，165MHz bandwidth
Supported
Standards VESA:800×600×60Hz,1024×768×60Hz,1280×768×60Hz,
1280×1024×60Hz,1440×900×60Hz,1400x1050x60,
1920×1080×60Hz,1600x1200x60 Hz.
VGA Output
Number of Inputs 1
Connector Standard DVI-I Interface
Supported
Standards VESA:800×600×60Hz,1024×768×60Hz,1280×768×60Hz, 1280×1024×60Hz,1440×900×60Hz,1400x1050x60,
1920×1080×60Hz,1600x1200x60 Hz.
Signal Level R、G、B、Hsync、Vsync:0 to1Vpp±3dB (0.7V Video+0.3v
Sync ) 75 ohm
black level：300mV Sync-tip：0V
Function
Source Switch support quick switch between all the inputs
Yearly hardware
Schedule Support yearly, monthly, weekly and daily schedule function without PC runs to control in real time
Extras
Communication RS232 USB TCP/IP
Power Supply 85-264V 2A IEC-3
Working
Environment 0°C~45°C
Stored
Environment 10% to 90%
Product Warranty 1 year

LS-120 User Manual Doc. No：RGB-RD-UM-V112E001 4
4.0 Connectors and cables
4.1 LS 120 connectors and signals
1,2,6,7: Gigabit copper port, connect to LED screen;
3,8: Gigabit Transmitter card power interface, not use inside case;
4,9,12: USB: No. 4 and 9 are the USB interface to control the sending card by
LED studio or control software,No. 12 are the USB interface to control
processor by LS 120 PC software ;
5,10: Gigabit Transmitter card DVI input，connect to DVI output of LS 120.
（This Connection does not comment hot-plugging）;
11: dial switch, more details please refer to Appendix II
13,14: Composite input interface，Composite BNC. YCbCr compatible. Used to
input composite signal from DVD, Set-top box, HD player and so on
（PAL, NTSC, SECAM compatible）;
15: USB input interface, used to player media files from disk with USB connect
or. Such as USB disk, Portable Hard Disk
16: DVI input interface. Input the video signal from computer, DVI signal
generator. Connect to the DVI 1 interface on LS 120（This Connection does
not comment hot-plugging）;

LS-120 User Manual Doc. No：RGB-RD-UM-V112E001 5
17: VGA input interface, DB-15, used to support Analog RGB input; Connect to
the VGA 1 interface on the LS 120.
18: DVI output interface. connect to the monitor or LED screen which has DVI
interface. （This Connection does not comment hot-plugging）
19: DVI +VGA output via DVI connector, connect to the monitor or LED screen
which has DVI interface.（This DVI connector does not support hot-plugging）
DVI +VGA , VGA output connector can be connected to monitor or
projector which has VGA interface.
19. Via adapter, can connect with DVI-based or
VGA-based equipment, and via DVI to VGA adapter, can
output VGA only.
20,21: Switch and power. It must use IEC-3 power line. Always ground to
avoid electric shock.

LS-120 User Manual Doc. No：RGB-RD-UM-V112E001 6
4.2 LS 120 Size and installation

LS-120 User Manual Doc. No：RGB-RD-UM-V112E001 7
5.0 Front Panel Keyboard Operation
Insert power cord and push power button to ON position. LCD module on
the front panel will show HIGHLITE and go into self verification before it load
the last setting config and send the processed image to the target display or
device. For the first running,CV1 input is the default input source. With the
front panel operation, users can operate the equipment with buttons and menu
displayed on LCD module.
5.1 LS 120 series Operator Guideline
LS 120 front panel as following:
1. LCD module ;
2. Keyboard;
SEL: Push to confirm the current choice item;
UP: Push to select up items in LCD menu;
DOWN: Push to select down in LCD menu;
CV1：Switch to composite1 input;
CV2：Switch to composite 2 input;
VGA: Switch to VGA input;
DVI: Switch to DVI input;
USB：Switch to USB input;
OUT: Push to select the output format by using the UP and DOWN.
FS：Switch to select full screen or zoom view,just for single picture mode;
SAVE1：Switch to use the user-defined mode1;
SAVE2：Switch to use the user-defined mode2;
SAVE3：Switch to use the user-defined mode3;
SCALE: Push to go to between HsizeÆVsizeÆHPOSÆVPOS;

LS-120 User Manual Doc. No：RGB-RD-UM-V112E001 8
MENU: Push to go to main menu;including device information,recall,language
and Alpha.
SAVE:Push to save current config.save1/save2/save3.
5.2 LS 120 Video Processor Menu
System menu as follows;
Devices can be connected to the LAN network by CAT5, if not, it will prompt:
DHCP Failed as shown;
When the device accesses to the network ,it will be get an IP address
automatically, menu as shown:
Push【MENU】will always go to main menu
Push Menu, system main menu as shown;
Push the right and left direction key to select the left or right menu. Before the
menu item, if there is a * sign, means the menu item has been selected, you
can push the Sel key to enter it. The first line shows LS 120.Select Dev Info, it
shows current input signals. If there is a composite input to CV1, the NO INPUT
will show as the input composite format, such as 720*576i. As shown;
INPUT: CV1
NO INPUT
>LS 120
*Dev Info Recall ↓
IP Address
192.32.0.100
DHCP Failed
Wait Init Network…

LS-120 User Manual Doc. No：RGB-RD-UM-V112E001 9
Push UP/DOWN to check current output format.
Push UP/DOWN to check current software version;
Push UP/DOWN to check current Video Processor serial number to get more
available service and support;
Push UP/DOWN direction, select RECALL to recall factory reset.after successful
factory reset you will see the menu as shown;
Push UP/DOWN of the Menu to set LANGUAGE and HDMI output;
Push UP/DOWN to select and enter submenu accordingly; enter LANGUAGE
sub menu, as shown;
Select HDMI OUT to set DE and push UP/DOWN to choose output format. as
shown;
Select to enter DE setup mode, push UP/DOWN to choose ON/OFF, SEL ON to
set, which will check ON item with “*”.
*
L
an
g
ua
g
e Select:
>English 中文
>LS 120
*Language HDMI OUT
Reset Finished!
DMT DUTCH MEDIA TOOLS
> SN：J0004
Software Version
1.0
Output Format:
1920x1080x60
>HDMI1 DEOn/Of
f
*ON
>HDMI1
*DE Setup HDMI/DVI

LS-120 User Manual Doc. No：RGB-RD-UM-V112E001 10
Push UP/DOWN to go to DE H Start , DE V Start, DE Width or DE Height, push
UP/DOWN to change the values of them seperately;
in HDMI mode, push UP/DOWN to choose output format. as it shown;
SEL to go into HDMI/DVI, push UP/DOWN to choose the output formats of
HDMI/DVI.
Push UP/DOWN to enter main menu to setup time and calendar.
Push SEL to set time.
Push UP/DOWN direction to live time set-up. it shows * signal, the current
revised will flash;
Push SEL to set Calendar, the left side shows calendar, right side shows the
English Abbreviation of the day of the week.
Time
*00:00:20
>HDMI1
DE Setup *HDMI/DVI
>HDMI1 HDMI/DVI
*HDMI
>HDMI1 DEHei
g
ht
>1080
>HDMI1 DEWidth
>1920
>HDMI1 DEVStart
>43
>HDMI1 DEHStart
>192
Time
> 00:00:20
>LS 120
*Time Calendar

LS-120 User Manual Doc. No：RGB-RD-UM-V112E001 11
Push UP/DOWN to active the time, it shows * signal, the the inter-flash means
currently to change, push UP/DOWN to change the flashing calendar and the
day of week;
Push UP/DOWN of the Menu to set Scale and Advanve;
Push SEL to set scale;
Push UP/DOWN to set coordinates.
Or Push【Scale】to set scale
Touch UP / DOWN, find Advance in the【MENU】to do advanced split screen set;
Click on SEL to enter into Advanced settings, Touch UP / DOWN to set the
coordinate, width and height, as following pictures:
>LS 120
Scale *Advanve
>LS 120
*Scale Advanve
Calendar
*2010/01/01 Fri
Calendar
>2010/01/01 Fri
Scale A Pos Y：
>0
Scale A Pos X：
>0
Scale A Hei
g
ht：
>1080
Scale A Width：
>1920

LS-120 User Manual Doc. No：RGB-RD-UM-V112E001 12
In the Aspect Ratio mode, the device offers 3 aspect ratio, except for above
three normal modes, there are also:
Push FS to switch between full screen and samll display size which defined by
screen parameters;
Push OUT to enter output format menu; push UP/DOWN to choose different
output formats, and SEL the needed output format.
Push SAVE menu, it turns SAVE1/SAVE2/SAVE3
Picture Mode
Screen Size
Picture Mode
Full Size
Output Format:
>1920x1080x60
Aspect Ratio:
*16:9
Aspect Ratio:
*4:3
Screen Hei
g
ht:
>1080
Screen Width:
>1920
Screen Pos Y:
>0
Screen Pos X:
>0
Save Settin
g
To:
Press ESC To Exit

LS-120 User Manual Doc. No：RGB-RD-UM-V112E001 13
Push Save1 to save in the save1 mode;
Save successfully and push SAVE1 to call SAVE1 user config mode;Push SAVE2
and SAVE3 to call another two seperately.
added SAVE notice function;
when push SAVE, all SAVE1/SAVE2/SAVE3 will light on,users
should push SAVE1/SAVE2/SAVE3 to save successfully.
Save Settin
g
To:
SAVE1 Finished!

LS-120 User Manual Doc. No：RGB-RD-UM-V112E001 14
6.0 Communication Software Guideline
LS 120 video processor is very easy to be configured with user friendly
interface, support drag and drop operation for edit and display. User can also
customize with schedule function.
6.1 Install Software
Dual click DMT.exe to run install, select Chinese or English version for end
user，and click “select ” to go on.
Please read carefully the license of agreement before installing LS 120
console software, select the "Agree" to continue; select "Disagree" to quit, as
shown:

LS-120 User Manual Doc. No：RGB-RD-UM-V112E001 15
After agree to the agreement, user can select install directory in the next
dialog, and click next to install software to default directory “C:\Program Files”
directly.
Click “next ”to go on.
Click “next ”to go on.

LS-120 User Manual Doc. No：RGB-RD-UM-V112E001 16
Click “next ”to go on.

LS-120 User Manual Doc. No：RGB-RD-UM-V112E001 17
Click “finish” and ready to run LS 120 console.
