DMX4ALL DMX-Relais 2 INRUSH User manual

DMX-RELAIS 2 INRUSH
User manual

DMX-RELAIS 2 INRUSH 2
For your own safety, please read this user manual and warnings
carefully before installation.
Description
The DMX-RELAIS 2 INRUSH is designed for several control tasks.
Two potential free switching outputs
2 potential free switching outputs (closer / NO) up to 8A switching capacity are
available.
Switching contact for direct and alternating voltage
The INRUSH version is suitable to control direct or alternating voltage.
For voltages from 12V up to 24V
The DMX-Relais 2 INRUSH works with supply voltages from 12V up to 24V DC.
DMX FAIL-Function
An adjustable DMX FAIL function offers the option to hold the current state (HOLD)
or to adopt a predefined value if the DMX signal fails.
RDM support
The DMX-Relais 2 INRUSH allows the configuration via RDM or DMX.
Several operating modes
The DMX-Relais 2 INRUSH offers several operating modes which can be set via
jumper or RDM:
- Hysteresis 127/128
- Hysteresis 0/1
- Hysteresis 100/150
- Exclusive
- Monostable 1Second
- FogControl

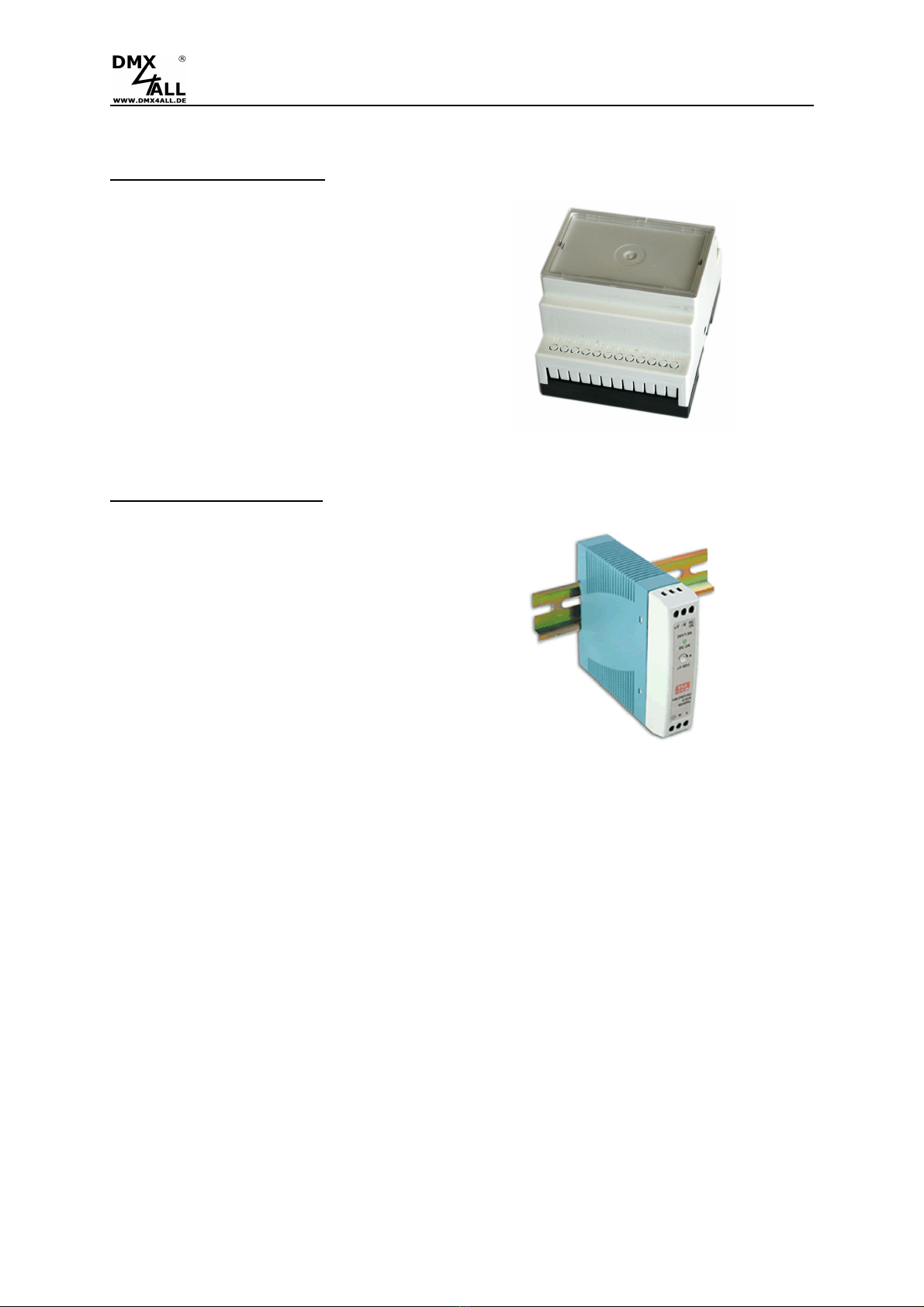

Top hat rail mounting available
Suitable for the DMX-Relais 2 INRUSH the DIN rail housing 700 is available as
accessory.

DMX-RELAIS 2 INRUSH 3
Data sheet
Power supply: 12-24V DC
(150mA@12V / 100mA@24V)
Protocol: DMX512
RDM
DMX-Channels: 1 or 2 channels (depend on operation mode)
DMX-FAIL: HOLD / 0-100%
Operation modes: Hysteresis 127/128
Hysteresis 0/1
Hysteresis 100/150
Exclusive
Monostable 1Second
FogControl
Output: 2 potential free switching contacts NO
each max. 8A
165A@20ms peak inrush current
Connection: Screw terminals
Dimensions: 64,2mm x 82mm

DMX-RELAIS 2 INRUSH 4
Connection
GND GND 12-24V DMX+ DMX-
Switching contacts
each max. 8A
(165A@20ms peak inrush current)

DMX-RELAIS 2 INRUSH 5
LED-Display-Codes
The integrated LED is a multifunctional display.
During the normal operation the LED lights continuously. In this case the device is
working. If the LED is permanently dark, there is no DMX512-signal at the entry.
Furthermore, the events are signaled via the LED. In this case the LED lights up in
short pitches and then is missing for a longer time. The number of flashing lights
represents the event number:
Event-
number Error Description
1 No DMX There is no DMX-input signal
2 Addressing error Please check the adjusted DMX-Address
3 DMX-Signal error An invalid DMX-input-signal is detected
Addressing

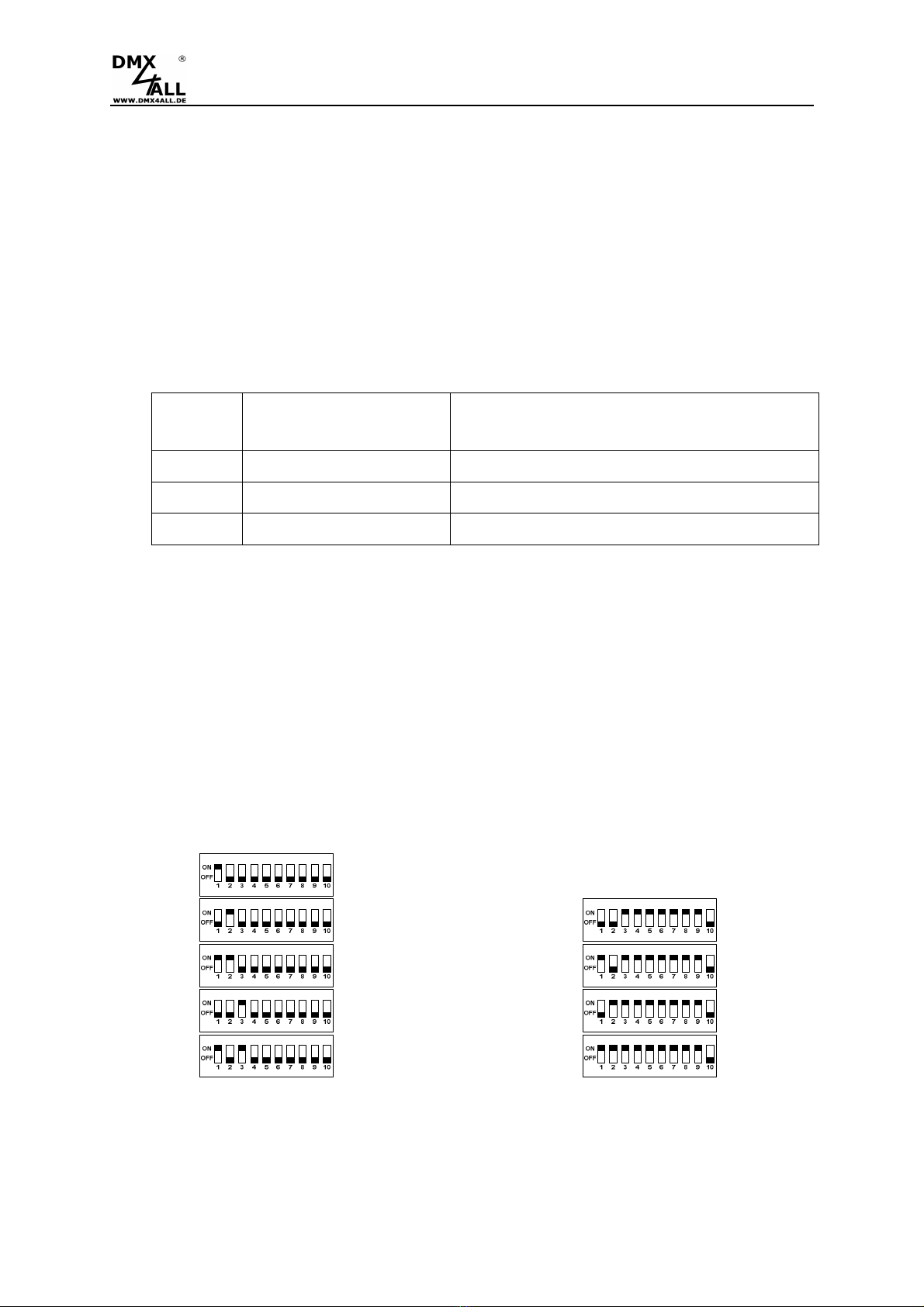

The starting address is adjustable via the DIP switches.
Thereby switch 1 has the valency 2
0
(=1), switch 2 valency 2
1
(=2) and so on, until
switch 9 has the valency 2
8
(=256).
The switches showing ON represent in sum the starting address.
Adresse Schalter Adresse Schalter
1 ... ...
2 508
3 509
4 510
5 511

DMX-RELAIS 2 INRUSH 6
DMX-FAIL Function
The DMX-RELAIS 2 INRUSH has a DMX-FAIL-Function which stores the last value
in the case of a DMX signal loss and left the relays unchanged in its conditions.
If the HOLD-Function is not activated, all relays will be shut down by a loss DMX-
Signal.
The DMX-HOLD function can be activated via RDM or by switch 10.
Switch 10 ON DMX-HOLD active
Switch 10 OFF DMX-HOLD not active
If HOLD is switched on (switch 10 = ON), the last received DMX values are remained
in case of a DMX signal failure.
If HOLD is switched off (switch 10 = OFF), the DMX values are replaced with a value
set by RDM in case of a DMX signal failure. When IN the delivery state this value is
0, so that the relays switch off.
In case of a power failure the DMX values held with HOLD are discarded!
A value set by RDM is deleted when HOLD is selected. After switching off the
HOLD function, the default value 0 is used.

Select operating mode
Hysteresis 127/128
In this operating mode, both relays switch independently of each other each via one
DMX channel. The switching threshold (
relay is switched off when the DMX value is 127 or less and that the relay is switched
on when the DMX value is 128 or greater.
DMX
Channel
DMX
Value
Fun
1
0-127
Output
128-255
Output
2
0-127
Output
128-255
Output

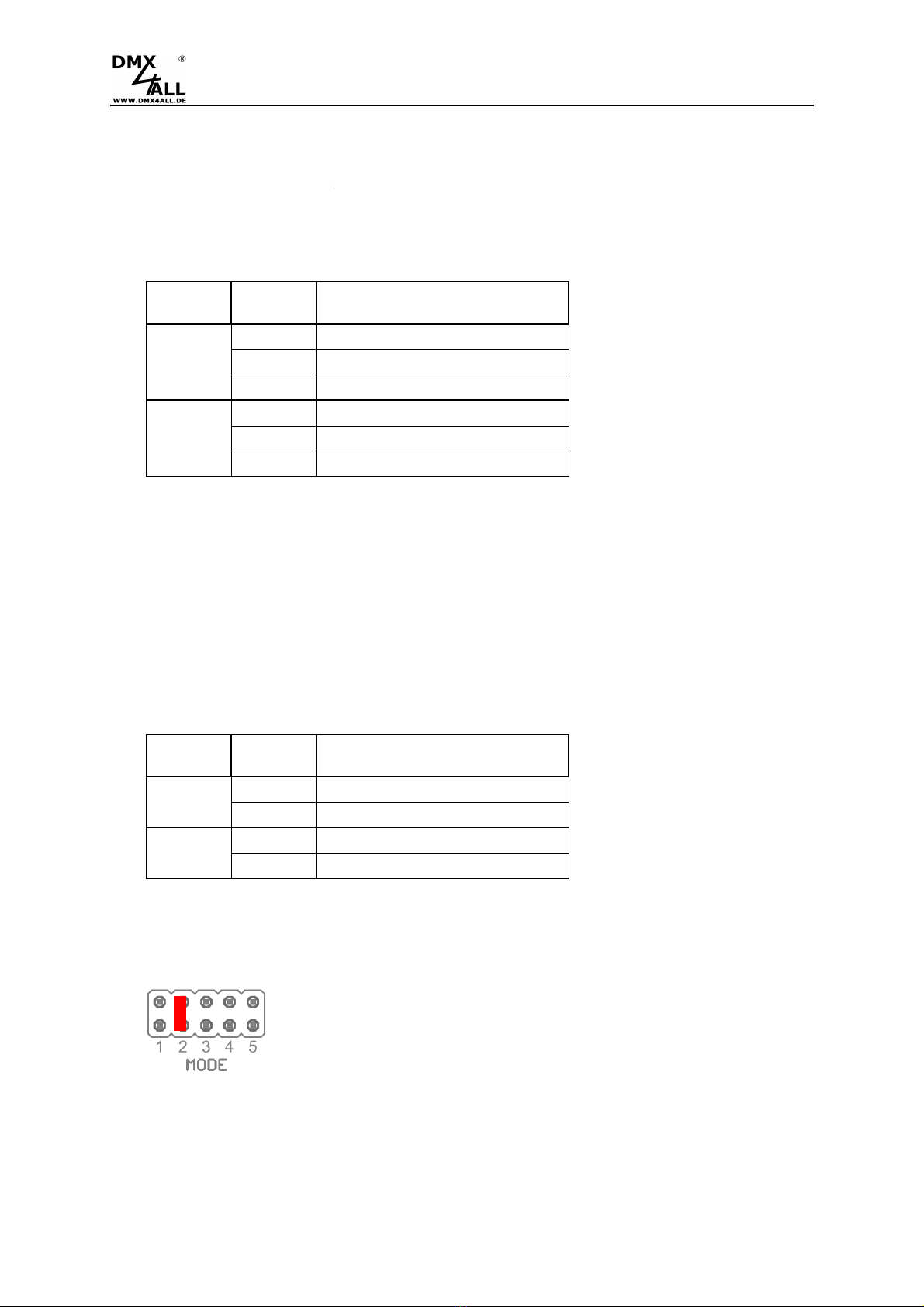

For this operation mode c
hoose via
1-5:
Hysteresis 0/1
In this operating mode, both relays switch independently of each other each via one
DMX channel.
The switching threshold (Hysteresis) is 0/1 which means that the relay
is switched off when the DMX value is 0 and
DMX value is 1 or greater.
DMX
Channel
DMX
Value
Fun
1
0
Output
1-255
Output
2
0
Output
1-255
Output
For this operation mode c
hoose via
jumper 5:
DMX-RELAIS 2 INRUSH
Select operating mode
In this operating mode, both relays switch independently of each other each via one
DMX channel. The switching threshold (
H
ysteresis) is 127/128 which means that the
relay is switched off when the DMX value is 127 or less and that the relay is switched
on when the DMX value is 128 or greater.
Fun
ction
Output
1 OFF
Output
1 ON
Output
2 OFF
Output
2 ON
hoose via
RDM
the Personality 1 or open all MODE jumper
In this operating mode, both relays switch independently of each other each via one
The switching threshold (Hysteresis) is 0/1 which means that the relay
is switched off when the DMX value is 0 and
that the relay is switc
hed on when the
Fun
ction
Output
1 OFF
Output
1 ON
Output
2 OFF
Output
2 ON
hoose via
RDM
the Personality 2 or close only MODE
7
In this operating mode, both relays switch independently of each other each via one
ysteresis) is 127/128 which means that the
relay is switched off when the DMX value is 127 or less and that the relay is switched
the Personality 1 or open all MODE jumper
In this operating mode, both relays switch independently of each other each via one
The switching threshold (Hysteresis) is 0/1 which means that the relay
hed on when the
the Personality 2 or close only MODE

Hysteresis 100/150
In this operating mode, both relays switch independently of each other each via one
DMX channel. The H
ysteresis is
when the DMX value is 1
00
value is 150 or greater.
DMX
Channel
DMX
Value
Fun
1
0-100
Output
101-149
Output
150-255
Output
2
0-100
Output
101-149
Output
150-255
Output
For this operation mode
choose via
Exclusive (Jalousie-
Control)
In this operation mode b
oth relays are turned on with one DMX channel as soon as
the DMX value is 128 or higher.
However, not both relays can be switched on at the same time.
DMX
Channel
DMX
Value
Fun
1
0-127
Output
128-255
Output
2
0-127
Output
128-255
Output
For this operation mode c
hoose via
jumper 2:
DMX-RELAIS 2 INRUSH
In this operating mode, both relays switch independently of each other each via one
ysteresis is
100/150
which means that the relay is switched off
00
or less and that the relay is switched on when the
Fun
ction
Output
1 OFF
Output
1 doesn’t change
Output
1 ON
Output
2 OFF
Output
2 doesn’t change
Output
2 ON
choose via
RDM Personality 3.
Control)
oth relays are turned on with one DMX channel as soon as
the DMX value is 128 or higher.
However, not both relays can be switched on at the same time.
Fun
ction
Output
1 OFF
Output
1 ON, if output 2 OFF
Output
2 OFF
Output
2 ON, if output 1 OFF
hoose via
RDM
the Personality 4 or close only MODE
8
In this operating mode, both relays switch independently of each other each via one
which means that the relay is switched off
or less and that the relay is switched on when the
DMX
oth relays are turned on with one DMX channel as soon as
the Personality 4 or close only MODE

Monostable 1Second
(Impulse)
In this operating mode, both relays switch independently of each other each via one
DMX channel.
As soon as the DMX value
second. Then the DMX value must fall below 128 to trigger again a switching
impulse.
DMX
Channel
DMX
Value
Funktion
1
0-127
Output
128-255
Output
2
0-127
Output
128-255
Output
For this operation mode c
hoose via
jumper 4:
FogControl
In this operation mode b
oth relays are controlled via one DMX channel.
Therefore output 1 is for t
he heating element and output 2 for the pump.
timer allows an automatically fog output.
For this operation mode c
hoose via
jumper 1:
DMX-RELAIS 2 INRUSH
(Impulse)
In this operating mode, both relays switch independently of each other each via one
As soon as the DMX value
is
128 or higher the relay switches for 1
second. Then the DMX value must fall below 128 to trigger again a switching
Funktion
Output
1 OFF
Output
1 1x 1-Second ON
Output
2 OFF
Output
2 1x 1- Second ON
hoose via
RDM
the Personality 5 or close only MODE
oth relays are controlled via one DMX channel.
he heating element and output 2 for the pump.
timer allows an automatically fog output.
hoose via
RDM the Personality 6 or cl
ose only MODE
DMX
Channel
DMX
Value Function
1
0-7 Device off aus
8-20 Device on, no fog
emission
21-40 Timer 10s on / 300s off *
41-60 Timer 20s on / 350s off *
61-80 Timer 30s on / 200s off *
81-100 Timer 40s on / 150s off *
101-120 Timer 50s on / 100s off *
121-140 Timer 60s on / 75s off *
141-160 Timer 70s on / 50s off *
161-180 Timer 80s on / 40s off *
181-200 Timer 90s on / 30s off *
201-220 Timer 100s on / 20s off *
221-240 Timer 110s on / 10s off *
141-255 Permanent fog emission
9
In this operating mode, both relays switch independently of each other each via one
128 or higher the relay switches for 1
second. Then the DMX value must fall below 128 to trigger again a switching
the Personality 5 or close only MODE
oth relays are controlled via one DMX channel.
he heating element and output 2 for the pump.
An internal
ose only MODE
emission

DMX-RELAIS 2 INRUSH 10
RDM (from hardware V1.3 with firm ware V1.3 or higher)
RDM is the short form for Remote Device Management.
As soon as the device is within the system, device-dependent settings can be occur
remotely via RDM command due to the uniquely assigned UID. An direct access to
the device is not necessary.
If the DMX start address is set via RDM, all address switches at the DMX
MultiPixx Control must be set to OFF ! A DMX start address set by the address
switches is always prior !
This device supports the following RDM commands:
Parameter ID
Discovery
Command
SET
Command
GET
Command
ANSI/
PID
DISC_UNIQUE_BRANCH

E1.20
DISC_MUTE

E1.20
DISC_UN_MUTE

E1.20
DEVICE_INFO

E1.20
SUPPORTED_PARAMETERS

E1.20
PARAMETER_DESCRIPTION

E1.20
SOFTWARE_VERSION_LABEL

E1.20
DMX_START_ADDRESS

E1.20
DEVICE_LABEL

E1.20
MANUFACTURER_LABEL

E1.20
DEVICE_MODEL_DESCRIPTION

E1.20
IDENTIFY_DEVICE

E1.20
FACTORY_DEFAULTS

E1.20
DMX_PERSONALITY

E1.20
DMX_PERSONALITY_DESCRIPTION

E1.20
DMX_FAIL_MODE

E1.37
SERIAL_NUMBER
1)

PID:
0xD400
1) Manufacturer depending RDM control commands (MSC - Manufacturer Specific Type)

DMX-RELAIS 2 INRUSH 11
Manufacturer depending RDM control commands :
SERIAL_NUMBER
PID: 0xD400
Outputs a text description (ASCII-Text) of the device serial number.
GET Send: PDL=0
Receive: PDL=21 (21 Byte ASCII-Text)

DMX-RELAIS 2 INRUSH 12
Factory Reset
Before running the Factory Reset, read all steps carefully.
To reset the DMX-RELAIS 2 INRUSH to delivery state, proceed as follows:
-Turn off device (turn off power supply !)
-Set DIP switch 1 up to 10 to ON
-Turn on the device (turn on power supply)
-The LED lights up 20x during ca. 3 seconds
While the LED lights up set DIP switch 10 to OFF
-Now, the Factory Reset is executed
The LED lights up with error code 4
-Turn off the device (turn off power supply !)
-Now, the device can be used
If a Factory Reset is needed again, this procedure can be repeated at any
time.

DMX-RELAIS 2 INRUSH 13
Dimensions
All details in mm

DMX-RELAIS 2 INRUSH 14
Accessory
Top-hat rail housing 700
Power supply 12V / 20W

CE-Conformity
This
uses high frequency. In order to maintain the properties o
the module with regard to CE conformity, installation into a
closed metal housing in accordance with the EMC directive
2014/30/EU is necessary.
Disposal
Electronical and electronic products must not be disposed
in domestic waste. Dispose
service life in accordance with applicable legal
regulations. Information on this can be obtained from your
local waste disposal company.
Warning
This device is no toy. Kee
Parent
nonobservance for their children.
DMX-RELAIS 2 INRUSH
This
assembly (board)
is controlled by a microprocessor and
uses high frequency. In order to maintain the properties o
the module with regard to CE conformity, installation into a
closed metal housing in accordance with the EMC directive
2014/30/EU is necessary.
Electronical and electronic products must not be disposed
in domestic waste. Dispose
the product at the end of its
service life in accordance with applicable legal
regulations. Information on this can be obtained from your
local waste disposal company.
This device is no toy. Kee
p out of the reach of children.
Parent
s are liable for consequential damages caused by
nonobservance for their children.
15
is controlled by a microprocessor and
uses high frequency. In order to maintain the properties o
f
the module with regard to CE conformity, installation into a
closed metal housing in accordance with the EMC directive
Electronical and electronic products must not be disposed
the product at the end of its
service life in accordance with applicable legal
regulations. Information on this can be obtained from your
p out of the reach of children.
s are liable for consequential damages caused by

Risk-Notes
You purchased a technical product. Conformable to the best
available technology the following risks should not excluded:
Failure risk:
The device ca
n drop out partially or completely at any time without warning. To
reduce the probability of a failure a redundant system structure is necessary.
Initiation risk:
For the installation of the board, the board must be connected and adjusted to
foreign compo
nents according to the device paperwork. This work can only be
done by qualified personnel, which read the full device paperwork and understand
it.
Operating risk:
The Change or the operation under special conditions of the installed
systems/components co
uld as well as hidden defects cause to breakdown within
the running time.
Misusage risk:
Any nonstandard use could cause incalculable risks and is not allowed.
Warning:
It is not allowed to use the device in an operation, where the safety of
persons depe
nd on this device
DMX-RELAIS 2 INRUSH
You purchased a technical product. Conformable to the best
available technology the following risks should not excluded:
n drop out partially or completely at any time without warning. To
reduce the probability of a failure a redundant system structure is necessary.
For the installation of the board, the board must be connected and adjusted to
nents according to the device paperwork. This work can only be
done by qualified personnel, which read the full device paperwork and understand
The Change or the operation under special conditions of the installed
uld as well as hidden defects cause to breakdown within
Any nonstandard use could cause incalculable risks and is not allowed.
It is not allowed to use the device in an operation, where the safety of
nd on this device
.
16
You purchased a technical product. Conformable to the best
available technology the following risks should not excluded:
n drop out partially or completely at any time without warning. To
reduce the probability of a failure a redundant system structure is necessary.
For the installation of the board, the board must be connected and adjusted to
nents according to the device paperwork. This work can only be
done by qualified personnel, which read the full device paperwork and understand
The Change or the operation under special conditions of the installed
uld as well as hidden defects cause to breakdown within
Any nonstandard use could cause incalculable risks and is not allowed.
It is not allowed to use the device in an operation, where the safety of

DMX4ALL GmbH
Reiterweg 2A
D-44869 Bochum
Germany
Last changes: 16.06.2020
© Copyright DMX4ALL GmbH
All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another
procedure) without written permission or processed, multiplied or spread using electronic systems.
All information contained in this manual was arranged with largest care and after best knowledge. Nevertheless errors are to be
excluded not completely. It is pointed out that neither a guarantee nor the legal responsibility or any liability for consequences
which are due to incorrect information is assumed. This document does not contain assured characteristics. The guidance and
the features may be changed at any time and without previous announcement
