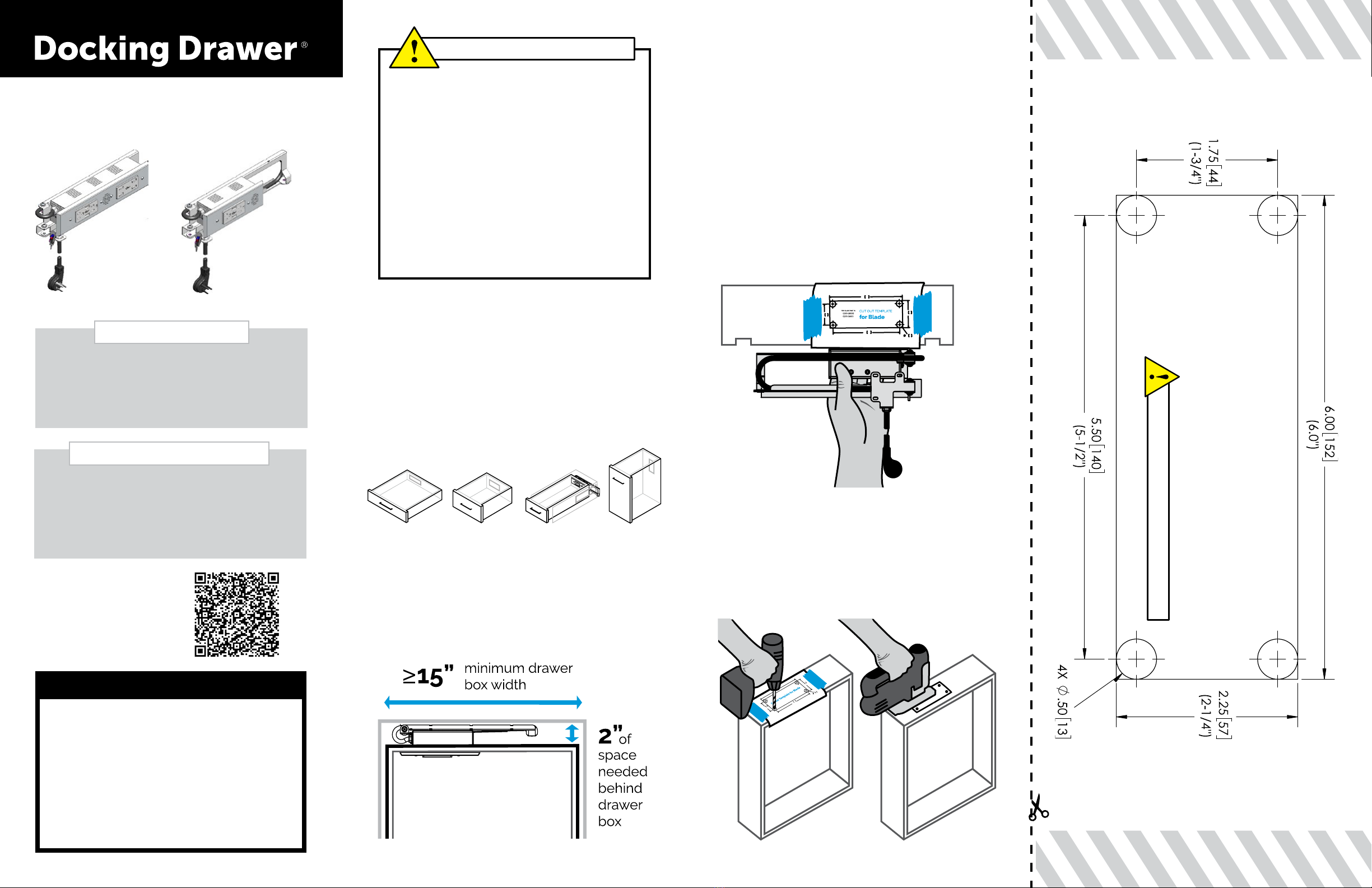

Docking Drawer Blade Series User manual

Blade Series
Installation Instructions
How to Install the Outlet
FOR CANADA
BLADE™ PART #:
1514-1x0
2012-1x0
Docking Drawer Blade Duo & Blade are ETL
Listed for use in Canada when installed with
an Interlock Box* that de-energizes the outlet
when the drawer starts to close.
(*sold separately)
For installations with optional Interlock Box,
see addendum installation manual before
starting the outlet installation.
Tools Needed:
• Jigsaw
• Drill
• Measuring Tape
• Screwdriver
• Square
• Pencil
• Cutout Template
Time Required - 30 min
Step 1 - Verify there is space available for the
in-drawer outlet behind the drawer box. The
Docking Drawer Blade Duo and Blade require
at least 2” of space behind the drawer box and
15” minimum drawer box width.
DOCKING DRAWER
BLADE
Step 2 - Remove the cutout template and
ip to the side that corresponds with your
product’s part number.
Step 4 - With a 1/2” drill bit, drill a hole in
each corner, being careful not to splinter the
wood on the inside of the drawer box. Using
one of the 1/2” holes, insert a jigsaw and then
make the required cutouts in the drawer box.
Step 3 - Locate the proper location for
the receptacle box cutout using our cutout
template. You can locate the proper location
from either the inside or backside of the
drawer box, making sure that the arms will
not interfere with the slides and that there is
enough material surrounding the receptacle
box to securely hold it in place.
BLADE DUO™ PART #:
1514-2xx
2012-2xx
• Failure to follow these instructions
can cause death or permanent injury.
Do not work on live electrical circuits!
Make absolutely certain power is o
before connecting the device!
• This product is for dry, indoor and
permanent installations only.
• Install the device in accordance with all
national and local electrical codes.
CAUTION – READ CAREFULLY
CUTOUT TEMPLATE for Blade
BLADE PART #:
1514-1x0 2012-1x0
FOR ACCURACY SCALE PRINTER TO 100%
There are 4 methods to install the Blade Series
depending on your drawer box type. The
following instructions detail the installation
process for Shallow drawer box types. Need
more detail for the other options? Call us at
[phone].
Downloadable Resources
For additional planning resources, visit
dockingdrawer.com/downloads
• DXF and STEP Files
• Mounting Diagrams
• Electrical Planning Guide
• Electrical Certications
Scan code for
Installation Video 

Step 5 - Reinstall the drawer box and slide
the Docking Drawer Blade Series receptacle
box through the cutout. Secure it with the 4
receptacle box mounting screws.
Step 6 - Align arms. With the drawer mostly
closed, mark the position of the rear mounting
bracket. It is important to make sure the
drawer moves freely in and out and that the
arms are square and even. Spend sucient
time at this step before fastening the bracket
to the rear wall to make sure everything
is square and the arms are in the correct
position. Once that is done, secure with the 3
rear mounting bracket screws provided.
Step 7 - Install the
cover plate.
Step 8 - Connect the Docking Drawer power
cord to the in-cabinet electrical supply. For
more details about locating an in-cabinet
electrical supply for your Docking Drawer
installation, please refer to the Electrical
Planning Guide located at dockingdrawer.com/
downloads.
BLADE DUO PART #:
1514-2xx 2012-2xx
How to Operate the Outlet
CUTOUT TEMPLATE for Blade Duo
FOR ACCURACY SCALE PRINTER TO 100%
120º F
Docking Drawer
Wall
Receptacle
Have questions? Need help? Call us!
[email protected]
www.dockingdrawer.com
[phone]
12893 Alcosta Blvd, Suite M,
San Ramon, CA 94583
®




AG040521
The 15 and 20 amp Blade Duo and Blade series
in-drawer outlets include a 120˚F interlocking
thermostat to protect against overheating
inside the drawer. To reset, correct the source
of over temperature and push the button in
the center of the vents of the cover plate. Note:
You may need to wait a few minutes for the
unit to cool before the thermostat can be reset.
Push to reset
interlocking
thermostat
Wiring Diagram:
*For Blade
Duo outlets,
make sure that
the cover plate is
installed so that it covers
the receptacle box anges.
