Docking Drawer Duo Series User manual
Docking Drawer Duo™ and
Style Drawer Trio™ Installation
Instructions
Visit our Support Library at
support.dockingdrawer.com to nd:
Detailed Mounting Diagrams to plan your installation,
DXF and STEP Files for importing into 2D and 3D layout
programs.
Tools Needed:
• Jigsaw
• Drill
• Measuring Tape
• Screwdriver
• Square
• Pencil
• Cutout Template
Time Required - 30 min
DOCKING DRAWER
DUO PART #:
0290-20610W-UK
0290-20610W-EUR
0290-20610W-AUS
STYLE DRAWER TRIO
PART #:
0290-20533W-AUS
STYLE DRAWER TRIO
PART #:
0290-20533W-EUR
STYLE DRAWER TRIO
PART #:
0290-20533W-UK
DOCKING DRAWER
DUO PART #:
0290-20610W-UK
0290-20610W-EUR
0290-20610W-AUS
FOR ACCURACY SCALE PRINTER TO 100%

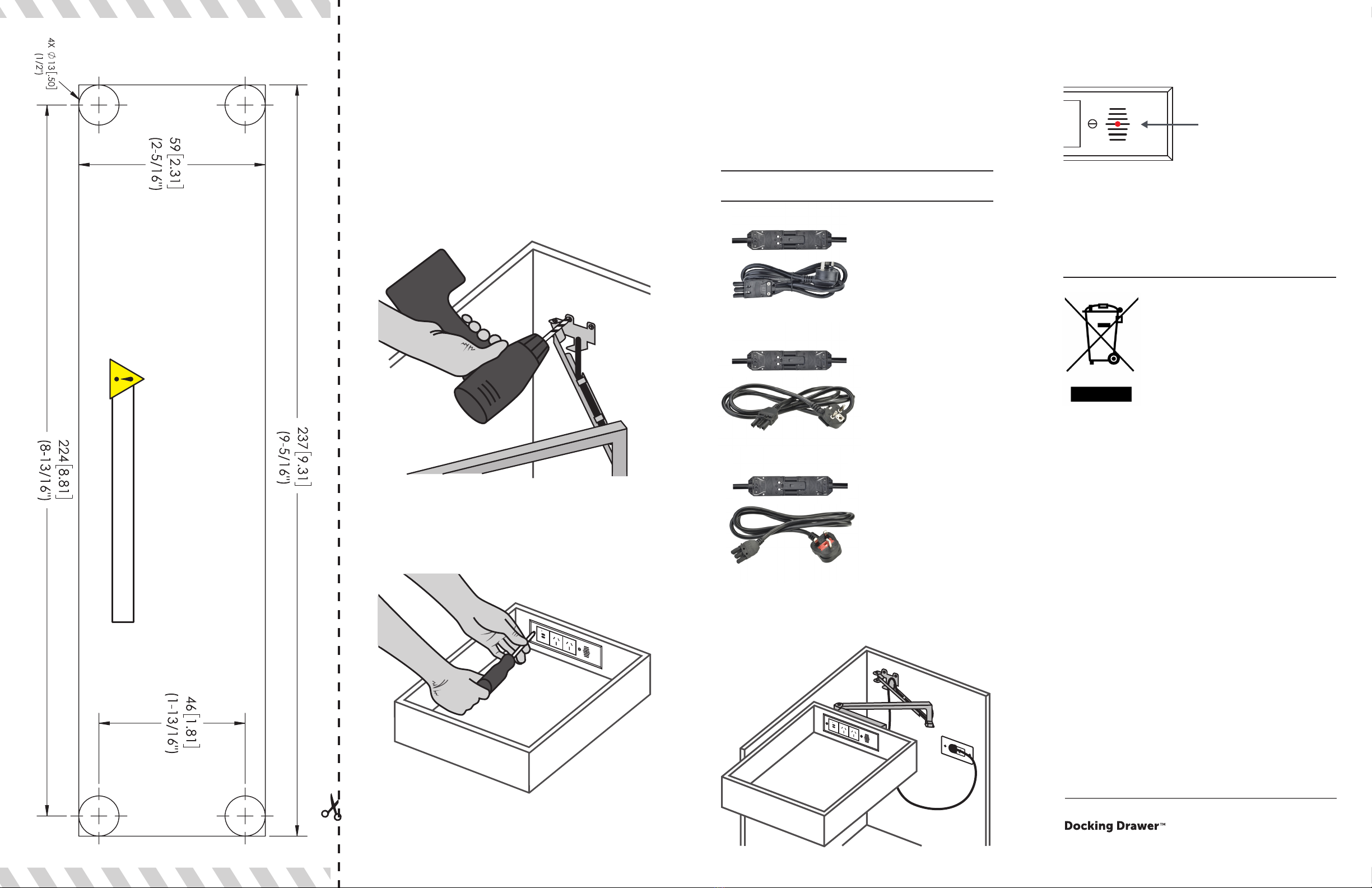

CUTOUT TEMPLATE
for Docking
Drawer Duo
How to Install the Outlet
Step 1 - Verify the drawer dimensions.
Docking Drawer Duo and Trio outlets require at
least 51mm behind the drawer box and at least
a 381mm wide drawer box.
DOCKING DRAWER DUO
STYLE DRAWER TRIO
Step 2 - Remove the cutout template and
ip to the side that corresponds with your
product’s part number.
Step 4 - With a 1/2” drill bit, drill a hole in
each corner, being careful not to splinter the
wood on the inside of the drawer box. Using
one of the 1/2” holes, insert a jigsaw and then
make the required cutouts in the drawer box.
Step 3 - Locate the proper location for
the receptacle box cutout using our cutout
template. You can locate the proper location
from either the inside or backside of the
drawer box, making sure that the arms will
not interfere with the slides and that there is
enough material surrounding the receptacle
box to securely hold it in place.
• Failure to follow these instructions can cause
death or permanent injury. Do not work on
live electrical circuits! Make absolutely certain
power is o before connecting the device!
• This product is for dry, indoor and permanent
installations only.
• Install the device in accordance with all
national and local electrical codes.
CAUTION – READ CAREFULLY
Step 5 - Reinstall the drawer box and slide
the Docking Drawer Duo or Trio receptacle
box through the cutout. Secure it with the 4
wood screws provided.
Step 3 - cont.
STYLE DRAWER TRIO PART #:
0290-20533W-AUS
0290-20533W-EUR
0290-20533W-UK
CUTOUT TEMPLATE
for Style Drawer Trio
FOR ACCURACY SCALE PRINTER TO 100%
Step 6 - Align arms. With the drawer mostly
closed, mark the position of the rear mounting
bracket. It is important to make sure the
drawer moves freely in and out and that the
arms are square and even. Spend sucient
time at this step before fastening the bracket
to the rear wall to make sure everything
is square and the arms are in the correct
position. Once that is done, secure with the
screws provided.
Step 7 - Install the cover plate.
Step 9 - Connect the Docking Drawer power
cord to the in-cabinet electrical supply.
Style Drawer Trio
outlet models utilize
a thermostat that
removes power to
the device when the
ambient temperature
reaches 55°C. The thermostat will remain in
the tripped position until reset. To reset, use a
small diameter rod or equivalent to push the
red reset button.
How to Operate the Outlet
Type I
Australia & New
Zealand
Type E
Europe
Type G
United Kingdom
Clip & Patch Cord
Step 8 - Each Docking Drawer Duo and Style
Drawer Trio has a GST-18 plug that connects to
an included country-specic patch cord.
To connect the patch cord to the outlet, plug
the the male end into the female end and use
the clip to secure the connectors.
LA120919
For private households: Information
on Disposal for Users of WEEE This
symbol (gure 1) on the product(s) and
/ or accompanying documents means
that used electrical and electronic
equipment (WEEE) should not be
mixed with general household waste.
For proper treatment, recovery and
recycling, please take this product(s) to designated
collection points where it will be accepted free of charge.
Alternatively, in some countries, you may be able to
return your products to your local retailer upon purchase
of an equivalent new product.
Disposing of this product correctly will help save valuable
resources and prevent any potential negative eects
on human health and the environment, which could
otherwise arise from inappropriate waste handling.
Please contact your local authority for further details
of your nearest designated collection point. Penalties
may be applicable for incorrect disposal of this waste, in
accordance with you national legislation.
For professional users in the European Union
If you wish to discard electrical and electronic equipment
(EEE), please contact your dealer or supplier for further
information.
For disposal in countries outside of the
European Union
This symbol is only valid in the European Union (EU). If
you wish to discard this product please contact your local
authorities or dealer and ask for the correct method of
disposal.
www.dockingdrawer.com
+1 (530) 205-3625
