Docking Drawer Docking Drawer Series Technical manual

Electrical Planning Guide
for Docking Drawer and Style Drawer Series Installations
Docking Drawer Charging Outlets have been listed
by ETL and they comply with UL 962a when installed
in accordance to outlet installation instructions.
Additionally, our Style Drawer Powering Outlets
have been listed by ETL and comply with UL 962a
when installed in accordance to the outlets installation
instructions. The following is a guide designed to
provide steps for roughing-in an electrical supply for
your Docking Drawer or Style Drawer Series outlet
installation. Please review the specic installation
instructions for each outlet. This information can be
found at www.dockingdrawer.com and it is also
included with our outlets.
All Powering Outlets come with a 20A, tamper proof,
GFCI protected outlet.
Pictured below is the Docking Drawer installation
wall. We use this in-house tool to illustrate electrical
connections for our customers.
General Information
A licensed electrician needs to supply all
electrical rough-ins to local building codes for
your Docking Drawer installation. Docking
Drawer outlets cannot be plugged into
dishwasher, disposal, instant hot water, or
trash compactor outlets. Remember that all
powering outlets require a 20 amp circuit. All
wiring inside of a cabinet must be MC Cable.
CAUTION – READ CAREFULLY

2
Applicable Outlets
Would you rather consult with one of our installation experts about your project?
We want to help! Call us at 1 [phone].
Applicable Charging Series Outlets Applicable Powering Outlets
BLADE SERIES PART NUMBER (S)
2 AC / 2 USB
0290-10030 (W,S)
0290-10024 (W,S)
0290-10021 (W,S)
0290-10018 (W,S)
4 USB
0290-10124 (W,S)
0290-10121 (W,S)
0290-10118 (W,S)
2 AC / 6 USB 0290-10224 (W,S)
8 USB 0290-10324 (W,S)
SLIM SERIES PART NUMBER (S)
2 AC / 2 USB
0290-00031 (W,S)
0290-00030 (W,S)
0290-00047 (W,S)
4 USB
0290-00046 (W,S)
0290-00045 (W,S)
0290-00048 (W,S)
USB NARROW SERIES PART NUMBER (S)
4 USB 0290-00078 (W)
0290-00012
DOCKING DRAWER
SERIES PART NUMBER (S)
2 AC / 2 USB 0290-00016 (W)
0290-00015 (W)
STYLE DRAWER

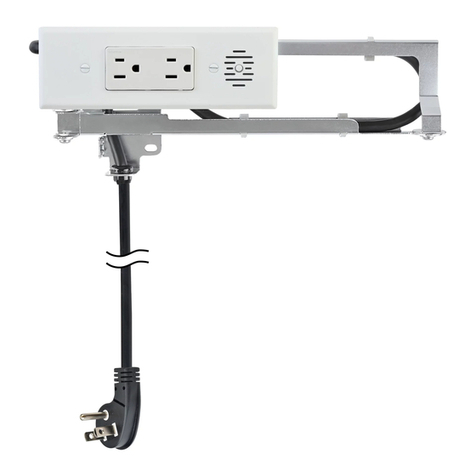

BLADE SERIES PART NUMBER (S)
2 AC / 2GFCI
0290-00324 (W,S)
0290-00321 (W,S)
0290-00318 (W,S)
0290-00330 (W,S)
STYLE DRAWER
FLUSH SERIES PART NUMBER (S)
2 AC / 2GFCI
0290-00079 (W,S)
0290-00077 (W,S)
0290-00033 (W,S)
0290-00032 (W,S)
0290-00050 (W,S)
STYLE DRAWER
FLUSH DUO SERIES PART NUMBER (S)
2 AC / 2GFCI
0290-00224 (W,S)
0290-00221 (W,S)
0290-00218 (W,S)
STYLE DRAWER
SERIES PART NUMBER (S)
2 AC / 2GFCI
0290-00013 (W)
0290-00011 (W)
0290-00049 (W)

Would you rather consult with one of our installation experts about your project?
We want to help! Call us at 1 [phone].
3
Docking Drawer Electrical Rough-in Techniques
The electrical supply can located in a variety of
locations to provide power to your Docking Drawer or
Style Drawer outlet.
For Charging Outlets – a standard 15amp household
outlet is needed. The outlet can be surface mounted
or ush mounted in the cabinet as long as it’s within
5’ of the Docking Drawer charging outlet. The
household outlet can be located in a neighboring
cabinet, at the bottom of the cabinet, just under the
drawer that the Docking Drawer is installed into, etc.
For Powering Outlets – a 20amp supply is needed.
This supply can be roughed-in with a surface mounted
handy box or ush mounted using a junction box
with a single gang cover plate and a Flex 90 connector
anywhere in the cabinet.
1. Locating the Electrical Supply
Roughing-in an electrical supply to provide power to your Docking Drawer charging or Style Drawer powering
outlets is straightforward.
This document will outline:
• Where the source of power should enter the cabinet
• 4 types of electrical rough-ins choices for open and closed wall installations
WHERE NOT TO LOCATE THE POWER SOURCE
One location that we caution is directly
behind the drawer where the cabinet is being
installed. If this location is utilized, you must
ensure that the in-cabinet outlet and wiring do
not interfere with the Docking Drawer cable
management arms or drawer slides.
CAUTION – READ CAREFULLY
Next, pick an electrical rough-in
method for your installation

4
Docking Drawer Electrical Rough-in Techniques
Would you rather consult with one of our installation experts about your project?
We want to help! Call us at 1 [phone].
There are two basic techniques for bringing power into a cabinet:
• Surface mounted handy box
• Flush mounted outlet or single gang cover plate with a Flex 90 connector
2. Pick A Electrical Rough-In Method
FOR CHARGING OUTLETS
There are 2 options for bringing power into the
cabinet for a Docking Drawer installation.
Option 1: Flush Mounted Outlet
Option 2: Surface Mounted Outlet
FOR POWERING OUTLETS
There are 2 options for bringing power into the
cabinet for a Style Drawer installation.
Option 1: Flush Mounted Outlet
Option 2: Surface Mounted Outlet
Next, are the walls open and accessible
or closed and covered?

5
Docking Drawer Electrical Rough-in Techniques
Open Wall Construction Projects – In new open wall construction projects, an in-cabinet junction box should
be installed using an in-wall single gang junction box to provide power to your Docking Drawer (Charging) or
Style Drawer (Powering) outlet.
Here are the 3 basic types of in-wall junction boxes that can be used to rough-in power to a Docking Drawer or
Style Drawer outlet in open wall construction.
Using one of the in-wall junction boxes described above, there are two methods to supply power to a
Docking Drawer or Style Drawer outlet.
3. Open Wall or Closed Wall Project?
Option 1
Single gang adjustable new
construction in-wall junction box.
Option 2
Single gang new construction
junction box with box extender.
Option 3
Single gang new construction nail
on box with box extender.
FOR CHARGING OUTLETS
There are 2 options for bringing power into
the cabinet for a Docking Drawer installation.
FOR POWERING OUTLETS
There are 2 options for bringing power into
the cabinet for a Style Drawer installation.

6
Docking Drawer Electrical Rough-in Techniques
Closed Wall Projects – In remodel projects, an in-cabinet surface mounted or ush mounted receptacle can be
installed to provide power to your Docking Drawer (Charging) or Style Drawer (Powering) outlet.
Here are the 3 basic types of in-wall junction boxes that can be used to rough-in power to a Docking Drawer or
Style Drawer outlet in closed wall construction.
Option 1
Romex supply to cut in box
Option 2
MC supply to surface mounted
handy box
Option 3
MC supply direct connection
to Style Drawer handy box
FOR CHARGING OUTLETS
Flush mounted outlet Surface mounted outlet
FOR POWERING OUTLETS
Single gang cover plate with a
Flex 90 connector using MC to
connect to the Style Drawers
handy box
Single gang cover plate with a
Flex 90 connector using MC to
connect to the Style Drawers
handy box
MC directly to the Style Drawers
handy box
This method of
supplying power
only applies to
powering outlets.

7
[email protected] www.dockingdrawer.com
[phone] 12893 Alcosta Blvd, Suite M, San Ramon, CA94583
®
Would you rather consult with one of our installation experts about your project?
We want to help! Call us at 1 [phone].
Electrical Planning Guide for Docking Drawer and Style Drawer Series Installations
