Instruction manual
BM SERIES CONTROLLER
ParaMon-Pro X
EN
60391-01/21
www.dogassembly.com

ParaMon-Pro X controller DOC.60391-01/21
2
CONTENTS
Symbols...................................................................................................................................................................................... 5
1. INFORMATION.......................................................................................................................................................... 6
1.1 IMPORTANT........................................................................................................................................................................6
1.2 Product reference............................................................................................................................................................... 6
1.3 Product description.............................................................................................................................................................6
1.4 Standard packing items..................................................................................................................................................... 7
1.5 Specifications...................................................................................................................................................................... 8
1.6 System overview.................................................................................................................................................................8
1.7 Dimensions and appearances.......................................................................................................................................... 9
2. HOME........................................................................................................................................................................ 11
2.1 Operator mode.................................................................................................................................................................. 11
2.2 Administrator mode.......................................................................................................................................................... 12
3. NETWORK CONFIGURATION.............................................................................................................................13
3.1 Connect through internal AP...........................................................................................................................................14
3.2 Connection through external AP.................................................................................................................................... 16
4. BM WIFI SETUP......................................................................................................................................................18
4.1 Setup using ParaMon Air (PC)....................................................................................................................................... 18
4.1 Setup using ParaMon-Pro X........................................................................................................................................... 21
5. MEMBER TOOL MANAGEMENT........................................................................................................................23
5.1 Register Member Tools....................................................................................................................................................24
5.2 Deregister Member Tools................................................................................................................................................ 27
5.3 Modify member tool names............................................................................................................................................ 29
5.4 Check member tool status.............................................................................................................................................. 30
6. STATUS BAR...........................................................................................................................................................32
7. SELECT TARGET TOOL.......................................................................................................................................33
8. PARAMETER........................................................................................................................................................... 35
8.1 Fastening........................................................................................................................................................................... 35
8.2 Advanced........................................................................................................................................................................... 40
8.2.1 Free reverse rotation................................................................................................................................................................. 41
8.2.2 Thread tapping............................................................................................................................................................................41
8.2.3 Engaging torque detection........................................................................................................................................................ 43
8.2.4 Angle after torque up................................................................................................................................................................. 45
8.3 Controller........................................................................................................................................................................... 46
8.4 Multi-sequence................................................................................................................................................................. 52
8.5 Network.............................................................................................................................................................................. 54
9. MONITOR................................................................................................................................................................. 55
9.1 Graph................................................................................................................................................................................. 56
9.2 I/O....................................................................................................................................................................................... 58
9.3 Error....................................................................................................................................................................................59
10. REMOTE.................................................................................................................................................................60
10.1 Output.............................................................................................................................................................................. 60
10.2 Tool................................................................................................................................................................................... 61

ParaMon-Pro X instruction manual DOC.60391-01/21
3
11. SETTING.................................................................................................................................................................62
11.1 Operation......................................................................................................................................................................... 62
11.2 I/O..................................................................................................................................................................................... 67
11.2.1 Input............................................................................................................................................................................................68
11.2.2 Output.........................................................................................................................................................................................69
11.3 Log.................................................................................................................................................................................... 70
11.4 Barcode - without job & BM integrated scanner........................................................................................................ 71
11.5 Network............................................................................................................................................................................ 73
11.6 Share................................................................................................................................................................................ 74
11.7 System............................................................................................................................................................................. 76
12. SYSTEM................................................................................................................................................................. 77
12.1 Device info.......................................................................................................................................................................77
12.2 Storage............................................................................................................................................................................ 78
12.3 Network............................................................................................................................................................................79
13. JOB MANAGER....................................................................................................................................................80
13.1 Edit job & step.................................................................................................................................................................81
13.1.1 Fastening step.......................................................................................................................................................................... 83
13.1.2 Input step...................................................................................................................................................................................86
13.1.3 Output step................................................................................................................................................................................87
13.1.4 Delay step................................................................................................................................................................................. 88
13.1.5 Message step........................................................................................................................................................................... 89
13.2 Barcode........................................................................................................................................................................... 90
14. OPERATION.......................................................................................................................................................... 92
14.1 With job mode.................................................................................................................................................................93
14.1.1 Fastening step.......................................................................................................................................................................... 94
14.1.2 Input step...................................................................................................................................................................................96
14.1.3 Output step................................................................................................................................................................................97
14.1.4 Delay step................................................................................................................................................................................. 98
14.1.5 Message step......................................................................................................................................................................... 100
15. FILE BROWSER.................................................................................................................................................101
16. FTP SERVER...................................................................................................................................................... 103
16.1 Connection via WiFi.....................................................................................................................................................104
16.2 Connection via ethernet.............................................................................................................................................. 105
17. BACKUP & RESTORE...................................................................................................................................... 106
17.1 ParaMon-Pro X.............................................................................................................................................................106
17.1.1 Backup..................................................................................................................................................................................... 107
17.1.2 Restore.................................................................................................................................................................................... 109
17.2 BM Parameters.............................................................................................................................................................110
17.2.1 Backup..................................................................................................................................................................................... 111
17.2.2 Restore.................................................................................................................................................................................... 112
18. SOFTWARE UPGRADE.................................................................................................................................... 113

ParaMon-Pro X instruction manual DOC.60391-01/21
4
19. MAINTENANCE.................................................................................................................................................. 115
19.1 Maintenance..................................................................................................................................................................115
19.2 Troubleshooting............................................................................................................................................................ 115
19.3 Spare parts....................................................................................................................................................................116
19.4 Hotline............................................................................................................................................................................ 116
19.4.1 For any questions about the use of the device..................................................................................................................116
19.4.2 For any questions regarding troubleshooting.................................................................................................................... 116
19.5 After-sales returns........................................................................................................................................................ 117
19.5.1 Download the after-sales return form..................................................................................................................................117
19.5.2 Send your equipment............................................................................................................................................................ 117
19.6 On-site repair................................................................................................................................................................ 118
19.7 Warranty........................................................................................................................................................................ 118
20. SAFETY................................................................................................................................................................ 119
20.1 General provisions....................................................................................................................................................... 119
20.2 Contra-indications........................................................................................................................................................ 119
21. STANDARDS.......................................................................................................................................................120
21.1 Importer details.............................................................................................................................................................120
21.2 Markings........................................................................................................................................................................ 120
21.3 Transport and storage................................................................................................................................................. 120
26.3.1 Transport................................................................................................................................................................................. 120
26.3.2 Storage.................................................................................................................................................................................... 120
21.4 WEEE recycling and end of service life................................................................................................................... 121
26.4.1 Collection and recycling scheme.........................................................................................................................................121
26.4.2 Collection points..................................................................................................................................................................... 121
22. APPENDICES......................................................................................................................................................122
22.1 - Declaration of conformity......................................................................................................................................... 122
22.2 - Interface port DB44 pin out...................................................................................................................................... 122
22.3 - Backup data forwarding............................................................................................................................................123

ParaMon-Pro X instruction manual DOC.60391-01/21
5
REMARKS ABOUT THE MANUAL
Symbols
Information
This warning statement indicates important information (for example: damage to property), but no hazard.
Information
Information to view in your customer area on the www.doga.fr web site.
Caution
This warning statement indicates a low risk that may lead to minor or moderate injuries if not avoided.
Wear personal protection equipment
This symbol indicates the need to wear protective gloves.
Warning
This warning statement indicates a moderate risk that may lead to severe or fatal injuries if not avoided.

ParaMon-Pro X instruction manual DOC.60391-01/21
6

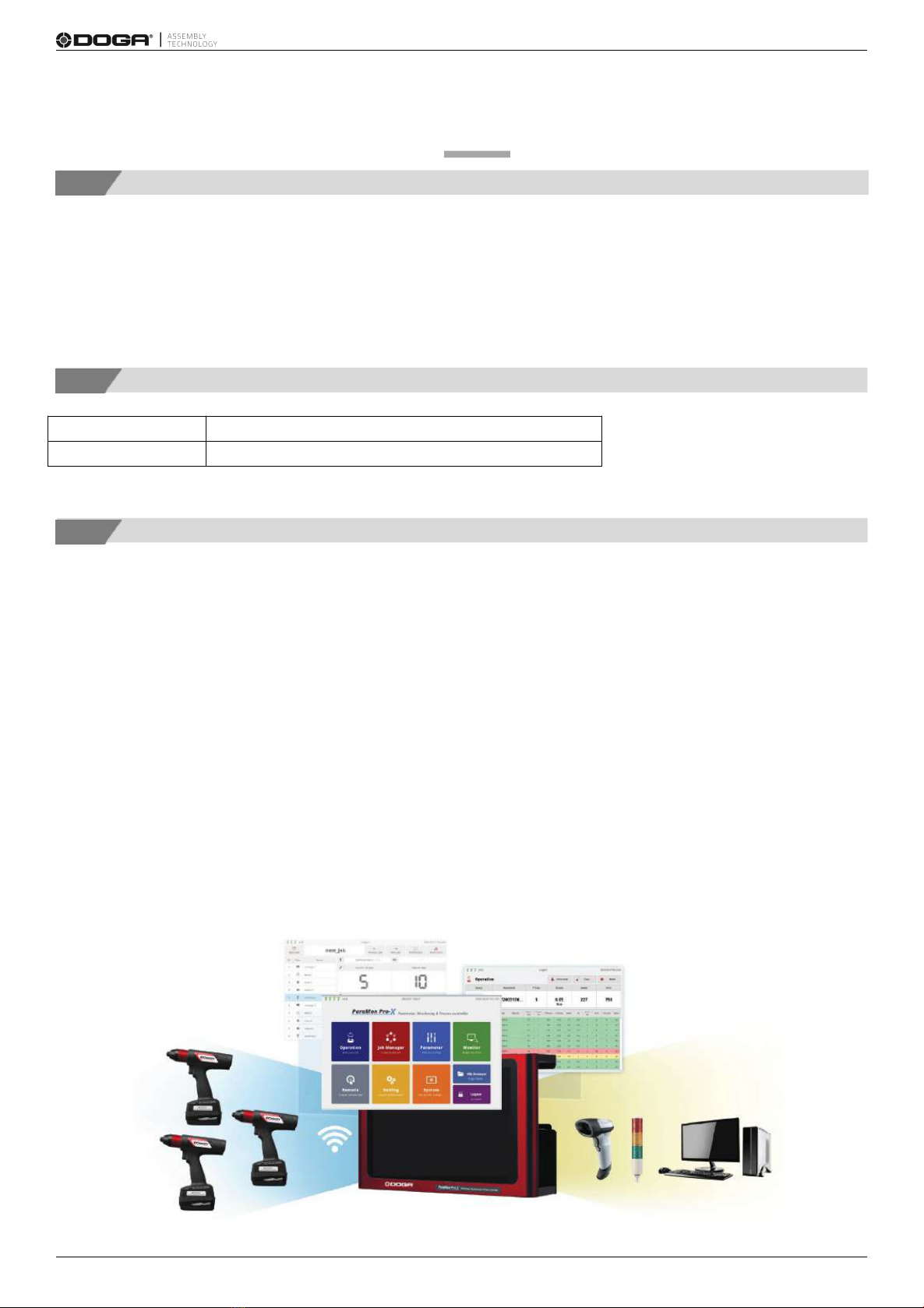

1. INFORMATION
1.1 IMPORTANT
The tool supplied with this manual may have been altered to meet specific needs.
If this is the case, when ordering a renewal or spare parts, please indicate the tool item code featured on the delivery
document, or contact DOGA at [phone] indicating the approximate delivery date. You will then be sure to
get the required tool and/or parts.
1.2 Product reference
Description
BM series controller
Type
ParaMon-Pro X
1.3 Product description
ParaMon-Pro X offers diverse features to help users use the BM tool more efficiently..
The features of ParaMon-Pro X are as follows:
Dual-band (2.4 & 5GHz) WiFi, AP-mode only
Able to connect up to 8 BM/MD tools
Able to check and change parameter settings
Displays fastening data in real time and saves them automatically
Directly programs and visualizes assembly procedures
Realtime graph monitoring (torque, speed, angle…)
Remote tool control
I/O port (input x 16 / output x 16)
External display extension (HDMI)
Supports barcode scanner
Supports File Transfer Protocol (FTP) server
Backup / restore

ParaMon-Pro X instruction manual DOC.60391-01/21
7
1.4 Standard packing items
Quantity
ParaMon-Pro X Controller
X 1
Power Cord
X 1
WiFi USB adapter
X 1
Vesa wall mounting support
X 1
CE Declaration of Conformity
X 1

ParaMon-Pro X instruction manual DOC.60391-01/21
8
1.5 Specifications
No.
Category
Specifications
1
Input Power
AC 100-240 V, 50/60Hz, 0.35A
2
Dimensions
300(W) x 196(H) x 80(D) mm
3
Weight
3.54 kg (including wall mount bracket)
4
Mounting
VESA 100 x 100 (wall mount bracket included)
5
Display
10.1-inch capacitive touchscreen (1280 x 800 px)
6
Extended Display
HDMI x 1 (duplicate)
7
Storage
On-board 8GB eMMC
8
Ethernet
Gigabit ethernet x 1
9
WiFi
Wireless USB adapter included
2.4GHz, 5GHz dual-band, IEEE 802.11 b/g/n/ac
AP-mode only
10
Interface
USB 2.0 x 3
24V digital I/O (input x 16, output x 16)
Micro-SD slot (up to 32GB)
11
Multi-Language
English, Translation in progress :French, German, Spanish,
Cautions
Do NOT use any item other than the accompanying USB WiFi adapter.
There is a possibility of signal interference while operating the equipment

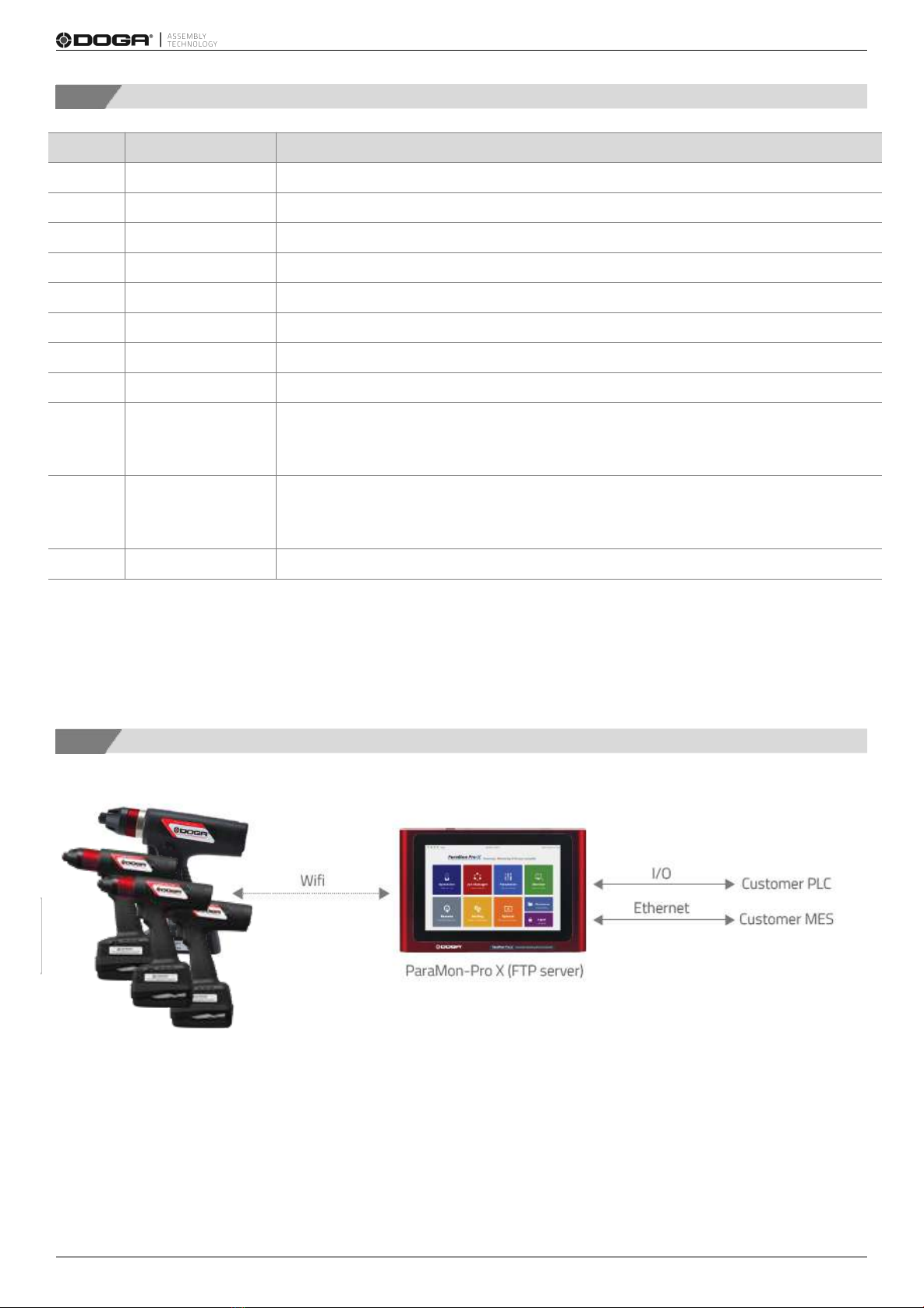

1.6 System overview

ParaMon-Pro X instruction manual DOC.60391-01/21
9

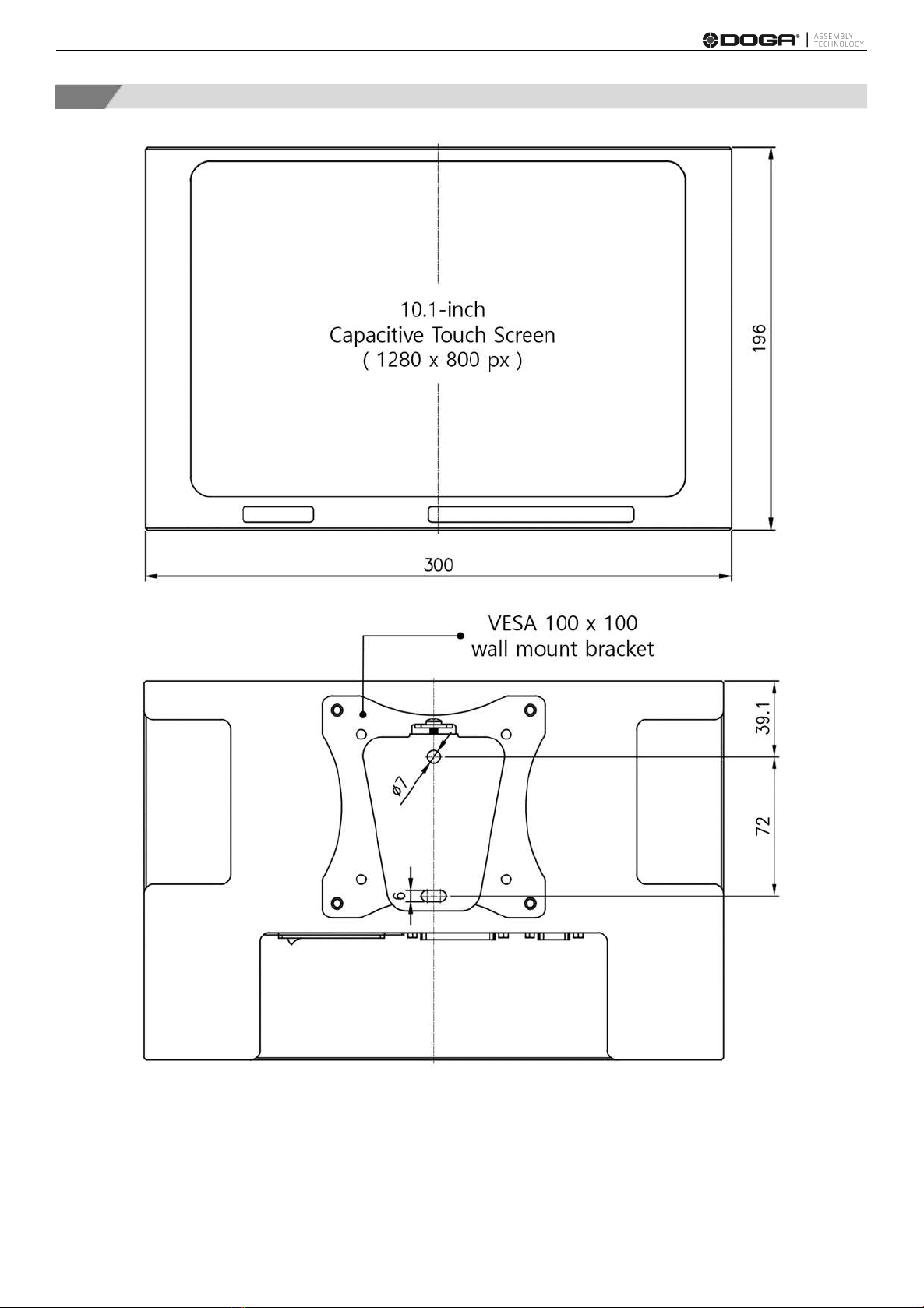

1.7 Dimensions and appearances

ParaMon-Pro X instruction manual DOC.60391-01/21
10

ParaMon-Pro X controller DOC.60391-01/21
11
2. HOME

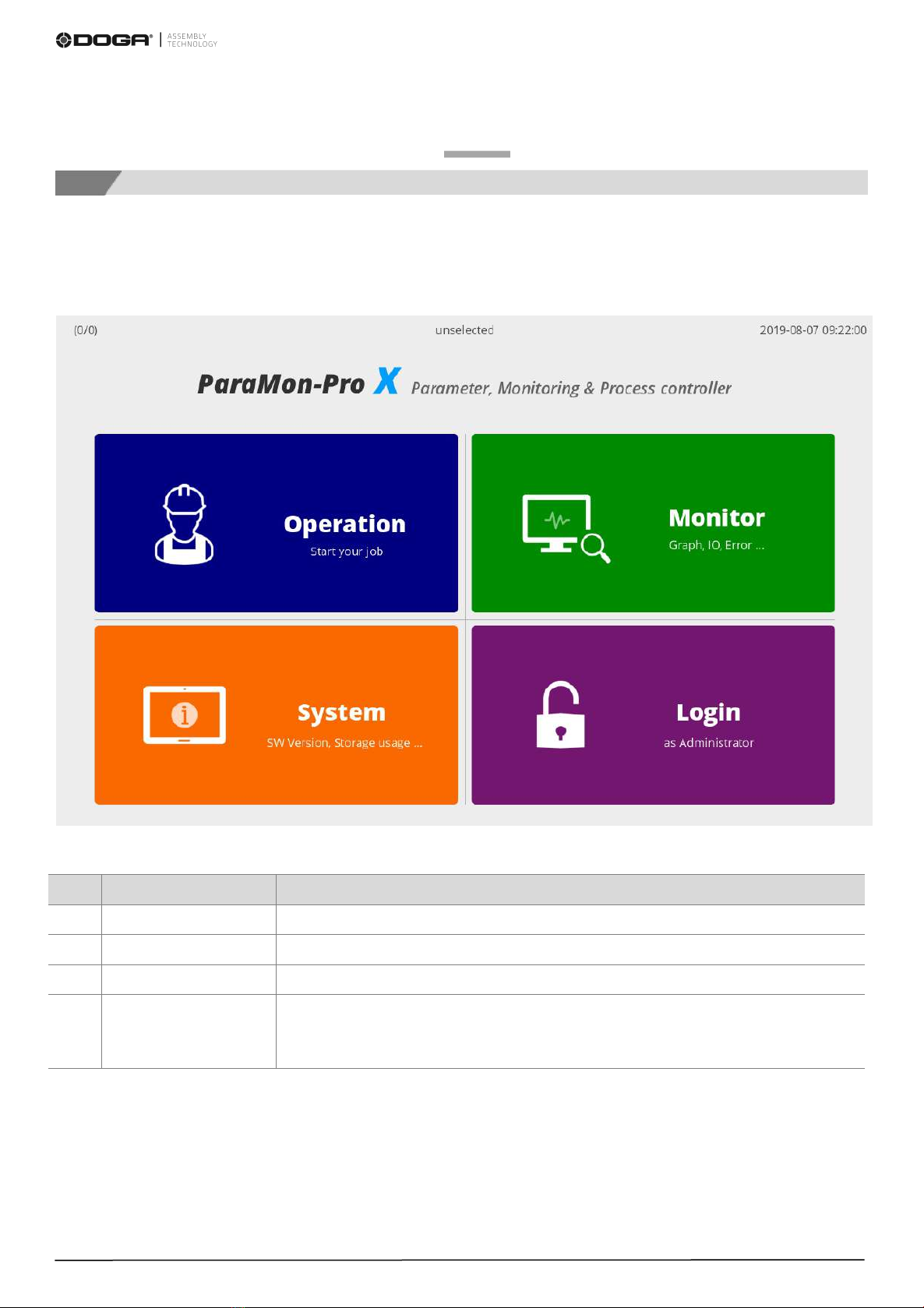

2.1 Operator mode
Operator can select one of 4 screen menu – Operation, Monitor, System and Login.
Login menu requires the password to move to administrator mode
There is no setting available in operator mode.
No.
Category
Description
1
Operation
Moves to the OPERATION page
2
Monitor
Moves to the MONITOR page
3
System
Moves to the SYSTEM page
4
Login
Enter the password and log into the Admin mode
The default password is “0”.
Password can be changed in Admin mode.

ParaMon-Pro X instruction manual DOC.60391-01/21
12

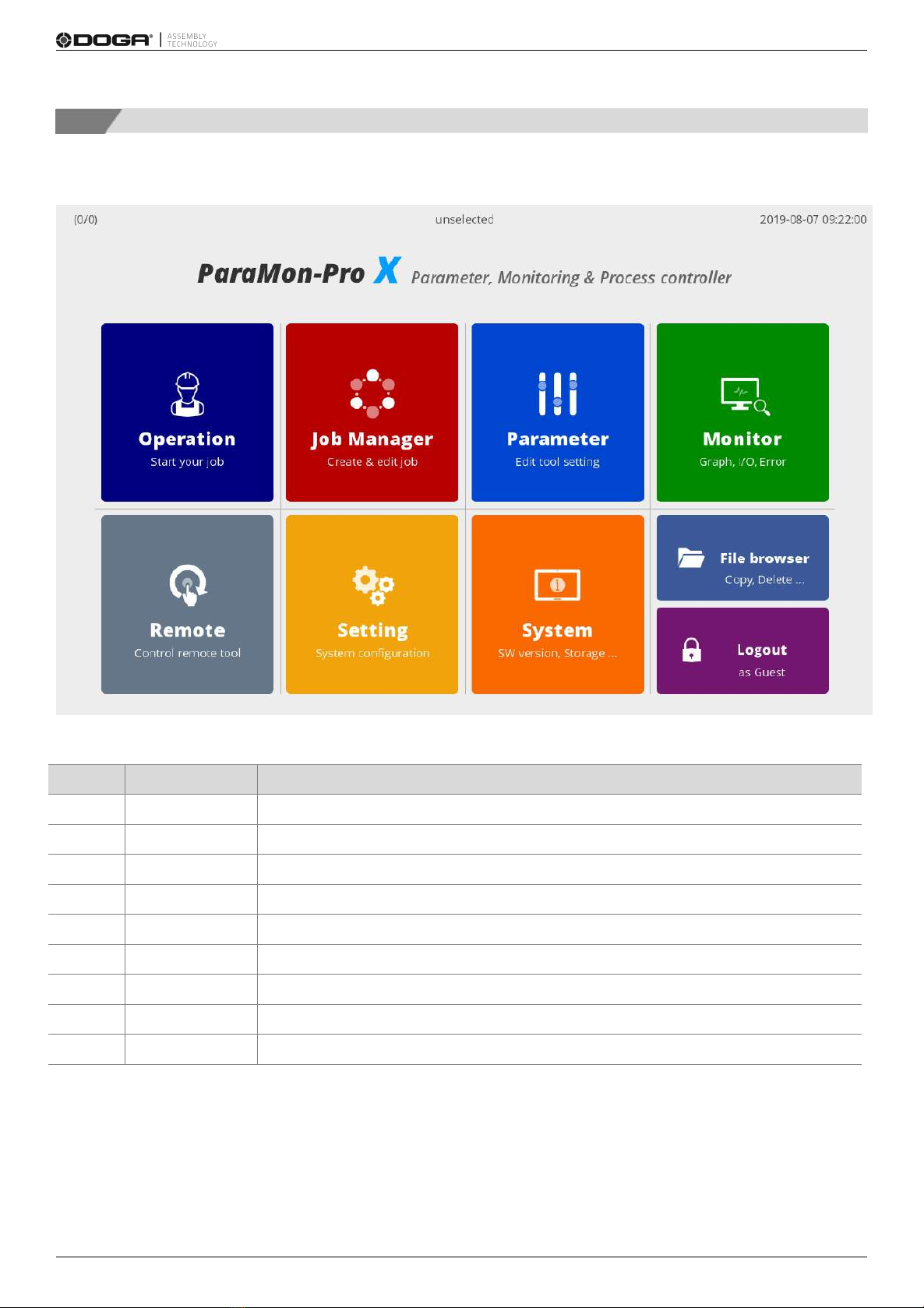

2.2 Administrator mode
All settings and job creation is available in admin mode only.
No.
Category
Description
1
Operation
Moves to the OPERATION page
2
Job Manager
Moves to the JOB MANAGER page
3
Parameter
Moves to the PARAMETER page
4
Monitor
Moves to the MONITOR page
5
Remote
Moves to the REMOTE page
6
Setting
Moves to the SETTING page
7
System
Moves to the SYSTEM page
8
File Browser
Moves to the FILE BROWSER page
9
Logout
Logs out from Administrator to Operator mode

ParaMon-Pro X instruction manual DOC.60391-01/21
13
3. NETWORK CONFIGURATION

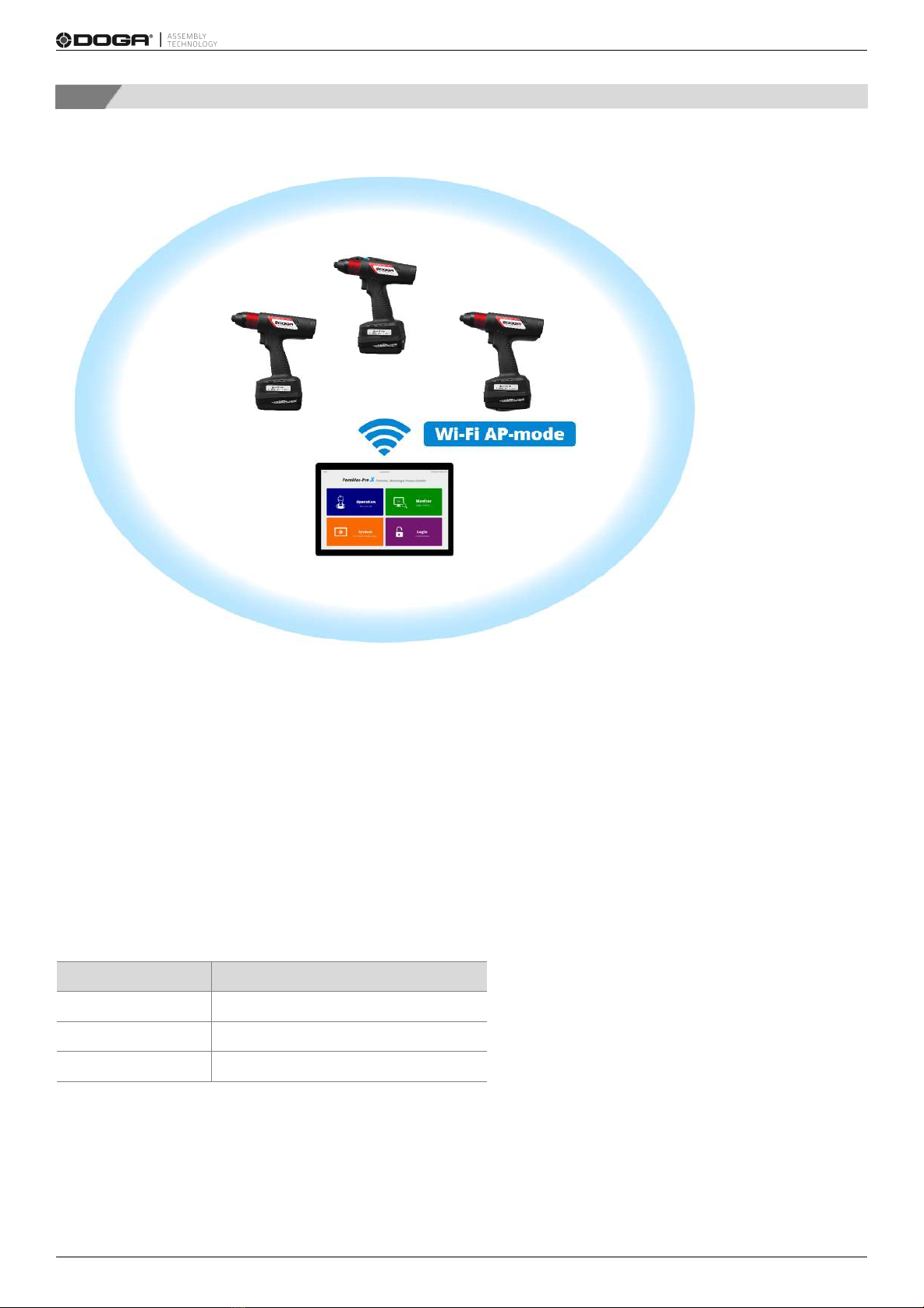

For connection between ParaMon-Pro X and BM, a network can be configured as follows:
Category
Description
Connection through Internal
AP
The most common type
Through a USB WiFi adapter in ParaMon-Pro X, ParaMon-Pro X is operated
in AP mode and connected to BM.
Connection through
External AP
ParaMon-Pro X is connected to BM, using a separate AP.
Can be used when wider WiFi coverage is needed or a particular feature
provided by the AP is required

ParaMon-Pro X instruction manual DOC.60391-01/21
14
3.1 Connect through internal AP
The most common type.
Through a WiFi adapter in ParaMon-Pro X, ParaMon-Pro X is operated in AP mode and connected to BM. The WiFi
module in ParaMon-Pro X is operated in AP mode only, not in Station mode.
A. Log into the system in Admin mode. The default password is “0”.
B. Press [Setting].
C. Select the NETWORK tab on the left.

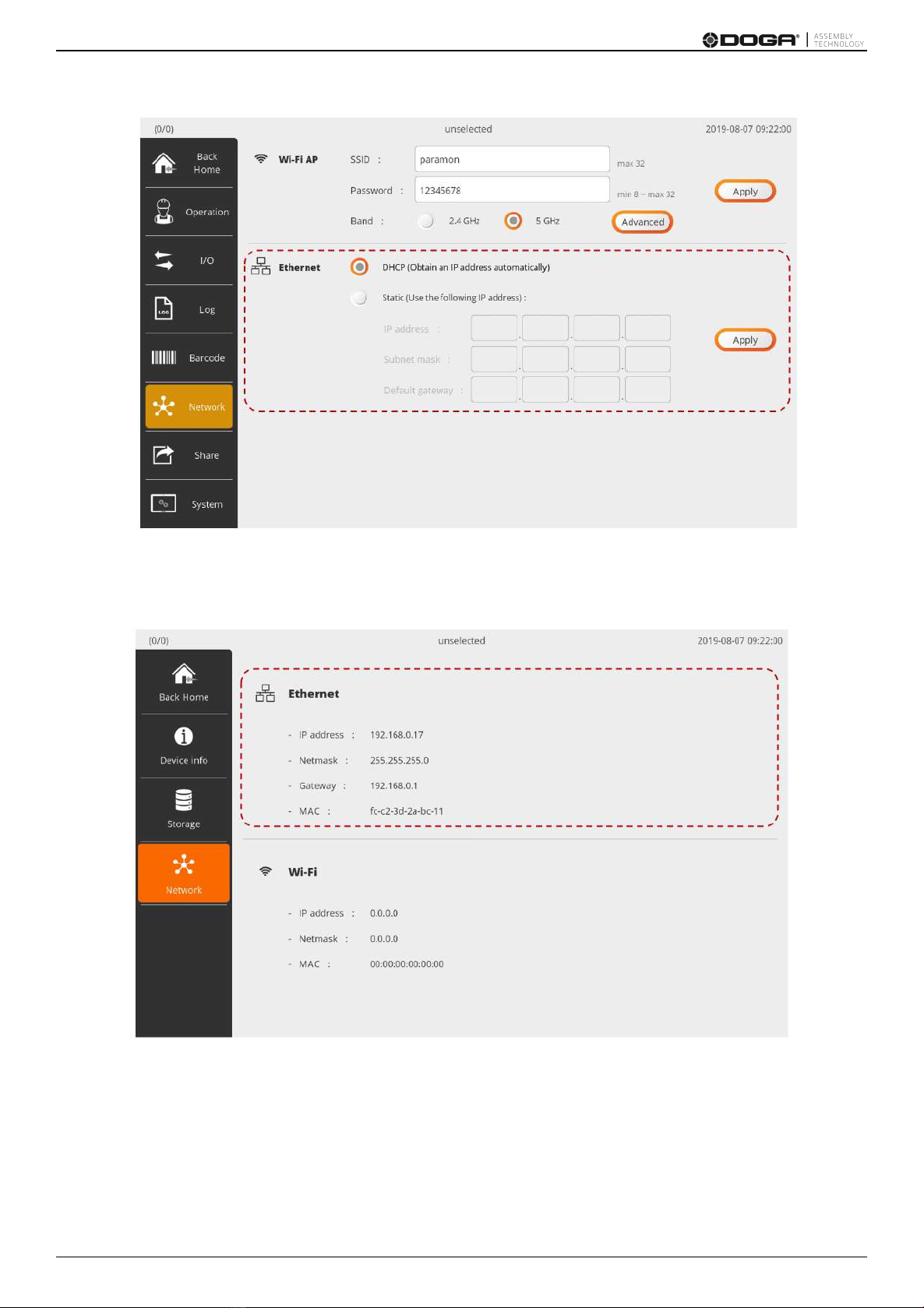

D. Set the SSID, password and band in WiFi settings. The default settings are as follows:
Category
Default Settings
SSID
Paramon
Password
12345678
Band
5 GHz

ParaMon-Pro X instruction manual DOC.60391-01/21
15
E. Press [Apply].
F. As shown in the figure below, WiFi is enabled after searching for the best channel.

ParaMon-Pro X instruction manual DOC.60391-01/21
16
3.2 Connection through external AP
Connect ParaMon-Pro X and BM, using a separate AP.
This connection type can be used when wider WiFi coverage is needed or a particular feature by the AP is required.
The WiFi adapter in ParaMon-Pro X is not operated in Station mode.
Therefore, Ethernet wiring is needed for connection between ParaMon-Pro X and a separate AP.
A. Log into the system in Admin mode. The default password is “0”.
B. Press [Setting].
C. Select the NETWORK tab on the left.
D. Choose either DHCP or STATIC in the ETHERNET according to network configuration.
E. Press [Apply].

ParaMon-Pro X instruction manual DOC.60391-01/21
17
F. Check the IP address by the DHCP server in the following order: Home → System → Network.

ParaMon-Pro X instruction manual DOC.60391-01/21
18
4. BM WIFI SETUP
4.1 Setup using ParaMon Air (PC)
Depending on circumstances, there might be multiple COM ports in the PC.
Therefore, it is required to check the COM port numbers connected to the BM before starting the ParaMon Air.
A. Open the Device Manager in the Windows PC.
B. Check the COM & LPT category as shown below:

ParaMon-Pro X instruction manual DOC.60391-01/21
19
C.Connect the PC with the BM, using the accompanying USB cable.
D.Once the BM is connected properly, a new COM port appears in the COM & LPT category. The COM port number
can vary depending on configuration.
E. Start the ParaMon Air program.
F. Extend the COM Port List box as shown below:
G. Select the COM port number of BM confirmed in the device manager.
H. Press [OPEN] and start the connection.
I.Once connected normally, the product’s model No., serial No. and firmware version appear at the bottom as follows:

ParaMon-Pro X instruction manual DOC.60391-01/21
20

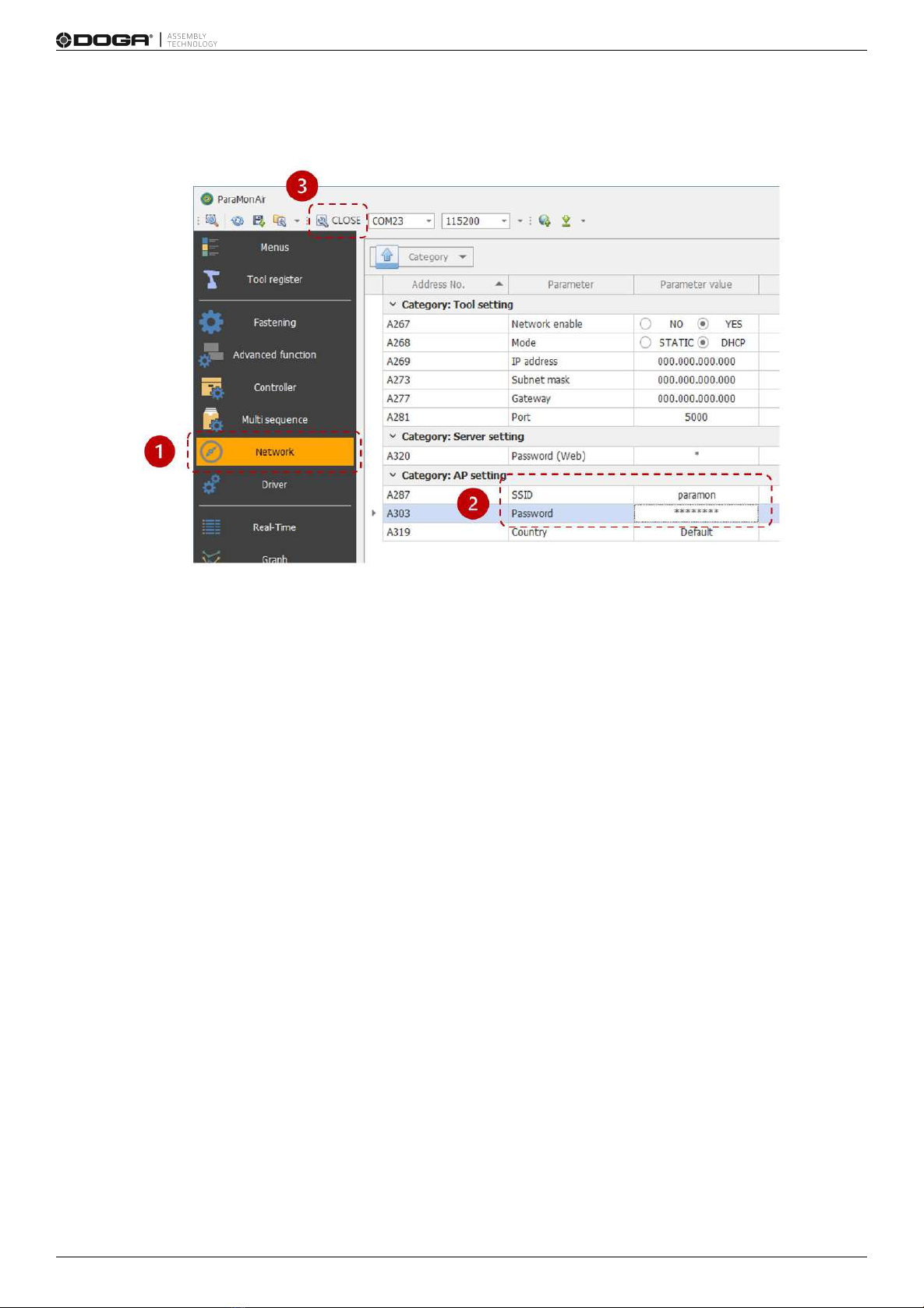

J. Select the NETWORK tab on the left.
K. Match the SSID and Password settings with ParaMon-Pro X.
L. Press [CLOSE] and finish the connection.
M. Remove the BM battery and cut off the power.
N. Connect the BM battery and turn on the power.
O. The BM’s WiFi settings are done.
