right side of the transmitter until the LCD screen shuts off. The 1900S
HANDSFREE unit has four buttons on the handheld transmitter (one
on the face of the transmitter, two on the left side, and one on the
right side).
1. Turning the 1900S HANDSFREE On/Off
To turn the handheld transmitter on,
hold down the button on the right side
of the transmitter until the LCD screen
illuminates. To turn the transmitter
off, hold down the same button on the
On/Off
Button

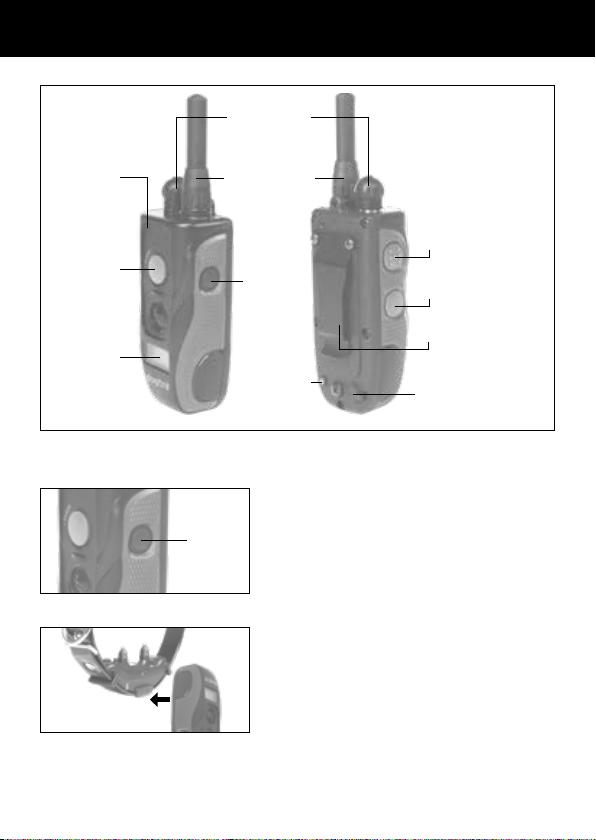

1. 1900S HANDSFREE TRANSMITTER
Rheostat Dial
On/Off
Button
Belt Clip
Battery Charging
Receptacle &
Rubber Plug
Nick
LED
Indicator
Light
Constant
LCD Screen
Pager
Antenna
To turn the receiver on, hold down the
on/off button until the LED indicator
turns green. To turn the receiver off,
hold down the on/off button until the
LED indicator turns red.
On/Off
Button

2. 1900S HANDSFREE Code Setting Guide
Coding the transmitter and receiver:
1. Turn the transmitter on by pressing the on/off button and set the
Rheostat Dial to 0.
2. With the receiver turned off, hold the on/off button on the receiver
until the LED light begins to rapidly blink green.
3. While the green LED is rapidly blinking on the receiver, press
the two side buttons (Nick & Constant) simultaneously on the
transmitter. The LED light on the receiver will blink every 4 seconds
when coding is complete.
Coding the transmitter and HANDSFREE Remote Controller:
1. Begin with the transmitter turned off.
2. On the handheld transmitter, hold down the following buttons until
you see a rapidly blinking light to code the desired function on the
HANDSFREE Remote Controller.
Constant = Hold down the on/off button and the Constant
Pager = Hold down the on/off button and the Pager
Nick = Hold down the on/off button and the Nick
3. Once you see the rapidly blinking light, release the buttons.
4. Hold down the HANDSFREE Remote Controller button until the
rapidly flashing light on the transmitter and controller both show a
solid light.
5. Release all buttons. To check if the coding is correct, press the
button on the HANDSFREE Remote Controller.

2. ARC HANDSFREE TRANSMITTER
Rheostat
Dial
Pager
LED
Indicator
Light
LCD
Screen
On/Off
Button
On/Off
Magnetic
Red Dot
Antenna
Battery Charging
Receptacle &
Rubber Plug
Nick
Constant
Belt Clip
To turn the receiver on, place the red
dot on the back of the transmitter to the
red dot on the receiver, which will show
an LED light when turned on. To turn
the receiver off, touch the two red dots
1. Turning the ARC HANDSFREE On/Off
On/Off
Button
To turn the handheld transmitter on,
hold down the button on the right side
of the transmitter until the LCD screen
illuminates. To turn the transmitter off,
hold down the same button on the right
side of the transmitter until the LCD screen shuts off.
together momentarily and a red LED light will indicate it is off.

2. ARC HANDSFREE Code Setting Guide
Coding the transmitter and receiver:
1. Turn the transmitter on by pressing the on/off button and set the
Rheostat Dial to 0.
2. With the receiver turned off, place the red dot on the back of the
transmitter to the red dot on the receiver. Hold the two red dots
together for about 5 seconds until the green LED blinks rapidly on
the receiver.
3. While the green LED is rapidly blinking on the receiver, separate
the two devices and press the two side buttons (Nick & Constant)
simultaneously on the transmitter. The LED light on the receiver will
blink every 4 seconds when coding is complete.
Coding the transmitter and HANDSFREE Remote Controller:
1. Begin with the transmitter turned off.
2. On the handheld transmitter, hold down the following buttons until
you see a rapidly blinking light to code the desired function on the
HANDSFREE Remote Controller.
Constant = Hold down the on/off button and the Constant
Pager = Hold down the on/off button and the Pager
Nick = Hold down the on/off button and the Nick
3. Once you see the rapidly blinking light, release the buttons.
4. Hold down the HANDSFREE Remote Controller button until the
rapidly flashing light on the transmitter and controller both show a
solid light.
5. Release all buttons. To check if the coding is correct, press the
button on the HANDSFREE Remote Controller.

1. HANDSFREE Information
The HANDSFREE Remote Controller gives you the freedom to multi-task
and have discreet fingertip control. The function (Nick, Constant, or Pager)
can be coded to the HANDSFREE Remote Controller for you to operate
remotely. You may press the HANDSFREE Remote Controller button instead
of having to carry the transmitter in your hand. The HANDSFREE Remote
Controller has been tested and can be used in extreme conditions, between
-4 °F to 140 °F.
3. Range
Depending on where the handheld transmitter is placed, your body can
act as a barrier between the HANDSFREE Remote Controller and the
transmitter. The handheld transmitter's antenna should be kept in the open
for maximum range. Placing the transmitter in the bottom of a bag or in a
cargo pocket where the antenna is covered may reduce the range between
the transmitter and the receiver. The HANDSFREE Remote Controller will
need to be within 33 feet of the of the transmitter to work.
2. Battery Life
The LED on the HANDSFREE Remote Controller will blink when the button
is pressed. Replace the battery in the HANDSFREE Remote Controller when
the LED no longer blinks. With normal usage (button held for 12 seconds,
100 times a day), the battery should last 7-10 years.

4. Changing the HANDSFREE Remote Controller Stimulation Mode
The default setting for the HANDSFREE Remote Controller button is the
Constant stimulation.
To change the setting to the Pager or Nick stimulation (or back to Constant
stimulation) proceed with the following steps:
1. Begin with the transmitter turned off.
2. On the handheld transmitter, hold down the following buttons to code
the desired function on the HANDSFREE Remote Controller.
Constant = Hold down the on/off button and the Constant
Pager = Hold down the on/off button and the Pager
Nick = Hold down the on/off button and the Nick
Hold down these buttons until you see a rapidly blinking light on the
transmitter.
3. Once you see the rapidly blinking light, release the buttons.
4. Hold down the HANDSFREE Remote Controller button until the rapidly
flashing light on the transmitter and controller both show a solid light.
5. Release all buttons. The HANDSFREE Remote Controller should now be
coded.

Fastening the HANDSFREE Remote Controller Strap
The HANDSFREE Remote Controller strap can be fastened to your fingers,
wrist, palm, or around a gun stock. Follow the fastening instructions below.
1. Wrap the strap around the object you are fastening the strap to. Pull the
strap through the lower section of the buckle and use the notch to keep
the HANDSFREE Remote Controller securely in place.
2. Loop the strap back through the top section of the buckle.

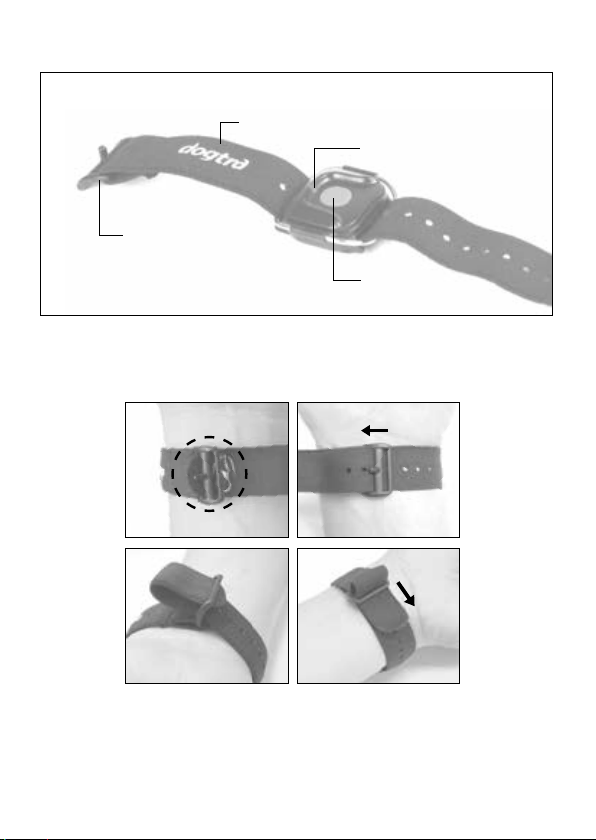

5. HANDSFREE Remote Controller Overview
Strap
Indicator Light
Buckle
Button

The range on the HANDSFREE Remote Controller is reduced when the
handheld transmitter's antenna is covered or in contact with your body.
Refer to the following carrying methods for optimal range.
Carry the handheld
transmitter with the antenna
facing away from you.
Do not place the handheld
transmitter with the antenna
touching your body or facing
downwards.
6. Maximizing the Distance
The HANDSFREE systems have a 3/4-mile range. Depending on the way you
use your transmitter, the transmitter range may vary. To get the greatest
range, hold the transmitter away from your body and avoid touching the
antenna. Keep your unit properly charged for maximum signal strength.
Typical range Minimum range
Maximum range

LIMITED WARRANTY
For Dogtra Products Purchased from Dogtra Authorized Dealers
One-Year Warranty
Except as otherwise provided below, Dogtra warrants to the original retail purchaser (“You”)
that its Dogtra products shall be free of defects in materials and workmanship for a period
of one (1) year from the date of purchase (“Warranty”). The Warranty covers the cost of
repair (parts and labor) or replacement (if repair is not feasible) of a defective Dogtra
product during said one-year period. For such repaired or replaced products, the remaining
portion of the original warranty period, or ninety (90) days, whichever is longer, shall apply.
Dogtra, at its sole discretion, shall determine whether to repair or replace a product covered
by the Warranty.
Warranty Conditions
The Warranty is not transferrable and applies to your Dogtra product only if:
(1) You are the original retail purchaser of the product,
(2) You bought the product from a Dogtra authorized dealer, and
(3) You present a receipt or other proof of purchase showing a valid purchase date, the
name and address of the authorized dealer, and the purchased product identified by
model and/or serial number.
Warranty Exclusions
The Warranty does not cover damage, loss, or deterioration to your Dogtra product caused:
by misuse, neglect, abuse, or other improper handling of the product; by failure to follow
use or care instructions; by use of the product for other than its intended purpose; by
accident or natural forces such as fire or flooding; or by normal wear and tear such as
scratches to the product surface.
The Warranty also does not cover Dogtra products that: are purchased from non-authorized
dealers; are purchased outside of the United States or Canada; have been damaged during
shipment (even if Dogtra paid or arranged for shipping); have been modified or tampered
with in any manner; are opened or repaired by anyone other than Dogtra; or have serial
numbers that have been altered or defaced.
Sole Warranty
This Warranty is the only warranty offered by Dogtra for its Dogtra products. Other than
said Warranty, Dogtra makes no other representations or warranties whatsoever regarding
its products, whether oral or in any product manual, on any packaging, on any website, or
in any other written material. No dealer of Dogtra products, nor any employee or agent
of Dogtra, is authorized to make any additions, changes, or extensions to the Warranty.
Dogtra, at its sole discretion and at any time, reserves the right to modify the Warranty.
DISCLAIMER OF OTHER WARRANTIES
THE FOREGOING WARRANTY IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES,
WHETHER EXPRESS OR IMPLIED. DOGTRA DISCLAIMS ANY IMPLIED WARRANTIES
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE.
WARRANTY AND
REPAIR INFORMATION

Limitation of Remedies
Dogtra’s liability is limited to the cost of repair or replacement of the Dogtra product under
Warranty. Any claim or action to enforce the Warranty must be commenced within thirty
(30) days of the Warranty’s expiration for your product. Dogtra will not be liable for any
indirect, incidental, special, consequential, or similar damages based on breach of warranty,
breach of contract, negligence, strict tort, or any other legal theory related to Dogtra and
its products. Damages that Dogtra will not be responsible for include, but are not limited to:
loss of income or profits; loss of revenue or savings; loss of use of the product or associated
products; cost of any substitute products or services; inconvenience, downtime, or any other
time; loss of goodwill; claims of third parties including customers; and damage to property.
Legal Rights May Vary By State or Jurisdiction
The Warranty gives You specific legal rights, and You may also have other rights which
vary by state or jurisdiction. Some states or jurisdictions do not allow certain limitations of
implied warranties or of incidental or consequential damages or other remedies, so certain
of the foregoing limitations may not apply to You.
If any portion of the Warranty is held by a court to be invalid or unenforceable, the remaining
portions of the Warranty shall remain in full force and effect and shall in no way be affected
or invalidated, and the invalid or unenforceable portion shall be modified so as to most
nearly achieve the intent of the Warranty.
Product Registration
Dogtra recommends that customers register their products as soon as possible after
purchase. Product registration will facilitate any future warranty service. You may also receive
useful information and updates about your existing and future Dogtra products. To register
your product, visit www.dogtra.com/product-registration. If your product is not registered
with Dogtra, You will be required to provide a receipt or other proof purchase (as provided
above) to qualify for warranty service.
How to Obtain Warranty Service
Should your Dogtra product require warranty service, please contact Customer Service by
phone or email for a warranty evaluation (see below for contact information). Upon approval
of your warranty work, Dogtra will repair or replace (at Dogtra’s election) your product
without charge for labor or parts. You are responsible for shipping, including cost, of your
product to Dogtra for warranty service. Dogtra will handle shipping, including cost, of the
repaired or replaced product back to customers in the USA. Dogtra will not be responsible
for shipping, including cost and/or applicable taxes or fees, for products sent to Canada.
Such costs, taxes, or fees will be borne by the customer.
To register your product, visit www.dogtra.com/product-registration.
Dogtra Customer Service
22912 Lockness Avenue, Torrance, CA 90501
[phone]
[e-mail]
Mon – Fri, 8:00 AM to 4:30 PM (PST)
© 2020 Dogtra. All rights reserved.

Send repair units to
Dogtra Company / Repairs
22912 Lockness Avenue,
Torrance, CA 90501
U.S.A.
Copyright © 2020 Dogtra Company All rights reserved. Ver.3
