DICE Silverline DUO User manual

Apps | iPhone | iPod | Satellite Radio | AUX
for selected Nissan/Inniti vehicles
Installation Guide/User manual

2
Copyrights and Trademarks
Copyright 2012 DICE Electronics, LLC.
The DICE Electronics logo is trademarks of DICE Electronics, LLC.
iPod and iPhone are trademarks of Apple, Inc.
All Trademarks and Logos are the property of their respective owners.
All rights reserved.
Printed in the U.S.A.

3
Warning and safety
Product registration
Silverline DUO kit contents
DIP switch settings
Supported iPod models
Note to Installer
Connection diagram
Installation
iPod content browsing
Charging
iPod locked/unlocked settings and features
Preset conguration
Basic operation
Operating the DUO in SAT emulation

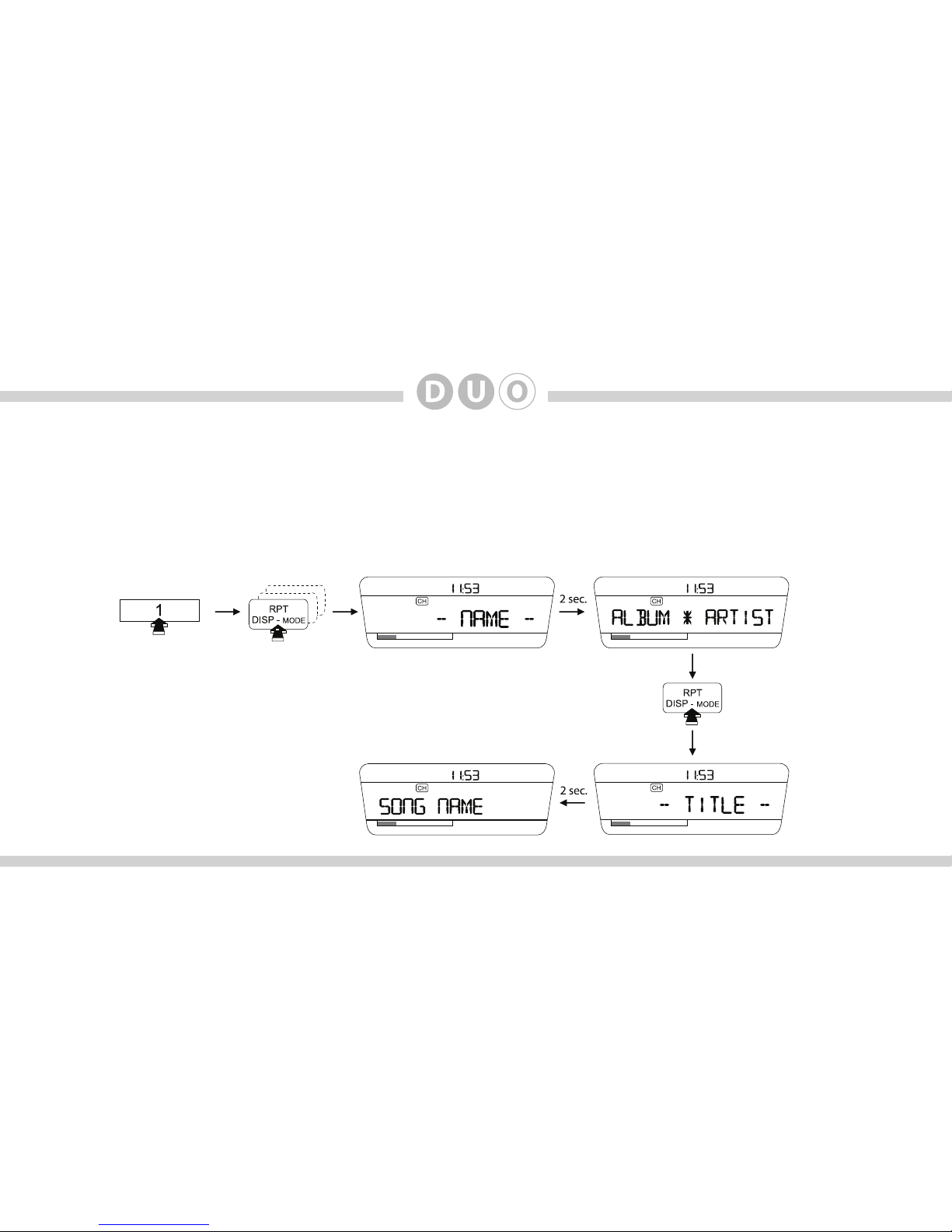

Text display elds
Controlling the DUO iPod source
Repeat and random selection
Controlling the DUO SIRIUS source
Internet Radio App support
Data connection requirements
Controlling the Internet Radio App
Text display from the Internet Radio App
Terminating the Internet Radio App
Auxiliary audio source
Optional Remote Kit: iPod/App
Optional Remote Kit: SIRIUS
Troubleshooting
Firmware update
Disclaimer
Warranty
..........................................................4
..........................................................5
.................................................6
..........................................................7
...................................................8
................................................................9
......................................................10
......................................................................11
...................................................12
.......................................................................12
..................13
.......................................................14
..............................................................15
............................16
...............................................................20
.......................................21
............................................22
..................................23
................................................24
...........................................24
.....................................25
............................26
....................................27
........................................................28
...........................................29
.............................................30
.................................................................31
................................................................34
...........................................................................35
.............................................................................36
Table of Contents

4
Please read these instructions carefully before proceeding. Failure to follow instructions may result in
improper operation or injury. Neither DICE Electronics nor Apple Inc., its regional ofces, distributors or
resellers take any responsibility for any damage or injury as a result of using the integration kit.
- Do not open, disassemble or alter the interface in any way.
- Do not insert anything into the casing.
- Do not cut or try to alter cables in any way and always use the correct connections.
- Only operate unit when stationary or ask passengers to operate it for you.
- Do not allow the Apple iPod/iPhone to distract you from driving.
- Exercise good judgement and keep your eyes on the road at all times.
- Do not expose unit to extreme temperatures, humidity or shock.
- Keep the unit and iPod/iPhone away from uids.
- Keep away from children! - Interface components may contain small parts, can be broken or disassembled
and components may become loose from vibration and heat. Small components and packaging materials
may be a choking hazard when handled by children.
Warning and safety!

5
Thank you for purchasing this integration kit. Please review this booklet before operating the unit. This
interface was designed and manufactured to seamlessly integrate with your vehicle’s factory audio system.
Congratulations on your purchase!
Product registration
Prior to installation make sure the module’s rmware is up to date to ensure compatibility
with the latest features and enhancements. Please refer to page 34 to update rmware.
We recommend registering your DICE product so you can receive news about important rmware updates
and have unlimited access to our online support system.
To register your DICE product, please complete the following steps:
1. Visit http://www.register.diceelectronics.com
2. Look up and save the serial number of the product.
3. Complete the product registration form.
4. Submit the form.
5. Save the registration/support/warranty sheet in a safe place for future reference.
If you are unable to complete the registration via internet, please call DICE Electronics at 1-888-342-3999.

6
Silverline DUO kit contents
Optional accessories (sold separately):
Silverline DUO module
IR Receiver &
Remote controller
AUX connector
user manual Vehicle Interface
Harness
iPod docking
cable
Cradle
(DCR-50-PTH)
For more accessories, visit www.diceelectronics.com
for selected Nissan/Inniti vehicles
Installation Guide/User manual

7

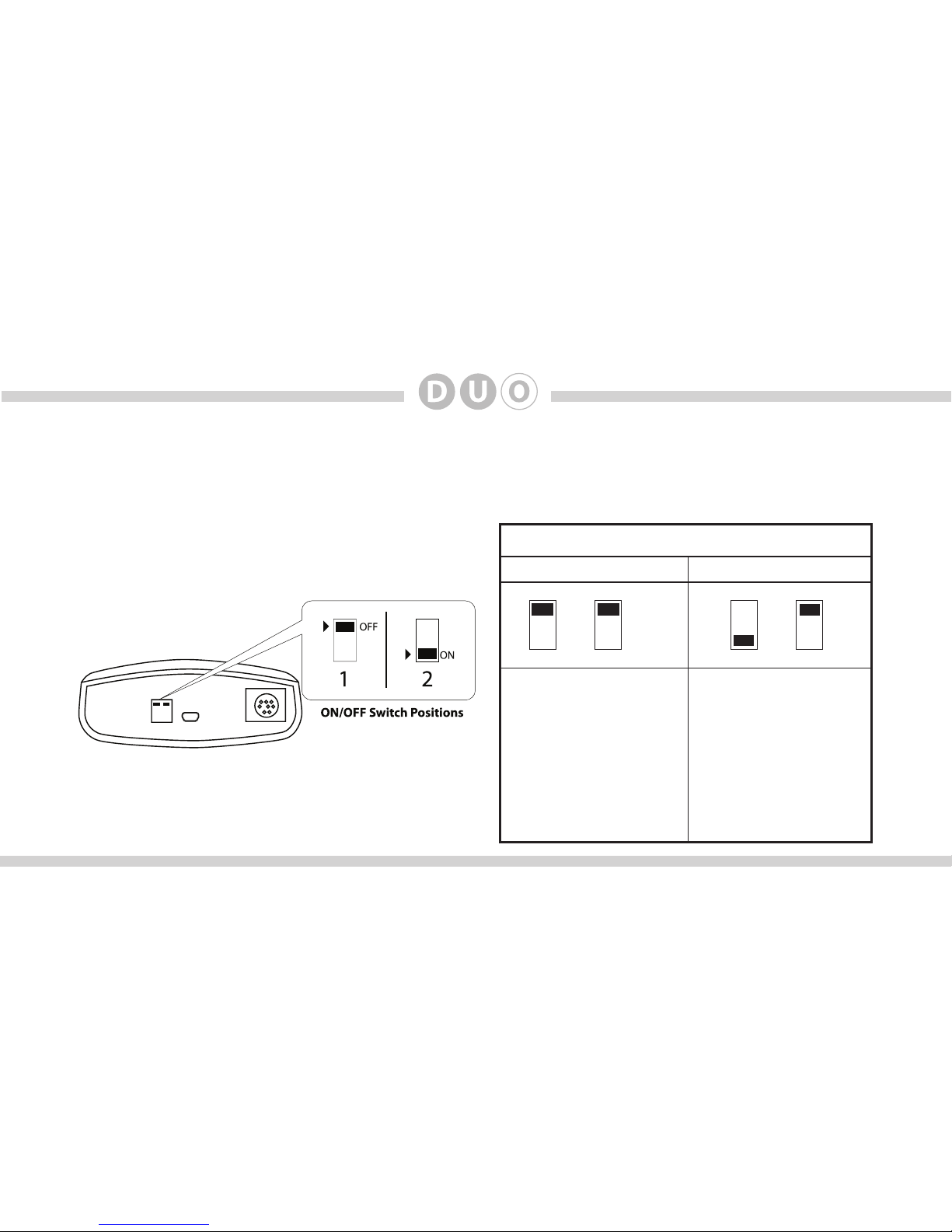

The following DIP switch settings are used to congure the Silverline DUO module to interface
with the various vehicle radios. Before installation, set the DIP switch to the position shown for
the corresponding radios.
DIP switch settings
Car conguration switches
Setting for SAT capable radios
without factory SIRIUS/XM
module installed.
Satellite (SAT)
OFF OFF
Retain factory (SAT)
ON
Setting for SAT capable
radios with factory SIRIUS/
XM module installed. This
setting retains the factory
satellite module functionality
(compatible harness and
specic installation required)
OFF
Silverline DUO module

8
Supported iPod models and rmware version requirements
Model Model
1G nano 160 GB classic
iPod 5G 5G nano
2G nano 3G touch
iPod classic iPhone 4
3G nano
4G touch
iPod touch
6G nano
iPhone
iPhone 3G
4G nano
120 GB classic
2G touch
iPhone 3GS
Firmware / OS Version Firmware / OS Version
1.3.1 2.0.4
1.3 1.0.2
1.1.3 iOS 5
1.1.2 iOS 5
1.1.3
iOS 5
iOS 3.1.3
1.2
iOS 3.1.3
iOS 4.2.1
1.0.4
2.0.1
iOS 4.2.1
iOS 5
iPhone 4S iOS 5

9
Attention installer! Please read the following!
DICE strongly recommends that the unit be installed in an easily accessible place!
DO NOT PLACE IT BEHIND THE RADIO AND DO NOT HIDE UNDER CARPET!
Whether the unit is professionally or self installed, put the module where you, the end user can get to it easily
in the future. (Have the installer show you where the interface module is installed.)
Installing the module behind the radio will make it difcult to:
-Add possible future upgrades, changing software, adding new features, improving operation;
-Access the AUX input on the module to attach any audio device;
-Access the DIP switches located on the module;
-Remove the unit in case of failure.
MAKE SURE THAT THE MODULE IS IN AN ACCESSIBLE PLACE!

10
Connection diagram
*Do not connect the iPod dock cable under any circumstance to the SIRIUS module
connector! Improper connection can cause permanent damage to iPod/SIRIUS module.
IR receiver
(optional)
Silverline DUO module
(front)
Silverline DUO module
(back)
Update port
(USB to PC) iPod dock cable*
iPod/iPhone
(not included)
Vehicle Inter-
face Cable
SIRIUS SAT radio
(not included)
Auxiliary device
(not included)
AUX connector
(optional)
SIRIUS connector*

11
Installation
Some radios will enter an anti-theft security mode and will lock requiring the radio’s security code
to be entered to unlock it. This code can be requested from the vehicle’s dealership.

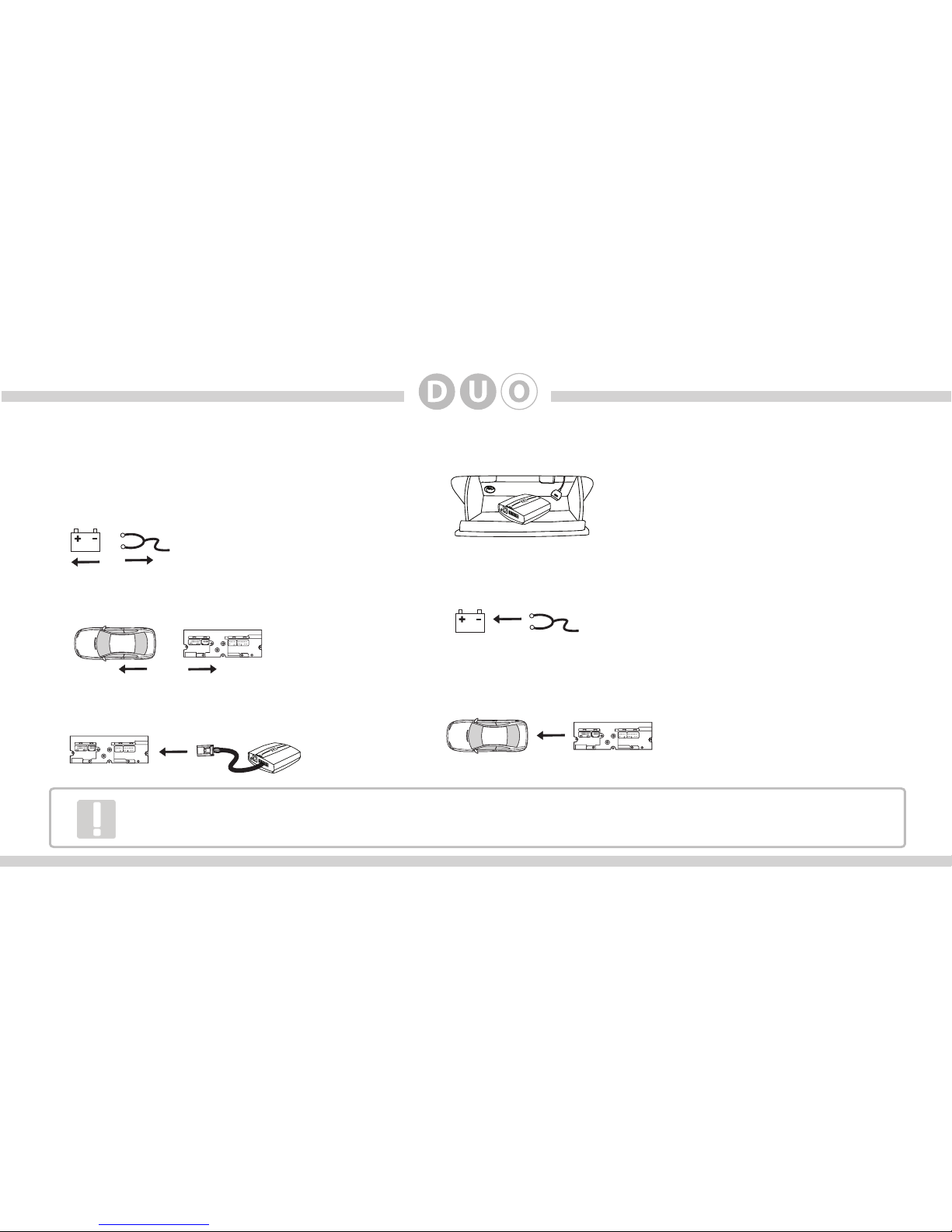

1. Verify compatibility 5. Route kit to glove box or other accessible location
6. Connect battery & test
7. Complete install by re-installing radio
2. Disconnect battery
3. Remove radio from car
4. Install Silverline DUO cable

12
By default, the interface creates a Playlist having a name that is the same
as the name of the iPod. This Playlist is the very rst on the list of Playlists
shown while browsing in Playlist mode. This Playlist contains all the songs
on the iPod. Once a Playlist is selected an Artist may be selected within
that Playlist using the Artist Mode. Albums by the selected Artist within
the selected Playlist may be selected in Album Mode. “ALL ARTIST” and
“ALL ALBUM” designate all available content in those categories.
The interface automatically charges the battery of the iPod when
connected and your vehicle ignition key is in the ACC/ON position.
Charging may be shown by an
icon that appears on the upper
right corner of the iPod screen.
May vary by model.
Less browsable content
More browsable content
iPod content browsing
Charging
Playlist
Artist
Album
Song

13
Radio control Limited
iPod control
For iPod touch and iPhone, when the screen is not active (as shown on the left), the
iPod/iPhone is locked (Press the power button to lock the iPhone/iPod Touch).
Before connecting the iPod to the module,
turn the hold switch ON to fully control and
browse the songs from the wireless remote.
The iPod is locked in this state.
Note: Setting the iPod’s hold switch must be done prior to connecting it to the dock cable.
iPod nano 6th generation will always be in locked mode since it does not have a lock switch.
Before connecting the iPod to the
module, turn the hold switch OFF to fully
control and browse the songs from iPod.
Browsing capabilities are limited from the
wireless remote.
iPod locked/unlocked settings and features
slide to unlock

14
Preset Conguration
To enable full functionality of the DUO with your radio, step 1-3 must be perform.
1. Means you have 3-banks of 6-PRESETS each (A, B and C). You must assign one bank for
DUO operation.
2. Once a preset-bank (A,B or C) has been selected, tune the radio into “SAT” mode by pressing the
or button.
3. Once the radio is in “SAT” mode, assign the functions to the presets 1-6 by pressing and holding each
preset for 3-seconds (one preset at a time).
Note: the preset functions should be as follows for iPod:
1= SONG, 2= PLAYLISTS, 3= ARTISTS, 4= ALBUMS, 5= PODCASTS, 6= AUDIOBOOKS
PRESET
A B C
RADIO
SAT

15
Basic operation
Accessing the DUO as the audio source:
Much like the radio’s AM/FM tuner, satellite radio or CD audio sources, the Silverline DUO is integrated to be part
of the vehicle’s audio system. To access the DUO source, press the SAT or RADIO button. Pressing this button
repeatedly will cycle through sources present in the vehicle (SAT > DUO).
DUO source selection:
The DUO adds additional audio sources including iPod, SIRIUS Satellite Radio* and auxiliary audio input*. To cycle
between these sources, use the SEEK, TRACK or TUNE buttons within the rst 5 seconds of accessing the DUO as
the audio source.
*These sources require additional parts/accessories/service from DICE and/or third parties and can only be selected if devices are connected.
Silverline DUO Interface settings. Presets must be selected withing 5 seconds of selecting the DUO as the audio
source. After 5 seconds the Presets will activate the various browsing features.
Select DISC 1 to apply settings and resume audio playback.
Select DISC 3 to change default volume level; use track up/down to adjust between Min and Max.
Select DISC 4 to enable/disable scrolling text.
Select DISC 6 to view Silverline DUO serial number and rmware version.
DISC 2 and 5 have no settings available.

16
Operating the DUO in SAT emulation mode

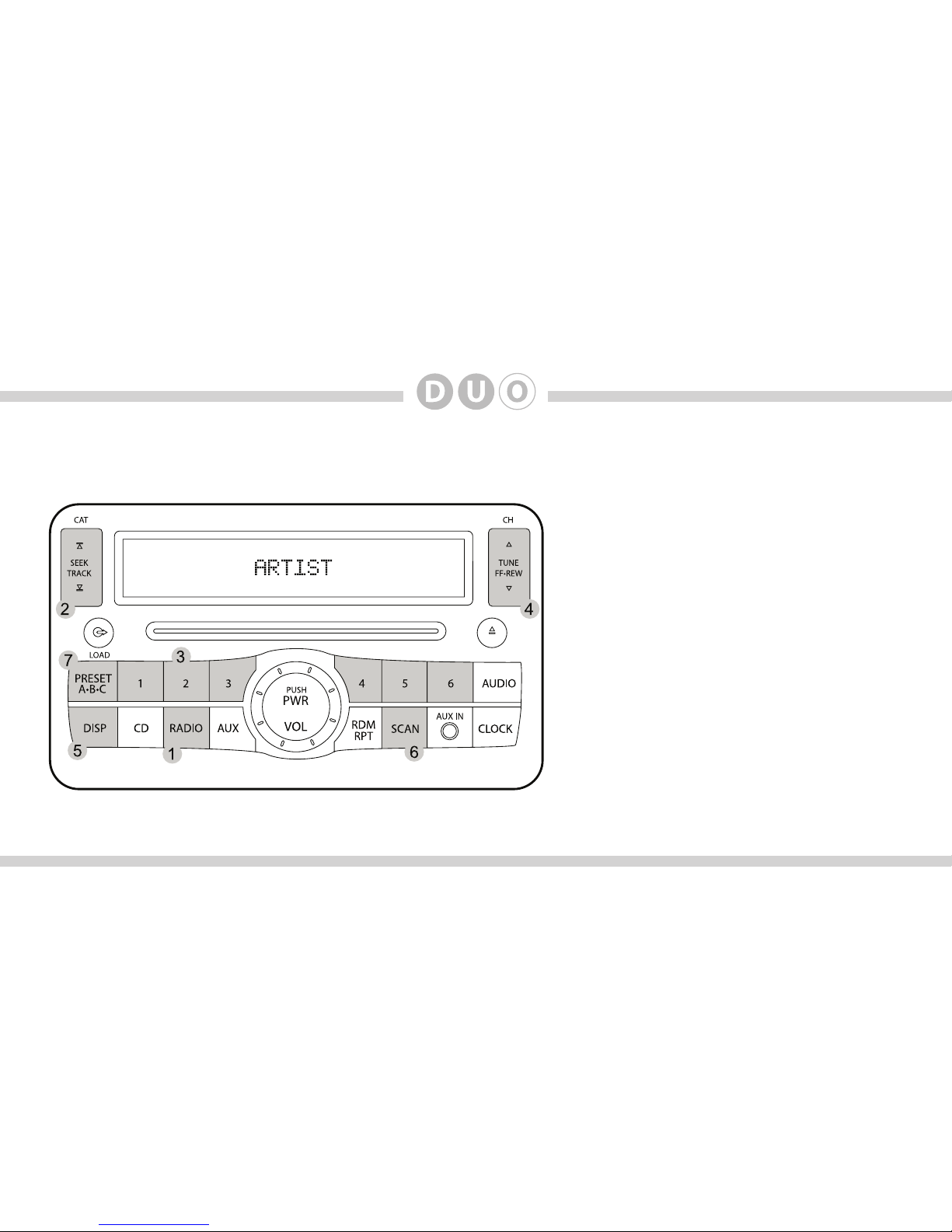

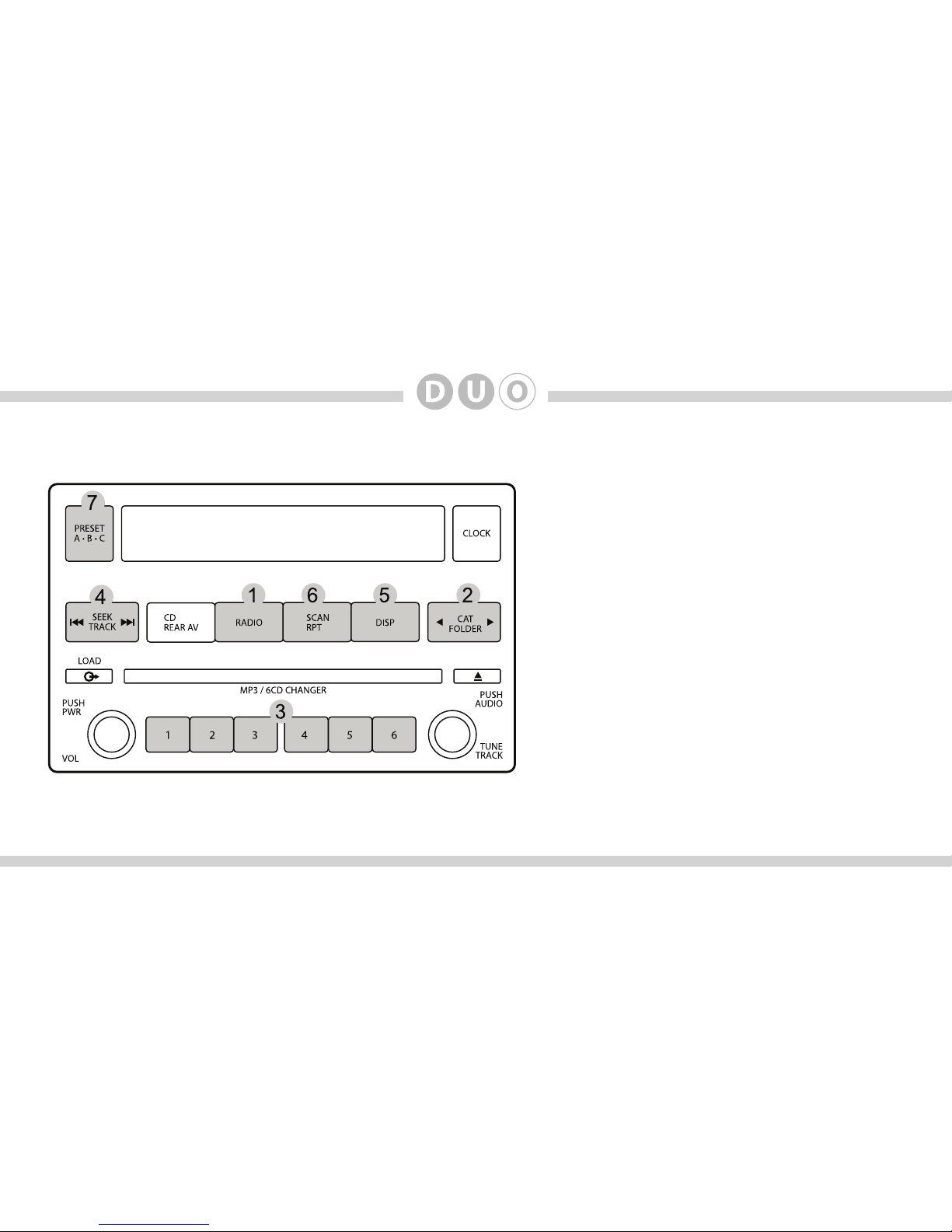

1. Enter SAT mode (Silverline DUO is
accessible in SAT mode)
2. iPod: press to change browsing modes
SIRIUS: change categories
3. iPod: access PRESET modes 1-6
SIRIUS: access station PRESETS when
listening to SIRIUS
4. iPod: Press for next item (song, playlist,
etc...) SIRIUS: Next SIRIUS channel
5. Toggle between available text elds
6. iPod: Press to toggle shufe and repeat
SIRIUS: Scan channels on/off
7. Switch PRESET banks (A/B/C)

17
Operating the DUO in SAT emulation mode
1. Enter SAT mode (Silverline DUO is
accessible in SAT mode)
2. iPod: press to change browsing modes
SIRIUS: change categories
3. iPod: access PRESET modes 1-6
SIRIUS: access station PRESETS when
listening to SIRIUS
4. iPod: Turn dial for next item (song, playlist,
etc...) SIRIUS: Next SIRIUS channel
5. iPod: Press to toggle shufe and repeat
SIRIUS: Scan channels on/off
6. Switch PRESET banks (A/B/C)

18
Operating the DUO in SAT emulation mode
1. Enter SAT mode (Silverline DUO is
accessible in SAT mode)
2. iPod: press to change browsing modes
SIRIUS: change categories
3. iPod: access PRESET modes 1-6
SIRIUS: access station PRESETS when
listening to SIRIUS
4. iPod: Press for next item (song, playlist,
etc...) SIRIUS: Next SIRIUS channel
5. Toggle between available text elds
6. iPod: Press to toggle shufe and repeat
SIRIUS: Scan channels on/off
7. Switch PRESET banks (A/B/C)

19
1. Enter SAT mode (Silverline DUO is
accessible in SAT mode)
2. iPod: press to change browsing modes
SIRIUS: change categories
3. iPod: access PRESET modes 1-6
SIRIUS: access station PRESETS when
listening to SIRIUS
4. iPod: Press for next item (song, playlist,
etc...) SIRIUS: Next SIRIUS channel
5. Toggle between NAME, TITLE, BASS,
MID, TREBLE, FADE, BALANCE, SSV,
DISPLAY MODE, then press 4. to select
additional options
6. iPod: Press to toggle shufe and repeat
SIRIUS: Scan channels on/off
7. Switch PRESET banks (A/B/C)
Operating the DUO in SAT emulation mode

20
Text display elds - SAT emulation (non-NAV radios)
Press the DISP-MODE button to cycle through the available text elds. Note that the display will automatically
toggle between the other text elds upon a channel change. Select the “-NAME-” text eld to see the mode
you are in and select the “-TITLE-” text eld to view what is playing. In PRESET 1 you will always see the
album and artist information of your selection in the “-NAME-” text eld and the song name in the “-TITLE-”
text eld. The “-Channel name-” and the “-Category name-” elds are xed.
