Dogtrace d-control 502 mini User manual

d–control
500, 900, 1500 mini
Electronic training collar
d–control
502, 902, 1502 mini
Electronic training collar
set for two dogs
User guide
EN

2
Declaration of Conformity
We:
VNT electronics s.r.o.
Smetanovo náměstí 104
570 01, Litomyšl
IČO: 64793826
declare under own responsibility that the product:
Electronic training collar
Dogtrace d-control 500, 900 and 1500 mini
is in compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC from 9. 3. 1999
meets requirements of General Licence of The Czech Telecommunication Oce
according to general licence no. VO-R/10/05.2014-3, and corresponds to the following standards:
ETSI EN 301 489-1 V1.9.2
ETSI EN 301 489-3 V1.6.1
ETSI EN 300 220-2 V.2.4.1
ETSI EN 60950-1:2006
The product is safe on condition of commonly used in conformity with instruction
manual. The Declaration of Conformity is based on following dates:
Measuring report no.: 6440-7600/2008 issued by certicated laboratory no.1103 VTÚPV Vyškov
Measuring report no.: 6440-697/2008 issued by certicated laboratory no.1103 VTÚPV Vyškov
This declaration of Conformity is created in exclusive responsibility of producer.
In Litomyšl 28.8.2014
Ing. Jan Horák
executive director
Tel.: [phone]
[e-mail]
www.dogtrace.com

3
Contents
Introduction ................................................................................. 4
Package contents ............................................................................ 4
Optional accessories ......................................................................... 4
Product description ......................................................................... 5
Battery insertion and replacement ........................................................... 6
Choosing the contact points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Switching ON/OFF ........................................................................... 8
Programming (coding) the transmitter with the receiver ...................................... 9
Transmitter - button functions .............................................................. 10
How to check that your d–control works correctly .......................................... 12
Getting the best results ..................................................................... 12
Using d–control training collar in winter..................................................... 13
Training tips ................................................................................ 14
Caution..................................................................................... 14
Maintenance................................................................................ 15
Troubleshooting ............................................................................ 16
Technical specications ..................................................................... 17
Warranty terms and Conditions ............................................................. 18
Certicate of warranty ...................................................................... 20
WARNING:
The person with a personal instrument to support heart activity (pacemaker, debrillator) must
respect the relevant precautionary measures. The d–control emits a certain stationary magnetic eld
(lower part of the remote controller and RF signals). Frequency= 869,525 MHz, maximum
transmitted power = 25 mW.
Hereby, VNT electronics s.r.o., declares that this d-control 500, 900, 1500 mini is in compliance
with the essential requirements and other relevant provisions of
Directive 1999/5/EC.

4
Introduction
Package contents
Optional accessories
The electronic training collar Dogtrace d–control, consisting of the transmitter and the receiver, it is
a modern, safe, reliable, and eective training tool. With the d-control training collar you can make
corrections that are suited to your dog‘s temperament and the distraction level of the moment, at the
proper time, for maximum training eciency. However, correcting to stop unwanted behaviour is only
a small part of what you can do with the d-control. More importantly, the d-control is a powerful tool
for encouraging desired behaviour. It is possible to easily adjust the intensity of the stimulation.
Thanks to the ergonomic design and low weight of the receiver, it is suitable for all dog breeds and
sizes.
 Collar unit (receiver) with the strap (two receivers for d-control 502, 902, 1502 mini)
 Two pairs of contact points (short - 12 mm and long - 17 mm)
 Two lithium CR2 3V batteries
 Four alkaline AA 1,5V batteries
 Transmitter (remote control) with the belt clip
 User guide and certificate of warranty
 Carrying case
 Test discharge lamp
 DVD - instriction video
 Lanyard
 External remote control ONE TOUCH (for d-control 510, 910, 1510 mini)
 Additional receiver  Spare batteries  Dummy receiver
 Woven or plastic collars - various colours  Spare rubber seal
 Spare contact points (12 mm, 17 mm, 21 mm)  Spare screws

5
Product description
TRANSMITTER RECEIVER

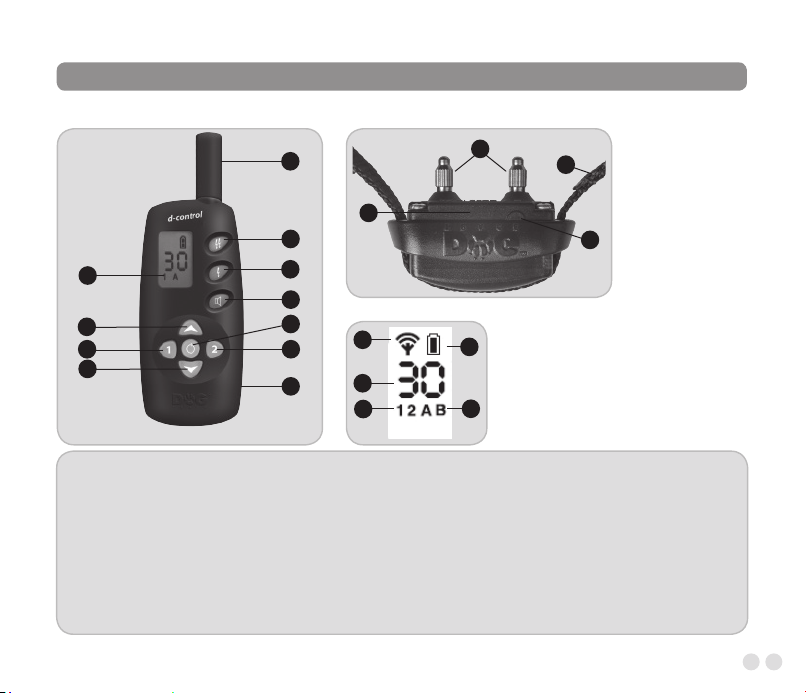

TRANSMITTER 1– Antenna, 2– Booster button, 3– Stimulation button, 4– Tone signal
button, 5– Backlit LCD display, 6– ON/OFF Switch, 7– Dog selection button (dog 1, dog 2),
8– Stimulation level adjustment buttons, 9– Connector for remote control ONE TOUCH
(d-control 510, 910, 1510)
RECEIVER 1– Strap, 2– Contact points, 3– ON/OFF LED Indicator, 4– Indicator area where
the ON/OFF magnetic switch is located
DISPLAY 1– Indicator of the radio transmission, 2– Battery power indicator, 3– Stimulation
level indicator (from 0 to 30), 4– Dog selection indicator (dog 1, dog 2), 5– Form of stimulation
indicator (A - momentary, B - continuous)
1
7
4
6
1
2
3
4
LCD DISPLAY
2
3
4
1
5
53
2
8
7
8
9

6
Battery insertion and replacement
INSERTION (REPLACEMENT) OF THE BATTERY IN THE RECEIVER
 Unscrew the 4 screws of the top of the receiver using a cross-head screwdriver and remove the lid.

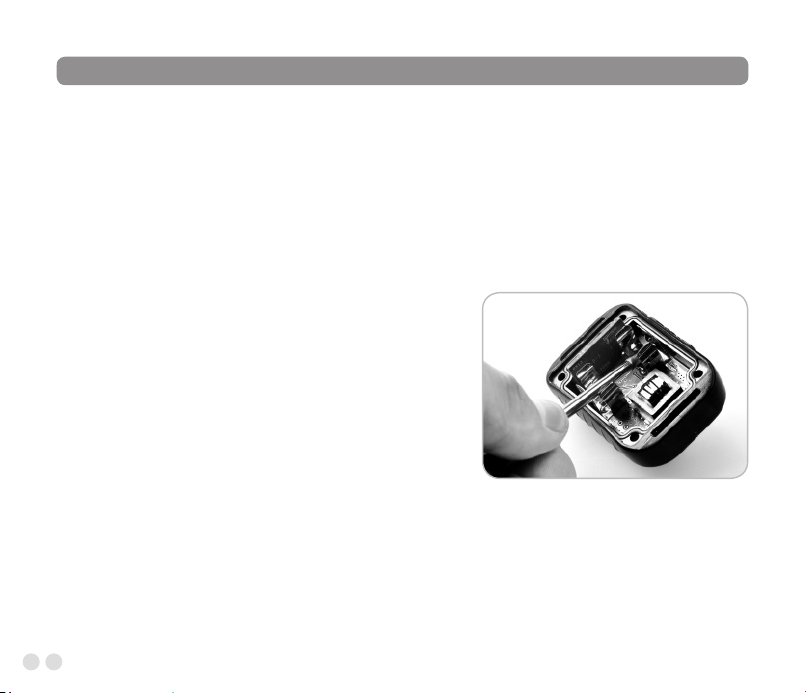

Insert the lithium CR2 3V battery into the battery compartment. Please check that and the battery is
installed with correct polarity (according to the polarity indicated with the "+" symbol in the
battery compartment - see the picture). Wrong polarity may damage the unit.
 A beep sound is emitted indicating the correct installation of the battery.
 If the beep sound is not emitted after the battery is inserted, remove it immediately. Initialize the
system by using a metal tool (e.g. a screwdriver, scissors, etc.) and short-circuit (connect) both
contacts of the battery holder for about 2 seconds (see the picture on the page 16). Please check
the correct polarity and try to insert the battery again.
 Before putting the lid of the receiver back in place, make sure that the rubber seal is correctly
seated in its groove. Screw down the 4 screws of the top tightly (do not over tighten them).
CHECKING THE BATTERY STATUS
LED indicator on the receiver‘s front cover indicates the status of the battery:
 Green flashing LED indicates the battery is fully charged.
 Red and green flashing LED together indicate low battery.
Prepare a spare lithium CR2 3V battery and follow the instructions
described in the section „Battery insertion and replacement“.
Make sure that the receiver works correctly.
Battery polarity indicator

7
INSERTION (REPLACEMENT) OF THE BATTERY IN THE TRANSMITTER

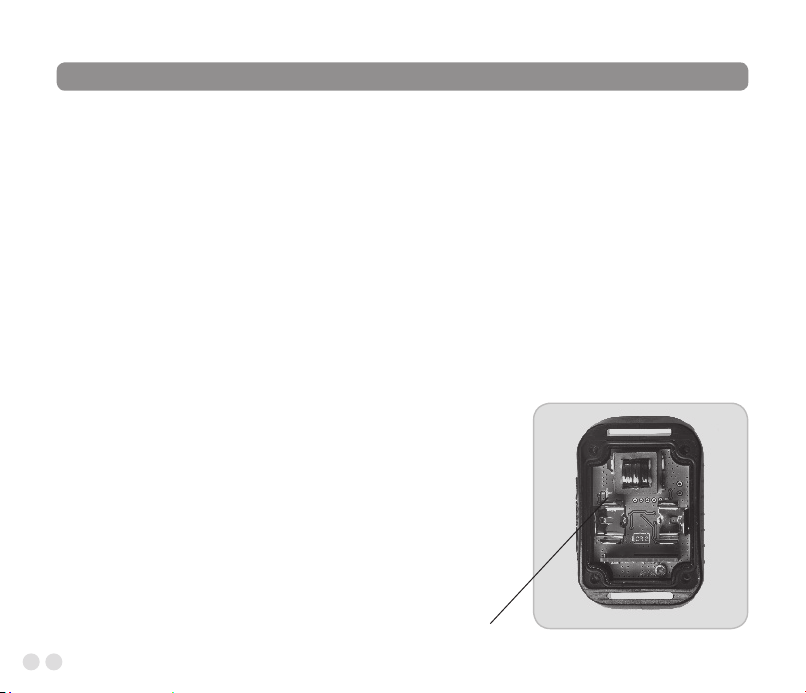

 Remove the transmitter battery cover using a cross-head screwdriver.
 If replacing the battery, remove the old battery and dispose of it properly.
 Place the alkaline AA 1,5V batteries in the holder and press into place. Observe polarity when
installing the batteries. Reversing the batteries may damage the transmitter.
 Put the battery cover back into place and secure with screw.
THE BATTERY LEVEL IS SHOWN AT THE BATTERY LIFE STATUS BAR ON THE LCD DISPLAY.
 Battery fully charged: full battery icon is shown on the LCD display.
 Low battery: battery empty icon is shown on the LCD display.
Prepare two spare alkaline AA 1,5V batteries and follow the instructions described in the section
„Insertion (replacement of the battery in the transmitter“.
Choosing the contact points
The stimulation is delivered through the receiver contact points. Two dierent series of contact points
are supplied. The length of the contact points must be sucient to have proper contact with the dog‘s
skin, enabling the device to operate correctly. If you have a short-haired dog use the short 12 mm
contact points, if you have a long-haired dog replace them with the longer 17 mm contact points
supplied with the kit. Carefully tighten them manually (do not use a key). It is possible to purchase the
21 mm long contact points.

8
Switching ON/OFF
SWITCHING THE TRASNMITTER ON/OFF
Switching on: Press down for 1 second the button on the transmitter.
The LCD display indicates that the unit is active.
Switching o: Again, press down for 1 second the button on the transmitter.
SWITCHING THE RECEIVER ON/OFF
A magnet located at the lower part of the transmitter is used to activate or deactivate the magnetic
switch located in the receiver.

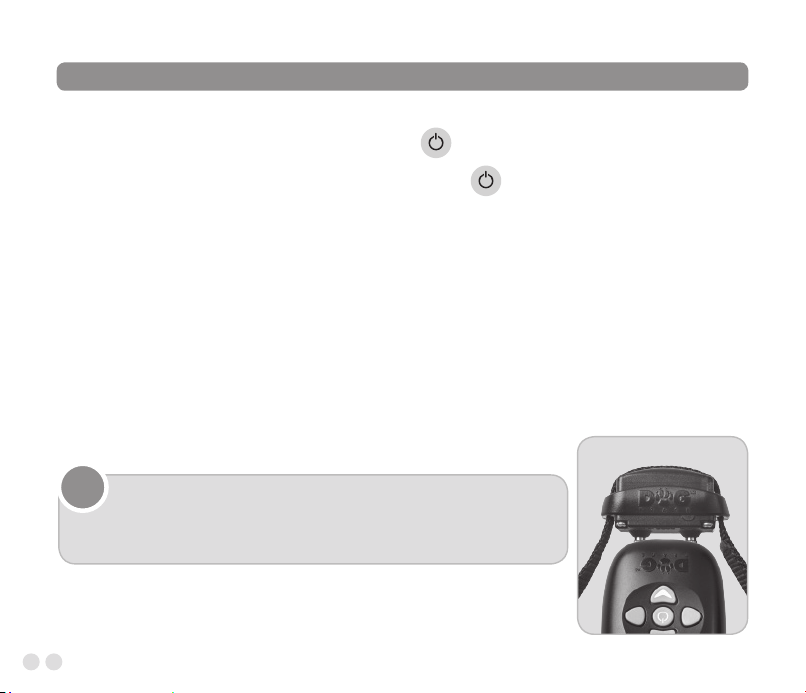

 Switching on: approach the low area of the transmitter where the magnet is located until coming
close to the indicator located on the receiver (see the picture), hold for 1 second, the receiver
LED indicator will flash in green indicating the receiver is ON.
 Switching off: approach the low area of the transmitter where the magnet is located until coming
close to the indicator located on the receiver, hold for 1 second, the receiver LED indicator will flash
from green to red indicating the receiver is OFF.
Switching ON/OFF the transmitter/Programming the transmitter with the receive
To extend the battery life it is necessary to switch o both receiver
and transmitter after the training is nished. If the battery will not
be in use for a month or longer, it is recommended that it is
removed from the receiver.

9
Programming (pairing) the transmitter with the receiver
Each transmitter has its own operational code. The programming of the transmitter with the receiver
enables the two units to work together. This operation will help you to program the receiver to work
with a new transmitter or to program a new receiver to work with your existing transmitter. Receiver
can be reprogrammed indenitely, either with the same transmitter or a new d-control transmitter. It
is possible to program an unlimited number of receivers to one transmitter.
Switch on the transmitter. The receiver must be switched off.
 Select dog 1 using the button on the transmitter.
 Approach the low area of the transmitter where the magnet is located until coming close to the
indicator located on the receiver (see the picture on the page 8), hold for 5 second, the receiver LED
indicator will flash four times in green and red simultaneously indicating the receiver is in
programming mode.
 Move your transmitter away and press the tone signal button on the transmitter. A beep sound
is emitted; the receiver is then synchronized with the transmitter.
 Select dog 2 using the button on the transmitter and proceed in the same way (applicable when
programming an additional receiver for the second dog).
IMPORTANT: Before the programming make sure no other person is using his d-control or
other products from the Dogtrace range close by: your receiver could accidentally record the
code of his transmitter


10
Transmitter - button functions
The Dogtrace d–control transmitters are designed to operate with two separate receivers (dog 1 and
dog 2). The selected level of stimulations can be dierent for each receiver
Button - Tone signal
The receiver emits a beeping noise when a „Tone button“ is pressed. If the button is not released after
30 seconds, the tone will automatically turn o. While pressing, an indicator of the radio transmission
will appear on the LCD display of the transmitter; the indicator light on the receiver goes from ashing
green to permanent green for as long as the button is pressed.
Pressing the „Stimulation button“ activates a special type of stimulation in the receiver
consisting of safe stimulating impulses transmitted by two contact points installed in the receiver. You
can choose between momentary (nick) and continuous stimulation (if the button is not released after 4
seconds, the stimulation will automatically turn o as a safety feature). It is possible to adjust the
intensity of the stimulation very easily by the Up/Down control buttons. The receiver will be ready to be
reactivated once the button has been released. While pressing, an indicator of the radio transmission
will appear on the LCD display of the transmitter; the indicator light on the receiver goes from ashing
green to permanent red for as long as the button is pressed. You can select a momentary stimulation
(option A) or a continuous stimulation (option B) by pressing
the selection button repeatedly; if the second receiver is used, press repeatedly the selection
button to select momentary or continuos stimulation.

11
Button -Booster
Pressing the „Booster button“ enables you to use dierent levels of pre-set stimulation intensity at the
transmitter. The stimulation is transmitted by the two contact points located on the receiver as long as
the button is pushed. If the button is not released after 4 seconds, the stimulation will automatically
turn o as a safety feature. The receiver will be ready to be reactivated once the button has been
released. While pressing, an indicator of the radio transmission will appear on the LCD display of the
transmitter; the indicator light on the receiver goes from ashing green to permanent red.
Programming the „Booster button“:
 press the selection button for approximately 5 seconds until the level of stimulation ashes
on the LCD display.
 press the button to increase or decrease the level of stimulation.
 press the selection button to conrm the level selected.
 select dog using the button on the transmitter and proceed in the same way (applicable when
programming„Booster function“ for the second receiver).
Up/Down control buttons
The control buttons are used for quick adjustment of the stimulation level of the receiver. The selected
intensity level is shown on the LCD display. There are 30 stimulation levels with 1 being the lowest and
30 being the highest. When any button is pressed the LCD display lights up for three seconds.
Dog selection buttons
The control buttons 1 and 2 are used for quick dog selection when using the device for training two
dogs simultaneously. It is possible to set dierent level of stimulation for each dog

12
How to check that your d–control works correctly
External remote control ONE TOUCH
The electronic training collars d-control 510, 910 and 1510 mini are provided
with the external remote control ONE TOUCH. It enables you to activate the
pre-set stimulation (momentary or continuous) at the receiver by a quick
pressing of one button. The button is placed at the end of a 140 cm long cable

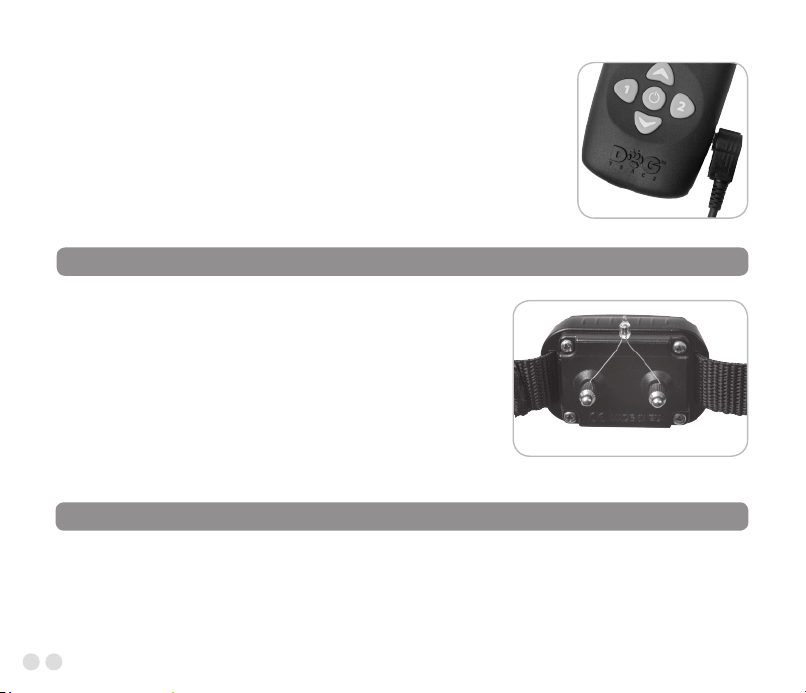

which is connected to the transmitter (see the picture).
You can check anytime that your d-control is operating correctly.
Before doing so, make sure that the receiver is switched o.
Place the test discharge lamp in contact with each of the
contact points as shown in the picture.
Switch on the transmitter and receiver.
Press the stimulation button and modify the level of intensity
of the stimulations: the test lamp will come on with more or less
intensity according to the selected intensity level.
test discharge lamp
The training commands are transmitted to the receiver by radio waves. The range of the d-control 500,
900 and 1500 is 500, 900 or 1500 metres depending on the model and on the geographic conditions.
The transmitter range may vary depending on the way you use your transmitter, hold the transmitter
away from your body and avoid touching the front part of the transmitter where the antenna is located.
Getting the best results

13
TIP By placing the receiver on your dog’s neck laterally, you will extend the range of transmission.
Using d–control training collar in winter
When using d-control in winter, please keep in mind:
Low humidity – causes less skin conductivity. It is necessary to provide better conductivity
between the electrodes of the receiver and the dog‘s skin. This can be achieved by lubricating the
dog’s skin in the touch points of contact points with Vaseline, baby oil, hand lotion, etc.
Heavier dog’s coat – it is necessary to tighten the collar so that the permanent contact with the
dog‘s skin is ensured. If the coat is too thick, it is recommended to choose a longer type of contact
points.
Battery properties change – temperatures below 0 °C slow down chemical reactions in batteries. To
ensure a performance of repetitive stimulations (especially of higher levels), it is recommended to
insert a new battery into the receiver for the winter time. During the training, observe continuously
dog‘s reactions and increase the stimulation level as needed.
FITTING THE COLLAR
The receiver needs to be very snug around the dog‘s neck to work properly. A loose t can allow the
receiver to move around on the dog‘s neck. The collar must be just tight enough to allow the contact
points to make good contact on your dog‘s skin. You may need to trim the hair in the area of the
contact points or switch to the longer contact points to ensure consistent contact. This can directly
aect the performance of the collar unit and whether or not the dog will receive the stimulation
impulses. A loose collar can also result in skin irritations. The collar should be tight enough to t two
ngers between the collar and your dog‘s neck, but not so tight that it restricts your dog‘s breathing.

14
Training tips
The trainer’s elementary knowledge in dog training is the prerequisite for using the training collar.
Do not hesitate to contact a professional trainer for any further advice.
You can start using the collar with dogs of 6 months of age who has undergone the basic training
and are familiar with basic obedience commands including "sit", "down", "stay" etc.
Find proper intensity level for each dog before use. It is very important to set the correct intensity
level on your unit before beginning your training sessions to provide the appropriate level of stimulation
and avoid over-stimulating your dog.
Eliminate one misbehaviour or teach one obedience command at a time.
Be consistent. Give your dog a tone or stimulation with each misbehaviour.
After a command is successfully executed, you should always reward or encourage your dog.
To teach your dog a reliable recall start training your dog using a long dog tracking lead.
Your dog will have to get used to the collar; let the dog wear the collar for a few days, but do not use
it so that your pet does not discover the connection with its attachment and effects.
Affirmative and efficient training requires some time: don‘t hurry!
Select a well-known environment your dog is used to.
Choose the right moment to press the stimulation button.
We recommend not to use the electronic training collar with aggressive-tempered dogs and with
dogs with health problems.
Keep away from children.
Do not leave the device in or around a high temperature heat source.
Check the receiver for proper tightness of screws and seal before each use.
Battery of the receiver needs to be replaced in every two years, check the battery power level
before each use.
The transmitter is not waterproof, so use caution when operating your device in wet conditions,
water can cause irreversible damage to your device.
Caution

15
Do not use the electronic training collar for dogs under 6 months of age.
Do not use the electronic training collar for pregnant or nursing bitches.
Do not use the electronic training collar for dogs with health problems particularly heart disease,
unless the use has been approved by veterinarian.
Do not use the electronic training collar for dogs that cannot respond appropriately due to injury,
illness, senility or age.
We recommend that your dog has a preventive medical check before using the electronic training
collar.
We recommend not to use the electronic training collar with aggressive-tempered dogs.
Check the contact area regularly for signs of neck irritations, to prevent neck irritations, the collar
should never be worn for more than 12 hours per day. If a rash or sore is found, do not use the collar
until the skin has healed.
Never connect a leash to the electronic collar; this could cause excessive pressure on the contact
points. Always use a separate leash, do not put pressure on the electronic collar.
Maintenance
It is important to keep the device clean. Clean the contact points regularly, avoid using any detergent
that contains strong chemicals. To clean your Dogtrace d-control use a soft cloth moistened with
water and neutral detergent. The transmitter is not waterproof, so use caution when operating your
device in wet conditions, water can cause irreversible damage to your transmitter. The receiver is
waterproof. The receiver case is provided with a seal that forms a waterproof barrier between the lid
and main housing of the case. If the seal is loose, out of alignment or twisted, it will compromise the
waterproof integrity of the case. Lubricating the seal with a thin layer of silicone grease will increase its
lifespan. We recommend replacing the seal in the receiver every year. It is recommended to remove
the battery from the receiver, if the device will not be in use for a month or longer.
TIP While using the device, it is recommended to check periodically that screws in the receiver
lid are tightened correctly.

16
Troubleshooting
 If your device seems to operate improperly, read this manual again, check the receiver battery and
replace it if necessary.
 Try to initialize the receiver by removing the battery from the battery holder in the receiver, then use
a metal tool (e.g. a screwdriver, scissors, etc.) and short-circuit both contacts of battery holder for
approximately two seconds, and then put the battery back in its place observing the correct polarity.
A beep sound is emitted indicating the correct installation of the battery.
 If the problem still persists, try to program the transmitter with receiver again according to the
instructions in this manual.
If the problem still persists, contact the dealer.
Short-circuit of the receiver

17
TRANSMITTER
Weight ..........................................88 (95 - d-control 1500 mini) grams (without battery)
Range ...........................................from 500 to 1500 metres in open area, depending
on the model
Power supply ....................................2 x AA 1.5V battery
Battery life.......................................6–12 months, based on usage
Frequency .......................................869,525 MHz (25 mW)
Maximum transmitted power ....................500 mW
Watertightness ..................................not waterproof
Radio communication safety and coding .........by microcontroller
Number stimulation levels .......................30
Operating temperature ..........................–10 °C to + 50 °C
Dimensions......................................119 × 53 × 28 mm
RECEIVER
Weight ..........................................44 grams (without the strap and the battery)
Power supply ....................................lithium CR2 3V battery
Battery life.......................................6 months, based on usage
Frequency .......................................869,525 MHz
Antenna .........................................Integrated
Watertightness ..................................waterproof
Radio communication safety and coding .........by microcontroller
Operating temperature ..........................–10 °C to + 50 °C
Collar............................................adjustable to neck sizes from 20 to 70 cm
Dimensions......................................61 × 40 × 31 mm
Technical specications

18
VNT electronics Ltd. provides a 2-year warranty on the Dogtrace product with respect to defects in
material and workmanship under normal use and service from the date of the original purchase.
The limited warranty does not cover the following:
batteries
straps
damage resulting from misuse, accident, modication or alteration to hardware or software, tampering,
unsuitable physical or operating environment beyond product specications, improper maintenance,
or failure caused by a product for which VNT electronics Ltd. is not responsible.
1. The warranty period commences on the date of purchase. The sales receipt or your purchase
invoice showing the date of purchase of the Product, showing the serial number and date of
purchase of the Product, is the proof of the date of purchase.
2. Within the warranty period, VNT electronics Ltd. will, at no additional charge; perform repair or
replacement of defects in workmanship or parts covered by this warranty.
3. The warranty does not cover damage resulting from:
a) transportation, fall, weather, extreme temperatures, improper use, mishandling or negligence after
the purchase of the Product
b) natural disaster (wind, earthquake, lightning storm etc.)
c) maintenance or misuse other than in accordance with the instructions provided by VNT electronics
Ltd. in relation to the Product
d) modication by a party not authorized by VNT electronics Ltd.
4. The warranty provided only applies to the Product purchased from ocial authorized dealer.
Warranty Terms and Conditions

19
5. We require that all items being sent for repair must be clean. Items deemed insuciently clean will
be returned to the customer unrepaired. Please do not include the strap or any other accessories if
not subject to warranty.
6. Other rights and liabilities of the manufacturer and claimants are based on relevant general obligatory
legal regulations of the country where the product was sold.
The content of this user guide may be subject to change without prior notice.

Manufacturer: VNT electronics s.r.o.
Smetanovo náměstí 104
570 01 Litomyšl
Czech Republic
Phone: [phone]
www.dogtrace.com
Copying of this user guide is strictly prohibited without the prior written consent of VNT electronics Ltd.
Version 2016-5-31 / EN
