Doheny's 7833 User manual

In-ground Solar
Reel Instructions
Item # 7833
10411 80th Avenue Pleasant Prairie,WI 53158|Orders and Customer Care: 1-800-574-7665|Fax: [phone]|Doheny.com
Wheel Handle
M5X80 Screw
M5X40
Screw
Elastic Straps
Washers Fixations
1/2” Screws
1-3/4” Screws
Cotter Pins
3/4” Screws
M5X80 with
M5 Closed Nut
M5X40 with
M5 Open Nut
M5 Open
Nut
M5 Closed Nut
Dowel
Tube Adapter
Tube Adapter
Caster
Gasket
Included Parts:
(1) M5X80 Screw with M5 Closed Nut
(1) M5X40 Screw with M5 Open Nut
(4) Casters
(2) T-Bases
(2) Dowels
(2) Tube Adapters (1 short, 1 long)
(1) Washers
(1) Wheel Handle
(2) Fixations (steel pull brackets)
(6) 1/2” Screws
(6) 1-3/4” Screws
(2) 3/4” Screws
(14) Elastic Straps
(3) Tubes (2 small, 1 big - approximately 8’6”)
Locate ALL Components
Before installing your new reel system,
please make sure all of the listed parts are in the box.
T-Base
®

A Installing the Wheel Handle to the Base:
1. Insert the Elastic Straps into the grooves.
a. Groove for the straps will not align throughout
the Solar Reel (see Figure 1).
b. Each Elastic Strap should be evenly placed on
the Tubing to provide support for the Cover.
2. Slide the large Tube Adapter into the T-Base.
3. Insert the Dowel into the Tube Adapter
Note: The pedal should be at a 90 degree angle
from vertical. This will lock the Tube Adapter in
place when turned downwards (see Figure 2).
4. Slide the Wheel Handle onto the top of the Base.
a. The Wheel Handle needs to be inserted on the
side with the most axle exposed.
b. You will need to line up the screw hole in the
handle with the pre-drilled hole in the Tube
Adapter Axle (you should be able to see through
the handle and axle).
 c. IfyouarehavingdifcultywithStep4b,youmay
need to use a rubber mallet.
5. Insert Screw M5X80 and screw it into the Wheel
Handle, followed by the M5 Closed Nut.
B Installing the Tube Adapter to the Base:
1. On the opposite side of the Wheel Handle, insert
the Tube Adapter to the top of the Base.
2. Slide the Dowel in place into the Tube Adapter.
3. Place the Washer into the Tube Adapter.
4. Insert Screw M5X40 into the Tube Adapter and
screw it into place.
5. Screw M5 Open Nut into the bottom of M5X40 Screw.
6. Slide the Cap into place (may need rubber mallet).
C Installing the Tubes:
1. Insert the Small Tube on to the Tube Adapter. Make
sure the (3) screw holes on the tube ends are
exposed on each end of the tube that go into the
Tube Adapter.
2. Insert the Large Tube, followed by the second
Small Tube using the same process in the above
Step 1.
3. To secure the Tubes to theAdapter, insert (3) 1-3/4 in.
Screws into the Tube Adapter on both ends. Use a
drill to tighten (see Figure 3).
4. Screw (3) 1/2 in. Screws into both Tubes using a
drill to tighten (see Figure 4).
10411 80th Avenue Pleasant Prairie,WI 53158|Orders and Customer Care: 1-800-574-7665|Fax: [phone]|Doheny.com

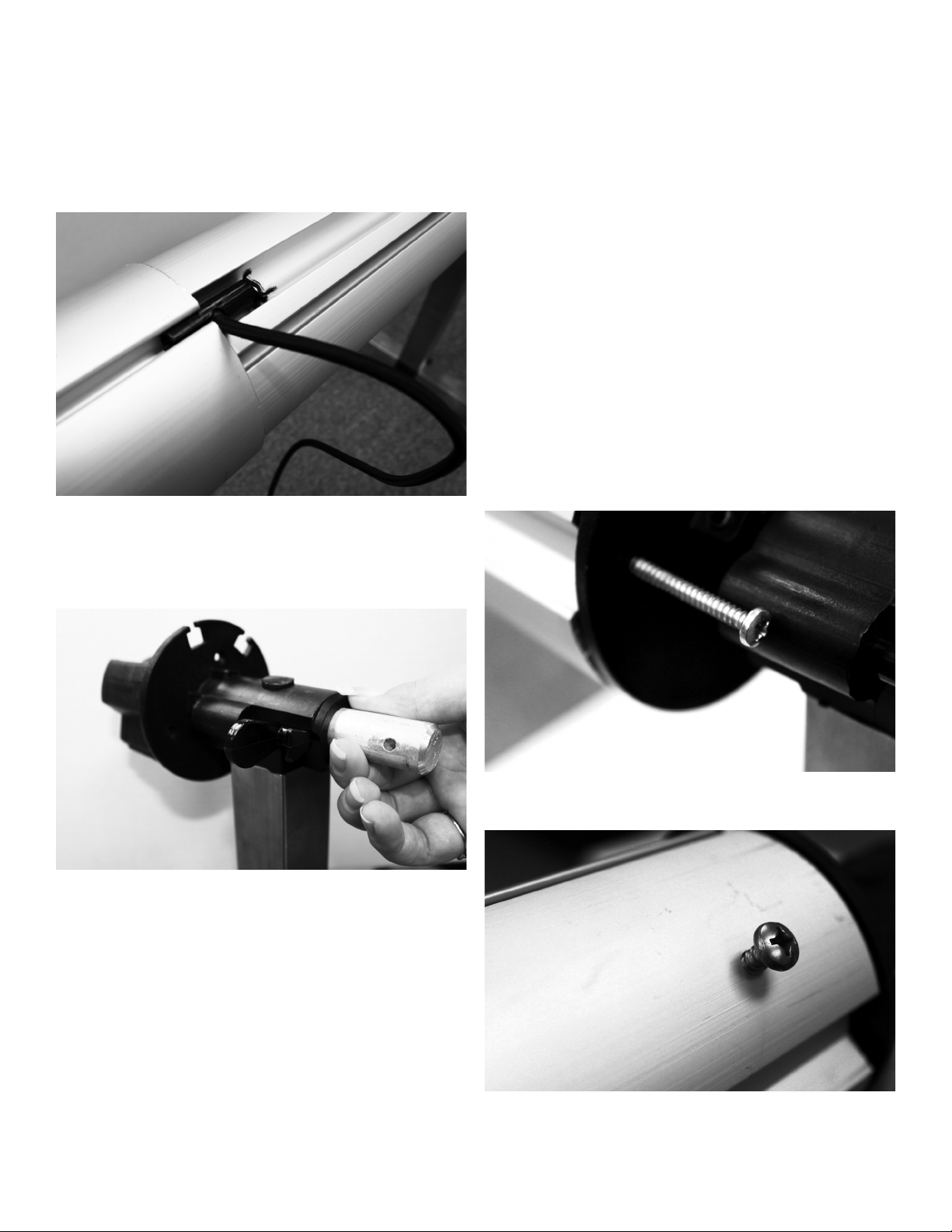

Figure 2
Figure 1
Figure 3
Figure 4

10411 80th Avenue Pleasant Prairie,WI 53158|Orders and Customer Care: 1-800-574-7665|Fax: [phone]|Doheny.com
D Attaching the Cover:
1. When positioning the Cover, you should have the
Solar Reel near the edge of the pool for rectangular
pools. For irregular pools, place the Solar Reel at a
midway point near the end of the pool.
2. Using a pair of scissors or screwdriver, carefully
punch a hole in the Cover.
3. Fold the Elastic Strap into the casing (see Figure 5)
and slide into the Cover.
4. Once through the Cover, unfold the Elastic Strap
so it is securely locked in place (see Figure 6).
5. If installing the Solar Reel in an offset position, then
fold the Cover where the Elastic Straps attach,
allowing for the Elastic Straps to go through both
sides of the Cover.
E Attaching the Fixation (Steel Bracket):
1. AdjustthelengthofTubestotthewidthofyourpool.
2. Slide the Fixation (steel bracket) into the groove
and slide into place.
Note: When sliding in place, line up the indentation
with the screw line.
3. Insert the 3/4 in. Screw into the small groove of
the Tubing next to the bracket and drill into place.
The Fixation Screw will not drill in, it will compress
Tube, locking it into place (see Figure 7).
4. Repeat the steps above to install the second
Fixation on the other side of the reel.
Figure 5
Figure 6
Figure 7
