Domain Dm-dv5768nvu User manual

INSTRUCTION MANUAL

DM-DV5768NVU

6.75 inch DVD/VCD/CD/MP3/USB/SD PLAYER

with built in BLUETOOTH/GPS

and FM/AM TUNER

Safety Precautions

Never expose this unit, amplifier,

and speakers to moisture or water to

prevent electric sparks or re.

Do not change the fuse on the power

cord without professional guidance.

Using an improper fuse may cause

damage to this unit or even cause re.

Please contact your nearest dealer if one

of the following is experienced:

(a). Water or other objects enter the unit.

(b). There is smoke.

(c). Peculiar smell.

Only connect the unit to a 12-volt power

supply with negative grounding.

MUTE

Never install this unit where operating it

may impair safe driving conditions.

Never use the front video display

function when driving, so as to prevent

violating traffic regulations or causing

an accident.

MUTE

Thank you for purchasing this product.

Please read through these operating

instructions so you will know how to

operate your model properly. Please

keep this manual in a safe place for

future reference.

To ensure safe driving, please adjust

the volume to a safe and comfortable

level in case of emergency situations.

1. Never disassemble or adjust the unit without any professional guidance.

For details, please consult any professional car shop / dealer for inquiry.

2. If the front panel or TFT monitor is dirty, please use a clean silicone cloth and neutral detergent

to wipe off the spot. Using a rough cloth and non-neutral detergent such as alcohol for cleaning

may result in scratching or decoloration to the monitor.

3. If any abnormal behavior of the unit is found, please refer to trouble shooting guide of this

manual. If no relevant information is found, please press the [RESET] key on the front panel to

resume factory default.

4. If you have parked the car in hot or cold weather for a long time, please wait until the

temperature in the car becomes normal before operating the unit.

5. Using the car heater in low temperature environment may result in moisture inside the unit, DO

NOT use the unit in this situation. Eject the disc and wipe off the moisture on the disc. If the unit

still doesn't work after a few hours, please contact the service center.

6. Do not impact the LCD monitor which could cause damage.

7. To prevent damage to the screen, avoid touching it with sharp objects.

8. To provide a clear demonstration and an alternative for easy understanding to the operation of

this unit, graphic illustrations are used.

However, some illustrations are different from the actual images displayed on the screen.

9. Operate the unit correctly according to this manual to prevent unnecessary problem. The

guarantee won't be valid if the problem is caused by inappropriate operation.

Safety Precautions

MAP

Note:

The items listed outside of the frame are the commercial products generally sold.

Expanding Systems

Contents

Safety Precautions ...................................1

Contents....................................................3

Before Using .............................................4

Front Panel .............................................4

Remote Control.......................................5

Notes on Remote Control Usage............6

Uninstall Battery......................................6

Install Battery..........................................6

Basic Operations......................................7

Parking Brake Inhibit...............................7

Mute........................................................7

Power On / Off........................................7

Audible Beep Conrmation.....................7

Playing Source Selection........................7

Volume Adjustment.................................7

EQ Menu.................................................7

Select Preset Equalizer ..........................8

Adjust EQ Parameters............................8

Adjust Fader/Balance .............................8

Set Date /Time........................................9

Radio Mode .............................................10

Tuner TFT Display................................10

Select Radio as Playing Source ...........10

Select One Radio Band ........................10

Tune......................................................10

Preset Station .......................................11

Intro/Scan .............................................11

Manual Store ........................................11

Tune to a Preset Station.......................11

Local Seeking .......................................11

EQ Selection.........................................11

Playback Mode........................................11

Eject a Disc...........................................11

Touch Screen Controls.........................11

Controlling Playback.............................11

Connect a USB Device.........................12

Remove a USB Device.........................12

Insert/Remove a SD Card.....................12

Play/Pause............................................12

Previous/Next .......................................12

Search for a Folder...............................12

Repeat ..................................................12

Repeat A-B ...........................................13

Shufe (Random) Play..........................13

Video Setup ..........................................13

Elapsed Time........................................13

Direct Track Entry.................................13

Rotate Pictures .....................................13

Zoom.....................................................13

Bluetooth Mode ......................................14

Pair the Bluetooth-enabled Devices .....14

Disconnect Bluetooth Device................14

Make a Call...........................................14

Answer an Incoming Call......................14

Adjust Bluetooth Settings......................15

Settings ...................................................16

Display System.....................................16

Adjust General Settings........................16

Adjust Time Settings.............................16

Adjust Sound Settings ..........................17

Adjust Video Settings............................17

Adjust Disc Rating ................................17

Adjust Volume Settings.........................18

Adjust Reset Settings ...........................18

Other Modes............................................19

Listen to Other Devices ........................19

Reset ....................................................19

Replace a Fuse.....................................19

GPS ......................................................19

Specications .........................................20

Troubleshooting .....................................22

Installation...............................................23

Wire Connections...................................25

Front Panel

Before Using

Notice:

The graphic in this manual is for reference

only, and may be different from the actual unit.

Reference to actual unit is suggested.

MAP





















1. [ ] Button

Press to eject a disc.

2. [MENU/ ] Button

Press to switch between the main menu and current source.

Press and hold to enter brightness adjustment mode, then rotate the knob to adjust.

3. [ NAVI ] Button

Press to switch to navigation mode.

4. [VOL / / ] Knob

Rotate to adjust the volume.

Press momentarily to activate the MUTE function. Press again to resume normal listening.

Press to turn the unit ON. Press and hold to turn the unit OFF.

5. Reset Button

Press to reset system settings to factory default (except password and parental lock settings).

6. SD Interface Connector

Insert an Micro SD card for playback of music/video les.

7. USB Connector

Connect a USB device for playback of music/video les.

8. A/V Input

Accepts a 3.5mm jack through which signals from various audio/video devices can be applied to

the unit.

9. Map Slot

The Micro SD card is used for the Navigation Map only, not for music or other les. This may be

used for rmware updates if required.

10. Disc slot

Before Using

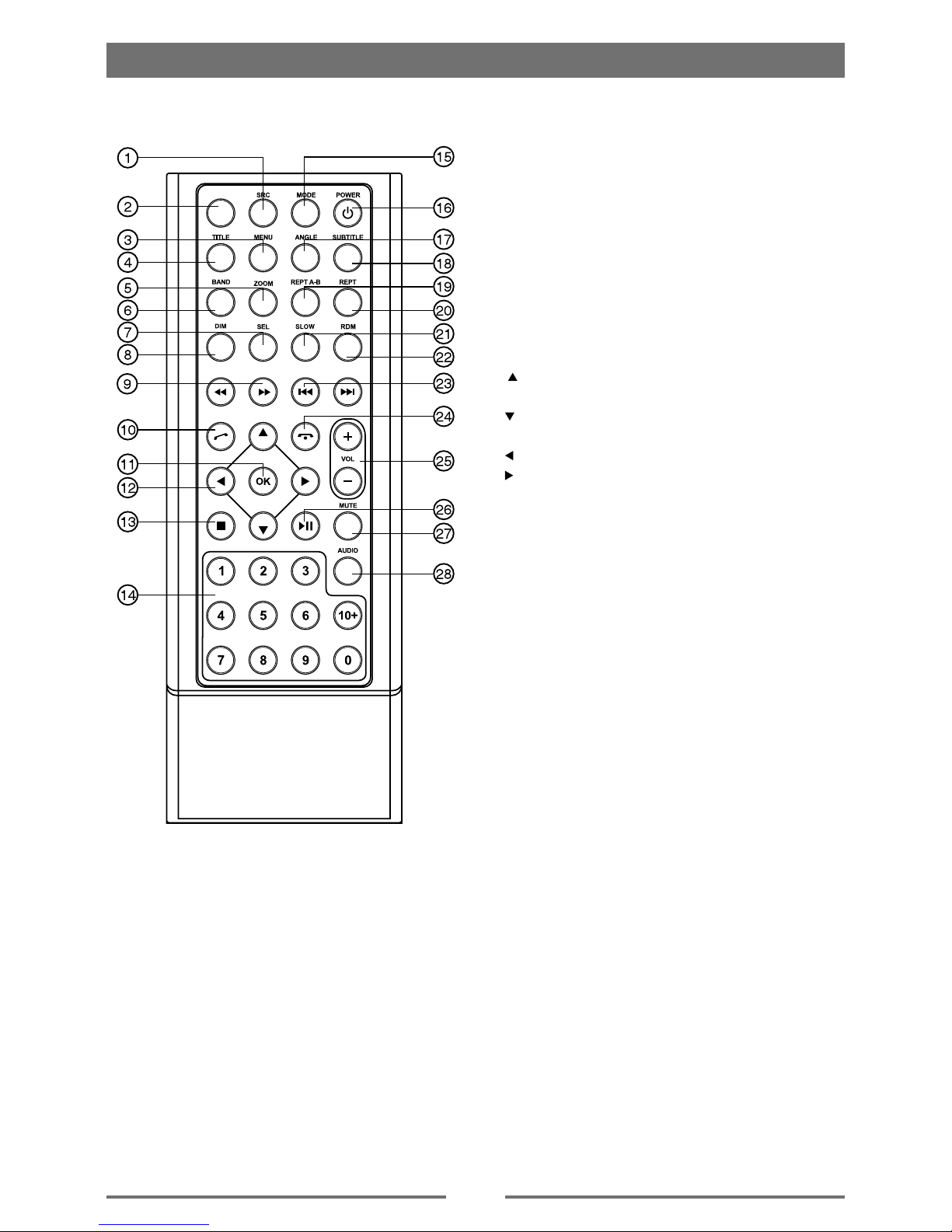

Remote Control

1. Select playing mode

2. Eject the disc

3. Enter the main menu of the disc

4. Enter the title menu of the disc

5. Zoom in /out on an image

6. Select radio band

7. EQ setting

8. Dimmer adjustment

9. Fast reverse/forward playback

10.Dial/Receive call

11.Confirm

12.[ ]-Play Photo:UP-DOWN Mirror;

Play Disc:Select Files.

[ ]-Play Photo:Left-Right Mirror;

Play Disc:Select Files.

[ ]-Return To Play List

[ ]-Play Photo:Clockwise Rotation ;

Play Disc:Select Files.

13.Stop/Return

14.Digit area

15.

Press to switch between the main menu and

current source

16.Power on/off

17.Playback DVD in different angle for a

scene

18.DVD language selection for subtitle

19.Setup to repeat playback from time

frame A to time frame B

20.Repeat playback of current chapter

21.Slow playback

22.Play all chapter in random order

23.- Radio tune

- Track skip / seek

24.Hang up

25. Increase/Decrease volume

26.Pause playback/Start playback

27.Toggle on/off audio output

28.Change the audio language for disc playback

EJECT

Notes on Remote Control Usage

1. Aim the remote control at the remote sensor on the unit.

2. Replace the battery from the remote control or insert a battery insulator if the battery has not

been used for a month or longer.

3. DO NOT store the remote control in direct sunlight or in high temperature environment, or it

may not function properly.

4. The battery can work for 6 months under normal condition. If the remote control won’t work,

please change the battery.

5. Use“button shaped” lithium battery“CR2025”(3V) only.

6. DO NOT recharge, disassemble, heat or expose the battery in fire.

7. Insert the battery in proper direction according to the ( + ) and ( - ) poles.

8. Store the battery in a place where children cannot reach to avoid the risk of accident.

Uninstall Battery

Slide out the battery compartment tray at the

bottom on the back of the remote control.

Install Battery

Use button-shaped lithium battery CR2025

(3V)” only. Insert the battery to the battery

tray with proper direction according to the (+)

and (-) poles.

Before Using

PULL OUTPUSH IN

Parking Brake Inhibit

• When the “BRAKE” cable is connected to

the brake switch, the display on the TFT

monitor will display video only when the

vehicle is applied.

• Parking brake function is overridden when

the video source is set to REVERSE.

• When the parking brake inhibit is active,

the front monitor displays “WARNING Do

not watch video while driving!”, preventing

the driver from watching content while

driving. Rear video screens are not

affected.

Mute

Press [ VOL/ /] knob or the [ MUTE ]

button on remote control to mute the volume

from the unit. Press again to restore the

volume. [ ] is displayed on the LCD.

Adjusting the volume or using any of the

audio setup features cancels the mute

function.

Power On / Off

Press the [ VOL/ /] knob on the unit (or

the [ POWER ] button on the remote control)

to turn the unit on. The current mode status

appears in the LCD.

Press and hold the [ VOL/ /] knob to

power off the unit.

Audible Beep Conrmation

An audible beep tone conrms each function

selection. The Beep tone can be disabled

through the Setup menu.

Playing Source Selection

Press the [ MENU ] button on the front panel

or the [ SRC ] button on the remote to change

between available playing sources. The

playing mode is displayed on the screen.

1 2

1. Date and Time display.

2. Function icons

3. All SRC.

Volume Adjustment

To increase or decrease the volume level,

turn the [ VOL/ / ] knob on the front panel

or press the [ VOL+ ] / [ VOL ] button on the

remote control. The volume ranges from “0”to

“39”. The LCD or TFT screen displays the

volume level for 3 seconds.

EQ Menu

The Audio Control feature allows you to

easily adjust your audio system to meet the

acoustic characteristics of your vehicle, which

vary depending on the type of vehicle and its

measurements. Proper setting of the Fader

and Balance boosts the effects of the cabin

equalizer.

Basic Operations

Select Preset Equalizer

1. Enter the EQ setup mode

Touch the [ ] icon in the user interface

and the EQ setup interface will display on

the screen.

2. Select EQ mode

∙ [User]∙ [Rock]

∙ [Flat]∙ [Class]

∙ [Pop]∙ [Jazz]

∙ [Techno]∙ [Optimal]

Adjust EQ Parameters

To adjust EQ parameters, touch and drag the

parameters adjustment bar.

Touch [ ] / [ ] or drag [ ] to adjust the

parameters.

[ User ]: Set the desired audio effect.

∙ [BAS]bassrange:-7to+7

∙ [MID]middlerange:-7to+7

∙ [TRE]treblerange:-7to+7

∙ [LPF]lowpassfilterrange:60HZ,80HZ,

100HZ, 200HZ

∙ [MPF]middlepassfilterrange:0.5KHZ,

1.0KHZ,1.5KHZ,2.5KHZ

∙ [HPF]highpassfilterrang:10.0KHZ,

12.5KHZ,15.0KKHZ,17.5KKHZ

[ LOUD: On/Off ]: When listening to music at

low volumes, this feature will selectively boost

certain bass and treble frequencies.

[RESET]:Canceltheequalizerfunction

settings.

Adjust Fader/Balance

You can adjust front/back/left/right balance

of the speaker and the subwoofer volume to

get balanced listening effect according to the

surroundings and your interest.

1. Enter the EQ setup mode

Touch the [ ] icon in the user interface

and the EQ setup interface will display on

the screen.

2. Adjust subwoofer volume

Touch [ ] / [ ] or drag [ ] to adjust

subwoofer volume from 0 to 38.

3. Adjust fader / balance value

Touch [ ] / [ ] / [ ] / [ ] to adjust

fader / balance value

∙ [ ]: Front speaker, fader range: 0 to 7.

∙ [ ]: Rear speaker, fader range: 0 to 7.

∙ [ ]: Left speaker, balance range: 0 to 7.

∙ [ ]: Right speaker, balance range: 0 to 7.

Notes:

1. The parameters of the EQ modes has

been preset and you can not change them

besides ‘User’.

2. The EQ mode will change to ‘User’

automatically when you adjust the

frequency value in all modes besides

‘User’.

3. The value of Sub is independent of EQ

mode and can be adjusted separately.

Basic Operations

Set Date /Time

1. Touch [ ].

2. Touch [ Time ].

The date/time setup menu is displayed.

Set Date

1. Touch [ Date ].

2. Touch the date information on the screen .

A submenu is displayed.

3. Touch [ ] or [ ] to set year, month and

day.

Set Time Mode

1. Touch [Time mode].

2. Touch [12H] or [24H] to switch to time

mode.

Set Time

1. Touch [ Time ].

2. Touch the time on the screen, a submenu

is displayed.

3. Touch [ ] or [ ] to set hour and minute.

Set Time Zone

1. Touch [Time Zone].

2. A submenu will be displayed.

3. Touch to select the time zone you desire.

4. The time zone of the device default setting

is “ GMT+11:00 “.

Set Power Off Timer

1. Touch [ Power Off Timer ].

2. Touch [ On ] or [ Off ] to select whether

timer displays after power off.

Table of contents

Domain DM-DV5768NVU User manual

Popular Car Video System manuals by other brands
