Dometic CoolFreeze CDF-18 User manual

CDF-18, CDF-25,
CDF-35, CDF-45
CDF-18 CDF-25
CDF-35
CDF-45
DE 5 Kompressor-Kühlbox
Bedienungsanleitung
EN 19 Compressor Cooler
Instruction Manual
FR 33 Glacière à compression
Manuel d’utilisation
ES 48 Nevera por compresor
Instrucciones de uso
IT 63 Frigorifero a compressore
Istruzioni per l’uso
NL 78 Compressorkoelbox
Gebruiksaanwijzing
DA 91 Kompressor-køleboks
Betjeningsvejledning
SV 103 Kylbox med kompressor
Bruksanvisning
NO 115 Kjøleboks med kompressor
Bruksanvisning
FI 127 Kompressori-kylmälaatikko
Käyttöohje
_CDF.book Seite 1 Mittwoch, 15. September 2010 4:21 16

3
1
2
1
ERROR
TEMPERATUR MONITORBATTERY
LOW O HIGH
COLD FREEZE
POWER
12 3 4
2
CDF-25, CDF-35, CDF-45
12/24V DC
5
3
CDF-25, CDF-35, CDF-45
_CDF.book Seite 3 Mittwoch, 15. September 2010 4:21 16

4
12/24V DC
COLD FREEZE
ERROR
POWER
HIGH
0
LOW
TEMPERATURE BATTERY MONITOR
1 2 3 4
5
4
CDF-18
1
5
1 2 3
4
5
6
6
1 2
7
CDF-25
12 V 24 VØ/mm²
l/m
8
_CDF.book Seite 4 Mittwoch, 15. September 2010 4:21 16

Notes on using the manual
19
Please read this operating manual carefully before starting the device.
Keep it in a safe place for future reference. If the device is handed over
to another person, this operating manual must be handed over along
with the device.
Contents
1 Notes on using the manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5 Function description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7 Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
8 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
10 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
1 Notes on using the manual
The following symbols are used in this operating manual:
aCaution!
Safety instruction: Failure to observe this instruction can cause
personal injury or damage the device.
eCaution!
Safety instruction relating to a danger from an electrical current
or voltage. Failure to observe this instruction can cause injury or
damage the device and impair its function.
INote
Supplementary information for operating the device.
_CDF.book Seite 19 Mittwoch, 15. September 2010 4:21 16

Safety instructions
20
➤Action: This symbol indicates that action is required on your
part. The required action is described step-by-step.
✓This symbol indicates the result of an action.
Fig. 2 1, page 3: This refers to an element in an illustration.
In this case, item 1 in figure 2on page 3.
Please observe the following safety instructions.
2 Safety instructions
The manufacturer will not be held liable for claims for damage
resulting from the following:
zFaulty assembly or connection
zDamage to the appliance resulting from mechanical influences
and excess voltage
zAlterations to the device without express permission from the
manufacturer
zUse for purposes other than those described in the operating
manual
2.1 General safety
ezCaution – Danger of electrocution!
When using the device on boats: If the device is powered by the
mains, ensure that the power supply is protected with a ground
fault interrupter circuit.
zCheck that the voltage specification on the type plate corre-
sponds to that of the energy supply.
zOnly connect the device with the cable supplied (fig. 12,
page 3) to the cigarette lighter in the vehicle or to a 12/24 V plug
socket in the vehicle.
zIf the connection cable is damaged, it must be replaced to pre-
vent possible electrical hazards.
zDo not pull the plug out of the cigarette lighter or the socket by
the cable.
zDisconnect the device from the mains:
– Before cleaning and maintenance
– After use
_CDF.book Seite 20 Mittwoch, 15. September 2010 4:21 16

Safety instructions
21
zDisconnect the cooling device and other power consuming de-
vices from the battery before you connect the battery to a quick
charging device. Overvoltage can damage the electronics of the
device.
azPersons (including children) whose physical, sensory or
mental capabilities or lack of experience and knowledge
prevents them from using the appliance safely should not
use this appliance without initial supervision or instruction
by a responsible person
zElectronic devices are not toys!
Always keep and use the device out of the reach of children.
zChildren must be supervised to ensure that they do not play with
the device.
zDo not operate the device if it is visibly damaged.
zThis device may only be repaired by qualified personnel. Inade-
quate repairs can lead to considerable hazards.
zDo not open the refrigerant circuit under any circumstances!
zThe cooler is not suitable for transporting caustic materials or
materials containing solvents.
zFood may only be stored in its original packaging or in suitable
containers.
2.2 Operating the device safely
ezCaution – Danger of electrocution!
Do not touch exposed cables with your bare hands. This especially
applies when operating the device from an AC mains.
zBefore starting the device, ensure that the power supply line
and the plug are dry.
azDo not place any electrical devices inside the cooler.
zSet up the device in a dry location where it is protected against
splashing water.
zProtect the device and the cable against rain and moisture.
zDo not place the device near naked flames or other heat sourc-
es (heaters, direct sunlight, gas ovens etc.)
_CDF.book Seite 21 Mittwoch, 15. September 2010 4:21 16

Scope of delivery
22
zCaution! Danger of overheating!
Ensure at all times that there is sufficient ventilation so that the
heat generated during normal operation is able to dissipate. En-
sure that the ventilation slots are not covered. Make sure that
the device is sufficiently far away from walls and other objects
so that the air can circulate.
zNever immerse the device in water.
zDo not fill the inner container with ice or fluid.
3 Scope of delivery
fig. 1, page 3, shows the scope of delivery.
Item Quantity Description
11Cooler
2 1 Connection cable for 12/24 VDC connection
– 1 Operating manual
_CDF.book Seite 22 Mittwoch, 15. September 2010 4:21 16

Intended use
23
4 Intended use
The cooler is suitable for cooling and freezing foods. The device is
also suitable for use on boats.
The device is designed to be operated from a 12 VDC or 24 VDC
on-board supply socket of a vehicle (e. g. cigarette lighter), boat or
caravan.
INote
To operate the device at the AC mains supply, we recommend us-
ing one of the following WAECO rectifiers:
– 220–240 V: CoolPower EPS100
– 110–240 V: CoolPower MPS35
aCaution – When cooling perishable medicines!
If you wish to cool medicines, please check if the cooling capacity
of the device is adequate for this purpose.
5 Function description
The cooler can chill products, keep them cool as well as freeze
them. A maintenance-free refrigerant circuit with compressor
provides the cooling. The extra strong insulation and powerful
compressor ensure especially fast cooling.
The cooler is designed for mobile use.
When used on boats, the cooler can be withstand a constant heel
(inclination) of 30°.
An integrated dual-level battery monitor prevents your vehicle
battery from being discharging too low.
_CDF.book Seite 23 Mittwoch, 15. September 2010 4:21 16

Function description
24
5.1 Operating and display elements

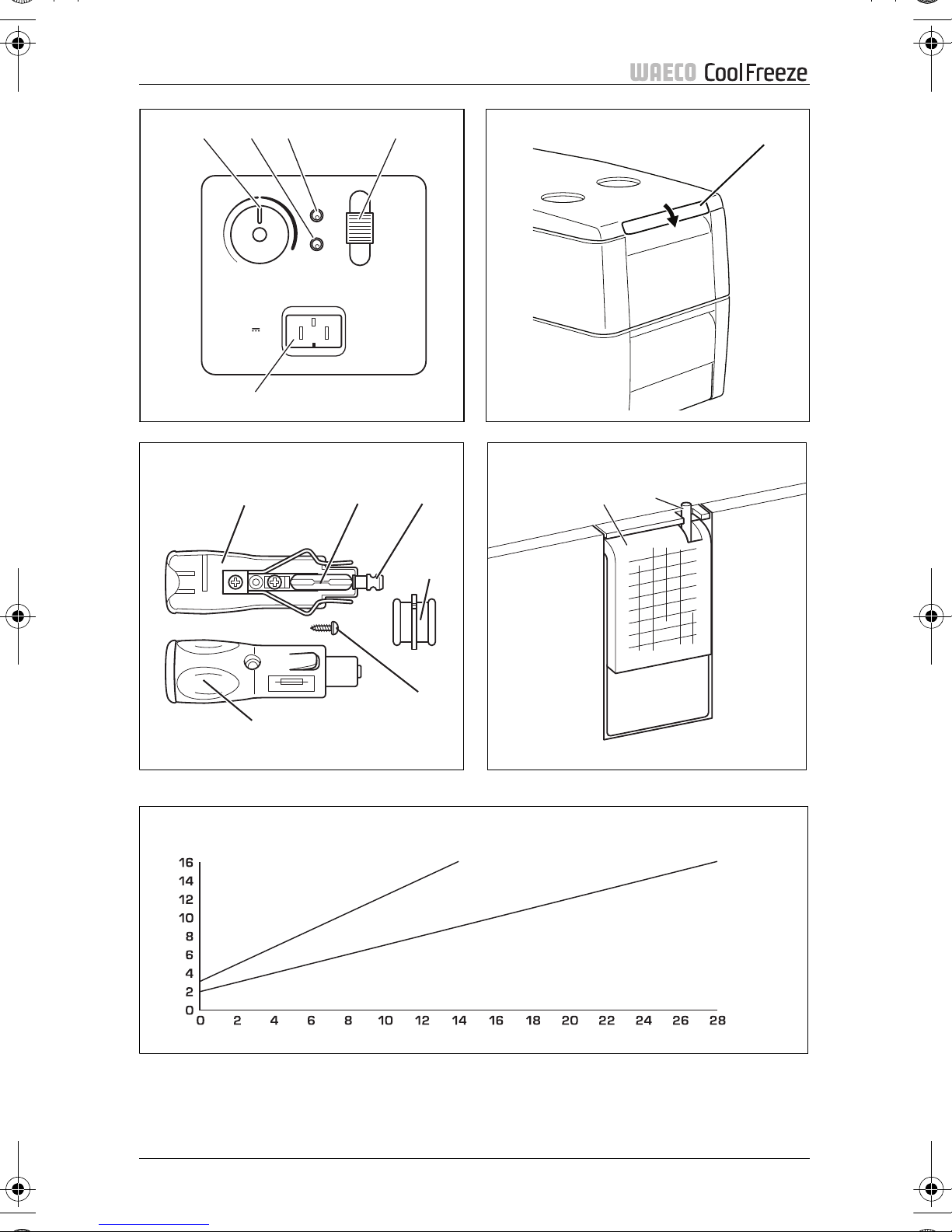

Operating panel and connection socket
(fig. 2, page 3, fig. 3, page 3, fig. 4, page 4):
Lock for lid: fig. 5, page 4
Item Description Explanation
1 TEMPERATURE Temperature controller,
cooling temperature at the end positions:
COLD: +10 °C
FREEZE: CDF-18, CDF-25:
–18 °C
CDF-35, CDF-45:
–15 °C
2POWER Operating display
LED is lit green: Device is switched
on and ready for
operation
CDF-18 only:
LED is lit yellow:
Set temperature has
been reached
3 ERROR LED flashes red: Switched on device
is not ready for
operation
4BATTERY
MONITOR
Switch-on device/battery monitor:
0: Device is switched
off
HIGH: Device is switched
on, battery monitor
is in HIGH mode
LOW: Device is switched
on, battery monitor
is in LOW mode
5 12/24V DC Connection socket DC voltage supply
_CDF.book Seite 24 Mittwoch, 15. September 2010 4:21 16

Operation
25
5.2 Accessories
To operate the device at the AC mains supply, we recommend
using one of the following WAECO rectifiers:
– 220–240 V: CoolPower EPS100
– 110–240 V: CoolPower MPS35
6 Operation
6.1 Before initial use
INote
Before starting your new cooler for the first time, you should clean
it inside and outside with a damp cloth for hygienic reasons (please
also refer to the chapter “Cleaning and maintenance” on page 30).
6.2 Energy saving tips
zChoose a well ventilated installation location which is protected
from direct sunlight.
zAllow hot food to cool down first before you place it into the
device.
zDo not open the cooler more often than necessary.
zDo not leave the lid open for longer than necessary.
zDefrost the cooler once a layer of ice forms.
zAvoid unnecessary low temperatures.
_CDF.book Seite 25 Mittwoch, 15. September 2010 4:21 16
