Please read this instruction manual carefully before first use, and store
it in a safe place. If you pass on the product to another person, hand
over this instruction manual along with it.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Target group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7 Using the parking cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
8 Display messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
9 Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
11 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

EN
Explanation of symbols CoolAir RTX1000, RTX2000
6
1 Explanation of symbols
!
!
A
I
➤Action: This symbol indicates that action is required on your part. The
required action is described step-by-step.
✓This symbol describes the result of an action.
Fig. 15, page 3: This refers to an element in an illustration. In this case,
item 5 in figure 1 on page 3.
2 Safety
The manufacturer accepts no liability for damage in the following cases:
zDamage to the product resulting from mechanical influences and excess
voltage
zAlterations to the product without express permission from the manu-
facturer
zUse for purposes other than those described in the operating manual
WARNING!
Safety instruction: Failure to observe this instruction can cause
fatal or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to
injury.
NOTICE!
Failure to observe this instruction can cause material damage and
impair the function of the product.
NOTE
Supplementary information for operating the product.

EN
CoolAir RTX1000, RTX2000 Safety
7
2.1 Handling the product
!WARNING!
zOnly use the parking cooler for the purpose specified by the
manufacturer and do not make any alterations or structural
changes to the device.
zDo not use the parking cooler if it is visibly damaged.
zInstallation and repairs to the parking cooler may only be carried
out by qualified personnel who are familiar with the risks
involved and the relevant regulations. Inadequate repairs may
cause serious hazards.
For repair service, please contact the service centre in your
country (addresses on the back page).
zPeople (including children) whose physical, sensory or mental
capacities or whose lack of experience or knowledge prevent
them from using this product safely should not use it without the
supervision or instruction of a responsible person.
zElectrical devices are not toys.
Always keep and use the product out of the reach of children.
zChildren must be supervised to ensure that they do not play with
the product.
zMake sure no combustible objects are stored or installed near
the air outlet. A distance of at least 50 cm must be maintained.
zDo not undo the upper cover of the parking cooler in the event
of a fire. Use approved extinguishing agents instead. Do not use
water to extinguish fires.
zDo not reach into air grilles or ventilation nozzles or insert any
foreign objects in the system.
!CAUTION!
zDisconnect all power supply lines when working on the parking
cooler (cleaning, maintenance etc).
ANOTICE!
zThe parking cooler is not suitable for use in agricultural or
construction vehicles.
zVehicles with attached parking coolers may only be cleaned in
automatic car washes where the top brush can be manually
deactivated.

EN
Target group CoolAir RTX1000, RTX2000
8
zSwitch the parking cooler off before tilting the cab for
maintenance.
zSwitch off the parking cooler before using automatic washing
equipment (automatic car washes etc.) to clean the vehicle.
zDo not clean the parking cooler with a high-pressure cleaner.
Exposure to water can damage the parking cooler.
zDo not operate the parking cooler if the ambient temperature is
below 0 °C or above 52 °C.
zPlease inform your vehicle manufacturer if the height entered
in your vehicle documents needs to be altered due to the
installation of the parking cooler.
2.2 Operating the product safely
ANOTICE!
zDo not insert foreign objects into the system.
3 Target group
The information contained is aimed at the company installing the parking
cooler.
4 Intended use
The parking cooler is used to supply the interior of the driver's cab
with cool and dehumidified air.
The system is designed for stationary use. It can be used while
driving.
The parking cooler is not suitable for use in agricultural or construction
vehicles.
The parking cooler is suitable for ambient temperatures of 5 °C to 52 °C.
INOTE
Only install the parking cooler using the manufacturer's assembly
kit.

EN
CoolAir RTX1000, RTX2000 Technical description
9
5 Technical description
The parking cooler can be used for conditioning inside the vehicle. The air in
the interior is guided into the system through the intake grille, cooled, dried
and conveyed back into the interior through the blower nozzles.
In BOOST mode, the parking cooler cools the vehicle interior for not more
than 20 minutes at maximum power and then switches to AUTO mode.
When the set temperature is reached, the parking cooler switches to AUTO
mode before the 20 minutes is reached.
In AUTO mode, the fan and compressor speed are controlled automatically.
In ECO mode the fan and compressor speed are controlled automatically.
The compressor power is limited in ECO mode electronically.
The system is controlled using the control panel or the remote control.
I
The system is fitted with a battery monitor. If the system is operated when the
vehicle ignition is switched off, the system switches off automatically as soon
as the supply voltage falls below a set level.
I
NOTE
The parking cooler can lower the temperature within the vehicle
to a certain level. The temperature depends on the type of vehicle,
the ambient temperature and the cooling capacity of your parking
cooler. For the cooling capacity of your parking cooler, chapter
“Technical data” on page 26.
NOTE
This set level can be changed. For this, please contact the
specialised company that installed the system.

EN
Operation CoolAir RTX1000, RTX2000
10
6 Operation

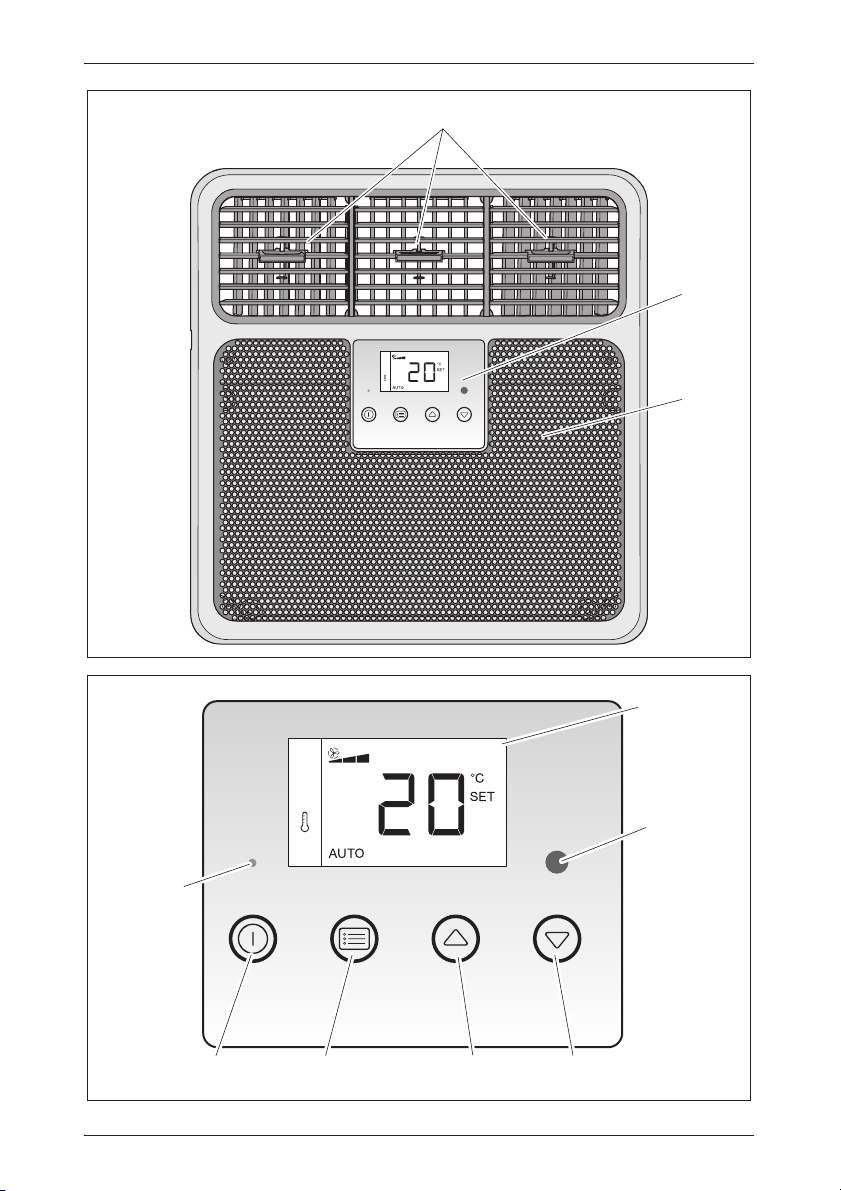

6.1 Device elements
The parking cooler has the following device elements:
6.2 Control panel
The system's control panel contains the following operating and display
elements:
No. in
fig. 1, page 3 Explanation
1 Blower nozzles
2 Intake grille
3 Control panel
No. in
fig. 2, page 3 Symbol Description
1 Display (see chapter “Display” on page 12)
2 Infrared receiver (for the remote control)
3 Opens the sub-menus for setting or decreases the
value of the selected parameter once a menu has
been opened.
4 Opens the sub-menus for setting or increases the
value of the selected parameter once a menu has
been opened.
5 Scrolls through the menu items.
6 Switches the parking cooler
zon
zoff (press button briefly)
zto standby mode (press button longer than 3 s)
7 LED Power (blue):
Only lights up when the system is switched on or in
standby.

EN
CoolAir RTX1000, RTX2000 Operation
11
6.3 Remote control
The remote control contains the following operating elements:
No. in
fig. 3, page 4 Symbol Description
1Press button briefly: Switches the parking cooler
to standby mode or on again, if it is in standby mode
Press button longer than 3 s: Switches the
parking cooler off
The parking cooler only can be switched on at the
control panel.
2 Increases the timer running time by 10 minutes.
3–Reduces the set point by 1 °C/2 °F.
4+Increases the set point by 1 °C/2 °F.
5–Switches the parking cooler to MANUAL mode and
reduces the speed of the fan.
6+Switches the parking cooler to MANUAL mode and
increases the speed of the fan.
7 Switches the parking cooler to AUTO mode.
8 Switches the parking cooler to ECO mode.
9 Switches the parking cooler to BOOST mode.

EN
Operation CoolAir RTX1000, RTX2000
12
6.4 Display
The display has the following indicators:
I
No. in
fig. 4, page 4 Description
1 The symbol shows the current menu selected (see chapter
“Using menus” on page 16).
2 Depending on the current menu, shows:
– the required temperature
– the current fan speed
– the remaining running time of the timer
3 Shows the current fan speed.
4Setting: Lights up when the setting menu has been activated.
5ERROR: Lights up when the supply voltage falls below a set
value.
Additionally the display flashes.
6Battery: Displays problems with the supply voltage.
7°C: Lights up when the temperature is shown in °C.
°F: Lights up when the temperature is shown in °F.
8SET: Indicates that the set temperature is being shown.
9MIN: Lights up when the timer has been set.
10 Shows the current mode (see chapter “Menu mode” on
page 17)
NOTE
You can find full details of the display messages in the chapter
“Display messages” on page 21.

EN
CoolAir RTX1000, RTX2000 Using the parking cooler
13
7 Using the parking cooler
A
7.1 Tip for improved use
I
Observe the following instructions to ensure your CoolAir parking cooler is
used efficiently.
It is recommended that you:
zPark your vehicle in the shade when possible.
zShade your vehicle when possible.
zIf you do not have a vehicle air conditioning system, air out your vehicle
well before using the parking cooler. You should always cool down the
vehicle interior before a rest period using the vehicle air conditioning
system.
zKeep doors and windows closed.
zAvoid any heat sources in the vehicle.
zReduce the power consumed by other products to ensure the maximum
possible operating time of the parking cooler.
zSelect a suitable temperature and operating mode.
zMake sure the blower nozzles (fig. 11, page 3) and intake grille
(fig. 12, page 3) are not covered by cloths, paper or other objects.
zThe best cooling capacity is achieved when the blower nozzles (fig. 11,
page 3) are not directed towards the intake grille (fig. 12, page 3).
NOTICE!
zThe manufacturer assumes no liability for non-observance
of this operating manual, in particular for any consequential
damage, especially consequential damage caused by failure
of the parking cooler.
zDo not insert foreign objects into the system.
NOTE
The CoolAir parking coolers are designed as air conditioners for
relaxing rest periods. They can be used while driving, however
they do not replace the engine-powered vehicle air conditioning
system.

EN
Using the parking cooler CoolAir RTX1000, RTX2000
14
Always observe the following:
zIf you would like the parking cooler to match the colour of your vehicle,
only paint the upper shell casing of the parking cooler.
Only paint this when it has been removed. Use light colours when
possible.
zWash your vehicle regularly, as dirty driver's cabs heat up more quickly.
zMake sure that the performance of the parking cooler is not affected by
other sources of heat (e.g. waste heat from cold machines).
7.2 Switching on the parking cooler
A
I
➤With the system switched off, press the button.
✓The fan starts.
✓The Power LED (fig. 27, page 3) lights up.
✓The digital display (fig. 21, page 3) shows the current status of the
parking cooler (see chapter “Display” on page 12).
I
NOTICE!
Never close all of the air nozzles of the parking cooler simul-
taneously. The system would ice up inside.
NOTE
The first time the parking cooler is used, there may be a slight
smell. This odour is caused by a design feature and ends after the
system has been running for a short time.
NOTE
Depending on the system status, the system compressor is
switched on with a delay of up to 180 seconds.

EN
CoolAir RTX1000, RTX2000 Using the parking cooler
15
7.3 Switching the parking cooler to standby mode
➤Press the button briefly to switch the parking cooler to standby mode.
✓The parking cooler saves the current settings.
✓The Power LED (fig. 27, page 3) continues to light up.
I
7.4 Switching off the parking cooler
➤Press the button for at least 3 seconds to switch off parking cooler.
✓The parking cooler saves the current settings.
✓The Power LED (fig. 27, page 3) goes out.
I
NOTE
zWhen the parking cooler is in BOOST mode and switched to
standby mode, it will start the next time in AUTO mode.
zA running timer is set to 0 by switching the parking cooler in
standby mode.
zThe parking cooler switches off completely after 12 hours in
standby mode to save power.
NOTE
zWhen the parking cooler is in BOOST mode and switched off,
it will start the next time in AUTO mode.
zA running timer is set to 0 by switching off the parking cooler.
zIf the parking cooler is switched off while the compressor is still
operating, the fan will continue to run for 20 seconds to dry the
evaporator, among other things.

EN
Using the parking cooler CoolAir RTX1000, RTX2000
16
7.5 Using menus
You can set the parking cooler to suit your requirements using the menus:
➤Press the button to browse through the menus.
➤Press the or button to navigate to the appropriate sub-menu or
to change the selected value.
➤Press the button to reduce the selected value.
➤Press the button to increase the selected value.
I
You can select the following menus:
NOTE
If you don‘t press any button for more than 5 seconds, the display
switches back to the menu mode.
Menu Description Change in
value
Setting the temperature (17 °C to 30 °C/62 °F to 86 °F) 1 °C/2 °F
Setting the mode (see chapter “Menu mode” on
page 17)
–
MANUAL mode:
Set the fan speed manually (level 1 – 5)
1
Set the running time of the timer (10 – 120 min) 10 min

EN
CoolAir RTX1000, RTX2000 Using the parking cooler
17
Menu mode
In menu mode, you can select the following sub-menus:
7.6 Using the air conditioner
➤Set the required temperature (chapter “Setting the temperature” on
page 18).
➤Set the required mode (chapter “Setting the mode” on page 18).
I
➤Set the timer (chapter “Setting the timer” on page 20), if you want the
parking cooler to switch off automatically after the required time.
Sub-menu Purpose
AUTO AUTO mode:
The fan and the compressor are controlled automatically.
ECO Energy-saving mode:
The fan and the compressor are controlled automatically. The speed
of the compressor is limited electronically.
BOOST BOOST mode:
The system runs at once at full-power. The system switches to auto-
matic mode after 20 minutes or once the set temperature has been
reached.
MANUAL MANUAL mode:
You can set the fan speed manually.
The compressor is controlled automatically.
NOTE
If the required temperature is not reached in the energy-saving
mode or at a low fan speed, increase the fan speed or switch to
BOOST mode or to AUTO mode.

EN
Using the parking cooler CoolAir RTX1000, RTX2000
18
7.7 Setting the temperature
I
Control panel
➤Press the button until the symbol is displayed.
➤Press the or button to set the desired temperature.
➤Press the button to save the value.
Remote control
➤Press the +button to increase the temperature.
➤Press the –button to decrease the temperature.
➤To save the value don‘t press any button for more than 5 seconds.
7.8 Setting the mode
Control panel
➤Press the button until the symbol is displayed.
➤Press the or button to set the AUTO, ECO or BOOST mode.
To set the MANUAL mode see below.
➤Press the button to start the selected mode.
If you like to set the fan speed manually (MANUAL mode):
➤Press the button until the symbol is displayed.
➤Press the or button to set the desired fan speed. At the same
time the MANUAL mode is started.
➤Press the button to save the value.
NOTE
Depending on the set unit for the temperature, the temperature is
changed in steps of either 1 °C or 2 °F.

EN
CoolAir RTX1000, RTX2000 Using the parking cooler
19
If you want to leave the MANUAL mode:
➤Press the button until the symbol is displayed.
➤Press the button to leave the MANUAL mode.
✓The BOOST mode is started.
➤Press the button
– one more time to set the ECO mode
– two more times to set the AUTO mode
Remote control
➤Press the button to set the AUTO mode.
➤Press the button to set the ECO mode.
➤Press the button to set the BOOST mode.
➤Press the +button to increase the fan speed manually and to start the
MANUAL mode.
➤Press the –button to decrease the fan speed manually and to start
the MANUAL mode.
➤To to start the selected mode don‘t press any button for more than
5 seconds.

EN
Using the parking cooler CoolAir RTX1000, RTX2000
20
7.9 Setting the timer
The parking cooler is fitted with a timer. Once the set time has elapsed in the
timer, the parking cooler automatically switches off.
If the timer is activated, the display alternates between the set temperature
and the duration.
Control panel
➤Press the button until the symbol appears.
➤Press the or button to set the required running time of the timer
in 10 minute intervals.
➤Press the button to save the value.
Remote control
➤Press the button to increase the required running time of the timer in
10 minute intervals.
The maximum running time is 120 minutes.
➤To save the value don‘t press any button for more than 5 seconds.
To reset the timer to 0 minutes, proceed as follows:
➤Press the button until the timer shows 120 min.
➤Press the button again.
➤To save the value don‘t press any button for more than 5 seconds.
