Dometic 7123 8103VD Service manual

COOKING
HOBS & COMBINATIONS
7103, 7123
8103VD, 8103VDM, 8123VD, 8123VDM, 8203, 8203M, 8223, 8223M
MO0903, MO0911, MO0911P, MO0917D, MO0917S
MO0921D, MO0921S, MO0927D, MO0927S
MO8302, MO8303, MO8322, MO8323, MO8342, MO8362
MO8801D, MO8801S, MO8821D, MO8821S
MO8952, MO9122, MO9202D, MO9202S, MO9222D, MO9222S, MO9303,
MO9323, MO9503, MO9523
MO9702L, MO9702R, MO9722L, MO9722R
PI0909, PI0909P, PI0913, PI0913A
PI2212, PI2212P, PI7803, PI7823
PI7903, PI7923, PI7903T, PI7923T
PI8002, PI8003, PI8022, PI8023, PI8042, PI8043
PI8062, PI8063, PI8403, PI8423, PI8443, PI8463
PI8621A, PI8621R, PI8621S,
PI8802D, PI8802S, PI8822D, PI8822S, PI8842D, PI8842S, PI8862D, PI8862S
PI9003, PI9023 , PI9803R, PI9803L, PI9823R, PI9823L
HBH1303ILG, HBH1303IRG
Installation, use and maintenance. . . . . . . . 12
EN Hobs and monobloc
combinations
Installation, användning, underhåll . . . . . . 92
SV Spishällar och
kombinationshällar
Installation, gebrauch, wartung . . . . . . . . . 32
DE Kochfelder und
Kombinationen
Installasjon, bruk, vedlikehold . . . . . . . . . . 102
NO Koketopper og koketopp/
oppvaskkum-kombinasjoner
Installation, utilisation, entretien . . . . . . . . . 22
FR Plans de cuisson
et combinés
Asennus, käyttö, huolto . . . . . . . . . . . . . . . . 82
FI Keittotasot ja keittotaso-/
pesuallasyhdistelmät
Instalación, uso y mantenimiento . . . . . . . . 42
ES Placas de cocción
y monobloques
Montaža, uporaba, vzdrževanje . . . . . . . . 112
SL Kuhalne plošče
in štedilniki
Instalação, utilização, manutenção . . . . . . 52
PT Superfícies de cozedura
e monoblocos
Installazione, uso, manutenzione . . . . . . . . . 2
IT Piani cottura e
monoblocchi
Installatie, gebruik, onderhoud . . . . . . . . . 62
NL Kookplaten en
combinaties
Installation, brug, vedligeholdelse . . . . . . . 72
DA Kogeplader og
komfur/vask-kombinationer

12
ENGLISH
SYMBOLS
WARNINGS AND SAFETY SYMBOLS
The safety symbols utilised identify possible hazards to users.
Always respect all safety warnings identified with these symbols:
INDEX
INSTALLATION 13
SAFETY WARNINGS 13
CABINET APERTURE 13
CONNECTING TO GAS SUPPLY 14
WIRING- CONNECTING TO ELECTRICITY SUPPLY 15
FIXTURE 15
USE 16
WARNINGS 16
CONTROLS 16
BURNERS: 17
HOB: 19
SELECTING BURNER 19
ELECTRONIC IGNITION HOB (DEPENDING ON MODEL) 19
MANUAL IGNITION HOB 19
HOB FLAME REGULATION 19
VISUAL FLAME CONTROL 20
GAS CYLINDERS / BOTTLES 20
MAINTENANCE 21
CLEANING 21

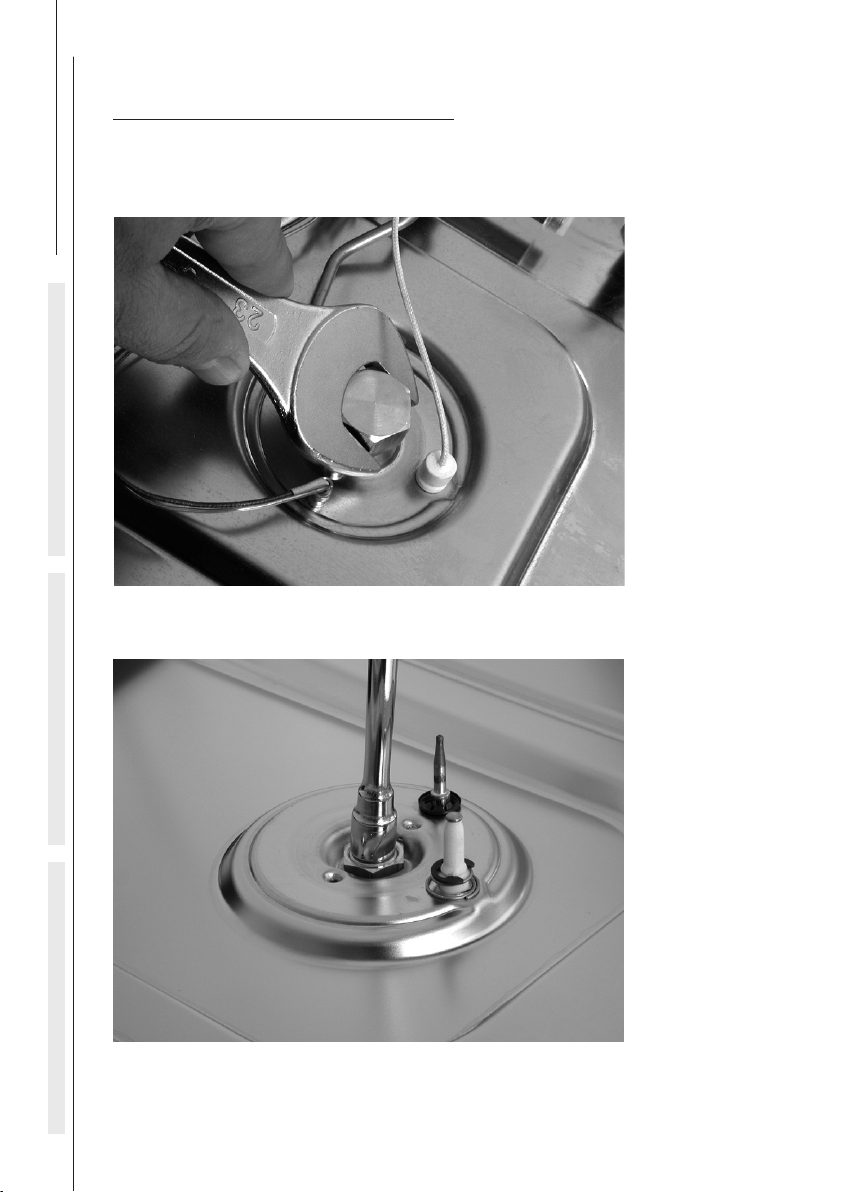

INJECTORS 21
TEST PRESSURE POINT 21
FIGURES AND TECHNICAL DRAWINGS 122-147
WARNING
Hazard of injury or death. CAUTION To prevent possible injury
and / or damage
12

MAINTENANCE USE
INSTALLATION
INSTALLATION
13
ENGLISH
SAFETY WARNINGS
WARNING: THIS WARNING IS AFFIXED TO THE APPLIANCE. THIS
APPLIANCE MUST BE INSTALLED IN ACCORDANCE WITH REGULATIONS IN
FORCE AND ONLY USED IN AN ADEQUATELY VENTILATED AREA. ALWAYS
READ THE INSTRUCTIONS PROVIDED IN FULL BEFORE INSTALLING
AND USING THIS APPLIANCE. THIS APPLIANCE MUST BE INSTALLED BY
SPECIALIST GAS SERVICE ENGINEERS.
THIS APPLIANCE IS DESIGNED FOR USE IN RECREATIONAL VEHICLES AND LEISURE BOATS ONLY
THIS APPLIANCE IS DESIGNED AND MANUFACTURED FOR COOKING
FOOD ONLY. ANY OTHER USE IS CONSIDERED IMPROPER AND INCORRECT
CREATING HAZARDOUS CONDITIONS. THE MANUFACTURER DECLINES
ALL RESPONSIBILITY FOR DAMAGE TO THINGS OR INJURIES TO PERSONS
CAUSED BY INCORRECT INSTALLATION AND / OR INCORRECT AND
IMPROPER USE.
BEFORE INSTALLING CHECK THAT THE LOCAL GAS AVAILABLE (GAS TYPE
AND PRESSURE) AND THE APPLIANCE REGULATORS ARE COMPATIBLE WITH
THE APPLIANCE ITSELF.
GAS REGULATING SPECIFICATIONS FOR THIS APPLIANCE ARE PROVIDED ON
THE LABEL AFFIXED TO THE APPLIANCE (OR ON THE SERIAL PLATE).
THIS APPLIANCE IS NOT CONNECTED TO A FUME EXTRACTION FLUE
FOR EXTRACTING PRODUCTS OF COMBUSTION THEREFORE IT MUST BE
INSTALLED AND CONNECTED (FITTED) CONFORMING TO INSTALLATION
REGULATIONS IN FORCE FOR APPLIANCES OF THIS TYPE. IT IS OF UTMOST
IMPORTANCE TO RESPECT LEGISLATION REGARDING VENTILATION.
THE APPLIANCE MUST FITTED AT AN APPROPRIATE AND SAFE DISTANCE
FROM FLAMMABLE MATERIALS.
CABINET APERTURE
This hob has a CLASS 3 grading: BUILT-IN APPLIANCE FOR KITCHENS OR WORKTOPS
MINIMUM ALLOWABLE DISTANCES FROM WALLS (FIG. 1 - PG. 122):
A / B FROM THE OUTER EDGE OF THE BURNER HEAD NEAREST ONE OF THE SIDE WALLS AND / OR
REAR WALL:
135 mm
CTHE DISTANCE BETWEEN THE TOP OF THE BURNER AND THE BOTTOM OF THE UNITS AND /
OR SHELVES FITTED ABOVE THE HOB:
500 mm
DTHE DISTANCE BETWEEN THE BOTTOM OF THE BURNER AND THE UNDERSIDE:
30 mm

MAINTENANCE USE INSTALLATION
14
ENGLISH
This appliance is designed for running off the following types of gas at the corresponding operating pressures. The gas
category (or categories) of the appliance is given on the specifications label affixed to the appliance.
CONNECTING TO GAS SUPPLY
CHECK THESE SPECIFICATIONS BEFORE CONNECTING THE APPLIANCE TO
THE GAS CYLINDER /BOTTLE. THE PRESSURE REGULATORS CONNECTED
BETWEEN THE GAS CYLINDER AND APPLIANCE MUST CONFORM WITH THE
CATEGORIES GIVEN IN THE TABLE BELOW.
MODEL TOTAL NOMINAL THERMAL
CAPACITY AIR VOLUME REQUIRED FOR
COMBUSTION
MO8801D - MO8801S - MO8821D
MO8821S - PI8621A
PI8621S
PI8621R
MO0911 - MO0911P - MO0917D - MO0917S
MO0921D - MO0921S - MO0927D - MO0927S
MO8302 - MO8322 - MO8342
MO8362 - - MO9202D - MO9202S
MO9222D - MO9222S
MO9702L - MO9702R - MO9722L - MO9722R
PI0909 - PI0909P - PI2212 - PI2212P
PI8002 - PI8022 - PI8042 - PI8062
PI8802D - PI8802S - PI8822D - PI8822S
PI8842D - PI8842S - PI8862D - PI8862S
MO8952 - MO9122
7103 - 7123 - 8103 VD - 8103 VDM
8123 VD - 8123 VDM - 8203 - 8203M - 8223
8223M - MO0903 - MO8303 - MO8323
PI0913 - PI0913A - PI9003 - PI9023
PI9803R - PI9803L - PI9823R - PI9823L
kW - gr/h m3/h
1,0 - 73
1,8 - 131
2,2 - 160
2,8 - 204
3,2 - 233
3,6 - 262
3,8 - 277
2,0
3,6
4,4
5,6
6,4
7,2
7,6
CATEGORY AND COUNTRY OF DESTINATION
I3B/P(30)
AT BE DE DK FI GB NL NO PT SE SI
I3+ (28-30/37)
BE CH ES FR GB IE IT PT SI
GAS PRESSURE
30 mbar Butane (G30)
30 mbar Propane (G31)
28-30 mbar Butane (G30)
37 mbar Propane (G31)
SIZE OF CABINET APERTURE
Cut-out a hole in the cabinet as illustrated in FIG. 2 - PG. 123 depending on model to install.
The cabinet must be appropriately constructed and aligned horizontally with the worktop and with the unit.
The cabinet aperture must be perfectly squared and aligned.
If there are apertures for cabinet ventilation, prevent flammable materials from entering these.
Models PI8621A, PI8621S and PI8621R are modular.
It is possible to connect from 1 to 5 appliances in series.
ALWAYS RESPECT THE DISTANCE BETWEEN ONE CABINET APERTURE AND ANOTHER (PG. 127).

MAINTENANCE USE INSTALLATION
15
ENGLISH
FIXTURE
THIS APPLIANCE MUST BE FITTED AND SECURED TO THE CABINET UTILISING THE FIXTURE SCREWS AS
ILLUSTRATED IN FIG. 3 - PG 138.
The gas supply pipe connected to the appliance must be a rigid metal pipe with sealed fittings. It is possible to fit a
flexible hose, however, in this case the following conditions must be respected:
a) The hose can be accessed easily for inspection;
b) The hose must be protected against coming into contact with parts which heat up (for example parts
underneath the burners);
c) The hose must be protected against being damaged (twisting, pulling, trapping,….);
d) The hose must be protected against being trapped by moving parts (e.g. drawers);
e) The hose must not have a length over 1.5 m;
f) The hose must be replaced before its expiry date;
For models PI8621A, PI8621S, PI8621R seal the appliance gas pipe utilising the sealed tube with pre-mounted
gas fitting provided. Once the appliance has been connected to the gas supply check for gas leaks utilising a noncorrosive
fluid. Do not use a water and soap solution. NEVER USE A FLAME TO TEST FOR GAS LEAKS.
Models PI8621A, PI8621S and PI8621R are modular. It is possible to connect from 1 to 5 appliances in series.
Disconnect and remove the sealed tube mounted to the gas pipe on the installed appliance and connect it to the
gas pipe on the appliance to install. Connect the appliances together by connecting the gas pipes in series utilising
the fitting.
CONNECTING TO ELECTRICITY SUPPLY
WHEN INSTALLING AND CONNECTING THE APPLIANCE TO THE GAS SUPPLY,
ENSURE THAT THE GAS SUPPLY HOSE IS NOT TWISTED, STRETCHED OR
SUBJECTED TO ANY FORM OF STRAIN WHICH COULD CREATE A HAZARD.
THIS APPLIANCE MUST BE CONNECTED TO A 12 V POWER PACK. IF A 2 X 0,5 MM2 CABLE IS USED
FOR THE CONNECTION, ITS LENGTH MUST NOT EXCEED 2 METERS.
WHEN WIRING THE APPLIANCE RESPECT CORRECT POLARITY!
NEVER CONNECT THE APPLIANCE TO THE MAIN VOLTAGE (230 V~); THIS WOULD RESULT IN THE
ULTIMATE DESTRUCTION OF THE PARTS AND A HAZARD TO THE USER.
To connect the appliance, use a double cable and connect it to the terminal board identified with “+12 V –”,
found on the back side of the appliance.
The red terminal is the positive pole, while the black terminal is the negative pole.
LOW VOLTAGE 12 V
This chapter refers only to models with the wording 12 V n the appliance specifications label affixed to the
appliance.
HBH1303ILG - HBH1303IRG
PI7803
PI7823 - PI8003 - PI8023 - PI8043 - PI8063
PI8403 - PI8423 - PI8443 - PI8463
PI7903T - PI7923T
MO9303 - MO9323 - MO9503
MO9523 - PI7903 - PI7923 - PI8723
4,8 - 350
4,6 - 335
4,9 - 356
5,0 - 364
9,6
9,2
9,8
10,0
11,2

MAINTENANCE INS TA LL ATION
USE
USE
16
ENGLISH
The following symbols indicate the burner corresponding to the control knob.
NOTE: different models may have different knobs and different symbols.
THIS SYMBOL IS PLACED NEXT TO THE HOB BURNER KNOBS.
FULL DOT REFERS TO THE CORRESPONDING HOB BURNER.
GRILL
LIGHT
OFF
250-350-450
WITH THE EXCEPTION OF MODEL CU402 WHEN USING THE Broiler THE DOOR MUST
BE KEPT OPEN AND WITH THE HEAT GUARD FULLY EXTRACTED. (FIG. xx - PG. xx)
EXCEPTE POUR LE MODELE CU402, PENDANT LE FONCTIONNEMENT DU GRIL, LA
PORTE DOIT RESTER COMPLETEMENT OUVERTE ET LA PLAQUE DE PROTECTION
CONTRE LA CHALEUR COMPLETEMENT SORTIE. (FIG. XX - PAGE XX)
GRILL
LIGHT
OFF
250-350-450
WITH THE EXCEPTION OF MODEL CU402 WHEN USING THE Broiler THE DOOR MUST
BE KEPT OPEN AND WITH THE HEAT GUARD FULLY EXTRACTED. (FIG. xx - PG. xx)
EXCEPTE POUR LE MODELE CU402, PENDANT LE FONCTIONNEMENT DU GRIL, LA
PORTE DOIT RESTER COMPLETEMENT OUVERTE ET LA PLAQUE DE PROTECTION
CONTRE LA CHALEUR COMPLETEMENT SORTIE. (FIG. XX - PAGE XX)
GAS OFF
GRILL
LIGHT
OFF
250-350-450
WITH THE EXCEPTION OF MODEL CU402 WHEN USING THE Broiler THE DOOR MUST
BE KEPT OPEN AND WITH THE HEAT GUARD FULLY EXTRACTED. (FIG. xx - PG. xx)
EXCEPTE POUR LE MODELE CU402, PENDANT LE FONCTIONNEMENT DU GRIL, LA
PORTE DOIT RESTER COMPLETEMENT OUVERTE ET LA PLAQUE DE PROTECTION
CONTRE LA CHALEUR COMPLETEMENT SORTIE. (FIG. XX - PAGE XX)
HIGH FLAME
GRILL
LIGHT
OFF
250-350-450
WITH THE EXCEPTION OF MODEL CU402 WHEN USING THE Broiler THE DOOR MUST
BE KEPT OPEN AND WITH THE HEAT GUARD FULLY EXTRACTED. (FIG. xx - PG. xx)
EXCEPTE POUR LE MODELE CU402, PENDANT LE FONCTIONNEMENT DU GRIL, LA
PORTE DOIT RESTER COMPLETEMENT OUVERTE ET LA PLAQUE DE PROTECTION
CONTRE LA CHALEUR COMPLETEMENT SORTIE. (FIG. XX - PAGE XX)
LOW FLAME
The following symbols indicate the burner regulation corresponding to the knob position.
NOTE: different models may have different knobs and different symbols.
OTHER SYMBOLS
GRILL
LIGHT
OFF
250-350-450
WITH THE EXCEPTION OF MODEL CU402 WHEN USING THE Broiler THE DOOR MUST
BE KEPT OPEN AND WITH THE HEAT GUARD FULLY EXTRACTED. (FIG. xx - PG. xx)
EXCEPTE POUR LE MODELE CU402, PENDANT LE FONCTIONNEMENT DU GRIL, LA
PORTE DOIT RESTER COMPLETEMENT OUVERTE ET LA PLAQUE DE PROTECTION
CONTRE LA CHALEUR COMPLETEMENT SORTIE. (FIG. XX - PAGE XX)
BUTTON ELECTRONIC IGNITION
CONTROLS
WARNINGS
THIS APPLIANCE MUST ONLY BE USED BY RESPONSIBLE ADULTS. DURING
USE AND IMMEDIATELY AFTER USE THE BURNER AND OTHER ACCESSIBLE
PARTS MAY BE HOT; DO NOT TOUCH THESE PARTS AND ALWAYS KEEP
CHILDREN AT A SAFE DISTANCE. AFTER USING THE APPLIANCE ENSURE THE
KNOB/KNOBS ARE OFF. AFTER USE ALWAYS SHUT OFF THE GAS SUPPLY AT
THE MAIN GAS TAP.
THE USE OF GAS APPLIANCES GENERATES HEAT AND MOISTURE IN THE
IMMEDIATE AREA. ALWAYS ENSURE A GOOD VENTILATION IN THE COOKING
AREA: KEEP ALL AIR VENTS OPEN FOR NATURAL VENTILATION OR INSTALL
AN EXTRACTOR FAN (COOKERHOOD).
DUE TO INTENSIVE USE OF THE APPLIANCE IT MAY BE NECESSARY TO
INCREASE VENTILATION SUCH AS OPENING A WINDOW OR INCREASING
COOKERHOOD (EXTRACTOR FAN) SPEED.
INADEQUATE VENTILATION CREATES HAZARD TO THE USER AND RISK FOR INJURY.
FOR MODELS MO8800 THE DRAINER MUST BE REMOVED WHEN UTILISING
THE HOB BURNER/S.
CAUTION: THIS WARNING REFERS TO MODELS WITH INCORPORATED SINK
UNIT AND HOB AND WITH GLASS LID DIVIDED BETWEEN SINK AND HOB.
THIS WARNING IS AFFIXED IN A VISIBLE POSITION ON THE SINK UNIT
GLASS LID. WHEN USING THE HOB WITH THE GLASS LID ON THE SINK UNIT
CLOSED, ALWAYS KEEP PANS ON HOB AT A DISTANCE OF 10 MM MINIMUM
FROM SINK UNIT GLASS LID.
CAUTION: THIS WARNING IS AFFIXED IN VISIBLE LOCATION ON THE HOB
GLASS LID. GLASS HOB LIDS MAY SHATTER WHEN HEATED. ALWAYS RAISE
THE LID BEFORE IGNITING A BURNER/S (HOB, OVEN AND GRILL) AND TURN
OFF ALL BURNERS (HOB, OVEN AND GRILL) AND LET THEM COOL DOWN
BEFORE LOWERING THE HOB GLASS LID.

MAINTENANCE INS TA LL ATIONUSE
17
ENGLISH
8203 2 1 73 1 1,8 131
8203 M 2 1 73 1 1,8 131
8223 2 1 73 1 1,8 131
8223 M 2 1 73 1 1,8 131
PI0909 1 1 73 1 1,8 131
PI0909P 1 1 73 1 1,8 131
PI0913 2 1 73 1 1,8 131
PI0913A 2 1 73 1 1,8 131
PI2212 1 1 73 1 1,8 131
PI2212P 1 1 73 1 1,8 131
PI7803 1 1 73 2 1,8 131
PI7823 1 1 73 2 1,8 131
PI7903 1 1 73 1 1,8 131 1 2,2 160
PI7923 1 1 73 1 1,8 131 1 2,2 160
PI7903T 1 0,9 65 1 1,8 131 1 2,2 160
PI7923T 1 0,9 65 1 1,8 131 1 2,2 160
PI8002 1 1 73 1 1,8 131
PI8003 1 1 73 2 1,8 131
PI8004 1 1 73 2 1,8 131 1 2,2 160
PI8022 1 1 73 1 1,8 131
PI8023 1 1 73 2 1,8 131
PI8024 1 1 73 2 1,8 131 1 2,2 160
PI8042 1 1 73 1 1,8 131
PI8043 1 1 73 2 1,8 131
PI8062 1 1 73 1 1,8 131
PI8063 1 1 73 2 1,8 131
PI8403 1 1 73 2 1,8 131
PI8423 1 1 73 2 1,8 131
PI8443 1 1 73 2 1,8 131
PI8463 1 1 73 2 1,8 131
PI8621A 1 1 73
PI8621R 1 2,2 160
PI8621S 1 1,8 131
PI8802D 1 1 73 1 2,2 160
PI8802S 1 1 73 1 2,2 160
PI8822D 1 1 73 1 2,2 160
PI8822S 1 1 73 1 2,2 160
PI8842D 1 1 73 1 2,2 160
PI8842S 1 1 73 1 2,2 160
PI8862D 1 1 73 1 2,2 160
PI8862S 1 1 73 1 2,2 160
PI9003 2 1 73 1 1,8 131
PI9023 2 1 73 1 1,8 131
PI9803R 2 1 73 1 1,8 131
PI9803L 2 1 73 1 1,8 131
PI9823R 2 1 73 1 1,8 131
PI9823L 2 1 73 1 1,8 131
HBH1303ILG 1 1 73 1 1,6 116 1 2,2 160
HBH1303IRG 1 1 73 1 1,6 116 1 2,2 160
BURNERS
Technical specifications for burners referring to appliance model:
THERMAL CAPACITY BURNERSMODEL
SEMI-RAPID
Ø 62 mm
AUXILIARY
Ø 47 mm RAPID Ø 77 mm
nr. Kw gr/h nr. Kw gr/h nr. Kw gr/h

MAINTENANCE INS TA LL ATIONUSE
18
ENGLISH
7103 2 1 73 1 1,8 131
7123 2 1 73 1 1,8 131
8103 VD 2 1 73 1 1,8 131
8103 VDM 2 1 73 1 1,8 131
8123 VD 2 1 73 1 1,8 131
8123 VDM 2 1 73 1 1,8 131
MO0903 2 1 73 1 1,8 131
MO0911 1 1 73 1 1,8 131
MO0911P 1 1 73 1 1,8 131
MO0917D 1 1 73 1 1,8 131
MO0917S 1 1 73 1 1,8 131
MO0921D 1 1 73 1 1,8 131
MO0921S 1 1 73 1 1,8 131
MO0927D 1 1 73 1 1,8 131
MO0927S 1 1 73 1 1,8 131
MO8302 1 1 73 1 1,8 131
MO8303 2 1 73 1 1,8 131
MO8322 1 1 73 1 1,8 131
MO8323 2 1 73 1 1,8 131
MO8342 1 1 73 1 1,8 131
MO8362 1 1 73 1 1,8 131
MO8801D 1 1 73
MO8801S 1 1 73
MO8821D 1 1 73
MO8821S 1 1 73
MO8952 2 1,8 131
MO9122 2 1,8 131
MO9202D 1 1 73 1 1,8 131
MO9202S 1 1 73 1 1,8 131
MO9222D 1 1 73 1 1,8 131
MO9222S 1 1 73 1 1,8 131
MO9303 1 1 73 1 1,8 131 1 2,2 160
MO9323 1 1 73 1 1,8 131 1 2,2 160
MO9503 1 1 73 1 1,8 131 1 2,2 160
MO9523 1 1 73 1 1,8 131 1 2,2 160
MO9702L 1 1 73 1 1,8 131
MO9702R 1 1 73 1 1,8 131
MO9722L 1 1 73 1 1,8 131
MO9722R 1 1 73 1 1,8 131
THERMAL CAPACITY BURNERSMODEL
SEMI-RAPID
Ø 62 mm
AUXILIARY
Ø 47 mm RAPID Ø 77 mm
nr. Kw gr/h nr. Kw gr/h nr. Kw gr/h
Technical specifications for burners referring to appliance model:

MAINTENANCE INS TA LL ATIONUSE
AUXILIARY
Ø 47 mm from 6 to 16 cm
SEMI-RAPID
Ø 62 mm from 16 to 22 cm
from 10 to 16 cm (MOD. HBH1303ILG/IRG)
RAPID
Ø 77 mm from 16 to 22 cm
BURNER PAN DIAMETER
19
ENGLISH
To ignite burner, gently push-in and turn the control knob to position HIGH FLAME and maintaining the knob pushed
at the same time press the electronic ignition pushbutton. Once the burner is alight maintain the knob in this position
for a few seconds to the ensure the flame remains alight.
-MANUAL IGNITION HOB
- SELECTING BURNER
- ELECTRONIC IGNITION HOB (DEPENDING ON MODEL)
HOB
Manual ignition when the appliance is not fitted with the electronic ignition feature or in the event of failure in the
electronic ignition.
MAKE SURE THERE ARE NO PANS OR OTHER ANY OBJECTS ON THE BURNERS
WHEN IGNITING.
IF THE BURNER DOES NOT IGNITE IMMEDIATELY REPEAT IGNITION AFTER
HAVING FOLLOWED EACH STEP BELOW:
• TURN THE KNOB TO “SMALL FLAME”
• PROCEED WITH MANUAL IGNITION
• CHECK THERE IS SUFFICIENT GAS IN THE GAS BOTTLE.
IF THE APPLIANCE STILL DOES NOT IGNITE SHUT OFF THE GAS SUPPLY AT
THE MAIN GAS TAP AND CONTACT YOUR LOCAL DEALER.
MAKE SURE THERE ARE NO PANS OR OTHER ANY OBJECTS ON THE BURNERS WHEN IGNITING.
To ignite burner, gently push-in and turn the control knob to position HIGH FLAME and maintaining the knob pushed at
the same time light the burner with a match or gas lighter. Once the burner is alight maintain the knob in this position
for a few seconds to ensure the flame remains alight.
IF THE BURNER DOES NOT IGNITE IMMEDIATELY CHECK THERE IS
SUFFICIENT GAS IN THE GAS BOTTLE.
IF THE APPLIANCE STILL DOES NOT IGNITE SHUT OFF THE GAS SUPPLY AT
THE MAIN GAS TAP AND CONTACT YOUR LOCAL DEALER.
- HOB FLAME REGULATION
To regulate flame turn the knob to the desired cooking flame.
THE FLAME MUST NEVER EXTEND BEYOND THE EDGE OF THE PAN. CENTRE
THE PAN OVER THE BURNER ENSURING STABILITY ON THE PAN SUPPORT.

MAINTENANCE INS TA LL ATIONUSE
20
ENGLISH
GAS CYLINDERS/BOTTLES
The appliance runs off standard gas bottles which can be found in the country of use. The type of gas to use is clearly
marked on the packaging and on the specifications label affixed to the rear of the appliance. However always respect the
following instructions: gas bottles must always be located and positioned in the compartment provided for this purpose.
They must always be vertical and fitted with a valve and pressure regulator. Do not obstruct or impede access to the
gas bottle to permit quick and easy access when replacing.
WARNING! When replacing the gas bottle always take the following precautions:
a) close all gas knobs;
b) make sure there are no flames or fires in proximity of the gas bottle;
c) close the gas valve on the bottle to be replaced;
d) unscrew the pressure regulator on the empty bottle and remove the bottle from the purpose compartment. This
procedure is inverted for fitting a new bottle. Check for gas leaks utilising a non-corrosive fluid. Do not use a water
and soap solution.
NEVER USE A FLAME TO CHECK FOR GAS LEAKS;
e) ignite the burners to check they function correctly. If there are problems call in an authorised gas service engineer.
AFTER APPLIANCE USE ALWAYS TURN OFF THE GAS TAP ON THE BOTTLE
GAS LEAKS
We recommend the use of an electronic and homologated gas detector for checking ambient air.
If there is a smell of gas;
a) immediately open the windows and evacuate the vehicle or caravan.
b) do not turn on or off light switches or other electronic appliances, do not light matches or lighters or anything that
could cause the gas to ignite;
c) put out any flames
d) shut off the valve on the gas bottle or cylinder. Do not re-open this valve unless the gas leak has been identified and
eliminated.
e) contact a specialised gas service engineer.
NEVER OPERATE THE APPLIANCE WITH GAS AND OR AT GAS PRESSURES DIFFERENT TO THOSE
INDICATED BY SMEV AS THIS COULD CAUSE IRREGULAR AND INCORRECT OPERATION. SMEV
DECLINES ALL RESPONSIBILITY FOR DAMAGE OR INJURY CAUSED BY AN INCORRECT OR
IMPROPER USE OF THE APPLIANCE.
VISUAL FLAME CONTROL
Depending on the type of gas used the flame should be:
Propane (G31): blue flame without yellow tips.
Butane (G30): flame with yellow tips when ignited which becomes more intense in colour as the burner heats.

USE INSTALL ATIONMAINTENANCE
MAINTENANCE
21
ENGLISH
BEFORE CLEANING THE APPLIANCE ALWAYS TURN IT OFF AND DISCONNECT FROM POWER
SUPPLY AND WAIT UNTIL IT HAS COOLED DOWN.
PLEASE MAKE SURE NOT TO REMOVE THE GREASE ON THE HINGES. IF THE GREASE NEEDS
TO BE REPLENISHED, WE SUGGEST TO USE THE LOCTITE 8104 GREASE OR OTHER FOOD SAFE
ALTERNATIVES.
SURFACES THAT ARE STILL HOT CAN BE DAMAGED IF THEY COME INTO CONTACT WITH COLD
WATER OR A DAMP CLOTH.
NEVER USE ABRASIVE, CORROSIVE OR CHLORINE BASED CLEANING PRODUCTS. NEVER USE
STEEL OR PLASTIC SCOURING PADS. NEVER LEAVE DEPOSITS OF ACID OR ALKALINE SUBSTANCES
(VINEGAR, SALT, LEMON JUICE ETC.) ON THE APPLIANCE. STAINLESS STEEL OR ENAMELLED
SURFACES MUST BE CLEANED ONLY WITH WATER AND SOAP OR A NEUTRAL DETERGENT,
THOROUGHLY RINSE AND DRY. USE CLEAN SPONGES OR CLOTHS TO CLEAN.
INJECTORS
CLEANING OR REPLACING GAS INJECTORS MUST ONLY BE PERFORMED BY AUTHORISED AND
QUALIFIED GAS SERVICE ENGINEERS. THE MANUFACTURER DECLINES ALL RESPONSIBILITY IN
REGARD.
CLEANING
BURNER Ø INJECTOR (mm)
SEMI-RAPID
Ø 62 mm
STAMPED N.
AUXILIARY
Ø 47 mm 0,50
0,45 ( MOD. PI7903T - PI7923T )
50
45 ( MOD. PI7903T - PI7923T )
RAPID
Ø 77 mm 0,75 75
TEST PRESSURE POINT (IF FITTED)
THE TEST PRESSURE POINT (PRESSURE CHECK VALVE) IS FITTED UNDER THE HOB. (FIG. 4 - PG. 143).
Removing and mounting this test pressure point (pressure check valve) must be performed by a qualified gas service
engineer. Gas pressure is related to the type of gas used to supply the appliance. Refer to chapter GAS in this manual.
When removing and mounting the injectors the injector holder must be must be held in place with the aid of a tool
(FIG. 5 - PAG. 144).
0,67
0,64 ( MOD. HBH1303ILG/IRG )
67
64 ( MOD. HBH1303ILG/IRG )

122
1 FIG.
A
C
D
B
B
A
B
C
D
135
135
500
30
mm

138
3 FIG.
MOD:
7103
7123
MO8302
MO8303
MO8322
MO8323
MO8342
MO8362
MO8801D
MO8801S
MO8821D
MO8821S
MO9202D
MO9202S
MO9222D
MO9222S
MO9702L
MO9702R
MO9722L
MO9722R
MOD:
PI7903
PI7923
PI7903T
PI7923T
PI7803
PI7823
PI8403
PI8423
PI8443
PI8463
PI8802D
PI8802S
PI8822D
PI8822S
PI8842D
PI8842S
PI8862D
PI8862S
PI9003
PI9023

144
5 FIG.

4445103323 LIBR34RB_2 407154338 2022/12/08
