Dometic SMP 301-07 User manual

SMP301-07
Power supply unit with battery
charger
Installation and Operating Manual. . . . . . . .5
Schaltnetzteil mit Batterielader
Montage- und Bedienungsanleitung . . . . . 18
Bloc d'alimentation avec chargeur
de batterie
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .32
Fuente conmutada con cargador
de batería
Instrucciones de montaje y de uso . . . . . . .46
Alimentatore a commutazione
con caricabatterie
Istruzioni di montaggio e d’uso . . . . . . . . .59
Voeding met acculader
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . . .73
Koplingsstrømforsyning med
batterilader
Monterings- og bruksanvisning . . . . . . . . . 86
EN
DE
FR
ES
IT
NL
NO
ENERGY & LIGHTING
ACCESSORIES
SMP301-07-IO-7s.book Seite 1 Montag, 16. Januar 2017 1:08 13

SMP301-07
2
1 2 3 4 5 6 7 8 9 10
17 16 15 14 13 12 11
1
SMP301-07-IO-7s.book Seite 2 Montag, 16. Januar 2017 1:08 13

SMP301-07
3
≥ 200 mm
≥ 50 mm
≥ 200 mm
≥ 200 mm
≥ 100 mm
≥ 200 mm
2
SMP301-07-IO-7s.book Seite 3 Montag, 16. Januar 2017 1:08 13

SMP301-07
4
A
B
1
2
3
3
1
4
SMP301-07-IO-7s.book Seite 4 Montag, 16. Januar 2017 1:08 13

EN
SMP301-07
5
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
6 Installing the power supply unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
7 Using the power supply unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
8 Maintaining and cleaning the power supply unit . . . . . . . . . . . . . . . . . . . . .15
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
SMP301-07-IO-7s.book Seite 5 Montag, 16. Januar 2017 1:08 13

EN
Explanation of symbols SMP301-07
6
1 Explanation of symbols
D
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
DANGER!
Safety instruction: Failure to observe this instruction will cause fatal or
serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
SMP301-07-IO-7s.book Seite 6 Montag, 16. Januar 2017 1:08 13

EN
SMP301-07 Safety instructions
7
2.1 General safety
!WARNING!
•This product can be used by children aged 8 years or over, as well as
by persons with diminished physical, sensory or mental capacities or a
lack of experience and knowledge, provided they are supervised, or
have been taught how to use the device safely and are aware of the
resulting risks.
•Cleaning and user maintenance must not be carried out by unsuper-
vised children.
•Only use the product as intended.
•Do not use the product in wet or damp environments or in areas
where there is a risk of gas or dust explosions.
•Maintenance and repair work may only be carried out by qualified per-
sonnel who are familiar with the risks involved and the relevant regula-
tions.
2.2 Safety when installing the product
!WARNING!
•The electrical installation may only be connected by qualified person-
nel and only in accordance with the national regulations. Incorrect
connection may cause severe hazards.
•Take the precautions necessary to ensure that children cannot inter-
fere with the product.
Dangerous situations may occur which cannot be recognised by
children!
ANOTICE!
•Do not expose the product to any heat source (such as direct sunlight
or heating). Avoid additional heating of the device in this way.
SMP301-07-IO-7s.book Seite 7 Montag, 16. Januar 2017 1:08 13

EN
Safety instructions SMP301-07
8
Electrical cables
!CAUTION!
•Lay the cables so that they cannot be tripped over or damaged.
•Have damaged power cables replaced by a specialist in accordance
with national regulations.
ANOTICE!
•If cables have to be fed through metal walls or other walls with sharp
edges, use ducts or bushings to prevent damage.
•Do not lay cables which are loose or bent next to electrically conduc-
tive material (metal).
•Do not pull on the cables.
•Do not lay the AC cable and the DC cable in the same duct.
•Fasten the cables securely.
2.3 Operating the product safely
!WARNING!
•Operate the product only if you are certain that the casing and the
cables are undamaged.
•Always disconnect the power supply when working on the product.
ANOTICE!
•Make sure the ventilation grilles in the product are not covered.
•Ensure good ventilation.
2.4 Operating the battery charger safely
DDANGER!
•The battery may emit explosive gases during the charging process.
Ensure that there are no sparks or flames in the vicinity of the battery.
Ensure that the product is sufficiently ventilated.
!WARNING!
•Wear safety glasses when handling the battery and especially when
connecting and disconnecting the battery.
•In the event of the skin or eyes coming into contact with battery acid,
rinse out the affected areas immediately with lots of water and call a
doctor.
SMP301-07-IO-7s.book Seite 8 Montag, 16. Januar 2017 1:08 13

EN
SMP301-07 Scope of delivery
9
•Only charge rechargeable batteries.
•Only charge the battery if it is not frozen.
•Do not put the battery charger on the battery.
•Do not cover the battery charger.
•Only use the battery charger if the casing, connections and cable are
undamaged.
ANOTICE!
•A charging voltage of up to 15 V is possible during the charging pro-
cess. Ensure that there are no consumer units connected to the battery
during the charging process. This is to prevent the consumer units
connected from being damaged.
•The battery charger switches to preservation mode following the
charging process. If the battery charger does not switch out of charge
mode, disconnect the battery charger from the battery. Have the bat-
tery charger checked by a specialist electrician.
•Regularly check the battery for damage and for errors when it is in use.
A defective battery is detected by the battery charger during the
charging process.
3Scopeofdelivery
•Power supply unit
•Battery charger
•Installation and operating manual
4 Intended use
The power supply unit SMP301-07 (ref. no. 9106505556) is suitable for installation
in habitable recreational vehicles (e.g. motor homes, caravans, boats etc.). The
power supply unit SMP301-07 is used as the voltage supply for the DC consumer
units and can be supplied with AC or DC.
The battery charger is suitable for charging 6-cell lead batteries (lead-acid, gel,
AGM) with a capacity of 50 Ah to 300 Ah. Do not use the battery charger for any
other purpose and do not use it to charge other types of batteries.
The power supply unit and battery charger are approved for permanent operation.
SMP301-07-IO-7s.book Seite 9 Montag, 16. Januar 2017 1:08 13

EN
Technical description SMP301-07
10
5 Technical description
The power supply unit can be connected to an external power supply and to a
battery.
The integrated priority circuit automatically switches over from battery operation to
mains operation when an external power supply is available.
In mains operation, the power supply unit supplies consumer units with a constant
DC of 12.7 V. The battery is disconnected from the consumer units automatically and
is charged via the battery charger.
Battery operation is activated automatically if mains operation is deactivated. The
consumer units connected are supplied with energy via the battery.
In mains operation, the battery charger supplies the battery with a constant charging
voltage. The battery charger can supply a charging current of up to 20 A until a
battery voltage of 12.7 V is reached. The battery charger can supply a charging
current of up to 5 A at a battery voltage in excess of 12.7 V. The charging process for
the battery is shorter if as many consumer units as possible are switched off. Once the
battery is fully charged, the battery charger supplies it with a float charge.
The battery charger has the following safety functions:
•Overheating protection:
The charging current is reduced if the ambient temperature is too high.
•Deep discharge protection:
Battery operation is deactivated if the battery voltage drops below 10.8 V.
SMP301-07-IO-7s.book Seite 10 Montag, 16. Januar 2017 1:08 13

EN
SMP301-07 Technical description
11
5.1 Connections and displays
The LED LD6B indicates the battery charging status as follows:
•Main charge (12.7 V):
flashes yellow slowly (1 second on, 1 second off)
•Equalising charge (approx. 14.4 V):
flashes yellow quickly (0.5 seconds on, 0.5 seconds off)
•Charging process complete:
lights up yellow
•Fault:
flashes yellow very quickly
No. in
fig. 1, page 2 Element
1 AC plug
2 LED LD6B “battery charging status”
3 LED LD6 “battery fuse defective”
4 2x flat plug P6 for positive terminal battery
5 Battery fuse F6 (20 A type ATO)
6 Plug-in fuse F1 for output group 1 (maximum 15 A)
7 Plug-in fuse F2 for output group 2 (maximum 15 A)
8 Plug-in fuse F3 for output group 3 (maximum 15 A)
9 Plug-in fuse F4 for output group 4 (maximum 15 A)
10 Plug-in fuse F5 for output group 5 (maximum 15 A)
11 3x flat plug P5 6.3 mm for group 5
12 3x flat plug P4 6.3 mm for group 4
13 Flat plug P3 6.3 mm for group 3
14 Flat plug P2 6.3 mm for group 2
15 Flat plug P1 6.3 mm for group 1
16 5x LED “plug-in fuse F1 – F5 defective” (LD1 – LD5)
17 10x flat plug P7 6.3 mm battery terminal / common earth connection
SMP301-07-IO-7s.book Seite 11 Montag, 16. Januar 2017 1:08 13

EN
Installing the power supply unit SMP301-07
12
6 Installing the power supply unit
6.1 Fastening the power supply unit
When selecting the installation location, observe the following instructions:
•The power supply unit must be installed vertically on a wall (maximum ambient
temperature 50 °C) or horizontally on the ground or on a pedestal (maximum
ambient temperature 40 °C and maximum load 75 %).
•The optimum installation position is vertically on a wall.
•The power supply unit must be installed in a location that is protected from
moisture.
•The power supply unit must not be installed in areas with easily flammable
materials (e.g. gas cylinder lockers).
•The power supply unit must not be installed in a dusty environment.
•The place of installation must be well ventilated. A ventilation system must be
available for installations in small, enclosed spaces. Please observe the minimum
clearance around the power supply unit (fig. 2, page 3).
•There must be free space in front of the ventilation grills.
•When ambient temperatures are higher than those stated above (such as in
engine or heating compartments, or when exposed to direct sunlight), the heat
produced by the power supply unit when under load can lead to automatic
shutdown.
•The installation area must be a level and sufficiently sturdy surface.
A
Fasten the power supply unit as follows:
➤Screw one screw through each of the four bore holes in the four fastening tabs
(fig. 33, page 4).
NOTICE!
Before drilling any holes, make sure that no electrical cables or other
parts of the vehicle can be damaged by drilling, sawing and filing.
SMP301-07-IO-7s.book Seite 12 Montag, 16. Januar 2017 1:08 13

EN
SMP301-07 Installing the power supply unit
13
6.2 Connecting the power supply unit
Please note that flat plugs P1 – P6 are individually fused via plug-in fuses F1 – F6 in the
following manner:
➤Press the two tabs (fig. 31, page 4) in the direction indicated by the arrows and
lift the cover off (fig. 32, page 4).
➤Connect the positive terminal of the consumer units to the flat plugs P1 – P5
(fig. 111 – 15, page 2).
➤Connect the negative terminal of the consumer units to one of the flat plugs P7
(any pin) (fig. 117, page 2).
➤Connect the positive terminal of the battery to one of the flat plugs P6 (fig. 14,
page 2).
➤Connect the negative terminal of the battery to one of the flat plugs P7 (any pin)
(fig. 117, page 2).
➤Connect the AC connection cable to the AC plug (fig. 11, page 2).
➤Ensure that the cable length between the battery and the power supply unit is not
more than 2 m.
➤Secure all cables with strain relief clamps.
Flat plug Fuse Fuse assignment Maximum permissible
current
P1 F1 10 A 15 A
P2 F2 10 A 15 A
P3 F3 5 A 15 A
P4 F4 5 A 15 A
P5 F5 10 A 15 A
P6 F6 20 A 20 A
SMP301-07-IO-7s.book Seite 13 Montag, 16. Januar 2017 1:08 13

EN
Using the power supply unit SMP301-07
14
7 Using the power supply unit
The power supply unit switches on as soon as an external power supply is available.
Only replace a plug-in fuse which has blown (fig. 15 – 10, page 2) with a plug-in
fuse of equivalent quality.
Please contact the manufacturer's branch in your country (see the back of the instruc-
tion manual for the addresses) or your retailer if the function cannot be restored by
switching on the fuses or replacing the plug-in fuse.
7.1 Using the surge protector (optional)
The optional surge protector is connected on the supply side of the power supply
unit. The surge protector disconnects the power supply line if the input voltage
exceeds approx. 270 V.
➤Check whether the red LED (fig. 41, page 4) lights up.
✓If the red LED lights up, this indicates that a voltage surge has occurred.
➤Wait 20 – 30 minutes.
✓The surge protector resets itself automatically as soon as the voltage returns to a
permissible value. Once the voltage hasreached a permissible value, thered LED
remains lit up for 20 – 30 minutes.
SMP301-07-IO-7s.book Seite 14 Montag, 16. Januar 2017 1:08 13

EN
SMP301-07 Maintaining and cleaning the power supply unit
15
7.2 Replacing the plug-in fuses
I
➤Disconnect all consumer units from the power supply unit.
➤Disconnect the power supply unit from the power supply.
➤Press the two tabs (fig. 31, page 4) in the direction indicated by the arrows and
lift the cover off (fig. 32, page 4).
➤Only replace plug-in fuses which have blown with new plug-in fuses of the type
“ATO Type – LITTLEFUSE” and the same rating.
➤Re-attach the cover to the power supply unit.
➤Put the power supply unit back into operation.
➤If the plug-in fuse is tripped again, please contact the manufacturer's branch in
your country (see the back of the instruction manual for the addresses) or your
retailer.
8 Maintaining and cleaning the power
supply unit
A
➤Clean the power supply unit using a damp cloth as required.
NOTE
The positioning of the plug-in fuses is used to configure manufacturer-
specific functions.
When replacing a plug-in fuse, take care to fit the replacement in the
same place. Malfunctions may occur otherwise.
NOTICE!
Do not use any sharp or hard objects for cleaning since they may
damage the device.
SMP301-07-IO-7s.book Seite 15 Montag, 16. Januar 2017 1:08 13

EN
Troubleshooting SMP301-07
16
9 Troubleshooting
10 Warranty
The statutory warranty period applies. If the product is defective, please contact the
manufacturer's branch in your country (see the back of the instruction manual for the
addresses) or your retailer.
For repair and guarantee processing, please include the following documents when
you send in the device:
•A copy of the receipt with purchasing date
•A reason for the claim or description of the fault
11 Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
MIf you wish to finally dispose of the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
Fault Cause Remedy
12 V outputs
are not being
supplied in
mains
operation.
The plug-in fuse of the associated 12 V
output (e.g. fig. 16, page 2) is
defective. The red LED next to the
plug-in fuse lights up.
Replace it with a plug-in fuse of
equivalent quality.
The power supply unit has switched off
as a result of the surge protector. The
red LED (fig. 41, page 4) lights up.
The surge protector resets itself
automatically as soon as the
voltage returns to a permissible
value. If this is not the case,
contact a specialist electrician.
12 V outputs
are not being
supplied in
battery
operation.
The plug-in fuse of the associated 12 V
output (e.g. fig. 16, page 2) is
defective. The red LED next to the
plug-in fuse lights up.
Replace it with a plug-in fuse of
equivalent quality.
The battery has been connected
incorrectly.
Connect the battery correctly
(chapter “Connecting the power
supply unit” on page 13).
SMP301-07-IO-7s.book Seite 16 Montag, 16. Januar 2017 1:08 13

EN
SMP301-07 Technical data
17
12 Technical data
SMP301-07
Ref. no.: 9106505556
Rated input voltage: 230 Vw
12 Vg
Constant output power: 350 W
Output voltage: 12.7 Vg
Amperage: 27 A
Ambient temperature: –10 °C to +40 °C
Housing: Protection class 20
Dimensions (L x W x H): 240 x 207 x 56 mm
Weight: 1 kg
Inspection/certification:
SMP301-07-IO-7s.book Seite 17 Montag, 16. Januar 2017 1:08 13

DE
SMP301-07
18
Bitte lesen Sie diese Anleitung vor Einbau und Inbetriebnahme sorgfältig
durch und bewahren Sie sie auf. Geben Sie sie im Falle einer Weitergabe
des Produktes an den Nutzer weiter.
Inhaltsverzeichnis
1 Erläuterung der Symbole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
2 Sicherheitshinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
3 Lieferumfang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4 Bestimmungsgemäßer Gebrauch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5 Technische Beschreibung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6 Schaltnetzteil montieren. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7 Schaltnetzteil benutzen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
8 Schaltnetzteil pflegen und reinigen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
9 Fehlerbeseitigung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
10 Gewährleistung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
11 Entsorgung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
12 Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
SMP301-07-IO-7s.book Seite 18 Montag, 16. Januar 2017 1:08 13

DE
SMP301-07 Erläuterung der Symbole
19
1 Erläuterung der Symbole
D
!
!
A
I
2 Sicherheitshinweise
Der Hersteller übernimmt in folgenden Fällen keine Haftung für Schäden:
•Montage- oder Anschlussfehler
•Beschädigungen am Produkt durch mechanische Einflüsse und Über-
spannungen
•Veränderungen am Produkt ohne ausdrückliche Genehmigung vom Hersteller
•Verwendung für andere als die in der Anleitung beschriebenen Zwecke
GEFAHR!
Sicherheitshinweis: Nichtbeachtung führt zu Tod oder schwerer
Verletzung.
WARNUNG!
Sicherheitshinweis: Nichtbeachtung kann zu Tod oder schwerer
Verletzung führen.
VORSICHT!
Sicherheitshinweis: Nichtbeachtung kann zu Verletzungen führen.
ACHTUNG!
Nichtbeachtung kann zu Materialschäden führen und die Funktion des
Produktes beeinträchtigen.
HINWEIS
Ergänzende Informationen zur Bedienung des Produktes.
SMP301-07-IO-7s.book Seite 19 Montag, 16. Januar 2017 1:08 13

DE
Sicherheitshinweise SMP301-07
20
2.1 Grundlegende Sicherheit
!WARNUNG!
•Dieses Produkt kann von Kindern ab 8 Jahren und darüber sowie von
Personen mit verringerten physischen, sensorischen oder mentalen
Fähigkeiten oder Mangel an Erfahrung und Wissen benutzt werden,
wenn sie beaufsichtigt oder bezüglich des sicheren Gebrauchs des
Gerätes unterwiesen wurden und die daraus resultierenden Gefahren
verstehen.
•Reinigung und Benutzer-Wartung dürfen nicht von Kindern ohne
Beaufsichtigung durchgeführt werden.
•Benutzen Sie das Produkt nur zu seinem bestimmungsgemäßen
Gebrauch.
•Betreiben Sie das Produkt nicht in feuchter oder nasser Umgebung
oder in Bereichen, in denen Gefahr durch Gas- oder Staubexplosion
besteht.
•Die Wartung und Reparatur darf nur durch eine Fachkraft geschehen,
die mit den damit verbundenen Gefahren bzw. einschlägigen Vor-
schriften vertraut ist.
2.2 Sicherheit bei der Installation des Produkts
!WARNUNG!
•Die elektrische Installation darf nur von einer Fachkraft nach den natio-
nalen Vorschriften angeschlossen werden. Durch unsachgemäßes
Anschließen können erhebliche Gefahren entstehen.
•Sichern Sie das Produkt so, dass Kinder keinen Zugriff darauf haben.
Es können Gefahren entstehen, die von Kindern nicht erkannt wer-
den!
AACHTUNG!
•Setzen Sie das Produkt keiner Wärmequelle (Sonneneinstrahlung,
Heizung usw.) aus. Vermeiden Sie so zusätzliche Erwärmung des
Gerätes.
SMP301-07-IO-7s.book Seite 20 Montag, 16. Januar 2017 1:08 13
Table of contents
Languages:

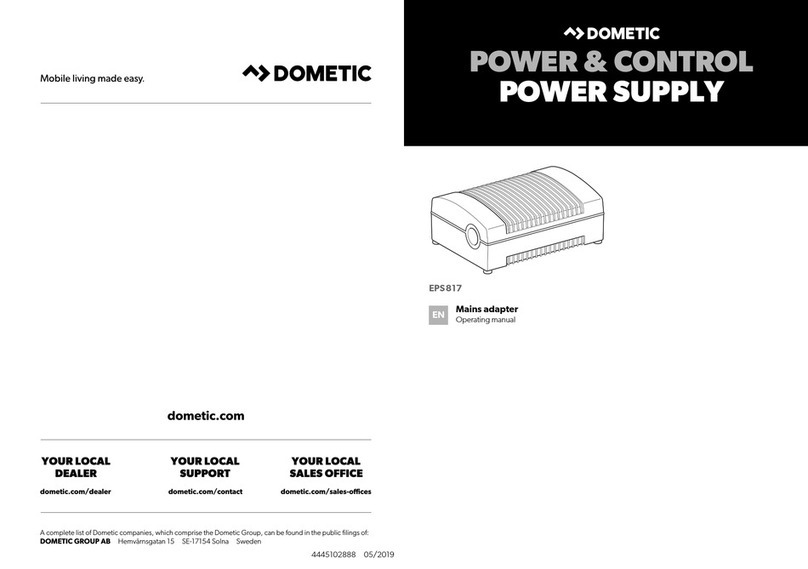

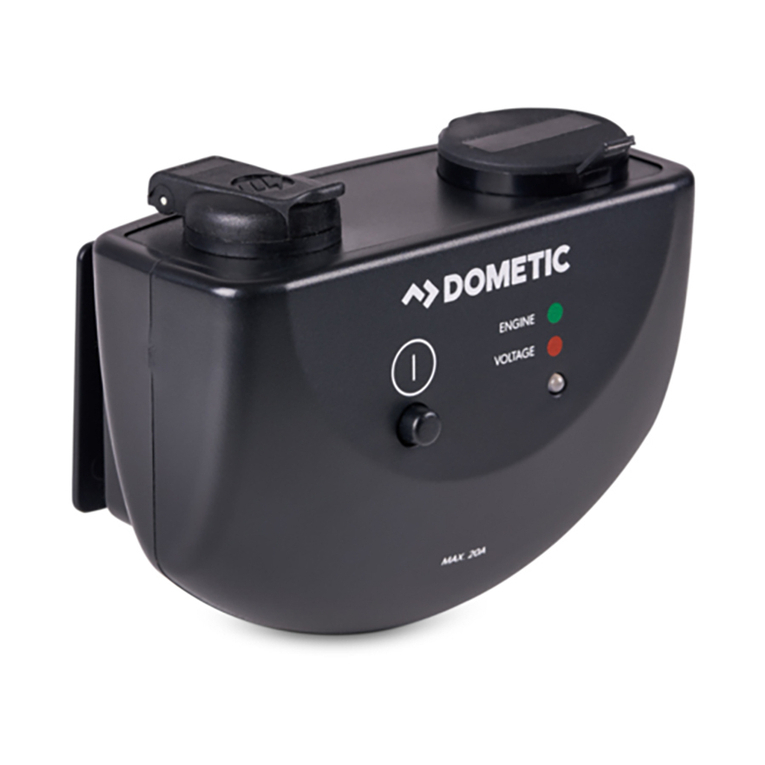

Other Dometic Power Supply manuals
Popular Power Supply manuals by other brands

Puls

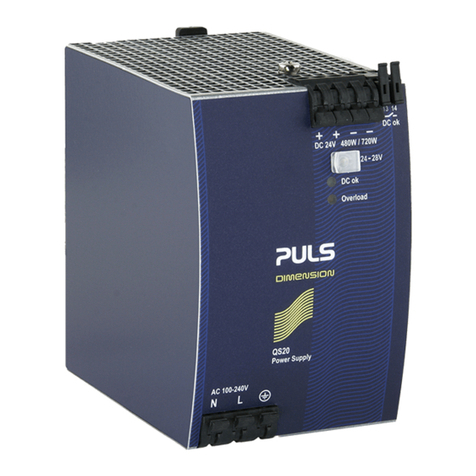

Puls QS20.481 instruction manual

BatteryMINDer

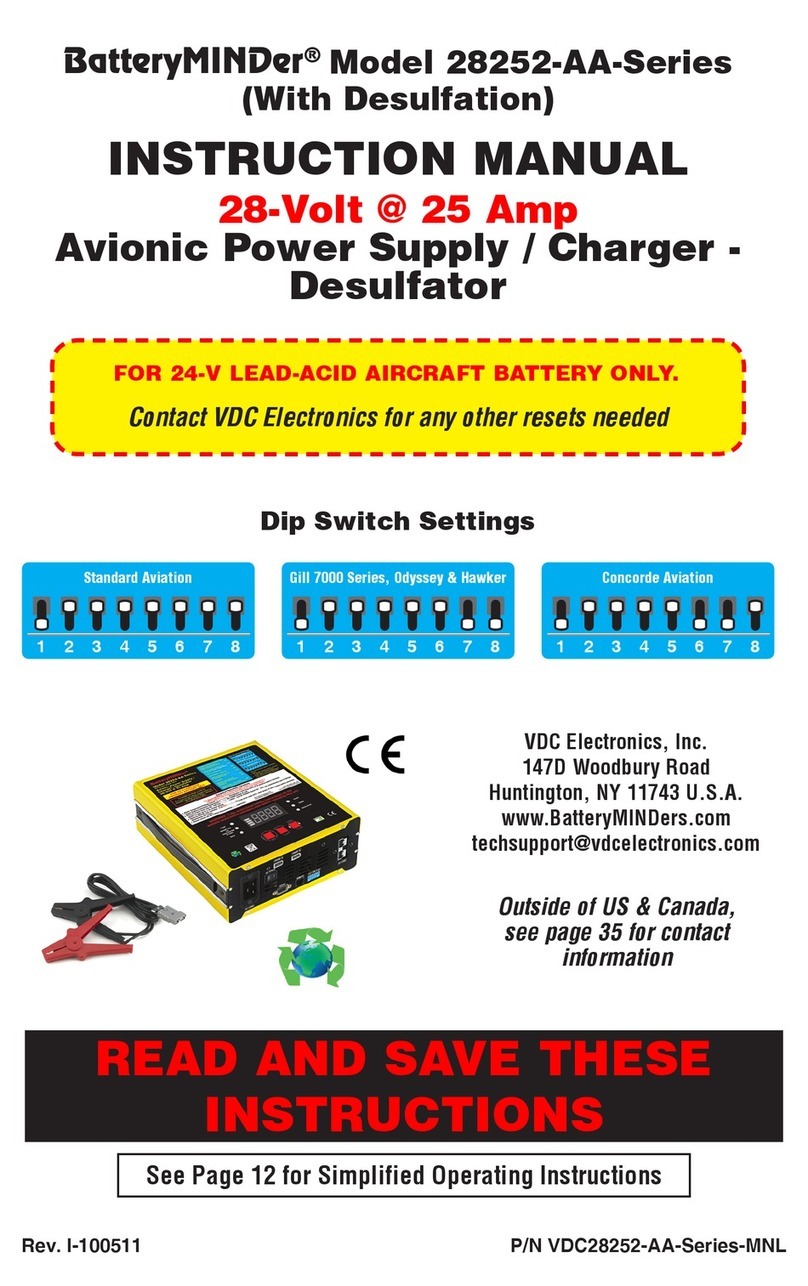

BatteryMINDer 28252-AA-Series instruction manual

Gallagher
Gallagher MB1800i instructions

Friwo
Friwo FOX6 FW8002 Series User instructions

Monster
Monster PowerNet 200 Instructions and warranty information

Rockwell Automation
Rockwell Automation 1606-XLE96B-2 instruction manual
