Dometic SMP301-02 User manual

SMP301-02, SMP301-03
Power supply unit
Installation and Operating Manual. . . . . . . . 6
Schaltnetzteil
Montage- und Bedienungsanleitung . . . . .20
Bloc d'alimentation
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .34
Fuente conmutada
Instrucciones de montaje y de uso . . . . . . .48
Alimentatore a commutazione
Istruzioni di montaggio e d’uso . . . . . . . . .62
Voeding
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . . .76
Koplingsstrømforsyning
Monterings- og bruksanvisning . . . . . . . . .90
EN
DE
FR
ES
IT
NL
NO
ENERGY & LIGHTING
ACCESSORIES
SMP301-02_03-IO-7s.book Seite 1 Donnerstag, 1. Juni 2017 3:40 15

SMP301-02_03-IO-7s.book Seite 2 Donnerstag, 1. Juni 2017 3:40 15

SMP301-02/-03
3
1
1
SMP 301-02
2345
11 67
89
10
2
1 2 3 4 5
67
89
10
1112
SMP 301-03
SMP301-02_03-IO-7s.book Seite 3 Donnerstag, 1. Juni 2017 3:40 15

SMP301-02/-03
4
≥ 200 mm
≥ 50 mm
≥ 200 mm
≥ 200 mm ≥ 100 mm
≥ 200 mm
A
B
3
SMP301-02_03-IO-7s.book Seite 4 Donnerstag, 1. Juni 2017 3:40 15

SMP301-02/-03
5
A
B
1
2
3
4
1
5
SMP301-02_03-IO-7s.book Seite 5 Donnerstag, 1. Juni 2017 3:40 15

EN
SMP301-02/-03
6
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
6 Installing the power supply unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
7 Using the power supply unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
8 Maintaining and cleaning the power supply unit . . . . . . . . . . . . . . . . . . . . .17
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
SMP301-02_03-IO-7s.book Seite 6 Donnerstag, 1. Juni 2017 3:40 15

EN
SMP301-02/-03 Explanation of symbols
7
1 Explanation of symbols
D
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
DANGER!
Safety instruction: Failure to observe this instruction will cause fatal or
serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
SMP301-02_03-IO-7s.book Seite 7 Donnerstag, 1. Juni 2017 3:40 15

EN
Safety instructions SMP301-02/-03
8
2.1 General safety
!WARNING!
•This product can be used by children aged 8 years or over, as well as
by persons with diminished physical, sensory or mental capacities or a
lack of experience and knowledge, provided they are supervised, or
have been taught how to use the device safely and are aware of the
resulting risks.
•Cleaning and user maintenance must not be carried out by unsuper-
vised children.
•Only use the product as intended.
•Do not use the product in wet or damp environments or in areas
where there is a risk of gas or dust explosions.
•Maintenance and repair work may only be carried out by qualified per-
sonnel who are familiar with the risks involved and the relevant regula-
tions.
2.2 Safety when installing the product
!WARNING!
•The electrical installation may only be connected by qualified person-
nel and only in accordance with the national regulations. Incorrect
connection may cause severe hazards.
•Take the precautions necessary to ensure that children cannot inter-
fere with the product.
Dangerous situations may occur which cannot be recognised by
children!
ANOTICE!
•Do not expose the product to any heat source (such as direct sunlight
or heating). Avoid additional heating of the device in this way.
SMP301-02_03-IO-7s.book Seite 8 Donnerstag, 1. Juni 2017 3:40 15

EN
SMP301-02/-03 Scope of delivery
9
Electrical cables
!CAUTION!
•Lay the cables so that they cannot be tripped over or damaged.
•Have damaged power cables replaced by a specialist in accordance
with national regulations.
ANOTICE!
•If cables have to be fed through metal walls or other walls with sharp
edges, use ducts or bushings to prevent damage.
•Do not lay cables which are loose or bent next to electrically conduc-
tive material (metal).
•Do not pull on the cables.
•Do not lay the AC cable and the DC cable in the same duct.
•Fasten the cables securely.
2.3 Operating the product safely
!WARNING!
•Operate the product only if you are certain that the casing and the
cables are undamaged.
•Always disconnect the power supply when working on the product.
ANOTICE!
•Make sure the ventilation grilles in the product are not covered.
•Ensure good ventilation.
3Scopeofdelivery
•Power supply unit
•Installation and operating manual
SMP301-02_03-IO-7s.book Seite 9 Donnerstag, 1. Juni 2017 3:40 15

EN
Intended use SMP301-02/-03
10
4 Intended use
The power supply unit type SMP301-02/-03 is intended for installation in recrea-
tional vehicles used as accommodation (e.g. motor homes, caravans, boats etc.).
The power supply unit is used as the voltage supply for DC consumer units, and can
be supplied with AC or DC power.
The power supply unit is approved for continuous operation.
5 Technical description
The power supply unit can be connected to an external power supply.
SMP301-03 only
The power supply unit can be connected to a battery.
The integrated priority circuit automatically switches over from battery operation to
mains operation when an external power supply is available.
In mains operation, the power supply unit supplies consumer units with a constant
DC of 12.7 V. The battery is automatically disconnected from the consumer units.
Battery operation is activated automatically if mains operation is deactivated. The
consumer units connected are supplied with energy via the battery.
SMP301-02_03-IO-7s.book Seite 10 Donnerstag, 1. Juni 2017 3:40 15

EN
SMP301-02/-03 Technical description
11
5.1 Connections and displays
SMP301-02
No. in
fig. 1, page 3 Element
1 Plug-in fuse F1 for output group 1 (maximum 15 A)
2 Plug-in fuse F2 for output group 2 (maximum 15 A)
3 Plug-in fuse F3 for output group 3 (maximum 15 A)
4 Plug-in fuse F4 for output group 4 (maximum 15 A)
5 Plug-in fuse F5 for output group 5 (maximum 15 A)
6 Flat plug P5 6.3 mm for group 5
7 Flat plug P4 6.3 mm for group 4
8 Flat plug P3 6.3 mm for group 3
9 Flat plug P2 6.3 mm for group 2
10 Flat plug P1 6.3 mm for group 1
11 4x flat plug P7 6.3 mm common earth connection
SMP301-02_03-IO-7s.book Seite 11 Donnerstag, 1. Juni 2017 3:40 15

EN
Technical description SMP301-02/-03
12
SMP 301-03
No. in
fig. 2, page 3 Element
1 Plug-in fuse F1 for output group 1 (maximum 10 A)
2 Plug-in fuse F2 for output group 2 (maximum 10 A)
3 Plug-in fuse F3 for output group 3 (maximum 5 A)
4 Plug-in fuse F4 for output group 4 (maximum 5 A)
5 Plug-in fuse F5 for output group 5 (maximum 10 A)
6 3x flat plug P5 6.3 mm for group 5
7 3x flat plug P4 6.3 mm for group 4
8 Flat plug P3 6.3 mm for group 3
9 Flat plug P2 6.3 mm for group 2
10 Flat plug P1 6.3 mm for group 1
11 10x flat plug P7 6.3 mm battery terminal / common earth connection
12 2x flat plug P6 for positive terminal battery
SMP301-02_03-IO-7s.book Seite 12 Donnerstag, 1. Juni 2017 3:40 15

EN
SMP301-02/-03 Installing the power supply unit
13
6 Installing the power supply unit
6.1 Fastening the power supply unit
When selecting the installation location, observe the following instructions:
•The power supply unit must be installed vertically on a wall (maximum ambient
temperature 50 °C) or horizontally on the ground or on a pedestal (maximum
ambient temperature 40 °C and maximum load 75 %).
•The optimum installation position is vertically on a wall.
•The power supply unit must be installed in a location that is protected from
moisture.
•The power supply unit must not be installed in areas with easily flammable
materials (e.g. gas cylinder lockers).
•The power supply unit must not be installed in a dusty environment.
•The place of installation must be well ventilated. A ventilation system must be
available for installations in small, enclosed spaces. Please observe the minimum
clearance around the power supply unit (fig. 3, page 4).
•There must be free space in front of the ventilation grills.
•When ambient temperatures are higher than those stated above (such as in
engine or heating compartments, or when exposed to direct sunlight), the heat
produced by the power supply unit when under load can lead to automatic
shutdown.
•The installation area must be a level and sufficiently sturdy surface.
A
Fasten the power supply unit as follows:
➤Screw one screw through each of the four bore holes in the four fastening tabs
(fig. 43, page 5).
NOTICE!
Before drilling any holes, make sure that no electrical cables or other
parts of the vehicle can be damaged by drilling, sawing and filing.
SMP301-02_03-IO-7s.book Seite 13 Donnerstag, 1. Juni 2017 3:40 15

EN
Installing the power supply unit SMP301-02/-03
14
6.2 Connecting the power supply unit
SMP 301-02
Please note that flat plugs P1 – P5 are individually fused via plug-in fuses F1 – F5 in the
following manner:

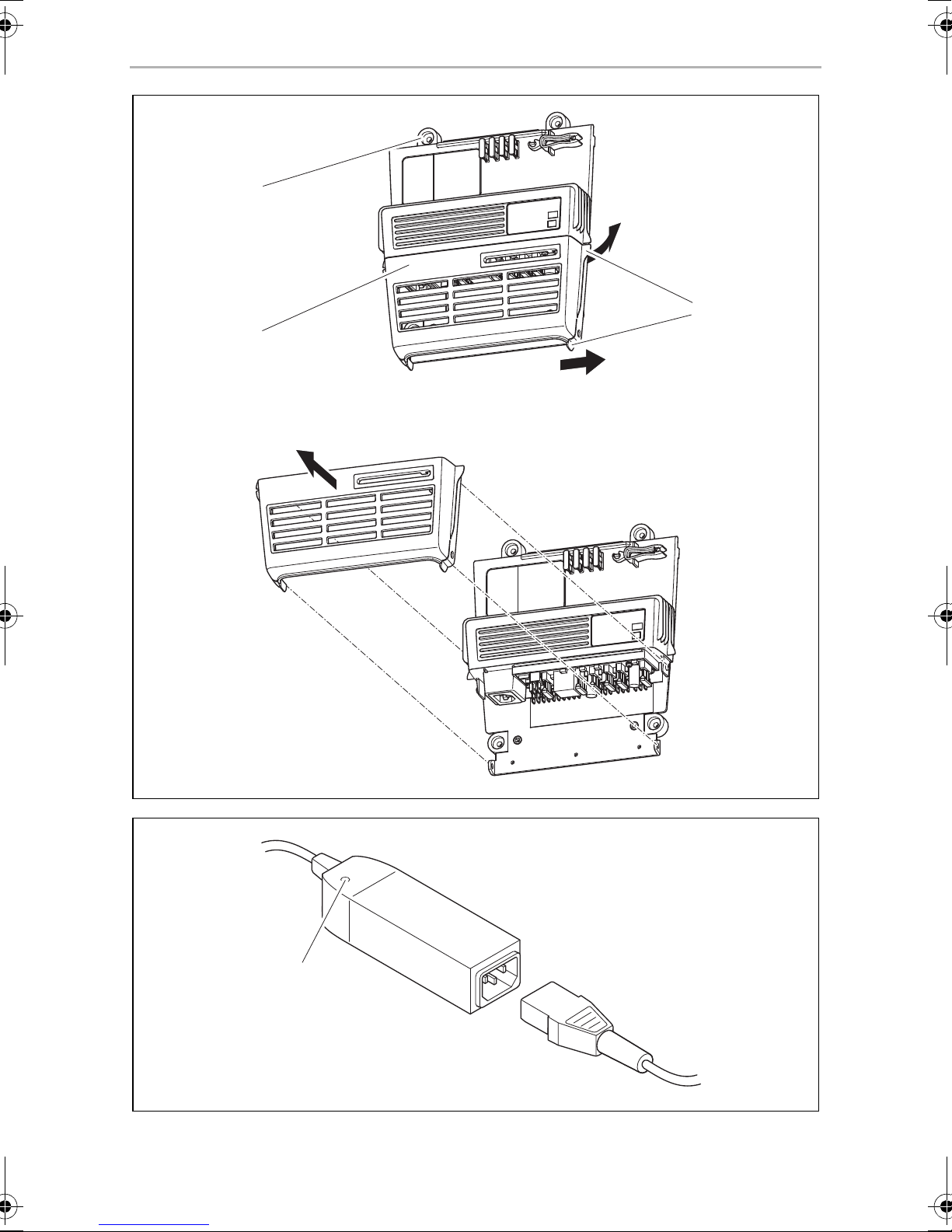

➤Press the two tabs (fig. 41, page 5) in the direction indicated by the arrows and
lift the cover off (fig. 42, page 5).
➤Connect the positive terminal of the consumer units to the flat plugs P1 – P5
(fig. 16–10,page3).
➤Connect the negative terminal of the consumer units to one of the flat plugs P7
(any pin) (fig. 111, page 3).
➤Connect the AC connection cable to the AC plug.
➤Secure all cables with strain relief clamps.
Flat plug Fuse Fuse assignment Maximum permissible
current
P1 F1 15 A 15 A
P2 F2 15 A 15 A
P3 F3 15 A 15 A
P4 F4 15 A 15 A
P5 F5 15 A 15 A
SMP301-02_03-IO-7s.book Seite 14 Donnerstag, 1. Juni 2017 3:40 15

EN
SMP301-02/-03 Installing the power supply unit
15
SMP 301-03
Please note that flat plugs P1 – P5 are individually fused via plug-in fuses F1 – F5 in the
following manner:
➤Press the two tabs (fig. 41, page 5) in the direction indicated by the arrows and
lift the cover off (fig. 42, page 5).
➤Connect the positive terminal of the consumer units to the flat plugs P1 – P5
(fig. 26–10,page3).
➤Connect the negative terminal of the consumer units to one of the flat plugs P7
(any pin) (fig. 211, page 3).
➤Connect the positive terminal of the battery to one of the flat plugs P6 (fig. 212,
page 3).
➤Connect the negative terminal of the battery to one of the flat plugs P7 (any pin)
(fig. 211, page 3).
➤Connect the AC connection cable to the AC plug.
➤Ensure that the cable length between the battery and the power supply unit is not
more than 2 m.
➤Secure all cables with strain relief clamps.
Flat plug Fuse Fuse assignment Maximum permissible
current
P1 F1 10 A 15 A
P2 F2 10 A 15 A
P3 F3 5 A 15 A
P4 F4 5 A 15 A
P5 F5 10 A 15 A
SMP301-02_03-IO-7s.book Seite 15 Donnerstag, 1. Juni 2017 3:40 15

EN
Using the power supply unit SMP301-02/-03
16
7 Using the power supply unit
The power supply unit switches on as soon as an external power supply is available.
Only replace a plug-in fuse which has blown (1 – 5 in fig. 1, page 3 to fig. 2,
page 3) with a plug-in fuse of equivalent quality.
Please contact the manufacturer's branch in your country (see the back of the instruc-
tion manual for the addresses) or your retailer if the function cannot be restored by
switching on the fuses or replacing the plug-in fuse.
7.1 Using the surge protector (optional)
The optional surge protector (ref. no. 9106505815) is connected on the supply side
of the power supply unit. The surge protector disconnects the power supply line if
the input voltage exceeds approx. 270 V.
➤Check whether the red LED (fig. 51, page 5) lights up.
✓If the red LED lights up, this indicates that a voltage surge has occurred.
➤Wait 20 – 30 minutes.
✓The surge protector resets itself automatically as soon as the voltage returns to a
permissible value. Once the voltage hasreached a permissible value, the redLED
remains lit up for 20 – 30 minutes.
SMP301-02_03-IO-7s.book Seite 16 Donnerstag, 1. Juni 2017 3:40 15

EN
SMP301-02/-03 Maintaining and cleaning the power supply unit
17
7.2 Replacing the plug-in fuses
I
➤Disconnect all consumer units from the power supply unit.
➤Disconnect the power supply unit from the power supply.
➤Press the two tabs (fig. 41, page 5) in the direction indicated by the arrows and
lift the cover off (fig. 42, page 5).
➤Only replace plug-in fuses which have blown with new plug-in fuses of the type
“ATO Type – LITTLEFUSE” and the same rating.
➤Re-attach the cover to the power supply unit.
➤Put the power supply unit back into operation.
➤If the plug-in fuse is tripped again, please contact the manufacturer's branch in
your country (see the back of the instruction manual for the addresses) or your
retailer.
8 Maintaining and cleaning the power
supply unit
A
➤Clean the power supply unit using a damp cloth as required.
NOTE
The positioning of the plug-in fuses is used to configure manufacturer-
specific functions.
When replacing a plug-in fuse, take care to fit the replacement in the
same place. Malfunctions may occur otherwise.
NOTICE!
Do not use any sharp or hard objects for cleaning since they may
damage the device.
SMP301-02_03-IO-7s.book Seite 17 Donnerstag, 1. Juni 2017 3:40 15

EN
Troubleshooting SMP301-02/-03
18
9 Troubleshooting
10 Warranty
The statutory warranty period applies. If the product is defective, please contact the
manufacturer's branch in your country (see the back of the instruction manual for the
addresses) or your retailer.
For repair and guarantee processing, please include the following documents when
you send in the device:
•A copy of the receipt with purchasing date
•A reason for the claim or description of the fault
Fault Cause Remedy
No power from
12 V outputs
when unit is
operating in
mains supply
mode.
The plug-in fuse of the related 12 V
output (e.g. fig. 11, page 3) is defec-
tive. The red LED next to the plug-in
fuse lights up.
Replace it with a plug-in fuse of
equivalent quality.
The power supply unit has switched off
as a result of the surge protector. The
red LED (fig. 51, page 5) lights up.
The surge protector resets itself
automatically as soon as the
voltage returns to a permissible
value. If this is not the case,
contact a specialist electrician.
No power from
12 V outputs
when unit is
operating in
battery mode.
The plug-in fuse of the related 12 V
output (e.g. fig. 11, page 3) is defec-
tive. The red LED next to the plug-in
fuse lights up.
Replace it with a plug-in fuse of
equivalent quality.
The battery has been connected
incorrectly.
Connect the battery correctly
(chapter “Connecting the power
supply unit” on page 14).
Contact an electrician,
if applicable.
SMP301-02_03-IO-7s.book Seite 18 Donnerstag, 1. Juni 2017 3:40 15

EN
SMP301-02/-03 Disposal
19
11 Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
MIf you wish to finally dispose of the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.

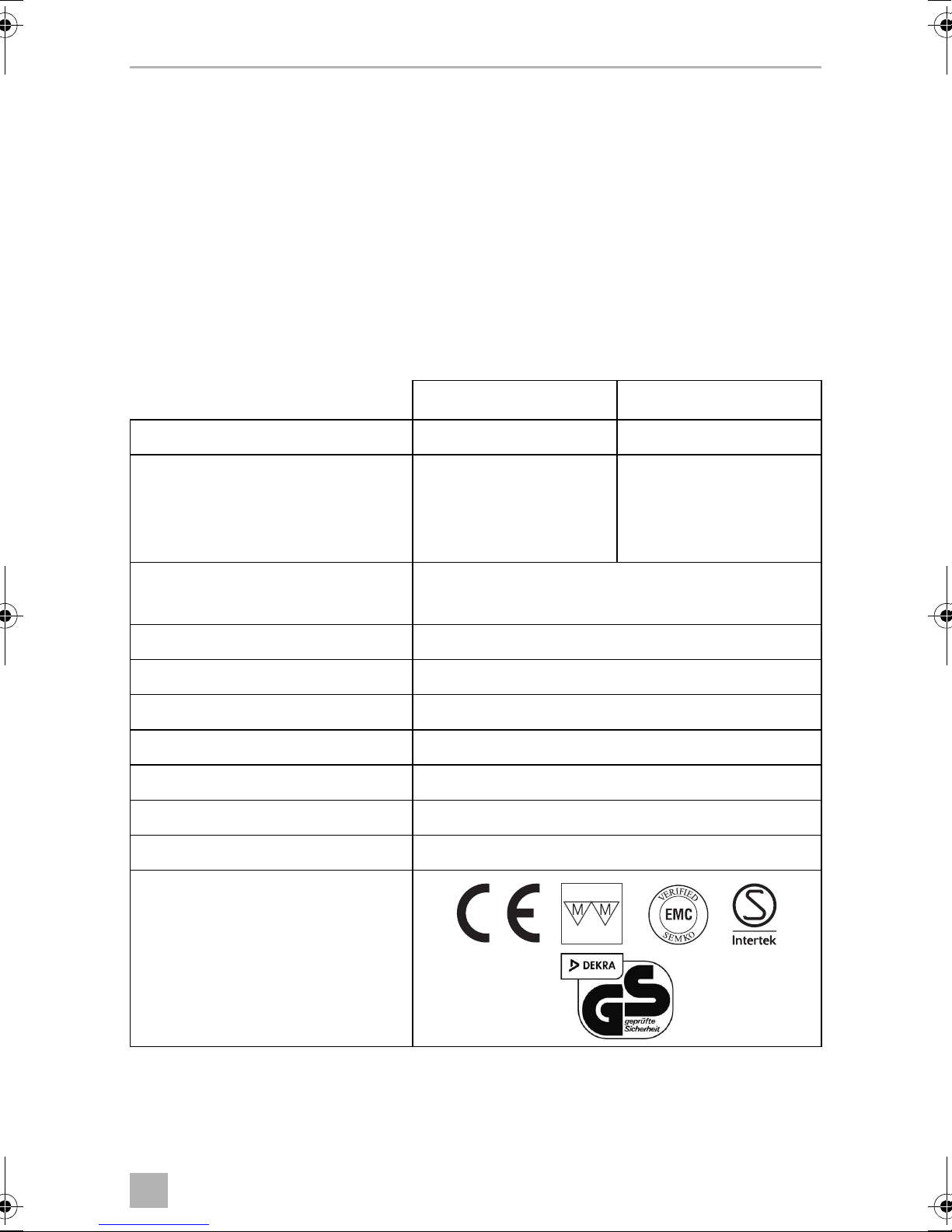

12 Technical data
SMP301-02 SMP301-03
Ref. no.: 9106504643 9106504717
Model: Without relay With relay
All outputs are live when
there is an external 12 V
power supply
Rated input voltage: 230 Vw
12 Vg
Constant output power: 350 W
Output voltage: 12.7 Vg
Amperage: 27 A
Ambient temperature: –10 °C to 40 °C
Housing: Protection class 20
Dimensions (L x W x H): 240 x 207 x 56 mm
Weight: 1 kg
Inspection/certification:
SMP301-02_03-IO-7s.book Seite 19 Donnerstag, 1. Juni 2017 3:40 15

DE
SMP301-02/-03
20
Bitte lesen Sie diese Anleitung vor Einbau und Inbetriebnahme sorgfältig
durch und bewahren Sie sie auf. Geben Sie sie im Falle einer Weitergabe
des Produktes an den Nutzer weiter.
Inhaltsverzeichnis
1 Erläuterung der Symbole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
2 Sicherheitshinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
3 Lieferumfang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4 Bestimmungsgemäßer Gebrauch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5 Technische Beschreibung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6 Schaltnetzteil montieren. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7 Schaltnetzteil benutzen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
8 Schaltnetzteil pflegen und reinigen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
9 Fehlerbeseitigung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
10 Gewährleistung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
11 Entsorgung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
12 Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
SMP301-02_03-IO-7s.book Seite 20 Donnerstag, 1. Juni 2017 3:40 15
