Ubiquiti EdgePower EP-54V-150W User manual

54V, 150W EdgePoint™
DC Power Supply
Model: EP-54V-150W
Available from A1 Security Cameras
www.a1securitycameras.com email: [e-mail]

Introduction
Thank you for purchasing the Ubiquiti Networks® EdgePower™.
This Quick Start Guide is designed to guide you through the
installation and also includes the warranty terms.
Package Contents
EdgePower EP-54V-150W
Power Cord Mount Brackets
(Qty. 4)
Bracket Screws
(M4x5.3, Qty. 16)
Rack-Mount Screws
(#10-32x5/8", Qty. 4)
Cage Nuts
(#10-32x5/8", Qty. 4)
54V, 150W EdgePoint™
DC Power Supply
Model: EP-54V-150W
Mounting Screws
(M4x30, Qty. 8)
Screw Anchors
(M4x24, Qty. 8)
Quick Start
Guide
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the customer’s
responsibility to follow local country regulations, including operation within legal frequency
channels, output power, indoor cabling requirements, and Dynamic Frequency Selection
(DFS) requirements.
Available from A1 Security Cameras
www.a1securitycameras.com email: [e-mail]

System Requirements
• Linux, MacOSX, or Microsoft Windows 7/8/10
• Web Browser: Mozilla Firefox, Google Chrome, Microsoft
Edge, or Microsoft Internet Explorer 11
Installation Requirements
• EdgePoint EP-R8 or EP-S16 (54VDC supported device)
• Phillips screwdriver (for mounting)

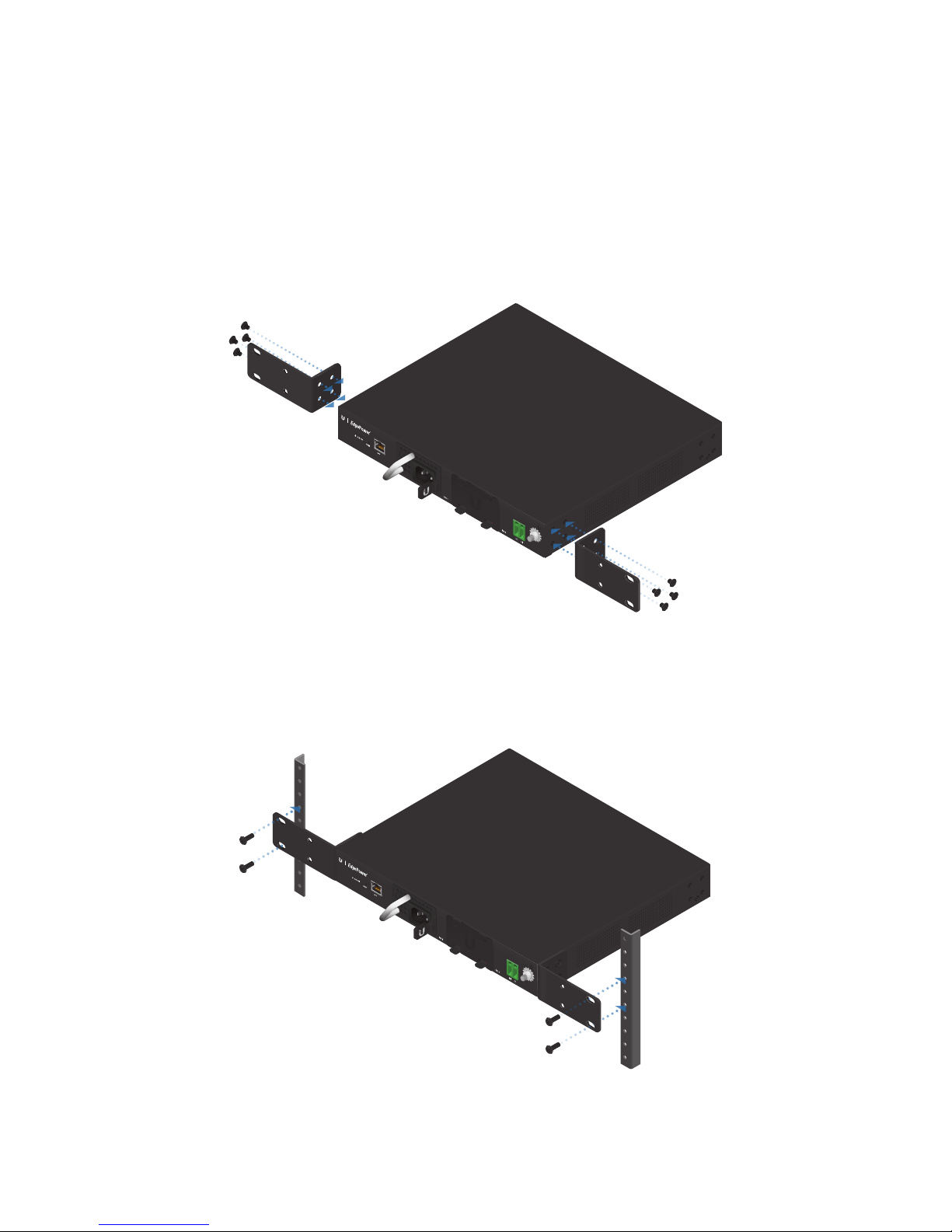

• Standard-sized, 19" wide rack with a minimum of 1U height
available (for rack-mounting)
• PowerCable™or equivalent outdoor-rated, 12 AWG stranded
DC power cable
WARNING: To reduce the risk of fire or electric shock,
do not expose the EdgePower to rain or moisture.
Note: Although the cabling can be located outdoors,
the EdgePower itself should be housed inside a
protective enclosure.
Optional Power Supply Modules
A secondary PSU module bay is available for reserving a
hot-swappable, backup PSU or for increasing the DC output
power to 300W. Two PSU models are available:
• AC/DC 54V, 150W PSU
Model EP-54V-150W-AC
• DC/DC 54V, 150W PSU
Model EP-54V-150W-DC
Available from A1 Security Cameras
www.a1securitycameras.com email: [e-mail]

Hardware Overview
Front Panel
Reset
Button
PSU
Module
Bay
Cover
Grounding
Bolt
Management
Port PSU 1 PSU 2 DC Out
Port Description
Management
Port
10/100 Ethernet port for accessing the
EdgePower Configuration Interface.
PSU 1
Primary PSU module bay supports a 150W
PSU module. Factory default is On, and
is configurable through the EdgePower
Configuration Interface.
PSU 2
Secondary PSU module bay supports an
optional 150W PSU module for increasing
power output, or configured Off to house
a spare PSU module. Factory default is On,
and is configurable through the EdgePower
Configuration Interface.

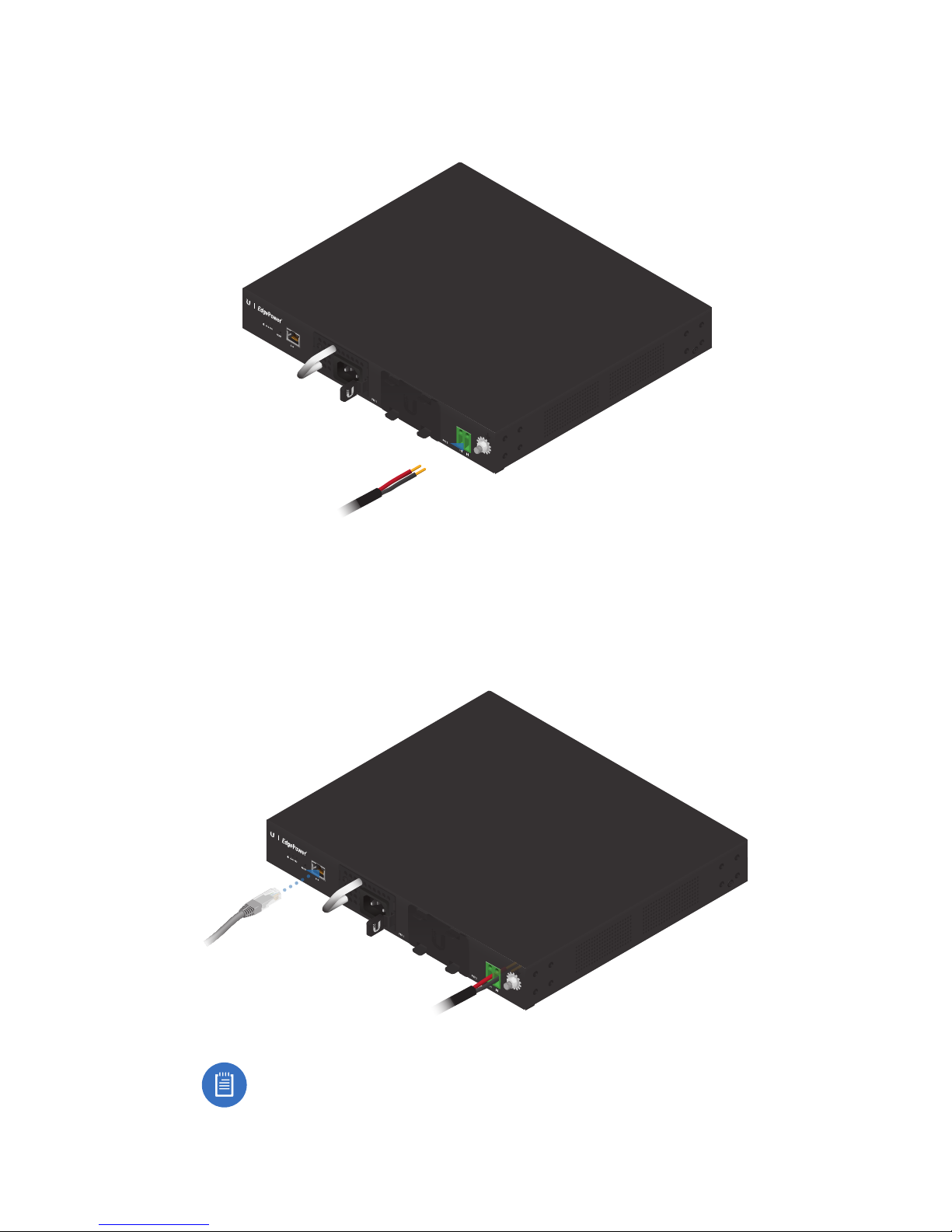

DC Out Connect the DC cable to this terminal block.
Supports up to 300W output.
Reset
Button
To restore to factory defaults, press and hold
the Reset button for more than five seconds.
PSU Module Preinstalled 54V, 150W AC/DC PSU module,
model EP-54V-150W-AC.
Bay Cover Keep the Bay Cover on when the bay is not
occupied by a PSU module.
Grounding
Bolt
Auxiliary grounding point for grounding the
EdgePower.
Available from A1 Security Cameras
www.a1securitycameras.com email: [e-mail]

Front Panel LEDs
PSU
Module
LED State Status
Green System On
Off No Link
Green Link Established at
10/100Mbps
PSU
Off PSU 1 and PSU 2 Off
Amber PSU 1 or PSU 2 On and
Working Properly
Green PSU 1 and PSU 2 On and
Working Properly
PSU
Module
Off Inactive, Power Off
Green Active, Power On
Side Panel
Ventilation Holes
WARNING: FAILURE TO PROVIDE PROPER VENTILATION
MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF
CLEARANCE NEXT TO THE VENTILATION HOLES FOR
ADEQUATE AIRFLOW.
