Dometic 9 SERIES User manual

RMLT9330, RMLT9331, RMLT9335
RMLT9430, RMLT9431, RMLT9435
Absorber-refrigerator with oven
Installation Manual
RMLT 943x
RMLT 933x
EN
REFRIGERATION
9 SERIES
RMLT9xxx-I-AUS.book Seite 1 Donnerstag, 7. Dezember 2017 12:53 12

RMLT9xxx-I-AUS.book Seite 2 Donnerstag, 7. Dezember 2017 12:53 12

EN
RMLT9xxx
3
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
I
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
6 Installing the refrigerator-oven combination . . . . . . . . . . . . . . . . . . . . . . . . . .8
7 Connecting the refrigerator-oven combination . . . . . . . . . . . . . . . . . . . . . 27
8 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
NOTE
You can find details on the operation in the manual.
RMLT9xxx-I-AUS.book Seite 3 Donnerstag, 7. Dezember 2017 12:53 12

EN
Explanation of symbols RMLT9xxx
4
1 Explanation of symbols
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
RMLT9xxx-I-AUS.book Seite 4 Donnerstag, 7. Dezember 2017 12:53 12

EN
RMLT9xxx Safety instructions
5
2.1 General safety
!WARNING!
•Never open the absorber unit. It is under high pressure and can cause
injury if it is opened.
•Ensure clean and residue-free handling if silicon sealant or similar is
used. There is a risk of fire if silicone filaments come into contact with
hot parts or naked flames.
•Do not operate the device if it is visibly damaged.
•If the AC power cable for this device is damaged, it must be replaced
by the manufacturer, customer service or a similarly qualified person in
order to prevent safety hazards.
•Never use a naked flame to check the device for leaks.
•This device may only be repaired by qualified personnel. Inadequate
repairs may cause serious hazards.
•Only use propane or butane gas (not natural gas).
•Always operate the device at the pressure shown on the type plate.
Use a DIN-DVGW-approved pressure regulator with a fixed setting in
accordance with DIN EN 12864.
•Dismantle all doors for the disposal of the old device and leave the
shelves in the device to prevent accidental enclosure and suffocation.
!CAUTION!
•Danger of crushing! Do not put your fingers into the hinge.
•Before starting the device, ensure that the power supply line and the
plug are dry.
RMLT9xxx-I-AUS.book Seite 5 Donnerstag, 7. Dezember 2017 12:53 12

EN
Scope of delivery RMLT9xxx
6
ANOTICE!
•Only hold the device at the body of the refrigerator during transport.
Never hold the device on the oven, the cooling fins, the gas pipes, the
door or the control panel.
•Make sure that the refrigerator circuit is not damaged during transpor-
tation. The refrigerant in the refrigerator circuit is highly flammable.
In the event of any damage to the refrigerator circuit:
– Avoid naked flames and sparks.
– Air the room well.
•Do not install the device near naked flames or other heat sources
(heaters, direct sunlight, gas ovens etc.).
•Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the device is sufficiently far
away from walls and other objects so that the air can circulate.
•Check that the voltage specification on the type plate is the same as
that of the power supply.
•Do not open the refrigerant circuit under any circumstances.
•Only use the AC connection cable supplied to connect the device to
the AC mains.
•Only use cables with a suitable size.
•Never pull the plug out of the socket by the connection cable.
•The device may not be exposed to rain.
3Scopeofdelivery
•Refrigerator-oven combination
•Ice-cube tray
•Operating manual
•Installation manual
RMLT9xxx-I-AUS.book Seite 6 Donnerstag, 7. Dezember 2017 12:53 12

EN
RMLT9xxx Accessories
7
4Accessories
Available as accessories (not included in the scope of delivery):
All the accessories are available from specialist dealers. If you have any questions,
please contact the dealer or your service partner directly.
5 Intended use
This refrigerator-oven combination is designed for installation in caravans or motor-
homes.
The refrigerator is only suitable for cooling, freezing and storing foodstuffs. The
refrigerator is not intended for the proper storage of medicine.
The refrigerator is designed to be operated on a DC power supply and an AC socket
and can be independently powered by liquid gas (propane or butane). The refriger-
ator may not be run on natural gas or city gas.
The oven is only suitable for cooking and baking foodstuffs.
The oven is designed to be run on liquid gas (propane or butane). The oven may not
be run on natural gas or city gas.
Description
Fan kit for boosting the cooling capacity at high ambient temperatures
Ventilation grille
Winter cover for the ventilation grille
Truma AK3 roof flue
Truma flue pipe
Divider, bottle finger (RMLT9430/9431/9435 only)
Shelf with safety edges (RMLT9430/9431/9435 only)
Door shelf locking
Bottle holder for door shelf locking
Shelf locking
RMLT9xxx-I-AUS.book Seite 7 Donnerstag, 7. Dezember 2017 12:53 12

EN
Installing the refrigerator-oven combination RMLT9xxx
8
6 Installing the refrigerator-oven
combination
6.1 Preparing the installation
When installing the refrigerator-oven combination, note the following:
•To enable the refrigerant to circulate properly, the refrigerator may not exceed an
angle of 3°.
To do this, park the vehicle on a level surface and check to see if the ice-cube tray
is flat in the refrigerator.
•The refrigerator-oven combination must be installed so that it is easily accessible
for service work, easy to de-install and install, and easily removed from the
vehicle.
•The distance between the refrigerator-oven combination and the rear wall must
be min. 15 mm – max. 25 mm.
•The refrigerator-oven combination must be installed in a recess so that it stands
firm when the vehicle is in motion. Note the following dimensions here
(HxWxDinmm):

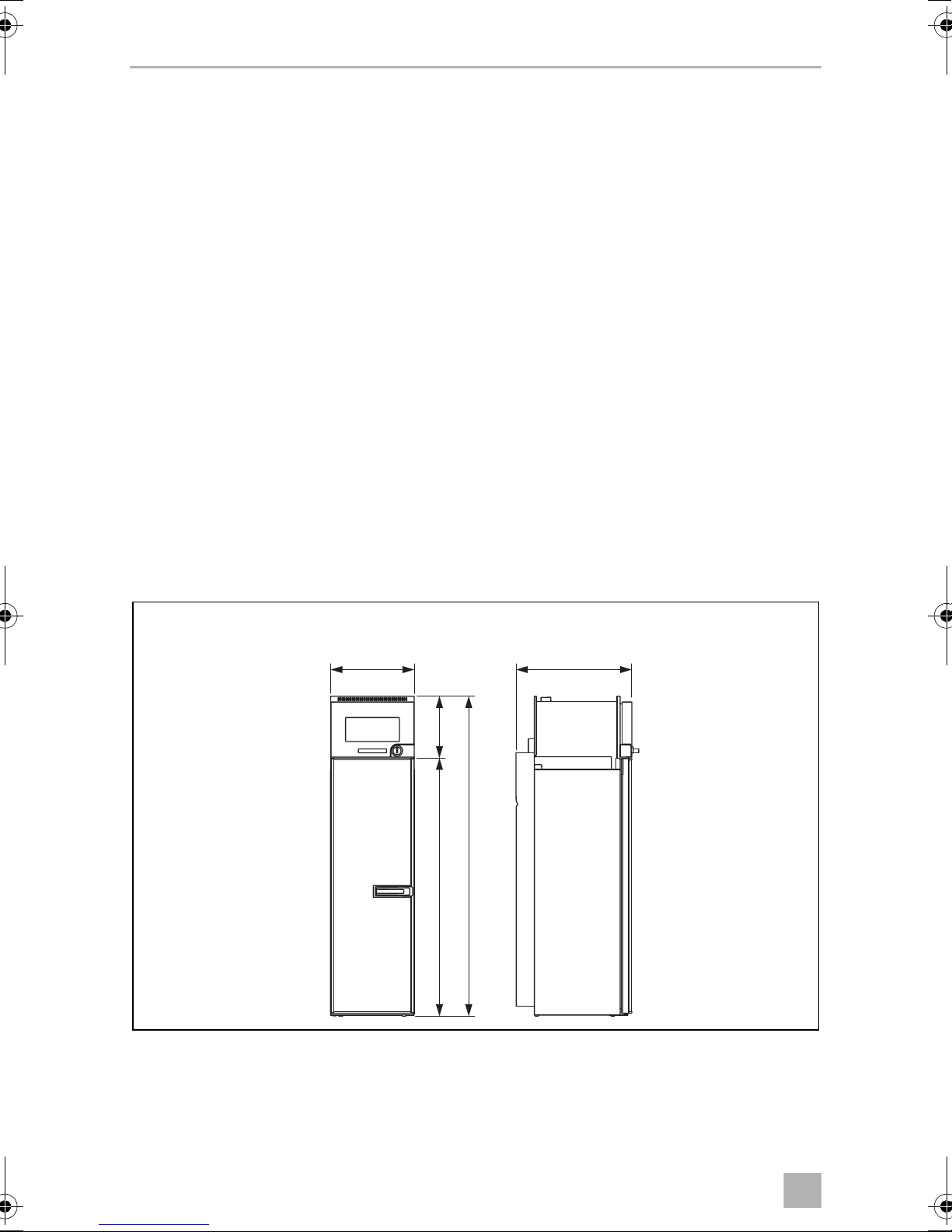

–RMLT9330/9331/9335: 1605 x 420 x 615 (fig. 1)
420 mm 615 mm
1605 mm
312 mm1293 mm
RMLT9330, RMLT9331, RMLT9335
1
RMLT9xxx-I-AUS.book Seite 8 Donnerstag, 7. Dezember 2017 12:53 12

EN
RMLT9xxx Installing the refrigerator-oven combination
9
–RMLT9430/9431/9435: 1605 x 468 x 555 (fig. 2)
RMLT9430, RMLT9431, RMLT9435
555 mm
468 mm
1605 mm
312 mm1293 mm
2
RMLT9xxx-I-AUS.book Seite 9 Donnerstag, 7. Dezember 2017 12:53 12

EN
Installing the refrigerator-oven combination RMLT9xxx
10
•The outer wall must be fitted with an air inlet vent (fig. 31) and an outlet vent
(fig. 32) with ventilation grilles so that the heat generated can be easily
released to the outside:
– Air inlet vent: Fit the ventilation grille as flush as possible to the floor of the
installation niche with a minimum cross-section of 400 cm².
– Outlet vent: fit as far above the refrigerator as possible.
6
2
3
4
5
1
10 mm
≥170 mm
min.15 mm –
max. 25 mm
3
RMLT9xxx-I-AUS.book Seite 10 Donnerstag, 7. Dezember 2017 12:53 12

EN
RMLT9xxx Installing the refrigerator-oven combination
11
– The distance between the air inlet and outlet vents must be at least 1050 mm
(fig. 4).
•Fit a heat conduction plate (fig. 33, page 10) above the refrigerator so that the
heat does not accumulate in the vehicle.
•If the ventilation grille of the air inlet vent cannot be installed flush to the ground,
an additional inlet vent (fig. 36, page 10) must be provided in the floor for
releasing leaked gas.
•The distance between the top of the oven and the ceiling must be at least
170 mm (fig. 3, page 10).
•If a roof flue (fig. 34, page 10) is being used: Fit a detachable panel (fig. 35,
page 10) above the oven so that you can always reach the flue pipe.
≥1050 ≥250
< 1050 < 250
4
RMLT9xxx-I-AUS.book Seite 11 Donnerstag, 7. Dezember 2017 12:53 12

EN
Installing the refrigerator-oven combination RMLT9xxx
12
•If you do not have a roof flue: Fit a panel with a ventilation grille (fig. 57) above
the oven.
•The distance between the top of the oven and the flue outlet of the roof flue must
be between 250 mm and 1500 mm (fig. 4, page 11).
7
6
2
3
1
min.15 mm –
max. 25 mm
≥170 mm
5
RMLT9xxx-I-AUS.book Seite 12 Donnerstag, 7. Dezember 2017 12:53 12

EN
RMLT9xxx Installing the refrigerator-oven combination
13

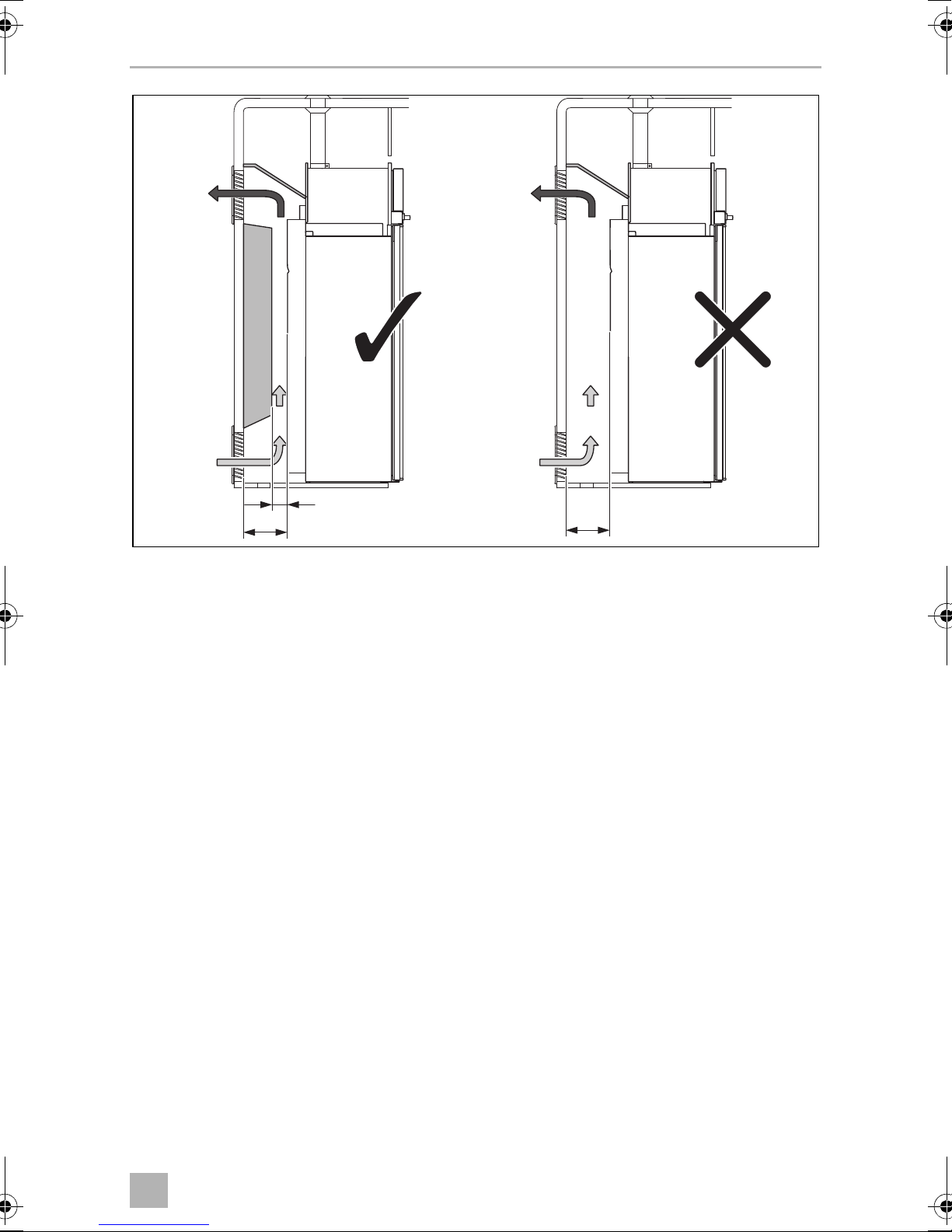

•Too large a gap between the refrigerator-oven combination and rear wall leads
to poor performance and increases the power consumption of the refrigerator.
Reduce the space behind the refrigerator-oven combination to create adequate
air inlet and outlet ventilation (fig. 6).
•The refrigerator-oven combination must not be installed at the side of the air inlet
and outlet vents as this leads to poor performance and increases the power
consumption of the refrigerator.
•The air inlet and outlet vents must not be covered by vehicle parts (such as an
open door or by installing accessories such as bicycle racks) while operating.
•Install the refrigerator-oven combination so that it is protected from excessive
heat, as this leads to poor performance and increases the power consumption of
the refrigerator.
•The electrical installation must comply with national and local regulations.
European standards: EN 60335-1, EN 60335-2-24, EN 1648-1 and EN 1648-2.
•The gas installation must comply with national and local regulations.
European standard: EN 1949.
•The refrigerator-oven combination must be installed in a draught-proof location
in accordance with EN 1949, see chapter “Installing the refrigerator-oven combi-
nation in a draught-free location” on page 14.
15 – 25 mm
> 25 mm > 25 mm
6
RMLT9xxx-I-AUS.book Seite 13 Donnerstag, 7. Dezember 2017 12:53 12

EN
Installing the refrigerator-oven combination RMLT9xxx
14
6.2 Installing the refrigerator-oven combination in a
draught-free location
Gas-powered refrigerators in caravans or motorhomes must be installed in a
draught-free location according to EN 1949. This means that the combustion air is
not extracted from the interior and the exhaust fumes are prevented from directly
entering the living space.
A suitable seal must be fitted between the rear panel of the refrigerator-oven combi-
nation and the interior of the vehicle.
!
The manufacturer recommends using a flexible seal to ease removal and installation
for maintenance purposes.
➤Attach the sealing lips (fig. 71) to a stop rail behind the refrigerator-oven com-
bination, for example, by using an adhesive.
➤When installing, push the refrigerator-oven combination against the stop rails
with the sealing lips. This then seals the space behind the refrigerator to the inte-
rior of the vehicle.
WARNING! Fire hazard!
•Do not use flammable materials such as silicone sealants, foam or
similar for the draught-proof installation.
•Use materials that are resistant to temperatures of up to 200 °C in the
vicinity of the oven.
1
7
RMLT9xxx-I-AUS.book Seite 14 Donnerstag, 7. Dezember 2017 12:53 12

EN
RMLT9xxx Installing the refrigerator-oven combination
15
6.3 Making air inlet and outlet vents
I
➤Make an air inlet vent and an air outlet vent in the outer wall with the size of
410 mm x 249 mm. When doing so, observe the information, see chapter “Pre-
paring the installation” on page 8.
If the ventilation grille of the air inlet vent cannot be installed flush with the floor of the
niche, you need to install an inlet vent in the floor:
➤Make an air inlet vent in the floor (fig. 3, page 10 6) behind the refrigerator-oven
combination near the gas burner.
➤Shield the end of the opening with a deflector to prevent sludge or dirt from get-
ting inside while driving (fig. 8).
NOTE
At high ambient temperatures, the refrigerator can only provide its
maximum cooling capacity if the optimum ventilation has been
provided.
8
RMLT9xxx-I-AUS.book Seite 15 Donnerstag, 7. Dezember 2017 12:53 12

EN
Installing the refrigerator-oven combination RMLT9xxx
16
6.4 Oven ventilation using a roof flue
A
Proceed as follows (fig. 9):
➤Make a round hole with a diameter of 60 mm in the roof.
➤Secure the roof flue (1)in the hole.
➤Slide the flexible flue pipe (2)up into the roof flue.
➤Insert the bottom end of the flue pipe (4)onto the end of the flue outlet (5).
➤Attach the flue pipe using the screws which were supplied with the roof flue (3).
Alternatively, you can use a worm gear hose clamp.
➤Fit a detachable panel (fig. 3, page 10 5) above the oven.
NOTICE!
•Use a Truma AK 3 roof flue and Truma flue pipes. These have been
tested and approved for use.
•Materials must not be located near the roof flue and flue pipe which
are unsuitable for temperatures of above 120 °C.
•Lay the flue duct so that it rises gradually. The installation height of the
flue pipe between the top of the oven and the air outlet on the roof
flue must be at least 200 mm. A maximum of 1500 mm is possible.
•Keep the surrounding walls and components at a distance of at least
50 mm.
2
3
1
5
3
4
1
2
≥170 mm
≤ 1300 mm
Ø65
Ø55
≥10°
Ø3,5
9
RMLT9xxx-I-AUS.book Seite 16 Donnerstag, 7. Dezember 2017 12:53 12

EN
RMLT9xxx Installing the refrigerator-oven combination
17
6.5 Interior oven ventilation (oven without roof flue)
If you are providing the ventilation and flue duct in the vehicle interior, the supply of
fresh air must not be obstructed. Make ventilation holes that allow fresh air to enter
(safety ventilation according to EN 721). A combination of roof and wall ventilation
holes is possible.
Ventilation holes in the lower part may not be more than 100 mm above the interior
floor. The ventilation holes must not be closed under any circumstances. Keep the
grids and covers clean and free of dust.
➤Make ventilation holes in the vehicle interior with a total cross-section of at least
100 cm2.
➤Make one or more ventilation openings above the oven with a total cross-section
of at least 150 cm2.
➤Fit a panel above the oven and a ventilation grille in the panel with
468 mm x 90 mm (fig. 01).
✓Fresh air enters through ventilation slots into the oven under the door, is heated
and escapes from the oven through ventilation slots in the top of the door
(fig. 0).
INOTE
Check and clean the ventilation holes regularly.
1
0
RMLT9xxx-I-AUS.book Seite 17 Donnerstag, 7. Dezember 2017 12:53 12

EN
Installing the refrigerator-oven combination RMLT9xxx
18
6.6 Installing the ventilation grille
➤Ensure the installation frame is water resistant (fig. b).
No. in
fig. aDescription
1 Installation frame
2 Ventilation grille
3 Winter cover
4Slider
1
2
3
4
1
3
2
4
LS230 LS330
a
LS230
LS330
b
RMLT9xxx-I-AUS.book Seite 18 Donnerstag, 7. Dezember 2017 12:53 12

EN
RMLT9xxx Installing the refrigerator-oven combination
19
➤Insert the installation frame and screw it down tightly (fig. c).
➤Fit the ventilation grille (fig. d).
➤Insert the slider and lock the ventilation grille with it (fig. d).
LS230
LS330
c
LS230
LS330
1.
2.
3.
d
RMLT9xxx-I-AUS.book Seite 19 Donnerstag, 7. Dezember 2017 12:53 12

EN
Installing the refrigerator-oven combination RMLT9xxx
20
6.7 Installing the flue duct (fig. e)
I
The flue duct is installed at the factory. Follow these steps when you have removed
the flue duct and want to reinstall it:
➤Place the T-piece (1) on the adaptor (2) and the flue pipe (3).
➤Direct the T-piece at an angle of 45° towards the rear wall.
➤Attach the T-piece, adaptor and flue pipe with a screw (4).
NOTE
Do not install an additional flue stack, as this leads to poor performance
and increases the power consumption of the refrigerator.
1
2
3
4
e
RMLT9xxx-I-AUS.book Seite 20 Donnerstag, 7. Dezember 2017 12:53 12
