Dometic REFRIGERATION 10 Series User manual

RMD10
Absorber refrigerator
Operating manual . . . . . . . . . . . . . . . . . . . . 11
Absorber-Kühlschrank
Bedienungsanleitung . . . . . . . . . . . . . . . . . 31
Réfrigérateur à absorption
Notice d’utilisation . . . . . . . . . . . . . . . . . . .52
Absorptiekoelkast
Gebruiksaanwijzing. . . . . . . . . . . . . . . . . . .74
EN
DE
FR
NL
REFRIGERATION
10 SERIES
RMD10-O-WEST.book Seite 1 Sonntag, 27. Januar 2019 7:05 07

RMD10-O-WEST.book Seite 2 Sonntag, 27. Januar 2019 7:05 07

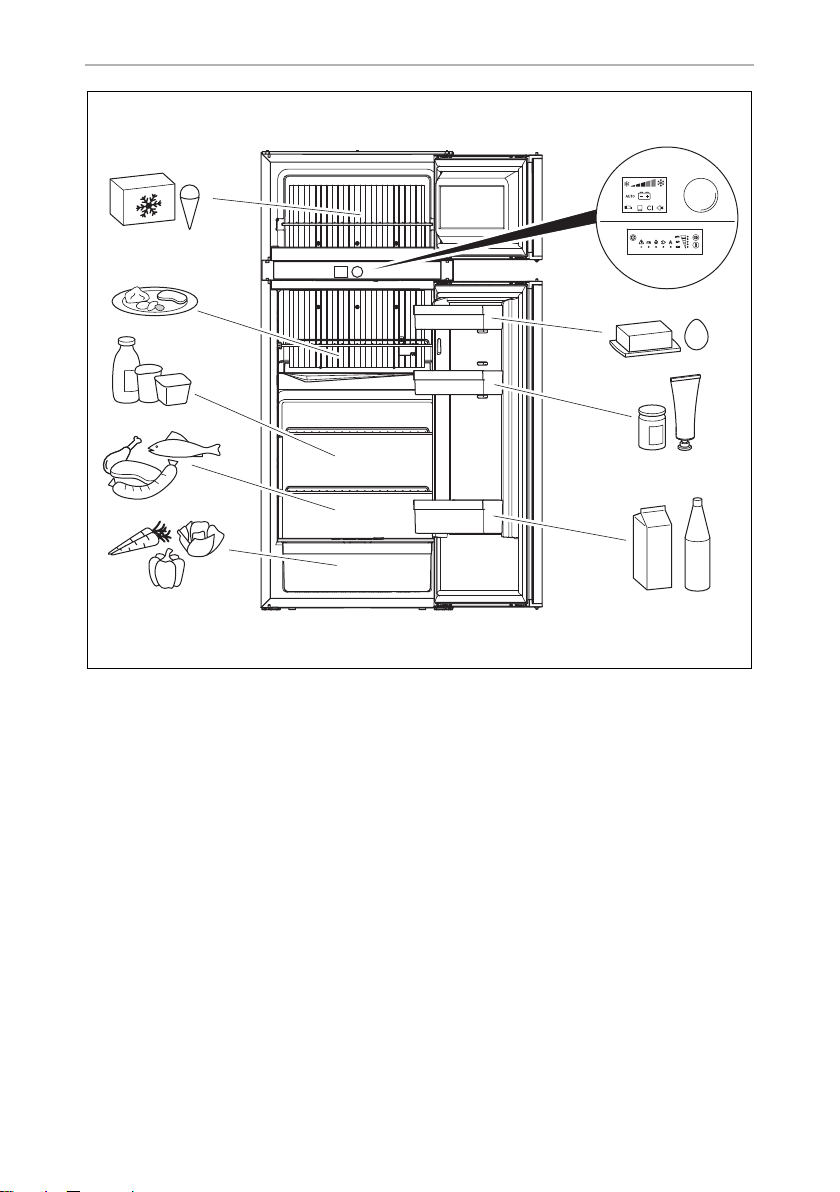

RMD10
3
1
A
B
RMD10-O-WEST.book Seite 3 Sonntag, 27. Januar 2019 7:05 07

RMD10
4
RMD 10.5T/RMD 10.5XT
2
RMD10-O-WEST.book Seite 4 Sonntag, 27. Januar 2019 7:05 07

RMD10
5
3
1
2
5.
4.
2.
3.
1.
4
RMD10-O-WEST.book Seite 5 Sonntag, 27. Januar 2019 7:05 07

RMD10
6
1.
2.
3.
5
2. 3.
1.
3.
1. 2.
6
RMD10-O-WEST.book Seite 6 Sonntag, 27. Januar 2019 7:05 07

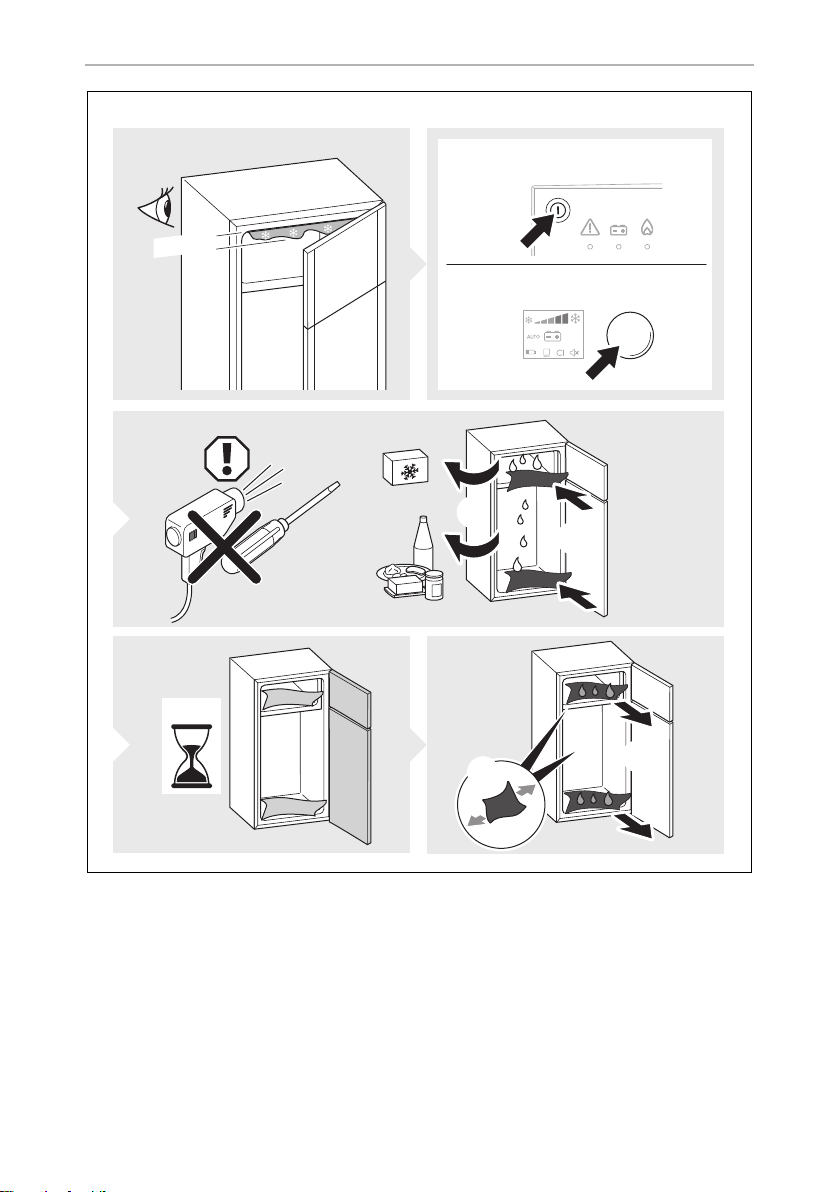

RMD10
7
>3 mm
RMD 10.5/RMD 10.5X
RMD 10.5T/RMD 10.5XT
4 sec
4 sec
1.
2.
1.
2.
4 – 8 h
7
RMD10-O-WEST.book Seite 7 Sonntag, 27. Januar 2019 7:05 07

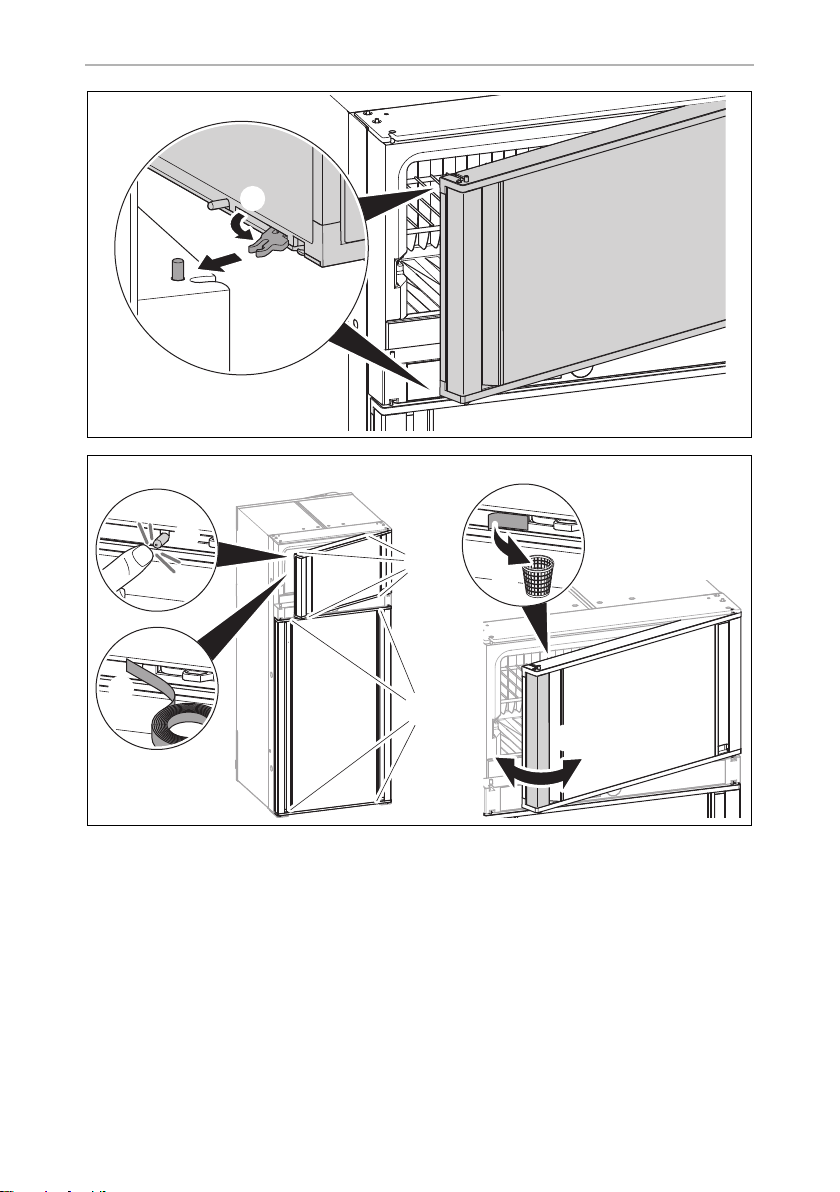

RMD10
8
1.
2.
8
1.
BA
4x
4x
4x
4x
1.
2.
4x
2.
9
RMD10-O-WEST.book Seite 8 Sonntag, 27. Januar 2019 7:05 07

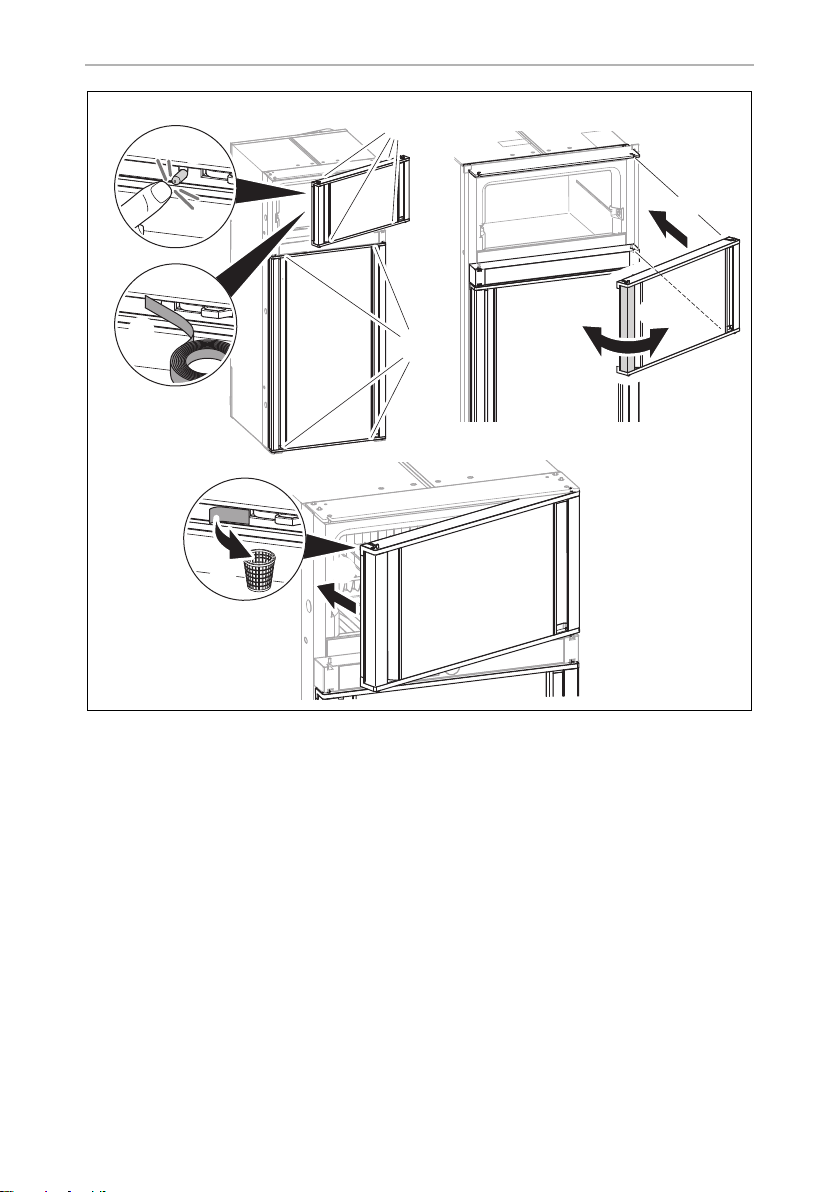

RMD10
9
BA
C
2.
2.
1.
1.
4x
4x
2.
4x
4x
4x
1.
0
RMD10-O-WEST.book Seite 9 Sonntag, 27. Januar 2019 7:05 07

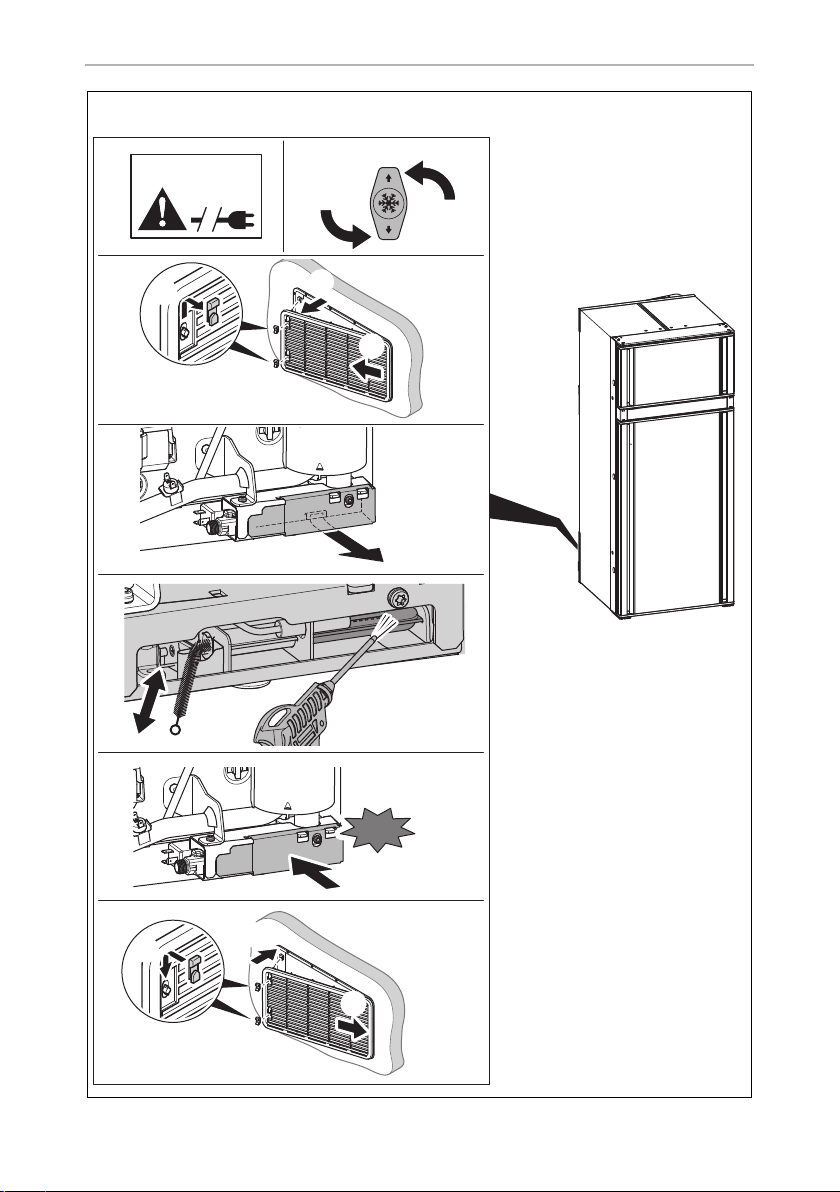

RMD10
10
a
1. 2.
3.
2.
1.
AB
C
D
E
230 V
12 V
1.
2.
3.
F
G
CLICK
RMD10-O-WEST.book Seite 10 Sonntag, 27. Januar 2019 7:05 07

EN
RMD10 Explanation of symbols
11
Please read this instruction manual carefully before first use, and store it in
a safe place. If you pass on the product to another person, hand over this
instruction manual along with it.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
4 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
5 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
8 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
9 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
10 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
1 Explanation of symbols
!
!
A
I
WARNING!
Safety instruction: Failure to observe this instruction can cause death
or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
RMD10-O-WEST.book Seite 11 Sonntag, 27. Januar 2019 7:05 07

EN
Safety instructions RMD10
12
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
• Damage to the product resulting from mechanical influences and incorrect
connection voltage
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual
2.1 General safety
!WARNING!
• Installation and removal of the device may only be carried out by
qualified personnel.
• Do not operate the device if it is visibly damaged.
• This device may only be repaired and serviced by qualified personnel.
Improper repairs can result in considerable danger or damage to the
device.
• The refrigerant in the refrigerant circuit is highly flammable.
In the event of any damage to the refrigerant circuit (smell of
ammonia):
– Switch off the device.
– Avoid naked flames and sparks.
– Air the room well.
• This device can be used by children aged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and knowledge, providing they are supervised, or
have been taught how to use the device safely and are aware of the
resulting risks.
• Cleaning and user maintenance may not be carried out by unsuper-
vised children.
• Children must be supervised to ensure that they do not play with the
device.
• Do not store any explosive substances such as spray cans with a
flammable propellant in the device.
ANOTICE!
• Keep the condensation opening clean at all times.
• The device lighting may only be replaced by customer service.
RMD10-O-WEST.book Seite 12 Sonntag, 27. Januar 2019 7:05 07

EN
RMD10 Safety instructions
13
• Do not use a high-pressure cleaner near the ventilation grill when
cleaning the vehicle.
• Attach the winter covers of the ventilation grill (accessory) when the
vehicle is cleaned from the outside or not used for a prolonged period
of time.
2.2 Safe operation
!CAUTION!
• Close and lock the device door before starting the journey.
• The cooling unit at the back of the device becomes very hot during
operation. Protect yourself from coming into contact with hot parts if
ventilation grills are removed.
ANOTICE!
• Do not use electrical appliances inside the device.
• Ensure that the ventilation grills are not covered.
2.3 Safety when operating with gas
!WARNING!
• While driving, only use the gas operation of the device if the vehicle
manufacturer allows the operation of the gas system while driving (see
manual of the vehicle manufacturer).
•Always operate the device at the pressure shown on the type plate.
Only use pressure controllers with a fixed setting which comply with
the national regulations.
• Never operate the device with gas
– at petrol stations
– on ferry boats
– while transporting the caravan or motorhome with a transport
vehicle or tow truck
• Never use an open flame to check the device for leaks.
• In case of gas odor:
– Close the gas supply cock and the valve on the cylinder.
– Open all windows and leave the room.
– Do not press any electrical switches.
– Put out any open flames.
– Have the gas system checked by a specialist.
RMD10-O-WEST.book Seite 13 Sonntag, 27. Januar 2019 7:05 07

EN
Intended use RMD10
14
ANOTICE!
• Only use liquefied gas (not natural gas).
• Ignition problems may occur at altitudes above 1000 m. If possible,
switch to a different energy source.
3 Intended use
The device is suitable for:
• Installation in motorhomes and caravans
• Providing refrigeration, freezer and storage space for food
The device is not suitable for:
• Storing medications
• Storing corrosive substances or substances that contain solvents
• Freezing previously unfrozen food
4 Technical description
The refrigerator is an absorber refrigerator and is designed for operation
• on a 12 V DC power supply
• on an AC power supply
• with liquefied gas (propane or butane)
The refrigerator has an automatic operating mode that selects the most economical
connected type of energy. The refrigerator unit operates silently.
RMD10-O-WEST.book Seite 14 Sonntag, 27. Januar 2019 7:05 07

EN
RMD10 Technical description
15

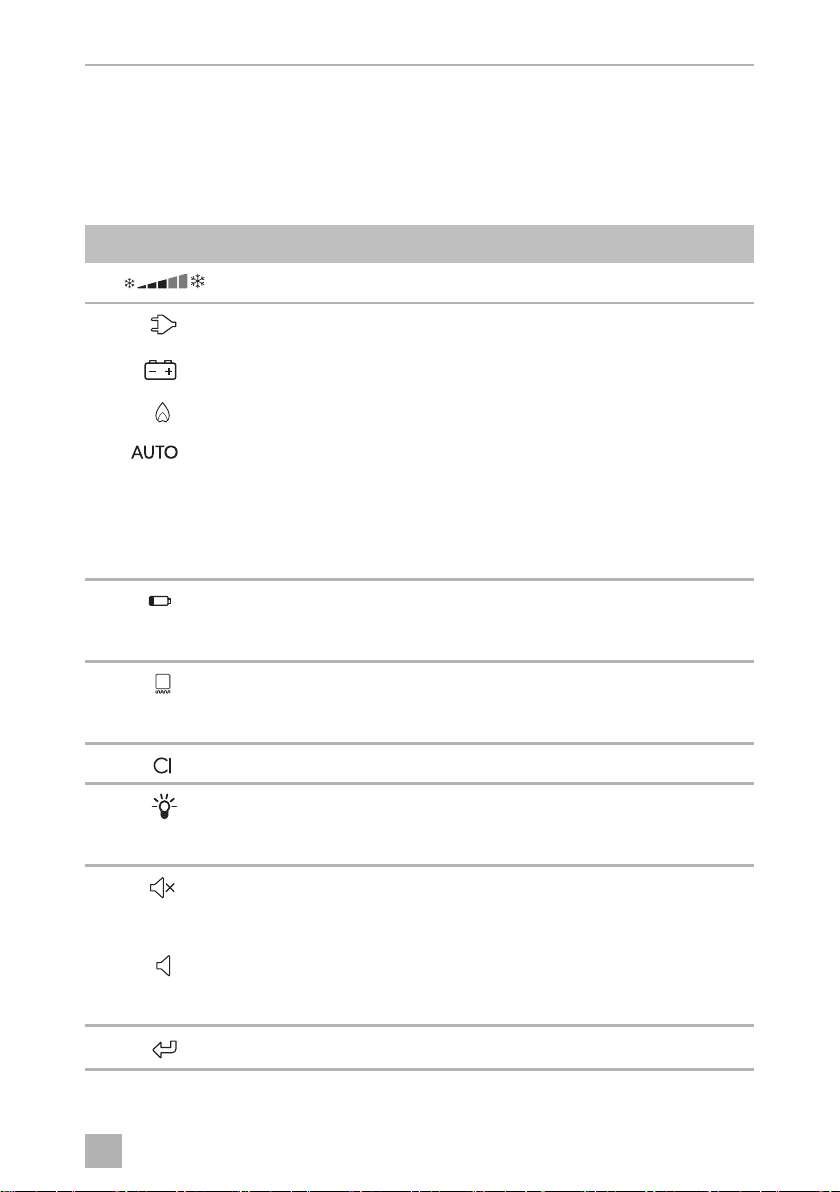

4.1 Control and display elements
RMD10.5Tand RMD10.5XT
The TFT display has the following operating and display elements (fig. 1A,
page 3):
Symbol Description
Cooling capacity indicator
Operating with AC power
Operating with DC power
Operating with gas
Automatic mode:
In automatic mode the refrigerator automatically selects the most
economical operating mode according to the following priority:
•AC power
•DC power
•Gas
Battery:
Symbol lights up when the battery packs (optional) are inserted and
the device is in stand-alone gas mode.
Frame heater:
Symbol lights up when the frame heater is on. The frame heater of the
ice compartment reduces condensation.
Symbol lights up when the refrigerator is connected to the CI bus.
Dim TFT display
After 30 seconds, the brightness of the display is reduced to the set
level.
Beep off:
•Error messages and warnings are not signaled acoustically.
•Door left open for a longer period is signaled acoustically.
Beep on:
Error messages, warning messages and door left open are signaled
acoustically.
Confirm selection and return to the main menu
RMD10-O-WEST.book Seite 15 Sonntag, 27. Januar 2019 7:05 07

EN
Using the refrigerator RMD10
16
RMD10.5 and RMD10.5X
The LED display has the following operating and display elements (fig. 1B,
page 3):
5 Using the refrigerator
I
Symbol Description
ON/OFF button
Fault indication
Operating with DC power
Operating with gas
Operating with AC power
Automatic mode
Temperature indication
Energy selection button
Temperature selection button
NOTE
• Before starting your new refrigerator for the first time, clean it inside
and outside with a damp cloth for hygienic reasons.
• When using the refrigerator for the first time, there may be a mild
odor which will disappear after a few hours. Air the living space well.
• Park the vehicle so that it is level, especially when starting up and fill-
ing the refrigerator before setting off on a journey.
• The cooling performance can be affected by:
– the ambient temperature (e.g. when the vehicle is exposed to
direct sunlight)
– the amount of food to be refrigerated
– how often you open the door
A
MODE
RMD10-O-WEST.book Seite 16 Sonntag, 27. Januar 2019 7:05 07

EN
RMD10 Using the refrigerator
17
5.1 Tips for using the refrigerator optimally
• Do not store goods in the refrigerator for the first 12 hours of operation.
• Protect the interior of the vehicle from warming up excessively (e.g. sunshades in
the windows, air conditioner).
• Protect the refrigerator from direct sunlight (e.g. sunshades in the windows).
5.2 Operating in low outdoor temperatures
A
I
➤Install the LS300 winter covers (accessory) as shown in fig. 3, page 5.
5.3 Operation at high ambient temperatures
At high ambient temperatures in combination with high levels of humidity, conden-
sation may form on the ice compartment frame. The ice compartment is equipped
with a frame heater to reduce condensation on the frame of the ice compartment.
The frame heater is switched on continuously in the following operating modes:
•ACoperation
• DC operation (when the engine of the vehicle is running)
Only RMD10.5T, RMD10.5XT
In gas operation, the frame heater can be switched on manually.
NOTICE!
In AC operation and DC operation, install both winter covers. In gas
mode or automatic mode, install only the lower winter cover. This pre-
vents heat from building up and the fumes from the refrigerator can be
extracted properly.
NOTE
Cold air can restrict the performance of the cooling unit. Attach the
winter covers if you experience a reduced cooling capacity at low
ambient temperatures.
RMD10-O-WEST.book Seite 17 Sonntag, 27. Januar 2019 7:05 07

EN
Using the refrigerator RMD10
18

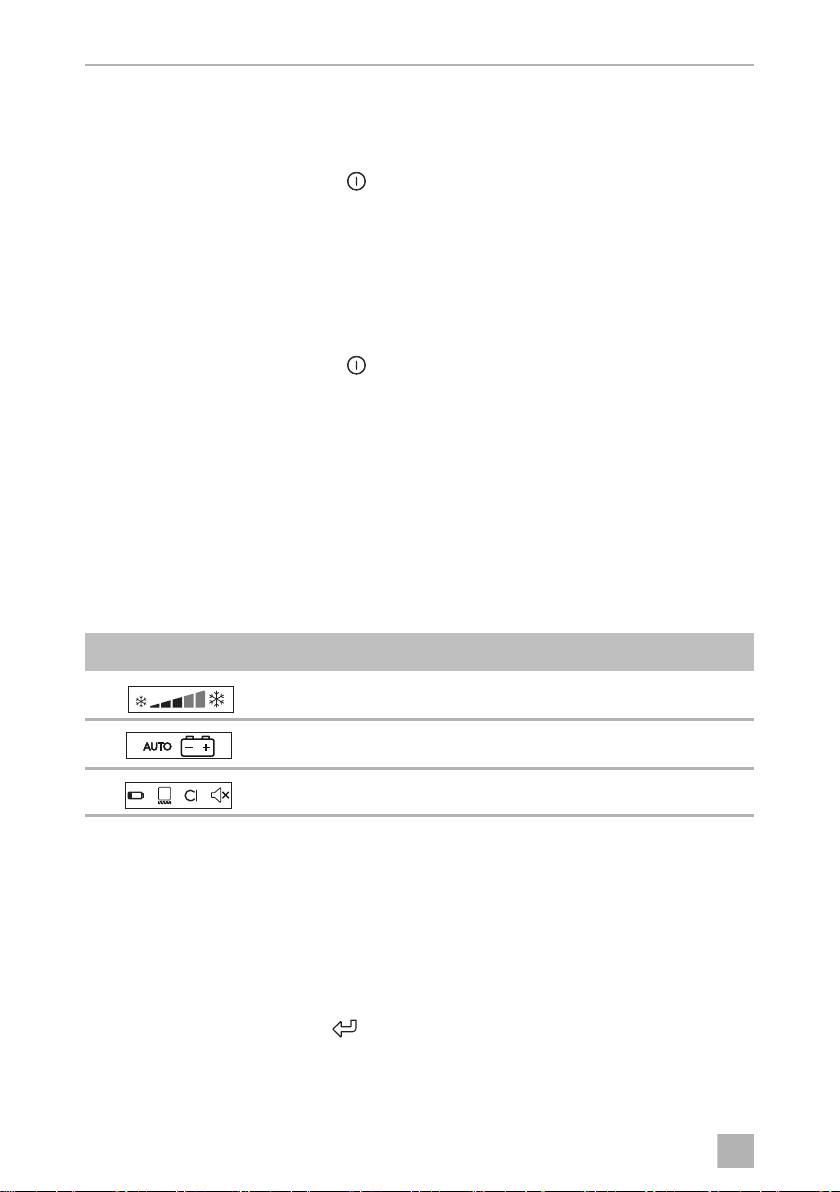

5.4 Switching on the refrigerator
➤Press for 2 seconds
–RMD10.5T, RMD10.5XT: control knob
–RMD10.5, RMD10.5X: button
✓The refrigerator starts with the last selected settings.
5.5 Switching off the refrigerator
➤Press for 4 seconds
–RMD10.5T, RMD10.5XT: control knob
–RMD10.5, RMD10.5X: button
✓A beep sounds and the refrigerator switches off.
5.6 Operating the refrigerator (RMD10.5T and
RMD10.5XT)
Menu navigation: fig. 2, page 4
➤Press the control knob to activate the TFT display.
The main menu is divided into three lines:
➤Turn the control knob to select the desired detail menu.
➤Press the control knob to open the selected detail menu.
➤Turn the control knob to navigate through the detail menu.
✓Selected settings are displayed in blue.
✓Press the control knob to choose the selected setting.
➤Confirm the selection with .
Main menu Details menu
Cooling capacity menu
Operating mode menu
Settings menu
RMD10-O-WEST.book Seite 18 Sonntag, 27. Januar 2019 7:05 07

EN
RMD10 Using the refrigerator
19
5.7 Operating the refrigerator (RMD10.5 and RMD10.5X)
Control
➤Repeatedly press , until the LED indicates the desired operating mode.
➤Repeatedly press , until the desired temperature level is set.
5.8 Tank stop mode
!
If the vehicle’s ignition is switched off, the refrigerator will switch to tank stop mode
for safety reasons. This blocks gas operation for 15 minutes. After that, the refrigera-
tor automatically switches back to regular, automatic mode.
In tank stop mode
•RMD10.5T, RMD10.5XT: the symbol is displayed
•RMD10.5, RMD10.5X: the LED flashes
5.9 Stand-alone gas operation (accessory)
!
I
For stand-alone gas mode, the optional battery packs must be installed.
A connection to an AC or DC power supply is then no longer necessary.
When using 12 batteries (type AA), the refrigerator can be operated in stand-alone
gas mode for 2 to 3 days.
Please note the following special features for stand-alone gas mode:
• The refrigerator interior lighting remains switched off.
WARNING!
Turn off the refrigerator or select a different operating mode if refueling
takes longer than 15 minutes.
WARNING!
In stand-alone gas mode, the refrigerator must be switched off manually
during refueling.
NOTE
• When there is no AC or DC connection, the batteries are drained
even when the refrigerator is off.
• Remove the batteries when the refrigerator is not in use (risk of
leakage).
MODE
RMD10-O-WEST.book Seite 19 Sonntag, 27. Januar 2019 7:05 07

EN
Using the refrigerator RMD10
20
• The display turns off 2 seconds after the last activity.
• The display switches on briefly every 15 seconds. This indicates that the refriger-
ator is on.
• If there is a pending error message, the display switches on permanently.
Stand-alone gas mode is indicated
•RMD10.5T, RMD10.5XT: through symbols and
•RMD10.5, RMD10.5X: flashing of LED every 15 seconds
The batteries of the battery packs must be replaced
•RMD10.5T, RMD10.5XT: when the error “E 14” is displayed
•RMD10.5, RMD10.5X: when the error / is displayed
5.10 Setting the cooling capacity
I
➤Set the cooling capacity:
–RMD10.5T, RMD10.5XT: Select the desired temperature level in the cool-
ing capacity menu.
–RMD10.5, RMD10.5X: Repeatedly press until the desired temperature
level is selected.
5.11 Using the refrigerator door/ice compartment door
!–
I
Closing and locking the refrigerator door/ice compartment door
➤Press the door shut until you hear it clearly click at the top and bottom.
✓The door is now closed and locked.
NOTE
For ambient temperatures of +15 °C to +25 °C, select the average cool-
ing capacity.
CAUTION! – Beware of injury
• The refrigerator door or ice compartment door can completely
detach from the device if used incorrectly.
• Do not lean on the open refrigerator door.
NOTE
If the door is not locked correctly on the opposite side, carefully push on
the top and bottom of the door on that side until it locks into place.
RMD10-O-WEST.book Seite 20 Sonntag, 27. Januar 2019 7:05 07
