Dometic miniCool EA 3280 User manual

EA3280 (A803E)
Fridge
Installation and Operating Manual. . . . . . . . 7
EN
REFRIGERATION
CLASSIC

EA3280 (A803E)
2
2
1
3
4
1
ADCB
2
1.
2.
3

EA3280 (A803E)
3
40 mm
10 mm
1.
2.
4
1 – 2 mm
6 – 8 mm
5
6

EA3280 (A803E)
4
1.2.
7
8
80 mm
90°
9

EA3280 (A803E)
5
2.
1.
0
2.
1.
a
8.
9.
2.
4.
3.
6.
7.
5.
1.
b

EA3280 (A803E)
6
180°
4.
2.
1.
3.
180°
c
7.
6.
5.
4.
8.
9.
10.
3.
1.
2.
d
2.
1.
3.
e

EN
EA3280 (A803E) Explanation of symbols
7
Please read this manual carefully before starting the device. Keep it in a
safe place for future reference. If the device is passed on to another
person, this manual must be handed over to the user along with it.
The manufacturer cannot be held liable for damage resulting from improper usage
or incorrect operation.
Contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
3 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
4 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
8 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
10 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
1 Explanation of symbols
!
!
A
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.

EN
Safety instructions EA3280 (A803E)
8
I
2 Safety instructions
2.1 General safety
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Electrocution hazard
• Do not operate the cooling device if it is visibly damaged.
• If this cooling device's power cable is damaged, it must be replaced
by the manufacturer, customer service or a similarly qualified person in
order to prevent safety hazards.
• This cooling device may only be repaired by qualified personnel.
Improper repairs can lead to considerable hazards.
Health hazard
• This device is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruc-
tion concerning use of the device by a person responsible for their
safety.
• Cleaning and user maintenance must not be carried out by children
without supervision.
• Children must not play with the cooling device.
• Children must be supervised to ensure that they do not play with the
cooling device.
• Always keep and use the cooling device out of the reach of children
under the age of 8 years.
Explosion hazard
• Do not store any explosive substances such as spray cans with a
flammable propellant in the cooling device.
NOTE
Supplementary information for operating the product.

EN
EA3280 (A803E) Safety instructions
9
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Electrocution hazard
• Disconnect the cooling device from the power supply
– before each cleaning and maintenance
– after every use
Health hazard
• Food may only be stored in its original packaging or in suitable
containers.
ANOTICE! Damage hazard
• Check that the voltage specification on the type plate corresponds to
that of the energy supply.
• Connect the cooling device with an AC connection cable to the AC
power supply.
• Never pull the plug out of the socket by the cable.
• The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
• The insulation of the cooling device contains flammable cyclopentane
and requires special disposal procedures. Deliver the cooling device
at the end of its life-cycle to an appropriate recycling center.
2.2 Operating the cooling device safely
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Electrocution hazard
• Before starting the cooling device, ensure that the power supply line
and the plug are dry.
Health hazard
• Opening the door for long periods can cause significant increase of
the temperature in the compartments of the device.
• Clean regularly surfaces that can come in contact with food and
accessible drainage systems.
• Store raw meat and fish in suitable containers in the device, so that it is
not in contact with or drip onto other food.

EN
Intended use EA3280 (A803E)
10
• If the device is left empty for long periods:
– Switch off the device.
– Defrost the device.
– Clean and dry the device.
– Leave the door open to prevent mould developing within the
device.
ANOTICE! Damage hazard
• Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for the purpose.
• Do not place the cooling device near naked flames or other heat
sources (heaters, direct sunlight, gas ovens etc.).
•Danger of overheating!
Ensure at all times that there is a minimum of 50 mm ventilation on all
four sides of the cooling device. Keep the ventilation area free of any
objects that could restrict the air flow to the cooling components.
Do not place the cooling device in closed compartments or areas with
none or minimal air flow.
• Ensure that the ventilation openings are not covered.
• Do not fill the inner container with ice or fluids.
• Never immerse the cooling device in water.
• Protect the cooling device and cables against heat and moisture.
3 Intended use
The fridge EA3280 (A803E) is suitable for cooling food.
!
I
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing
the food you wish to cool.
NOTE
Do not use the freezer compartment to deep-freeze foods. The freezer
compartment is suitable for freezing ice and storing deep-frozen foods.

EN
EA3280 (A803E) Scope of delivery
11
4Scopeofdelivery
5 Technical description
The cooling device has a freezer compartment, which can be cooled down to a min-
imum temperature of –18 °C.
It requires 6 to 10 hours for the cooling device to reach its operating temperature. If
the device is filled with foods and drinks, the cooling process can last between 8 and
18 hours. These values are maintained at ambient temperatures between +16 °C and
+32 °C.
5.1 Components
6 Installation
A
Quantity Description
1 Fridge
1 Installation and operating manual
No. in

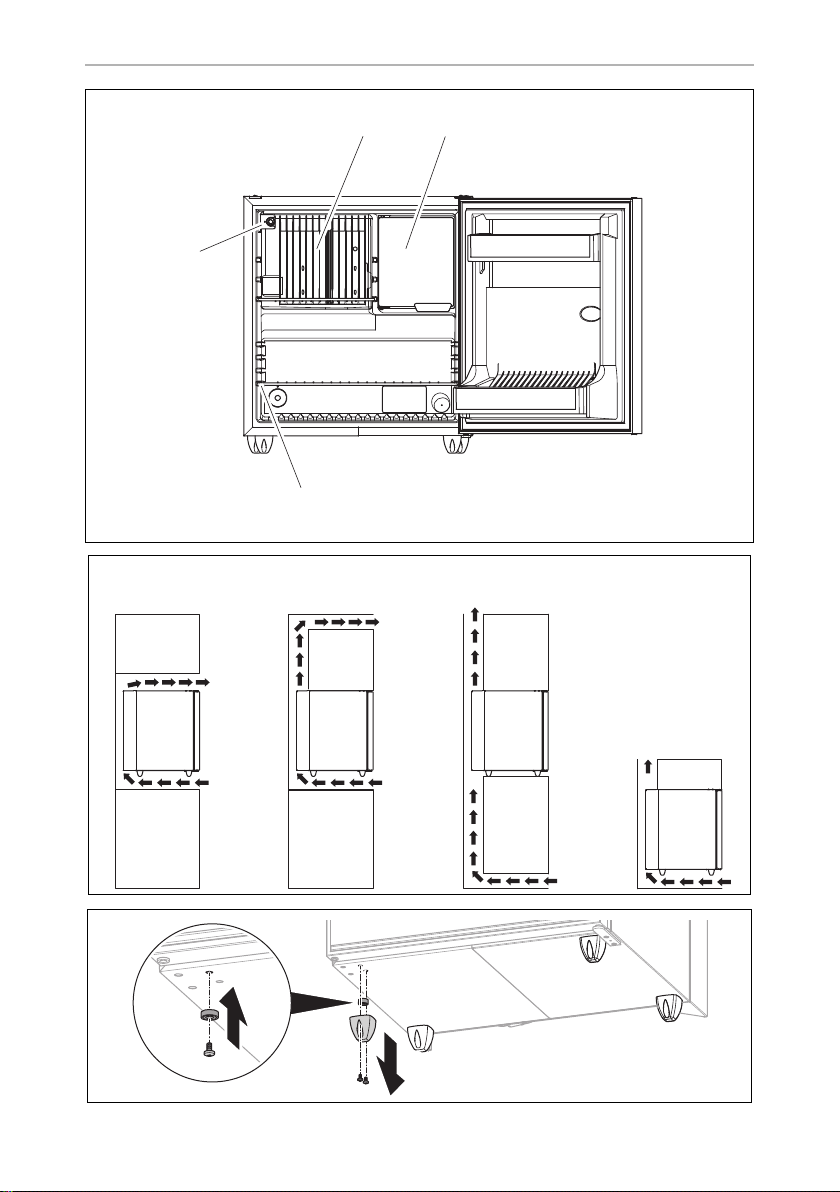

fig. 1, page 2 Description
1 Temperature controller
2 Evaporator plate for regular cooling compartment
3 Freezer compartment
4 Type plate
NOTICE!
Before putting the refrigerator into service, please ensure that the mains
connection voltage corresponds to the voltage indicated on the type
plate.

EN
Installation EA3280 (A803E)
12
I
The cooling device is designed for free-standing installation, but it can also be
installed in a built-in cabinet. To ensure satisfactory operation and maximum cooling
efficiency the following installation conditions have to be fulfilled:
• The cooling device must be levelled carefully to ensure proper function.
• The clearance between the cooling device‘s back and the wall should be 20 mm
or more.
• Ventilation must be provided as shown in alternatives A, B, C or D (fig. 2,
page 2).
• The ventilation duct must at least measure 105 mm x the width of the cooling
device.
• The entire cooling unit must project into the ventilation duct as shown (fig. 2,
page 2). Other parts of the device may not project into the ventilation duct.
• Air passing through the ventilation duct must not be preheated by any source of
heat.
• Ventilation grills, if used, must have openings of at least 200 cm².
• The socket outlet for the mains connection must be freely accessible.
6.1 Free-standing installation
To install the cooling device follow these steps:
➤If needed, change the cooling device‘s feet as shown (fig. 3, page 2).
➤Place the cooling device on a firm base.
➤Connect the connection cable to the AC mains supply.
✓The cooling device starts cooling the interior.
➤Set the temperature controller (fig. 11, page 2) to the desired temperature
(3 – 12 °C).
NOTE
• The cooling device should not be exposed to heat radiation from hot
appliances (e.g. stoves).
• The ventilation apertures at the topof the cooling device must not be
covered up.

EN
EA3280 (A803E) Installation
13
6.2 Installation in a built-in cabinet
To install the cooling device follow these steps:
➤Fix the cooling device in the built-in cabinet as shown (fig. 4to fig. 6, page 3).
➤Connect the connection cable to the AC mains supply.
✓The cooling device starts cooling the interior.
➤Set the temperature controller (fig. 11, page 2) to the desired temperature
(3 – 12 °C).
6.3 Mounting the sliding hinge (optional)
You can mount a sliding hinge that allows the cooling device door to be opened
together with the door of the built-in cabinet.
➤Mount the sliding hinge as shown (fig. 7, page 4, to fig. 9, page 4).
6.4 Changing the decorative plate
The decorative plate in the front door can be exchanged to fit the decor to other fur-
niture.

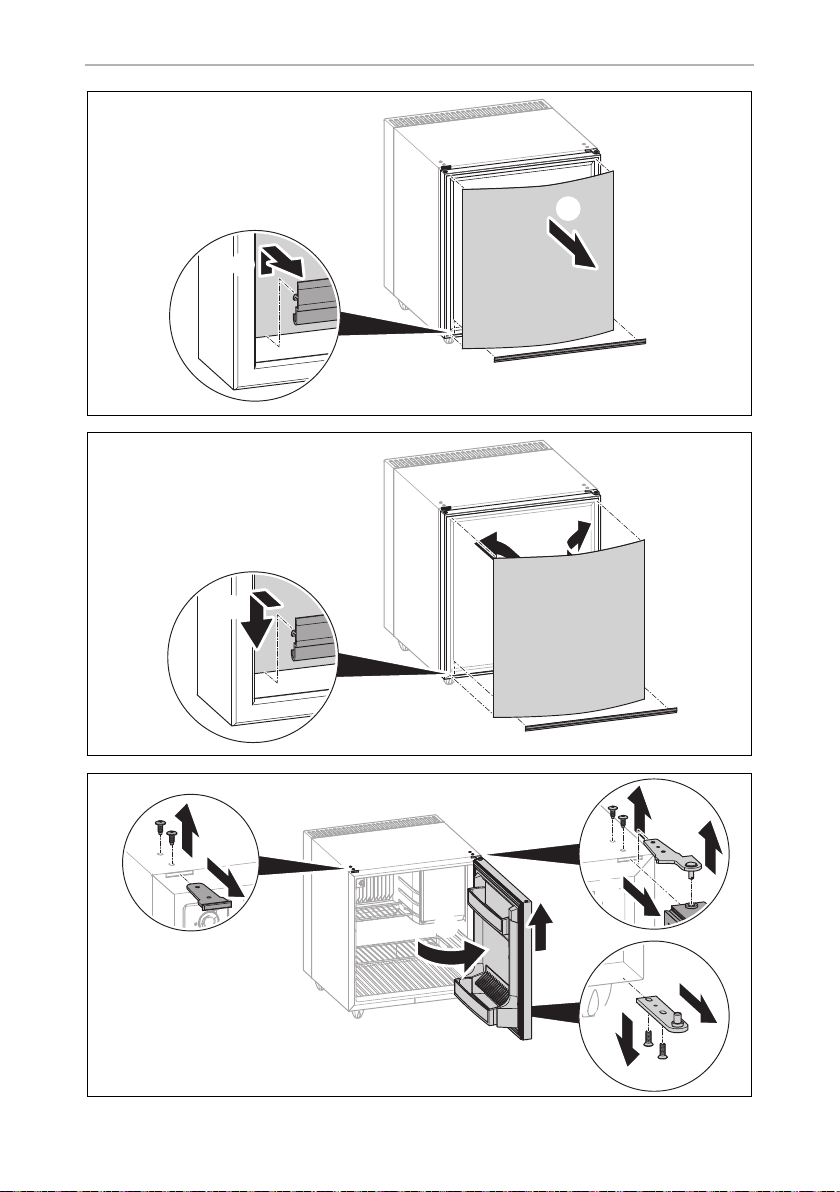

➤To change the decorative plate proceed as shown (fig. 0to fig. a, page 5).
6.5 Reversing the door
The door hinge can be moved from right to left, so that the door opens in the other
direction.

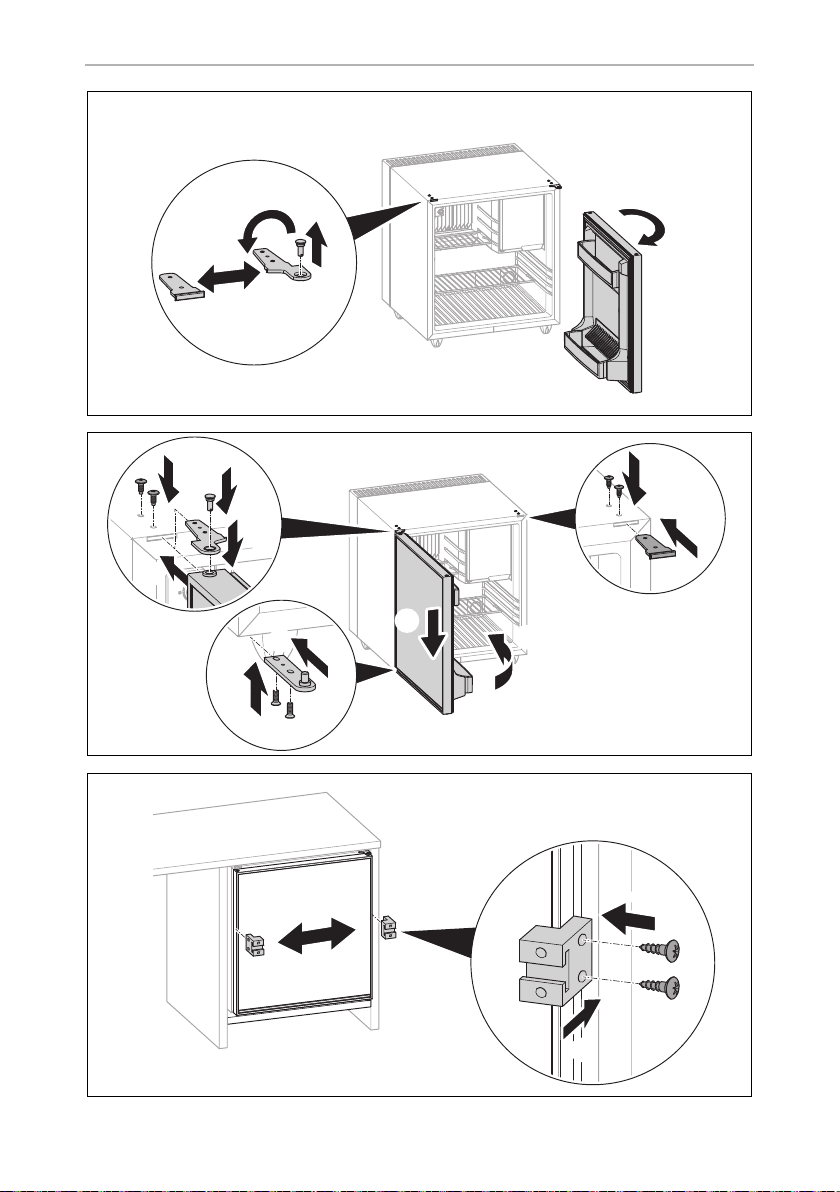

➤Reverse the door as shown (fig. bto fig. don page 6).
➤For doors with a sliding hinge proceed as shown (fig. bto fig. eon page 6).

EN
Operation EA3280 (A803E)
14
7Operation
!
!
A
I
WARNING!
Combustible liquids and gases must not be stored in the cooling device.
The liquids or gases can explode and this explosion can result in serious
injuries or even death.
CAUTION! Health hazard!
• Please ensure that the cooling capacity of the device is suitable for
storing the food you wish to cool.
• Food may only be stored in its original packaging or in suitable
containers.
NOTICE! Risk of damage
• Ensure that the objects placed in the cooling device are suitable for
cooling to the selected temperature.
• Ensure that food or liquids in glass containers are not excessively
refrigerated. Liquids expand when they freeze and can therefore
destroy the glass containers.
NOTE
• Before starting your new cooling device for the first time, you should
clean it inside and outside with a damp cloth for hygienic reasons
(please also refer to the chapter “Cleaning and maintenance” on
page 16).
• The cooling performance can be affected by:
– The ambient temperature
– The amount of food to be conserved
– How often you open the door
• The cooling device operates silently.
• Approximately one hour after switching on, the freezer compart-
ment of the cooling device should be cold. The device reaches its
operating temperature after a few hours.
• If a few drops of water form inside the cooling device after it has been
cooling for a lengthy period, the cooling device is not defective. Air
moisture condenses to water when the temperature in the cooling
device falls. Wipe the water out with a dry cloth if necessary.

EN
EA3280 (A803E) Operation
15
7.1 Energy saving tips
• Choose a well ventilated location which is protected from direct sunlight.
• Allow warm food to cool down first before placing it in the cooling device to
keep cool.
• Do not open the cooling device more often than necessary.
• Do not leave the cooling device open for longer than necessary.
7.2 Adjusting the temperature
The cooling temperature of can be selected continuously using the temperature
controller (fig. 11, page 2) in the interior of the cooling device.
➤To lower the temperature (cooler), rotate clockwise.
➤To increase the temperature (warmer), rotate anti-clockwise.
7.3 Making ice cubes
➤Fill the ice cube tray up to three quarters full with water.
➤Place the ice tray in the freezer compartment (fig. 13, page 2) of the cooling
device.
7.4 Putting the device out of service
Should the cooling device not be in use for some time, it should be put out of
operation.
➤Rotate the temperature controller (fig. 11, page 2) anti-clockwise to the
position OFF.
➤Disconnect the device from the AC mains supply.
➤Empty the device.
➤Defrost the device (chapter “Defrosting the device” on page 16).
➤Clean the device (chapter “Cleaning and maintenance” on page 16).
➤Leave the door of the device and the freezer compartment slightly ajar.
✓The cooling device can be left in this position until it is put into service again.

EN
Cleaning and maintenance EA3280 (A803E)
16
8 Cleaning and maintenance
!
A
➤Use a soft cloth, lukewarm water and a mild detergent to clean the inside of the
cooling device.
➤Wash out the cooling device using clean water and dry thoroughly.
➤At annual intervals, remove dust from the cooling aggregate at the back of the
cooling device using a brush or a soft cloth.
➤Wipe the doors' PVC seals with a damp cloth and rub them with talcum powder
from time to time.
8.1 Defrosting the device
A
I
To avoid impairing the performance level defrost the device, if the frost layer on the
cooling gills attains a thickness of approximately 3 mm.
➤Disconnect the device from the AC mains supply.
➤Empty the device.
➤Leave the door of the device and the freezer compartment slightly ajar.
➤Put a cloth into the freezer compartment to absorb a part of the defrost water.
WARNING!
Always disconnect the device from the power supply before you clean
and service it.
NOTICE! Risk of damage
• Never clean the cooling device under running water or in dish water.
• Do not use abrasive cleaning agents or hard objects during cleaning
as these can damage the cooling device.
NOTICE!
• Do not expose the cooling device to external heat to accelerate the
defrosting.
• Do not attempt to scratch away the frost with sharp objects.
NOTE
If there is a thick frost layer inside the device, use a cloth to absorb the
defrost water below the cooling gills. This prevents the collection con-
tainer from overflowing.

EN
EA3280 (A803E) Troubleshooting
17
✓The defrost water runs into a collection container near the cooling unit.
➤Wipe the device dry with a cloth.
➤Reconnect the device from the AC mains supply.
✓The cooling device can be refilled with foods and drinks. Wait until the following
day before freezing ice cubes, to give the device sufficient time to reach its oper-
ating temperature.
9 Troubleshooting
Problem Possible cause Suggested remedy
Device is not cooling
(the cooling unit at
the back of the
device is cold).
The device plug is not
plugged in.
Plug the device plug in.
No voltage present in the
AC voltage socket.
Check fuse or try using another plug
socket.
The electronics or the sen-
sor is defective.
This can only be repaired by an
authorised repair centre.
The heating element is
defective.
Device is not cooling
(the cooling unit at
the back of the
device is warm).
The device is not level. Level the device using a spirit level.
The device was only
switched on a short while
ago.
Let the device run for 5 to 6 hours.
The cooling unit is
defective.
This can only be repaired by an
authorised repair centre.

EN
Disposal EA3280 (A803E)
18
10 Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
MIf you wish to finally dispose of the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
The devices cooling
performance is poor.
The cooling unit is not
sufficiently ventilated.
Check that the ventilation grids are not
covered.
Check that device has been installed
in accordance with fig. 2, page 2.
The device is exposed to
heat or direct sunlight.
Relocate the device.
The device door does not
close tightly.
Check if the door is installed correctly.
An authorised repair centre can install
a new door seal if necessary.
The device was only
switched on a short while
ago.
Check the temperature after 5 to
6hours.
Frost is forming inside
the device.
The device door does not
close tightly.
Check if the door is installed correctly.
An authorised repair centre can install
a new door seal if necessary.
Problem Possible cause Suggested remedy

EN
EA3280 (A803E) Technical data
19
11 Technical data
EA 3280 (A803E)
Gross capacity: 70 l
Usable capacity: 65 l
Energy efficiency class: G
Energy consumption (kWh/annum): 1,6 kWh/24 h
Climate class: N
Ambient temperature: +16 °C to +32 °C
Noise emission (sound power): 0 dB
Connection voltage: 230 Vw, 50 Hz/60 Hz
Power consumption: 115 W
Cooling capacity:
Freezer compartment:
Regular compartment:
max. –18 °C
+3 °C to +12 °C
Refrigerant quantity
– NH3:
– H20:
173 g
367 g
Dimensions (W x D x H): 525 x 530 x 575 mm
Dimensions door decoration plate
(W x H):
Thickness
507 x 522 mm
max. 3 mm
Weight: 24 kg
Testing/certification:

YOUR LOCAL
SALES OFFICE
dometicĶ ,*ű0)"0Ŗ,= "s
YOUR LOCAL
DEALER
dometic.com/dealer
YOUR LOCAL
SUPPORT
dometic.com/contact
dometic.com
 *+-)"1")&01*#*+"1&  *+-,&"0ķ4%& % *+-/&0"1%"*+"1& /*2-ķ ,"#*2,!&,1%"-2)& 9)&,$0*#ĸ
DOMETIC GROUP AB"+3E/,0$1,ĉčŖĉďĉčČ*),4"!",
4445102883 207.4885.19 04/2019
