RM10.5(S)(T), RMS10.5(X)(S)(T) Explanation of symbols
11
Please read this instruction manual carefully before first use, and storeit in
a safe place. If you pass on the product to another person, hand over this
instruction manual along with it.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
6 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
8 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
9 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
10 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
1 Explanation of symbols
!
!
A
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
RM10-RMS10_OPM_18s.book Seite 11 Mittwoch, 29. April 2020 11:51 11

EN
Safety instructions RM10.5(S)(T), RMS10.5(X)(S)(T)
12
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
• Damage to the product resulting from mechanical influences and incorrect
connection voltage
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual
2.1 General safety
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Electrocution hazard
• Installation and removal of the device may only be carried out by
qualified personnel.
• Do not operate the device if it is visibly damaged.
• If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
• This device may only be repaired by qualified personnel. Improper
repairs can result in considerable danger or damage to the device.
Fire hazard
• The refrigerant in the refrigerant circuit is highly flammable.
In the event of any damage to the refrigerant circuit (smell of
ammonia):
– Switch off the device.
– Avoid naked flames and sparks.
– Air the room well.
Explosion hazard
• Do not store any explosive substances, such as spray cans with
propellants, in the device.
Health hazard
• Never open the absorber unit. It is under high pressure and can cause
injury if it is opened.
NOTE
Supplementary information for operating the product.
RM10-RMS10_OPM_18s.book Seite 12 Mittwoch, 29. April 2020 11:51 11

EN
RM10.5(S)(T), RMS10.5(X)(S)(T) Safety instructions
13
• This device can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the device in a safe way and understand
the hazards involved.
• Children shall not play with the device.
• Cleaning and user maintenance shall not be made by children without
supervision.
• Children aged from 3 to 8 years are allowed to load and unload
refrigerating devices.
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Risk of crushing
• Do not put your fingers into the hinge.
ANOTICE! Damage hazard
• Keep the condensation drain clean at all times.
• The device lighting may only be replaced by customer service.
• Do not use a high-pressure cleaner near the ventilation grill when
cleaning the vehicle.
• Attach the winter covers (accessories) of the ventilation grille when the
vehicle is cleaned from the outside or not used for a prolonged period
of time.
• Do not open the refrigerant circuit under any circumstances.
• The refrigerator is not suitable for storing substances which are caustic
or contain solvents.
• The refrigerator may not be exposed to rain.
2.2 Safe operation
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Risk of injury
• Close and lock the device door before beginning a journey.
• The cooling aggregate at the back of the device becomes very hot
during operation. Protect yourself from coming into contact with hot
parts when removing ventilation grills.
RM10-RMS10_OPM_18s.book Seite 13 Mittwoch, 29. April 2020 11:51 11

EN
Safety instructions RM10.5(S)(T), RMS10.5(X)(S)(T)
14
ANOTICE! Damage hazard
• Do not use electrical devices inside the device unless they are recom-
mended by the manufacturer for that purpose.
• Ensure that the ventilation openings are not covered.
•Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the refrigerator is sufficiently
far away from walls and other objects so that the air can circulate.
• Do not fill the inner container with ice or fluid.
• Protect the refrigerator and the cable against heat and moisture.
• Make sure that foodstuffs do not touch the walls of the cooling area.
2.3 Safety when operating with gas
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Explosion hazard
•Only operate the device at the pressure shown on the type plate.
Only use pressure controllers with a fixed setting which comply with
the national regulations.
• While driving only operate the device with gas if the vehicle manufac-
turer allows the operation of the gas system while driving (see vehi-
cle‘s manual).
• Check the national requirements for operating the device with gas
during driving.
• Never operate the device with gas:
– At petrol stations
– In parking garages
– On ferries
– While transporting the caravan or mobile home with a transport
vehicle or tow truck
• Never use a naked flame to check the device for leaks.
• In case of gas odor:
– Close the gas supply cock and the valve on the cylinder.
– Open all windows and leave the room.
– Do not press an electric switch.
– Put out any naked flames.
– Have the gas system checked by a specialist.
RM10-RMS10_OPM_18s.book Seite 14 Mittwoch, 29. April 2020 11:51 11

EN
RM10.5(S)(T), RMS10.5(X)(S)(T) Safety instructions
15
•Never store liquid gas cylinders in unventilated areas or below
ground level (funnel shaped holes in the ground).
• Keep liquid gas cylinders away from direct sunlight. The temperature
may not exceed 50 °C.
ANOTICE! Damage hazard
• Only use propane or butane gas, not natural gas (see rating plate).
INOTE
• Ignition problems may occur at altitudes above 1000 m. Switch to a
different energy source.
2.4 Safety when operating
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Health hazard
• Make sure that you only put items in the device which may be chilled
at the selected temperature.
• Food may only be stored in its original packaging or in suitable
containers.
• Opening the door for long periods can cause significant increase of
the temperature in the compartments of the device.
• Clean regularly surfaces that can come in contact with food and
accessible drainage systems.
• Store raw meat and fish in suitable containers in the device, so that it is
not in contact with or can drip onto other food.
• If the device is left empty for long periods:
– Switch off the device.
– Defrost the device.
– Clean and dry the device.
– Leave the door open to prevent mould developing within the
device.
Risk of injury
• The device door or the freezer door can completely detach from the
device if used incorrectly. Push the doors closed until you hear a clear
click at the top and bottom.
• Do not lean on the open device door.
RM10-RMS10_OPM_18s.book Seite 15 Mittwoch, 29. April 2020 11:51 11

EN
Accessories RM10.5(S)(T), RMS10.5(X)(S)(T)
16
ANOTICE! Damage hazard
• If the door is not locked correctly on the opposite side, push on that
side at the top and the bottom until it locks in place.
• Only store heavy objects such as bottles or cans in the device door, in
the vegetable compartment or on the bottom shelf.
INOTE
• Ask your vehicle manufacturer if the battery management of your
vehicle shuts down the devices to protect the battery.

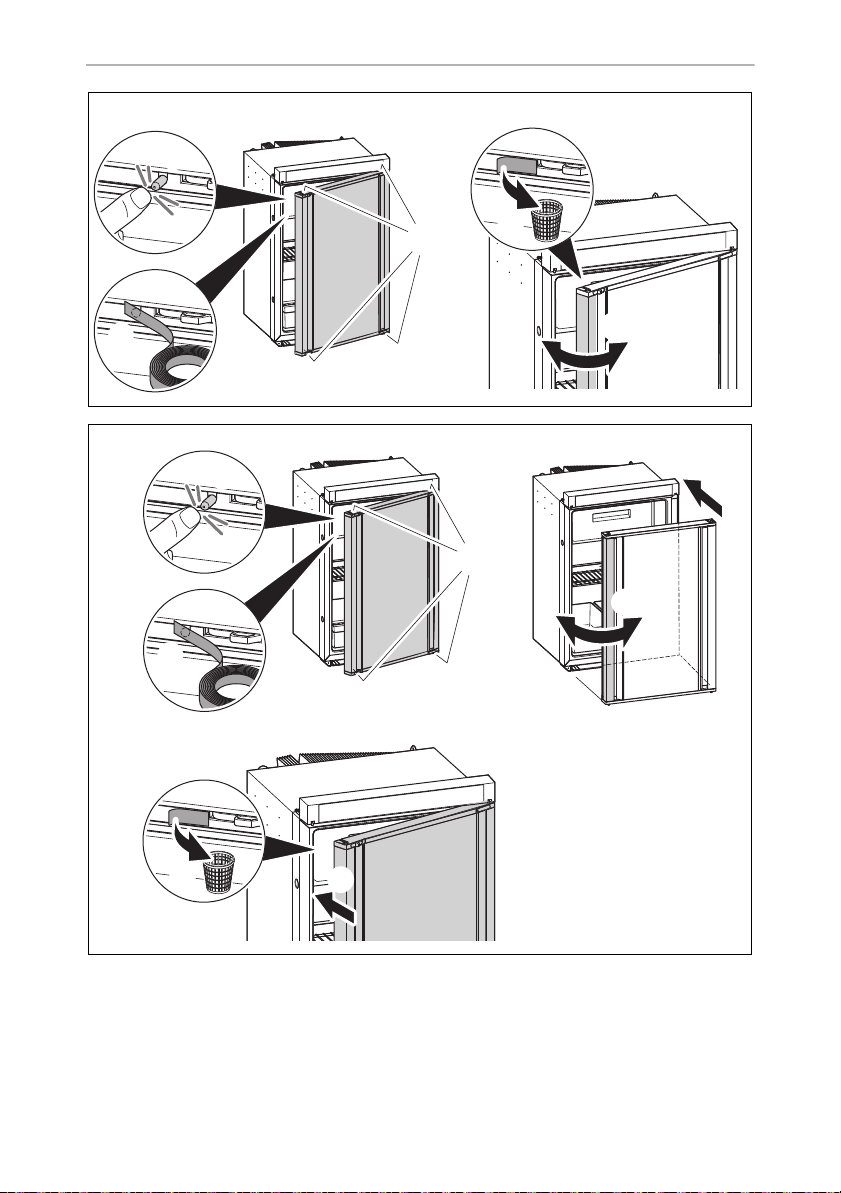

• Put the device door and the freezer door into the winter position if you
are not going to use the device for a longer period of time. This pre-
vents mold from forming.
• For ambient temperatures of +15 °C to +25 °C, select the average
temperature setting.
3Accessories
4 Intended use
The device is suitable for:
• Installation in caravans and motor homes
• Cooling, deep-freezing and storing food
The device is not suitable for:
• Storing medications
• Storing corrosive substances or substances that contain solvents
• Quick-freezing food
Description
Winter cover WA 130 for the ventilation grill LS 200
Optional Fan Kit REF-FANKIT
Note: The Fan Kit can only be installed in refrigerators with software version 36 or higher
(fig. 2, page 4).
Optional Battery pack Pack R10-BP for stand-alone gas operation
Optional storage kit
RM10-RMS10_OPM_18s.book Seite 16 Mittwoch, 29. April 2020 11:51 11

EN
RM10.5(S)(T), RMS10.5(X)(S)(T) Technical description
17
5 Technical description
The refrigerator is an absorber refrigerator and is designed for operation
• on a DC power supply (12 V)
• on an AC power supply
• with liquefied gas (propane or butane)
The refrigerator has an automatic operating mode that selects the most economical
type of energy connected. The refrigerator unit operates silently.
5.1 Operating and display elements
RM10.5T, RMS10.5T, RMS10.5XT
The TFT display features the following operating and display elements (fig. 1A,
page 4):
Symbol Description
Cooling capacity indicator
Operation with AC power
Operation with DC power
Operation with gas
Automatic mode:
In automatic mode, the refrigerator automatically selects the most
economical operating mode in the following order of priority:
Battery:
Symbol lights up when the battery packs (optional) are fitted and the
device is in stand-alone gas mode.
Fan (optional):
Symbol lights up when die fan function is activated.
Symbol lights up when the refrigerator is connected to the CI bus.
Dim TFT display
After 30 seconds, the brightness of the display is reduced to the set
level.
RM10-RMS10_OPM_18s.book Seite 17 Mittwoch, 29. April 2020 11:51 11

EN
Technical description RM10.5(S)(T), RMS10.5(X)(S)(T)
18
RM10.5S, RMS10.5S, RMS10.5XS
The LED display features the following operating and display elements (fig. 1B,
page 4):
Beep off:
•Error messages and warnings are not signaled acoustically.
•Door left open for an extended period is signaled acoustically.
Beep on:
Error messages, warning messages and door left open for an
extended period are signaled acoustically.
Confirm selection and return to the main menu
Symbol Description
ON/OFF button
Fault indicator
Operation with DC power
Operation with gas
Operation with AC power
Automatic mode
Temperature indicator
Energy selection button
Temperature selection button
Symbol Description
A
MODE
RM10-RMS10_OPM_18s.book Seite 18 Mittwoch, 29. April 2020 11:51 11

EN
RM10.5(S)(T), RMS10.5(X)(S)(T) Using the refrigerator
19
6 Using the refrigerator
I
6.1 Tips for optimal refrigerator operation
• Do not store goods in the refrigerator for the first 12 hours after start-up.
• Protect the interior of the vehicle from warming up excessively (e.g. sunshades in
the windows, air conditioner).
• Protect the refrigerator from direct sunlight (e.g. sunshades in the windows).
6.2 Operation at low outdoor temperatures
A
I

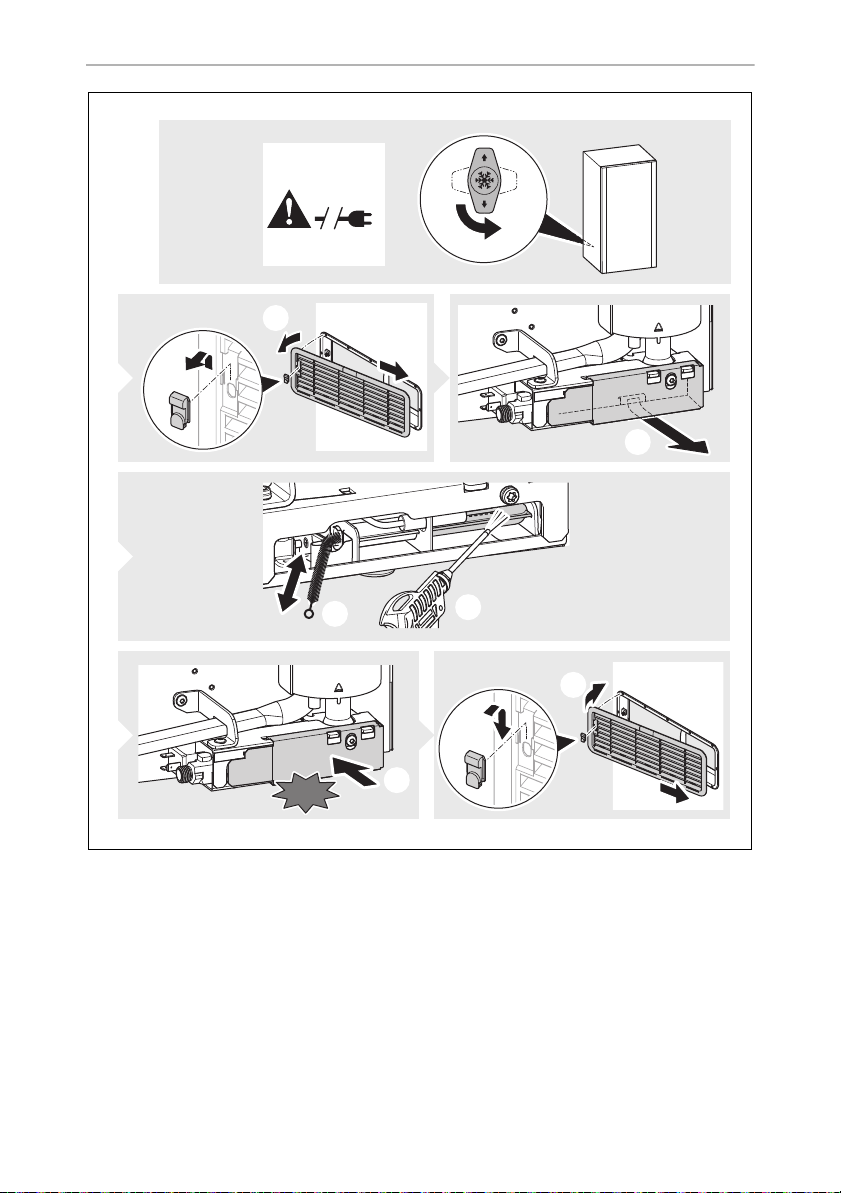

➤Install the winter covers (accessory) as shown in fig. 3, page 5.
NOTE
• Before starting your new refrigerator for the first time, clean it inside
and outside with a damp cloth for hygienic reasons.
• When using the refrigerator for the first time, there may be a mild
odor which will disappear after a few hours. Air out the living space
well.
• Park the vehicle so that it is level, especially when starting up and fill-
ing the refrigerator before setting off on a journey.
• The cooling capacity can be affected by:
– the ambient temperature (e.g. when the vehicle is exposed to
direct sunlight)
– the amount of food to be refrigerated
– how often you open the door
NOTICE!
In AC power mode and DC power mode, install both winter covers. In
gas mode or automatic mode, install the lower winter cover only. This
prevents heat from building up and ensures the fumes from the refriger-
ator can dissipate properly.
NOTE
Cold air can impact the performance of the cooling unit. Install the win-
ter covers if you determine a loss of cooling capacity at low ambient tem-
peratures.
RM10-RMS10_OPM_18s.book Seite 19 Mittwoch, 29. April 2020 11:51 11

EN
Using the refrigerator RM10.5(S)(T), RMS10.5(X)(S)(T)
20
6.3 Switching on the refrigerator
➤Press for 2 seconds
–RM10.5T, RMS10.5T, RMS10.5XT: the control knob
–RM10.5S, RMS10.5S, RMS10.5XS: the button
✓The refrigerator starts with the most recent settings.
6.4 Switching off the refrigerator
➤Press for 4 seconds
–RM10.5T, RMS10.5T, RMS10.5XT: the control knob
–RM10.5S, RMS10.5S, RMS10.5XS: the button
✓A beep sounds and the refrigerator switches off.
6.5 Operating the refrigerator
(RM 10.5T, RMS 10.5T, RMS 10.5XT)
Menu navigation: fig. 4, page 5
➤Press the control knob to activate the TFT display.
The main menu is divided into three lines:
➤Turn the control knob to select the desired detail menu.
➤Press the control knob to open the selected detail menu.
➤Turn the control knob to navigate through the detail menu.
✓Selected settings are displayed in blue.
➤Press the control knob to choose the selected setting.
➤Confirm the selection using .
Main menu Detail menu
Cooling capacity menu
Operating mode menu
Settings menu
RM10-RMS10_OPM_18s.book Seite 20 Mittwoch, 29. April 2020 11:51 11
