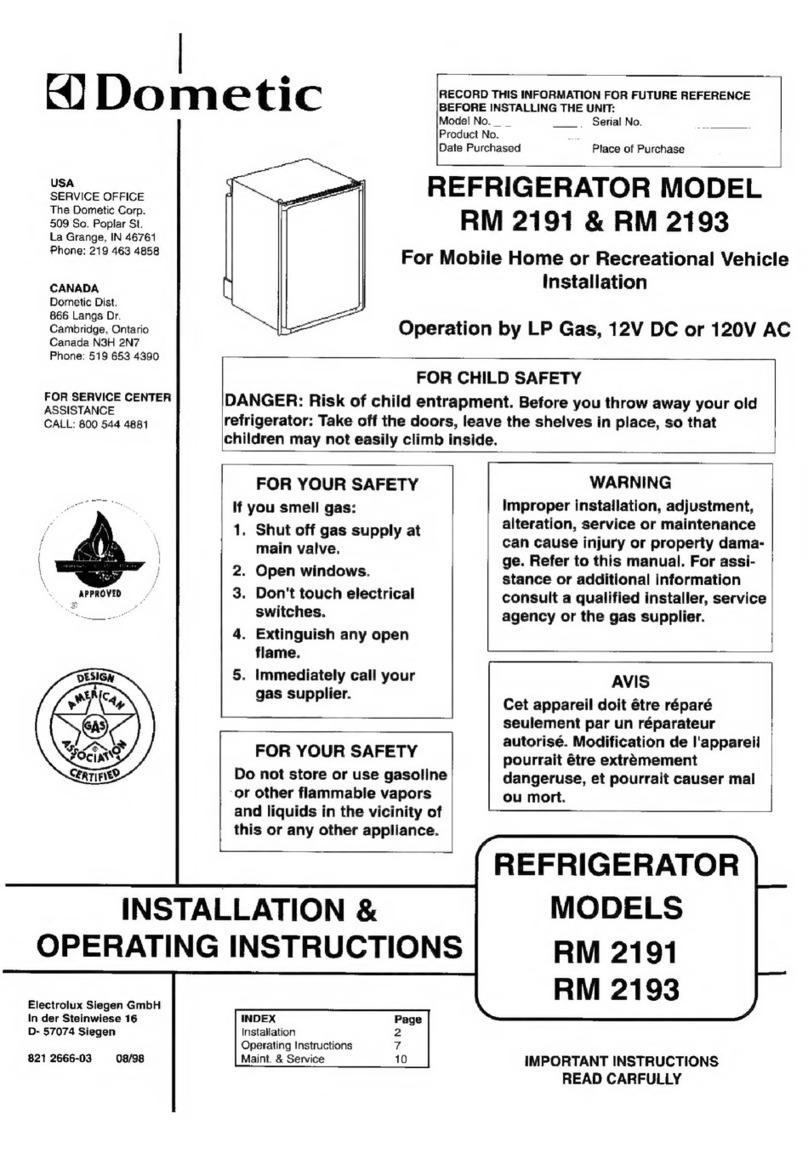

REFRIGERATOR MODEL
RM2191 & RM2193
For Mobile Home or Recreational Vehicle
Installation
Operation by LP Gas, 12V DC or 120V AC
REFRIGERAREFRIGERA
REFRIGERAREFRIGERA
REFRIGERATT
TT
TOROR
OROR
OR
MODEMODE
MODEMODE
MODELSLS
LSLS
LS
RM2191RM2191
RM2191RM2191
RM2191
RM2193RM2193
RM2193RM2193
RM2193

2
2.VENTILATION
The installation shall be made in such a manner as to
separate the combustion system from the living space of
the mobile home or recreational vehicle. Louver openings
must have a minimum dimension of 1/4 inch for air supply
or venting of combustion products.
Proper installation requires one fresh air intake and one
upper exhaust vent. The ventilation kits shown in this
instruction manual have been certified for use with the
refrigerator model listed in the Table. For "Certified Vent
System Kits" see Section B. The ventilation kits must be
installed and used without modification. An opening to-
ward the outside at floor level in the refrigerator compart-
ment must be provided for ventilation of heavier-than-air
fuel gases. The lower vent of the recommended kits is
provided with properly sized openings. The flow of com-
bustion and ventilation air must not be obstructed.
NOTENOTE
NOTENOTE
NOTE: The upper vent should beThe upper vent should be
The upper vent should beThe upper vent should be
The upper vent should be
centered over the condenser coilcentered over the condenser coil
centered over the condenser coilcentered over the condenser coil
centered over the condenser coil
at the back of the refrigerator.at the back of the refrigerator.
at the back of the refrigerator.at the back of the refrigerator.
at the back of the refrigerator.
FIG. 1FIG. 1
FIG. 1FIG. 1
FIG. 1
1. GENERAL INSTRUCTIONS
This appliance is designed for storage of food and
storage of frozen food and making ice.
The refrigerators outlined herein have been design certi-
fied by A.G.A. under ANSI Z21.19 Refrigerator Standard
forinstallationinamobilehomeorrecreationalvehicleand
are approved by the Canadian Gas Association. The
certifications are, however, contingent on the installation
being made in accordance with the following instructions
as applicable.
In the U.S.A., the installation must conform with:
1. National Fuel Gas Code ANSI Z223.1-(latest edition)
2. Manufactured Home Construction and Safety Stan-
dard, Title 24 CFR, Part 3280
3. Recreational Vehicles ANSI A119.2-(latest edition).
The unit must be electrically grounded in accordance with
the National Electric Code ANSI/NFPA 70-(latest edition)
when installed if an external alternating current electrical
source is utilized.
4. Any applicable local code.
In Canada, the installation must conform with:
1. Current CGA B 149 Gas Installation Codes
2. CurrentCSAStandardZ240.4GAS-EQUIPPEDREC-
REATIONAL VEHICLES AND MOBILE HOUSING
3. Any applicable local code
The unit must be electrically grounded in accordance with
the CANADIAN ELECTRICAL CODE C 22 Parts 1 and 2.
Thelowerside vent is fitted withapanel which provides an
adequate access opening for ready serviceability of the
burnerandcontrolmanifold of the refrigerator. Thisshould
be centered on the back of the refrigerator.
3. CERTIFIED INSTALLATION
Certified installations require one upper side vent and one
lower side vent.
For certified vent system kits, see Section B.For certified vent system kits, see Section B.
For certified vent system kits, see Section B.For certified vent system kits, see Section B.
For certified vent system kits, see Section B.
For further information, contact your dealer or distributor.
4. METHOD OF INSTALLATION
The methods of installation are shown in FIG. 1 & FIG. 1A.
Itisessentialthatallmaximumorminimumdimensionsare
strictlymaintained as theperformanceoftherefrigerator is
dependent on adequate flow of air over the rear of the
refrigerator.
SECTION A.SECTION A.
SECTION A.SECTION A.
SECTION A. INSTINST
INSTINST
INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION

3
6.CLEARANCES
Minimum clearances in inches to combustible materials
are: GG
GG
G: Top 0"
KK
KK
K: Side 0"
LL
LL
L: Bottom 0"
MM
MM
M: Rear 1"
NN
NN
N: See NOTE
P:P:
P:P:
P: See NOTE
NOTENOTE
NOTENOTE
NOTE: Clearance "MM
MM
M" is between the rearmost part of
the refrigerator and the wall behind the refrigerator.
NOTENOTE
NOTENOTE
NOTE: Clearance "NN
NN
N" is the distance between the
bottom of the lower vent to the top of upper side vent.
For ventilation height, refer to Section A. Installation,
Item 5. Ventilation Heights . See FIG. 2.
Surfaces directly above and sides adjacent to theSurfaces directly above and sides adjacent to the
Surfaces directly above and sides adjacent to theSurfaces directly above and sides adjacent to the
Surfaces directly above and sides adjacent to the
flue outlet must be of, or covered with, fireproofflue outlet must be of, or covered with, fireproof
flue outlet must be of, or covered with, fireproofflue outlet must be of, or covered with, fireproof
flue outlet must be of, or covered with, fireproof
material. See FIG. 2.material. See FIG. 2.
material. See FIG. 2.material. See FIG. 2.
material. See FIG. 2.
NOTENOTE
NOTENOTE
NOTE: Clearance "P""P"
"P""P"
"P" over top of unit condenser fins
is 1/4 inch. This is the minimum height which can be
allowed over the condenser fins. Whenever possible,
increase this height by up to 11 inches; the more
ventilation you provide, the better the performance you
can expect from the refrigerator.
MinimumVentilation
Heights In:
5. VENTILATION HEIGHTS
Refer to FIG 1 & FIG. 1A., Pages 2 & 3
Installation with upper sideInstallation with upper side
Installation with upper sideInstallation with upper side
Installation with upper side
vent and lower side ventvent and lower side vent
vent and lower side ventvent and lower side vent
vent and lower side vent
REFRIGERATORREFRIGERATOR
REFRIGERATORREFRIGERATOR
REFRIGERATOR INCHESINCHES
INCHESINCHES
INCHES MMMM
MMMM
MM
*Min. Max. *Min. Max.*Min. Max. *Min. Max.
*Min. Max. *Min. Max.*Min. Max. *Min. Max.
*Min. Max. *Min. Max.
RM2191,RM2193 20-5/8 31-5/8 524 803
* This is the minimum height allowable. Where
possible, increase the minimum height by 11
inches (279mm) for a better air flow and cooling
performance.
FIG. 1A
FIG. 2FIG. 2
FIG. 2FIG. 2
FIG. 2

4
7. INSTALLING REFRIGERATOR IN
ENCLOSURE
NOTE:DONOTinstalltheappliancedirectlyoncarpet-
ing. Carpeting must be removed or protected by a
metal or wood panel beneath the appliance, which
extends at least the full width and depth of the appli-
ance.
The dimensions shown in FIG. 3 will give
youadequatespaceforserviceandproper
installation.
e
RefrigeratorRefrigerator
RefrigeratorRefrigerator
Refrigerator OverallOverall
OverallOverall
Overall InstallationInstallation
InstallationInstallation
Installation RecessRecess
RecessRecess
Recess
ModelModel
ModelModel
Model DimensionsDimensions
DimensionsDimensions
Dimensions DimensionsDimensions
DimensionsDimensions
Dimensions DimensionsDimensions
DimensionsDimensions
Dimensions
RM2191RM2191
RM2191RM2191
RM2191 HeightHeight
HeightHeight
Height WidthWidth
WidthWidth
Width DepthDepth
DepthDepth
Depth HeightHeight
HeightHeight
Height WidthWidth
WidthWidth
Width DepthDepth
DepthDepth
Depth HeightHeight
HeightHeight
Height WidthWidth
WidthWidth
Width DepthDepth
DepthDepth
Depth
RM2193RM2193
RM2193RM2193
RM2193 AA
AA
ABB
BB
BCC
CC
Chh
hh
hww
ww
wdd
dd
dHH
HH
HWW
WW
WDD
DD
D
(Inches) 21-9/16 18-13/16 21-7/16 20-5/8 17-1/2 19-7/8 20-7/8 17-3/4 20-7/8 1/4"
(mm) 548 478 545 524 445 505 530 451 519 6
Distance betweenDistance between
Distance betweenDistance between
Distance between
topofcondenserandtopofcondenserand
topofcondenserandtopofcondenserand
topofcondenserand
top of refrigeratortop of refrigerator
top of refrigeratortop of refrigerator
top of refrigerator
ee
ee
e
A. INSTALLATION
The refrigerator must be installed in a substantial enclo-
sure and must be level. When installing the refrigerator in
the enclosure, all areas within the recess in which the
refrigerator is installed must be sealed from the living
space.
Make sure that there is a complete seal between the front
frame of the refrigerator and the top, sides and bottom of
theenclosure. Alengthofsealingstripisappliedtotherear
surface of the front frame for this purpose. Also apply a
sealing strip to the foremost floor of the enclosure and
apply a second sealing strip to the bottom of the trim strip
on the front base as shown in FIG. 4. The sealing should
provideacompleteisolationoftheappliance'scombustion
system from the vehicle interior.
B. CONDENSATE DRAIN HOLE:
A hole must be drilled through flooring "L" (FIG. 2). This
holemustbedrilledin the one-inch clearance "M" (FIG.2).
The installer MUST make sure that the hose does not kink
whenrunthroughthefloor.Sealaroundthehosethatgoes
through the drilled hole. If a longer hose than supplied is
requiredto get the water to drainoutsideofthevehicle,the
installer will have to supply the extra length hose.
FIG. 4FIG. 4
FIG. 4FIG. 4
FIG. 4
NOTE: Be careful not to damage the sealing strip applied
to the floor of the enclosure when the refrigerator is put in
place.
FIG. 3FIG. 3
FIG. 3FIG. 3
FIG. 3

5
8. GAS CONNECTION
Hook-up to the gas supply line is accomplished at the
manual gas shutoff valve, which is furnished with a 3/8"
SAE (UNF 5/8" – 18) male flare connection. Always use a
backupwrenchwhenconnectingthegassupplylinetothe
gas inlet fitting. All completed connections should be
checked for leaks with a noncorrosive leak detector. (See
FIG. 6 – Gas inlet fitting may have a different orientation
than shown).
WW
WW
WARNINGARNING
ARNINGARNING
ARNING
DO NOT USE A FLAMEDO NOT USE A FLAME
DO NOT USE A FLAMEDO NOT USE A FLAME
DO NOT USE A FLAME
TO CHECK FOR GAS LEAKS.TO CHECK FOR GAS LEAKS.
TO CHECK FOR GAS LEAKS.TO CHECK FOR GAS LEAKS.
TO CHECK FOR GAS LEAKS.
The gas supply system must incorporate a pressure
regulator to maintain a supply pressure of not more than
13.5 inches water column, static (no load).
C. SECURING REFRIGERATOR
IN ENCLOSURE
The refrigerator is installed in the enclosure with eight
screws.Sixscrewsare inthefront frameandtwoareinthe
plate on the rear. See FIG. 5.
FIG. 5
NOTE: Push refrigerator into enclosure until front frame is
tight against the cabinet. First, secure the frame to cabinet
with six screws. Second, install the two screws to the floor
at the rear of the refrigerator.
Failure to follow the sequence in securing the refrigerator
intheenclosurecancauseleakagebetweentheframeand
cabinet. Any space between the counter, storage area or
ceiling and top of the refrigerator should be blocked. The
heat produced at the rear of the refrigerator will become
trappedinthisspace,makingthetopoftherefrigeratorhot
and reducing the efficiency.
The dimensions shown in FIG. 3 will give you adequate
space for service and proper installation.
PRESSURE
REGULATOR
LPGAS
CYLINDER
TO
REFRIGERATOR
When testing the gas supply system at test pressures in
excess of 1/2 psig, the refrigerator and its individual
shutoff valve must be disconnected from the gas supply
piping system.
When testing the gas supply system at pressures less
than or equal to 1/2 psig, the appliance must be isolated
fromthe gas supply piping by closing its individual manual
shutoff valve.
In case detailed instructions on the installation and con-
nectiontothegassupplyarerequired,contactyourdealer
or distributor.
FIG. 6

6
11.11.
11.11.
11. 1212
1212
12 VV
VV
VOLOL
OLOL
OLT DC CONNECTIONT DC CONNECTION
T DC CONNECTIONT DC CONNECTION
T DC CONNECTION
The 125 watt heating element operates the cooling unit
when the refrigerator is connected to the battery of the
vehicle. It has a current rating of about 10.5 amps; there-
fore, the wiring from the battery to the refrigerator must be
of heavy enough gauge to carry this load satisfactorily
without undue voltage drop. To ensure this, the minimum
size of wire to be used is 14 A.W.G. The terminal block for
connecting the 12V supply cable to the battery is posi-
tionedatthelowerleft-handcorneroftherearside(G,FIG.
8).Fromthis terminal, the connection tothebattery should
be made using ring-type clamps with tightening bolts to
ensure good contact with the battery terminals. Polarity is
notimportant,thereforeitdoesnotmatterwhichwireleads
to which battery terminal.
DO NOT connect lights or any other electrical compo-
nents to the same circuit that is used by the refrigera-
tor.
9.9.
9.9.
9. TESTINGLPGASSAFETYSHUTTESTINGLPGASSAFETYSHUT
TESTINGLPGASSAFETYSHUTTESTINGLPGASSAFETYSHUT
TESTINGLPGASSAFETYSHUTOFFOFF
OFFOFF
OFF
Thegas safety shutoffmust be testedafter the refrigerator
is connected to LP gas supply.
To test the gas safety shutoff, proceed as follows:To test the gas safety shutoff, proceed as follows:
To test the gas safety shutoff, proceed as follows:To test the gas safety shutoff, proceed as follows:
To test the gas safety shutoff, proceed as follows:
A. Start the refrigerator according to the instructions for
LP Gas Operation. See " Section C. Operation Instruc-
tions ."
B. Check that the gas flame is lit. Allow it to burn a few
minutes to ensure a full, stable flame.
C. Turn the gas safety valve (B, FIG. 8) to the "OFF"
position. Within 1-2 minutes the gas safety device
within the valve should automatically close. An audible
"click" from the valve may be heard.
D. Turn the gas safety valve to the "HIGH" position (B,
FIG. 8).
E. Withoutpushingintheknob(B,FIG.8)ofthegassafety
device, apply a commercial leak detection solution to
the burner jet. No bubbles should appear. Bubbles
indicate a gas leak and the safety valve must be
replaced by a qualified serviceman.
F. Rinse the burner jet with water. Light the burner and
allow it to burn for five minutes.
10.10.
10.10.
10. 120120
120120
120 VV
VV
VOLOL
OLOL
OLT AT A
T AT A
T AC ELECTRICALC ELECTRICAL
C ELECTRICALC ELECTRICAL
C ELECTRICAL
CONNECTIONCONNECTION
CONNECTIONCONNECTION
CONNECTION
Therefrigerator isequippedwitha three-prong(grounded)
plug for protection against shock hazards, and should be
plugged directly into a properly grounded three-prong
receptacle. DO NOT cut or remove the grounding prong
from this plug. The power cord should be routed to avoid
direct contact with the burner cover, fuel cover or manual
gas shutoff valve knob.
IMPORTANT:
To prevent the refrigerator from being left on and
draining the battery when the vehicle's engine is
not running and charging the battery, it is recom-
mendedthatan automaticcutoutrelay beinstalled
between the battery and the refrigerator toggle
switchso thatthe refrigerator willnot drawcurrent
when the vehicle ignition is switched off. Alterna-
tively, a suitable plug and receptacle should be
installed in the 12V supply line so that the refrig-
erator can be disconnected from the supply, as
necessary.
FUSE
A 12 amp (continuous rating) fuse should be incorporated
in the wiring of the DC supply, as near to the battery as
possible. The fuse must be in the side of the wiring which
isnot connected to thechassis. For example,if the vehicle
hasanegativeground,thefusemustbeinthepositiveside
of the wiring.
12. CHANGING DOOR HINGES
FROM ONE SIDE TO THE OTHER
If required, the door hinges can be moved to the opposite
side. Reverse the door hang in the following way:
A. Unscrew the upper hinge pin, taking care not to lose
the set of washers and bushings.
B. Lift the door from the lower hinge pin. If decorative
door panel is to be installed, proceed to Step 13.
C. Unscrew the pin and mount it on the opposite side
hinge.
D. Unscrew the travel catch and mount it on the opposite
side.
E. Change the cover plate and travel lock plate in top of
door frame to opposite side. Use a screwdriver to
press down on one edge of the cover plate. The
opposite edge will rise above the frame. Use a knife
blade under the raised edge to pop it out. See FIG. 7.
Use needle-nosed pliers to carefully lift lock plate
out of door frame. See FIG. 7.
FIG. 7

7
F. Replacedooronlowerhingepin.Replaceupperhinge
pin and bushings removed in Step A.
G. Check that the door closes properly and seals all
around.
13. INSTALLATION OF DECORATIVE
DOOR PANEL
The door panel can easily be mounted. The dimensions
of the panel must be:
Height ..........................19-3/4"
Width............................17-27/32"
Thickness.....................Up to 1/8"
Weight..........................49 lbs.
REFRIGERATORREFRIGERATOR
REFRIGERATORREFRIGERATOR
REFRIGERATOR
MODELMODEL
MODELMODEL
MODEL COMPONENTSCOMPONENTS
COMPONENTSCOMPONENTS
COMPONENTS PART NO.PART NO.
PART NO.PART NO.
PART NO.
RM2191 * RM123 Upper side vent 8030211.331
RM2193 * RM183 Lower side vent 8030211.332
** Power Ventilator 3104726.009
* Requires one each
** Alternative instructions forwarded with ventilator kit. Used in conjunction with upper and lower side
vents, at minimum vent heights.
SECTION B. CERTIFIED VENT SYSTEMSSECTION B. CERTIFIED VENT SYSTEMS
SECTION B. CERTIFIED VENT SYSTEMSSECTION B. CERTIFIED VENT SYSTEMS
SECTION B. CERTIFIED VENT SYSTEMS
SECTION C.SECTION C.
SECTION C.SECTION C.
SECTION C. OPERAOPERA
OPERAOPERA
OPERATING INSTRTING INSTR
TING INSTRTING INSTR
TING INSTRUCTIONSUCTIONS
UCTIONSUCTIONS
UCTIONS
evaporator tubing. This will slow the circulation of hydro-
gen and ammonia gas, or in severe cases, completely
block it, resulting in a loss of cooling.
Remember to level the vehicle when stopping for more
than an hour, otherwise the cooling unit could be perma-
nently damaged due to overheating if it is left "ON".
When the vehicle is moving, the leveling is not critical as
the rolling and pitching motion of the vehicle will pass to
either side of level, keeping the liquid ammonia from
accumulating in the evaporator tubing.
1.1.
1.1.
1. IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANCE OF LEVELING AANCE OF LEVELING A
ANCE OF LEVELING AANCE OF LEVELING A
ANCE OF LEVELING A
REFRIGERAREFRIGERA
REFRIGERAREFRIGERA
REFRIGERATT
TT
TOROR
OROR
OR
In an absorption refrigerator system, ammonia is liquefied
in the finned condenser coil at the top of the refrigerator.
The liquid ammonia then flows into the evaporator (inside
the freezer section) and is exposed to a circulating flow of
hydrogen gas, which causes the ammonia to evaporate,
creating a cold condition in the freezer.
The tubing in the evaporator section is specifically sloped
to provide a continuous movement of liquid ammonia
downward by gravity through this section. If the refrigera-
tor is operated when it is not level and the vehicle is not
moving, liquid ammonia will accumulate in sections of the
A. Remove the door. See Section 12.
B. Remove the lower trim molding. (NOTE: Trim
molding is not installed on new units in cartons)
C. Fit the new panel in place and slide it up as far as
possible.
D. Fit the trim molding back in place.

8
2.CONTROLS
The gas and electric controls are located at the
rearoftherefrigeratorandareaccessiblethrough
the lower vent in the outside wall of the vehicle.
See FIG. 8.
FIG. 8
3. OPERATING INSTRUCTIONS
A. LP GAS OPERATION
After initial installation, servicing, or changing gas cylin-
ders,etc.,thegasline may contain some air which should
be allowed to escape by briefly turning on the refrigerator
or other gas appliances. This will ensure that the flame
lights immediately. See FIG. 8 for control location and
identification.
1) Open the shutoff valve of the gas bottle. Check
that there is enough gas. Open any on-board
shutoff valve which is in the gas line to the refrig-
erator.
2) Open the lower vent at the rear of the refrigerator
on the outside of the vehicle, and switch the
electrical toggle switch/es (A in RM2191) and (A
and E in RM2193) to the "OFF" position.
3) Turn the gas thermostat control (B) to the highest
setting.
4) Depress the knob (B) of the flame failure device,
turn it to position "HIGH", and hold it down while
depressing the piezo igniter button (C) several
times in quick succession (a click should be heard
each time it is depressed).
5) Keep the knob depressed for a further 10-15
seconds.
6) Release the knob and check for flame by looking
through the opening in the metal burner cover.
7) If the burner has not lit, repeat the lighting proce-
dure. If the burner fails to light within a couple of
attempts, contact a qualified technician or your
dealer.
NOTE:Therefrigeratorhasaflamefailure devicewhich
will automatically shut off the gas to the burner if the
flame is blown out. While the knob (B) is being held in,
this device is temporarily inoperative.
8) If the ambient temperature is above 80°F and/or
the door of the refrigerator is opened frequently
the knob should be left in the "HIGH" position.
9) To terminate gas operation, turn knob (B) to the
"OFF" position.
DO NOT attempt to operate the refrigerator by both gas
and electricity at the same time. Always ensure that
one method of operation is turned off before using the
alternate energy source.
A = DC ON/OFF SWITCH
B = GAS ON/OFF SAFETY VALVE
C = PIEZO IGNITOR
D = ELECTRIC THERMOSTAT
E = AC ON/OFF SWITCH
F = GAS INLET FITTING
G = DC TERMINAL BLOCK

9
The refrigerator is designed for the storage of fresh foods,
milk, etc. It is not intended for the storage of frozen food.
Theinternalvolumeoftherefrigeratoris1.7cubicfeet,net.
NEVER PUT HOT FOOD INTO THE REFRIGERATOR.
Avoid using large dishes and do not stack food or food
containers too closely as this interferes with the circulation
of cold air within the cabinet.
If possible, start the refrigerator on gas or AC the day
before it is to be used, to allow time for the interior to be
cooled. It is then preferable to load the refrigerator with
food which has been precooled in your household refrig-
erator, or in the market.
Before moving the vehicle, make sure that all containers
are tightly covered to avoid spills. If required, crumpled
paper may be packed between bottles and other items to
prevent shifting while traveling.
Engage the travel catch at the top of the front corner of the
door before moving the vehicle.
B. DEFROSTING
To defrost, take out any food, etc. then turn off the gas
valve or switch of the DC/AC supply to the refrigerator.
Leave the refrigerator door open and place a suitable dish
or other receptacle under the evaporator to catch the
defrost water.
When all the frost has melted, any remaining drops of
water in the refrigerator should be wiped up with a clean
cloth. CAUTION
DO NOT use a hot air blower. Permanent damage
could result from warping the metal or plastic parts.
DO NOT use a knife or an ice pick, or other sharp tools
to remove frost from the freezer shelf.
Most LP gas appliances used in recreational vehicles
are vented to the outside of the vehicle. When parked
close to a gasoline pump, it is possible that the
gasoline fumes could enter this type of appliance and
ignite from the burner flame, CAUSING A FIRE OR AN
EXPLOSION.
FORYOUR SAFETY, it isrecommended that all LPgas
appliances which are vented to the outside should be
shut off when refueling.
The refrigerator must be shut off during refueling.
B. ELECTRIC OPERATION
1. RM2191: DC OPERATION
On12V DC operation, the temperatureis controlled
by a thermostat. The thermostat knob (D, in FIG. 8)
should be set to position 4–5 in normal working
conditions.
If the ambient temperature is high and/or fresh food
is put into the refrigerator you may set the refrigera-
tor to a higher position.
If you wish a higher temperature in the cooling
compartment, set the knob to a lower position.
2. RM2193: 12V DC / 120v AC OPERATION
In the case of the RM2193, the refrigerator works
continuously on DC operation (no thermostat con-
trol).
On AC operation, the temperature is controlled by a
thermostat. The thermostat knob (D, in FIG. 8)
should be set to position 4–5 in normal working
conditions. If the ambient temperature is high and/
or fresh food is put into the refrigerator you may set
the refrigerator to a higher setting.
If you wish a higher temperature in the cooling
compartment, set the knob to a lower position.
3. TO TERMINATE ELECTRIC OPERATION
Toterminateelectricoperation,turntheswitch/esto
the "OFF" position (A in RM2191) and (A and E in
RM2193).
NOTE: NEVER OPERATE THE REFRIGERATOR ON
MORE THAN ONE ENERGY SOURCE AT A TIME.
4. HOW TO USE THE REFRIGERATOR
A. FOOD STORAGE COMPARTMENT
The storage compartment is completely closed and
unventilated, which is necessary to maintain the required
low temperature for food storage. Consequently, foods
having a strong odor or those that absorb odors easily
should be covered. Vegetables, salads, etc. should be
covered to retain their crispness. The coldest positions in
therefrigeratorareunderthecoolingfinsandatthebottom
oftherefrigerator.Thewarmerareasareontheupperdoor
shelves. This should be considered when placing different
types of food in the refrigerator.

10
A. It is important to keep the area at the back of the
refrigerator clean. Check the lower vent, upper vent
and area between these openings for any obstructions
such as bird/insect nests, spider webs, etc. Clean the
coils on the back of the refrigerator. Use a soft bristled
brush to dust off the coils.
NOTE: AVOID SPRAYING WATER THROUGH THE
REFRIGERATOR VENTS WHEN WASHING THE RV.
It is important to keep the refrigerator vent area free
from combustible material, gasoline and other flam-
mable vapors or liquids.
B. CheckallconnectionsintheLPgassystem(attheback
of the refrigerator) for gas leaks. The LP gas supply
must be turned on. Apply a noncorrosive bubble solu-
tion to all LP gas connections. The appearance of
bubbles indicates a leak and should be repaired imme-
diately by a qualified serviceman who is famil-
iar with LP gas systems and refrigerators.
DO NOT USE A FLAME TO CHECK FOR GAS LEAKS.
The user should be aware of service that must be done on
a regular schedule to keep the refrigerator operating
properly. The service should only be performed
by a qualified technician who is familiar with
LP gas systems and refrigerators.
1. REFRIGERATOR REMOVAL
Before working on, or removing the refrigerator, make
sure the electrical supply (AC and DC) is turned OFF
before leads are disconnected. Shut off the gas supply.
Disconnect and cap the gas supply line. Loosen the
screws anchoring the refrigerator to the enclosure and
slide the refrigerator out of the compartment.
Replacement is the reverse of removal. Check all
connections for gas leaks. Refer to Section A, Item 1
through 13 of Installation Instructions .
2. PERIODIC MAINTENANCE
To keep a Dometic refrigerator operating efficiently and
safely, periodic inspection and cleaning of several compo-
nents once or twice a year is recommended.
E. CLEANING
Cleaningtherefrigeratorisusuallydoneafteritisdefrosted
or put into storage. To clean the interior of the refrigerator,
use lukewarm water and a mild dishwashing detergent.
Use only warm water to clean the finned evaporator,
gaskets, ice trays and shelves. NEVER use strong chemi-
cals or abrasives to clean these parts as the protective
surfaces will be damaged. It is important to always keep
the refrigerator clean.
F. SHUTOFF (STORAGE PROCEDURE)
Placethetoggleswitch(es)forDCand AC operation to the
"OFF" position or turn the gas valve to position "OFF", as
applicable. See FIG. 8.
When not in use, the refrigerator should be emptied,
cleaned and dried and the door left open so that fresh air
can circulate inside.
Thetravellatchplacedinthesecondholewillholdthedoor
ajar and allow air to circulate.
Most LP gas appliances used in recreational vehicles
are vented to the outside of the vehicle. When parked
close to a gasoline pump, it is possible that the
gasoline fumes could enter this type of appliance and
ignite from the burner flame, CAUSING A FIRE OR AN
EXPLOSION.
FOR YOUR SAFETY, when refueling, shut off all LP
gas appliances which are vented to the outside.
SECTION D. MAINTENANCE & SERVICE
TIPS FORTHE SERVICETECHNICIAN

11
C. Examination and Cleaning of Flue, Burner and Jet
Once or twice a year, look through the opening (see FIG.
9) in the burner box and examine the appearance of the
burner flame which should be predominantly blue in color
whenthe gas thermostat knobis set to itshighestposition.
(Refer to FIG. 10).
If this is not the case, and if you have checked the chapter
"Generals", the flue, burner, jet, etc. should be cleaned.
FIG. 9
D. Cleaning of Burner, Burner Jet (Refer to FIG. 11)
Proceed as follows:
1) Turn off the gas at the gas bottle.
2) By using a phillips screwdriver, remove the screw (B)
and carefully withdraw the burner cover box. Clean the
inside of the box of soot and other deposits.
3) To clean the burner, unscrew the screw (C) that fixes
theburner on theboiler tube and be careful in ordernot
to lose the washer.
4) Clean the inside of the burner.
5) To examine and eventually clean the burner jet, un-
screw the gas pipe union (K) and pull out the burner jet
(L).
6) Clean the jet by washing it in alcohol and blowing it
through with air.
NOTE:Thejetfittedtothisrefrigerator isasize"45"
which is suitable for use on propane gas at 11
inches water column. The orifice in the jet is very
small and must never be cleaned by means of a pin
or similar instrument as this would damage the
orifice.It mustonly be cleanedas describedabove.
7) Reassemble the components in the reverse order to
that described above.
FIG. 11
E. CLEANING OF FLUE TUBE, FLUE BAFFLE
Proceed as follows:
1) Tocleanthefluetubeandthefluebaffle, itisnecessary
to withdraw the refrigerator out of the recess. See
Section D, Item 1 .
2) By using a phillips screwdriver, remove the screw (B, in
FIG. 11) and carefully withdraw the burner cover box.
3) Place a piece of paper or cloth between the boiler tube
(E,inFIG.11)andtheburner assembly, to catch falling
deposits.
4) Remove the "T-piece" (A, in FIG. 12) at the top of the
flue by unscrewing the screw (B, in FIG. 12) that fixes
it to the flue pipe.
5) Carefully takeout the flue baffle (C, FIG. 12) and clean.
6) Clean the flue tube of soot, etc. with the aid of a special
flue brush, available from your supplier.
FIG. 12
FIG. 10

12
7) Reassemble the components in the reverse order to
that described for removal, taking care to remake the
gas connections soundly, and not forgetting to refit the
flue baffle.
8) Reinstall the refrigerator in its recess. Connect the gas
and electrical supplies, and check for gas leaks. Light
the burner and check the appearance of the flame to
ensure that it is predominantly blue (when the thermo-
stat is at "HIGH"), then leave the refrigerator on "test"
for at least an hour.
3.TROUBLESHOOTING
If the refrigerator fails to work, check the following points
before calling a service technician:
A. Instructions for STARTING THE REFRIGERATOR,
Section C, have been followed.
B. The refrigerator is level.
C. If it is possible to start the refrigerator on any of the
connected sources of energy.
D. If the refrigerator fails to work on GAS, check:
1) That the gas bottle is not empty.
2) That all LP Gas valves in the supply line to the
refrigerator are open.
NOTE: The following checks should be performed
only by a qualified technician.
3) That sparks are generated by the piezo ignitor.
4) That the flame continues to burn after releasing the
knob of the flame failure device (B, in FIG. 8). If not,
the thermocouple may be loose or defective.
E. If the refrigerator fails to work DC, check:
1) That the DC supply is connected to the refrigerator.
2) That the fuse on the DC supply is intact.
3) That the DC switch is set to the "ON" position (A, in
FIG. 8).
F. If the refrigerator fails to work on AC, check:
1) That the AC supply is connected to the refrigerator.
2) That the fuse on the AC supply is intact.
3) That the AC switch is set to the "ON" position.
4) That the AC thermostatis not set tothe "0" position.
G. Iftherefrigeratorisnotcoldenoughitmaybebecause:
1) Theventilationisinadequateowingtoreducedarea
of the ventilation passages (partial blockage of
grilles from wire mesh, etc.).
2) The evaporator is frosted up.
3) The temperature control setting is incorrect.
4) The gas pressure is incorrect. Check the pressure
regulator.
5) The ambient temperature is too high.
6) Too much warm food is loaded at one time.
7) The door is not properly closed or the magnetic
sealing strip is defective.
All of the previous instructions are to be followed closely. This refrigerator is
quality guaranteed; however, we are not responsible for any failures caused
by improper adjustments and unfavorable installation conditions. If assis-
tance is required, contact the service point or distributor service department.
