Dometic CRX Series User manual

CRX50, CRX65, CRX80, CRX110,
CRX140
Compressor refrigerator
Installation and Operating Manual. . . . . . . 13
Réfrigérateur à compression
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .36
Nevera con compresor
Instrucciones de montaje y de uso. . . . . . .62
EN
FR
ES
REFRIGERATION
COOOLMATIC
CRX50-65-80-110-140-IO-US.book Seite 1 Dienstag, 3. Juli 2018 1:22 13

CRX
2
CRX 50
1
2
3
5
4
6
7
1
1
2
3
5
4
6
7
CRX 65
2
CRX50-65-80-110-140-IO-US.book Seite 2 Dienstag, 3. Juli 2018 1:22 13

CRX
3
1
2
3
5
4
6
7
CRX 80
3
4
1
2
3
5
4
6
7
CRX 110
CRX50-65-80-110-140-IO-US.book Seite 3 Dienstag, 3. Juli 2018 1:22 13

CRX
4
55
1
2
3
5
4
6
7
CRX 140
6CRX50, CRX65, CRX80
1
2
3
4
8
7
6
5
3s
CRX50-65-80-110-140-IO-US.book Seite 4 Dienstag, 3. Juli 2018 1:22 13

CRX
5
7
CRX110ACDC, CRX140ACDC
1
2
3
4
8
6
5
1
2
3
4
8
7
6
5
3s
CRX110DC
CRX50-65-80-110-140-IO-US.book Seite 5 Dienstag, 3. Juli 2018 1:22 13

CRX
6
ca. 50 mm (1.96 inch)
ca. 50 mm (1.96 inch)
AB
CRX 50-140 CRX 50-140
11
22
33
4
8
CRX 140
ca. 20 mm
(0.79 inch)
CRX50-65-80-110-140-IO-US.book Seite 6 Dienstag, 3. Juli 2018 1:22 13

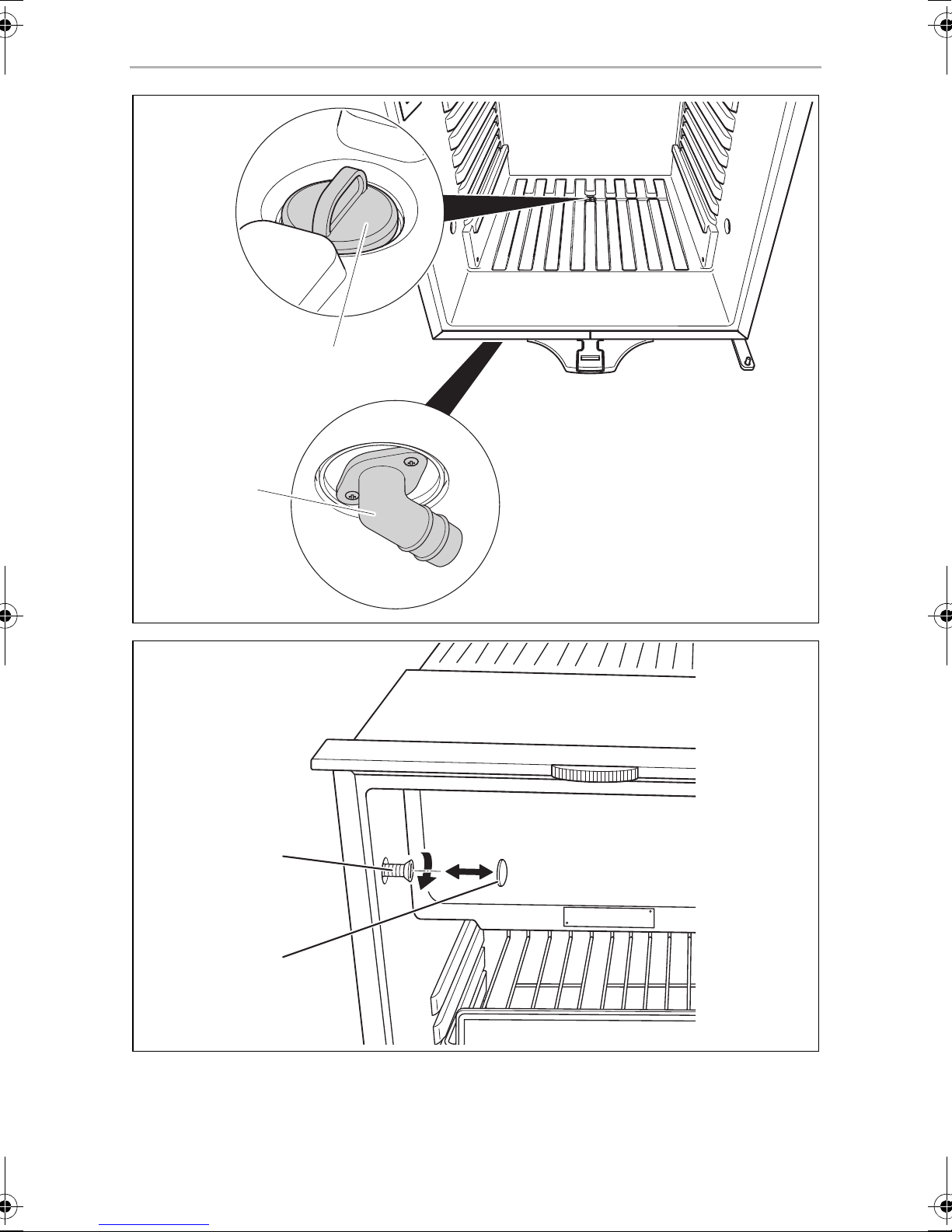

CRX
7
2
1

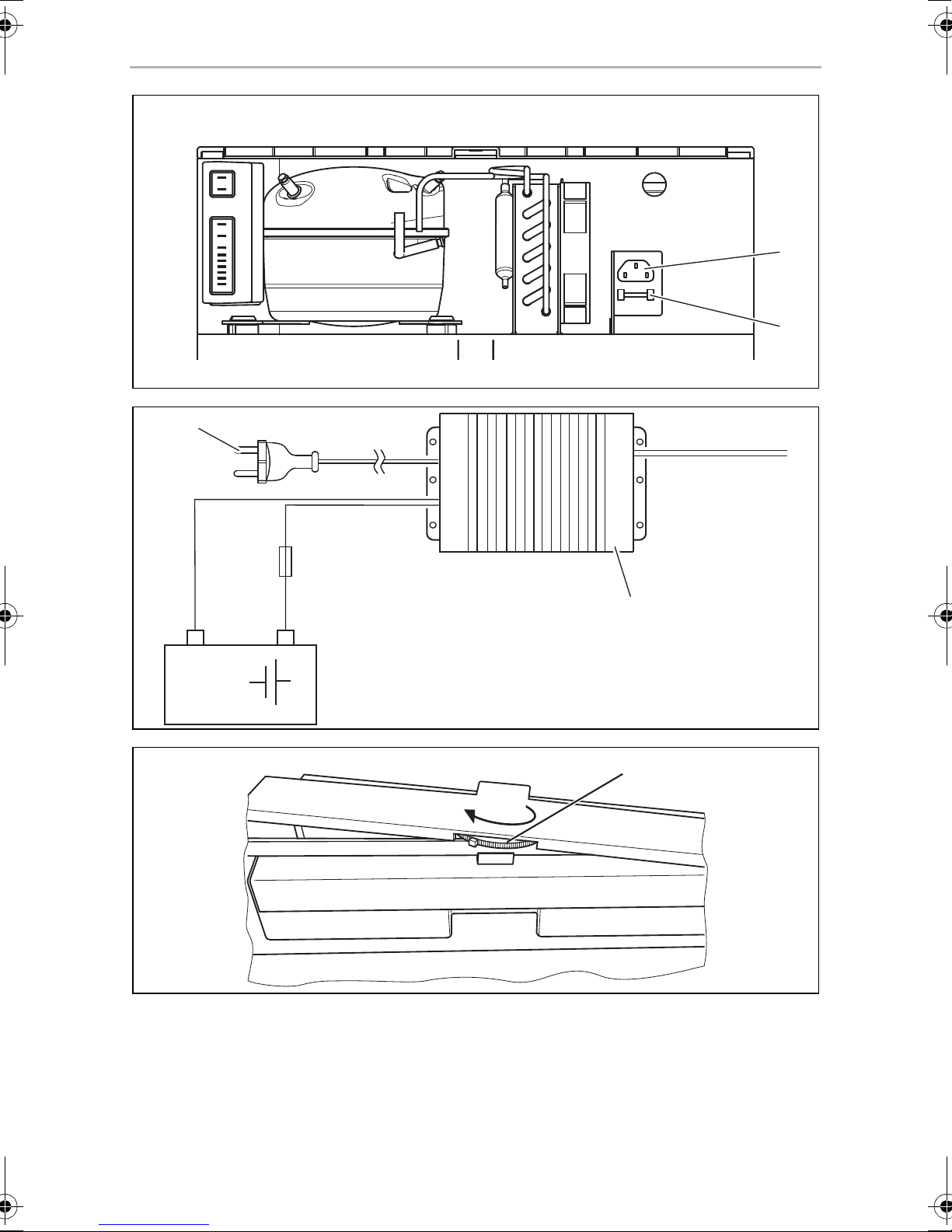

9
1
2
0
CRX50-65-80-110-140-IO-US.book Seite 7 Dienstag, 3. Juli 2018 1:22 13

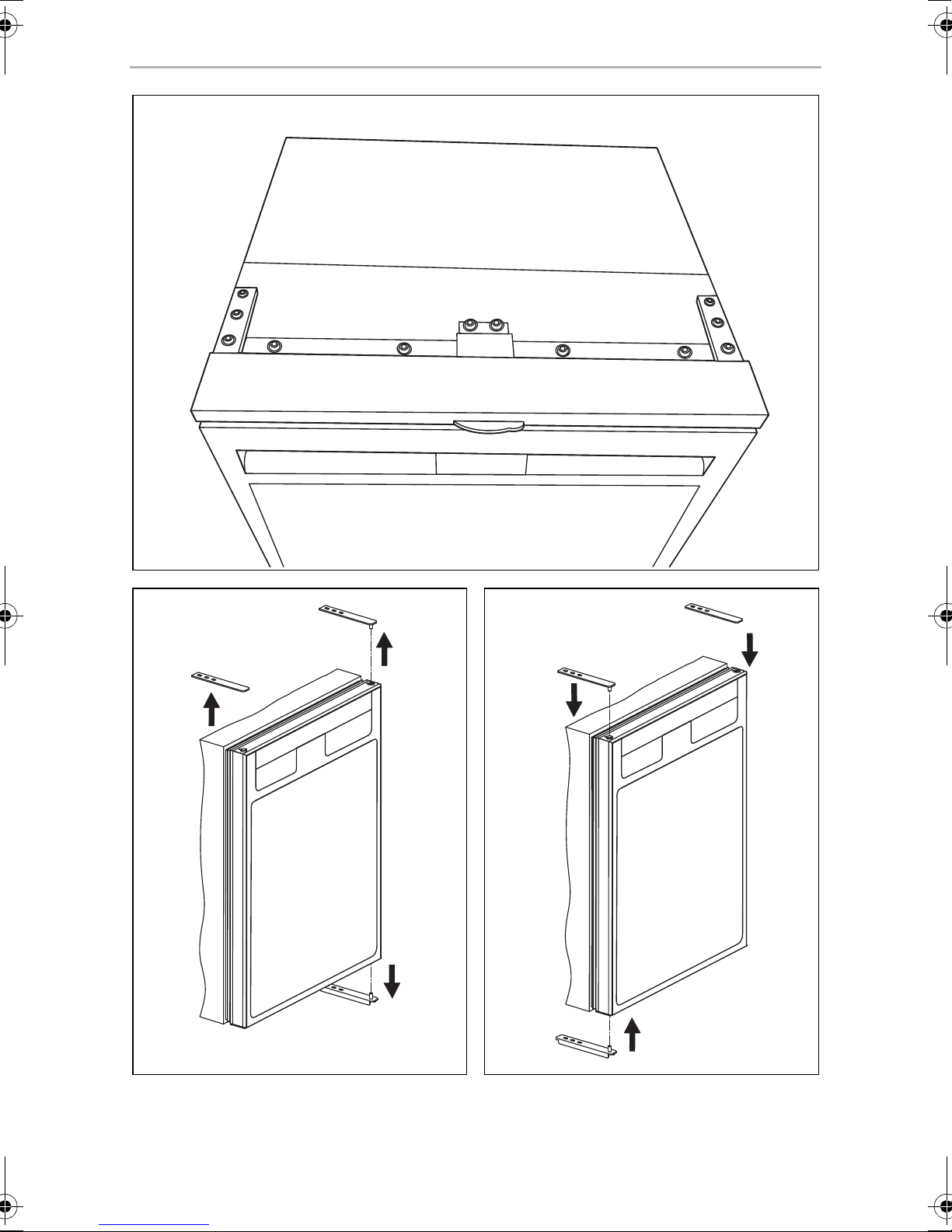

CRX
8
a
b
c
CRX50-65-80-110-140-IO-US.book Seite 8 Dienstag, 3. Juli 2018 1:22 13

CRX
9

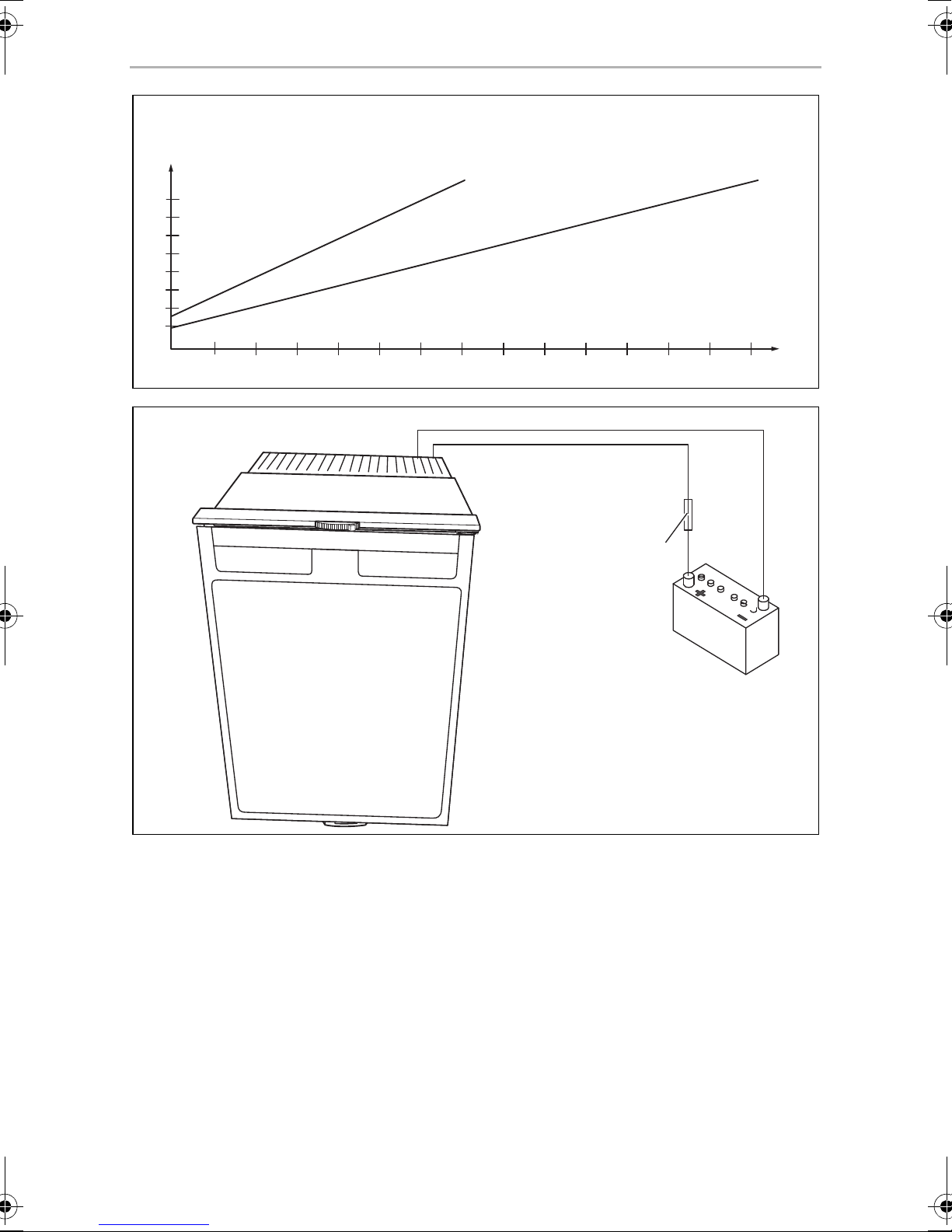

Ø/mm²
l/m
12 V 24 V
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28
0
2
6
10
14
d
1
rd
bk
e
CRX50-65-80-110-140-IO-US.book Seite 9 Dienstag, 3. Juli 2018 1:22 13

CRX
10
1
2
f
12 V/24 V
10 A
–
–
+
+
2
1
rd/bk
rd
bk
bk
100 – 240 V~
g
1
Vent Lock
h
CRX50-65-80-110-140-IO-US.book Seite 10 Dienstag, 3. Juli 2018 1:22 13

CRX
11

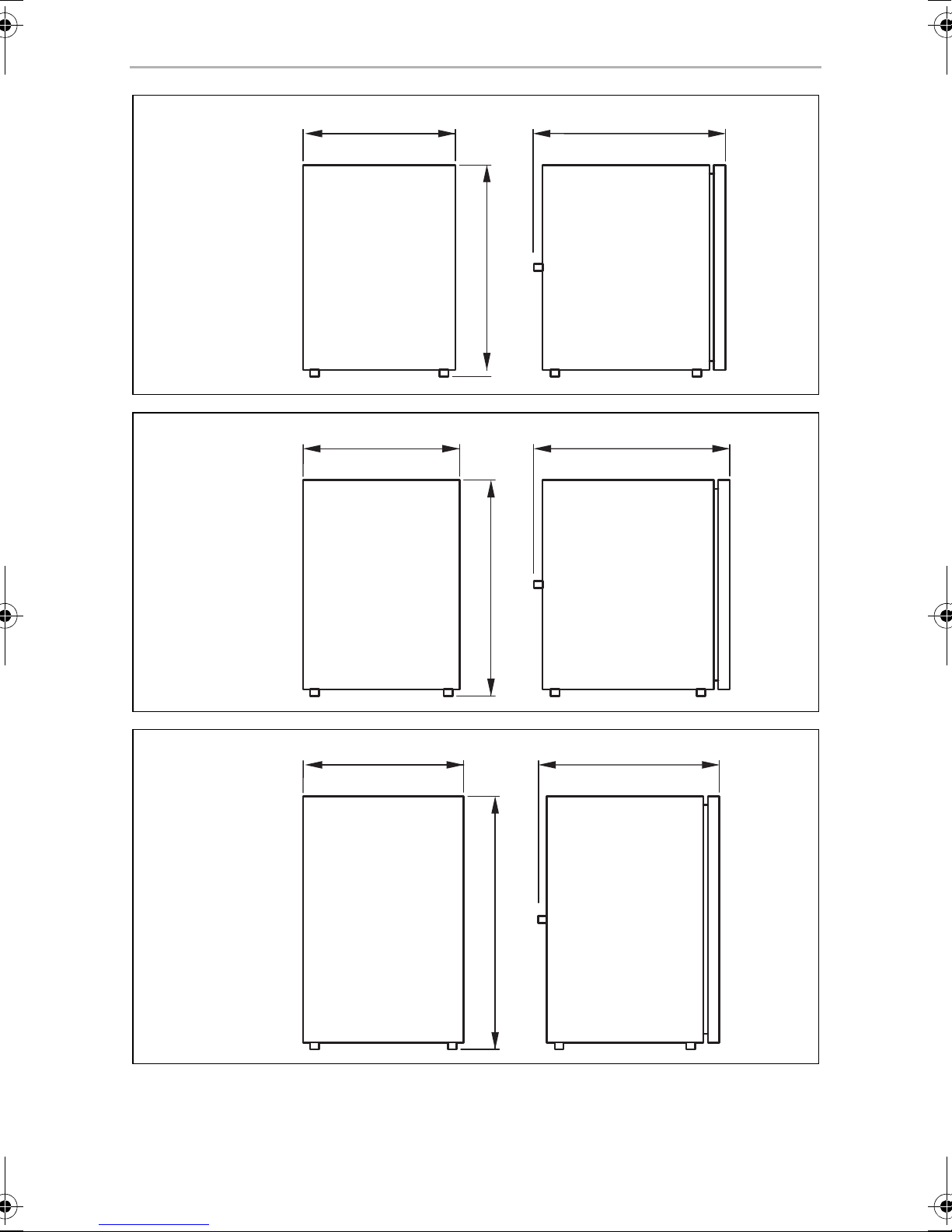

380 mm (14.96 inch)
534 mm (21.02 inch)
500 mm (19.69 inch)
CRX 50
i
CRX 65
448 mm (17.64 inch)
525 mm (20.67 inch)
545 mm (21.46 inch)
j
CRX 80
475 mm (18.7 inch)
640 mm (25.20 inch)
528 mm (20.79 inch)
k
CRX50-65-80-110-140-IO-US.book Seite 11 Dienstag, 3. Juli 2018 1:22 13

CRX
12
CRX 110
520 mm (20.47 inch)
745 mm (29.33 inch)
558 mm (21.97 inch)
l
CRX 140
525 mm (20.67 inch)
812 mm (31.97 inch)
620 mm (24.41 inch)
m
CRX50-65-80-110-140-IO-US.book Seite 12 Dienstag, 3. Juli 2018 1:22 13

EN
CRX Explanation of symbols
13
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
7 Installing and connecting the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . .19
8 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
9 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
12 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
1 Explanation of symbols
D
!
DANGER!
Safety instruction: Failure to observe this instruction will cause fatal or
serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CRX50-65-80-110-140-IO-US.book Seite 13 Dienstag, 3. Juli 2018 1:22 13

EN
Safety instructions CRX
14
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
• Faulty assembly or connection
• Damage to the product resulting from mechanical influences and incorrect
connection voltage
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual
2.1 General safety
DDANGER!
• On boats: If the device is powered by the mains, ensure that the
power supply has a residual current circuit breaker.
!WARNING!
•Installations in washrooms and areas exposed to water, must be
performed by a qualified technician.
• Do not operate the device if it is visibly damaged.
• If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
• This device may only be repaired by qualified personnel. Inadequate
repairs may cause serious hazards.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
CRX50-65-80-110-140-IO-US.book Seite 14 Dienstag, 3. Juli 2018 1:22 13

EN
CRX Safety instructions
15
• This device can be used by children aged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and knowledge, providing they are supervised, or
have been taught how to use the device safely and are aware of the
resulting risks.
• Cleaning and user maintenance must not be carried out by children
without supervision.
• Children must be supervised to ensure that they do not play with the
device.
• Always keep and use the device out of the reach of children under
8 years of age.
• Do not store any explosive substances, such as spray cans with
propellants, in the device.
!CAUTION!
• Danger of crushing! Do not put your fingers into the hinge.
• Foodstuff may only be stored in its original packaging or in suitable
containers.
ANOTICE!
• Check that the voltage specification on the type plate is the same as
that of the power supply.
• Never pull the plug out of the socket by the connection cable.
• If the refrigerator is connected to the DC socket: Disconnect the
refrigerator and other electric consumers from the battery before
connecting the quick charging device.
• If the refrigerator is connected to the DC socket: Disconnect the
refrigerator or switch it off when you turn off the engine. Otherwise
you may discharge the battery.
• The refrigerator is not suitable for storing substances which are caustic
or contain solvents.
• Keep the drainage outlet clean at all times.
• Do not open the refrigerant circuit under any circumstances.
• Never transport the device in a horizontal position, so that no oil can
leak out of the compressor.
CRX50-65-80-110-140-IO-US.book Seite 15 Dienstag, 3. Juli 2018 1:22 13

EN
Safety instructions CRX
16
• Make sure that the refrigerator circuit is not damaged during transpor-
tation. The refrigerant in the refrigerator circuit is highly flammable.
In the event of any damage to the refrigerator circuit:
– Avoid naked flames and sparks.
– Air the room well.
• Set up the device in a dry location where it is protected against splash-
ing water.
2.2 Operating the device safely
DDANGER!
• Do not touch exposed cables with your bare hands. This applies
especially when operating the device from the AC mains.
!CAUTION!
• Before starting the device, ensure that the power supply line and the
plug are dry.
• If you connect the device to a battery, make sure that no food comes
into contact with the battery acid.
ANOTICE!
• Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for that purpose.
• Do not place it near naked flames or other heat sources (heaters, direct
sunlight, gas ovens etc.)
•Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the device is sufficiently far
away from walls and other objects so that the air can circulate.
• Ensure that the ventilation vents are not covered.
• Do not fill the inner container with ice or fluid.
• Never immerse the appliance in water.
• Protect the appliance and the cable against heat and moisture.
• Make sure that foodstuffs do not touch the walls of the cooling area.
CRX50-65-80-110-140-IO-US.book Seite 16 Dienstag, 3. Juli 2018 1:22 13

EN
CRX Scope of delivery
17
3Scopeofdelivery
4Accessories
Available as accessories (not included in the scope of delivery):
If you have any questions, please contact the dealer or your service partner directly.
5 Intended use
The refrigerator is designed for installation in caravans and motorhomes and on
boats. It is recommended the unit is installed into a fixed position. Once it is installed,
only the front of the appliance may be accessible
The refrigerator is only suitable for cooling, freezing and storing foodstuffs. The
refrigerator is not intended for the proper storage of medicine.
!
Quantity Description
1 Refrigerator with shelves
1 Water drain outlet
1 Installation and operating manual
Description Explanation Ref. no.
Rectifier Suitable for CRX50DC, CRX65DC, CRX80DC,
CRX110DC.
Transforms an input voltage of 100 – 240 Vwto 12 Vg
or 24 Vg, so that the refrigerator can be connected to
an AC power supply.
9600000445
Mounting
Frames
Flush-mount and standard mounting frames are available
for all CRX models.
Various
CAUTION! Health hazard!
Please check if the cooling capacity of the refrigerator is suitable for stor-
ing the food you wish to cool.
CRX50-65-80-110-140-IO-US.book Seite 17 Dienstag, 3. Juli 2018 1:22 13

EN
Technical description CRX
18
6 Technical description
The CoolMatic CRX series cooling appliances can cool products and keep them
cool. Products can be deep-frozen in the freezer compartment. If the refrigerator is
operated without a freezer compartment, frozen products can be stored in the short
term using the fast-cooling function.
All materials used in the refrigerator are compatible for use with foodstuffs.
The refrigerant circuit is maintenance-free.
The cooling device can withstand a short-term inclination of 30°, for example on
boats.
The temperature is set using the control panel on the inside left of the refrigerator.
CRX50,CRX65,CRX80
Four temperature ranges from +3 °C (37 °F)to+12°C(54°F),andafast-cooling
function, are available for selection.
CRX110, CRX140
Four temperature ranges from +3 °C (37 °F) to +12 °C (54 °F) are available for
selection.
CRX110ACDC, CRX140ACDC
Four temperature ranges from +3 °C (37 °F) to +12 °C (54 °F), and a winter mode,
are available for selection.
6.1 Control elements inside the refrigerator

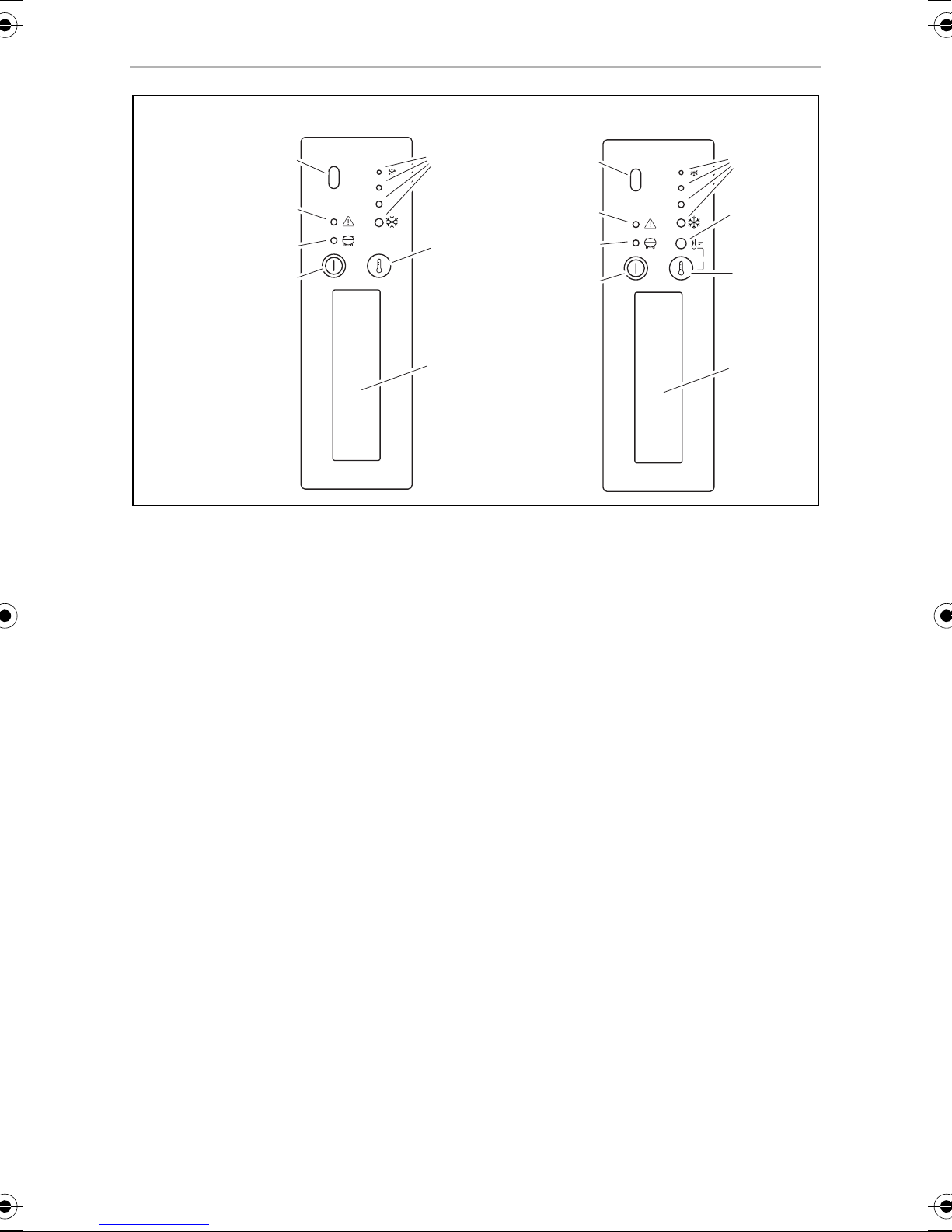

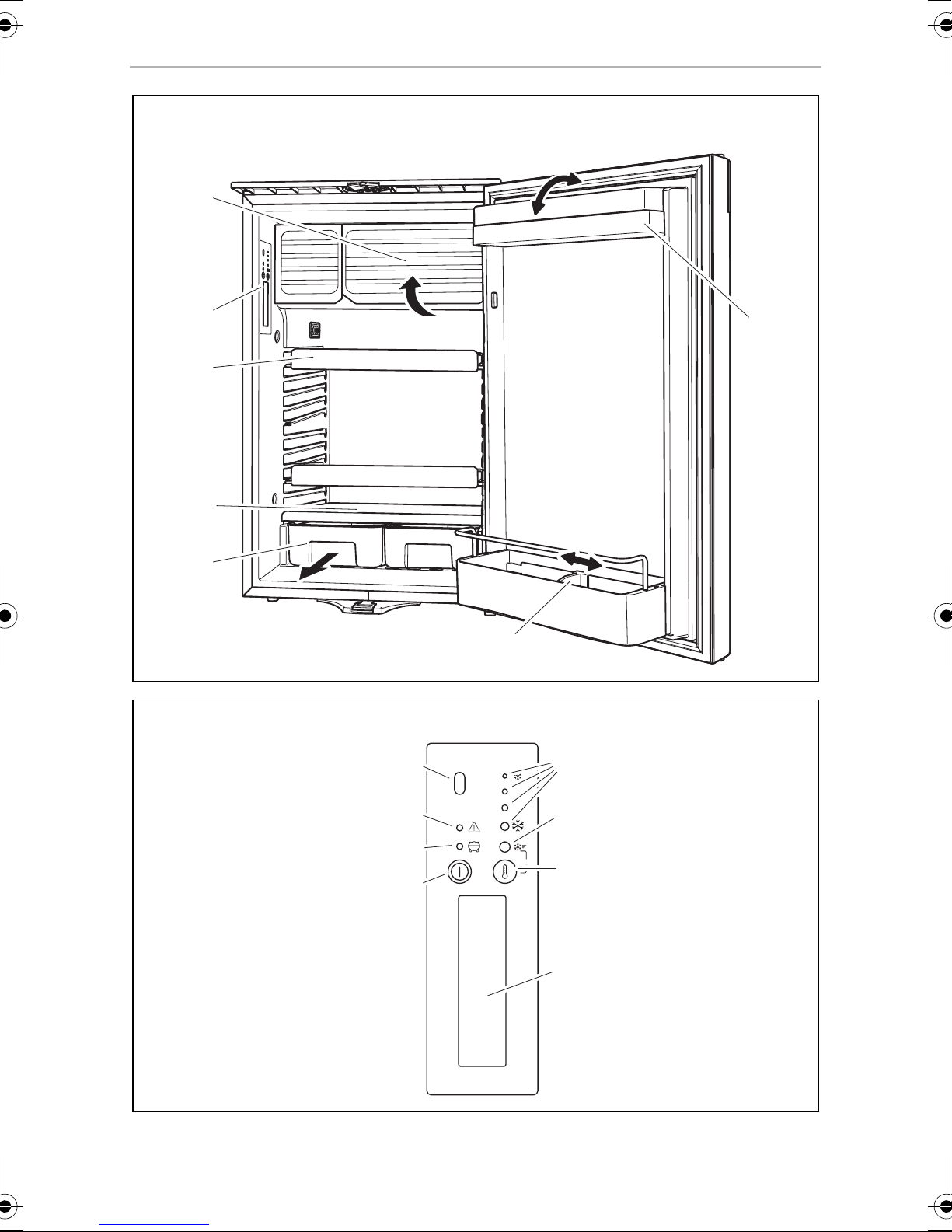

The various types of refrigerators are shown in the following illustrations:
• CRX50: fig. 1, page 2
• CRX65: fig. 2, page 2
• CRX80: fig. 3, page 3
• CRX110: fig. 4, page 3
•CRX140:fig.5, page 4
No. Explanation
1 Freezer compartment (detachable: CRX50, CRX65, CRX80 only)
2 Control panel
3 Wire shelf (folding, so that bottles can be put in the refrigerator)
CRX50-65-80-110-140-IO-US.book Seite 18 Dienstag, 3. Juli 2018 1:22 13

EN
CRX Installing and connecting the refrigerator
19
6.2 Control elements
7 Installing and connecting the
refrigerator
7.1 Safety instructions for installation on boats
Please note the following instructions for installation on boats:
D
4Shelf
5 Fruit compartment
6 Bottle restraint
(to hold bottles in the door)
7 Compartment with lid (hinged)
No. in
fig. 6, page 4,
fig. 7, page 5
Explanation
1 IR sensor for switching the interior light
2 LED Service display
3 LED Blue: Compressor is running
LED Orange: Compressor is off
4 On/off button
5 Inner lighting
6 Temperature selection button
7 LED: Fast cooling function on (CRX50, CRX65, CRX80)
LED: Winter mode on (CRX110ACDC, CRX140ACDC)
8 LEDs: Temperature levels
DANGER!
If the appliance is powered by the mains, ensure that the voltage supply
has a residual current circuit breaker.
No. Explanation
CRX50-65-80-110-140-IO-US.book Seite 19 Dienstag, 3. Juli 2018 1:22 13

EN
Installing and connecting the refrigerator CRX
20
A
7.2 Notes on installing the refrigerator
Observe the following when installing the refrigerator:
• Install the refrigerator so that the warm air produced can easily flow away
(either upwards or to the sides, fig. 8, page 6).
Key for fig. 8, page 6
Observe the following installation dimensions:
• Keep objects clear of openings in the housing or installation structure (such as
ventilation slots, etc.).
NOTICE!
• The cooling device can withstand a short term inclination of 30°, for
example on boats. When setting up the refrigerator, note that it must
be fastened to take account of this. If you have any questions regard-
ing installation, consult your specialist dealer.
• Install the refrigerator so that the warm air produced can easily flow
away (either upwards or to the sides, fig. 8, page 6).
• The appliance is designed for ambient temperatures between
+16 °C (61 °F) and +43 °C (109 °F).
• CRX110ACDC, CRX140ACDC: In winter mode the appliance can be
operated at ambient temperatures between +10 °C (50 °F) and
+16 °C (61 °F).
No. Explanation
1 Cold intake air
2 Hot waste air
3 Condenser
4 Spacing above the refrigerator if there is not sufficient air to circulate
above or at the side.
Model Dimensions W x H x D (mm) Dimensions W x H x D (inch)
CRX50 390 x 544 x 550 15.35 x 21.42 x 21.65
CRX65 458 x 535 x 595 18.03 x 21.06 x 23.43
CRX80 485 x 650 x 578 19.09 x 25.59 x 22.76
CRX110 530 x 755 x 608 20.87 x 29.72 x 23.94
CRX140 550 x 825 x 670 21.65 x 32.48 x 26.38
CRX50-65-80-110-140-IO-US.book Seite 20 Dienstag, 3. Juli 2018 1:22 13
