Dometic ECOLINE CL440LDC User manual

CL440LDC, CL440LGC, CL460LDC,
CL460LGC
Minibar
Installation and Operating Manual. . . . . . . 11
Minibar
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .22
EN
FR
REFRIGERATION
ECOLINE
CL440-460-LDC-LGC-R134a--IO-EN-FR.book Seite 1 Mittwoch, 27. März 2019 3:50 15

CL440-460-LDC-LGC-R134a--IO-EN-FR.book Seite 2 Mittwoch, 27. März 2019 3:50 15

CL440, CL460
3
1
1
ADCB
2
3
CL440-460-LDC-LGC-R134a--IO-EN-FR.book Seite 3 Mittwoch, 27. März 2019 3:50 15

CL440, CL460

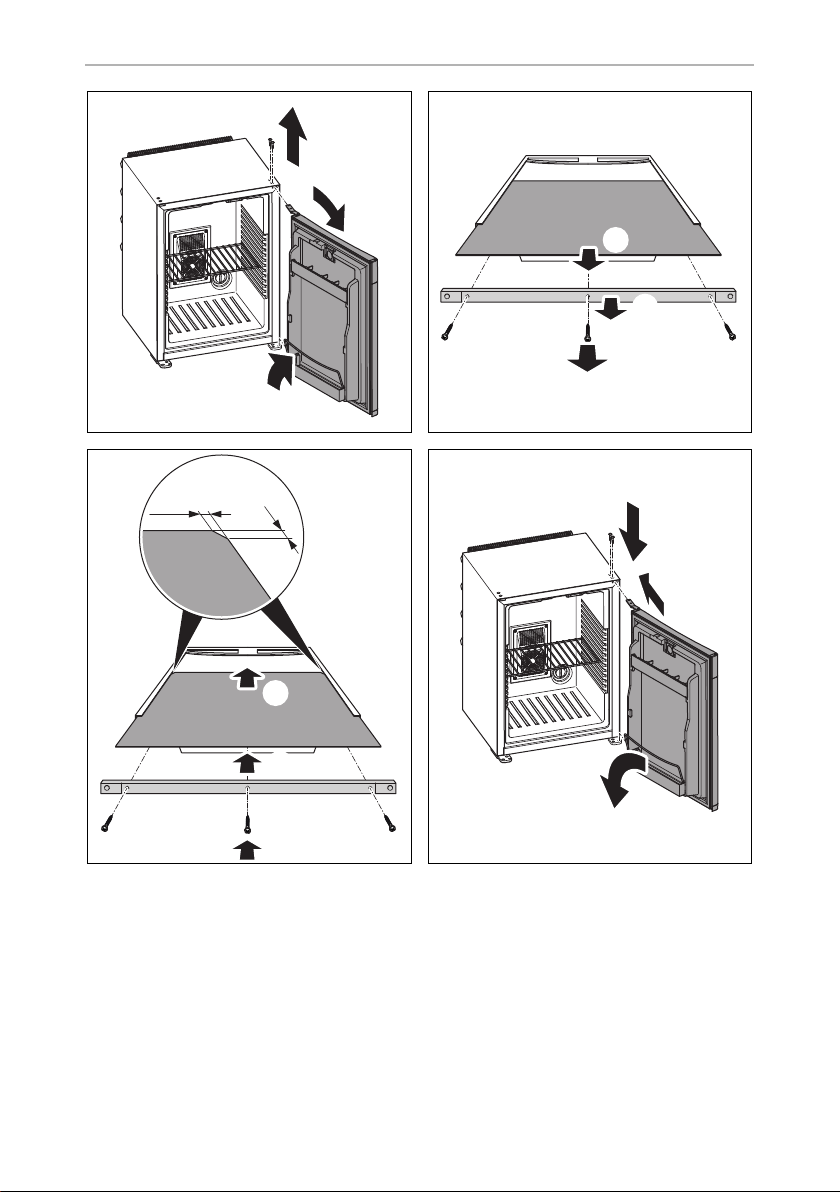

4
1.
2.
3.
4
1.
2.
3.
5
3.
2.
1.
5 mm (0.2")
5 mm
(0.2")
6
7
3.
2.
1.
CL440-460-LDC-LGC-R134a--IO-EN-FR.book Seite 4 Mittwoch, 27. März 2019 3:50 15

CL440, CL460

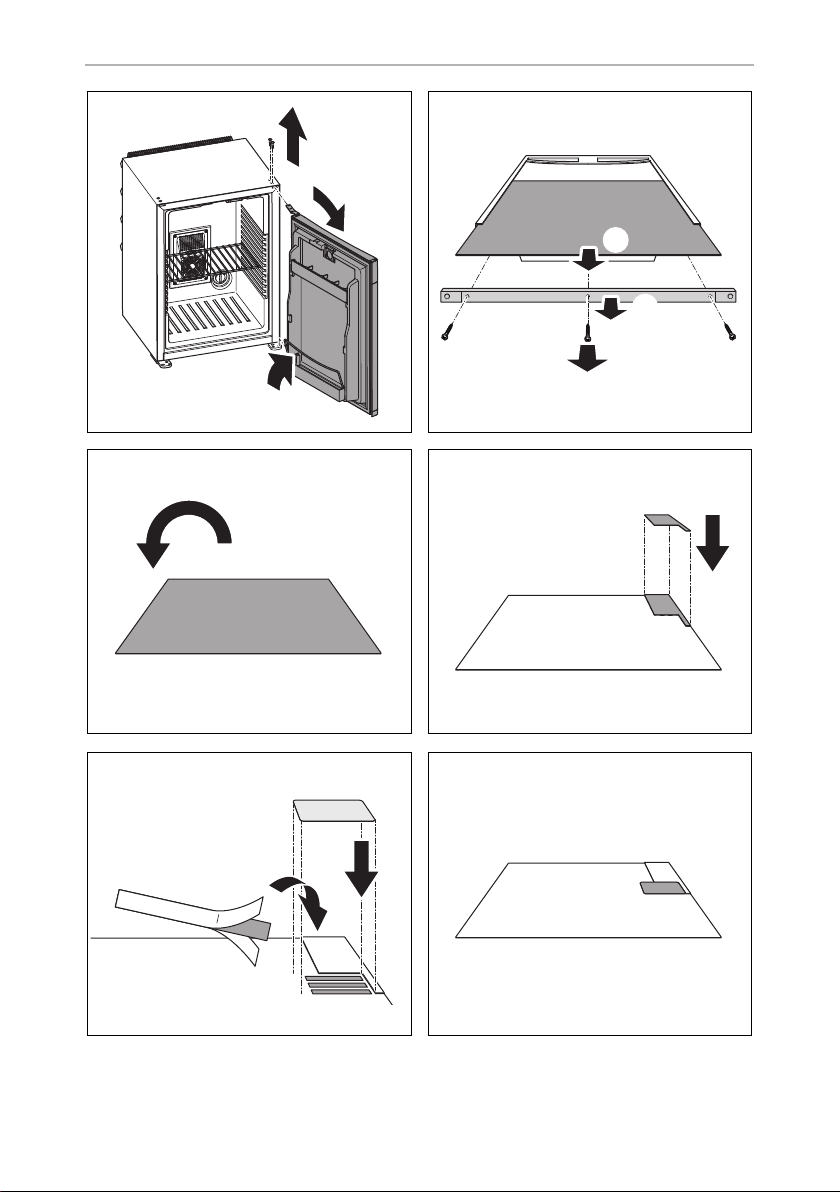

5
1.
2.
3.
8
1.
2.
3.
9
180°
0
a
1. 2.
b
c
CL440-460-LDC-LGC-R134a--IO-EN-FR.book Seite 5 Mittwoch, 27. März 2019 3:50 15

CL440, CL460

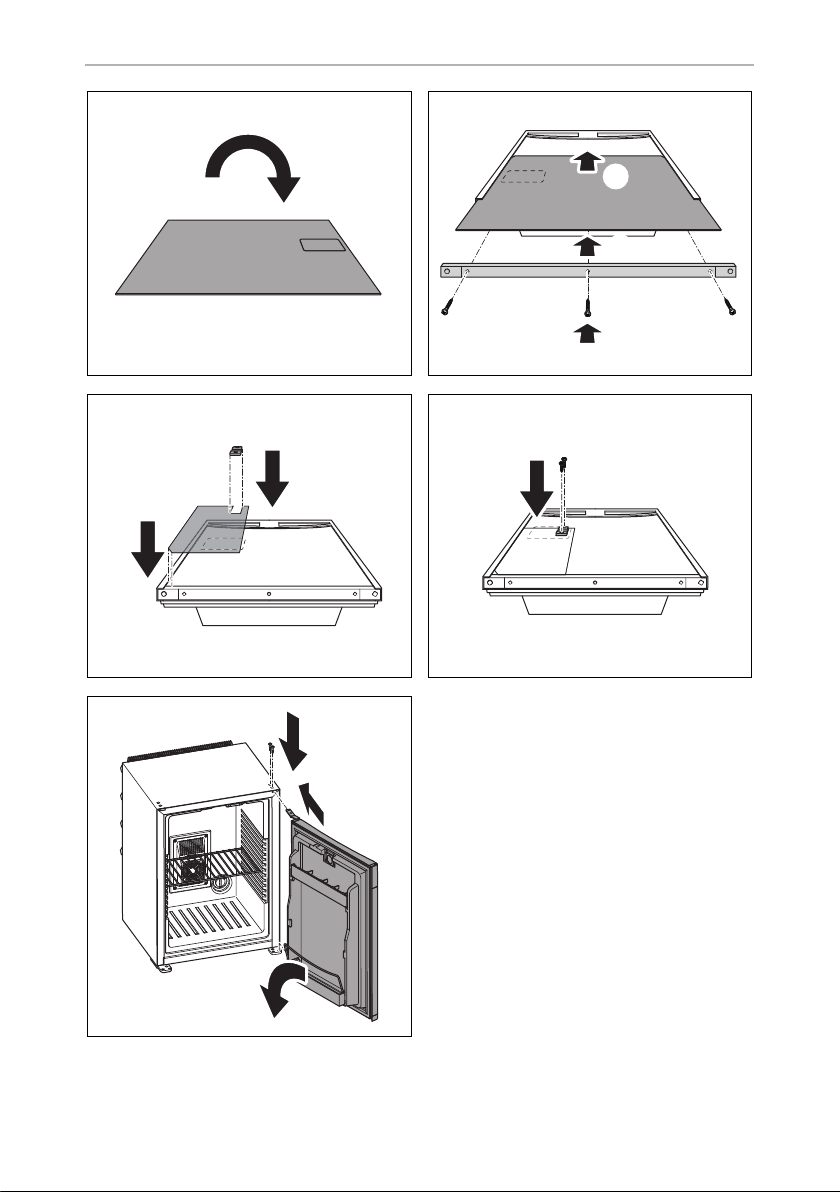

6
180°
d
3.
2.
1.
e
2.
1.
f
g
3.
2.
1.
h
CL440-460-LDC-LGC-R134a--IO-EN-FR.book Seite 6 Mittwoch, 27. März 2019 3:50 15

CL440, CL460
7
1.
2.
40 mm
(1.57")
10 mm
(0.39")
i
1 – 2 mm
(0.04 – 0.08")
6 – 8 mm
(0.24 – 0.31")
j
k
CL440-460-LDC-LGC-R134a--IO-EN-FR.book Seite 7 Mittwoch, 27. März 2019 3:50 15

CL440, CL460
8
l
80 mm
(3.15")
90°
m
CL440-460-LDC-LGC-R134a--IO-EN-FR.book Seite 8 Mittwoch, 27. März 2019 3:50 15

CL440, CL460
9
1.
2.
3.
n
o
p
q
3.
2.
1.
r
CL440-460-LDC-LGC-R134a--IO-EN-FR.book Seite 9 Mittwoch, 27. März 2019 3:50 15

CL440, CL460
10
s
t
1. 2.
3.
4.
5.
6.
CL440-460-LDC-LGC-R134a--IO-EN-FR.book Seite 10 Mittwoch, 27. März 2019 3:50 15

EN
CL440, CL460 Explanation of symbols
11
Please read this manual carefully before starting the device. Keep it in a
safe place for future reference. If the device is passed on to another
person, this manual must be handed over to the user along with it.
The manufacturer cannot be held liable for damage resulting from improper usage
or incorrect operation.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
4 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
5 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
7 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
9 Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
10 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
1 Explanation of symbols
!
!
A
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
CL440-460-LDC-LGC-R134a--IO-EN-FR.book Seite 11 Mittwoch, 27. März 2019 3:50 15

EN
Safety instructions CL440, CL460
12
I
2 Safety instructions
2.1 General safety
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Electrocution hazard
• Do not operate the cooling device if it is visibly damaged.
• If this cooling device's power cable is damaged, it must be replaced
by the manufacturer, customer service or a similarly qualified person in
order to prevent safety hazards.
• This cooling device may only be repaired by qualified personnel.
Improper repairs can lead to considerable hazards.
Health hazard
• This device is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruc-
tion concerning use of the device by a person responsible for their
safety.
• Cleaning and user maintenance must not be carried out by children
without supervision.
• Children must not play with the cooling device.
• Children must be supervised to ensure that they do not play with the
cooling device.
• Always keep and use the cooling device out of the reach of children
under the age of 8 years.
Explosion hazard
• Do not store any explosive substances such as spray cans with a
flammable propellant in the cooling device.
NOTE
Supplementary information for operating the product.
CL440-460-LDC-LGC-R134a--IO-EN-FR.book Seite 12 Mittwoch, 27. März 2019 3:50 15

EN
CL440, CL460 Safety instructions
13
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Electrocution hazard
• Disconnect the cooling device from the power supply
– before each cleaning and maintenance
– after every use
Health hazard
• Food may only be stored in its original packaging or in suitable
containers.
ANOTICE! Damage hazard
• Check that the voltage specification on the type plate corresponds to
that of the energy supply.
• Connect the cooling device with the AC connection cable to an AC
power supply.
• Never pull the plug out of the socket by the cable.
• The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
• The insulation of the cooling device contains flammable cyclopentane
and requires special disposal procedures. Deliver the cooling device
at the end of its life-cycle to an appropriate recycling center.
2.2 Operating the cooling device safely
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Electrocution hazard
• Before starting the cooling device, ensure that the power supply line
and the plug are dry.
ANOTICE! Damage hazard
• Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for the purpose.
• Do not place the cooling device near open flames or other heat
sources (heaters, direct sunlight, gas ovens etc.).
CL440-460-LDC-LGC-R134a--IO-EN-FR.book Seite 13 Mittwoch, 27. März 2019 3:50 15

EN
Intended use CL440, CL460
14
•Danger of overheating!
Ensure at all times that there is a minimum of 50 mm (2") ventilation on
all four sides of the cooling device. Keep the ventilation area free of
any objects that could restrict the air flow to the cooling components.
Do not place the cooling device in closed compartments or areas with
none or minimal air flow.
• Ensure that the ventilation openings are not covered.
• Do not fill the inner container with ice or liquids.
• Never immerse the cooling device in water.
• Protect the cooling device and the cable against heat and moisture.
3 Intended use
The cooling device is suitable for cooling beverages and snacks.
The device is designed for use with AC mains supply.
!
4 Technical description
The cooling device can cool products and keep them cool. A grid divider can be
used to separate foodstuffs, e.g. bottles and sweets. The cooling device operates
with a compressor cooling system.
Control element
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
No. in
fig. 1, page 3 Description
1 Temperature controller
CL440-460-LDC-LGC-R134a--IO-EN-FR.book Seite 14 Mittwoch, 27. März 2019 3:50 15

EN
CL440, CL460 Installation
15
5 Installation
The cooling device is designed for free-standing installation, but can be built-in if the
following conditions are complied with to ensure satisfactory operation and maxi-
mum cooling efficiency.
• The cooling device must be levelled carefully to ensure proper function.
• The clearance between the cooling device‘s back and the wall should be 20 mm
(0.79") or more.
• Ventilation must be provided as shown in alternatives A, B, C or D (fig. 2,
page 3).
• The ventilation ductmust at least measure 105 mm (4.13") x the width of the cool-
ing device.
• Only the entire cooling unit must project into the ventilation duct as shown
(fig. 2, page 3).
• Air passing through the ventilation duct must not be preheated by any source of
heat.
• Ventilation grills, if used, must have openings of at least 200 cm² (31 sqin) each.
• For glass door version, when ambient humidity is above 65 % in 25 °C (77 °F)
ambient temperature, moisture will condense on the door.
• The cooling device can be fixed to the bottom of the furniture through its fixing
feets using screws of an appropriate length (fig. 3, page 3).
• The socket outlet for the mains connection must be freely accessible.
5.1 Changing the decorative plate
You can change the decorative plate: fig. 4to fig. 7, page 4.
5.2 Mounting the sliding hinge (optional)
You can mount a sliding hinge that allows the cooling device door to be opened at
the same time as the door of the built-in cabinet: fig. 8, page 5, to fig. m, page 8.
5.3 Reversing the door
Reverse the door as follows: fig. nto fig. oand fig. r, page 9.
Suitable for doors with sliding hinge only: fig. nto fig. r, page 9.
CL440-460-LDC-LGC-R134a--IO-EN-FR.book Seite 15 Mittwoch, 27. März 2019 3:50 15

EN
Operation CL440, CL460
16
6Operation
!
I
6.1 Energy saving tips
• Choose a well ventilated location which is protected from direct sunlight.
• Allow warm food to cool down first before placing it in the cooling device to
keep cool.
• Do not open the cooling device more often than necessary.
• Do not leave the cooling device open for longer than necessary.
6.2 Using the cooling device
A
I
CAUTION! Health hazard!
Food may only be stored in its original packaging or in suitable
containers.
NOTE
• Before starting your new cooling device for the first time, you should
clean it inside and outside with a damp cloth for hygienic reasons
(please also refer to the chapter “Cleaning and maintenance” on
page 17).
• A few water drops may form inside the cooling device if it has been
cooling for a lengthy period. This is normal because the moisture in
the air condenses to water when the temperature in the cooling
device falls. The cooling device is not defective. Wipe it out with a
dry cloth if necessary.
NOTICE! Risk of damage
• Ensure that the objects placed in the cooling device are suitable for
cooling to the selected temperature.
• Ensure that food or liquids in glass containers are not excessively
refrigerated. Liquids expand when they freeze and can therefore
destroy the glass containers.
• Ensure that your cooling device is well ventilated so that any heat
created can dissipate. Otherwise proper functioning cannot be
ensured. It is especially important not to cover the air vents.
NOTE
If you are not going to use the cooling device for a long time, leave the
door slightly ajar to prevent unpleasant odours building up.
CL440-460-LDC-LGC-R134a--IO-EN-FR.book Seite 16 Mittwoch, 27. März 2019 3:50 15

EN
CL440, CL460 Cleaning and maintenance
17
➤Place the cooling device on a firm base.
➤Connect the connection cable to the AC mains supply.
✓The cooling device starts cooling the interior.
➤Set the temperature controller (fig. 11, page 3) to the desired position:
– max: lowest temperature
– min: highest temperature
➤If you wish to switch the cooling device off, pull out the connection cable.
➤Clean the interior to make sure it is dry enough.
6.3 Locking the door
➤Turn the key a quarter turn to the left to lock the cooling device (fig. s, page 10).
6.4 Changing the LED light
➤Change the LED light as follows: fig. t, page 10.
7 Cleaning and maintenance
!
A
➤Use a soft cloth, lukewarm water and a mild detergent to clean the inside of the
cooling device.
➤Wash out the cooling device using clean water and dry thoroughly.
➤At annual intervals, remove dust from the cooling aggregate at the back of the
cooling device using a brush or a soft cloth.
WARNING!
Always disconnect the device from the power supply before you clean
and service it.
NOTICE! Risk of damage
• Never clean the cooling device under running water or in dish water.
• Do not use abrasive cleaning agents or hard objects during cleaning
as these can damage the cooling device.
CL440-460-LDC-LGC-R134a--IO-EN-FR.book Seite 17 Mittwoch, 27. März 2019 3:50 15

EN
Troubleshooting CL440, CL460
18
8 Troubleshooting
Problem Possible cause Suggested remedy
No voltage present There is an interruption
in the battery –
electronics connection
Establish a connection
Main switch faulty (if
installed)
Replace the main switch
Additional supply line
fuse has blown (if
installed)
Replace the supply line fuse
Voltage is present but
the compressor doesn't
run (connected to AC
supply)
Ambient temperature
too high
Insufficient ventilation Move the refrigerator to another
location
Condenser is dirty Clean the condenser
Poor cooling, compres-
sor running for a long
time /continuously
Ambient temperature
too high
Insufficient ventilation Move the refrigerator to another
location
Condenser is dirty Clean the condenser
Too cold or a great tem-
perature deviation
Defective compressor Replace compressor
CL440-460-LDC-LGC-R134a--IO-EN-FR.book Seite 18 Mittwoch, 27. März 2019 3:50 15

EN
CL440, CL460 Warranty Information
19
9 Warranty Information
Refer to the sections below for information about warranty and warranty support in
the US, Canada, and all other regions.
9.1 United States and Canada
LIMITED WARRANTY AVAILABLE AT
DOMETIC.COM/WARRANTY.
IF YOU HAVE QUESTIONS, OR TO OBTAIN A COPY OF THE LIMITED WARRANTY
FREE OF CHARGE, CONTACT:
DOMETIC CORPORATION
CUSTOMER SUPPORT CENTER
1120 NORTH MAIN STREET
ELKHART, INDIANA 46514
1-800-544-4881 OPT. 3
9.2 All Other Regions
The statutory warranty period applies. If the product is defective, please contact the
manufacturer’s branch in your region (see the back of the instruction manual for the
addresses) or your retailer.
For repair and warranty processing, please include the following documents when
you send in the device:
• A copy of the receipt with purchasing date
• A reason for the claim or description of the fault
10 Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
MIf you wish to finally dispose of the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
CL440-460-LDC-LGC-R134a--IO-EN-FR.book Seite 19 Mittwoch, 27. März 2019 3:50 15

EN
Technical data CL440, CL460
20
11 Technical data
CL440LDC CL440LGC
Gross capacity: 38 l
Connection voltage
– 110 V version:
– 230 V version:
100 – 120 Vw, 60 Hz
220 – 240 Vw, 50 Hz
Power consumption: 55 W
12.1 W (100 – 240 Vw, ECO mode)
Temperature range: +4 °C to +12 °C (+39 °F to+54 °F)
Category: 1 (Fresh food storage
compartment)
2 (Cellar)
Energy efficiency class: A+
Energy consumption: 99 kWh/annum 95 kWh/annum
Usable capacity: 34.5 l 35.5 l
Climate class: N
Refrigerant quantity: 21 g
CO2equivalent: 0.030 t
Global warming potential (GWP): 1430
Ambient temperature: +16 °C to +32 °C (+61 °F to +90 °F)
Noise emission (sound power): 42 dB
Dimensions (W x H x D): 401 x 554 x 440 mm
(15.78 x 21.81 x 17.32")
401 x 554 x 450 mm
(15.78 x 21.81 x 17.72")
Weight: 17.2 kg (37.9 lbs) 18.9 kg (41.7 lbs)
Testing/certification:
ID 0000056012
CL440-460-LDC-LGC-R134a--IO-EN-FR.book Seite 20 Mittwoch, 27. März 2019 3:50 15
