domoova DHV60 User manual

EN
Stick vacuum cleaner
User Manual
DHV60

EN
User Manual
Thank you for choosing DOMOOVA! We hope you are fully satised
using your appliance as part of your cleaning routine.
If you should encounter situations that have not been properly
addressed in this User Manual or were to have any queries, do not
hesitate to contact us and a member of our Technical Customer
Service Department will be more than happy to answer your
questions.
For more information, you can visit the ocial DOMOOVA website:
www.domoova.com
We reserve the right to make technical alterations to the appliance
without prior notice with the objective of continually improving our
products and customer satisfaction.
Please carefully read all instructions in this manual before using this
appliance. DOMOOVA will not be liable for damage due to incorrect
use.

1
Contents
EN
Recommendations ............................................................. 2
Product overview................................................................ 3
Product contents..................................................................................... 3
Product diagram ..................................................................................... 4
Operating the vacuum ...................................................... 9
Charging the battery............................................................................... 9
Starting the vacuum ............................................................................. 11
Using the electric rotation ................................................................... 12
Operating modes.................................................................................. 12
Stopping the vacuum ........................................................................... 13
Installing the wall mount ..................................................................... 14
Maintenance......................................................................15
Dust bin and lter ................................................................................. 15
Turbo Brush........................................................................................... 17
Suction pipes ......................................................................................... 18
Accessories ............................................................................................ 18
Indicator lights ..................................................................19
Troubleshooting................................................................ 20
Table: Malfunctions and possible causes .......................................... 20
Warranty and after-sales service.................................. 22
Technical specications ..................................................23
Safety instructions and precautions............................24
Operating conditions............................................................................ 24
Recycling instructions .....................................................26

2
Recommendations
EN
• Before using DHV60 for the rst time, it must be charged for 5
hours.
• DHV60 is designed to be used inside.
• DHV60 is designed for household use.
• DHV60 must be unplugged before it is used.
• The DHV60 Turbo Brush is not designed to be used on long-pile
carpets, which could block or damage the appliance.
• DHV60 is not designed to vacuum water or other liquid products.
• Do not use the appliance on wet surfaces.
• Please switch o the appliance before handling it (maintenance,
storage).
• You are recommended to empty the dust bin every time the
vacuum completes a cleaning cycle.

3
Product overview
EN
Product contents
1
1. Motor unit
2. Cleaning wand
3. Turbo Brush
4. Removable Lithium-ion
battery
5. Mains charger
6. Wall mount (2 screws
included)
7. 3-in-1 precision brush
8. User manual
2 4
3
5 6 7 8
Optional tools
9 10 11
9. Suction hose 10. Soft brush
11. Animal care brush

4
Product overview
EN
Product diagram
Whole vacuum
1. Motor unit
2. Cleaning wand
3. Turbo Brush
1
2
3

5
Product overview
EN
Product diagram
Motor unit
1. Connector head
2. Vacuum nozzle
3. Cyclone technology
4. Dust bin
5. Ergonomic handle
6. Removable battery
7. Power plug
8. ON/OFF button
9. Indicator lights
10. Filter access button
7
8
2
3
1
4
5
6
9
10

6
Product overview
EN
Dust bin and cyclone system
1. Dust bin release button
2. Dust bin
3. Dust bin opening
4. Filter cover
5. Cyclone system
6. Rubber retaining ring
2
4
5
3 6
HEPA 13 lter
1. Block lter housing
2. Block lter
3. Washable lter
1
2
3
1

7
Product overview
EN
3-in-1 precision tool
1. Upholstery brush head
2. Crevice head
3. Small brush head
1 2 3
Turbo Brush
1. Brush pivot
2. LED light
3. Castors
4. Squeegee
5. Rotating brush release latch
6. Rotating brush
1
2
6
3
4
5
Cleaning wand
1. Cleaning wand
2. Connector head
1
2

8
Product overview
EN
1 2
1
2
Soft brush (optional)
1. Soft bristles
2. Lining for furniture and
delicate surfaces
Animal care brush (optional)
1. Motor head
2. Electric rotating brush
Suction hose (optional)
1. Suction hose
2. Accessory connector head
(brushes and tools)
1 2

9
Operating the vacuum
EN
Charging the battery
Inserting the battery
Insert the battery in the motor unit. Connect the power cable to the
motor unit using the power adapter.
NOTE:
• The stick vacuum battery may already be charged when you receive it. However,
you are recommended to charge the appliance for 5 hours (usual charge time)
before using the appliance. Battery charge time will be 5 hours thereafter.

10
Operating the vacuum
EN

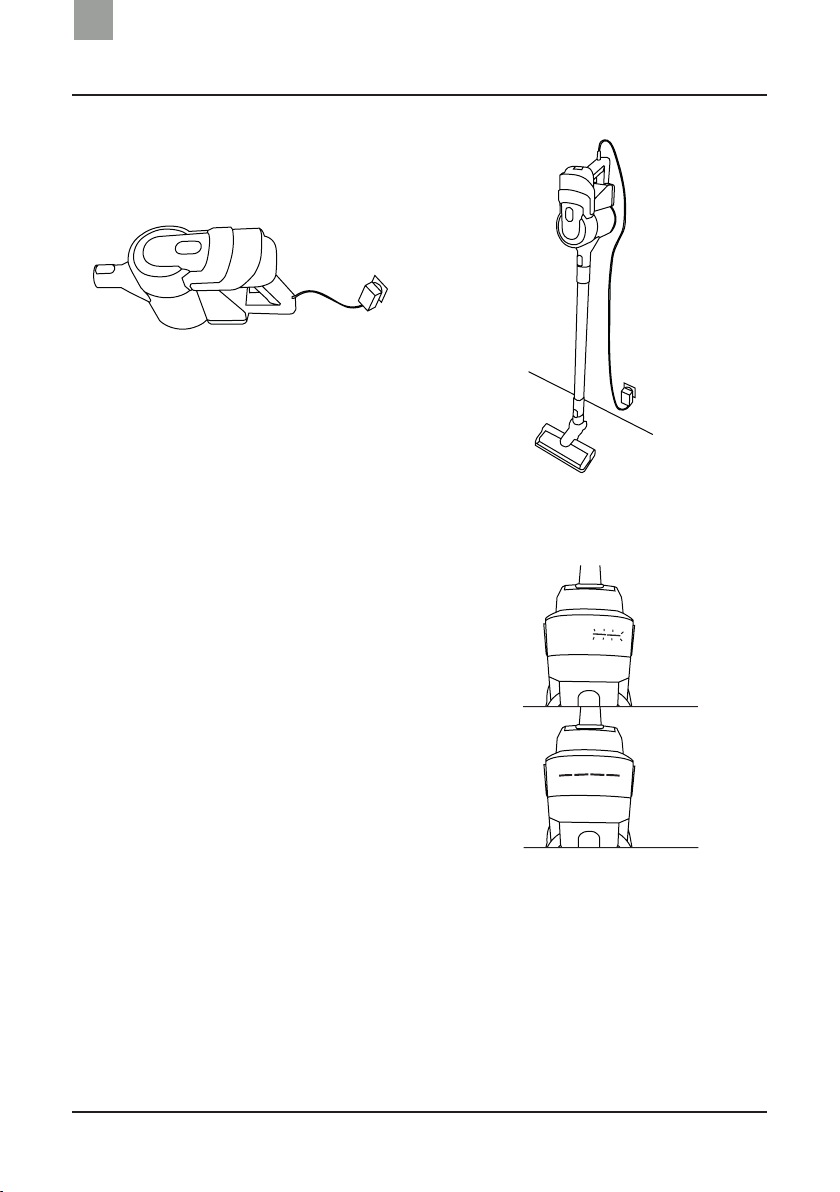

Place the handheld vacuum on
the oor (Figure 1) or x the stick
vacuum to the wall mount (Figure
2). See page 14 for information
about installing the wall mount.
While the appliance is being
charged, the indicator lights on
the handle start to ash. When the
battery is charged, the 4 indicator
lights are solid (Figure 3).
NOTES:
• Before you charge the appliance,
make sure that it is switched o.
• While the DOMOOVA stick vacuum
is being charged, the indicator
lights on the motor unit start to
Figure 2
Figure 3
Figure 1
Plugging in and charging the appliance
ash. When the battery is fully charged, the 4 indicator lights are solid. You can
unplug the appliance to turn the indicator lights o.
•
•

11
Operating the vacuum
EN
Figure 1
Starting the vacuum
After attaching the cleaning head
of your choice to the vacuum,
press the ON/OFF button (Figure
1) on the top of the motor unit to
switch the appliance on.
NOTES:
• Unplug the stick vacuum before you
use it.
• Once in operation, the indicator
lights on the motor unit light up.
• If the battery temperature exceeds
70°C while the vacuum is in use, the
indicator lights will ash for a few
seconds. The appliance goes into
safety mode until the temperature
reduces to around 65°C.
• The battery may heat up while charging. If the vacuum temperature goes
above 50°C or below 0°C, the vacuum goes into safety mode until it returns to
a temperature between 0°C and 45°C. During this period, the battery will stop
charging.
• If the vacuum is not used for a long period of time, you are recommended to
fully charge the battery, unplug it and store it in a cool, dry place.

12
Operating the vacuum
EN

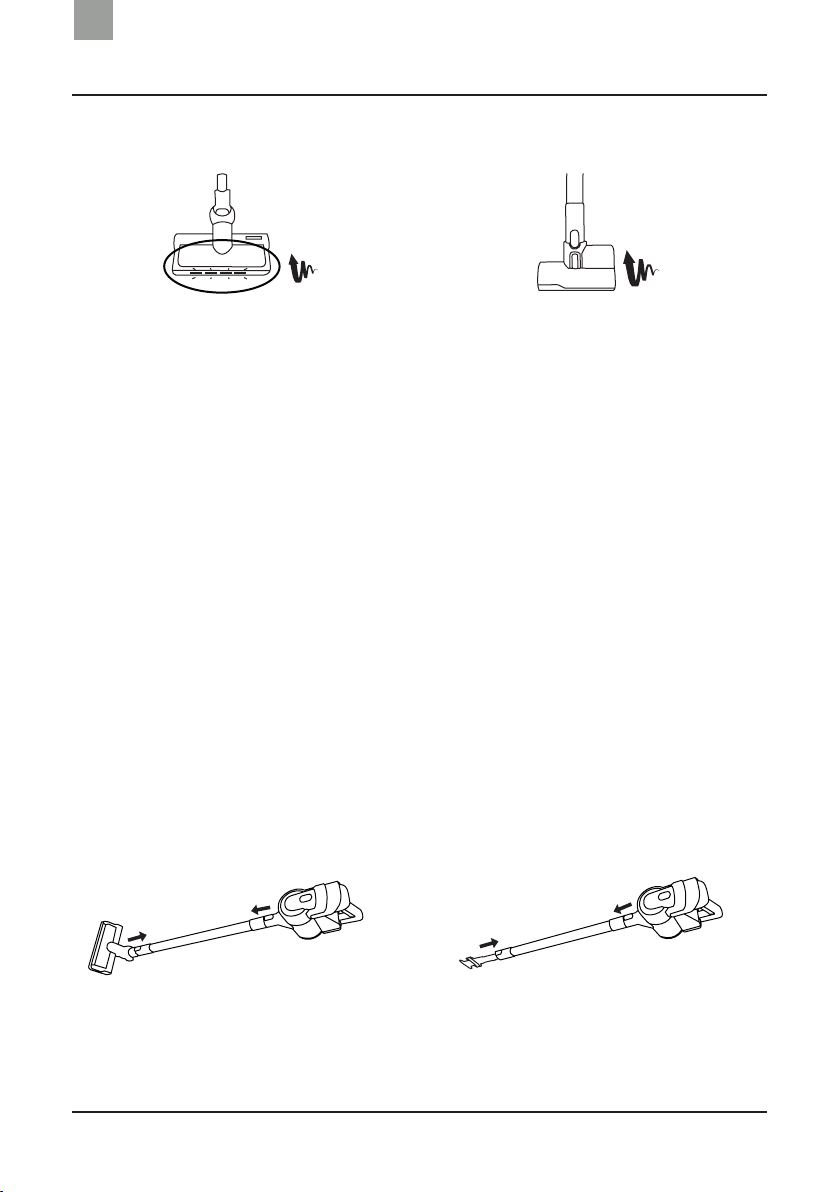

Operating modes
Stick vacuum
Using the electric rotation
Connect the cleaning wand to the motor unit and attach the Turbo
Brush (Figure 1) or one of the appliance accessories (Figure 2).
Figure 2
Figure 2Figure 1
The electric rotation feature starts automatically when the Turbo
Brush (Figure 1) or the Animal Power brush (optional, Figure 2) is
attached.
The Turbo Brush LED lights automatically adjust to the brightness
of the room. They turn on when the area being cleaned is dark and
remain o when the vacuum is used in a light room.
NOTES:
• When fully charged, the battery run time is up to 30 minutes.
• When the appliance is in use, the indicator lights turn o one by one to indicate
that the battery is weak. When the battery level is less than 8% of its full
capacity, the last indicator light ashes quickly to indicate that the appliance
needs charging.
Figure 1

13
Operating the vacuum
EN
Handheld vacuum
Figure 1
Figure 3
Figure 2
Connect the Turbo Brush (Figure 1), 3-in-1 precision brush (Figure 2)
or one of the optional accessories (Figure 3) to the motor unit.
NOTE:
• Regularly check the state of the Turbo Brush and accessories to prevent them
from damaging ooring and furniture.
Stopping the vacuum
Press the ON/OFF button to stop the appliance.
NOTE:
• You are recommended to charge the appliance after each use.

14
Operating the vacuum
EN

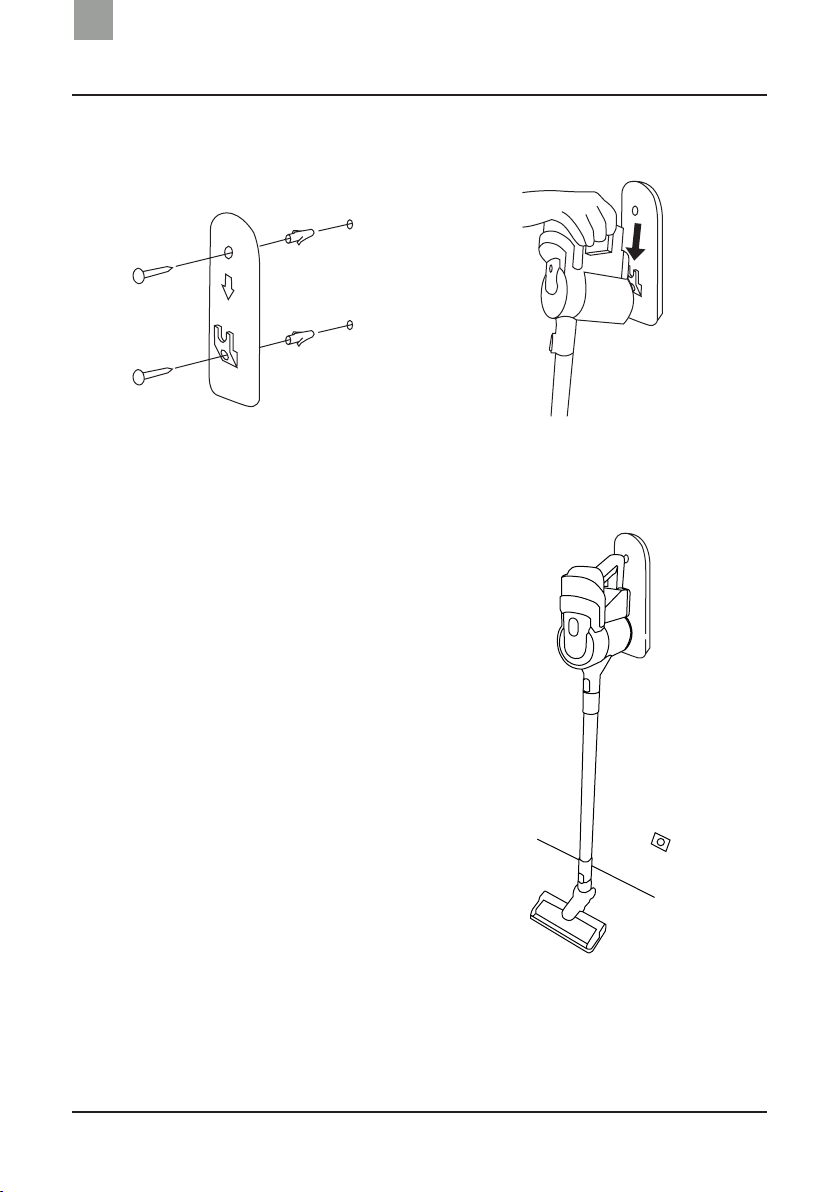

Installing the wall mount
Figure 1 Figure 2
Figure 3
To make storing DOMOOVA
DHV60 easier, you can safely
hang it using the wall mount.
Install the mount using the
screws provided (Figure 1).
You are recommended to install
the mount close to a socket to
make charging easier. Clip the
vacuum to the mount (Figures 2
and 3).
NOTE:
• You are recommended to x the
wall mount at the same height as
the vacuum so that it gently rests
on the ground and the screws do
not have to withstand its weight.


15
Maintenance
EN
Dust bin and lters
Motor unit
Figure 1
Figure 1 Figure 2
To clean the motor unit, press on the release button to release the
dust bin (Figure 1). Then twist the bin in an anti-clockwise direction.
Carefully remove the dust from the cyclone system and the rubber
retaining ring (Figure 2) using a dry cloth.
Dust bin
Empty the dust bin after each
use. Check that the vacuum
is turned o and unplugged.
Remove the accessories and the
removable wand from the motor
unit for a better grip. Access the
dust bin via the opening on the
underneath and empty it (Figure
1).
NOTE:
• Take care when opening the dust bin as the dust could fall out on to the oor.

16
Maintenance
EN
Figure 1 Figure 2
Figure 3

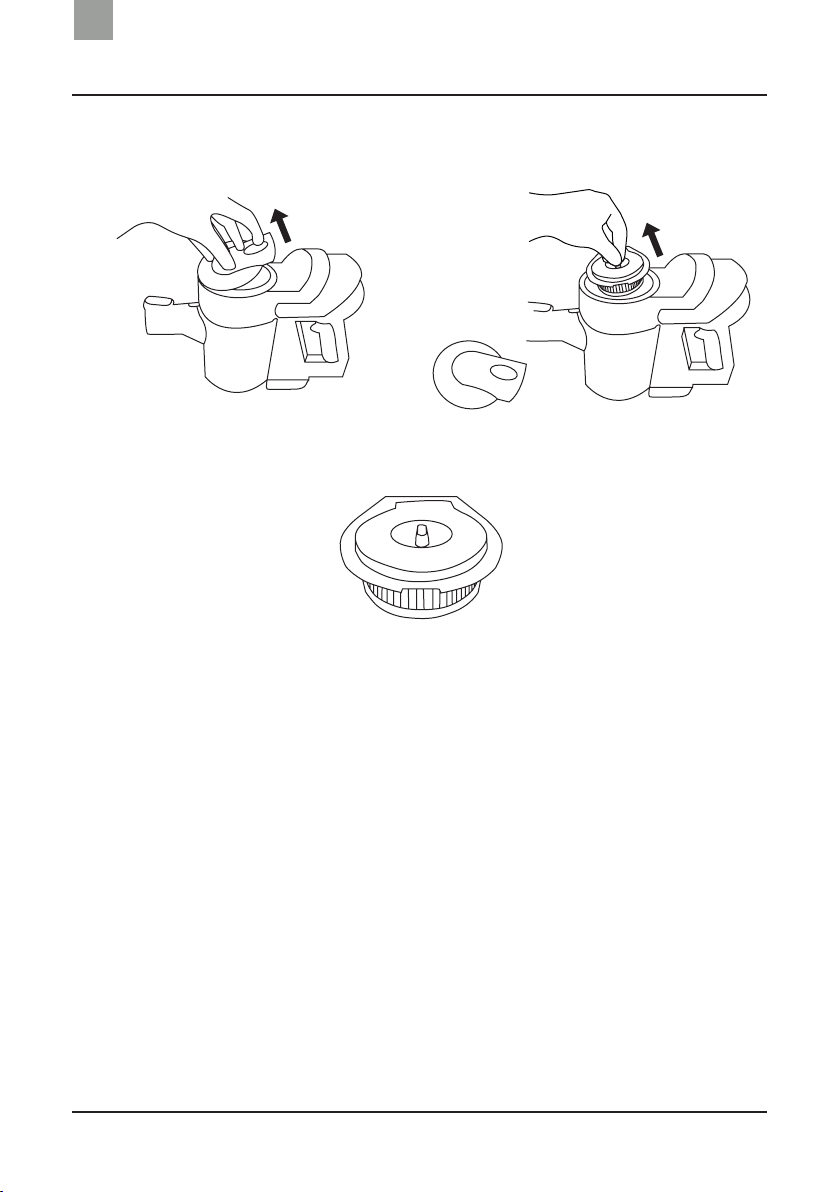

Filters
Open the lter cover using the button on the top of the motor unit
(Figure 1). Remove the HEPA 13 block lter (Figure 2). The HEPA lter
(Figure 3) can be washed with water. First, shake it outside to remove
any small dust particles that have accumulated, then rinse it in clean
water.
NOTE:
• Make sure the HEPA block lter is completely dry before returning it to the
motor unit. If it is damaged, you are recommended to replace it to ensure that
your vacuum's lter performance is maintained.

17
Maintenance
EN
Turbo Brush
Rotating brush
Please make sure to clean the brush regularly for optimum
performance.
Figure 1 Figure 2
Release the latch under the Turbo Brush (Figure 1) then remove the
rotating brush from its cavity (Figure 2).
Remove debris (hair, dust) built up on the brush and reattach it.
Make sure you reposition the release latch correctly.
NOTE:
• To reattach the brush, rst insert the left side into the notches and then the
right side.

18
Maintenance
EN
Castors
Check that the castors under the Turbo Brush are clean. Dust
particles can build up and prevent the Turbo Brush from functioning
correctly.
NOTE:
• To remove the Turbo Brush castors, use a small slotted screwdriver to gently
dislodge the castors' xing rods. Remove any debris and reattach the castors.
Suction pipes
Cleaning wand
Regularly check that the cleaning wand is not blocked by dust buildup
or other debris.
Hose (optional)
Check that the hose is not blocked by dust buildup or other debris.
Accessories
Like the Turbo Brush, the 3-in-1 precision brush, the Animal Care
brush (optional) and the Soft Brush (optional) must be checked and
cleaned regularly to maintain optimum performance.
NOTE:
• If the accessories are not cleaned regularly, the vacuum's performance could
deteriorate.
