Domus Ventilation D-DMEV User manual

D-DMEV
Continuous Decentralised Mechanical Ventilation Unit
Installation Instructions
1.0 SAFETY INFORMATION
• The device should not be used for applications other than those specified in this manual.
• After removing the product from its packaging, verify its condition. In case of doubt, contact
a qualified technician. Do not leave packaging within the reach of small children or people with
disabilities.
• Do not touch the appliance with wet or damp hands/feet.
• This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not use the product in the presence of inflammable vapours, such as alcohol, insecticides,
gasoline, etc.
• If any abnormalities in operation are detected, disconnect the device from the mains supply
and contact a qualified technician immediately. Use original spare parts only for repairs.
• The electrical system to which the device is connected must comply with regulations.
• Before connecting the product to the power supply or the power outlet, ensure that:
- The data plate (voltage and frequency) corresponds to those of the electrical
mains.
- The electrical power supply/socket is adequate for maximum device power. If
not, contact a qualified technician.
• The device should not be used as an activator for water heaters, stoves, etc., nor should it
discharge into hot air/fume vent ducts deriving from any type of combustion unit. It must expel
air outside via its own special duct.
• Operating temperature: 0°C up to +50°C.
• The device is designed to extract clean air only i.e., without grease, soot, chemical or corrosive
agents, or flammable or explosive mixtures.
• Do not leave the device exposed to atmospheric agents (rain, sun, snow, etc.).
• Do not immerse the device or its parts in water or other liquids.
• Turn off the main switch whenever a malfunction is detected or when cleaning.
671982 | SEPTEMBER 2021 PAGE 1

• For installation an omnipolar switch should be incorporated in the fixed wiring, in accordance
with the wiring regulations, to provide a full disconnection under overvoltage category III
conditions (contact opening distance equal to or greater than 3mm).
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or
similarly qualified persons to avoid a hazard.
• Do not obstruct the fan or exhaust grille to ensure optimum air passage.
• Ensure adequate air return into the room in compliance with existing regulations to ensure
proper device operation.
• If the environment in which the product is installed also houses a fuel-operating device
(water heater, methane stove etc., that is not a “sealed chamber” type), it is essential to ensure
adequate air intake, to ensure good combustion and proper equipment operation.
• Install the product so that the impeller is not accessible from the air outlet side as verified
by contact with the Test Finger (test probe “B” of the norm EN61032) in compliance with the
current safety regulations.
• Ceiling Installation
To guarantee the IPX4 degree of protection against moisture in case of ceiling installation,
use the appropriate ceiling mount kit, which is not included. Use only the rear entry hole for
supply cables. If there is a possibility of condensation along the air discharge duct, provide a
drainage system to prevent condensation from discharging into the environment through the fan
Attention: do not mount the product on the ceiling without this kit.
• Window Installation
In case of window installation, it is necessary to use the appropriate window kit, which is not
included. Attention: do not mount the product on the window without this kit.
1.1 Hazard Symbols
REFER TO INSTRUCTION MANUAL
Read and understand the installation and maintenance manual before installing,
operating or maintaining this product.
1.2 Important Information
This manual contains important information on the safe and
appropriate assembly, transport, commissioning, operation,
maintenance, disassembly and simple troubleshooting of the product.
While the product has been manufactured according to the accepted
rules of current technology, there is still a danger of personal injury or
damage to equipment if the following general safety instructions and
the warnings contained in these instructions are not complied with.
• Read these instructions completely and thoroughly before
working with the product.
• Keep these instructions in a location where they are accessible
to all users at all times.
• Always include the operating instructions when you pass the
product on to third parties.
1.3 Personal Protective Equipment
The following minimum Personal Protective Equipment (PPE) is
recommended when interacting with this product:
• Protective Steel Toed Shoes - when handling heavy objects.
• Full Finger Gloves (Marigold PU800 or Equivalent) - when
handling sheet metal components.
• Semi Fingerless Gloves (Marigold PU3000 3DO or Equivalent) -
when conducting light work on the unit requiring tactile dexterity.
• Safety Glasses - when conducting any cleaning/cutting operation
or exchanging filters.
• Reusable Half Mask Respirators - when replacing filters which
have been in contact with normal room or environmental air.
We would always recommend a site specific risk assessment by a
competent person to determine if any additional PPE is required.
671982 | SEPTEMBER 2021 PAGE 2

2.0 INTRODUCTION
This unit is a decentralised mechanical ventilation unit designed to
ensure air extraction in small/medium-sized rooms.
Suitable for air discharge directly to the outside or in the presence of
short ducted system. Wall, ceiling or window installation (Figures 1 - 6).
2.1 Technical Specifications
• Material: High quality, impact and UV-resistant ABS colour RAL 9010.
• Design front cover removable for cleaning without the use of tools.
• Rear reinforcement ring to prevent spigot deformation during
installation.
• High efficiency aerodynamic fan with “winglet” blades to optimise
quietness and efficiency.
• Single phase EC Brushless motor with integral thermal protection.
• Motor mounted on high quality ball bearings.
• The fan is double insulated: no earth connection is required.
• Trickle speed selectable during installation.
• Option to boost from trickle (or from off) through LS connection.
• Installation type selection available (through wall or ducted).
• IPX4 degree of protection.
• Power supply 220-240V~ 50Hz.
perimetrical exhausting
Perimetrical Exhausting
1
Ceiling (accessory on demand)
Ceiling Accessory (On Demand)
2
Direct Exhausting
Direct Exhausting
3
Wall
Wall
4
Window Kit (on demand)
Window Kit (on Demand)
5
Short Ducting
Short Ducting
6
671982 | SEPTEMBER 2021 PAGE 3

3.0 INSTALLATION
3.1 Dimensions
AD
BC
ØE
Front View Side View
Model D-DMEV100 D-DMEV150
A 164 218
B 70 97
C 46 52
D 116 149
ØE 99 148
Weight 0,6 1,2

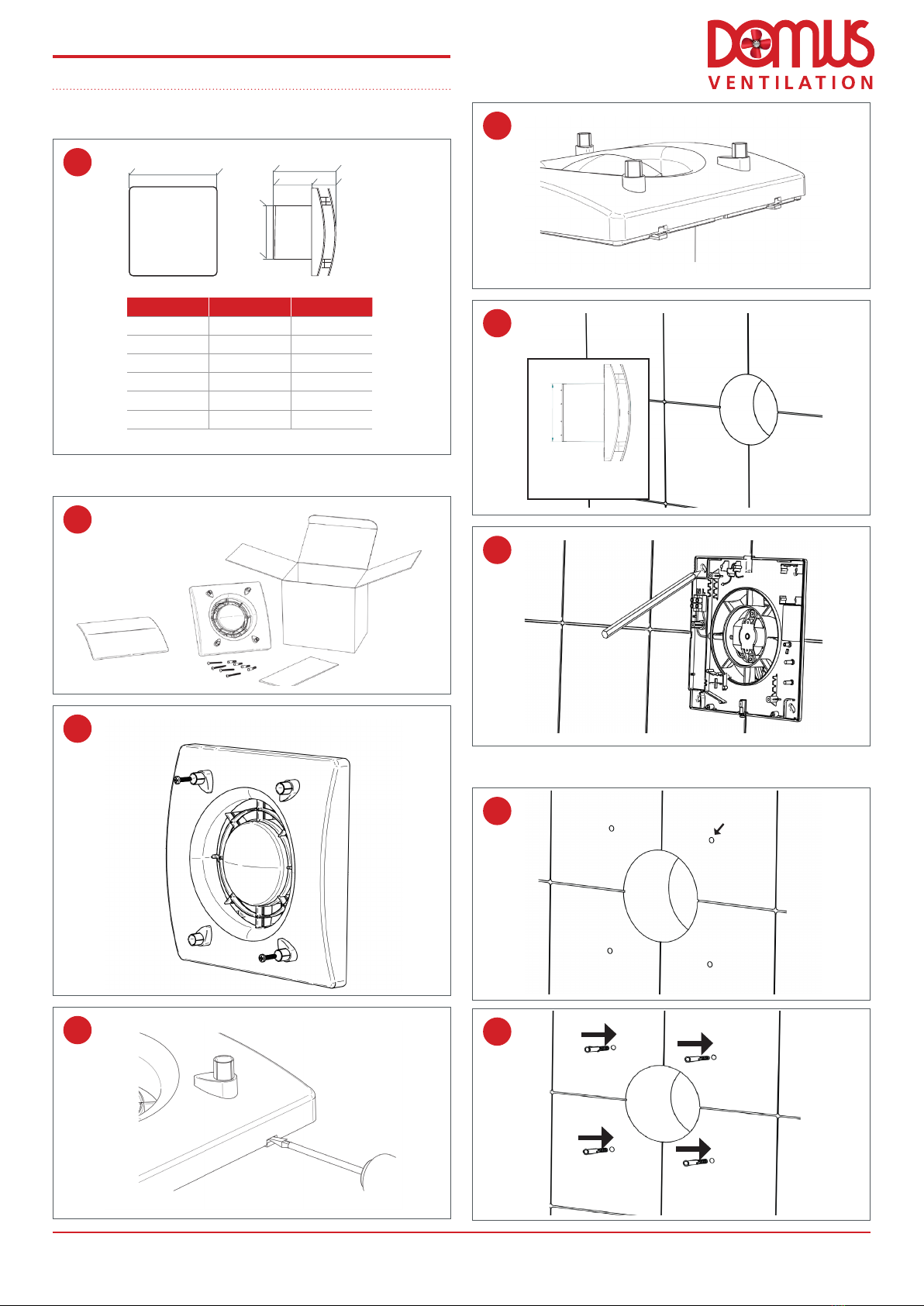

Dimensions
7
3.2 Installation Preparation
8
9
10
11
D-DMEV100 = ø99mm
D-DMEV150 = ø149mm
Ø
12
13

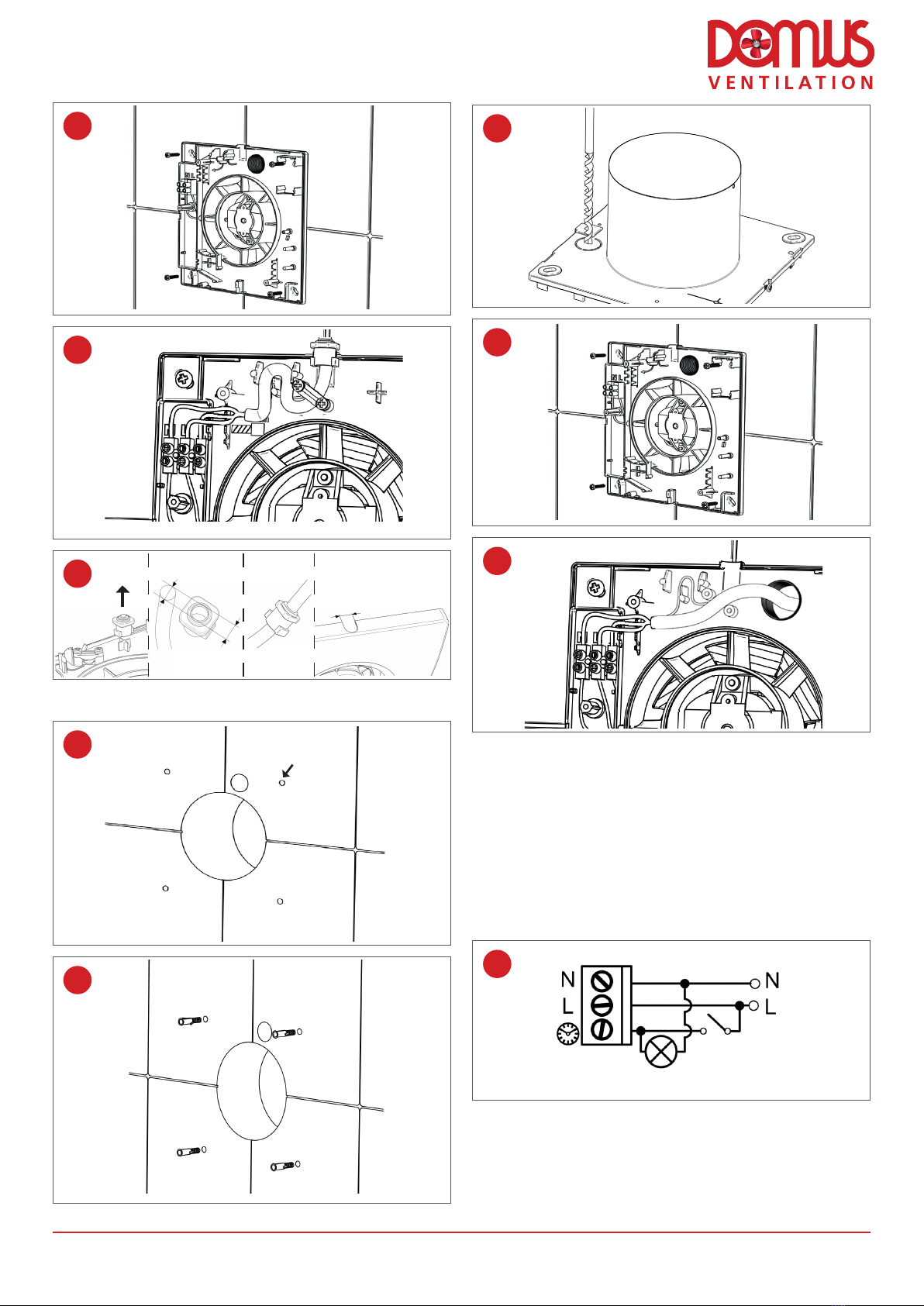

3.3 Surface Cable Installation
4xø5mm
8A
14
9A
15
671982 | SEPTEMBER 2021 PAGE 4

16
17
ø10mm
ød
18
3.4 Recessed Cable Installation
4 x ø 5 mm
19
20
21
22
23
3.5 Electrical Cable Thickness
H03VV-F ; H05VV-F
BASE/STD:
2 x 0.5 / 1.5 mm2
3 x 0.5 / 1.5 mm2
HT:
3 x 0.5 / 1.5 mm2
4 x 0.5 / 1.5 mm2
3.6 Wiring Diagram
Wiring
24
3.7 Installation Type Setting
Installation type can be selected using JUMPER 1 between the following
options: through wall or ducted (Section 3.9).
3.8 Trickle Speed Setting
Trickle speed can be selected using JUMPER (Section 3.9).
671982 | SEPTEMBER 2021 PAGE 5

3.9 Jumper Settings
D-DMEV100
JUMPERS INSTALLATION AIRFLOW
1 2 3
üThrough Wall 6 l/s
üThrough Wall 8 l/s
ü ü Through Wall 13 l/s
ü ü In Room 6 l/s
ü ü In Room 8 l/s
ü ü ü In Room 13 l/s
D-DMEV150
JUMPERS INSTALLATION AIRFLOW
1 2 3
Through Wall 6 l/s
üThrough Wall 8 l/s
üThrough Wall 13 l/s
ü ü Through Wall 15 l/s
üThrough Wall 17 l/s
ü ü Through Wall 21 l/s
ü ü Through Wall 25 l/s
ü ü ü Through Wall 29 l/s
3.10 Humidity Sensor & Timer Settings
The fan is equipped with a humidity sensor, whose threshold is
adjustable from 50% to 95% Relative Humidity via dedicated trimmer,
and with a timer which is adjustable from 0 to approx. 30 minutes via
dedicated trimmer (Figure 25).
The fan runs continuously at selected trickle speed (set by the jumper
switch combination (Section 3.9), increases its speed in case the
percentage of Relative Humidity exceeds the settable threshold, and
can anyway be boosted with a dedicated ON/OFF switch (or PIR, CO2…
sensor) or with a light switch (Figure 24). Trickle speed can be set to off
(Section 3.9).
To deactivate the humidistat function, turn the trimmer HY completely
clockwise.
Automatic humidistat operation: when the percentage of Relative
Humidity exceeds the settable threshold, fan speed automatically
increases to “comfort boost” speed, (intermediate between the selected
trickle speed and the boost speed). When the percentage of Relative
Humidity goes below the threshold, the fan continues to function at
“comfort boost” speed for a factory set period of time then returns to
selected trickle speed.
Operation with external switch: (Figure 24). When the external switch is
turned on, the fan is boosted (max speed). After the external switch is
turned off, the fan continues to run at boost speed for a settable period
of time, then it returns to selected trickle speed (or to “comfort boost”
speed in case automatic humidistat operation is on). The front cover LED
indicates when the external switch is on.
The over-run timer function is activated only if the external switch has
been on for at least 60 seconds.
+
-
HY
TIMER
+
-
JUMPERS
25
3.11 Installation Completion
26
CLICK
27
28
29
671982 | SEPTEMBER 2021 PAGE 6

30
4.0 MAINTENANCE
It is important that maintenance checks are recorded and that the
schedule is always adhered to, in all cases, the previous report should be
referred to.
Before any maintenance or cleaning operation, switch off the fan
and disconnect from the power supply.
4.1 Routine Maintenance
The magnetic front cover can be removed and cleaned with water and
a mild detergent using a soft cloth and the motor fan assembly can
be cleaned with a dry brush or dry cloth. Any other maintenance or
cleaning should be carried out by properly qualified personnel.
Ensure the unit does not come into contact with any kind of liquid
or solvent. If this should occur, contact a qualified technician before
reassembling the fan.
The motor does not require lubrication as it is of the maintenance
free “sealed for life” type.
5.0 WARRANTY
The 5 year warranty starts from the day of delivery and includes first
year parts and labour, remaining year parts only. This warranty is void if
the equipment is modified without authorisation, is incorrectly applied,
misused, disassembled, or not installed, commissioned and maintained
in accordance with the details contained in this manual and general
good practice.
The product warranty applies to the UK mainland and in accordance
with Clause 14 of our Conditions of Sale. Customers purchasing from
outside of the UK should contact Domus Ventilation Sales office for
further details.
Failure to maintain the unit as recommended will invalidate the
warranty.
6.0 END-OF-LIFE AND RECYCLING
Where possible components which can be largely recycled when the
product reaches its end-of-life have been used:
• Fans, motors, controls, actuators, cabling and other electrical
components can be segregated into WEEE recycling streams.
• Sheet metal parts, aluminium extrusion, heating/cooling coils and
other metallic items can be segregated and fully recycled.
• EPP, plastic ducting, nylon corner pieces, plastic heat exchangers,
packaging material and other plastic components can be segregated
into mixed plastic and widely recycled.
• Cardboard packaging, wood, and other paper components can be
largely recycled or fully processed in energy from waste centres.
• Filter Disposal: Cardboard framed filters should be fully processed
in energy from waste centres, contact your local civic amenity site /
household waste recycling centre regarding metal / wire framed filters.
• Remaining Items can be further segregated and processed in
accordance with the zero waste hierarchy. Please call After Sales
Support for further information on items not listed above.
Ensure that this product is made safe from any electrical / water
/ refrigerant supplies before dismantling commences. This work
should only be undertaken by a qualified person in accordance
with local authority regulations and guidelines, taking into
account all site based risks.
This product complies with EU Directive 2002/96/EC.
The symbol of the crossed-out dustbin indicates that this product
must be collected separately from other waste at the end of its
life. The user must, therefore, dispose of the product in question
at suitable electronic and electro-technical waste disposal
collection centres, or else send the product back to the retailer
when purchasing a new, equivalent type device.
Separate collection of decommissioned equipment for recycling,
treatment and environmentally compatible disposal helps to
prevent negative effects on the environment and on health
and promotes the recycling of the materials that make up the
equipment.
Improper disposal of the product by the user may result in
administrative sanctions as provided by law.
7.0 AFTER SALES AND REPLACEMENT PARTS
For technical assistance or further product information, including spare
parts and replacement components, please contact the After Sales
Department.
If ordering spares please quote the serial number of the unit together
with the part number, if the part number is not known please give a full
description of the part required. The serial number will be found on the
identification plate attached to the unit casing.
Telephone [phone]
[e-mail]
671982 | SEPTEMBER 2021 PAGE 7

Domus Ventilation
Block C, Van Court, Caerphilly CF83 3ED, United Kingdom
Email: [email protected]
Tel: [phone]
www.domusventilation.co.uk
Technical or commercial considerations may, from time to time, make it
necessary to alter the design, performance and dimensions of equipment
and the right is reserved to make such changes without prior notice.
671982 | SEPTEMBER 2021 PAGE 8
Domus Ventilation
Block C, Van Court, Caerphilly CF83 3ED, United Kingdom
Email: [email protected]
Tel: [phone]
www.domusventilation.co.uk
Technical or commercial considerations may, from time to time, make it
necessary to alter the design, performance and dimensions of equipment
and the right is reserved to make such changes without prior notice.
