Dongil Z Fire Series User manual

ZF-80ID
ZF-170ID
ZF-240ID
Z Fire

3
Indirect Air Forced Heater
ZF-80ID
Stove Pipe
Front Handle
Wheel
Rear Handle
ZF-170ID
ZF-240ID
Specifiction
Model name
Heating Power (kcal/hr)
Fuel consumption per hour (l/hr)
Fuel Tank (litter)
Working Hour (hour)
Heating Area m
2
Overheat Safety
Size (L×W×H) mm
Weight (kg)
ZF-80ID
Max.17,500
2
50
25
115
ok
1020×590×670
36
TK240ID
Max.50,000
5.7
80
14
330
ok
1215×685×860
64.7
TK-170ID
Max.35,000
4
80
20
230
ok
1215×685×860
64.7
Do not leave the place with the heater turned on or plugged in.
Product Drawing Specification
Size
Electric Circuit Drawing
ZF-170ID
ZF-240ID
ZF-80ID

Do not leave the place with the heater turned on or plugged in.

5
Indirect Air Forced Heater
Open the box and check the heater, parts and user manual. Refer to the figure for the contents.
Caution: Do not waste the packing box and other packing materials for the use in storage.
ZF-80ID / TK-170ID / TK-240ID Wheel and Caster Assembly Drawing
Do not leave the place with the heater turned on or plugged in.
UNPACKING
How to Assemble
Packing Box
User Manual
Shaft
Wheel Assembly
Wheel Fixing
Piece
Rotating Caster
(for only ZF-240ID ZF-170ID)
Ventilation Pipe
Ventilation Pipe
ZF-80ID
ZF-170ID
ZF-240ID
Wheel Support
Piece
Separati
on Pin
Axis
Caster Fixing Piece
Direction Control Caster
Axis Fixing Piece

7
Indirect Air Forced Heater
1. Open the fuel tank cap.
2. Remove the fuel with a bellow.
3. Clean the inside of the tank with some kerosene, gasoline or thinner.
Never use water at this time because rust may be fatal.
4. Dry the tank completely.
Never pass the season with the fuel in the tank. Old fuel may give damage
to the product.
Store the product at the dry and well-ventilated area.
Store the product at the place of no dust and moisture in the original
packing box.
Keep the user manual at the place close at hand.
(Measure to the error codes displayed on the
temperature display window)
Long-Time Storage
First-Aid Measure
Display
Window
EO
Power switch handling error
Flame Detector (Photo-electric tube error)
Temperature sensor error
Anti-overheating Sensor Defect
Float Sensor
1.Photo-electric tube defect
3.Incomplete Combustion
3.
Contamination of photo-electric tube
4.Contamination of fuel filter
-Ignition trouble
1.Temperature sensor separation
2.Sensor Defect
Unusual internal overheating
In case of below 9 C
Incase of over 50 C
Electronic Circuit Board Defect
1.Re-connection of the sensor
Replacement of temperature sensor
-Re-operating after cooling
Normal
Normal
1.Checking the circuit
2.Re-operating after reset
1.
Replacement of Photo-electric tube
2.Replacement to clean fuel
3.Cleaning of photo-electric tube
4.Cleaning of fuel filter
1.Checking the igniter wire
2.Cleaning or replacement
of ignition plug
Shortage of Fuel Fuel Supply
Power is supplied when
the switch is on.
After plugging it out and turning
the switch off, plug it in and
turn on the switch.
E1
E2
E3
E6
LO
Hi
Blinking
Cause Measure
Nozzle
Nozzle should be cleaned or replaced at least once a year. If contaminated
fuel is used, the nozzle should be replaced immediately. To clean the
nozzle, take it out from the burner, disassemble it, put it in the thinner or
gasoline for a while and carefully assemble it.
Ignition Plug
Ignition plug should be cleaned or the gap between the electrodes should be
adjusted every 600 hours or at any necessary time. Take it out from the
burner and clean it with steel brush. The gap between the electrodes should
be kept 3.5mm~3.7mm.
Photo-electric tube
Photo-electric tube should be cleaned once a year or at any necessary time.
Clean the photo-electric surface with some cotton cloth dipped in the water
or alcohol.
Photo-electric tube
Air bolwing Motor
Photo-electric tube holder
Air blowing Fan
Burner Head
Lgnition Plug
Support Piece
Igniter
High pressure fuel hose
Nozzle
Ignition Plug
Distributor
Diffuser
Fitting Bolt
Diffusion
Nozzle
Burner head blade
Spark plug
Burner head
Photocell
Blower fan
Blower motor
ZF-80ID
ZF-170ID
ZF-240ID
Do not leave the place with the heater turned on or plugged in.

8
Indirect Air Forced Heater
1
2
3
3
-
1
4
4
-
1
5
5
-
1
6
7
8
9
10
11
12
12
-
1
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35-1
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
NO. PART NAME PART NO.
Do not leave the place with the heater turned on or plugged in.
Parts Disassembly Drawing
ZF-80ID
Fuel Tank
Fuel Gauge
Fuel Gauge Packing
Pumping Pipe
Pumping Pipe Packing
Fuel Cap
Fuel Cap Packing
Power Cord
Power Switch
Window Display
Thermostat Control Knob
Lower shell
Gasket
Thermostat Lilmit Control
Thermostat Bracket
Combustion Chabmer
Burner Head
Nozzle
Burner Head Blade
Nipple
Insulator Plate
Diffusion
Spark Plug
Blower Casing Fix Plate
Blower Casing
Inlet
Blower Motor
Blower Fan
Photocell
Photocell B/K
Geard Pump Pipe
Motor
Capacitor
Motor B/K
Motor Fix Band
Geard Pump
Couple Ring
Nipple
Hex nut
Fuel Hose-A
Fuel Hose-B
Return Hose
Return Pipe
Fuel Filter
Nipple
Nut
Fuel Filter Bracket
Fan Ass’y
Ignitor
Right Side Cover
Left Side Cover
Fan Guard(Steel)
P.C.B
P.C.B Bracket
Thermistor
Fuse
Clip Nut
Upper shell
Bushing Grommet(S)
Bushing Grommet(L)
Cord Bushing
Front Handle
Rear Handle
Wheel Axle
Washer
Wheel Cap
Wheel
Adjustable Pipe Support
Pipe Support Bracket
Wheel Support Bracket
Shaft Fix Bracket
Smoke Pipe
Upper Cover
Float Sensor
Float Sensor Packing
Fuel Pipe
Return Pipe
Pipe Packing
Nut
TK13-008-001
TK8-003-003
TK8-003-003-1
TK13-000-005
TK8-000-005-1
TK8-002-006
TK8-000-007
TK8-000-008
TK8-000-009
TK13-008-010
TK12-008-011
TK8-010-012
TK8-002-012-1
TK12-008-013
R20-15046
0460S
R20-15039
R20-15084
TK12-008-018
TK12-008-019
R20-15026
TK12-008-021
R20-15043
R20-15042
TK12-008-024
R20-15030
TK12-008-026
R20-15047
TK12-008-028
TK13-008-029
TK13-008-030
TK8-003-025-1
TK12-008-033
TK12-008-034
TK13-008-035
TK13-008-035-1
TK13-008-036
TK13-008-037
TK13-008-038
TK12-008-040
TK13-008-041
M12
TK12-008-043
TK8-007-040
TK8-010-041
TK12-008-046
TK12-008-043
TK12-008-048
TK13-008-049
TK8-002-045-1
TK8-002-045-2
TK8-000-046
TK8-000-047
TK13-008-054
TK8-000-050
TK8-000-050-1
TK8-002-053
TK13-005-056-2
TK8-005-057-1
TK8-005-059
TK8-003-059-1
TK13-003-059-2
TK13-000-060
TK8-005-063
TK8-000-064
TK8-000-065
TK8-000-066
TK12-008-079
TK13-008-077
TK13-008-078
TK13-008-079
TK13-008-080
TK13-008-081
TK13-008-082
TK13-008-083

9
Indirect Air Forced Heater
ZF-170ID
Do not leave the place with the heater turned on or plugged in.

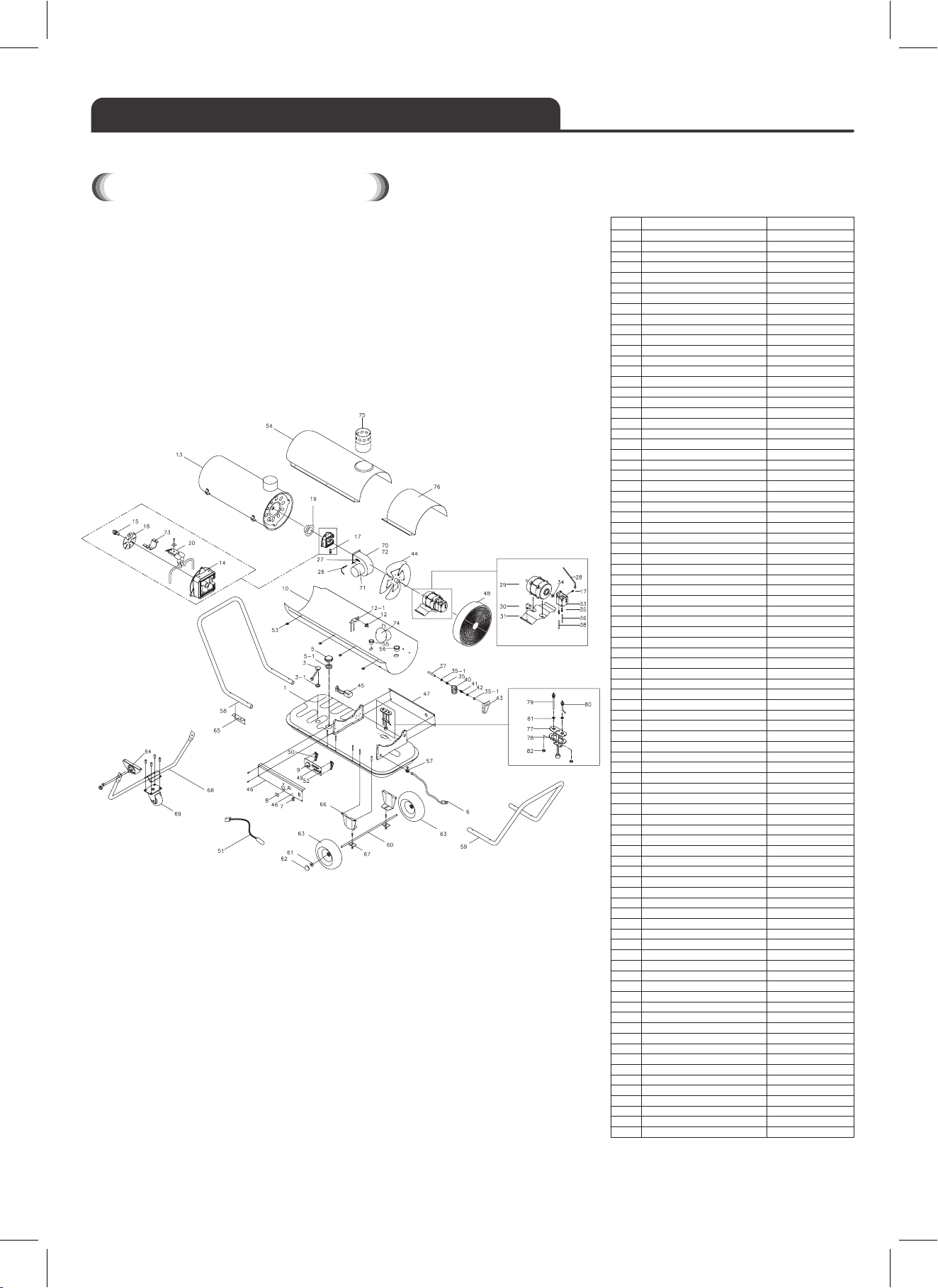

Parts Disassembly Drawing
1
2
3
3
-
1
4
4
-
1
5
5
-
1
6
7
8
9
10
11
12
12
-
1
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35-1
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
NO. PART NAME PART NO.
Fuel Tank
Fuel Gauge
Fuel Gauge Packing
Pumping Pipe
Pumping Pipe Packing
Fuel Cap
Fuel Cap Packing
Power Cord
Power Switch
Window Display
Thermostat Control Knob
Lower shell
Gasket
Thermostat Lilmit Control
Thermostat Bracket
Combustion Chabmer
Burner Head
Nozzle
Burner Head Blade
Nipple
Insulator Plate
Diffusion
Spark Plug
Blower Casing Fix Plate
Blower Casing
Inlet
Blower Motor
Blower Fan
Photocell
Photocell B/K
Geard Pump Pipe
Motor
Capacitor
Motor B/K
Motor Fix Band
Geard Pump
Couple Ring
Nipple
Hex nut
Fuel Hose-A
Fuel Hose-B
Return Hose
Return Pipe
Fuel Filter
Nipple
Nut
Fuel Filter Bracket
Fan Ass’y
Ignitor
Right Side Cover
Left Side Cover
Fan Guard(Steel)
P.C.B
P.C.B Bracket
Thermistor
Fuse
Clip Nut
Upper shell
Bushing Grommet(S)
Bushing Grommet(L)
Cord Bushing
Front Handle
Rear Handle
Wheel Axle
Washer
Wheel Cap
Wheel
Adjustable Pipe Support
Pipe Support Bracket
Wheel Support Bracket
Shaft Fix Bracket
Caster Support Pipe
Swivel Caster
Siloco Fan Ass’y
Siloco Motor Ass’y
Siloco Fan
Spark Plug Bracket
Wind plate
Smoke Pipe
Upper Cover
Float Sensor
Float Sensor Packing
Fuel Pipe
Return Pipe
Pipe Packing
Nut
TK13-010-001
TK8-003-003
TK8-003-003-1
TK13-000-005
TK8-000-005-1
TK8-010-006
TK8-000-007
TK8-000-008
TK8-000-009
TK13-017-010
TK8-010-012
TK8-002-012-1
TK12-017-013
TK8-010-022
1060S
TK12-024-016
R20-15084
TK8-010-075
TK8-000-023
TK8-010-015
TK8-010-016
TK12-017-028
TK13-024-029
TK13-024-030
TK13-024-031
TK12-008-033
TK12-008-034
TK13-008-035
TK13-008-035-1
TK13-017-036
TK13-017-037
TK13-017-038
TK12-008-040
TK13-008-041
M12
TK12-008-043
TK12-024-040
TK8-010-041
TK12-010-042
TK12-024-043
TK8-010-044
TK13-008-049
TK8-002-045-1
TK8-002-045-2
TK8-000-046
TK8-000-047
TK13-017-054
TK8-000-050
TK8-000-050-1
TK8-002-053
TK8-005-056
TK8-005-057
TK8-005-059
TK8-003-059-1
TK13-003-059-2
TK13-000-060
TK8-010-063
TK8-000-064
TK8-000-065
TK8-000-066
TK8-010-067
TK8-010-068
TK8-017-071
TK8-010-071-1
TK8-010-071-2
TK12-010-073
TK12-010-074
TK12-024-079
TK13-024-076
TK13-008-077
TK13-008-078
TK13-008-079
TK13-008-080
TK13-008-081
TK13-008-082

10
Indirect Air Forced Heater
ZF-240ID
Do not leave the place with the heater turned on or plugged in.
Parts Disassembly Drawing
1
2
3
3
-
1
4
4
-
1
5
5
-
1
6
7
8
9
10
11
12
12
-
1
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35-1
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
NO. PART NAME PART NO.
Fuel Tank
Fuel Gauge
Fuel Gauge Packing
Pumping Pipe
Pumping Pipe Packing
Fuel Cap
Fuel Cap Packing
Power Cord
Power Switch
Window Display
Thermostat Control Knob
Lower shell
Gasket
Thermostat Lilmit Control
Thermostat Bracket
Combustion Chabmer
Burner Head
Nozzle
Burner Head Blade
Nipple
Insulator Plate
Diffusion
Spark Plug
Blower Casing Fix Plate
Blower Casing
Inlet
Blower Motor
Blower Fan
Photocell
Photocell B/K
Geard Pump Pipe
Motor
Capacitor
Motor B/K
Motor Fix Band
Geard Pump
Couple Ring
Nipple
Hex nut
Fuel Hose-A
Fuel Hose-B
Return Hose
Return Pipe
Fuel Filter
Nipple
Nut
Fuel Filter Bracket
Fan Ass’y
Ignitor
Right Side Cover
Left Side Cover
Fan Guard(Steel)
P.C.B
P.C.B Bracket
Thermistor
Fuse
Clip Nut
Upper shell
Bushing Grommet(S)
Bushing Grommet(L)
Cord Bushing
Front Handle
Rear Handle
Wheel Axle
Washer
Wheel Cap
Wheel
Adjustable Pipe Support
Pipe Support Bracket
Wheel Support Bracket
Shaft Fix Bracket
Smoke Pipe
Upper Cover
Float Sensor
Float Sensor Packing
Fuel Pipe
Return Pipe
Pipe Packing
Nut
TK13-010-001
TK8-003-003
TK8-003-003-1
TK13-000-005
TK8-000-005-1
TK8-010-006
TK8-000-007
TK8-000-008
TK8-000-009
TK13-024-010
TK8-010-012
TK8-002-012-1
TK12-024-013
TK8-010-022
1256S
TK12-024-016
R20-15084
TK8-010-075
TK8-000-023
TK8-010-015
TK8-010-016
TK12-024-028
TK13-024-029
TK13-024-030
TK13-024-031
TK12-008-033
TK12-008-034
TK13-008-035
TK13-008-035-1
TK13-017-036
TK13-017-037
TK13-017-038
TK12-008-040
TK13-008-041
M12
TK12-008-043
TK12-024-040
TK8-010-041
TK12-010-042
TK12-024-043
TK12-024-048
TK13-008-049
TK8-002-045-1
TK8-002-045-2
TK8-000-046
TK8-000-047
TK13-017-054
TK8-000-050
TK8-000-050-1
TK8-010-053
TK8-010-056
TK8-010-057
TK8-010-059
TK8-003-059-1
TK13-003-059-2
TK13-000-060
TK8-010-063
TK8-000-064
TK8-000-065
TK8-000-066
TK8-010-067
TK8-010-068
TK8-017-071
TK8-010-071-1
TK8-010-071-2
TK12-010-073
TK12-010-074
TK12-024-079
TK13-024-076
TK13-008-077
TK13-008-078
TK13-008-079
TK13-008-080
TK13-008-081
TK13-008-082
Caster Support Pipe
Swivel Caster
Siloco Fan Ass’y
Siloco Motor Ass’y
Siloco Fan
Spark Plug Bracket
Wind plate
