Donovan Hammer II User manual

Arm System for
Belly Dumps, End Dumps,
Dump Bodies & Pups
P/N 1809533 Rev. B

Shur-Co®, LLC Terms & Conditions
PREPAID FREIGHT POLICY. Shur-Co®, LLC
will prepay freight on eligible orders* of Florida-manufactured
Donovan products and tarp items shipped from our FL and MI branches that
meet the dollar requirements for the shipping destinations specifi ed below.
*Valid within the continental 48 states only. Applies to products purchased at standard pricing; any
special pricing will void standard prepaid freight policy and will be addressed on a case-by-case
basis. Does NOT apply to Bedliners or Shur-Co® Flatbed products.
INTO FL/MI: Freight prepaid on orders of $2,500 or more or tarp-only orders
of $1,500 or more. INTO ZONES 1 & 2: Freight prepaid on orders of $3,000
or more or tarp-only orders of $2,500 or more. INTO ZONES 3 & 4: Freight
prepaid on orders of $6,000 or more or tarp-only orders of $3,000 or more.
WARRANTY. We warrant all new products are free of defects in materials and
workmanship.* This warranty is effective if products are properly installed and
used for the purpose for which they were intended and applies to the original
buyer only. Except as set forth above or in any product-specifi c warranty docu-
mentation, we make no other warranties, express or implied, including but not
limited to warranties of merchantability of fi tness for a particular use.
Returns of a product for warranty must be accompanied by a Return Merchan-
dise Authorization number (RMA#), obtained by by calling Customer Service
at 800-327-8287, and sent, freight paid by us, to Donovan, 3353 SE Gran Park
Way, Stuart, FL 34997. All products returned without an RMA# will be refused.
When we issue the RMA#, we will also issue a call tag to have
U.P.S. (or other freight company) pick up the product. C.O.D. returns not
accepted. We will pay no storage fees for a warranty product return prior to
pick by us or the freight company. If a warranty product return is scheduled to
be picked up by us, we will pick up the product at our earliest convenience.
If a product returned is found, in our judgement, to be defective in material
or workmanship, our obligation under this warranty is limited to the repair or
replacement of the product, which will be made by us. Repair or replacement
will be at our discretion, with replacements being made using current products
performing in the equivalent function. Labor charges, other than those incurred
at our factory, including, but not limited to, any labor to install a repaired or re-
placement product, are not covered under this warranty. All expenses associ-
ated with delivering defective products to our factory and delivering repaired or
replacement products from our factory to the owner will be paid by us.
If the product returned is found, in our judgement, to be non-warrantable, the
owner will be contacted to authorize repair work, purchase of a replacement
product or return of the product, all of which will be at the owner’s expense.
Payment authorization must be received by us before any non-warrantable
product is repaired, replaced or returned. All expenses associated with deliver-
ing the repaired non-warrantable product, a replacement product or the non-
warrantable product from our factory to the owner will be paid by the owner.
In no event will we be liable for any damages of any kind to person, product or
property, including but not limited to indirect, incidental, special, consequential
or punitive damages, or damages for loss of profi ts or revenue, even if we
have been advised of the possibility of such damages. There are no warran-
ties for used products or products that have been repaired, altered, modifi ed
or subjected to misuse, negligence or accident. We will not repair or replace
products that fail or malfunction due to ordinary wear and tear, except as ex-
pressly noted in a product-specifi c warranty. Use of non-Shur-Co®, LLC parts
in conjuction with Shur-Co®, LLC products will void this product warranty.
*Certain products have specifi c warranties that differ from this warranty, for example motors and elec-
tronics. Product-specifi c warranty documentation is available for these items. In the event of a confl ict
between this warranty and a product-specifi c warranty, the product-specifi c warranty will govern.
RETURN POLICY. All sales fi nal. See WARRANTY above for return details.
OTHER. All prices, product listings, sizes, weights and manufacturing details
are subject to change without notice. No person is authorized to modify the
foregoing conditions of sale whatsoever.
SHUR-CO®, LLC SERVICE AND DISTRIBUTION CENTERS
ZONE 4 ZONE 3 ZONE 2 ZONE 1
FL
FL
M
MI
Corporate HQ and Outlet Store
SHUR-CO® of SOUTH DAKOTA
2309 Shur-Lok St., PO Box 713, Yankton, SD 57078
Ph 800.474.8756 | Fax [phone]
SHUR-CO® of FLORIDA
3353 SE Gran Park Way, Stuart, FL 34997
Ph 800.327.8287 | Fax [phone]
SHUR-CO® of IDAHO
610 N. 16th Ave., Caldwell, ID 83607
Ph 866.356.0246 | Fax [phone]
SHUR-CO® of ILLINOIS
3993 E. Mueller Ave., Decatur, IL 62526
Ph 866.356.0246 | Fax [phone]
SHUR-CO® of IOWA
3839 Midway Blvd., Ft. Dodge, IA 50501
Ph 866.356.0245 | Fax [phone]
ShurTite™ Service Centers
SHUR-CO® of CANADA
490 Elgin St., Unit #1
Brantford, Ontario N3S 7P8
Ph 800.265.0823 | Fax [phone]
SHUR-CO® of SIOUX FALLS
47184 258th St., Suite B
Sioux Falls, SD 57107
Ph 844.573.9322 | Fax [phone]
SHUR-CO® of ILLINOIS
Ph 866.356.0246 | Fax [phone]
SHUR-CO® of OHIO
Ph 866.356.0242 | Fax [phone]
SHUR-CO® of MICHIGAN
5100 Lakeshore Dr., Lexington, MI 48450
Ph 800.327.8287 | Fax [phone]
SHUR-CO® of NORTH DAKOTA
1746 4th Ave. NW, West Fargo, ND 58078
Ph 877.868.4488 | Fax [phone]
SHUR-CO® of OHIO
1100 N. Freedom, St. Rt. 88 & 14
Ravenna, OH 44266
Ph 866.356.0242 | Fax [phone]
SHUR-CO® UK, Ltd.
Unit 41 Rochester Airport Estates
Laker Rd., Rochester, Kent ME1 3QX
Ph +44 (0)1795.473499
Fax [phone] For more information, log on to our website:
www.donovan-tarps.com
P/N 1809533 Rev. B

Thank you for buying this tarping system from Shur-Co®. We appreci-
ate your condence in our products. Please read and thoroughly un-
derstand this manual before installing and/or operating this system.
Pay particular attention to important safety and operating instructions,
as well as warnings and cautions. The hazard symbol is used to
alert users to potentially hazardous conditions and is followed by cau-
tion, warning or danger messages.
Failure to READ AND FOLLOW INSTRUCTIONS could result in fail-
ure of your tarping system and/or personal injury. Your trailer require-
ments may, however, call for minor variations to these instructions.
Please inspect your tarping system periodically. Repair or replace
worn or damaged parts to your system.
QUESTIONS? CALL OUR HELP LINE:
1-800-327-8287
MON-FRI 8 AM-5 PM EASTERN TIME
We at Shur-Co® are concerned with your safety and the safety of all
those operating this system. Therefore, we have provided safety de-
cals at various locations on your tarping system. Keep decals as clean
as possible at all times. Replace any decal that has become worn
or damaged, painted over or otherwise difcult to read. Replacement
decals are available through Shur-Co® dealers.
To prevent rust, paint all exposed metal, such as weld seams and/or
metal exposed by grinding or cutting, with corrosion-resistant paint.
Hammer™ II
P/N 1809533 Rev. B
!
Hardware Identication....................................................................... 1
Front Drive Installation.....................................................................2-5
Pivot Point Location............................................................................ 6
External Pivot Mount Installation ........................................................ 7

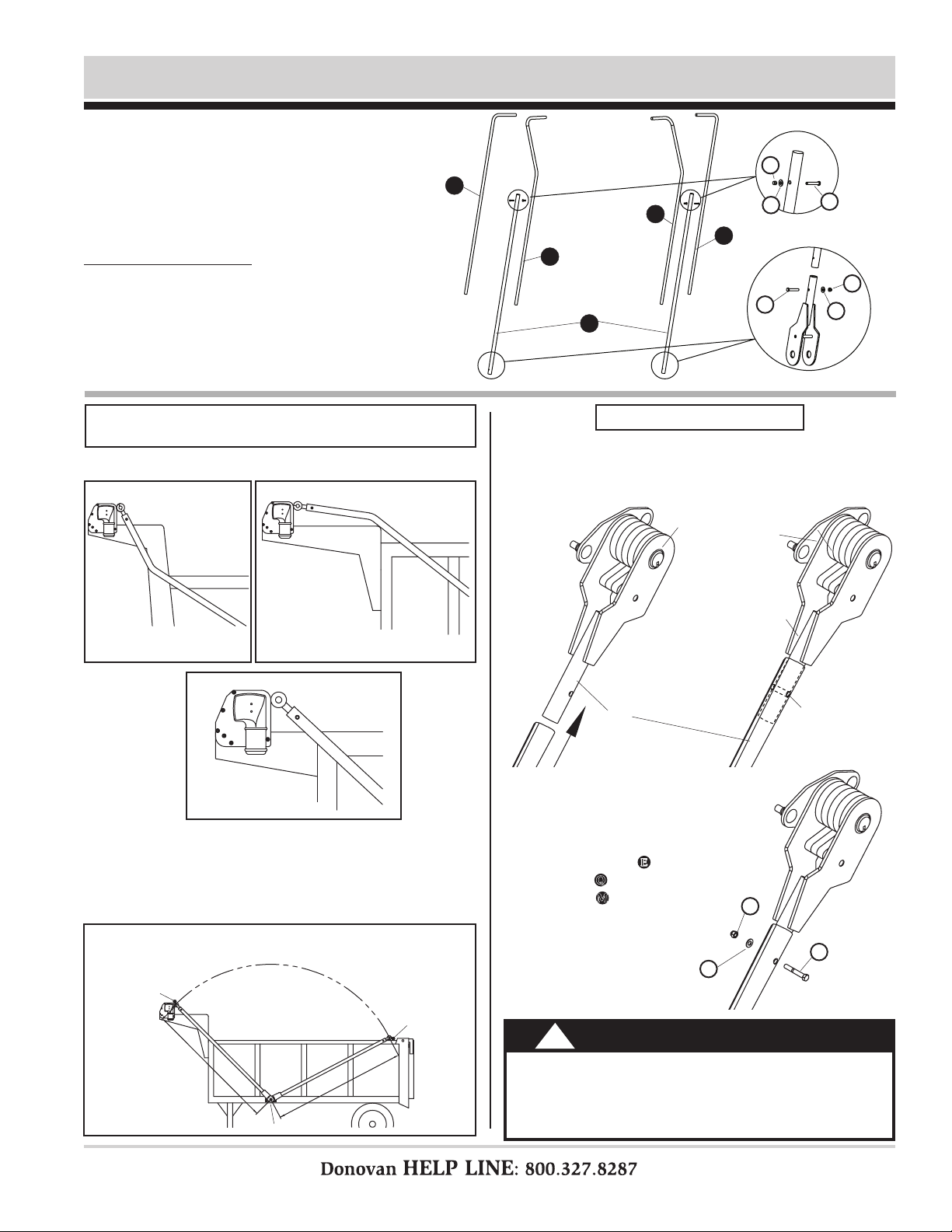

Arm Installation................................................................................... 8
Tarp Tube Assembly & Tarp Installation..........................................9-10
Rotary Switch Kit Wiring................................................................... 11
Manual Crank Installation............................................................12-13
Replacement Parts......................................................................14-15
1. Wrenches - 1/2", 9/16", 3/4"
2. Ratcheting Socket Wrench
3. Sockets - 1/2", 9/16", 3/4"
4. Allen Wrenches - 1/8", 5/32", 3/16"
5. Drill Bits (metal cutting) - 5/16", 3/8", 1/2"
6. Center Punch
7. Hammer
8. Tape Measure (2)
9. Flat Head or Phillips Screwdriver
10. Grinder or File
11. Air or Electric Impact Wrench w/9/16" Socket
12. Metal Saw
Additional tools needed, depending on kit conguration:
1. Retaining Ring Pliers
2. Wrench or Nut Driver - 10mm
3. Large Pipe Wrench
4. Steel Welder
5. Aluminum Welder
• Spray all bearings with penetrating oil as needed.
• Grease spring bearings as needed.
• Brush springs with steel brush weekly to remove dirt and spray with
penetrating oil.
• Tighten any loose bolts.
• Make sure arms are not hitting sides of box. Replace damaged/
bent arms.
• Replace worn or broken springs.
• Replace/repair worn or damaged tarps.
SAFETY
RUST PREVENTION
MESSAGE TO OWNERS TABLE OF CONTENTS
TOOLS REQUIRED
MAINTENANCE
1. Always wear safety glasses during installa-
tion and operation.
2. Stay clear of moving parts.
3. Do not operate under low-hung power lines.
Always check for overhead obstructions be-
fore opening or closing.
4. Open and close tarp only at the job site.
5. Face vehicle into wind when opening and
closing tarp.
6. Install tarp on axle to roll off the top and to-
ward the rear of the box.
7. No other use of this system is authorized,
except as designed.
SAFETY INSTRUCTIONS

P/N 1809533 Rev. B
Hardware Identication
1
1800802 Screw - #10 x 1" (GL Kit) 1800610 Tee Nut - 1/4" x 7/16"
1800977 Shim - 1-1/4" x .047
1800978 Retaining Ring - 1-1/4"
1800609 Shoulder Bolt - 1/4" x 1-1/4"
1703237 Cap Screw - 5/16" x 2-1/2"
1800990 Lock Nut - 5/16”
1700400 Self-Tapping Screw - 3/8" x 1"
1800993 Lock Nut - 3/8"
1809567 Cap Screw - 3/8" x 2-1/4" (GL Kit)
1800995 Lock Nut - 1/2"
1800998 Bolt - 5/16" x 1" GR5
1800795 Bolt - 3/8" x 1"
1800989 Flat Washer - 5/16”
1800994 Flat Washer - 3/8"
1800996 Flat Washer - 1/2"
1800790 Bolt - 3/8" x 1-1/2"
1800956 Carriage Bolt - 1/2" x 1-1/2"
A K
S
T
BL
C M
DN
EP
Q
R
F
G
H
J

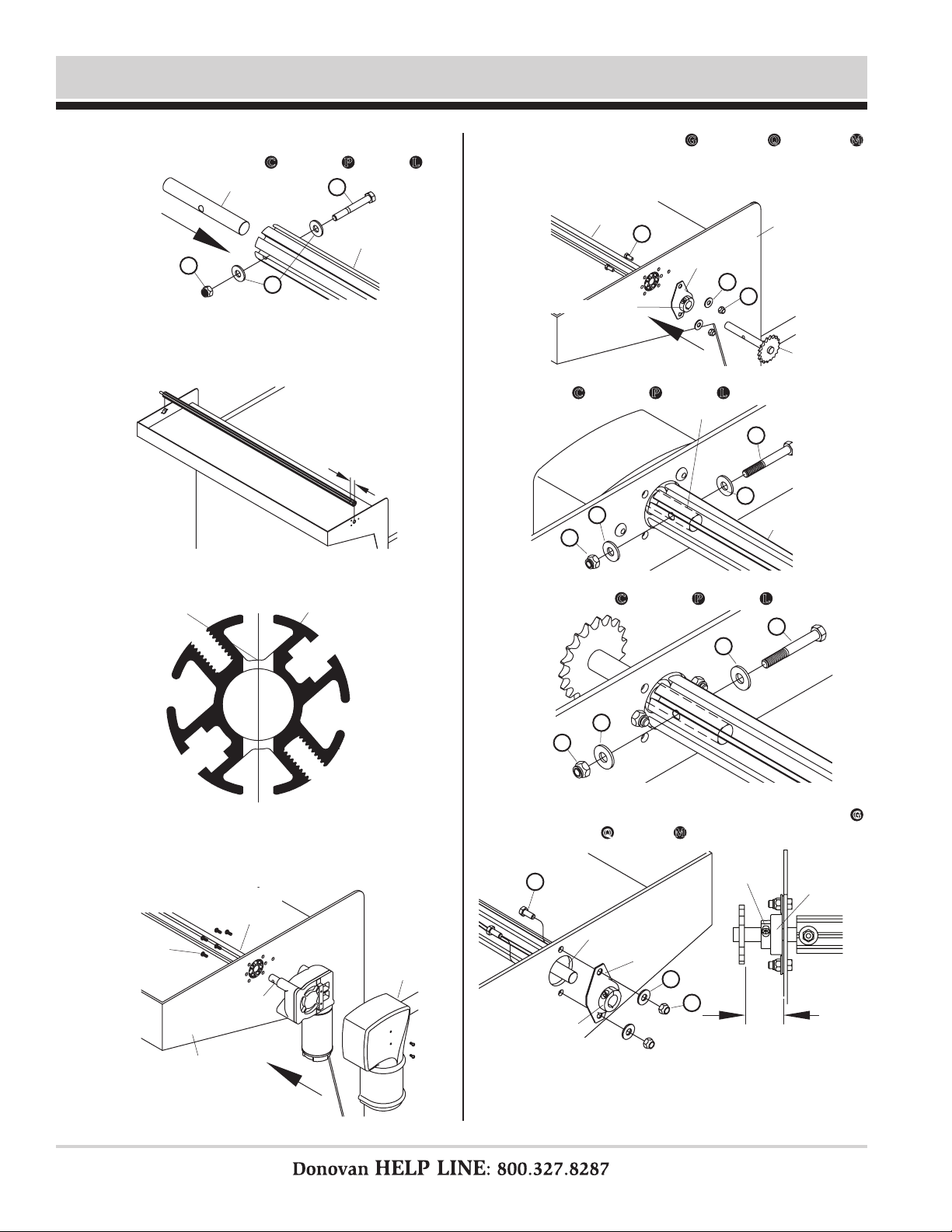

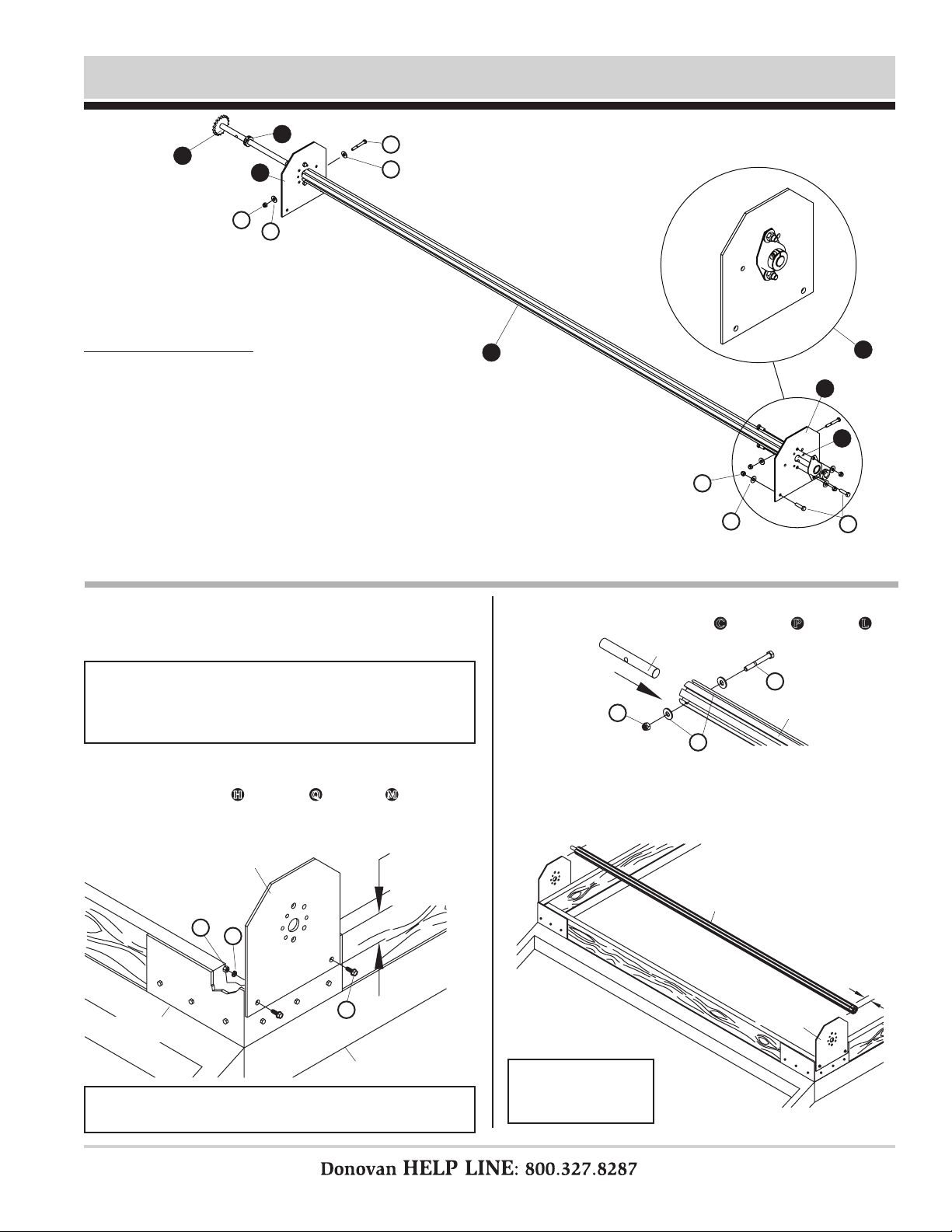

P/N 1809533 Rev. B Front Drive - Through Cab Protector
2
Item Part # Description
1. 1802061 Durabuilt™ Motor - 12V
2. 1809330 Tarp Spool Axle - 3 Way Attachment - 98"
3. 1800980 Shaft Extension - 3/4" x 4"
4. 1800089 Collar Shaft - 3/4"
5. 1120376 Sprocket - Driver Side
6. 1800042 Bearing
C. 1703237 Cap Screw - 5/16" x 2-1/2"
G. 1800795 Bolt - 3/8" x 1"
L. 1800990 Lock Nut - 5/16"
K. 1800993 Lock Nut - 3/8"
P. 1800989 Flat Washer - 5/16"
Q. 1800994 Flat Washer - 3/8"
3
2
1
6
5
4
Before drilling holes in box, make sure there is enough room
for tarp to roll up around tarp axle. Measure box and compare
measurements with those shown.
NOTE: Install mounting brackets directly across from each
other, in line on opposite sides of box/cab guard.
STEP 1: Determine tarp axle mounting location on cab pro-
tector. Location must keep spring-loaded arms from
interfering with cab doors and exhaust stacks. Arms
must not interfere with loading process.
STEP 2: Prepare to cut holes to mount electric motor and axle
bearing. At desired location on each side of cab protec-
tor, measure down 2" from top of cab protector side
rail and mark location for center of tarp axle. Center of
motor shaft hole and axle bearing hole must be aligned.
Minimum distance from top of cab protector rail to hori-
zontal shield:
Mesh Fabric - 4"
Solid Vinyl Fabric - 5" horizontal
cab shield
rail
minimum distance
STEP 3A: Electric system. On driver side, use side plate as
guide to center punch and drill holes to mount electric
motor.
2"
cab protector
side rail
align holes
STEP 4: On passenger side, using 2" hole saw, drill hole for
axle bearing at marked location. Center bearing ange
over hole and use as guide to drill two 11/32" holes
for fastening bearing.
driver side
drill holes
per decal
drill two
11/32" holes
passenger side
cut 2" hole
use hole saw for
motor shaft hole
1" min diameter
2" max
NOTE: If manual crank (page 30) will be installed on system at any
time, spacers or brackets may need to be fabricated to align driver
side tarp axle bracket with mounting surface for manual crank.
STEP 3B: Manual system. Cut matching hole pattern in driver
side as illustrated for passenger side in step 4.
C
K
Q
GL
P
P
manual electric

P/N 1809533 Rev. B
3
Front Drive - Through Cab Protector - continued
STEP 9A: Electric system. Fasten tarp axle to motor shaft with
bolt C, washers P and nut L.
stub shaft
tarp axle
STEP 5: Insert stub shaft into end of tarp axle with drilled hole
and fasten with screw C, washers P and nut L.
STEP 6: Measure inside distance between side rails on cab
protector. Measure and mark tarp axle 1" shorter than
this distance (do not include stub shaft in measure-
ment). Cut squarely at mark and deburr cut end.
tarp axle
drill 5/16" hole
STEP 10A: Electric system. Slide ange bearing over stub shaft
and fasten to outside of cab protector with bolts G,
washers Q and nuts M. Tighten set bolts on bearing.
STEP 7: Drill 5/16" hole 5/8" in from cut end of tarp axle, align-
ing hole as shown.
bearing
bearing
stub shaft
tarp
axle
motor shaft
motor
shaft
motor
cover
tarp axle
STEP 8B: Manual system. Loosely assemble bearing to cab
protector using bolts G, washers Q and nuts M.
Insert stub shaft through bearing hole on passenger
side of cab protector. Insert sprocket shaft through
collar shaft and bearing into tarp axle.
STEP 9B: Manual system. Fasten tarp axle to sprocket shaft
with screw C, washers P and nut L.
STEP 10B: Manual system. Follow instructions for electric
system in step 10A. On driver side, adjust sprocket
location as shown, then tighten all bearing fasteners
and set screws.
driver side
passenger side
cab protector
bearing
collar shaft
collar shaft
collar
shaft
cab protector
sprocket
tarp axle
driver side
manual system
2-1/4"
screws supplied
w/motor
C
P
L
G
M
L
P
P
C
C
P
P
L
G
M
Q
STEP 8A: Electric system. Insert stub shaft through bearing
hole on passenger side of cab protector. Insert motor
shaft through hole on driver side and slide tarp axle
onto motor shaft. Fasten motor to cab protector with
supplied screws.
Q

P/N 1809533 Rev. B
4

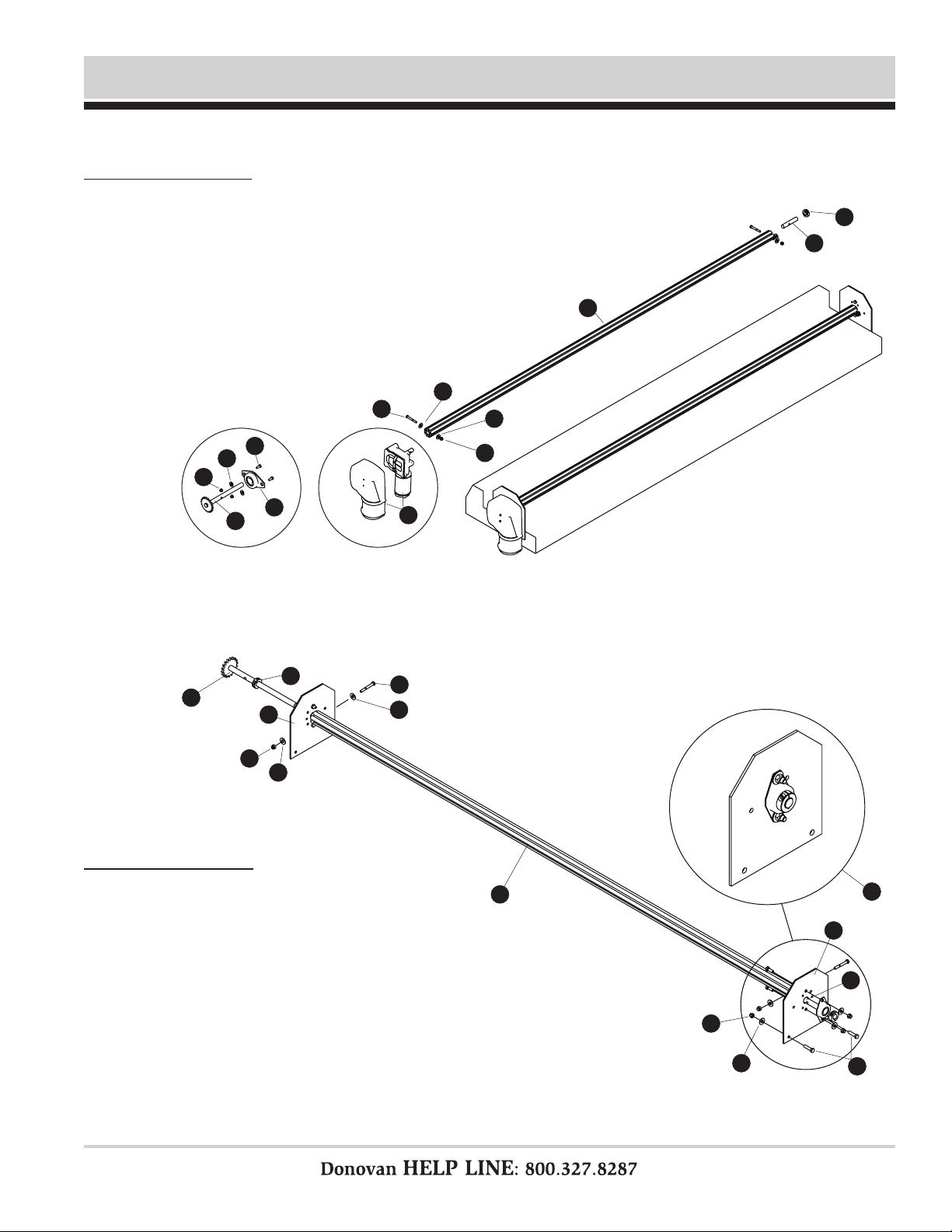

Front Drive - Side Plates
Item Part # Description
1. 1809563 Bearing Plate - Universal
2. 1809564 Bearing Plate Assembly
3. 1809330 Tarp Spool Axle - 98"
4. 1800980 Shaft Extension - 3/4" x 4"
5. 1800089 Collar Shaft - 3/4"
6. 1800758 Shaft Sprocket Assembly
C. 1703237 Cap Screw - 5/16" x 2-1/2"
H. 1800790 Cap Screw - 3/8" x 1-1/2"
L. 1800990 Lock Nut - 5/16"
M. 1800993 Lock Nut - 3/8"
P. 1800989 Flat Washer - 5/16”
Q. 1800994 Flat Washer - 3/8" GR5
1
6
5
2
3
1
4
stub shaft
tarp axle
STEP 2: Using bearing plate as guide, mark and drill 5/16"
holes into metal framework on box. Fasten plates
with screws H, washers Q and nuts M. If mounting
to sideboards only, fasten with 3/8" x 2 1/2" carriage
bolts, washers and nuts.
STEP 1: Determine tarp axle bracket location on front of box.
Position brackets so spring-loaded arms will not
interfere with cab door, loader or exhaust stacks.
NOTE: Install mounting plates directly across from each oth-
er, in line on opposite sides of box/cab guard.
STEP 3: Insert stub shaft into end of tarp axle with drilled hole
and fasten with screw C, washers P and nut L.
bearing plate
sideboard
3" max or
windshield
may interfere
w/box
sideboard
bracket
tarp axle
1"
bearing
plate
STEP 4: Measure distance between inside edges of bearing
plates. Measure and mark tarp axle 1" shorter than
this distance.
NOTE: Cut tarp axle
straight and square
for best results.
NOTE: If manual crank (page 30) will be installed on system
at any time, spacers or brackets may need to be fabricated to
align driver side tarp axle bracket with mounting surface for
manual crank.
MQ
H
L
P
C
C
P
P
H
Q
M
L

P/N 1809533 Rev. B
5
Front Drive - Side Plates - continued
STEP 5: Remove tarp axle, cut squarely at mark and deburr
cut end. Drill 5/16" hole 5/8" from cut end of axle,
aligning hole as shown.
drill 5/16" hole tarp axle
STEP 8: Tighten set screw on ball bearing.
tighten
set screw
STEP 6A: Electric motor. Insert stub shaft through passenger
side tarp axle bracket and align tarp axle between
brackets. On driver side, insert motor shaft through
bracket and into tarp axle. Fasten motor to bracket
with supplied screws.
tarp axle
STEP 7A: Electric system. Slide bearing assembly over stub
shaft and fasten to tarp axle bracket with screws H,
washers Q and nuts M.
electric
motor &
cover
bearing
shaft
extension
bearing
plate
STEP 6B: Manual crank. On driver side, loosely fasten ange
bearing to bracket with screws C, washers P and nuts
L. Insert stub shaft through passenger side tarp axle
bracket and align tarp axle between brackets. Insert
sprocket shaft through bearing and into tarp axle.
STEP 7B: Manual system. Slide bearing assembly over stub
shaft and loosely fasten to bearing plate with screws
H, washers Q and nuts M. On driver side, adjust
sprocket location, then tighten fasteners.
passenger side
passenger side
driver side
2-1/4"
driver side
driver side
sprocket
collar
shaft
screws supplied
w/motor
M
Q
H
L
P
P
C

P/N 1809533 Rev. B
6
Locate Pivot Point
STEP 2: Locate and mark pivot point on bottom rail at equal distance between points A and B.
STEP 1: Locate points A and B. Point A is center
of tarp axle. Point B is desired resting
point for tarp tube. Refer to diagram
for locations of points A and B.
NOTE: Tapered, wedged, rounded or sloped trailers may require additional bracketry to offset and square arms with trailer.
rear
front
NOTE: Double check pivot loca-
tion before drilling any holes.
NOTE: To determine pivot point on opposite side of box, rst make sure box is square. Transfer measurement from point A to pivot
point over to opposite side of box.
pivot point
pivot point
equal distance
equal distance
a
a
B
B
equal distance
equal distance
B
a

P/N 1809533 Rev. B
7
5-Spring External Pivot Installation
Item Part # Description
1. 1809609 Spring Pivot Weldment - 5 Spring
2. 1800763 Flat Coil Torsion Spring
3. 1809583 Pivot Spring Weldment
J. 1800356 Carriage Bolt - 1/2" x 1-1/2"
N. 1800995 Lock Nut - 1/2"
R. 1800996 Flat Washer - 1/2"
S. 1800977 Shim - 1-1/4" x .047
T. 1800978 Retaining Ring - 1-1/4"
1
2
3
STEP 1: Clamp pivot assembly to box, centering shaft on
marked pivot point with slot in shaft facing downward.
NOTE: Double check pivot location before drilling any holes.
drill
1/2"
holes
center on
marked pivot
point
Using holes in pivot bracket as guide, mark and drill two
1/2" holes in box. Fasten assembly to box with screws
J
, washers
R
and nuts
N
. Repeat on opposite side.
rear of trailer
J
S T
R
N
J
R
N
5-SPRING PIVOT ASSEMBLY

P/N 1809533 Rev. B
8
Arm Installation
STEP 3A: Slide arm over tube on 5-spring pivot assembly until arm
contacts pivot plates. Align arm as shown and drill 3/8"
hole through arm. Drilled hole must align with hole in tube.
STEP 3B: Fasten securely with
cap screw
E
, wash-
ers
Q
and nylon lock
nut
M
.
arm
5-spring
pivot assembly
pivot plate
drill 3/8" hole
through arm
STEP 1: Determine which orientation works best for your application.
STEP 2: Determine arm length. Measure from center of pivot
shaft to desired resting points for arm at front and rear
of box. Find distance between point A and pivot shaft
and between point B and pivot shaft. Calculate and
cut arm length using shorter of two distances.
Item Part # Description
1. 1809407 Lower Arm
2. 1809408 Upper Arm - Straight
3. 1809553 Upper Arm - 30° Bend - Driver Side
4. 1809554 Upper Arm - 30° Bend - Pass. Side
E. 1809567 Cap Screw - 3/8" x 2-1/4"
M. 1800993 Nylon Lock Nut - 3/8"
Q. 1800994 Flat Washer - 3/8"
ARM CUT LENGTH:
5-spring external - measured distance minus 12"
pivot shaft
B
a
arm bend toward
rear of box
RAISED CAB PROTECTOR
arm bend toward
front of box
LEVEL CAB PROTECTOR
STRAIGHT ARMS
no arm bend
NOTE: Determine desired length and orientation of arms be-
fore attaching arms to spring pivot.
WARNING
Apply arm warning decals (P/N 1704561) on
box near spring pivot. Arms are under spring
tension while springs are engaged. Use cau-
tion while assembling or disassembling arms.
!
E
Q
M
5-SPRING PIVOT ASSEMBLY
1
2
2
3
4
E
E
Q
Q
M
M

P/N 1809533 Rev. B
9
Tarp Tube Assembly & Tarp Installation
STEP 1: Center rear crosspiece between upper arms.
NOTE: Deburr inside
of tarp tube or outside
of elbow if elbow will
not easily slide into
tarp tube.
STEP 2: Lay assembled tarp tube on at surface with ends of
tube laying at and facing same direction. Drill two
5/16" holes on tarp tube side of joint. Fasten with
shoulder bolt B and tee nut K.
Item Part # Description
1. 1809408 Upper Arm
2. 1809553 Upper Arm - 30° - Driver Side
3. 1809554 Upper Arm - 30° - Passenger Side
4. 1809409 Rear Crosspiece
5. 1808819 Rubber Bumper Assembly - 6"
B. 1800609 Shoulder Bolt - 1/4" x 1-1/4"
K. 1800610 Tee Nut - 1/4" x 7/16"
2
3
1
1
4
5
6"
rear
crosspiece
rear
crosspiece
upper
arm
upper
arm
upper
arm
assembled
tarp tube
face both ends of tarp
tube in same direction
drill 5/16" hole
B
K
STEP3: Slide rubber bumpers onto upper arm. Push bumpers
as far into bends as possible.
STEP 4: Feed rear crosspiece
through pocket on rear end
of tarp. Reassemble tarp
tube and elbow. Fasten
with shoulder bolt B and
tee nut K.
rubber
bumper
rubber
bumper
rubber
bumper
push bumbers
into bends
tarp pocket
K
B
B
K

P/N 1809533 Rev. B
10
Tarp Tube Assembly & Tarp Installation - continued
Tarp must wind open in direction
shown. To prevent debris from
entering tarp axle, position tarp
to roll open off top of axle toward
rear of box.
STEP 5: Lay front edge of tarp across tarp axle and center
tarp with box (cab guard may be off center). Start at
center and work toward edges, pulling tarp tight.
STEP 6: Position tarp arms at top rear of box. Square up tarp
tube with box by adjusting distance where tarp tube
enters arms.
STEP 7: Drill 5/16" hole through both arms approximately 3"
lower on lower arm. Attach with cap screw
C
, at
washer
P
and lock nut
L
.
Option 2 - Fasten screws
through washers and grom-
mets into threaded groove.
Hardware not included.
Option 1 (Recommended) - Thread front of tarp with plastic
rod into slot in center of roller bar. Trim ends of rod to t tarp.
Option 3 - Install nuts into axle
groove, fasten screws through
washers, grommets and nuts.
Hardware not included.
grommet
tarp
screwscrew
washerwasher
nut
option 2option 1
grommet
tarp
NOTE: First, insert tarp tube as far as possible into tarp arms.
Pull ends of tarp tube slightly out of each arm as needed to
align tarp tube squarely across box.
NOTE: Maintain minimum 18" inset when cutting upper arm
down to length.
tarp tube
3"
18"
tarp arm rear
of box
plastic rod on
front of tarp
slot in roller bar
drill 5/16" hole
C
L
P

P/N 1809533 Rev. B
11
Rotary Switch Kit Wiring
electric
motor
battery
Item Part # Description
1. 1800516 Rotary Switch Bracket
2. 1110551 Heavy-Duty Rotary Switch
3. 1800536 Circuit Breaker - 40 Amp
4. 1800028 Wire - 8 Ga. - 60'
3
2
2
4
4
4
1
mount circuit breaker as close
to power supply as possible to
prevent potential short in wire
strip wire
insulation
ring
terminal crimp securely
NOTE: Cut wires to length and strip only
enough wire insulation to install ring ter-
minals. Insert bare wire into ring terminals
and crimp securely.

P/N 1809533 Rev. B Manual Crank Installation
12
lubricate w/
medium-weight
oil to keep chain
moving freely
Item Part # Description
1. 1800178 Control Box
2. 1800186 Lower Chain Guard
3. 1800185 Upper Chain Guard
4. 1800404 Chain Guard Bracket
A. 1800802 Screw - #10 x 1" (GL Kit)
D. 1700400 Self-Tapping Screw - 3/8" x 1"
F. 1800998 Bolt - 5/16" x 1" GR5 (GL Kit)
L. 1800990 Lock Nut - 5/16"
M. 1800993 Lock Nut - 3/8"
P. 1800989 Flat Washer - 5/16"
Q. 1800994 Flat Washer - 3/8" GR5
STEP 3: To determine chain length, wrap chain around both
sprockets and pull crank assembly up until screws
D are in middle of adjustment slots. Mark chain and
remove excess links. Connect ends with connector
link.
STEP 2: Using crank mounting holes as guide, mark and drill
5/16" holes in box. Fasten with screws D, washers Q
and nuts M, leaving fasteners loose enough for crank
assembly to slide for adjustment.
1
2
3
1
A
FP
D
F
D
QM
L
STEP 4: Adjust chain tension, having helper pull downward on
crank assembly. When chain can be deected about
1", tighten screws D.
4
STEP 1: Determine mounting location for crank. Drive shaft
sprocket and crank sprocket must line up to work
correctly.
NOTE: Additional
brackets may be
needed to align
sprockets.
chain
crank
1"
sprocket

P/N 1809533 Rev. B
13

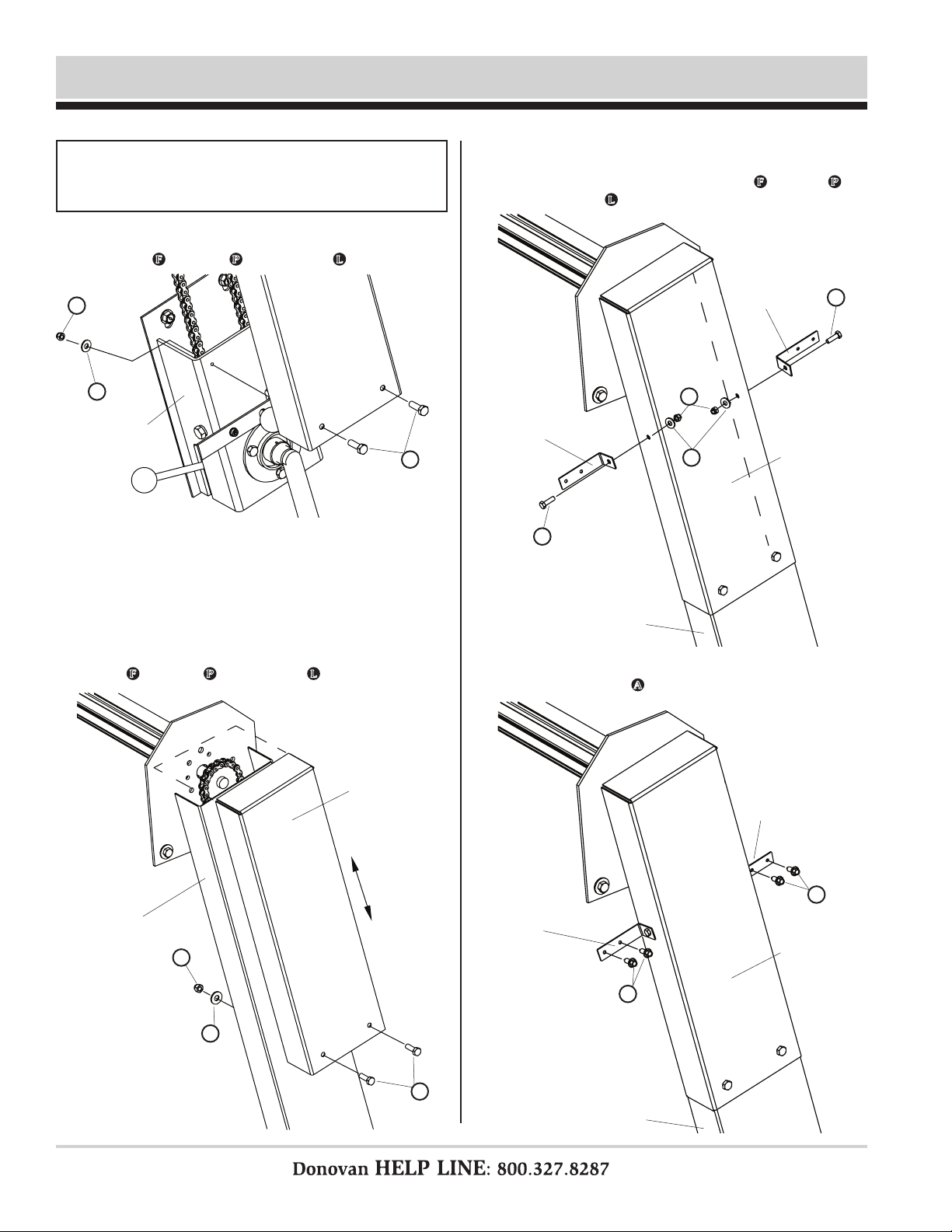

STEP 5: Attach lower chain guard to control box using 5/16"
bolt F, washers P and lock nuts L.
STEP 6: Place upper chain guard over lower chain guard and
adjust height until chain and sprocket assembly are
safely covered.
STEP 9: Attach chain guard brackets near top of upper chain
guard. Mark and drill 5/16" holes through upper chain
guard for mounting. Use 5/16" bolt F, washers P and
lock nuts L to secure bracket to chain guard.
STEP 10: Secure chain guard brackets to truck box using sheet
metal screws A.
STEP 8: Attach upper guard to lower guard using 5/16" bolt
F, washers P and lock nuts L.
STEP 7: Mark and drill 5/16" holes through lower chain guard
using upper chain guard hole pattern as template.
chain
guard
bracket
control
box
chain
guard
bracket
chain
guard
bracket
chain
guard
bracket
lower chain
guard
lower chain
guard
lower chain
guard
lower chain
guard
upper chain
guard
upper chain
guard
upper chain
guard
Manual Crank Installation - continued
NOTE: Entire chain guard assembly can be welded together
and to truck body. If bolting is preferred, continue with
following steps.
F
F
F
F
A
A
P
P
P
L
L
L
drill
5/16"
holes
adjust
height
cover chain &
sprocket

P/N 1809533 Rev. B Replacement Parts
FRONT DRIVES - THROUGH CAB
FRONT DRIVES - SIDE PLATES
14
Item Part # Description
1. 1802061 Durabuilt™ Motor - 12V
2. 1809330 Tarp Spool Axle - 3 Way Attachment - 98"
3. 1800980 Shaft Extension - 3/4" x 4"
4. 1800089 Collar Shaft - 3/4"
5. 1120376 Sprocket - Driver Side
6. 1800042 Bearing
7. 1703237 Cap Screw - 5/16" x 2-1/2"
8. 1800795 Bolt - 3/8" x 1"
9. 1800990 Lock Nut - 5/16"
10. 1800993 Lock Nut - 3/8"
11. 1800989 Flat Washer - 5/16"
12. 1800994 Flat Washer - 3/8"
3
2
1
7
89
11
11
10
12
6
5
4
manual electric
Item Part # Description
1. 1809563 Bearing Plate - Universal
2. 1809564 Bearing Plate Assembly
3. 1809330 Tarp Spool Axle - 98"
4. 1800980 Shaft Extension - 3/4" x 4"
5. 1800089 Collar Shaft - 3/4"
6. 1800758 Shaft Sprocket Assembly
7. 1703237 Cap Screw - 5/16" x 2-1/2"
8. 1800790 Cap Screw - 3/8" x 1-1/2"
9. 1800990 Lock Nut - 5/16"
10. 1800993 Lock Nut - 3/8"
11. 1800989 Flat Washer - 5/16”
12. 1800994 Flat Washer - 3/8"
1
6
57
8
9
10
11
11
12
2
3
1
4

P/N 1809533 Rev. B
15
Replacement Parts
5-SPRING EXTERNAL PIVOTS
ARM ASSEMBLIES
Item Part # Description
1. 1809609 Spring Pivot Weldment - 5 Spring
2. 1800763 Flat Coil Torsion Spring
3. 1809583 Pivot Spring Weldment
4. 1800356 Carriage Bolt - 1/2" x 1-1/2"
5. 1800995 Lock Nut - 1/2"
6. 1800996 Flat Washer - 1/2"
7. 1800977 Shim - 1-1/4" x .047
8. 1800978 Retaining Ring - 1-1/4"
1
4
6
5
78
2
3
Item Part # Description
1. 1809407 Lower Arm
2. 1809408 Upper Arm - Straight
3. 1809553 Upper Arm - 30° Bend - Driver Side
4. 1809554 Upper Arm - 30° Bend - Pass. Side
5. 1809567 Cap Screw - 3/8" x 2-1/4"
6. 1800993 Lock Nut - 3/8"
7. 1800994 Flat Washer - 3/8"
1
25
5
6
6
7
7
2
3
4

P/N 1809533 Rev. B
16
Replacement Parts
Item Part # Description
1. 1800178 Control Box
2. 1800186 Lower Chain Guard
3. 1800185 Upper Chain Guard
4. 1800404 Chain Guard Bracket
5. 1800802 Screw - #10 x 1"
6. 1700400 Self-Tapping Screw - 3/8" x 1"
7. 1800998 Bolt - 5/16" x 1" GR5
8. 1800990 Lock Nut - 5/16"
9. 1800993 Lock Nut - 3/8"
10. 1800989 Flat Washer - 5/16"
11. 1800994 Flat Washer - 3/8" GR5
1
2
3
1
5
6
6
7
7
8
9
10
11
4
CONTROL BOX & CHAIN GUARDS

•
Construction Products
- Arm-Matic™
- DuraPull™
- Econo-Pull™
- Turbo Tarp2™
- 2000 Series
- 5000 Series
- Hammer™ II
- Bullet™
- Flash™
•Waste Products
- SWAT ™
- Quick-Flip III™
- Sidewinder™
- Sidewinder™ 350
- HyTower™ SL
- HyTower™ DL
- Double-Flip™
- Donovan Belt & Ratchet (DBR)
