Thank you for buying this tarping system from Shur-Co®. We appreci-
ate your confidence in our products. Please read and thoroughly un-
derstand this manual before installing and/or operating this system.
Pay particular attention to important safety and operating instructions,
as well as warnings and cautions. The hazard symbol !is used to
alert users to potentially hazardous conditions and is followed by cau-
tion, warning or danger messages.
Failure to READ AND FOLLOW INSTRUCTIONS could result in fail-
ure of your tarping system and/or personal injury. Your trailer require-
ments may, however, call for minor variations to these instructions.
Please inspect your tarping system periodically. Repair or replace
worn or damaged parts to your system.
QUESTIONS? CALL OUR FL HELP LINE:
1-800-327-8287
MON-FRI 8 AM-5 PM EASTERN TIME
We at Shur-Co®are concerned with your safety and the safety of all
those operating this system. Therefore, we have provided safety de-
cals at various locations on your tarping system. Keep decals as clean
as possible at all times. Replace any decal that has become worn
or damaged, painted over or otherwise difficult to read. Replacement
decals are available through Shur-Co®dealers.
To prevent rust, paint all exposed metal, such as weld seams and/or
metal exposed by grinding or cutting, with corrosion-resistant paint.
Quick-Flip™ IV EL
P/N 1811475 Rev. A
Hardware Identification....................................................................... 1
Clearance Requirements.................................................................... 2
Base Assembly Installation..............................................................2-3
Spring Pivot Installation - Single Axle..............................................4-5
Spring Pivot Installation - Tandem Axle Hydraulic Gantry ...............6-7
Spring Pivot Installation - Trailers....................................................8-9
Pivot Arm Installation - Single Axle................................................... 10
Pivot Arm Installation - Tandem/Multi-Axle Trucks............................ 11
Pivot Arm Installation - Trailers......................................................... 12
Tarp Tube Assembly & Tarp Installation............................................13
Pre-Load Springs.............................................................................. 14
12-Volt Electric/Hydraulic Installation ..........................................15-16
Pivot Arm Rest Installation................................................................ 17
Replacement Parts......................................................................18-26
1. Wrenches - 1/2”, 5/16”, 9/16”, 5/8”, 3/4”, 7/8”
2. Ratcheting Socket Wrench
3. Sockets - 1/2”, 9/16”, 3/4”
4. Allen Wrenches - 1/8”, 5/32”, 3/16”
5. Drill Bits (metal cutting) - 5/16”, 3/8”, 1/2”, 3/16”
6. Center Punch
7. Hammer
8. Tape Measure
9. Flat Head or Phillips Screwdriver
10. Grinder
11. Air or Electric Impact Driver w/9/16” Socket
12. Metal Saw
13. Steel Welder
14. Hex Driver Bit - 5/16”
15. Phillips Driver Bit - #2
• Spray all bearings with penetrating oil as needed.
• Brush springs with steel brush weekly to remove dirt and spray with
penetrating oil.
• Tighten any loose bolts.
• Replace damaged/bent parts.
• Replace worn or broken springs.
• Replace/repair worn or damaged tarps.
TOOLS REQUIRED
TABLE OF CONTENTS
MAINTENANCE
RUST PREVENTION
SAFETY
MESSAGE TO OWNERS
1. Always wear safety glasses during installa-
tion and operation.
2. Stay clear of moving parts.
3. Do not operate under low-hung power lines.
Always check for overhead obstructions be-
fore opening or closing.
4. Open and close tarp only at job site.
5. Place safety decals in visible locations. Re-
place worn or damaged decals.
6. No other use of this system is authorized,
except as designed.
SAFETY INSTRUCTIONS

DONOVAN®HELP LINE: 1-800-327-8287
P/N 1811475 Rev. A
Hardware Identification
1
Tarp length: Measure tarp length with slight tension applied. Compare actual tarp length with length stated on sheet attached to tarp. If tarp
length does not match length on sheet, do not proceed. Call your local dealer or call Shur-Co
®
FL Customer Service at 1-800-327-8287.
TARP INSPECTION

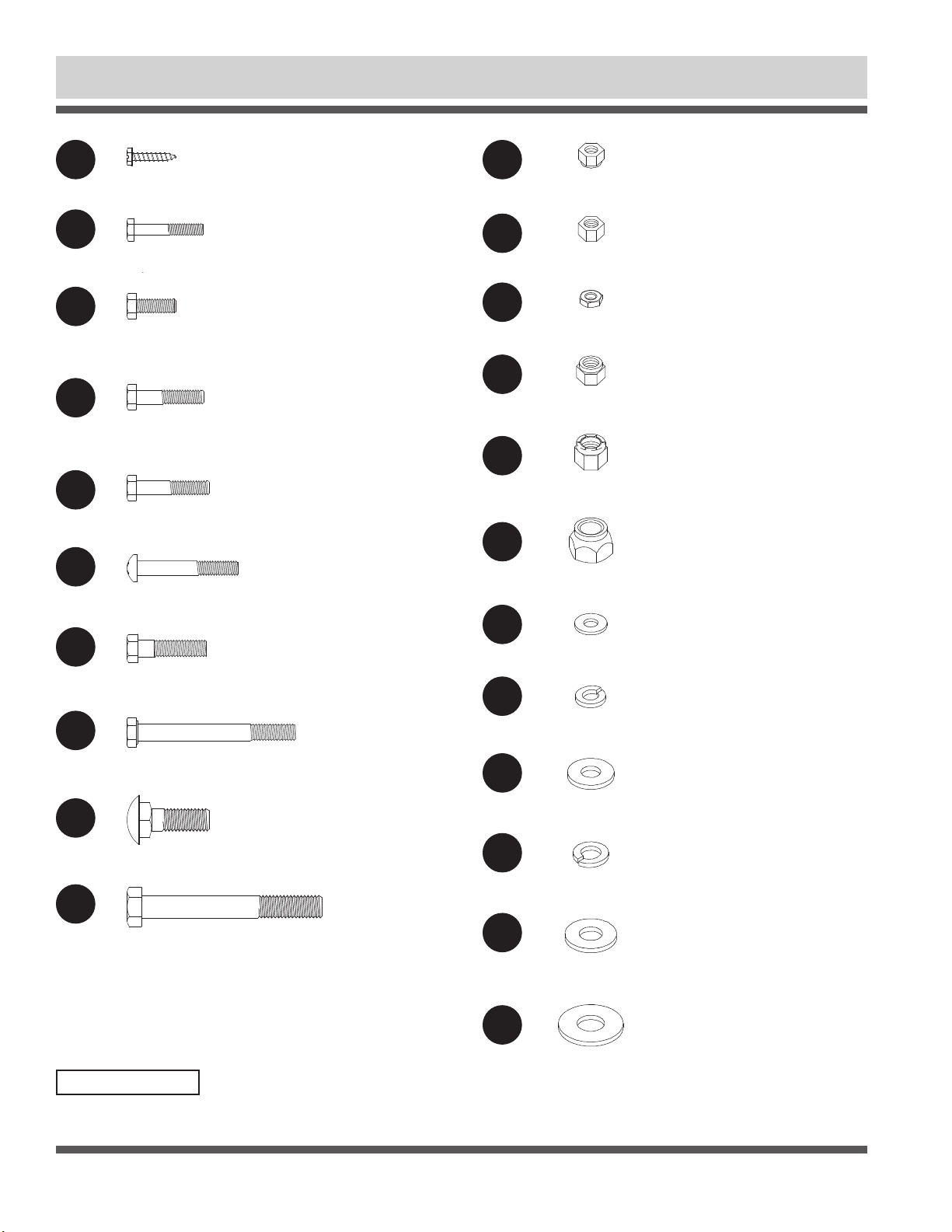

1800996 Flat Washer - 1/2"
1800995 Lock Nut - 1/2"
1801024 Cap Screw - 1/2" x 4"
1800994 Flat Washer - 3/8"
1804139 Cap Screw - 3/8" x 3-1/4"
1800270 Pan Hd. Cap Screw - 5/16" x 2-1/4"
1800993 Nylon Lock Nut - 3/8"
1800989 Flat Washer - 5/16"
1800990 Lock Nut - 5/16"
1800790 Cap Screw - 3/8" x 1-1/2"
1800991 Lock Washer - 3/8"
1800784 Flat Washer - 1/4"
1800802 Sheet Metal Screw - #10 x 1"
1800783 Cap Screw - 1/4" x 1-1/2"
1800787 Lock Washer - 5/16"
1800699 Lock Nut - 1/4"
1800431 Hex Nut - 5/16"
1800972 Cap Screw - 5/16" x 1-1/2"
1808681 Nylon Lock Nut - 5/16" - Thin
1800998 Cap Screw - 5/16" x 1"
A
F
E
D
C
B
G
M
L
K
H
N
T
R
Q
P
U
Y
W
V
1808682 Cap Screw - 5/16" x 1-5/8"
S
J
1800356 Carriage Bolt - 1/2" x 1-1/2"

DONOVAN®HELP LINE: 1-800-327-8287
P/N 1811475 Rev. A
2
There must be at least 12" clearance between components and
tilt frame. If existing exhaust system or hydraulic system compo-
nents are located between tilt frame and cab, adjust component
locations as needed to achieve 12" of clearance.
If existing components interfere with base assembly installation,
and if moving existing components is not practical, fabricate
brackets as needed to prevent interference.

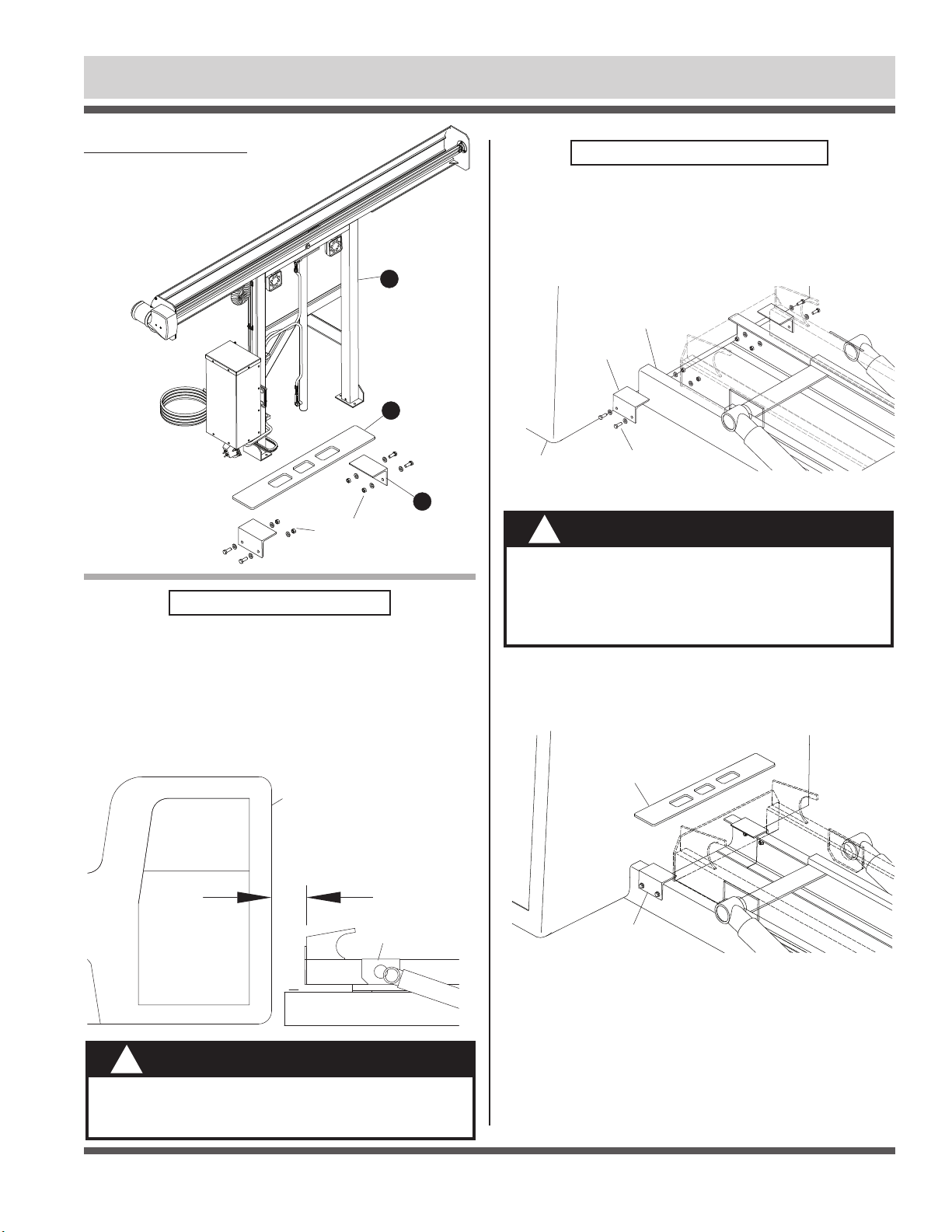

STEP 1: Locate mounting angles on both sides of truck frame,
centering brackets between cab and tilt frame. Align angles on
frame, mark and drill 5/8" holes and fasten with 5/8" x 2" grade
8 cap screws, flat washers and lock nuts (supplied by customer)
or weld in place (see caution).
Base Assembly Installation
CLEARANCE REQUIREMENTS
TOWER ASSEMBLY INSTALLATION
CAUTION
Welding components to truck frame may weaken
frame and will void warranty on truck. Weld angle
brackets to existing brackets on frame when pos-
sible. When not possible, drill holes in frame and bolt
brackets in place.
!
CAUTION
To prevent damage to and ensure proper operation
of Quick Flip™ IV system, center base assembly be-
tween cab and hoist with at least 12" of clearance.
!
12" MINIMUM
CAB
TILT FRAME
STEP 2: Align and center mounting plate on mounting angles
and weld in place.
MOUNTING PLATE
MOUNTING ANGLE
Item Part # Description
1. 1811447 Tower Assembly - Hydraulic
2. 1811474 Mounting Plate
3. 1811473 Mounting Angle
SUPPLIED BY
CUSTOMER
TILT FRAME
CAB
MOUNTING ANGLE
3
2
1
HARDWARE
SUPPLIED BY
CUSTOMER

DONOVAN®HELP LINE: 1-800-327-8287
P/N 1811475 Rev. A
3

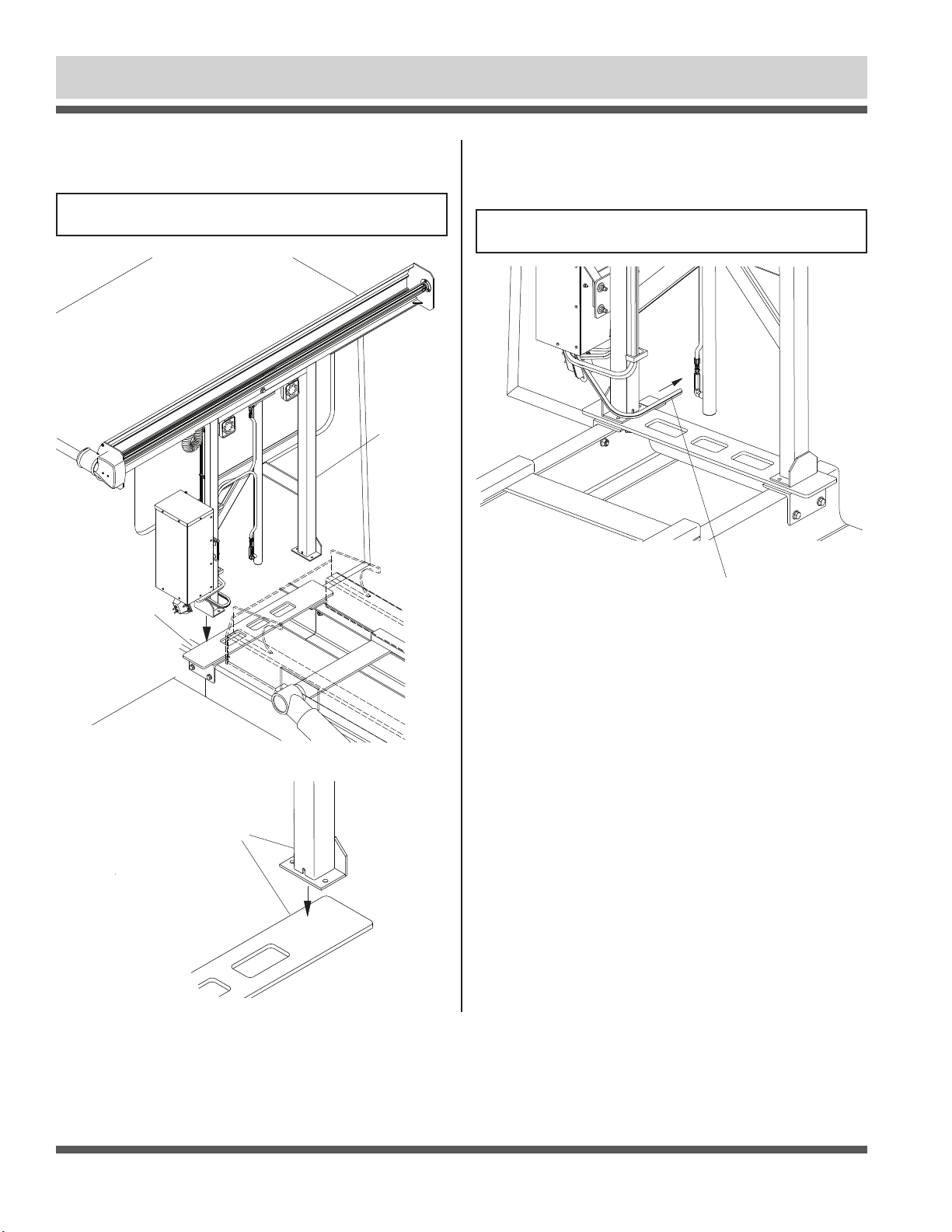

Base Assembly Installation - continued
STEP 3: Square and center base assembly on mounting plate
and weld legs to mounting plate.
NOTE: If needed, fabricate additional bracing to stabilize
base assembly and mounting plate.
MOUNTING
PLATE
BASE
ASSEMBLY

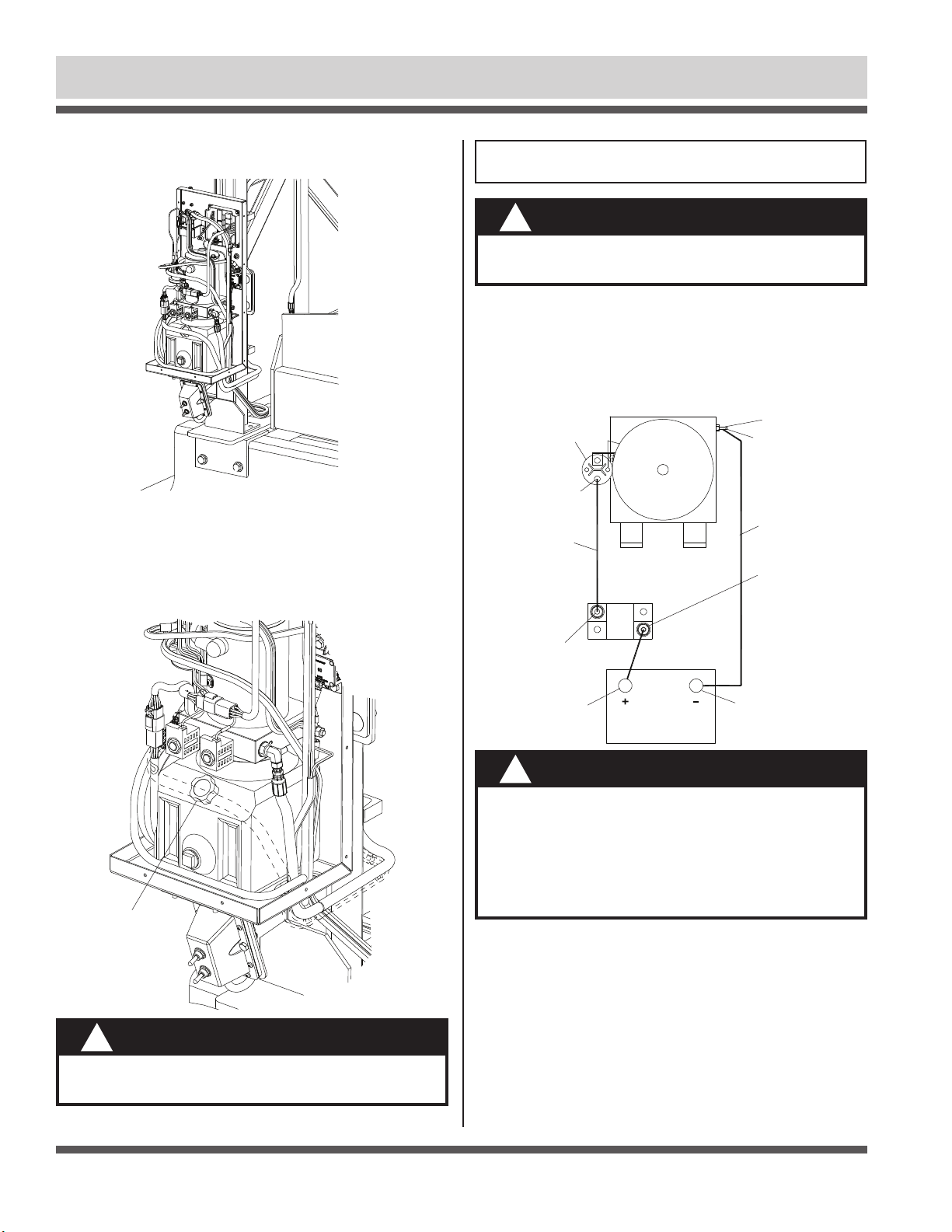

STEP 4: Route 4-Ga. power cable to battery box. Instructions
for making electrical connections can be found in Electric/Hy-
draulic Installation section on page 15.
NOTE: Do not make electrical connections at battery until
hydraulic power unit has been filled with hydraulic oil.
WELD LEGS TO
MOUNTING PLATE
ROUTE 4-GA. CABLE
TO BATTERY BOX

DONOVAN®HELP LINE: 1-800-327-8287
P/N 1811475 Rev. A
4

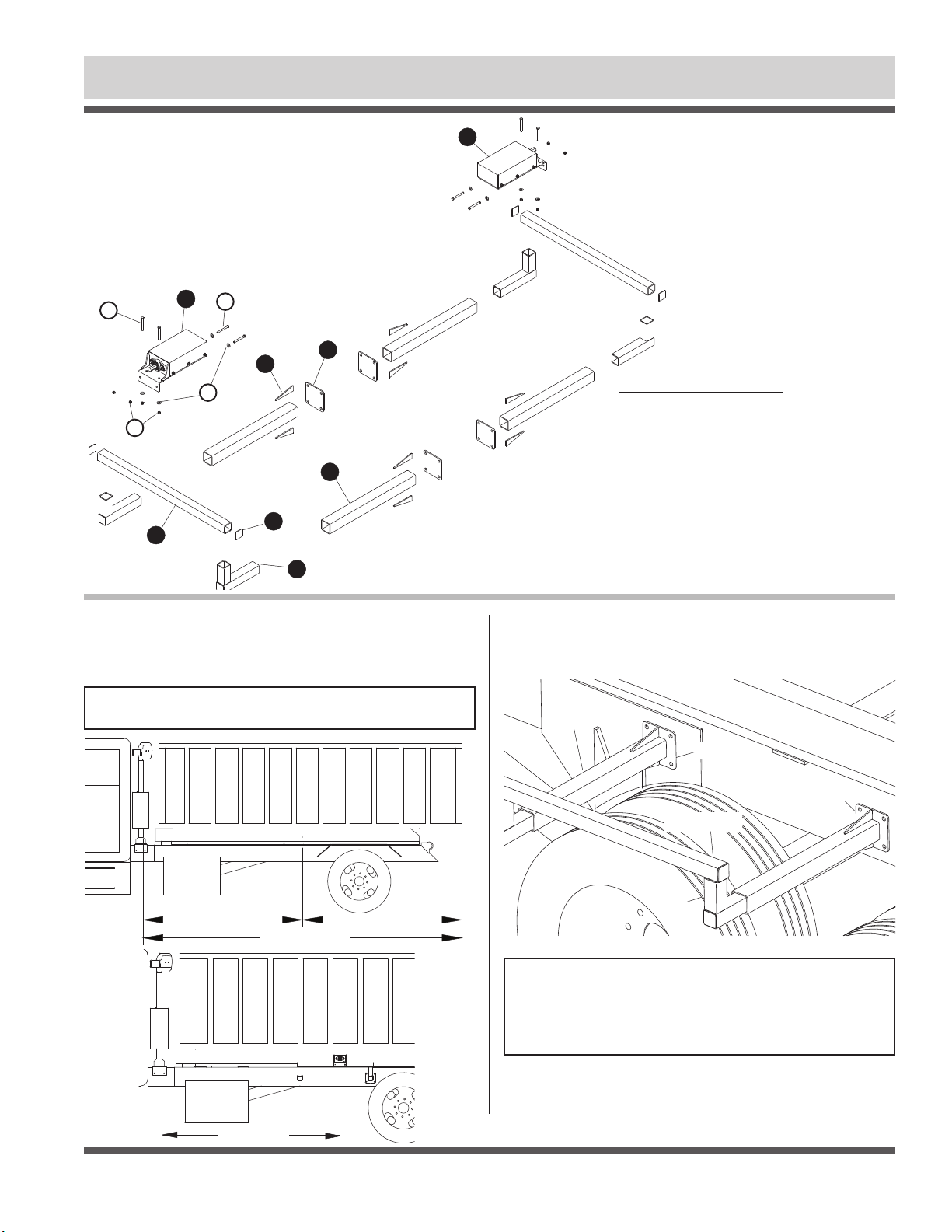

Spring Pivot Installation - Single Axle
STEP 1: Determine spring pivot mount locations on truck frame
rail. On driver side of truck, measure distance from back of base
assembly to back of longest container. Divide measurement in
half and mark location on truck frame. Repeat on passenger side.
NOTE: To obtain accurate measurements, load longest
container before measuring.
STEP 2A: Use mounting plates, elbows and tubes to fabricate
spring pivot supports for spring assemblies, modifying components
as needed (see next page for necessary dimensions).
1/2 LENGTH 1/2 LENGTH
FULL LENGTH
1/2 LENGTH
MOUNTING TUBE
GUSSET
PLATE
SUPPORT TUBE
ELBOW
NOTE: Do not weld directly to truck frame as this can weaken
frame and potentially void warranty. Use mounting plates and
drill 5/8" holes and fasten with grade 5 or better 5/8" bolts,
washers and nuts (not included) or weld components to
structure existing on truck frame.
Item Part # Description
1. 1808664 Bridge Mount Spring Assembly -
Passenger Side
2. 1808665 Bridge Mount Spring Assembly -
Driver Side
3. 1808673 Frame Mount Plate - 3" Sq. Tube
4. 1808646 Frame Mount Gusset
5. 1808678 End Cap - 2-1/2" Square Tube
6. 1808679 Spring Pivot Mount Tube
7. 1808793 Spring Pivot Support Elbow
8. 1808672 Spring Pivot Support Tube
H. 1804139 Cap Screw - 3/8" x 3-1/4"
Q. 1800993 Nylon Lock Nut - 3/8"
W. 1800994 Flat Washer - 3/8"
1
2
3
4
5
8
7
6
HH
W
Q

DONOVAN®HELP LINE: 1-800-327-8287
P/N 1811475 Rev. A
5
STEP 3: Remove covers from spring assemblies.
107-1/2"
SPRING PIVOT SUPPORT
EQUAL
WIDTH
SPRING ASSEMBLY
EQUAL
WIDTH
STEP 5: Clamp driver side spring assembly to spring pivot sup-
port tube at location determined previously. Weld directly to tube,
or drill 3/8" holes and fasten to tube with screws
H
, washers
Q
and nuts
W
. Repeat for passenger side. Rotate spring shafts so
spring catch engages spring hook as shown, then reinstall covers.
STEP 2B: Fabricate supports to be equal in width, with an overall
width of 107-1/2". Secure supports to truck frame.
STEP 4: Compare springs to those illustrated below to find driver
side assembly.
NOTE: Spring pivot supports must be equal in length so
system will be centered on truck
COVER
SPRING ASSEMBLY
DRIVER SIDE PASSENGER SIDE
DRIVER SIDE
SPRING ASSEMBLY
SPRING PIVOT
SUPPORT TUBE
DRILL 3/8"
HOLES
SPRING CATCH
SPRING
SHAFT
H
H
W
Q
Spring Pivot Installation - Single Axle - continued

DONOVAN®HELP LINE: 1-800-327-8287
P/N 1811475 Rev. A
6

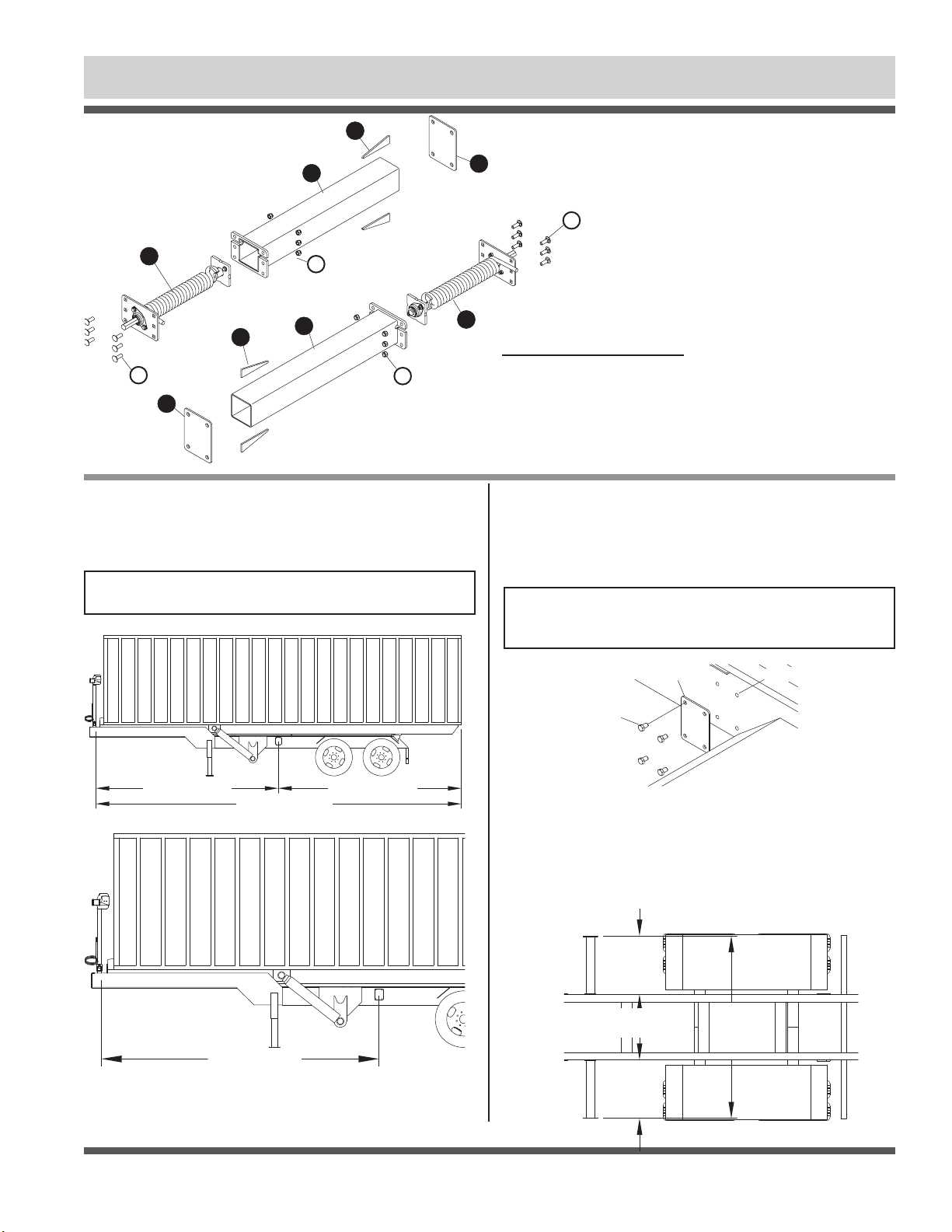

Spring Pivot Installation - Tandem Axle
STEP 2A: Use mounting plates, elbows and tubes to fabricate
spring pivot supports for spring assemblies, modifying compo-
nents as needed (see next page for necessary dimensions).
STEP 1: Determine location for spring assemblies. To locate cen-
ter of spring assemblies to support arms to cover up to a 40-yard
container, measure 147" from back of base assembly. To ensure
tarp does not extend past rear of container, load truck’s largest
container onto truck and center spring assemblies between base
assembly and rear of container.
NOTE: Fenders on most trucks are not strong enough to
support spring assemblies. Fabricate spring pivot supports
to support weight and torsion of spring assemblies. Supports
must be square and level for system to operate correctly.
IMPORTANT: Locate spring assemblies as low on truck frame
as possible to allow clearance between roll-off container and
spring assemblies. Top of spring assemblies must be less
than 5" above rollers used to support container. If needed,
pull container onto truck and check for clearance.
Item Part # Description
1. 1808664 Bridge Mount Spring Assembly -
Passenger Side
2. 1808665 Bridge Mount Spring Assembly -
Driver Side
3. 1808673 Frame Mount Plate - 3" Sq. Tube
4. 1808646 Frame Mount Gusset
5. 1808678 End Cap - 2-1/2" Square Tube
6. 1808679 Spring Pivot Mount Tube
7. 1808793 Spring Pivot Support Elbow
8. 1808672 Spring Pivot Support Tube
H. 1804139 Cap Screw - 3/8" x 3-1/4"
Q. 1800993 Nylon Lock Nut - 3/8"
W. 1800994 Flat Washer - 3/8"
147" NOTE: Do not weld directly to truck frame as this can weaken
frame and potentially void warranty. Use mounting plates and
drill 5/8" holes and fasten with grade 5 or better 5/8" bolts,
washers and nuts (not included) or weld components to
structure existing on truck frame.
PLATE
SUPPORT TUBE
ELBOW
GUSSET
MOUNTING
TUBE
1
2
3
4
5
8
7
6
HH
W
Q

DONOVAN®HELP LINE: 1-800-327-8287
P/N 1811475 Rev. A
7
Spring Pivot Installation - Tandem Axle - continued
STEP 3: Remove covers from spring assemblies.
107-1/2"
SPRING PIVOT SUPPORT
EQUAL
WIDTH
SPRING ASSEMBLY
EQUAL
WIDTH
STEP 5: Clamp driver side spring assembly to spring pivot sup-
port tube at location determined previously. Weld directly to tube,
or drill 3/8" holes and fasten to tube with screws
H
, washers
Q
and nuts
W
. Repeat for passenger side. Rotate spring shafts so
spring catch engages spring hook as shown, then reinstall covers.
STEP 2B: Fabricate supports to be equal in width, with an overall
width of 107-1/2". Secure supports to truck frame.
STEP 4: Compare springs to those illustrated below to find driver
side assembly.
NOTE: Spring pivot supports must be equal in length so
system will be centered on truck
COVER
SPRING ASSEMBLY
DRIVER SIDE PASSENGER SIDE
DRIVER SIDE
SPRING ASSEMBLY
SPRING PIVOT
SUPPORT TUBE
DRILL 3/8"
HOLES
SPRING CATCH
SPRING
SHAFT
H
H
W
Q

DONOVAN®HELP LINE: 1-800-327-8287
P/N 1811475 Rev. A
8

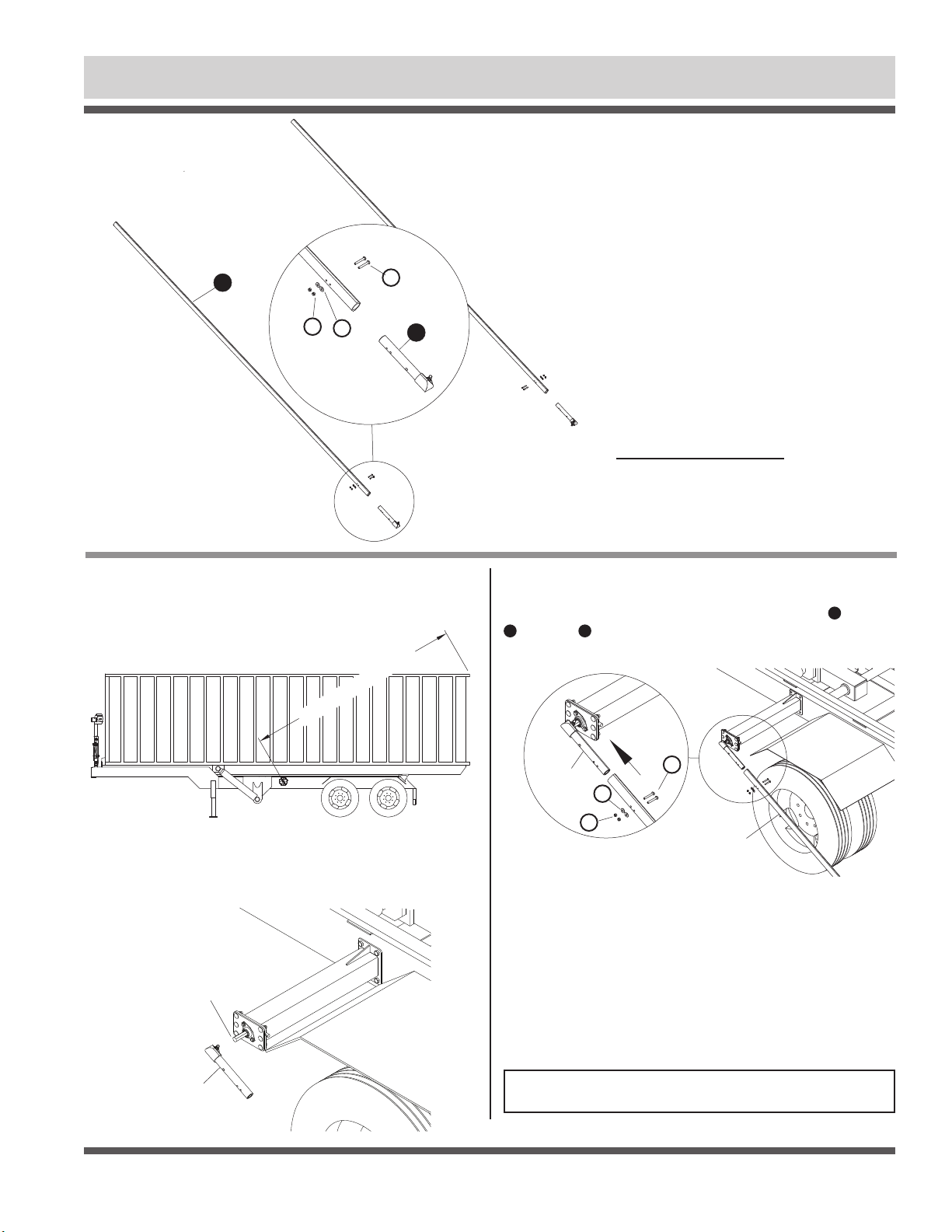

Spring Pivot Installation - Trailers
STEP 2: Position pivot mount plate at marked location. Using holes
in plate as guide, mark hole locations on frame rail and drill 5/8"
holes. Fasten with grade 5 or better 5/8" bolts, washers and nuts
(not included). Repeat to install pivot mount plate in same location
on passenger side frame rail.
STEP 1: Determine spring pivot mount locations on trailer frame.
On driver side of trailer, measure distance from back of base as-
sembly to back of longest container. Divide measurement in half
and mark location on trailer frame. Repeat on passenger side.
NOTE: To obtain accurate measurements, load longest
container before measuring.
NOTE: Do not weld directly to trailer frame as this can weaken
frame and potentially void warranty. Components may be
welded to plates/structure already existing on trailer frame.
STEP 3: To determine spring pivot tube lengths, first measure
distance between outside faces of pivot mount plates (frame
width plus thickness of two plates). Subtract measurement from
overall width of 99-1/2" and divide remainder in half. Cut spring
pivot tubes to this length.
Item Part # Description
1. 1808635 Internal Mount Spring Assembly - Driver Side
2. 1808634 Internal Mount Spring Assembly - Passenger Side
3. 1808641 Spring Pivot Tube
4. 1808646 Frame Mount Gusset
5. 1808645 Frame Mount Plate
J. 1800356 Carriage Bolt - 1/2" x 1-1/2"
R. 1800995 Lock Nut - 1/2"
1
2
J
R
3
5
4
35
4
R
J
1/2 LENGTH 1/2 LENGTH
FULL LENGTH
99-1/2"
LENGTH OF
PIVOT TUBE
LENGTH OF
PIVOT TUBE
WIDTH AT PIVOT
PLATES
FRAME MOUNT PLATE DRILL 5/8" HOLES
5/8" BOLTS
(WASHERS & NUTS NOT
SHOWN)
1/2 LENGTH

DONOVAN®HELP LINE: 1-800-327-8287
P/N 1811475 Rev. A
9
Spring Pivot Installation - Trailers - continued
STEP 4: Center pivot tubes on pivot mount plates and tack weld
in place. Make sure outer flanges are oriented as shown and pivot
tubes are square and level to frame, then fully weld in place. Weld
gussets to top and bottom of pivot tube and mounting plates for
added strength.
STEP 5: Internal spring assembly. With spring catch aligned
with spring hook as shown, insert driver side internal spring
assembly into pivot tube. Adjust spring leg into rear groove on
pivot tube with spring leg pointing toward rear of trailer. Fasten
assembly to pivot tube with carriage bolts
J
and nylon lock nuts
R
. Repeat on passenger side.
REAR GROOVE
SPRING LEG
SPRING CATCH
SPRING HOOK
PIVOT TUBE
J
R
INTERNAL SPRING
ASSEMBLY
FRAME
MOUNT
PLATE
PIVOT TUBE
ORIENT FLANGES
AS SHOWN
GUSSET

DONOVAN®HELP LINE: 1-800-327-8287
P/N 1811475 Rev. A
10

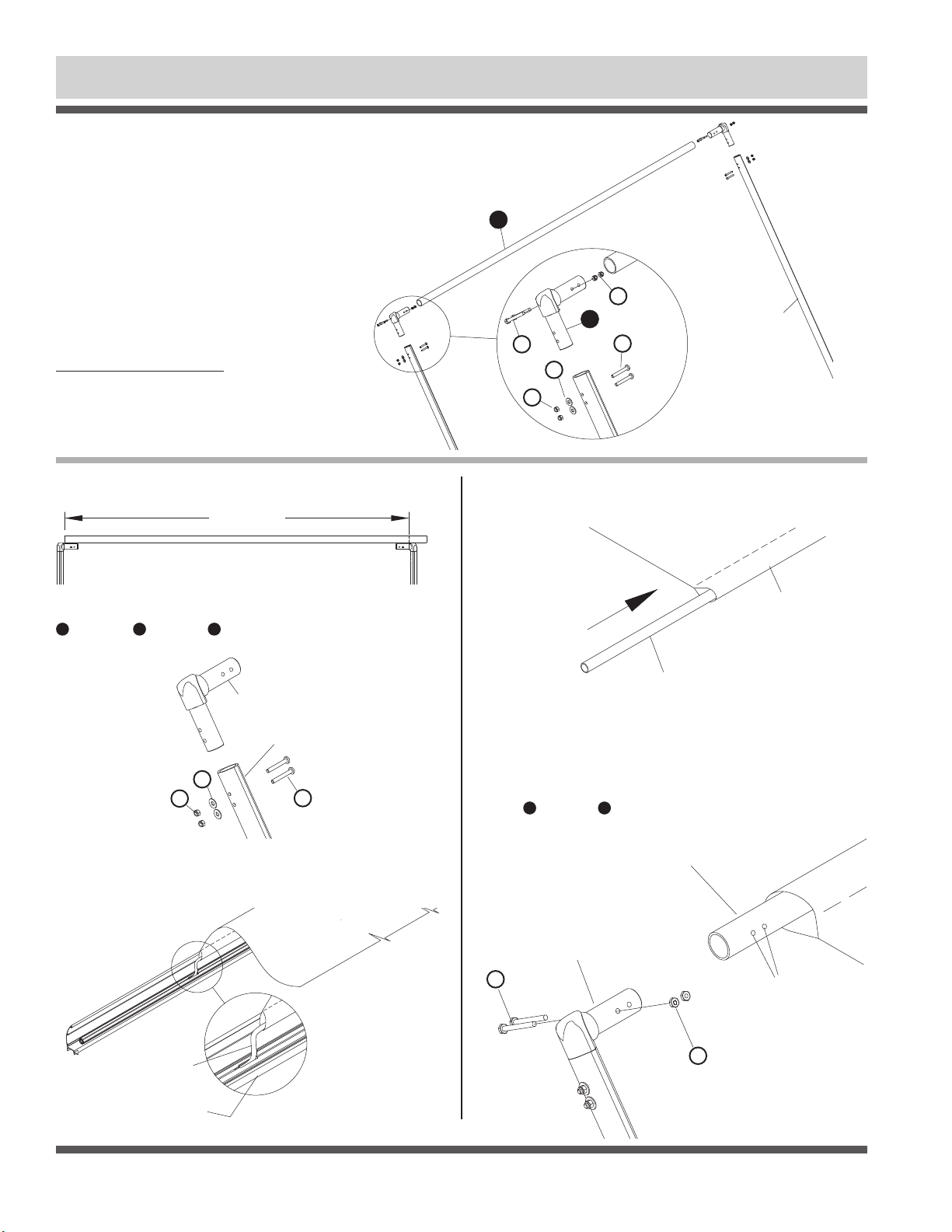

Pivot Arm Installation - Single Axle
STEP 1: To determine assembled return arm length, measure
from pivot shaft to top rear corner of tarp housing side plate. Sub-
tract 4" from that measurement and cut return arms to this length.
ASSEMBLED ARM LENGTH
TARP
HOUSING
PIVOT SHAFT
STEP 3: Mark and drill 5/16" holes in lower end of arm. Cut arm
to length before drilling holes if shorter arm length is desired.
2
1
P
F
U
Item Part # Description
1. 1800421 Aluminum Return Arm - Straight
2. 1801636 Spring Pivot Connector
F. 1800270 Pan Hd. Screw - 5/16" x 2-1/4"
P. 1800990 Lock Nut - 5/16"
U. 1800989 Flat Washer - 5/16"
F
U
PRETURN ARM
STEP 4: Slide return arm onto spring pivot connector. Align outer
profiles to match and let end of arm rest on ground. Fasten return
arms to spring pivot connectors with screws
F
, washer
U
and
nuts
P
as shown.
STEP 2: Turn spring shaft (counter-clockwise on driver side and
clockwise on passenger side) until you feel shaft contact hook
on spring. Slide spring pivot connector onto shaft so connector
is close to horizontal, then
tighten screws.
NOTE: To continue installation, turn to Tarp Tube Assembly
& Tarp Installation on page 13.
PIVOT CONNECTOR
SPRING ASSEMBLY ALIGN AS SHOWN &
TIGHTEN SCREWS
NOTES: If holes will not align well enough to insert bolts, run
5/16" drill bit through holes. Place bolt heads on inside of
arms to prevent bolts from catching on container.
7-1/2"
6"
MARK &DRILL 5/16" HOLES

DONOVAN®HELP LINE: 1-800-327-8287
P/N 1811475 Rev. A
11
Pivot Arm Installation - Tandem/Multi-Axle Trucks
Item Part # Description
1. 1800548 Upper Aluminum Arm
2. 1800547 Arm Coupler
3. 1800545 Lower Aluminum Arm
4. 1801636 Spring Pivot Connector
F. 1800270 Pan Hd. Screw - 5/16" x 2 1/4"
P. 1800990 Lock Nut - 5/16"
U. 1800989 Flat Washer - 5/16"
1
2
4
3
NOTES: If holes will not align well enough to insert bolts, run
5/16" drill bit through holes. Place bolt heads on inside of
arms to prevent bolts from catching on container.
PIVOT CONNECTOR
SPRING ASSEMBLY ALIGN AS SHOWN &
TIGHTEN SCREWS
U
P
F
P
U
F
STEP 1: Turn spring shaft (counter-clockwise on driver side and
clockwise on passenger side) until you feel shaft contact hook
on spring. Slide spring pivot connector onto shaft so connector
is close to horizontal, then
tighten screws.
STEP 4: Slide arm coupler into
lower arm and fasten with screws
F
, washers
U
and nuts
P
.
NOTE: To continue installation, turn to
Tarp Tube Assembly & Tarp Installation
on page 13.
STEP 5: Slide upper arm onto arm coupler
and fasten with screws
F
, washers
U
and
nuts
P
.
U
F
P
U
F
P
ARM
COUPLER
LOWER ARM
UPPER
ARM
ARM
COUPLER
F
U
P
LOWER ARM
PIVOT
CONNECTOR
BEND IN ARM
SPRING ASSEMBLY
STEP 3: Slide lower arm onto pivot connector on spring assem-
bly, positioning bend in arm as shown. Fasten lower arm to pivot
connector with screws
F
, washers
U
and nuts
P
.
STEP 2: Mark and drill 5/16" holes in lower end of arm. Cut arm
to length before drilling holes if shorter arm length is desired.
7-1/2"
6"
MARK &DRILL 5/16" HOLES

DONOVAN®HELP LINE: 1-800-327-8287
P/N 1811475 Rev. A
12
Pivot Arm Installation - Trailers
STEP 1: To determine assembled return arm length, measure
from pivot shaft to top rear corner of largest container. Subtract
4" from that measurement and cut return arms to this length.
NOTE: To continue installation, turn to Tarp Tube Assembly
& Tarp Installation on page 13.
Item Part # Description
1. 1801241 Aluminum Return Arm
2. 1801636 Spring Pivot Connector
F. 1800270 Pan Hd. Screw - 5/16" x 2 1/4"
P. 1800990 Lock Nut - 5/16"
U. 1800989 Flat Washer - 5/16"
ASSEMBLED ARM LENGTH
1
2
PU
F
STEP 2: Turn spring shaft (counter-clockwise on driver side and
clockwise on passenger side) until you feel shaft contact hook
on spring. Slide spring pivot connector onto shaft so connector
is close to horizontal.
STEP 3: Slide return arm onto spring pivot connector. Align outer
profiles so they match and let end of arm rest on ground. Fasten
return arms to spring pivot connectors with screws
F
, washer
U
and nuts
P
as shown.
SPRING PIVOT
CONNECTOR
SPRING SHAFT
RETURN ARM
SPRING PIVOT
CONNECTOR
P
U
F

DONOVAN®HELP LINE: 1-800-327-8287
P/N 1811475 Rev. A
13
Tarp Tube Assembly & Tarp Installation
Item Part # Description
1. 1800300 Rear Cross Piece - 109"
2. 1800597 90° Cast Elbow
F. 1800270 Pan Hd. Screw - 5/16" x 2 1/4"
P. 1800990 Nylon Lock Nut - 3/8"
U. 1800989 Flat Washer - 3/8"
2
1
F
U
P
STEP 3: Thread front of tarp with plastic rod into slot in center of
roller bar. Trim ends of rod to fit tarp.
PLASTIC ROD ON
FRONT OF TARP
SLOT IN ROLLER BAR
ARM
STEP 2: Insert cast elbow into upper arm and fasten with screws
F
, washers
U
and nuts
P
.
U
F
P
CAST ELBOW
UPPER ARM STEP 5: Center tarp on roller bar and rear cross piece.
STEP 6: Insert rear cross piece into 90° elbows. Using holes
in 90° elbow as guide, mark and drill 5/16" holes. Fasten with
screws
F
and nuts
P
.
P
F
REAR CROSS PIECE
90° ELBOW
DRILL 5/16" HOLES
STEP 4: Slide rear cross piece into tarp pocket at rear of tarp.
TARP POCKET
REAR CROSS PIECE
STEP 1: Mark and cut rear cross piece to 103-3/4".
103-3/4"
P
F

DONOVAN®HELP LINE: 1-800-327-8287
P/N 1811475 Rev. A
14

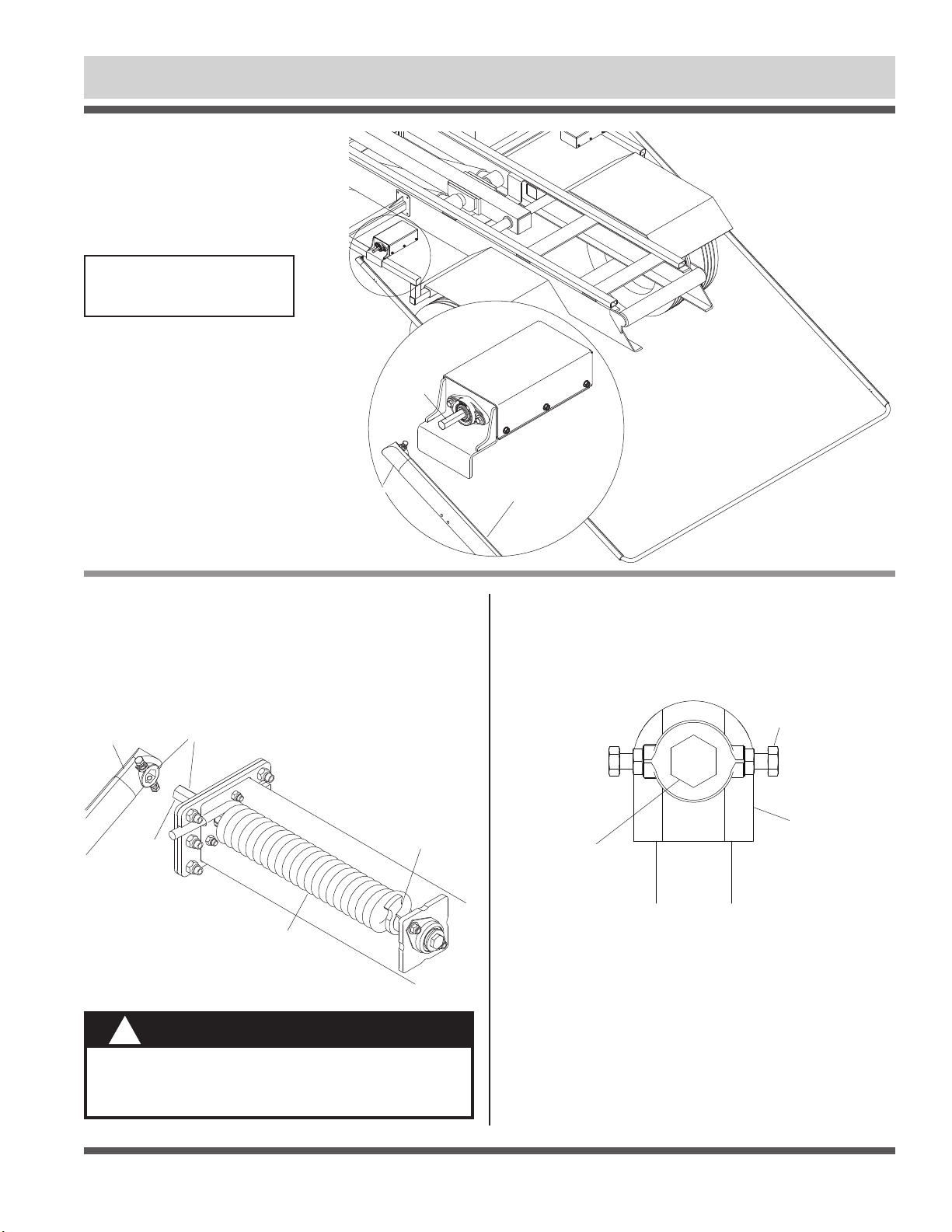

Pre-Load Springs
STEP 1: With return arms resting
on ground, slide pivot connector
off spring shaft.
Recommended pre-loads:
Single axle kits - No pre-load needed in most applications.
Tandem/multi-axle kits - One flat (1/6 turn) of pre-load can be
added but do not exceed that amount or spring may be dam-
aged. Tandem/multi-axle kits require less pre-load because
spring loads up more quickly.
Trailers - Start by turning three flats (1/2 turn) of pre-load and
increase as needed.
STEP 2: To pre-load spring, turn spring shaft (counter-clockwise
for driver side and clockwise for passenger side) until you feel
shaft engage rear hook on spring. Use 7/8" wrench or pipe wrench
to continue turning shaft in same direction until next flat on hex
shaft lines up with hex flats in pivot connector, then slide pivot
connector onto spring shaft.
STEP 3:
Pre-load spring one flat (1/6 turn) at a time on hex shaft
until desired pre-load is reached. Remove pivot connector after
each 1/6 turn, rotate connector to next flat and replace. When
desired pre-load is reached, secure pivot connectors to spring
shafts with set screws.
SPRING
SHAFT
PIVOT CONNECTOR RETURN ARM
ALIGN HEX FLATS
SPRING
SHAFT
REAR HOOK
SPRING
PIVOT
CONNECTOR
PIVOT
CONNECTOR
SET SCREW
ONE FLAT =
1/6 TURN
WARNING
Use caution when pre-loading springs. Do
not let go of pipe wrench until spring pres-
sure is relieved.
!
NOTE: See recommended
pre-loads in step 3 before
proceeding.

DONOVAN®HELP LINE: 1-800-327-8287
P/N 1811475 Rev. A
15
12-Volt Electric/Hydraulic Installation
STEP 2: Remove reservoir shipping plug (red with square top)
from top of plastic reservoir. Fill reservoir with Dexron automatic
transmission fluid until it is just under the fill hole. Install black
breather cap into fill hole to replace shipping plug. Red shipping
plug can be thrown away or threaded into retainer at bottom of
reservoir.
STEP 3: Make connections at battery as shown. Ensure 4-ga.
cable/wire with red stripe is connected to pump solenoid and
is routed to manual reset breaker and positive post of battery.
Connect 4-ga. negative wire from stud on side of hydraulic pump
to negative battery post.
STEP 1: Remove pump enclosure cover and front panel to ac-
cess pump assembly.
CAUTION
Replace shipping plug with breather cap on
hydraulic pump or pump will be damaged.
!
NOTE: It is recommended to disconnect pump positive cable
from battery until pump has been filled with fluid.
CAUTION
Running the pump unit dry will damage the
pump.
!
CAUTION
Do not pull dual-strand wires apart. To sepa-
rate, carefully cut through insulation between
wires with knife. Pulling wires apart could
damage wire insulation and expose wire.
This could result in equipment damage and/
or personal injury.
!
STEP 4: Operate pump with toggle switches to raise tower. Watch
fluid level in reservoir while operating to make sure it does not
empty and introduce air into the system. If fluid level gets within
1-1/2" of the reservoir bottom, add a few more ounces of fluid.
After raising tower to maximum height, lower it back down again.
Raise and lower 2 to 3 more times to help remove air from the
system, then check fluid level with tower lowered all the way down.
Fill reservoir until fluid is about 1/2" under fill hole and reinstall
breather cap. Before reinstalling the enclosure front panel and
cover, test operation of tower, tarp motor and work lights with
both the toggle switches and with the wireless remote. See pg
16. for operating instructions.
AUX
BATT
4-GA. WIRE (RED)
4-GA. - 1/4"
RING TERMINAL
GROUND POST
BREAKER - 175A
MANUAL RESET
4-GA. - 3/8"
RING TERMINAL
4-GA. - 3/8"
RING TERMINAL
4-GA. WIRE (BLACK)
4-GA. - 3/8"
RING TERMINAL
HYDRAULIC PUMP ASSEMBLY - TOP VIEW
4-GA. - 1/4"
RING TERMINAL
PUMP SOLENOID
4-GA. - 1/4"
RING TERMINAL
BREATHER CAP

DONOVAN®HELP LINE: 1-800-327-8287
P/N 1811475 Rev. A
16
12-Volt Electric/Hydraulic Installation - continued
WIRELESS REMOTE & TOGGLE SWITCH OPERATION
When using wireless remote to operate QF4®system, first press
ON button on remote to turn wireless unit on. After unit is turned
on by pressing ON button, buttons utilized for tarp functions will
be operational. When finished operating system, press OFF
button to shut down wireless unit.
To operate system utilizing toggle switches on control box, push
toggles in direction shown for each function.
PAIRING REMOTE
To pair remote to control module, press button directly below
light on control module. Red light will turn on. Press any button
on remote to make connection. Wait for light to flash and turn
off, and transmitter will be programmed.
UNCOVER
UP
COVER
DOWN

DONOVAN®HELP LINE: 1-800-327-8287
P/N 1811475 Rev. A
17
STEP 1: Wind tarp open until arms are completely forward, stop-
ping just before arms reach housing assembly.
STEP 2: Position rubber bumpers on pivot arm rests. Align com-
ponents on housing assembly brackets, adjusting so pivot arms
rest evenly on rests and do not interfere with motor. Clamp pivot
arm rests in place.
STEP 3: Remove rubber bumpers and weld or bolt pivot arm
rests onto housing brackets (hardware not provided).

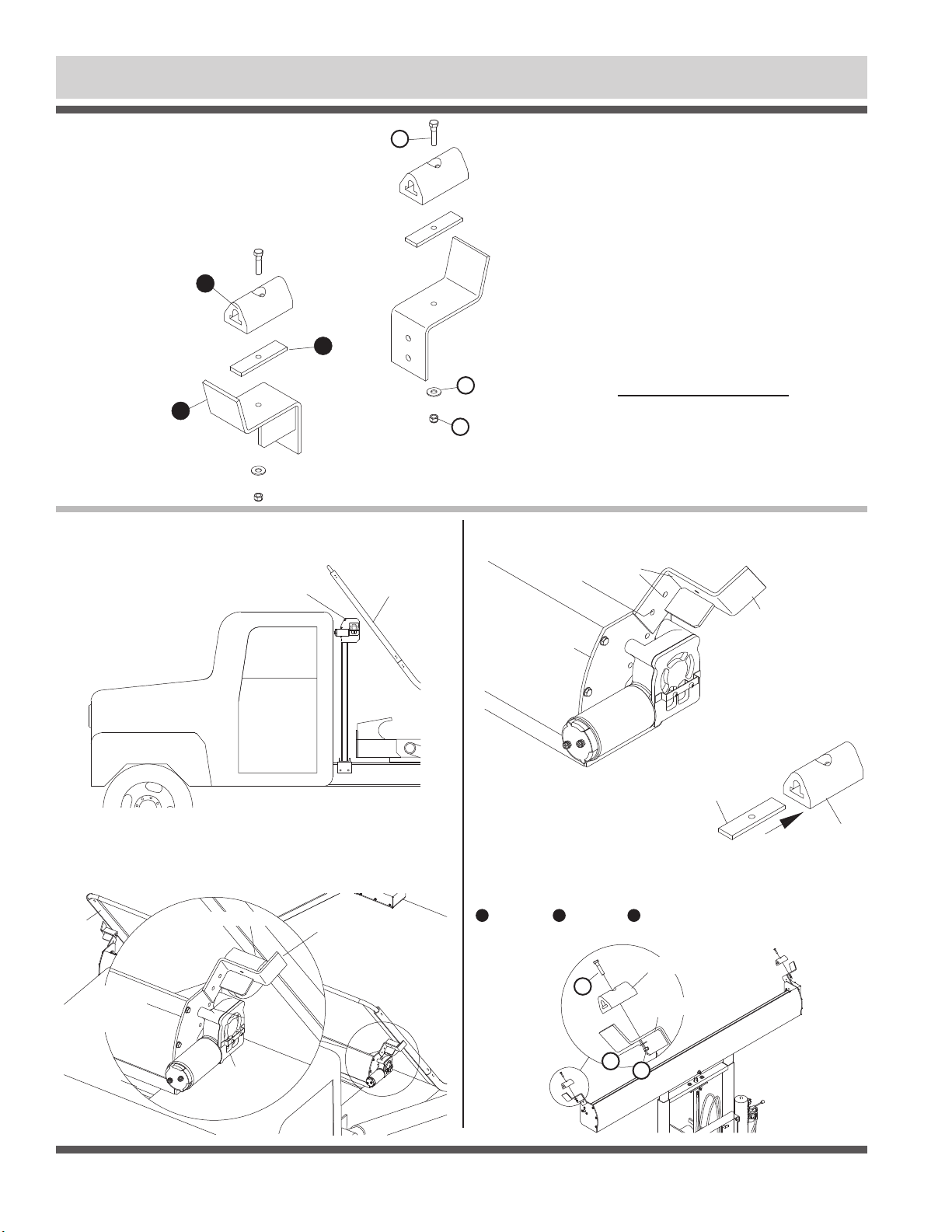

STEP 4: Insert bumper hold-
down bars into slots in rubber
bumpers.
Item Part # Description
1. 1801012 Rubber Bumper
2. 1800140 Bumper Hold-Down Bar
3. 1801324 Pivot Arm Rest
C. 1800998 Cap Screw - 5/16" x 1"
R. 1800995 Lock Nut - 5/16"
U. 1800989 Flat Washer - 5/16"
1
2
3
ARMS
HOUSING ASSEMBLY
HOUSING
ASSEMBLY
BRACKET
PIVOT
ARM PIVOT ARM REST
RUBBER BUMPER
MOTOR
HOUSING
ASSEMBLY
BRACKET
PIVOT ARM
REST
WELD OR BOLT
STEP 5: Fasten bumper assemblies to pivot arm rests with screws
C
, washers
U
and nuts
R
.
BUMPER HOLD-
DOWN BAR
RUBBER
BUMPER
PIVOT ARM REST
BUMPER ASSEMBLY
C
R
U
C
UR
Pivot Arm Rest Installation
