Doosan LIGHTSOURCE V9 User manual

46500039_en_C_11/11
LIGHTSOURCE V9
OPERATION AND MAINTENANCE MANUAL
Original Instruction
This manual contains
important safety information
and must be made available to
personnel who operate and
maintain this machine.
SERIAL No : 368000 −>

Machine models represented in this manual may be used in various locations world−wide. Machines sold and shipped
into European Union Territories require that the machine display the CE Mark and conform to various directives. In
such cases, the design specification of this machine has been certified as complying with EC directives. Any
modification to any part is absolutely prohibited and would result in the CE Certification and marking being rendered
invalid. A declaration of that conformity follows:
SAMPLE

CONTENTS & ABBREVIATIONS 1
LIGHTSOURCE V9
1 CONTENTS
2 FOREWORD
3 WARRANTY
6 DECALS
9 SAFETY
14 GENERAL INFORMATION
16 OPERATING INSTRUCTIONS
21 MAINTENANCE
30 MACHINE SYSTEMS
37 FAULT FINDING
39 ENGINE INSTRUCTION MANUAL
ABBREVIATIONS & SYMBOLS
#### Contact the company for serial number
−>#### Up to Serial No.
####−>From Serial No.
*Not illustrated
†Option
AR As required
HA High ambient machine
F.H.R.G. Fixed height running gear
V.H.R.G. Variable height running gear
bg Bulgarian
cs Czech
da Danish
de German
el Greek
en English
es Spanish
et Estonian
fi Finnish
fr French
hu Hungarian
it Italian
lt Lithuanian
lv Latvian, Lettish
mt Maltese
nl Dutch
no Norwegian
pl Polish
pt Portuguese
ro Romanian
ru Russian
sk Slovak
sl Slovenian
sv Swedish
zh Chinese

FOREWORD
2
LIGHTSOURCE V9
The contents of this manual are considered to be proprietary and
confidential and should not be reproduced without the prior written
permission of the company.
Nothing contained in this document is intended to extend any
promise, warranty or representation, expressed or implied, regarding
the products described herein. Any such warranties or other terms and
conditions of sale of products shall be in accordance with the standard
terms and conditions of sale for such products, which are available
upon request.
This manual contains instructions and technical data to cover all
routine operation and scheduled maintenance tasks by operation and
maintenance staff. Major overhauls are outside the scope of this
manual and should be referred to an authorised service department.
The design specification of this machine has been certified as
complying with EC directives. As a result:
(a) Any machine modifications are strictly prohibited, and will invalidate
EC certification.
(b) A unique specification for USA/Canada is adopted and tailored to
the territory.
All components, accessories, pipes and connectors added to the
compressed air system should be:
. of good quality, procured from a reputable manufacturer and,
wherever possible, be of a type approved by the company.
. accompanied with instructions for safe installation, operation and
maintenance.
Details of approved equipment are available from the company service
departments.
The use of repair parts / lubricants / fluids other than those included
within the approved parts list may create hazardous conditions over
which the company has no control. Therefore the company cannot be
held responsible for equipment in which non−approved repair parts are
installed.
The company reserves the right to make changes and
improvements to products without notice and without incurring any
obligation to make such changes or add such improvements to
products sold previously.
The intended uses of this machine are outlined below and examples
of unapproved usage are also given, however the company cannot
anticipate every application or work situation that may arise.
IF IN DOUBT CONSULT SUPERVISION.
The use of the machine in any of the situation types listed in
table 1:−
a) Is not approved,
b) May impair the safety of users and other persons, and
c) May prejudice any claims made.
TABLE 1
Use of the machine outside the ambient temperature range
specified in the GENERAL INFORMATION SECTION of this manual.
This machine is not intended and must not be used in potentially
explosive atmospheres, including situations where flammable gases
or vapours may be present.
Use of the machine fitted with non approved components /
lubricants / fluids.
Use of the machine with safety or control components missing or
disabled.
Use of the machine for storage or transportation of materials inside
or on the enclosure except when contained within the toolbox.
GENERATOR
Use of the generator to supply load(s) greater than those specified.
Use of unsafe or unserviceable electrical equipment connected to
the generator.
Use of electrical equipment:
(a) Having incorrect voltage and/or frequency ratings.
(b) Containing computer equipment and/or similar electronics.
The company accepts no responsibility for errors in translation of
this manual from the original English version.
©COPYRIGHT 2011
DOOSAN COMPANY

WARRANTY 3
LIGHTSOURCE V9
The company, through its distributor, warrants that each item of equip-
ment manufactured by it and delivered hereunder to the initial user will
be free of defects in material and workmanship for a period of three (3)
months from initial operation or six (6) months from the date of shipment
to the initial user, whichever occurs first.
With respect to the following types of equipment, the warranty period
enumerated below will apply in lieu of the foregoing warranty period.
A. Aftercoolers −The earlier of nine (9) months from date of
shipment to or six (6) months from start up by initial user.
B. Portable Light Towers −The earlier of twelve (12) months from
shipment to or the accumulation of 2,000 hours of service by the
initial user.
The company will provide a new part or repaired part, at it’s sole
discretion, in place of any part which is found to be defective in
material or workmanship during the period described above.
Labor cost to replace the part is the responsibility of the initial
user.
C. Portable Light Tower Alternator −The earlier of twelve (12)
months from shipment to or the accumulation of 2,000 hours of
operation by the initial user. Light Source model only, the earlier
of twenty−four (24) months from shipment to or the accumulation
of 4,000 hours of operation by the initial user.
D. Spare Parts −Six (6) months from date of shipment to the initial
user.
The company will provide a new part or repaired part, at its sole
discretion, in place of any part that is found to be defective in material
and workmanship during the period described above. Such parts will
be repaired or replaced without charge to the initial user during normal
working hours at the place of business of a distributor authorized to sell
the type of equipment involved or other establishment authorized. User
must present proof of purchase at the time of exercising warranty.
The above warranties do not apply to failures occurring as a result of
abuse; misuse, negligent repairs, corrosion, erosion and normal wear
and tear, alterations or modifications made to the product without
express written consent; or failure to follow the recommended
operating practices and maintenance procedures as provided in the
product’s operating and maintenance publications.
Accessories or equipment furnished by the company, but
manufactured by others, including, but not limited to, engines, tires,
batteries, engine electrical equipment, hydraulic transmissions,
carriers, shall carry only the manufacturers warranty, which the
company can lawfully assign to the initial user.
THE ABOVE WARRANTIES ARE IN LIEU OF ALL OTHER
WARRANTIES EXPRESSED OR IMPLIED, (EXCEPT THAT OF
TITLE), AND THERE ARE NO WARRANTIES OF
MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR
PURPOSE.

WARRANTY
4
LIGHTSOURCE V9
GENERAL WARRANTY INFORMATION −ESA
COMMENTS
LIGHT TOWER PACKAGE 12 MONTHS / 2,000
HOURS
COVERS CONTROLS, SWITCHES, SHEET METAL,
ELECTRICAL CIRCUIT ETC.
ALTERNATOR 12 MONTHS / 2,000
HOURS
EXTENDED WARRANTY OF 24 MONTHS / 4,000 HRS.
FOR LIGHTSOURCE INTRODUCED 8/16/99.
ENGINE SEE BELOW
ENGINES
MONTHS HOURS COMMENTS
KUBOTA
(7/20)
24 4,000 EXTENDED WARRANTY OF 60 MONTHS / 10,000 HRS.
WHEN USING GENUINE DOOSAN FLUIDS AND PARTS
ON MAJOR COMPONENTS.
PARTS
MONTHS HOURS COMMENTS
DOOSAN 6 UNLIMITED PARTS ONLY AVAILABLE FROM THE COMPANY
NETWORK.
NOTE: Actual warranty times may change.
Consult the Manufacturer’s warranty policy as shipped with each
new product.

WARRANTY 5
LIGHTSOURCE V9
WARRANTY REGISTRATION
FOR UNITS SOURCED FROM DUBLIN, IRELAND
Complete Machine Registration
To initiate the machine warranty, fill out the ”Warranty Registration” form 83242 11/99 supplied as part of the machine documentation, keep a copy for
your records and mail the original to:
Doosan Warranty Team
Doosan BENELUX S.A.
Drève Richelle 167
1410 Waterloo −Belgium
Fax: [phone]
Email: [email protected]
Note: Completion of this form validates the warranty.
Engine Registration:
You MUST provide proof of the “in−service” date when requesting engine warranty repairs.

DECALS6
LIGHTSOURCE V9

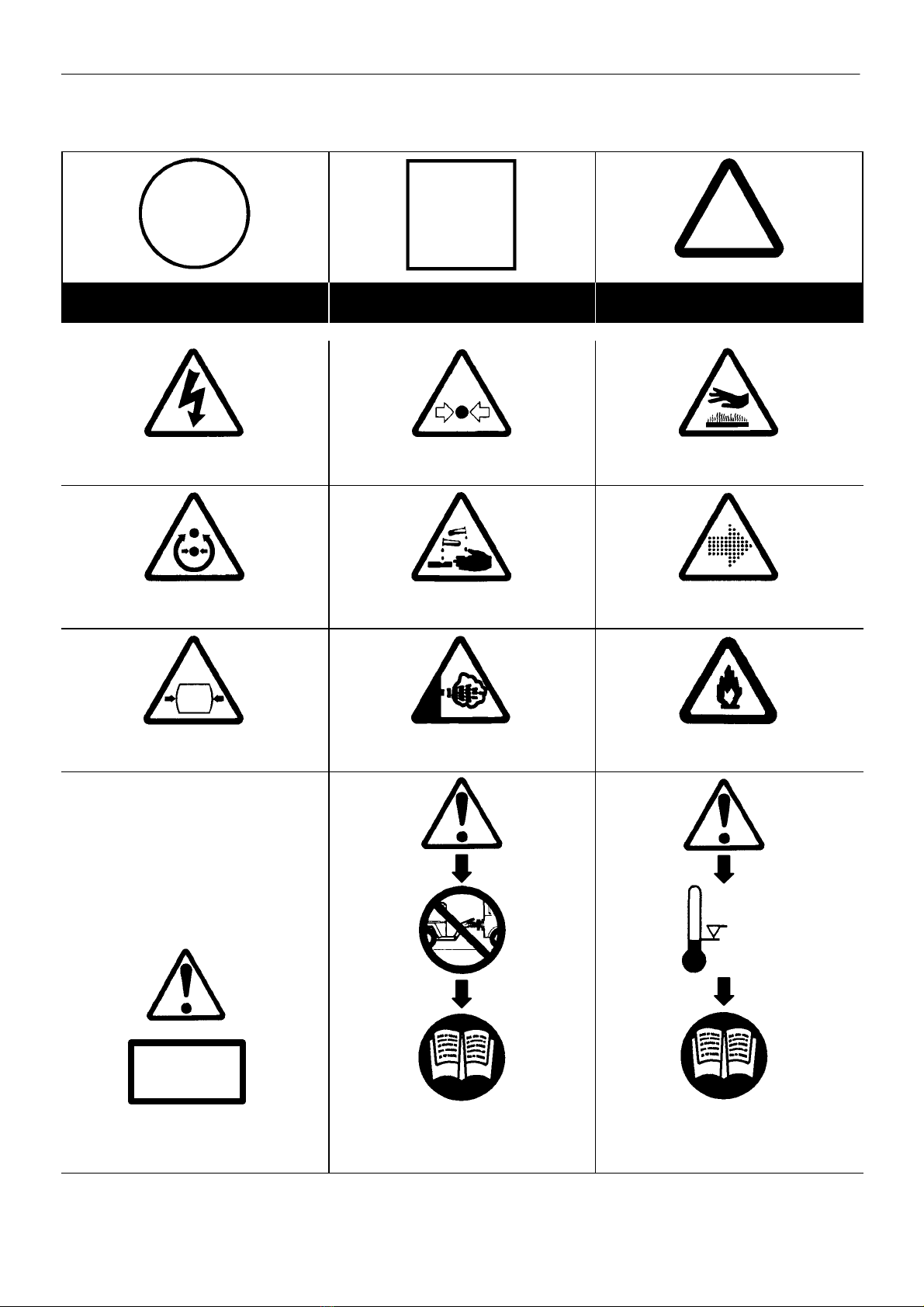

GRAPHIC FORM AND MEANING OF ISO SYMBOLS
Prohibition / Mandatory Information / Instructions Warning
WARNING: Electrical shock risk.WARNING −Pressurised component or
system.
WARNING −Hot surface.
WARNING −Pressure control. WARNING −Corrosion risk. WARNING −Air/gas flow or Air discharge.
WARNING −Pressurised vessel. WARNING −Hot and harmful exhaust gas. WARNING −Flammable liquid.
X,XBAR
0C
WARNING −Maintain correct tyre pressure.
(Refer to the GENERAL INFORMATION
section of this manual).
WARNING −Before connecting the tow bar
or commencing to tow consult the
operation and maintenance manual.
WARNING −For operating temperature
below 0C, consult the operation and
maintenance manual.

7
DECALS
LIGHTSOURCE V9
WARNING −Do not undertake any
maintenance on this machine until the
electrical supply is disconnected.
WARNING −Consult the operation and
maintenance manual before commencing
any maintenance.
WARNING −Corrosion risk.

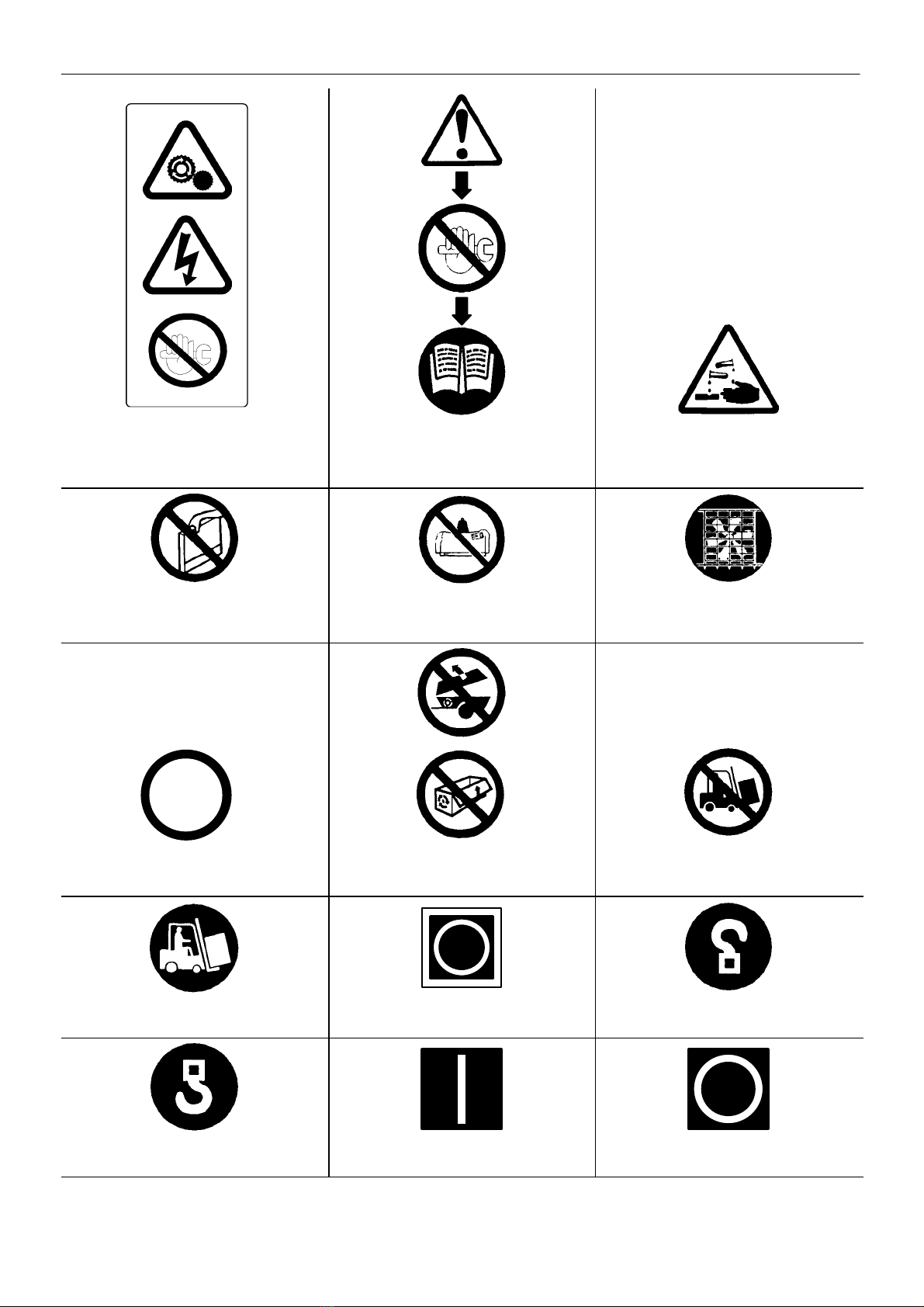

Do not remove the Operating and Maintenance
manual and manual holder from this machine. Do not stack. Do not operate the machine without the guard being fitted.
XX
km/h
Do not exceed the trailer speed limit. Do not operate with the doors or enclosure
open. Do not use fork lift truck from this side.
Use fork lift truck from this side only. Emergency stop. Tie down point
Lifting point. On (power). Off (power).

DECALS8
LIGHTSOURCE V9
Read the Operation and Maintenance manual
before operation or maintenance of this
machine is undertaken.
When parking use prop stand, handbrake and
wheel chocks. No naked lights.
Diesel fuel
No open flame. Parking brake. Rough Service Designation. Wet Location Operation.
Replace any cracked protective shield. Oil drain.
Warning: Ultra violet radiation.
Can cause serious skin burn and eye
inflammation.
Do not operate lights with missing or broken
lens.
Do not operate if glass bulb is broken or
punctured.
Electrical ground/earth
FREE SAFETY DECALS!
Safety Decals are available free of charge.
Decal part numbers are on the bottom of each decal and are also listed in the parts
manual of the machine. Submit orders for Safety Decals to the Doosan Portable
Power EMEA Aftermarket Department. The no charge order should contain only
Safety Decals. Help promote product safety! Assure that decals are present on the
machines. Replace decals that are not readable.

SAFETY 9
LIGHTSOURCE V9
WARNINGS
Warnings call attention to instructions which must be followed
precisely to avoid injury or death.
CAUTIONS
Cautions call attention to instructions which must be followed
precisely to avoid damaging the product, process or its surroundings.
NOTES
Notes are used for supplementary information.
General Information
Never operate unit without first observing all safety warnings and
carefully reading the operation and maintenance manual shipped from
the factory with this machine.
Ensure that the operator reads and understands the decals and
consults the manuals before maintenance or operation.
Ensure that the Operation and Maintenance manual, and the
manual holder, are not removed permanently from the machine.
Ensure that maintenance personnel are adequately trained,
competent and have read the Maintenance Manuals.
This machine is not designed for operating life sustaining
equipment.It is equipped with a safety shutdown system that will cause
the machine to stop operating whenever a shutdown condition is
present.
Hazards may exist on the jobsite should this unit shutdown
automatically and all lamps be extinguised. Personnel should be
advised of this and have additional lighting.
Hot Pressurized Fluid −Remove cap slowly to relieve PRESSURE
from HOT radiator. Protect skin and eyes. HOT water or steam and
chemical additives can cause serious personal injury.
Electrical shock hazard will cause severe injury or death. Do NOT
position light tower under electric power lines.
Improper operation of this machine can result in severe injury or
death.
Hazardous Voltage can cause serious injury or death.
Never inspect or service unit without first disconnecting battery
cable(s) to prevent accidental starting.
Wear eye protection while cleaning unit with compressed air, to
prevent debris from injuring eyes.
Do not enter ballast box while engine is running. Do not steam clean
ballast box. Capacitor/Ballast can cause severe injury.
Do not operate lights with broken or missing lens or broken glass
bulb. Ultra violet radiation can cause serious skin burn and eye
inflamation.
Do not place hand in tower recess while tower is being lowered or
raised. Pinch point can cause severe injury.
Ground equipment in accordance with applicable codes. (Consult
local electrician).
Do not operate electrical equipment while standing in water, on wet
ground, with wet hands or shoes.
Use extreme caution when working on electrical components.
Battery voltage (12V) is present unless the battery cables have been
disconnected. Higher voltage (potentially 500 volts) is present at all
times when the engine is running.
Always treat electrical circuits as if they were energized.
Before attempting any repair service, disconnect all leads to
electrical power loads.
Do NOT connect or disconnect lamps while engine is running.
Make sure that all protective covers are in place and that the
canopy/doors are closed during operation.
The specification of this machine is such that the machine is not
suitable for use in flammable gas risk areas. If such an application is
required then all local regulations, codes of practice and site rules must
be observed. To ensure that the machine can operate in a safe and
reliable manner, additional equipment such as gas detection, exhaust
spark arrestors, and intake (shut−off) valves may be required,
dependant on local regulations or the degree of risk involved.
A weekly visual check must be made on all fasteners/fixing screws
securing mechanical parts. In particular, safety−related parts such as
coupling hitch, drawbar components, road−wheels, and lifting bail
should be checked for total security.
All components which are loose, damaged or unserviceable, must
be rectified without delay.
This machine produces loud noise with the doors open or service
valve vented. Extended exposure to loud noise can cause hearing loss.
Always wear hearing protection when doors are open or service valve
is vented.
Never inspect or service unit without first disconnecting battery
cable(s) to prevent accidental starting.
Do not use petroleum products (solvents or fuels) under high
pressure as this can penetrate the skin and result in serious illness.
wear eye protection while cleaning unit with compressed air to prevent
debris from injuring eye(s).
Rotating fan blade can cause serious injury. Do not operate without
guard in place.
Use care to avoid contacting hot surfaces (engine exhaust manifold
and piping, air receiver and air discharge piping, etc.).
WARNING: Under no circumstances should volatile liquids such
as Ether be used for starting this machine.
Never operate unit with guards, covers or screens removed. Keep
hands, hair, clothing, tools, blow gun tips, etc. well away from moving
parts.
Do not alter or modify this machine.

SAFETY
10
LIGHTSOURCE V9
Materials
The following substances may be produced during the operation of
this machine:
. brake lining dust
. engine exhaust fumes
AVOID INHALATION
Ensure that adequate ventilation of the cooling system and exhaust
gases is maintained at all times.
The following substances are used in the manufacture of this
machine and may be hazardous to health if used incorrectly:
. engine lubricant
. preservative grease
. rust preventative
. diesel fuel
. battery electrolyte
AVOID INGESTION, SKIN CONTACT AND INHALATION OF
FUMES
Safety data sheets for engine lubricants should be obtained from the
lubricant supplier.
Never operate the engine of this machine inside a building without
adequate ventilation. Avoid breathing exhaust fumes when working on
or near the machine.
This machine may include such materials as oil, diesel fuel,
antifreeze, brake fluid, oil/air filters and batteries which may require
proper disposal when performing maintenance and service tasks.
Contact local authorities for proper disposal of these materials.
When recycling or disposing of any electrical components, light
bulbs etc., do not mix with general waste.
There is a separate collection system for used electronic products
in accordance with legislation that requires proper treatment, recovery
and recycling.
Please contact your local authorities for the correct method of
disposal or recycling.
Battery
A battery contains sulphuric acid and can give off gases which are
corrosive and potentially explosive. Avoid contact with skin, eyes and
clothing. In case of contact, flush area immediately with water.
DO NOT ATTEMPT TO SLAVE START A FROZEN BATTERY
SINCE THIS MAY CAUSE IT TO EXPLODE.
Exercise extreme caution when using booster battery. To jump
battery, connect ends of one booster cable to the positive (+) terminal
of each battery. Connect one end of other cable to the negative (−)
terminal of the booster battery and other end to a ground connection
away from dead battery (to avoid a spark occurring near any explosive
gases that may be present). After starting unit, always disconnect
cables in reverse order.
Radiator
Hot engine coolant and steam can cause injury. Ensure that the
radiator filler cap is removed with due care and attention.
Do not remove the pressure cap from a HOT radiator. Allow radiator
to cool down before removing pressure cap.
Generator sets
The generator set is designed for safety in use. However, the
responsibility for safe operation rests with those who install, use and
maintain it. The following safety precautions are offered as a guide,
which, if conscientiously followed, will minimise the possibility of
accidents throughout the useful life of this equipment.
Emergency Stop Controls
Important Note:−In addition to the key operated emergency stop
control on the main control panel, a second control is provided at the
socket control panel in the event of electrical hazards associated with
generator operation. Use this second control to immediately isolate all
electrical power to all sockets, then use the key control to stop the
engine.
Operation of the generator must be in accordance with recognised
electrical codes and local health and safety codes.
The generator set should be operated by those who have been
trained in its use and delegated to do so, and who have read and
understand the operator’s manual. Failure to follow the instructions,
procedures and safety precautions in the manual may increase the
possibility of accidents and injuries.
Do not start the generator set unless it is safe to do so. Do not
attempt to operate the generator set with a known unsafe condition. Fit
a danger notice to the generator set and render it inoperative by
disconnecting the battery and disconnecting all ungrounded
conductors so others who may not know of the unsafe condition will not
attempt to operate it until the condition is corrected.
An earth point is provided beneath the socket outlets.
The generator set should only be used with the earth point
connected directly to the general earth/ground mass. An earth spike kit
is available as an optional extra for this purpose (refer to the parts
catalogue).
WARNING: DO NOT OPERATE THE MACHINE UNLESS IT HAS
BEEN SUITABLY EARTHED.
Generator sets must be connected to the load only by trained and
qualified electricians who have been delegated to do so, and when
required by applicable regulations, their work should be inspected, and
accepted by the inspection agency having authority, prior to attempting
to operate the generator set.
Do not make contact with electrically energised parts of the
generator set and/or interconnecting cables or conductors with any
part of the body or with any non−insulated conductive object.
Make sure the generator set is effectively grounded in accordance
with all applicable Regulations prior to attempting to make or break load
connections and prior to attempting operation.
Prior to attempting to make or break electrical connections at the
generator set, stop the engine, disconnect the battery and disconnect
and lock out the ungrounded conductors at the load end.
Keep all parts of the body and any hand−held tools or other
conductive objects, away from exposed live parts of the generator set
engine electrical system. Maintain dry footing, stand on insulating
surfaces and do not contact any other portion of the generator set when
making adjustments or repairs to exposed live parts of the generator
set engine electrical system.
Replace the generator set terminal compartment cover as soon as
connections have been made or broken. Do not operate the generator
set without the terminal cover secured firmly in place.

SAFETY 11
LIGHTSOURCE V9
Close and lock all access doors when the generator set is left
unattended.
Do not use extinguishers intended for Class A or Class B fires on
electrical fires. Use only extinguishers suitable for class BC or class
ABC fires.
Keep the towing vehicle or equipment carrier, generator set,
connecting cables, tools and all personnel at least 3 metres from all
power lines and buried power cables, other than those connected to the
generator set.
Attempt repairs only in clean, dry, well lighted and ventilated areas.
Connect the generator set only to loads and/or electrical systems
that are compatible with its electrical characteristics and that are within
it’s rated capacity.
Transport
When loading or transporting machines ensure that the specified
lifting and tie down points are used.
When loading or transporting machines ensure that the towing
vehicle, its size, weight, towing hitch and electrical supply are all
suitable to provide safe and stable towing at speeds either, up to the
legal maximum for the country in which it is being towed or, as specified
for the machine model if lower than the legal maximum.
Ensure that the maximum trailer weight does not exceed the
maximum gross weight of the machine (by limiting the equipment load),
limited by the capacity of the running gear.
Note:
Gross mass (on data plate) is for the basic machine and fuel only,
excluding any fitted options, tools, equipment and foreign materials.
Before towing the machine, ensure that:−
. the tyres and towing hitch are in a serviceable condition.
. the canopy is secure.
. all ancillary equipment is stored in a safe and secure manner.
. the brakes and lights are functioning correctly and meet necessary
road traffic requirements.
. break-away cables/safety chains are connected to the towing
vehicle.
The machine must be towed in a level attitude (the maximum
permissible drawbar angle is between 0and +5from horizontal) in
order to maintain correct handling, braking and lighting functions. This
can be achieved by correct selection and adjustment of the vehicle
towing hitch and, on variable height running gear, adjustment of the
drawbar.
To ensure full braking efficiency, the front (towing eye) section must
always be set level.
When adjusting variable height running gear:−
Ensure front (towing eye) section is set level
When raising towing eye, set rear joint first, then front joint.
When lowering towing eye, set front joint first, then rear joint.
After setting, fully tighten each joint by hand and then tighten further
to the next pin. Refit the pin.
When parking always use the handbrake and, if necessary, suitable
wheel chocks.
Make sure wheels, tyres and tow bar connectors are in safe
operating condition and tow bar is properly connected before towing.
Do not store or transport hazardous or combustible materials in or
on this unit.
Do not suspend this machine with other equipment hanging from the
running gear.
Safety chains / connections and their adjustment
The legal requirements for the joint operation of the breakaway
cable and safety chains are as yet unidentified by 71/320/EEC or UK
regulations. Consequently we offer the following advice / instructions.
Where brakes only are fitted:
a) Ensure that the breakaway cable is securely coupled to the
handbrake lever and also to a substantial point on the towing vehicle.
b) Ensure that the effective cable length is as short as possible, whilst
still allowing enough slackness for the trailer to articulate without the
handbrake being applied.
Where brakes and safety chains are fitted:
a) Loop the chains onto the towing vehicle using the towing vehicle
hitch as an anchorage point, or any other point of similar strength.
b) Ensure that the effective chain length is as short as possible whilst
still allowing normal articulation of the trailer and effective operation of
the breakaway cable.
Where safety chains only are fitted:
a) Loop the chains onto the towing vehicle using the towing vehicle
hitch as an anchorage point, or any other point of similar strength.
b) When adjusting the safety chains there should be sufficient free
length in the chains to allow normal articulation, whilst also being short
enough to prevent the towbar from touching the ground in the event of
an accidental separation of the towing vehicle from the trailer.
Before towing
Make sure wheels, tires and tow bar connectors are in safe
operating condition and tow bar is properly connected before towing.

SAFETY
12
LIGHTSOURCE V9
Store the front outriggers and all jacks. To secure each jack handle,
wrap the jack positioning pin chain around the handle to keep it from
being damaged during towing.
Towing
CAUTION: Do not tow or move with mast extended.
Do not tow this unit with a vehicle whose towing capacity is less than
the unit gross weight shown in General Data.
Do not exceed maximum speed of 80km/h (or local legal maximum,
if lower) when towing unit.
Welding
Prior to any welding, disconnect alternator relays, voltage regulator,
meters, circuit breakers and battery cables. Open all circuit breakers,
and remove any external connections. Connect the welding ground as
close as possible to the area being welded.
Mast Operation
Before and during all mast operation, ensure that the area is clear
of persons and obstructions over a 2m radius. When the mast has
completed its normal travel, or is prevented from travelling, immediately
release the control switch, to ensure that no cable overtension occurs.
Check that no person is behind the machine (within 10m) while the
tower is raised or lowered.
The unit must have all outriggers extended and be level before
raising mast.
DO NOT climb on tower. Perform repairs and adjustments with the
tower in the down (transport) position.
Damaged cables may break during tower operation allowing the
tower to fall. Do not operate tower with damaged cables. Replace
damaged cables.
Lamps
Inspect lamps and replace broken or missing lamp lens or
punctured glass bulbs. Do NOT operate lights with broken or missing
lens or broken glass bulb.

SAFETY 13
LIGHTSOURCE V9
Flammable fuels
Do not fill the fuel tank when the engine is running.
Do not smoke or use an open flame in the vicinity of the light tower
or fuel tank.
Do not permit smoking, or open flame, or sparks to occur near the
battery, fuel, cleaning solvents or other flammable substances and
explosive gases.
BUNDED BASE
This machine can be fitted with bund equipment to contain leakages
and spillages, which occur within the machine enclosure.
The bund will contain all fluids normally installed in the machine,
plus an additional 10%.
When fitted with bund, the machine must only be operated when
levelled.
Drains for engine water, engine oil and fuel tank are located at the
rear right corner of the machine.
Draining of contaminated fluids
Contaminatedfluid must be removed by authorized personnel only.
Captured fluids can be drained from the bund by removal of the plug
at the rear base of the frame. This plug must be replaced after draining.
Drainage of machine fluids
During maintenance operations, drain machine fluids using the
drain ports indicated.
WARNING: Major leakages or spillages must be drained before
the machine is towed.
Disposal of contaminated fluids from bund
Contaminated fluids removed from bund, must be disposed of to
designated containers only.

GENERAL INFORMATION
14
LIGHTSOURCE V9

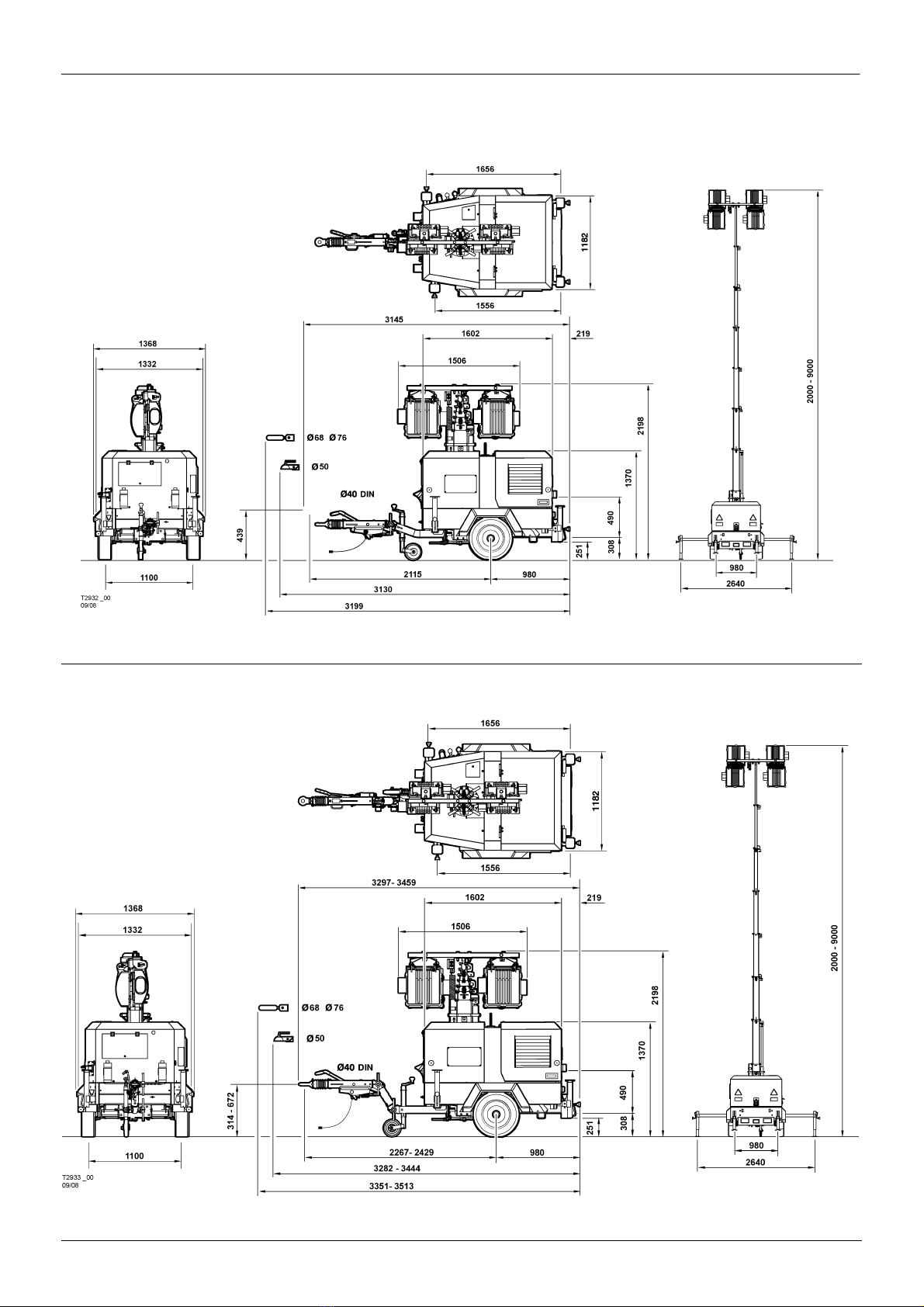

FIXED HEIGHT RUNNING GEAR
VARIABLE HEIGHT RUNNING GEAR

GENERAL INFORMATION 15
LIGHTSOURCE V9
LIGHT TOWER
Rated Power Output−kilowatts 6 kVA
Number of Lamps 4
Type of Lamps Metal−halide 1000 W
Overall Length −Fixed Height RG 3135 mm
Overall Length −Variable Height RG 3297 −3459 mm
Overall Height 2198 mm
Overall Width −Transporting 1368 mm
Overall Width −Operating 2875 mm
Maximum Tower Height
(operating position) 9 m
Maximum wind speed rating 105 km/h (65mph)
HYDRAULIC DATA
Maximum working pressure 125 bar
Hydraulic oil capacity 3,0 litres
Pump operating voltage 12 VDC
ENGINE
Model KUBOTA D1105
Type Diesel water cooled
Number of cylinders. 3
Speed at full load. 1500 revs min−1
Speed at idle. 1500 revs min−1
Power available at 1500 revs min−18,4kW (11,3 HP)
Fuel tank capacity 130 litres
Oil specification Refer to engine section
Oil capacity. 5,1 litres
Coolant capacity 4 litres (1,06 US GAL)
Electrical system. 12V negative earth
Alternator 30 amps @ 12 Volts
GENERATOR
Type Mecc Alte LT3−130/4
Voltage 230 V
Frequency 50 Hz
Power 6 kVA
Voltage stability +/−6%
Standard socket outlet −2 x 16 Amps/Max. total 26 Amps @ 230 Volts
INFORMATION ON AIRBORNE NOISE (CE regions)
−The A−weighted emission sound pressure level
. 70 dB(A), uncertainty 1 dB(A)
−The A−weighted emission sound power level
. 86 dB(A), uncertainty 1 dB(A)
The operating conditions of the machinery are in compliance with ISO
3744:1995 and EN ISO 2151:2004
FIXED HEIGHT RUNNING GEAR
Braked version (KNOTT)
Shipping weight. 1160 kg
Maximum weight. 1300 kg (2866 lbs)
Maximum horizontal towing force. 1300 kgf (2866 lbs)
Maximum vertical coupling load
(nose weight). 75 kgf (165 lbs)
VARIABLE HEIGHT RUNNING GEAR
Braked version (KNOTT)
Shipping weight. 1175 kg
Maximum weight. 1300 kg (2866 lbs)
Maximum horizontal towing force. 1300 kgf (2866 lbs)
Maximum vertical coupling load
(nose weight). 75 kgf (165 lbs)
WHEELS AND TYRES (KNOTT)
Number of wheels. 2 x 13 x 5J
Tyre size. 165 R13C 94N
Tyre pressure. 3,5 bar (50 PSI)
Further information may be obtained by request through the
customer services department.

OPERATING INSTRUCTIONS
16
LIGHTSOURCE V9
COMMISSIONING
Upon receipt of the unit, and prior to putting it into service, it is
important to adhere strictly to the instructions given below in PRIOR TO
STARTING.
Ensure that the operator reads and understands the decals and
consults the manuals before maintenance or operation.
Ensure that the position of the emergency stop device is known and
recognised by its markings. Ensure that it is functioning correctly and
that the method of operation is known.
Running gear drawbar −Machines are shipped to some areas with
the drawbar removed. Fitting involves four nuts / bolts to secure the
drawbar to the axle and two bolts to fit the drawbar to the front of the
machine with the saddle and spacer block.
Support the front of the machine, fit the wheel chocks to stop the
machine moving and attach the drawbar. Refer to the torque value table
in the MAINTENANCE section of this manual for the correct torque
values.
CAUTION:
This is a safety critical procedure. Double check the torque settings
after assembly
Fit the propstand and coupling. Remove the supports and set the
machine level.
Before towing the unit, ensure that the tyre pressures are correct
(refer to the GENERAL INFORMATION section of this manual) and
that the handbrake is functioning correctly (refer to the
MAINTENANCE section of this manual). Before towing the unit during
the hours of darkness, ensure that the lights are functioning correctly
(where fitted).
Ensure that all transport and packing materials are discarded.
Ensure that the correct fork lift truck slots or marked lifting / tie down
points are used whenever the machine is lifted or transported.
When selecting the working position of the machine ensure that
there is sufficient clearance for ventilation and exhaust requirements,
observing any specified minimum dimensions (to walls, floors etc.).
Adequate clearance needs to be allowed around and above the
machine to permit safe access for specified maintenance tasks.
Ensure that the machine is positioned securely and on a stable
foundation. Any risk of movement should be removed by suitable
means, especially to avoid strain on any rigid discharge piping.
Attach the battery cables to the battery(s) ensuring that they are
tightened securely. Attach the negative cable before attaching the
positive cable.
SET−UP (PRIOR TO RAISING TOWER)
1. Make sure unit is detached from towing vehicle.
2. Make sure parking brake is correctly engaged.
3. Inspect cables. Cables should not be frayed, cut, abraded, or
otherwise damaged. Replace damaged cables.
4. Check hydraulic oil level. Fill if necessary / as required.
5. Ensure no obstruction is overhaed within 15 meters.
6. Be sure lamps are secure on cross bar and aim as desired.
7. Extend all outriggers fully and insert locking pins fully. Ensure
drawbar jack and all outrigger and/or jacks are firmly in contact
with ground.
8. Level unit using jacks and bubble level indicator.
9. Jacks must support entire unit weight (tyres off the ground).
BEFORE STARTING THE ENGINE
Before starting the engine, carry out the following checks:
1. Engine oil level: Add as required.
2. Engine coolant level: Add as required.
3. Fuel filter: Drain any accumulation of water. Clean or replace
element as required.
4. Air cleaner service indicator (if equipped): Service when showing
“red”.
5. Fuel level in tank: Fill, using CLEAN DIESEL fuel, at the end of the
day to minimize condensation.
6. Battery: Keep terminals clean and lightly greased.
7. Engine belts and hoses: Check for proper fit and/or damage.
Service as required.
8. Air Vents/Grilles: Both engine radiator and generator cooling air.
Check for obstructions (leaves, paper, etc.).
9. Visual inspection: Check for excessive fluid leaks, evidence of
arcing around control panel, loose wire−routing clamps, etc.
CAUTION: Call a qualified person to make electrical repairs.
