Dorel Home Products 4117019 User manual

DO NOT RETURN TO THE STORE !
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
4117019
B34411701900
Date of Purchase
Metal Bed
C.W. - 2019/1/4
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Lot Number
Thank you for purchasing from DHP!
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1
© 2014 Dorel Home Products All Rights Reserved
Twin
Black
Weight Limit: 250 Lb / 113 Kg

Contact Us!
[e-mail]
DHP Consumer Services
12345 Albert Hudon, Suite 100,
Montreal, Quebec, Canada H1G 3L1

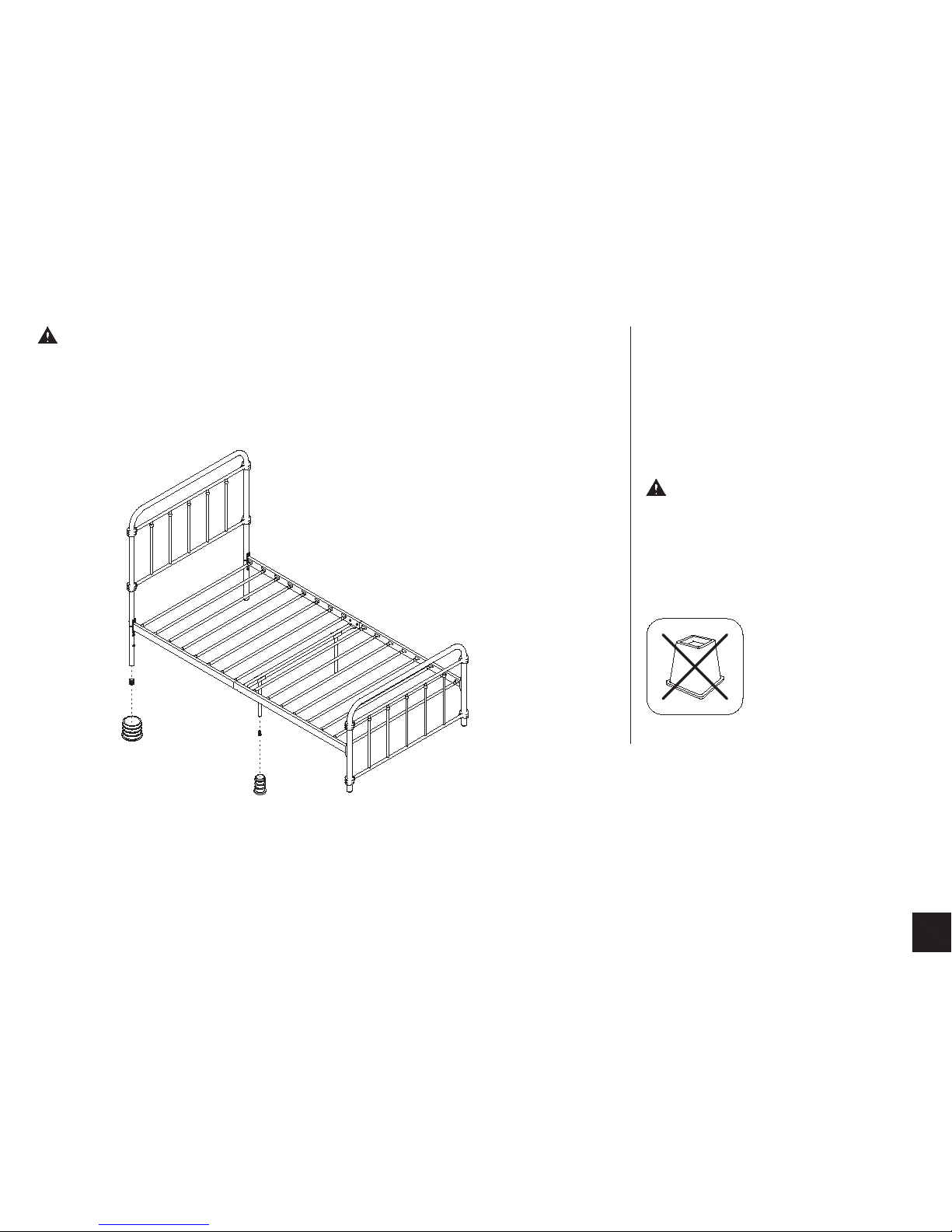

Read Before Beginning Assembly
1-800-267-1739
Warranty Information
2
Caution
DHP warrants this product to be free from defects in material and workmanship and
agrees to remedy any such defect. This warranty covers one year from the date of
original purchase. This is solely limited to the repair or replacement of defective
parts and assembly labor is not included.
This warranty does not apply to any product which has been improperly assembled,
subjected to misuse or abuse or which has been altered or repaired in any way.
Liability for consequential damages is excluded to the extent exclusion is permitted
by law. This warranty gives you specific legal rights and you may also have other
rights which vary from state to state.
To obtain warranty service, purchaser must present original bill of sale. Components
repaired or replaced are warranted through the remainder of the original warranty
period only. The defective components will be repaired or replaced without charge,
subject to the terms and conditions described above.
Visit www.dhpfurniture.com to view the limited warranty valid in the U.S. and
Canada.
●Call our toll free number if you need assistance.
●Work in a spacious area and near where the unit will be used, preferably on a
carpet, or use a piece of the cardboard packaging to protect your floor and product.
●Recommended # of people needed for assembly: 2(however it is always better
to have an extra hand). Estimated assembly time is 1 hour.
●Make sure all parts are included. Most parts are labeled or stamped on the raw
edge.
●Read each step carefully. It is very important that each step of the instructions is
performed in the correct order. If these steps are not followed in sequence,
assembly difficulties will occur.
●You can visit our site https://helpcenter.dhpfurniture.com (Scan below
QR-code if you possess a smartphone or tablet) for assembly videos and more!
●This product is designed for home use and not intended for commercial use.
●This product contains small components. Please ensure that they are kept away
from small children.
●Do not use power tools to assemble your furniture. Power tools may strip or
damage the parts.
For help with assembly, identifying parts, product information or to order parts,
please contact us:
9:00 am to 9:00 pm (Eastern Time)
10 am to 6:30 pm (Eastern Time)
11 am to 7 pm (Eastern Time)
Monday to Friday
Saturday
Sunday
SCANme
& I'll guide you to
DHP Helpcenter!

3

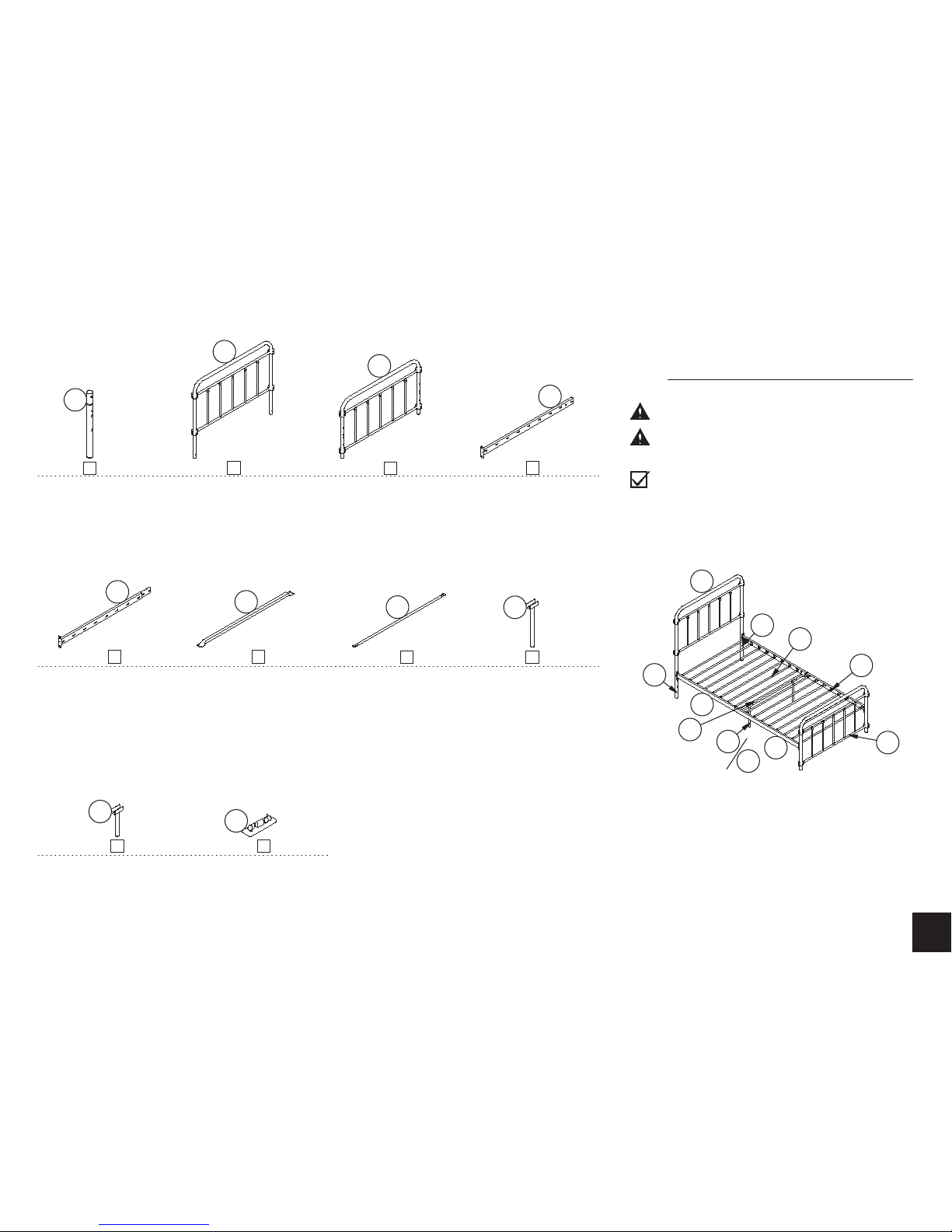

Parts
All in 1 big box!
Before you throw the package, please use the
Check Box to identify the parts and ensure that
you have all the parts needed for the assembly.
There are inner box(es) that include components
required to complete this assembly.
Replacement Parts, visit
www.dhpfurniture.com/eng/replacement-parts
Post
T942870
X 2
AE
Headboard
T942880
X 1
Footboard
T942890
X 1
Side Rail
T938150
X 2
FGO M
Side Rail
T938160
X 2
Brace
T938170
X 1
Slats
T919600
X 16
Leg
T937930
X 2
Leg
T937940
X 2
Plastic Plug
T392590
X 32
LY
CD
C
A
A
F
O
Y
GMLD
E

4

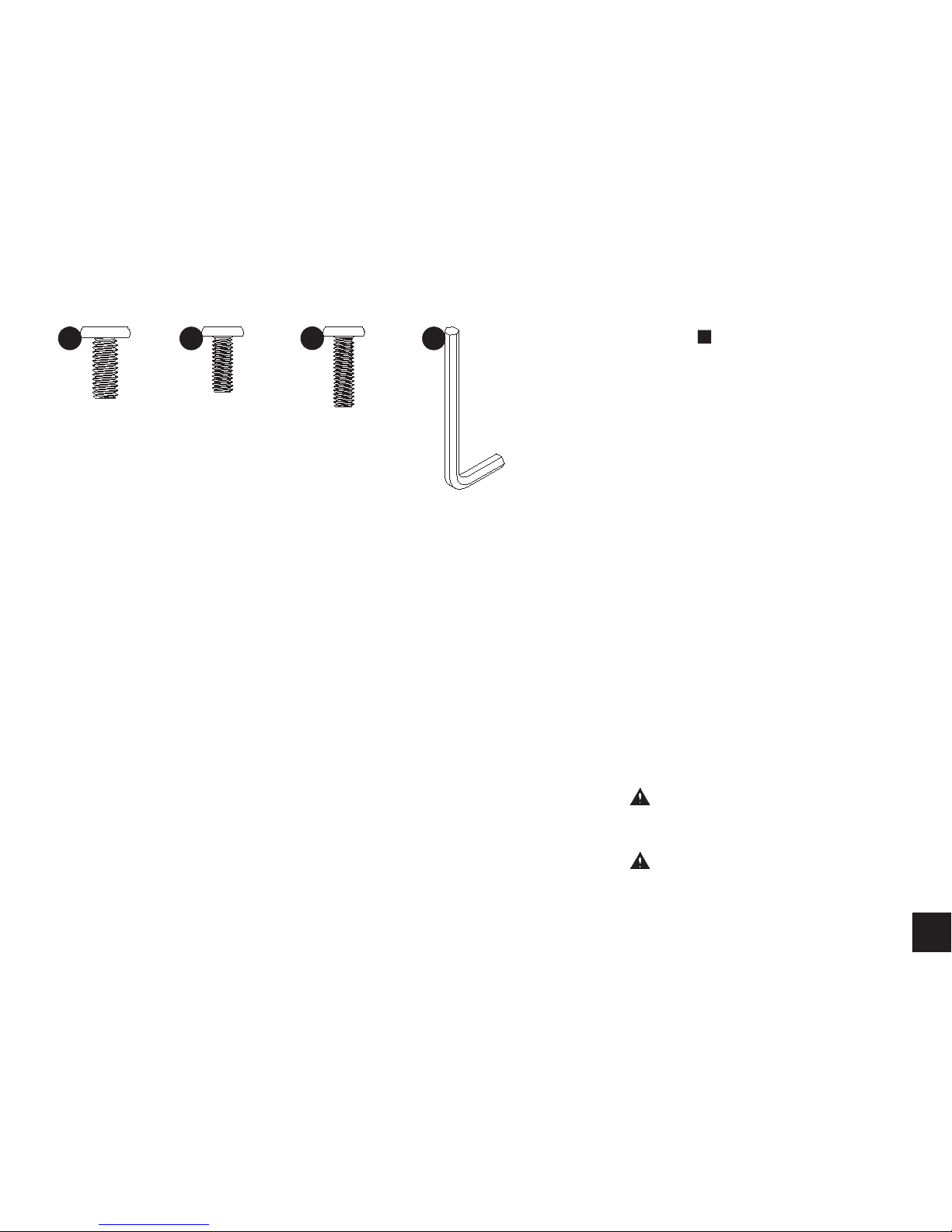

Hardware Pack
Hardware Pack #: T4117019-00
Please do not completely tighten all the hardware,
until the entire assembly is complete, unless
otherwise indicated in the step-by-step
instructions.
The screw(s), bolt(s) to be used at each step are
shown in actual size in the lower right corner of
the page.
1 2 34
5/16" X 3/4"
X 16
1/4" X 7/8"
X 8
1/4" X 11/16"
X 6
4mm
X 1

5

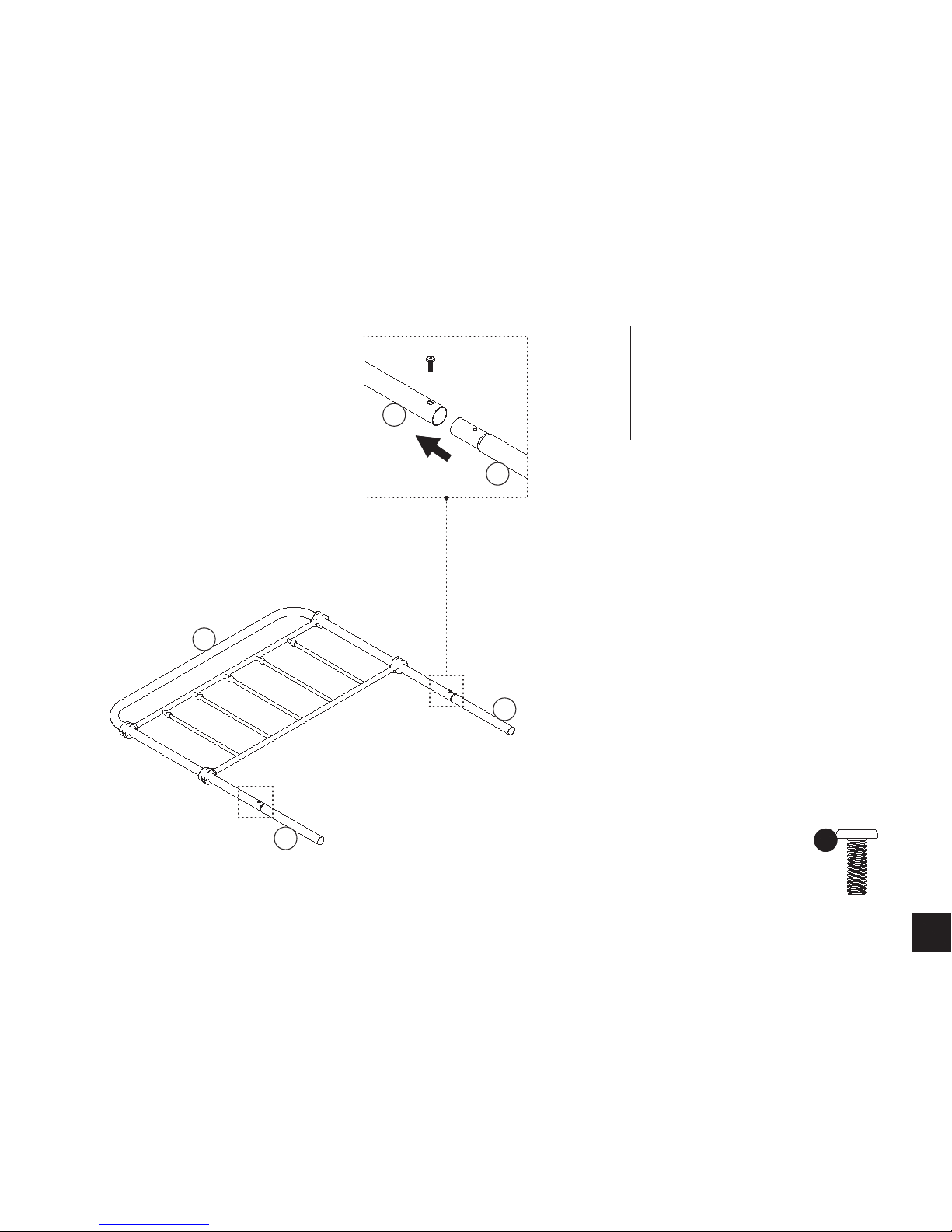

Step 1
Insert AX 2 into C with Y.
X 2
A
C
2
C
A
A

6

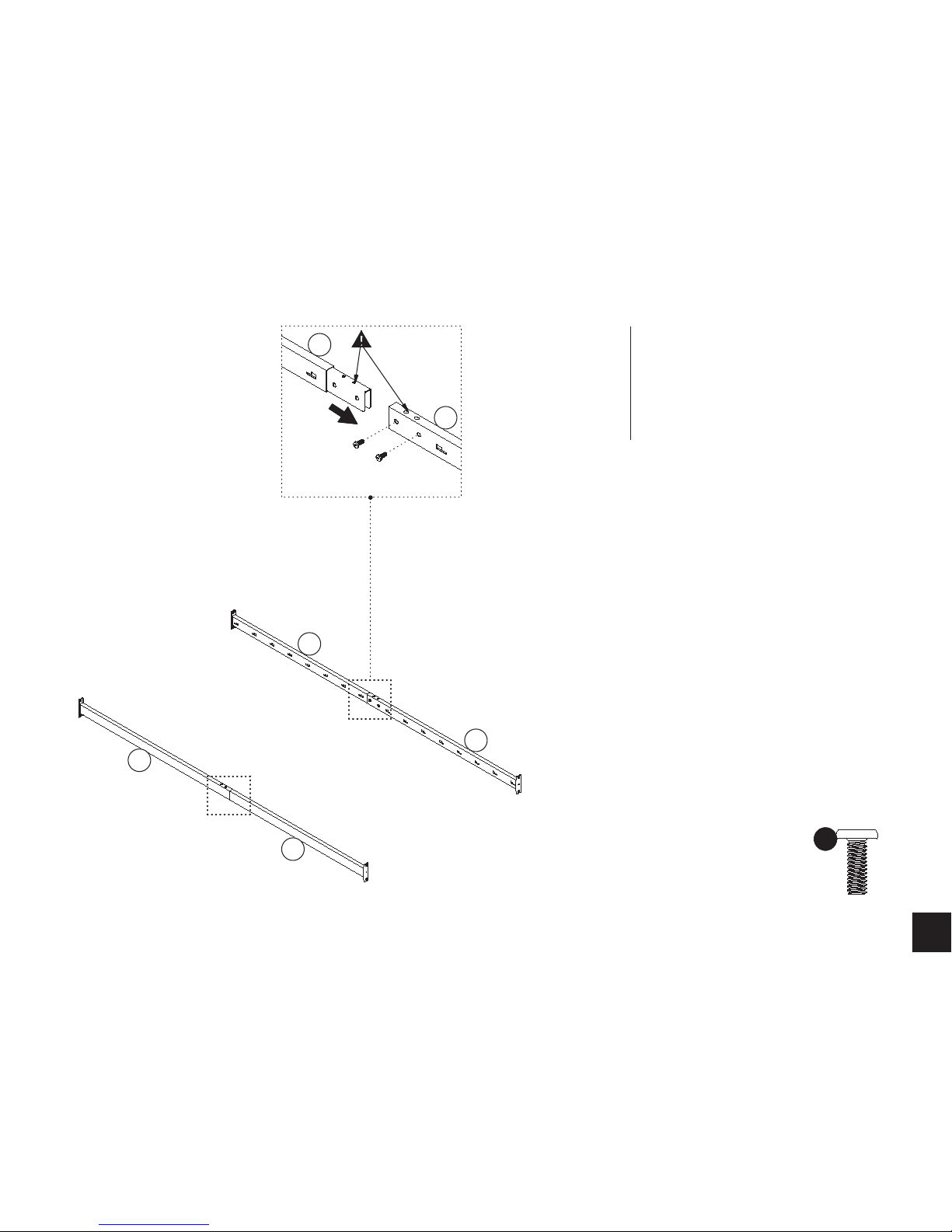

Step 2
F
EE
F
E
FHoles on the
top side.
X 4
Insert FX 2 into E X 2 with Y.
2

7

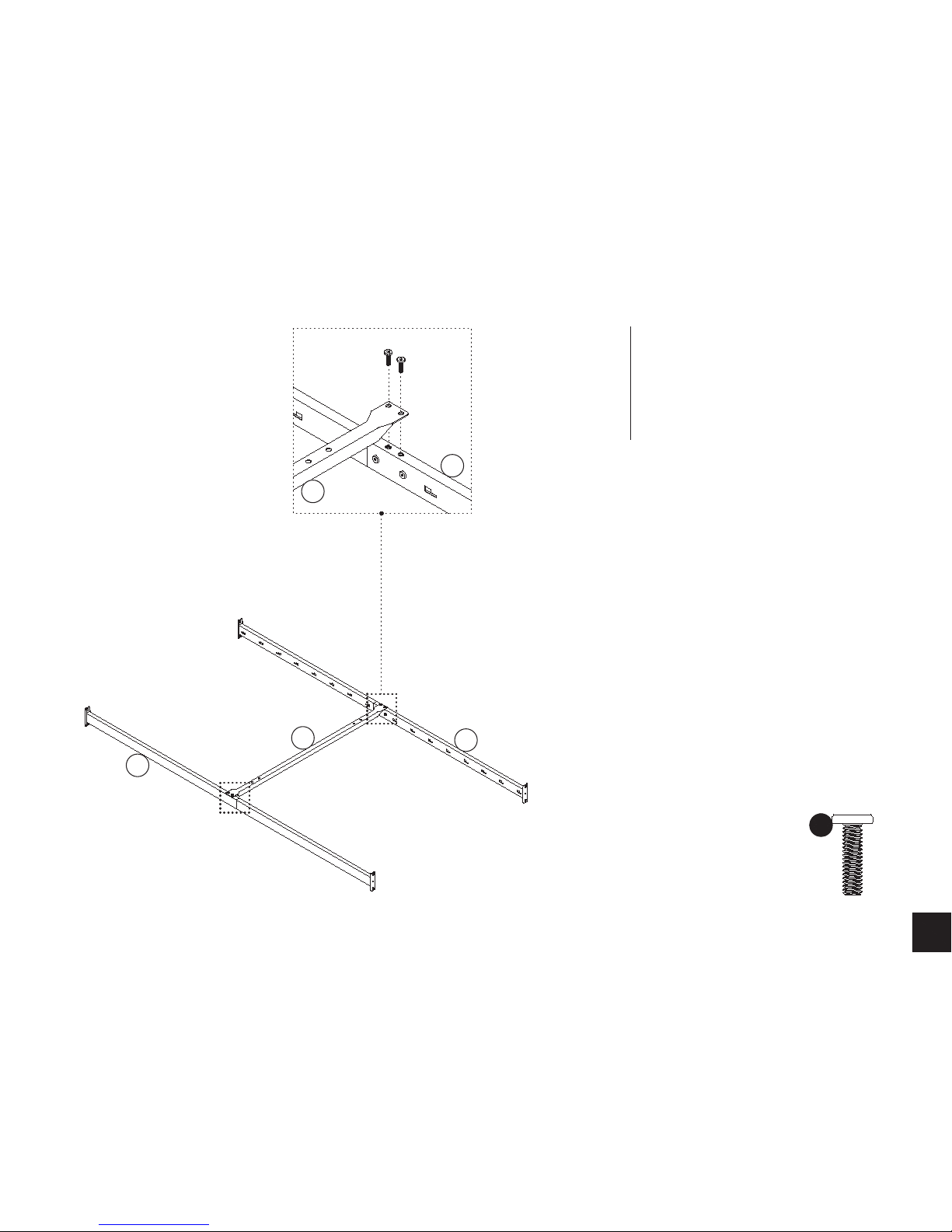

Step 3
E
E
G
E
G
X 4
Attach Gto E X 2 with Z.
3

8

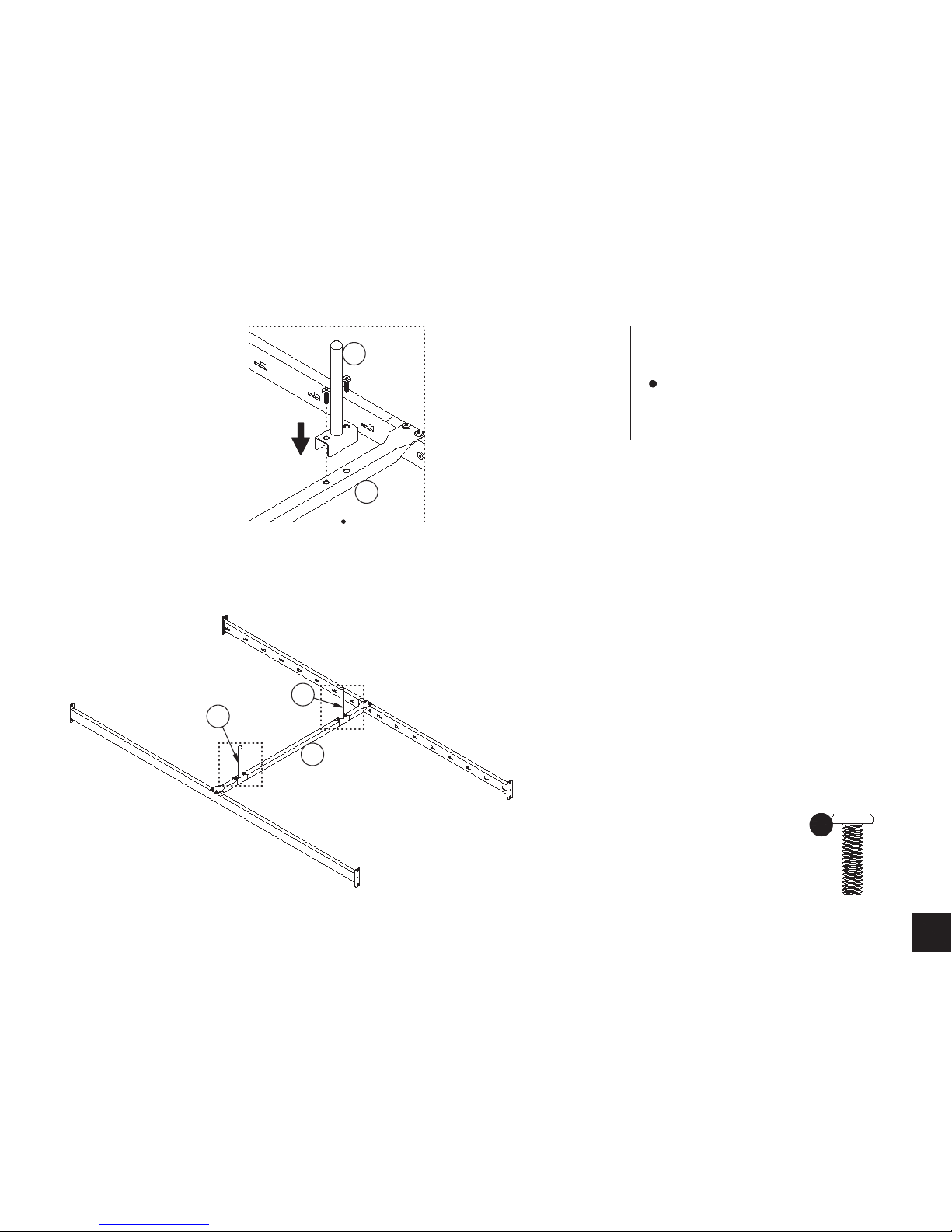

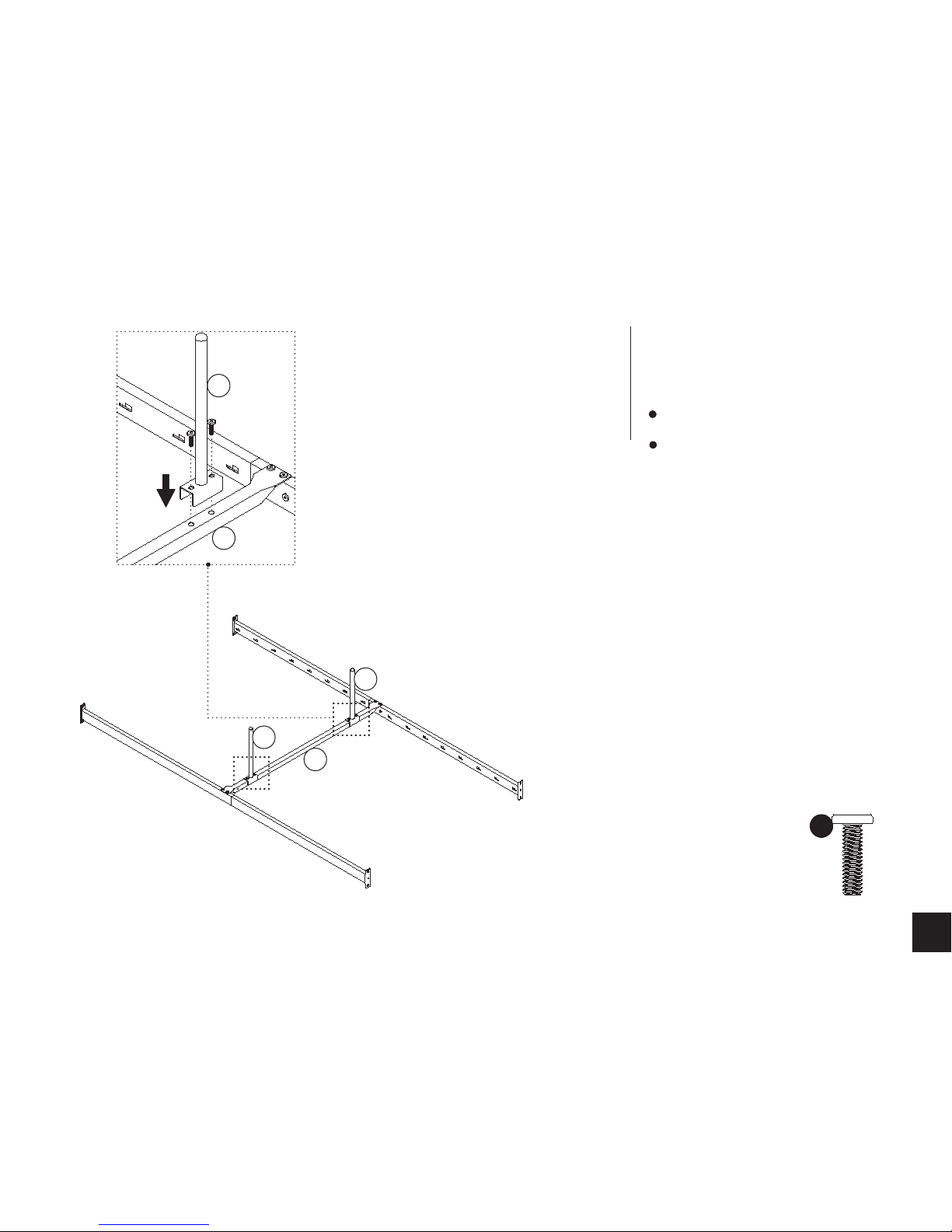

Step 4
This bed offers you 2 options for the height
of the bed foundation.
To assembly in Higher Position: From
STEP 4 to STEP 6.
To assembly in Lower Position: From
STEP 7 to STEP 9.
Attach M X 2 to G with Z.
Then turn over the subassembly.
M
G
G
M
M
X 4
3

9

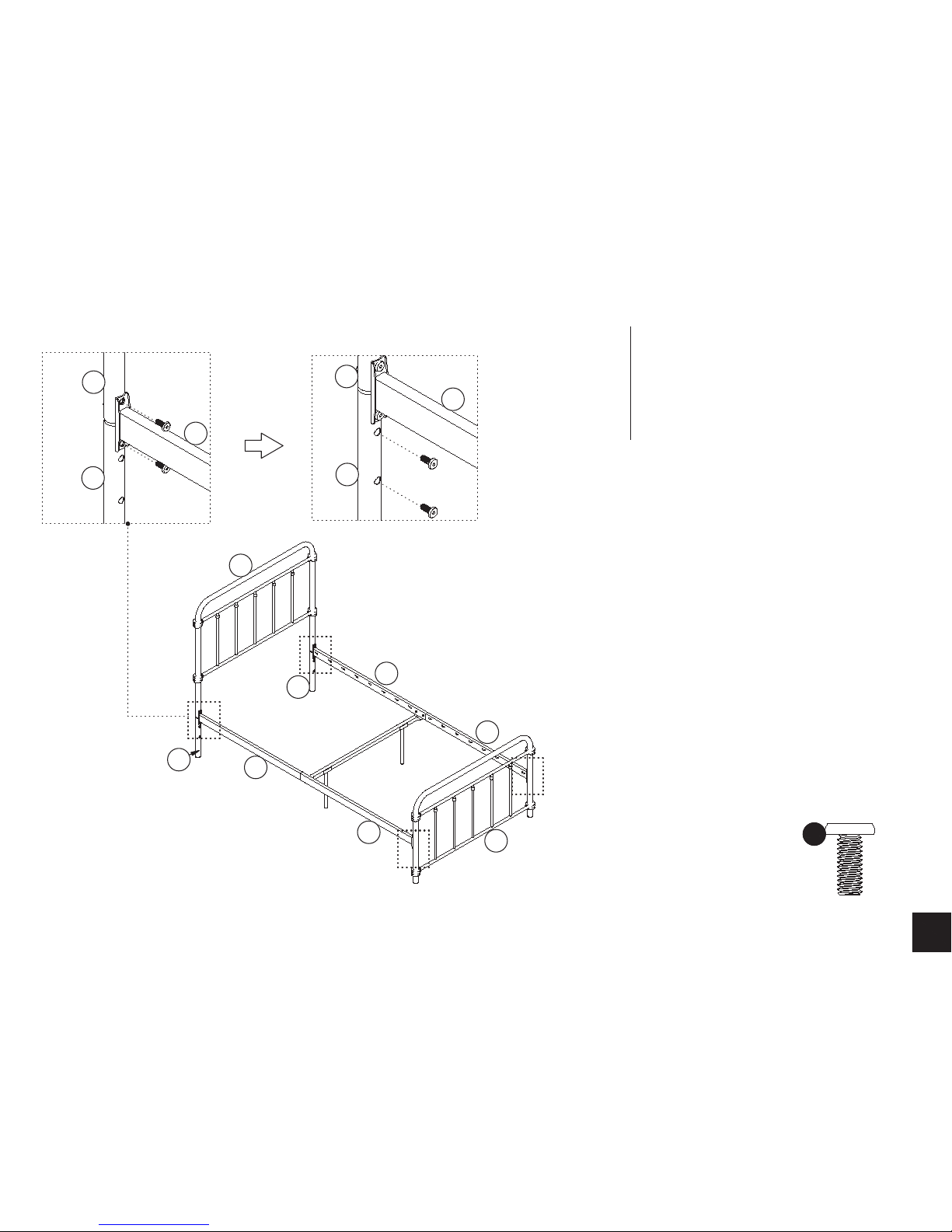

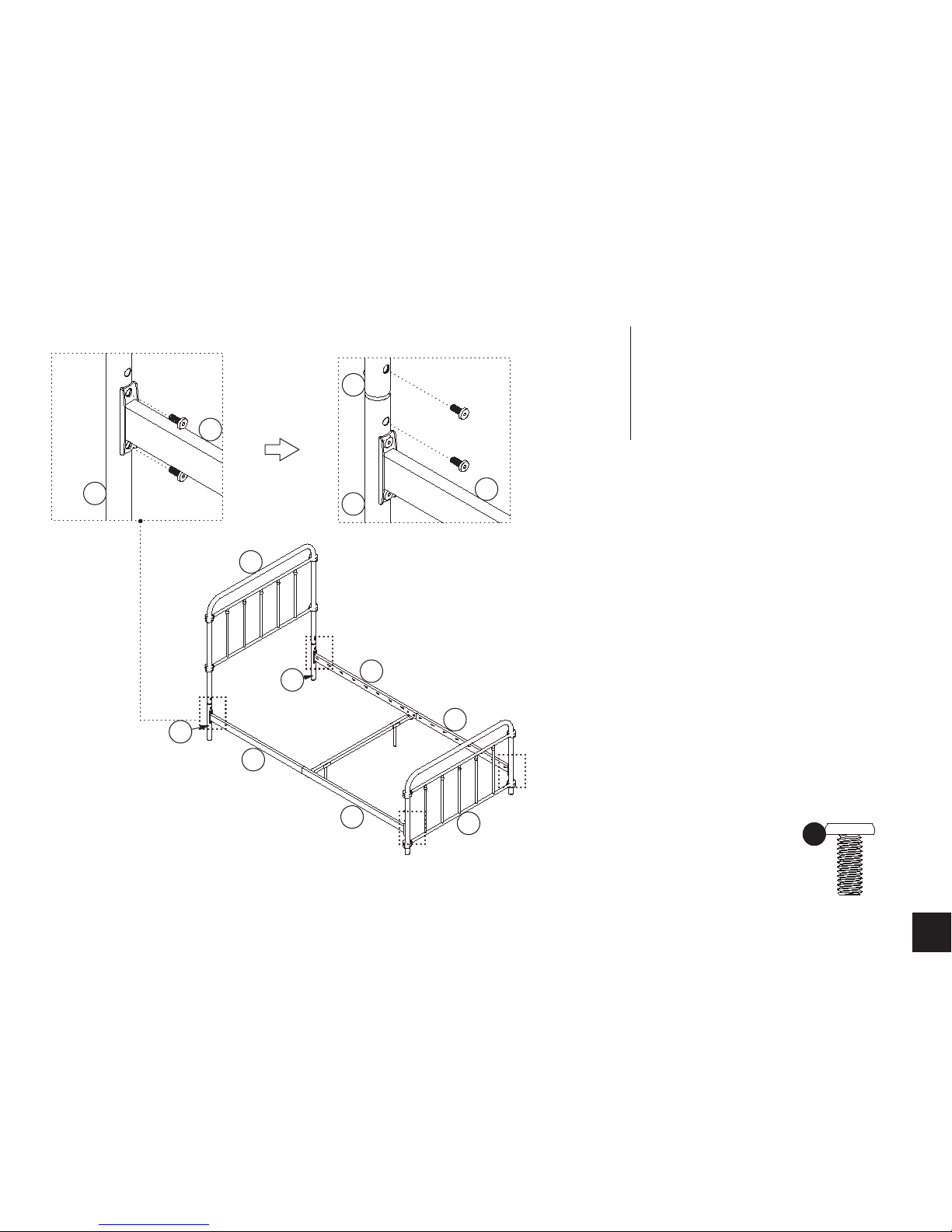

Step 5
Attach E & F to A X 2, C and D with X.
Screw Xinto AX 2 and D.
1
X 16
CC
AA
F
F
F
E
D
E
F
A
C
A

10

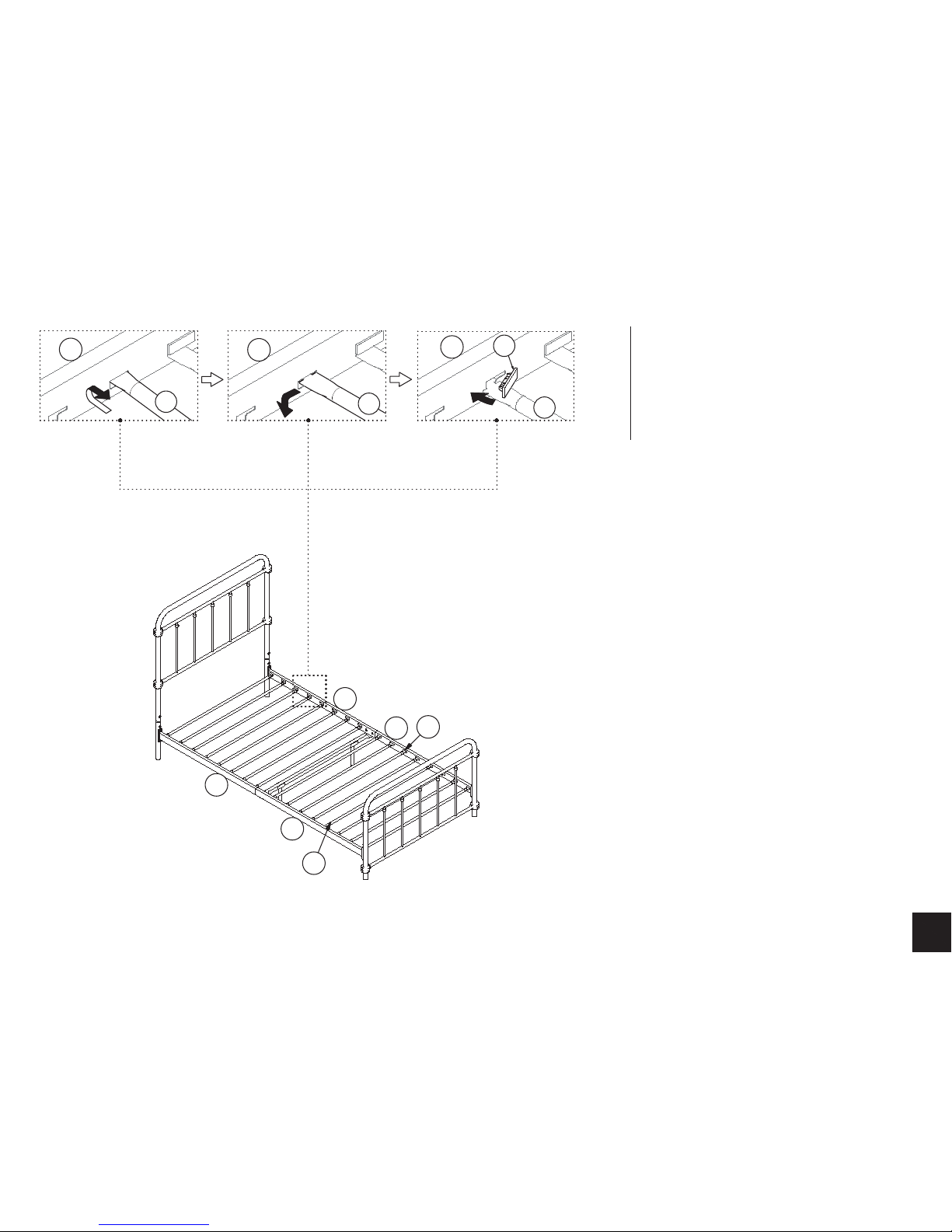

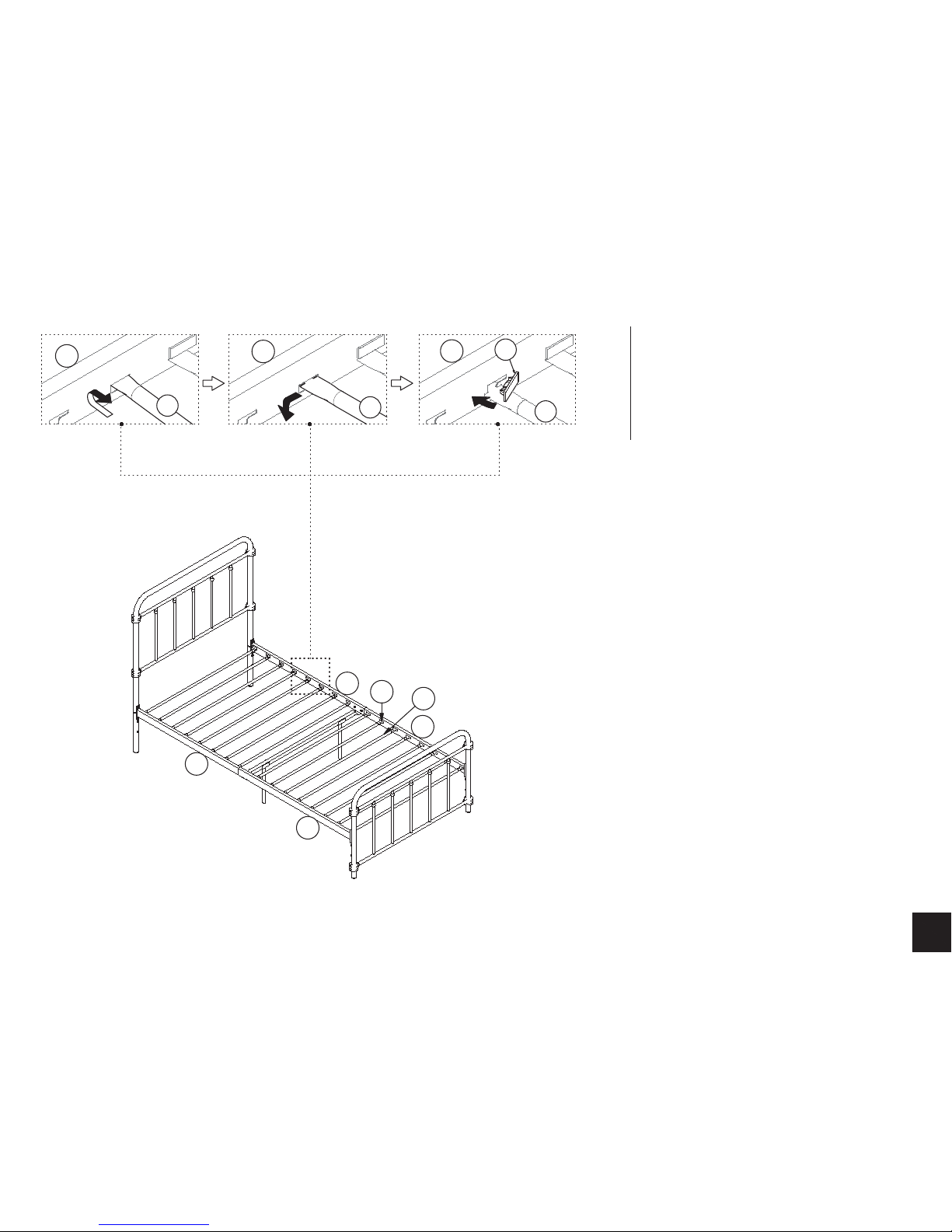

Step 6
OO
Y
O
EEE
Insert O into E& F as illustrated, then lock
Ointo place with Y.
Y
E
F
E
O
F
