Dorel Home Products DA2021959 User manual

Questions, concerns, missing parts?
CONTACT OUR CUSTOMER SERVICE DEPARTMENT
BEFORE RETURNING PRODUCT TO THE RETAILER.
If parts are missing or damaged, we will gladly shipyour
replacement parts free ofcharge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
B34DA202195900-100083
J.L.. -2021/06/01
Thank you for purchasing from Dorel!
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1
© 2021 Dorel Home Products All Rights Reserved

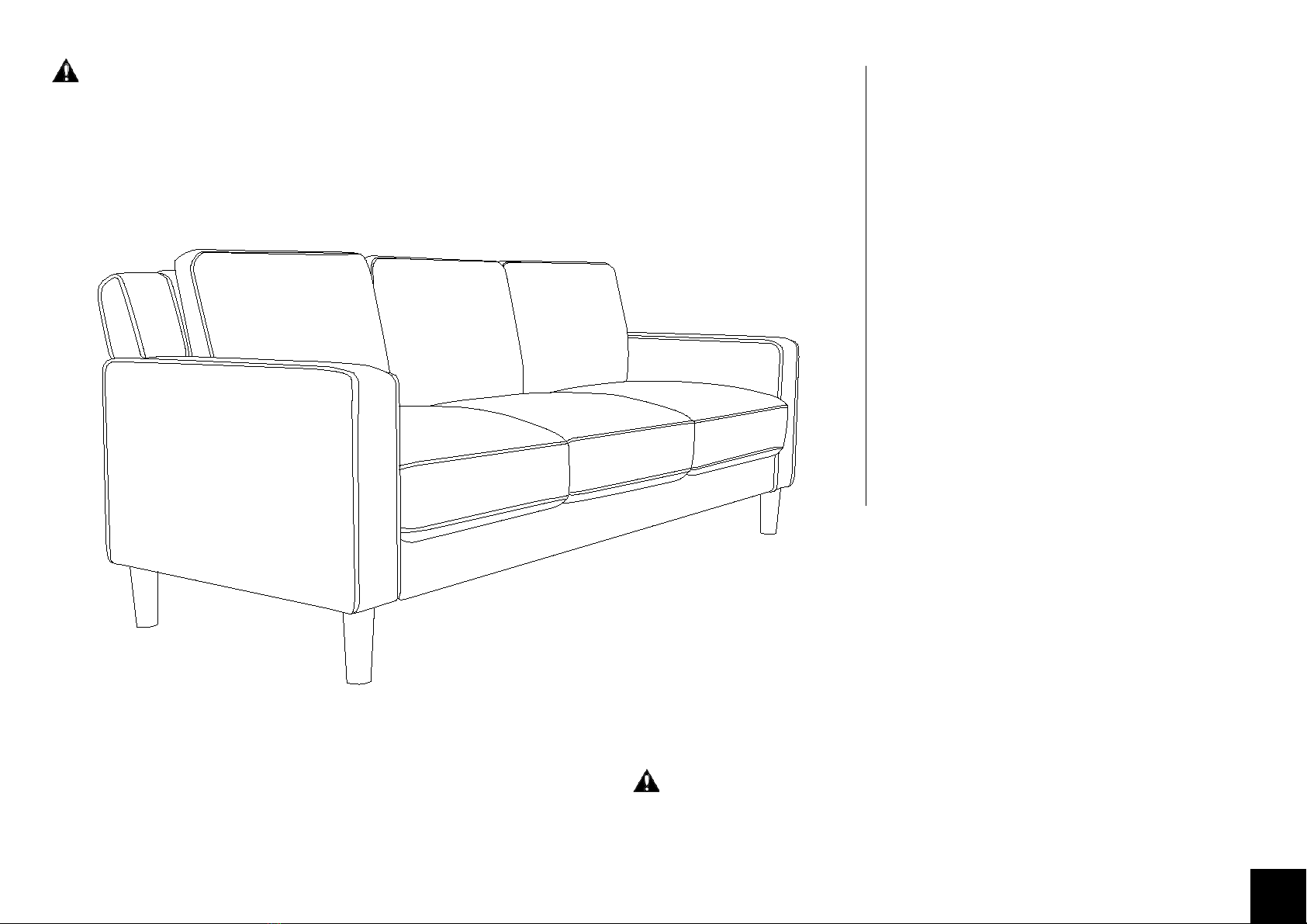

Weight Limit: 600 Lb / 272 Kg
3 Seater Sofa
DA2021959 (Black Velvet), DA2021559 (Gray Velvet),
DA2021579 (Blue Velvet), DA2021779 (Green Velvet),
DA2021979 (Camel Faux Leather)
Date of Purchase Lot Number (TAKEN FROM CARTON)

Read Before Beginning Assembly
●Work in a spacious area and near where the unit will be used, preferably on a
carpet, or use apiece of the cardboard packaging to protect your floor and product.
●Make sure all parts are included. Most parts are labeled or stampedon the raw
edge.
●Read each step carefully. It is very important that each step of the instructions is
performed in the correct order. If these steps are not followed in sequence, assembly
difficulties will occur.
●This product may contain small components. Please ensure that they are kept
away from small children.
●This product is designed for home use and is not intended for commercial use.
DO NOTuse
powertools
2
1hour
This product is shippedin
1carton
1-800-267-1739
Monday to Friday
Saturday
Sunday
DHP Consumer Services
12345 Albert Hudon, Suite 100,
Montreal, Quebec H1G 3L1
[e-mail]
Contact Us!
For help with assembly, identifying parts, product information or to order parts,
please contact us:
Limited 1year Warranty
Dorel warrants this product to be free from defects in material and workmanship
and agrees to remedy any such defect. This warranty covers one year from the
date of original purchase from authorized retailers. This is solely limited to the
repair or replacement of defective parts and assembly labor is not included.
This warranty does not apply to any product which has been improperly
assembled, subjected to misuse or abuse or which has been altered or repaired in
any way.The warranty does not cover wearing, tearing, fading or splitting of the
fabric (where applicable). Liability for consequential damages is excluded to the
extent exclusion is permitted by law. This warranty gives you specific legal rights
and you may also have other rights which vary from state to state or province to
province.
To obtain warranty service, purchaser must present original bill of sale.
Components repaired or replaced are warranted through the remainder of the
original warranty period only. The defective components will be repaired or
replaced without charge, subject to the terms and conditions described above.
Visit www.dhpfurniture.com to view the limited warranty valid in the U.S. and
Canada.
9 am to 9pm (Eastern Time)
10 am to 6:30 pm (Eastern Time)
11 am to 7pm (Eastern Time)
Chat
withus! www.dhpfurniture.com

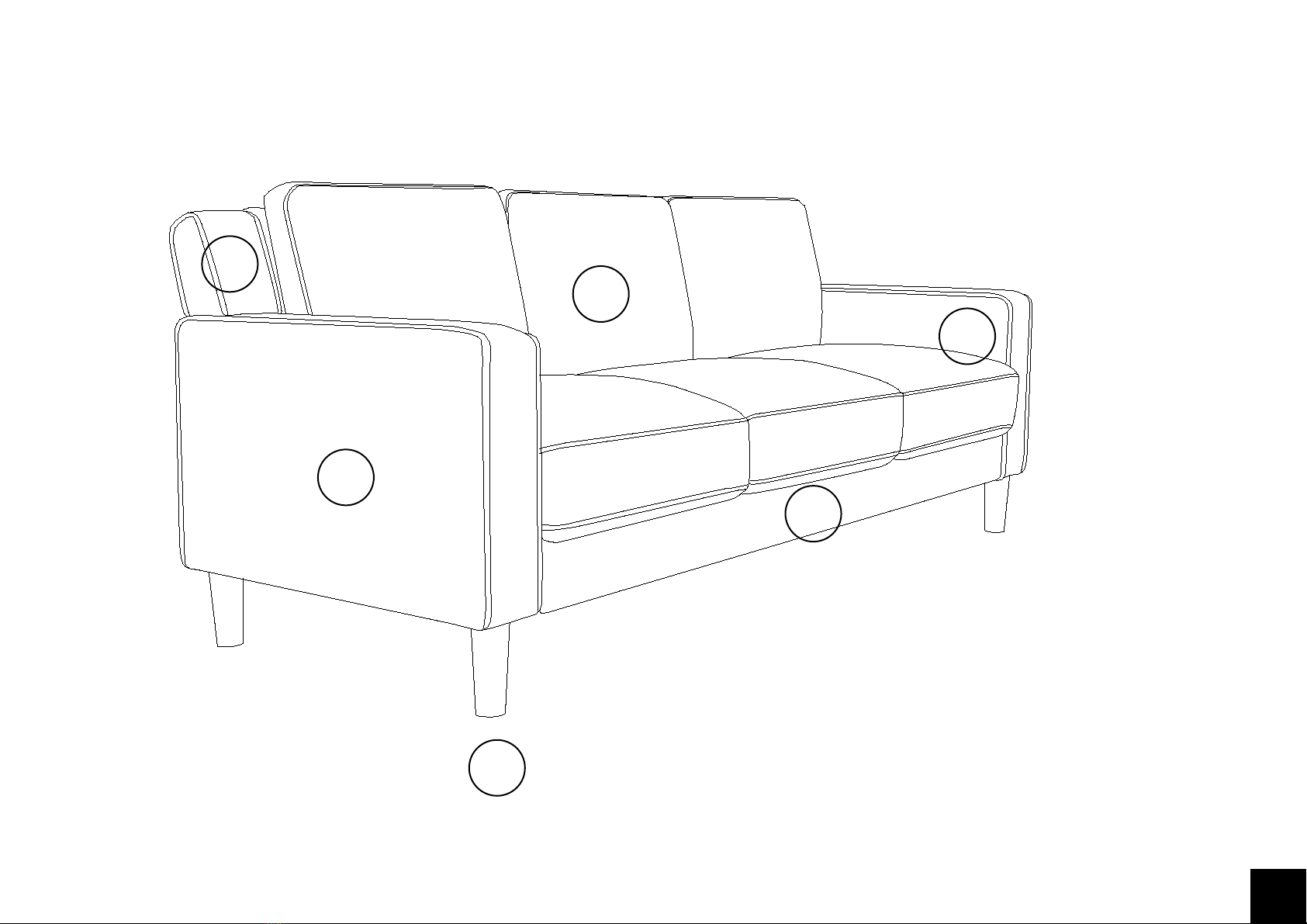

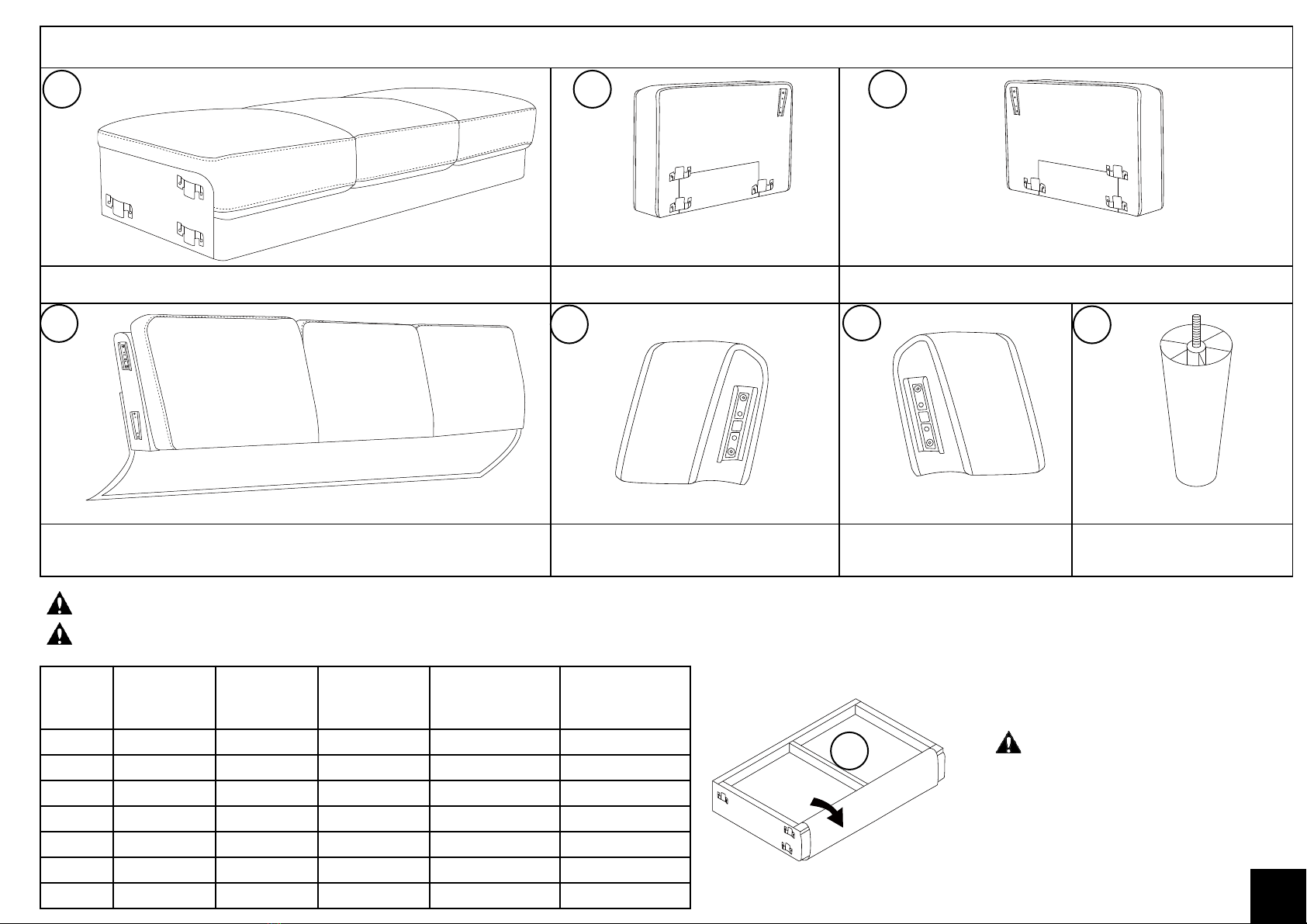

PARTS
3
A
B
C
D
E
G

Each part has aunique part number. Please reference the appropriate part number when contacting customer service for replacement parts.
Before throwing any packaging, please verify all contents and make sure you have received all the parts listedabove!
Armrest Band
Armrest Care
packed inside
Seat A.
PARTS LIST
Seat
1PC
Armrest
1PC
Armrest
1 PC
Back
1 PC
Wing
1 PC
Wing
1 PC
Leg
4 PCS
4
A B C
DEFG
A
PART
LABELS
DA20221959
(Black Velvet)
DA2021559
(Gray Velvet)
DA2021579
(Blue Velvet)
DA2021779
(Green Velvet)
DA2021979
(Camel Faux
Leather)
AT628890 T628960 T636710 T636780 T636850
BT628900 T628970 T636720 T636790 T636860
CT628910 T628980 T636730 T636800 T636870
DT628920 T628990 T636740 T636810 T636880
ET628930 T629000 T636750 T636820 T636890
FT628940 T629010 T636760 T636830 T636900
GT628950 T629020 T636770 T636840 T636910

HARDWARE LIST
Plastic Washer M10
X 4
5
Please do not completely tighten all the hardware,
until the entire assembly is complete, unless
otherwise indicated in the step-by-step instructions.
The screw(s), bolt(s) to be used at each step are
shown in actual size in the lower right corner ofthe
page.
Hardware Pack
Hardware Pack: TDA2021959-00
1

Step1
6
Carefully unpack parts/hardware from
storage of seat Aand place on a clean
flat surface.
A

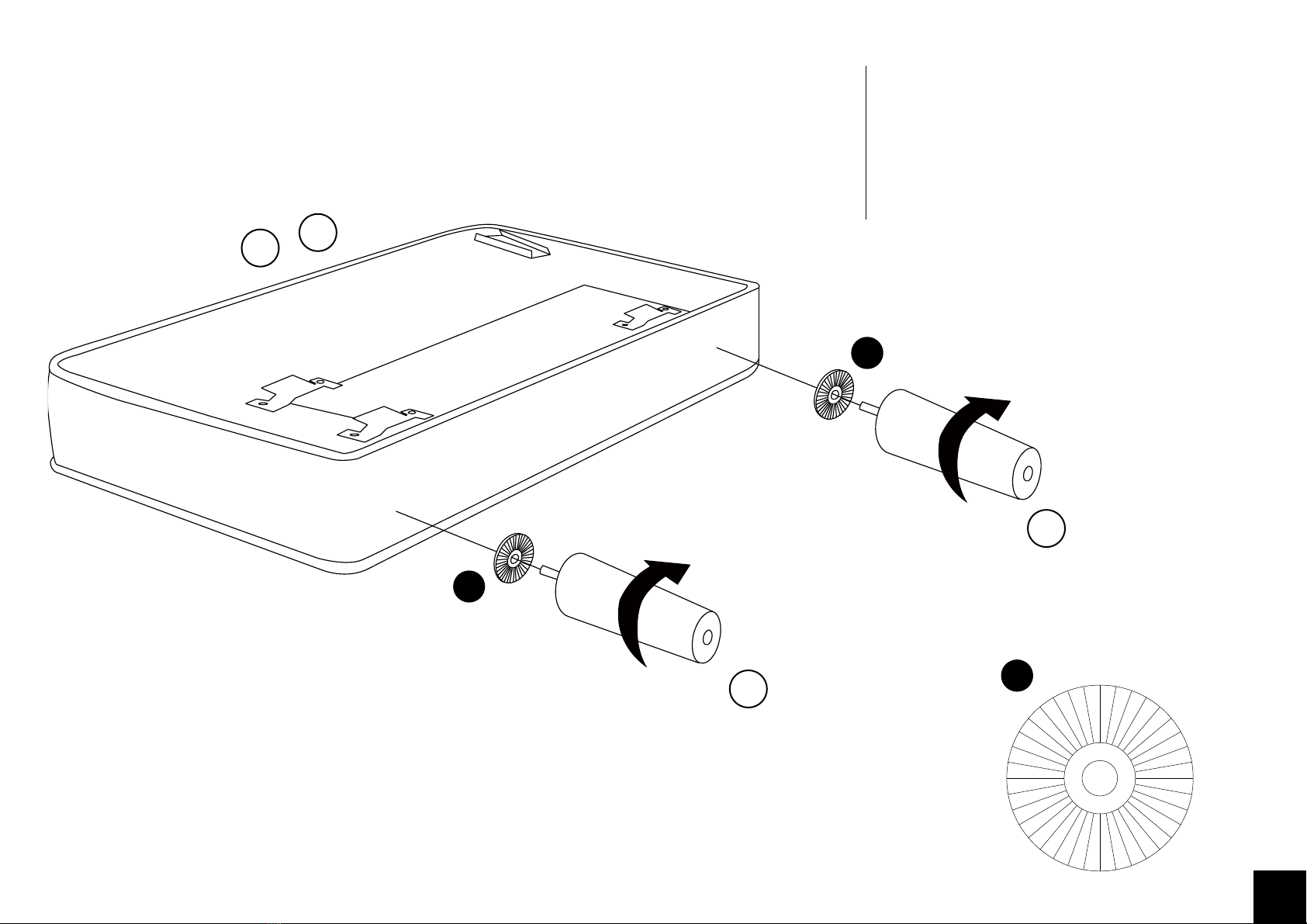

Step2
7
Place both arms B, Cas shown below,
secure two legs Gand plastic washers
❶into pre-drilled holes on the bottom of
arms. Please avoid overtightening the
legs.
G
G
BC
X 2
1
1
1

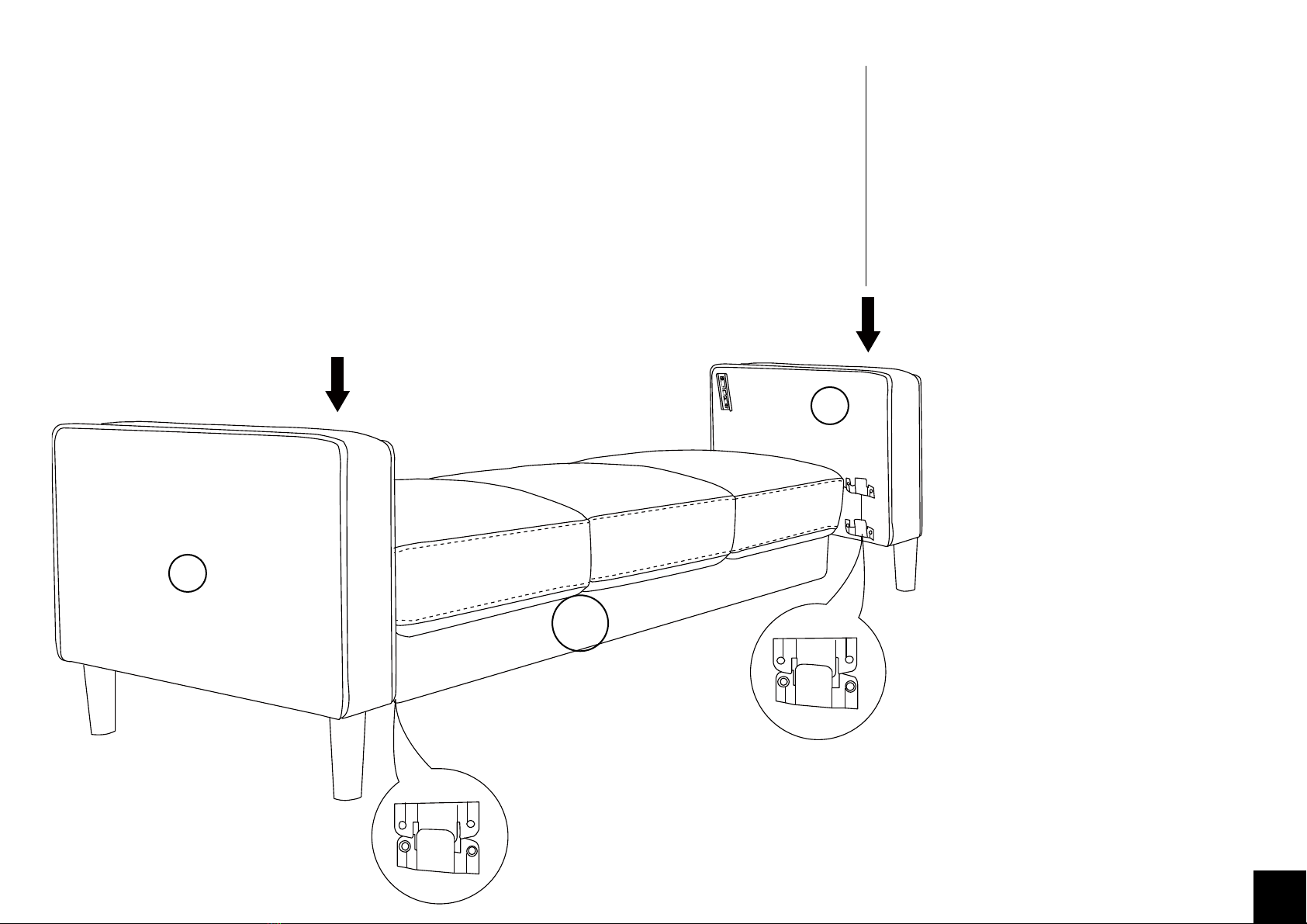

Step3
8
Carefully lift and turn assembled arms B,
Conto its legs.
Attach seat Ato right arm Band left arm
Cby inserting the metal brackets on seat
Einto the metal glides on right arm Band
left arm Cas shown below. Ensure it
placed correctly.
B
C
A

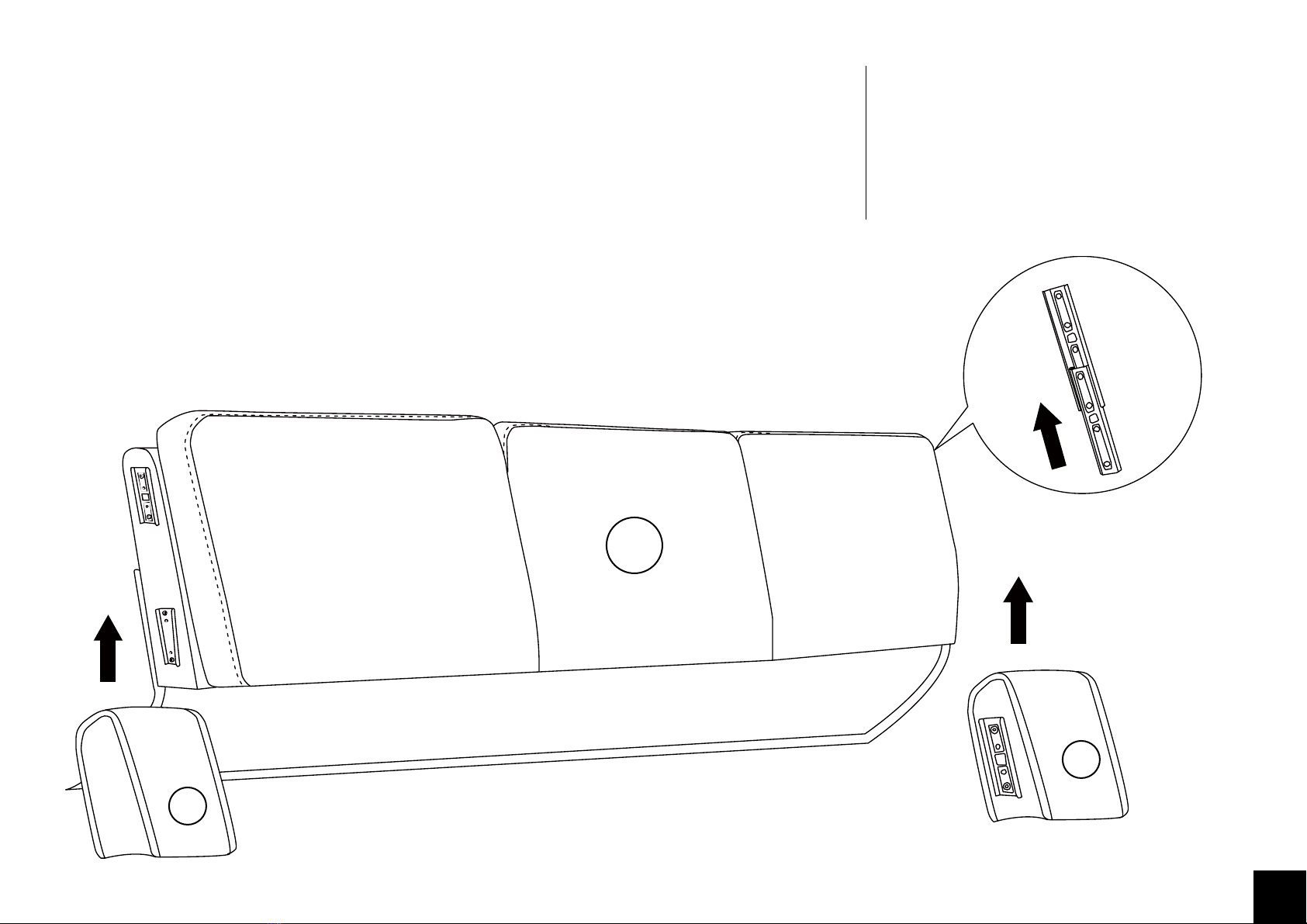

Step4
9
Insert both metal plates of backrest wings
E, Fto both sides of back D.
Ensure they are placed correctly.
E
F
D

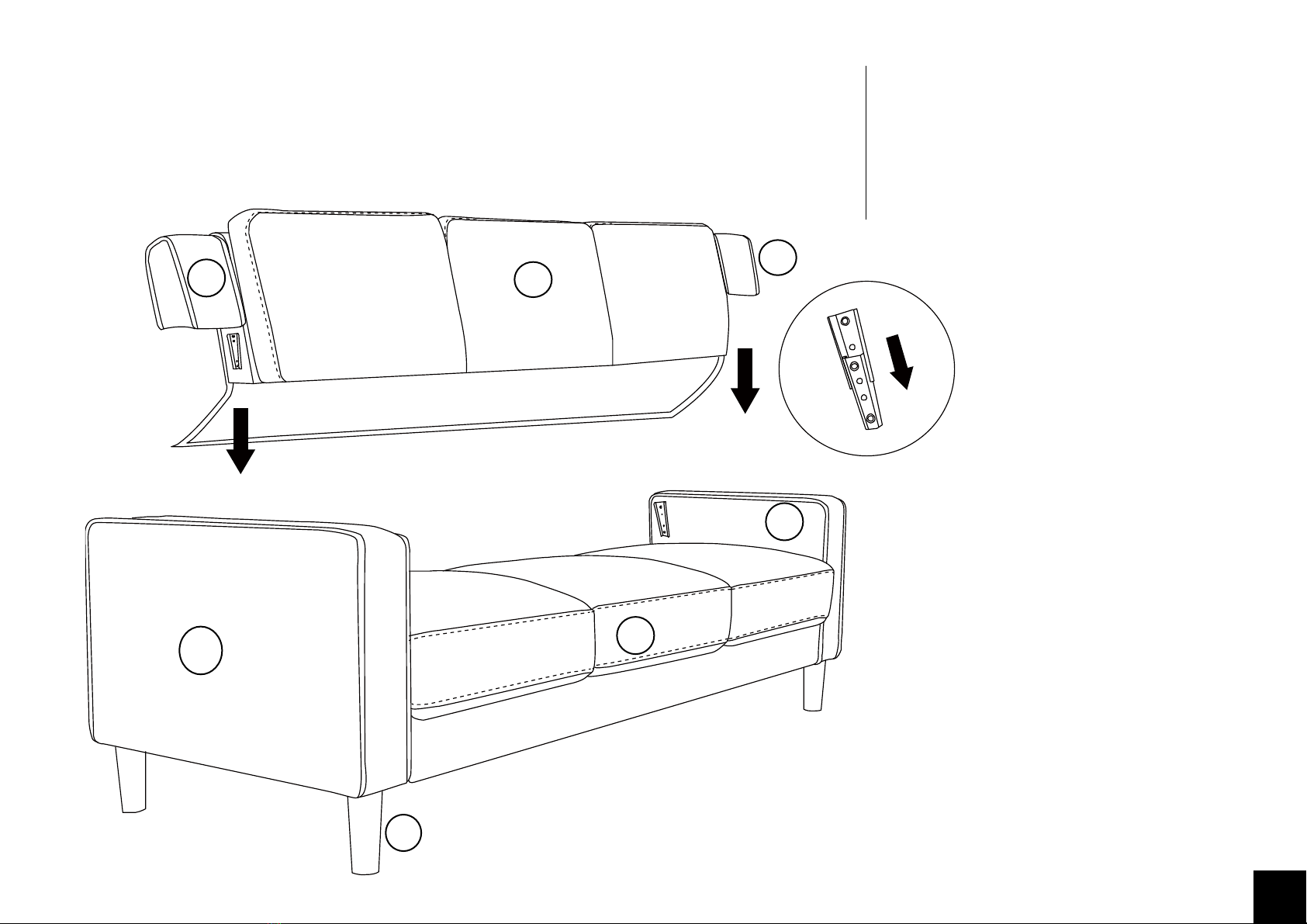

Step5
10
Insert metal plates of backrest D
preassembled with the wings Eand F to
metal glides of both arms Band Cas
show. Ensure they are placed correctly.
C
B
ED
F
A
G
