Dorel Home Products DA8050489 User manual

DA8050489 (Gray Velvet)
Date of Purchase
Power Swivel Glider Recliner with USB
Lot Number (TAKEN FROM CARTON)
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1
J.P. – 2021/08/05
©2021 Dorel Home Products All Rights Reserved
Weight Limit: 300 lb /136 kg
B34DA805048900 -210751
Questions, concerns, missing parts?
CONTACT OUR CUSTOMER SERVICE DEPARTMENT
BEFORE RETURNING PRODUCT TO THE RETAILER.
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739.
You can also chat with us at www.dhpfurniture.com
Thank you for purchasing from Dorel!

2
1-800-267-1739
Monday to Friday
Saturday
Sunday
DHP Consumer Services
12345 Albert Hudon, Suite 100,
Montreal, Quebec H1G 3L1
[e-mail]
Read Before Beginning Assembly
●Work in a spacious area and near where the unit will be used, preferably on a
carpet, or use apiece of the cardboard packaging to protect your floor and product.
●Make sure all parts are included. Most parts are labeled or stamped on the raw
edge.
●Read each step carefully. It is very important that each step of the instructions is
performed in the correct order. If these steps are not followed in sequence,
assembly difficulties will occur.
●This product may contain small components. Please ensure that they are kept
away from small children.
●This product is designed for home use and is not intended for commercial use.
Contact Us!
For help with assembly, identifying parts, product information or to order parts,
please contact us:
Limited 1year Warranty
Dorel warrants this product to be free from defects in material and workmanship
and agrees to remedy any such defect. This warranty covers one year from the
date of original purchase from authorized retailers. This is solely limited to the
repair or replacement of defective parts and assembly labor is not included.
This warranty does not apply to any product which has been improperly
assembled, subjected to misuse or abuse or which has been altered or repaired in
any way.The warranty does not cover wearing, tearing, fading or splitting of the
fabric (where applicable). Liability for consequential damages is excluded to the
extent exclusion is permitted by law. This warranty gives you specific legal rights
and you may also have other rights which vary from state to state or province to
province.
To obtain warranty service, purchaser must present original bill of sale.
Components repaired or replaced are warranted through the remainder of the
original warranty period only. The defective components will be repaired or
replaced without charge, subject to the terms and conditions described above.
Visit www.dhpfurniture.com to view the limited warranty valid in the U.S. and
Canada.
9 am to 9pm (Eastern Time)
10 am to 6:30 pm (Eastern Time)
11 am to 7pm (Eastern Time)
Do NOT use
powertools
Chat
withus! www.dhpfurniture.com

●DO NOT leave children unattended on or beside the recliner.
●DO NOT use your recliner as a step stool.
●DO NOT sit on the edge of the seat, armrests or on the backrest as this could make the recliner tip over. The power unit is intended to be correctly
orientated in a vertical or floor mount position.
●DO NOT use the unit if it is damaged or broken.
●Keep away from heat to avoid glazing, melting or scorching.
●Read all instructions before using.
●Caution: Adult assembly required.
"This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and the receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
WARNING
3
CAUTION:Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device.

PARTS
4
B
C
AD
E

PARTS LIST- BOX
BACK FRAME
X1 PCS
SEAT FRAME
X1 PCS
LEFT WING
X1 PCS
RIGHT WING
X1 PCS
PILLOW
X1 PCS
ADAPTER
X1 PCS
1.5M CORD
X1 PCS
Each part has a unique part number.
Please reference the appropriate part
number when contacting customer
service for replacement parts.
Before throwing any packaging, please
verify all contents and make sure you
have received all the parts listed above!
5
ABCD
E
PART NUMBERS
PART
LABELS
DA8050489
(Gray Velvet)
A
B
C
D
E
F
G
FG
T641960
T641970
T641980
T641990
T642000
T642010
T642020

Step 1
Attach back frame A to seat frame B by
sliding the brackets on the back frame A
on the glide of the seat frame B.
**NOTES**
Both bracket’s sides should be inserted on
the base at the same time. This step is
best performed by two people.
6
A
B
METAL BRACKET ON
BACK CUSHION A.
METAL GLIDE ON
SEAT FRAME B.

Step 2
Attach wings C & D to back frame A by
sliding the brackets of the wings C & D
on the glides of the back frame A, as
shown.
7
CD
Wings
The wings are attached behind
the seat frame B.

8

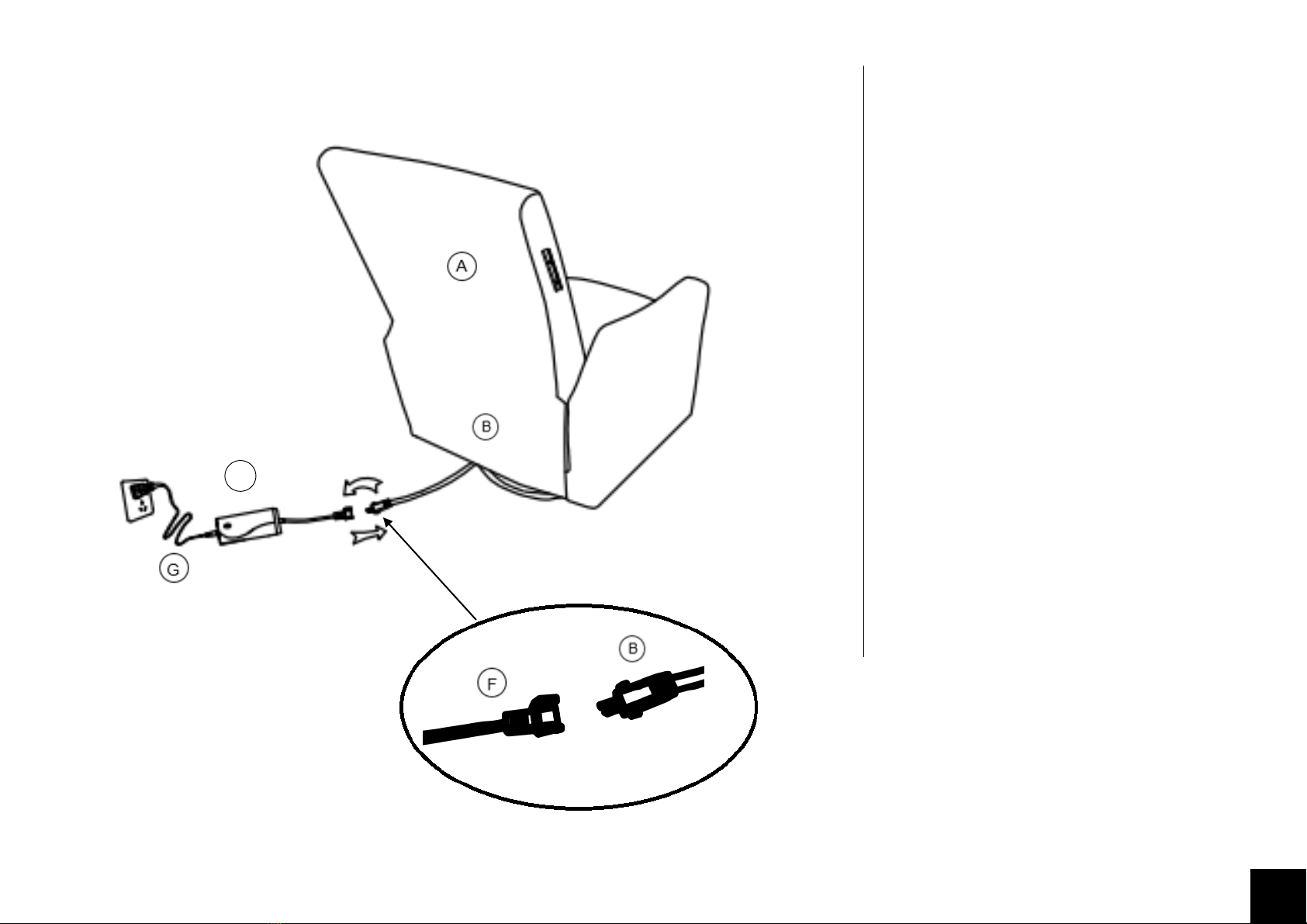

Step 3
3.1 Connect the wires of the seat frame
B to the adapter F by linking the black
connectors.
3.2 Place the flap into position using the
Velcro strips.
3.3 Plug the adapter F into an electrical
outlet.
**NOTES**
This power unit is intended to be correctly
orientated in a vertical or floor mount
position.
F

CAUTION: This unit is intended for use only with the products and/or maximum
weights indicated. Use with other products and/or products heavier than the
maximum weights indicated may result in instability or cause possible injury.
Helpful Hints
Weight Limit:
300 lb /136 kg
That's it ! You've finished assembling your Power Swivel Glider Recliner with USB!
•Move your new furniture carefully, with two
people lifting and carrying the unit to its new
location.
•Your furniture can be disassembled and
reassembled to move.
•Clean the product with a soft damp cloth. DO
NOT use harsh chemicals or abrasive cleaners.
•Some parts have been pre-assembled for this
item. They are illustrated on this page and
available for replacement.
9

ESTE INSTRUCTIVO CONTIENE INFORMACION IMPORTANTE DE
SEGURIDAD. POR FAVOR LEA YGUARDE PARA SU REFERENCIA FUTURA.
Lea antes de comenzar a ensamblar
•Llame anuestro nûmero gratuito si necesita asistencia.
•Trabaje en un area espaciosa y cerca de donde su producto sera utilizado,
preferiblemente sobre una alfombra o utilice el cartôn del empaque para
proteger su piso ysu producto.
•El número de personas recomendadas para el montaje de este
¡Gracias por tu compra Dorel!
Información sobre la garantía
Dorel garantiza que este producto está libre de defectos de material ymano de
obra yse compromete aremediar cualquier defecto de este tipo. Esta garantía
cubre 1 año a partir de la fecha de compra original. Esta garantía es válida
solamente con presentación de una prueba de compra. Esto se limita ala
reparación oreemplazo de componentes defectuosos del mueble yno se incluye
ningún trabajo de ensamblaje.
Esta garantía no se aplica aningún producto que haya sido mal ensamblado,
sujeto a mal uso oabuso, oque haya sido alterado oreparado de cualquier
manera. Cualquier uso, rotura opérdida de color de la tela no están incluidos en
esta garantía (donde corresponda). Esta garantía le da derechos legales
específicas yusted puede también tener otros derechos que varían de estado a
estado o de provincia aprovincia.
Para obtener el servicio de garantía, debe presentar la factura original de su
compra. Los componentes reparados oreemplazados están garantizados durante
el periodo original de la garantía. Las partes defectuosas serán reparadas o
reemplazadas sin cargo extra ysujetas alos términos ycondiciones descritos
anteriormente. Visite www.dhpfurniture.com para ver la garantía limitada válida
en E.U. y Canadá.
Precauciones
•Este producto está diseñado para uso doméstico yno para uso comercial.
•ADVERTENCIA PARA NIÑOS PEQUEÑOS -Este producto contiene
componentes pequeños. Por favor asegúrese de que las piezas estén fuera
del alcance de los niños.
•No utilice herramientas eléctricas para ensamblar su mueble. Este tipo de
herramientas pueden rasgar odañar las partes.
Chatea con nosotros : www.dhpfurniture.com
[e-mail]
1-800-267-1739
Lunes -Viernes /9am -9pm (hora del este)
Sábado / 10 am -6:30 pm (hora del este)
Domingo / 11 am -7 pm (hora deleste)
•DHP Servicios al Cliente
12345 Albert Hudon, Suite 100, Montreal, Quebec, Canada, H1G 3L1
•
•
•
DA8050489 (Terciopelo Gris)
Sillón reclinable giratorio eléctrico con USB
producto es: 2 (sin embargo es recomendable contar con ayuda adicional).
•Tiempo estimado de ensamble es 30 minutos.
•Asegûrese de que todas las partes estan incluidas. La mayorfa de las partes
estan etiquetadas oselladas en los bordes.
•Lea cada pasocuidadosamente. Es muy importante que cada paso de las
instrucciones sea realizado en el orden correcto. Si estos pasos no se siguen
en secuencia, pueden ocurrir dificultades durante el ensamblado.
¡Contáctenos!
Para solicitar ayuda con el ensamblaje, identificaciôn de partes, informaciôn del
producto osimplemente ordenar otras partes, dirfjase a:
Preguntas, inquietudes, partes que faltan? CONTACTE
NUESTRO DEPARTAMENTO DE SERVICIO AL CLIENTE
ANTES DE DEVOLVER EL PRODUCTO ALA TIENDA.
Si le faltan piezas o las que se incluyen están dañadas, con mucho
gusto le enviaremos sus piezas de reemplazo sin cargo extra.
Visite www.dhpfurniture.com/spa/replacement-parts ,llame gratis al
1-800-267-1739 ochatea con nosotros al www.dhpfurniture.com
ES
Fecha de compra Número de lote
