Dorel Living DA7567SEC-A User manual

Model Number: UPC Code: Color:
DA7567SEC-A 0-65857-17408-3
Gray
DA7567SECBG-A 0-65857-18147-0 Beige
Date of Purchase: _____ / _____ / _____ Lot Number:
(taken from carton)
SECTIONAL SOFA
NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
DO NOT RETURN PRODUCT TO THE STORE. If a part is missing or damaged, contact our
customer service department. We will replace the part FREE of charge.
DA7567SECBL-A 0-65857-20850-4 Blue
DA7567SECCH-A 0-65857-20851-1 Charcoal
C.L. - 2020/007/09 B34DA7567SEC-A00
Congratulations on your latest furniture purchase! Dorel Living furniture has been developed with
quality, convenience and style in mind. We trust it will provide you with many years of exceptional
comfort and service.
Before beginning assembly, we encourage you to familiarize yourself with your new furniture piece
by taking a few minutes to go through this booklet. It contains important information on our
warranty and care tips to keep your furniture looking as good as new.
Customer satisfaction is important to us at Dorel Asia. Our agents are available Monday to
Friday 9am to pm (EST), Saturday 10 am to 6:30 pm (EST), Sunday 11 am to 7 pm (EST), to
answer any question you may have. For faster service, always have the model number ready
when calling our toll free number 1-800-267-1739 or emailing us at c[email protected].
For more great furniture ideas, check out our website at www.dorelliving.com
You can also keep up to date on all the latest trends by liking our Facebook page
and Instagram page.

*
*
*
*
*
*
*
*
WARNING: Should this product become damaged, and/or
components are broken or missing, DO NOT USE.
CARE AND CLEANING
Dust regularly with a soft, dry cloth to prevent soil build up. Keep away from heat to avoid glazing,
melting or scorching. Use a professional cleaning service to clean the fabric.
MAINTENANCE
Check bolts/screws periodically and tighten them if necessary.
LIMITED WARRANTY
The cushions have been vacuum packed for transportation purposes. After unpacking,
please allow up to 72 hours so that they can return to their original shape.
NOTES
Ensure all parts and components are present before beginning assembly.
Assembly and handling will require two people.
Assemble on a soft, smooth surface to prevent damage to the product finish.
Read all instructions completely before assembly.
DO NOT use power tools.
CAUTION: Adult assembly required.
Estimated assembly time: 15 minutes.
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact our customer
service representative first!
Call us at 1-800-267-1739
You can also order parts by writing to the address listed below. Please include the
product model number, color and a detailed description of the part.
DHP Consumer Services 12345
Albert Hudon, Suite 100, Montreal,
Quebec H1G 3L1
E-Mail: [email protected]
Dorel warrants its product to be free from defects in material and workmanship and agrees to
remedy any such defect. This warranty covers 1 year from the date of original purchase from
authorized retailers. This warranty is valid only upon presentation of proof of purchase. This is
solely limited to the repair or replacement of defective furniture components and no assembly
labor is included. This warranty does not apply to any product which has been improperly
assembled, subjected to misuse or abuse or which has been altered or repaired in any way.
The warranty does not cover wearing, tearing, fading or splitting of the fabric (where applicable).
This warranty gives you specific legal rights and you may also have other rights which vary from
State to State or Province to Province.

SECTIONAL SOFA
DA7567SEC-A / DA7567SECBG-A
DA7567SECBL-A / DA7567SECCH-A
PARTS LIST
A B
CD
E F
GH
IJ
K
OTTOMAN FOOT
4 PCS
LONG SEAT CUSHION OTTOMAN
1 PC 1 PC
BACK CUSHION SUPPORT LEG
3 PCS 1 PC
1 PC 2 PCS
1 PC 1 PC
RIGHT ARM SEAT CUSHION
1 PC 1 PC
FRONT RAIL LEFT ARM
BACK SEAT PANEL

STEP 1
SECTIONAL SOFA
DA7567SEC-A / DA7567SECBG-A
Place all parts on a clean, smooth surface.

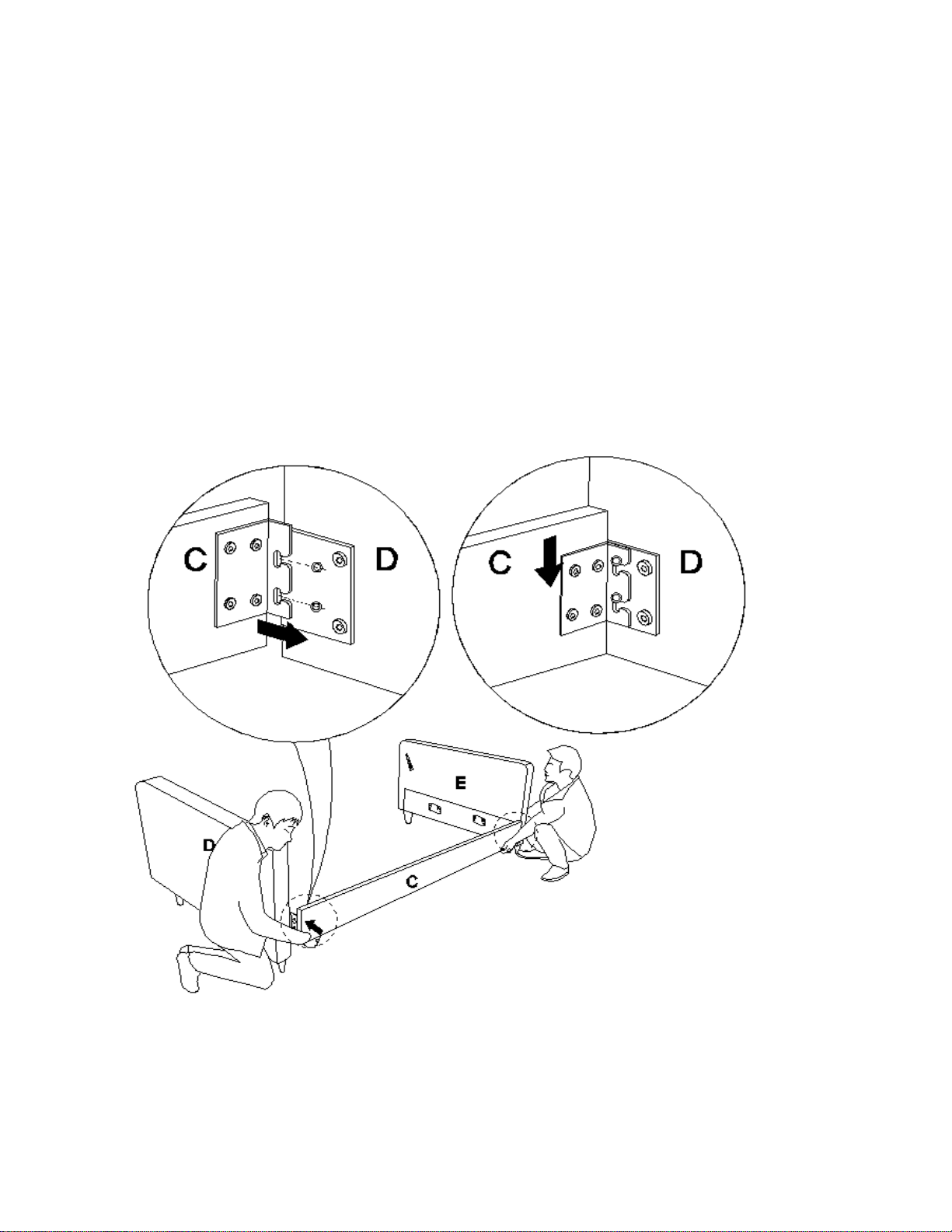

Attach front rail (C) to right arm (E) and left arm (D) by inserting the brackets on front rail
(C) into the metal plate on left and right arms (D & E) as shown below.
Push the front rail (C) with a downward force to secure it into place.
DA7567SECBL-A / DA7567SECCH-A

STEP 2
SECTIONAL SOFA

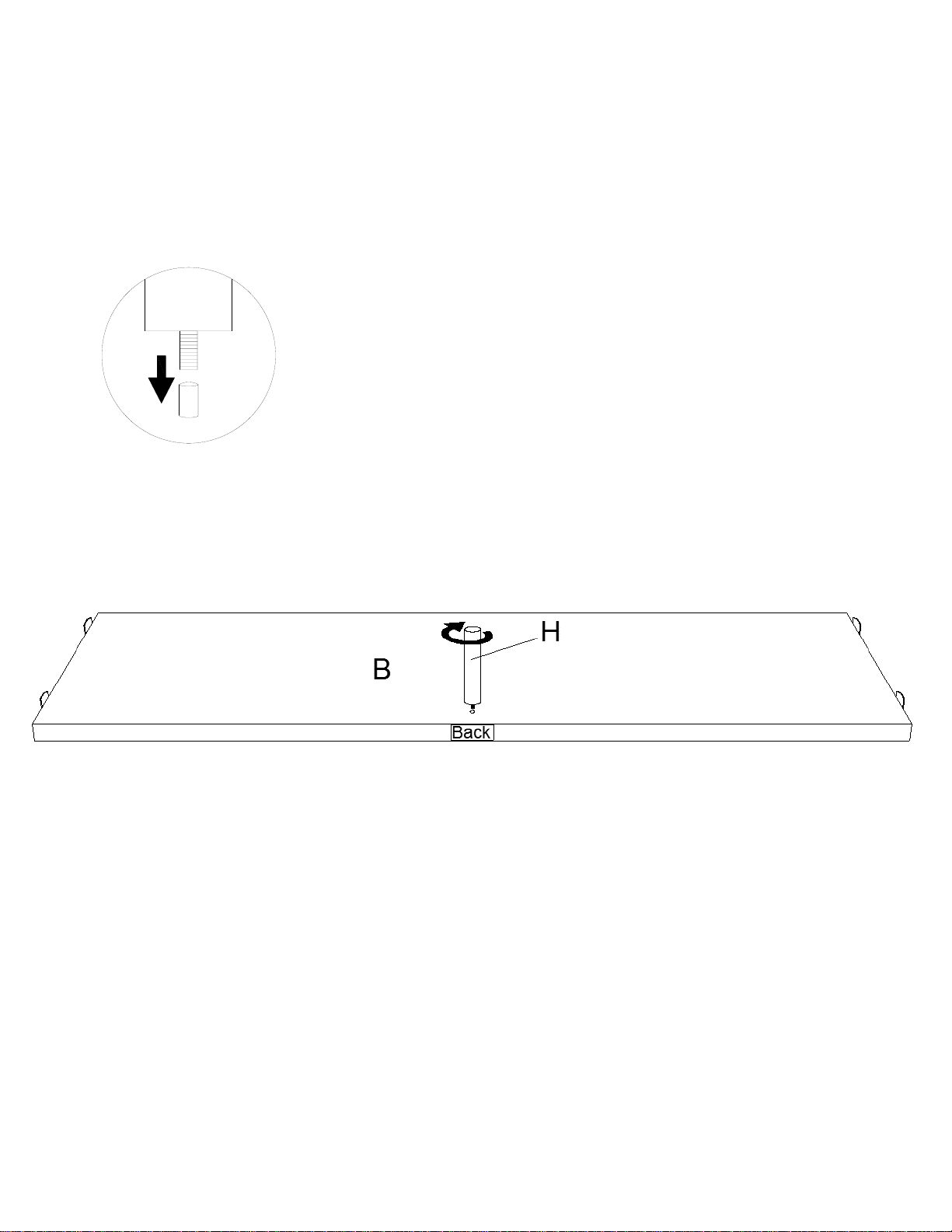

Attach support leg ( H ) to seat panel (B) by rotating clockwise.
H
NOTE: remove the protective cap on
support leg (H) before beginning assembly.
BH
Back
DA7567SEC-A / DA7567SECBG-A
DA7567SECBL-A / DA7567SECCH-A

STEP 3
SECTIONAL SOFA
Attach seat panel (B) to left arm (D) and right arm (E) by inserting the metal brackets on
seat panel (B) into the metal glides on left arm (D) and right arm (E).
Push the seat panel (B) with a downward force to secure it into place.
DA7567SEC-A / DA7567SECBG-A
DA7567SECBL-A / DA7567SECCH-A

STEP 4
SECTIONAL SOFA

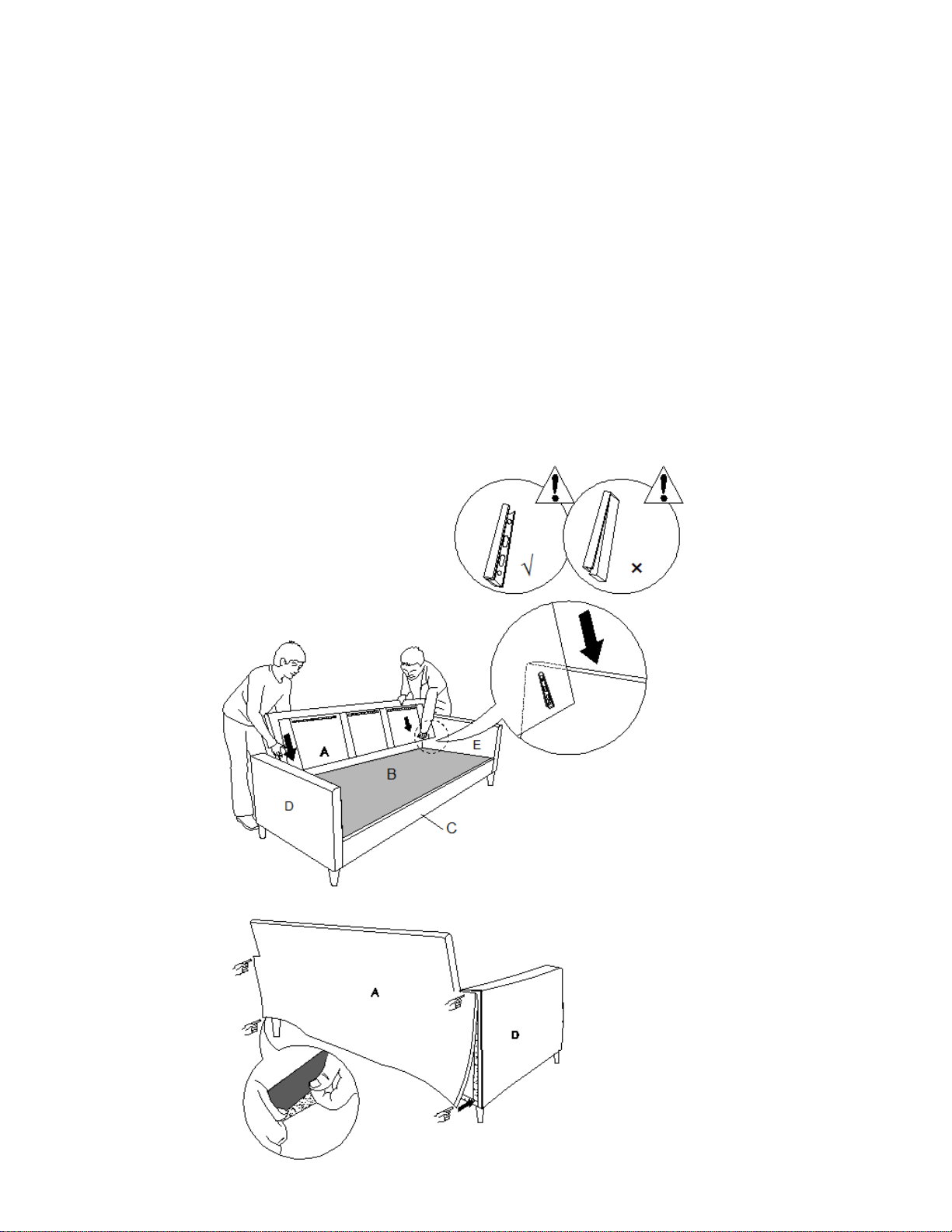

Attach sofa back (A) to left and right arms (D & E) by inserting the brackets on sofa back
(A) into the metal glides on left and right arms (D & E).
Push the sofa back (A) with a downward force to secure it into place.
Secure the fabric flap on sofa back (A) to the left and right arms using the velcro strips.
NOTE: Both sides must be
inserted at the same time. This
step is best performed with 2
people.
DA7567SEC-A / DA7567SECBG-A
DA7567SECBL-A / DA7567SECCH-A

SECTIONAL SOFA
STEP 5

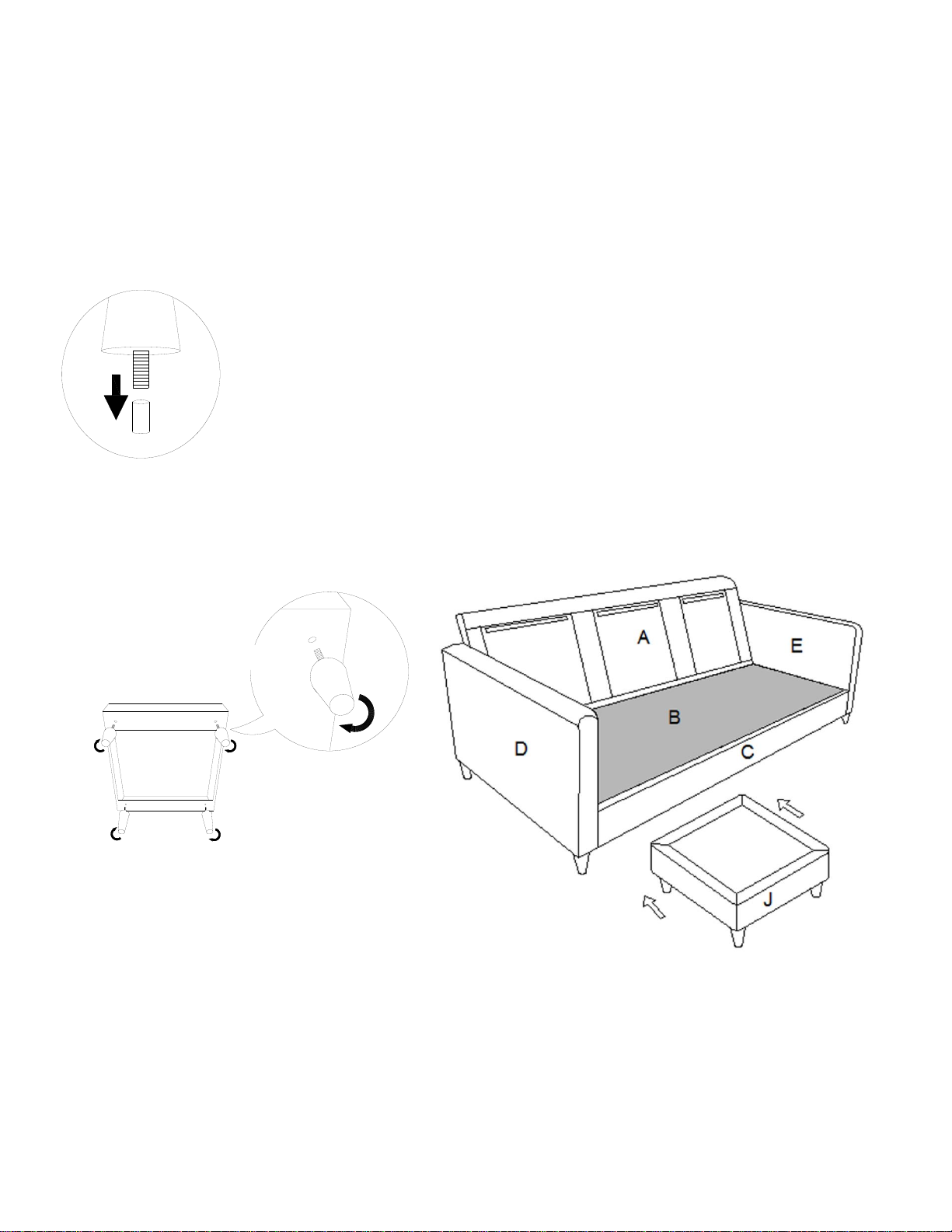

Attach foot (K) to ottoman (J) as shown below.
Turn the ottoman (J) upright and place it in front of the assembled sofa.
NOTE: remove the protective cap on foot
(K) before beginning assembly.
K
J
K
x 4
DA7567SEC-A / DA7567SECBG-A
DA7567SECBL-A / DA7567SECCH-A

SECTIONAL SOFA
STEP 6
Place the cushion (F , G & I) onto the sofa.
NOTE:The cushions have been
vacuum packed for transportation
purposes. After unpacking, please allow
up to 72 hours so that they can return
to their original shape.
DA7567SEC-A / DA7567SECBG-A
DA7567SECBL-A / DA7567SECCH-A

SECTIONAL SOFA
CAUTION: This unit is intended for use only with the
products and/or maximum weights indicated. Use with other
products and/or products heavier than the maximum weights
indicated may result in instability or cause possible injury.
Dust regularly with a soft, dry
cloth to prevent soil build up.
Keep away from heat to avoid
glazing, melting or scorching.
Use a professional cleaning
service to clean the fabric.
That's it! You've finished assembling your sofa.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service department.
We will replace the part FREE of charge.
Recommended Maximum Weight =
600 Lbs (272 Kgs)
DA7567SEC-A / DA7567SECBG-A
DA7567SECBL-A / DA7567SECCH-A
Tel #: [phone]
E-Mail: [e-mail]
