Dorel Living DL8440C-BG User manual

Model Number: UPC Code: Color:
DL8440C-BG
0-65857-19970-3 BEIGE
DL8440C-BL
0-65857-19971-0 BLUE
DL8440C-CH
0-65857-19968-0 CHARCOAL
DL8440C-PK
0-65857-19969-7 PINK
Date of Purchase: _____ / _____ / _____ Lot Number:
(located on carton)
NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
COUNTER STOOL
Congratulations on your latest furniture purchase! Dorel Living furniture has been developed
with quality, convenience and style in mind. We trust it will provide you with many years of
exceptional comfort and service.
Before beginning assembly, we encourage you to familiarize yourself with your new furniture
piece by taking a few minutes to go through this booklet. It contains important information on
our warranty and care tips to keep your furniture looking as good as new.
For more great furniture ideas, check out our website at www.dorelliving.com
You can also keep up to date on all the latest trends by liking our Facebook page
and Instagram page.
Questions, concerns, missing parts? Customer satisfaction is important to us at Dorel Asia.
CONTACT OUR CUSTOMER SERVICE DEPARTMENT BEFORE RETURNING PRODUCT
TO THE RETAILER.
Our agents are available Monday to Friday 8am to 5pm (EST) to take your call and answer
any questions. For faster service, always have the model number ready when contacting us.
toll free #: 1-800-295-1980
You can also reach us by email or by visiting our website and clicking on the Support tab:
[email protected]
www.dorelliving.com

*
*
*
*
*
*
*
1-YEAR LIMITED WARRANTY
Dorel warrants its product to be free from defects in material and workmanship and agrees to remedy
any such defect. This warranty covers 1 year from the date of original purchase from authorized
retailers. This warranty is valid only upon presentation of proof of purchase. This is solely limited to the
repair or replacement of defective furniture components and no assembly labor is included. This
warranty does not apply to any product which has been improperly assembled, subjected to misuse or
abuse or which has been altered or repaired in any way. The warranty does not cover wearing, tearing,
fading or splitting of the fabric (where applicable). This warranty gives you specific legal rights and you
may also have other rights which vary from State to State or Province to Province.
WARNING: Should this product become damaged, and/or
components are broken or missing, DO NOT USE.
CARE, CLEANING AND MAINTENANCE
Dust regularly with a soft, dry cloth to prevent soil build-up. Keep away from heat to avoid glazing,
melting or scorching. Use a professional cleaning service to clean the fabric.
Check all bolts, screws and fasteners periodically and tighten them if necessary.
NOTES AND INSTALLATION
Ensure all parts and components are present before beginning assembly.
Assemble on a clean, smooth surface to prevent damage to product finish.
DO NOT use power tools.
CAUTION: Adult assembly required.
Estimated assembly time: 30 minutes.
Assembly and handling will require two people.
A Phillips head screw driver is not included.
Montreal, Quebec
Canada, H1G 3L1
CUSTOMER SERVICE
You can also contact us by writing to the address listed below. Please include the product model
number, color and a detailed description of your enquiry.
Dorel Living - Customer Service Department
12345 Albert-Hudon Boulevard, Suite 100

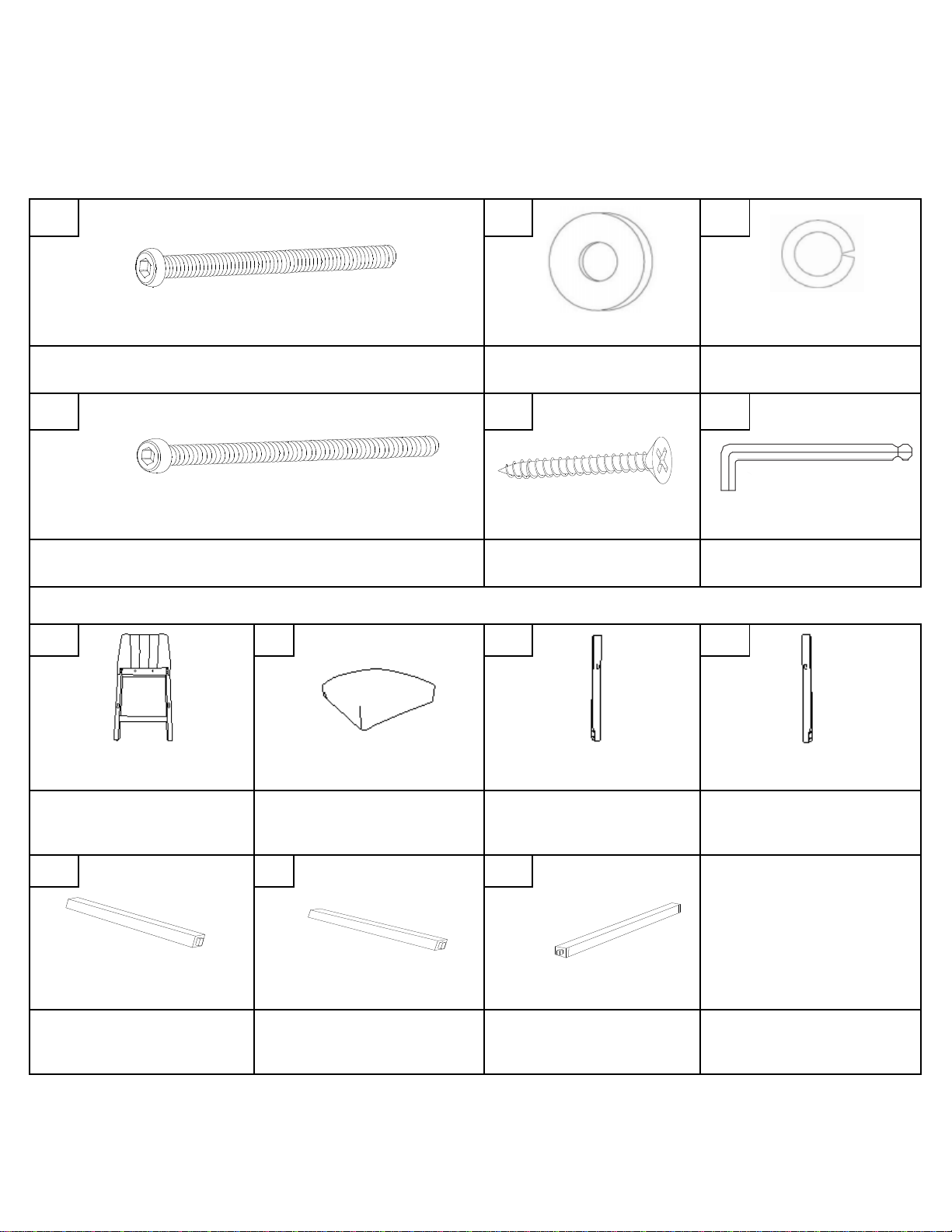

HARDWARE LIST
1 2 3
4 5 6
PARTS LIST
A B C D
BACK FRAME
E F G
FRONT STRETCHER
1 PC
LEFT STRETCHER RIGHT STRETCHER
1 PC 1 PC
1 PC1 PC 1 PC 1 PC
SEAT FRAME LEFT FRONT LEG
6 PCS
RIGHT FRONT LEG
ALLEN KEY
SPRING WASHER
6 PCS 10 PCS 10 PCS
Ø5/16" X 90mm M4 X 45mm M5 X 64mm
4 PCS 1 PC
COUNTER STOOL
DL8440C-CH / DL8440C-PK / DL8440C-BG / DL8440C-BL
Ø5/16" X 60mm Ø22 X 1.8mm Ø12.5 X 1.2mm
BOLT FLAT WASHER
BOLT SCREW
3/16 " X 1-9/16"
SCREW
4 PCS
1

COUNTER STOOL
DL8440C-CH / DL8440C-PK / DL8440C-BG / DL8440C-BL
STEP 1
Place back frame (A) on a clean, smooth surface.
Remove the fabric lining underneath seat frame (B).
Attach the seat frame (B) to back frame (A) with flat washers (2), spring washers (3) and bolts (1)
through the center of the seat frame (B).
Use Allen key (6) to tighten the bolts.
NOTE: Do not fully tighten the bolts. Leaving them loose will facilitate assembly in the following steps.
2
3
6
1
A
B

COUNTER STOOL
DL8440C-CH / DL8440C-PK / DL8440C-BG / DL8440C-BL
STEP 2
Attach seat frame (B) to back frame (A) with flat washers (2), spring washers (3) and bolts (4).
Use Allen key (6) to tighten the bolts.
NOTE: Do not fully tighten the bolts.
2
A
4
6
3
B
A

COUNTER STOOL
DL8440C-CH / DL8440C-PK / DL8440C-BG / DL8440C-BL
STEP 3
Insert left front leg (C), right front leg (D), left stretcher (E ), right stretcher (F) & front stretcher (G) into
seat frame (B) & back frame (A) as shown below.
D
A
B
C
C
D
D
F
E
G

COUNTER STOOL
DL8440C-CH / DL8440C-PK / DL8440C-BG / DL8440C-BL

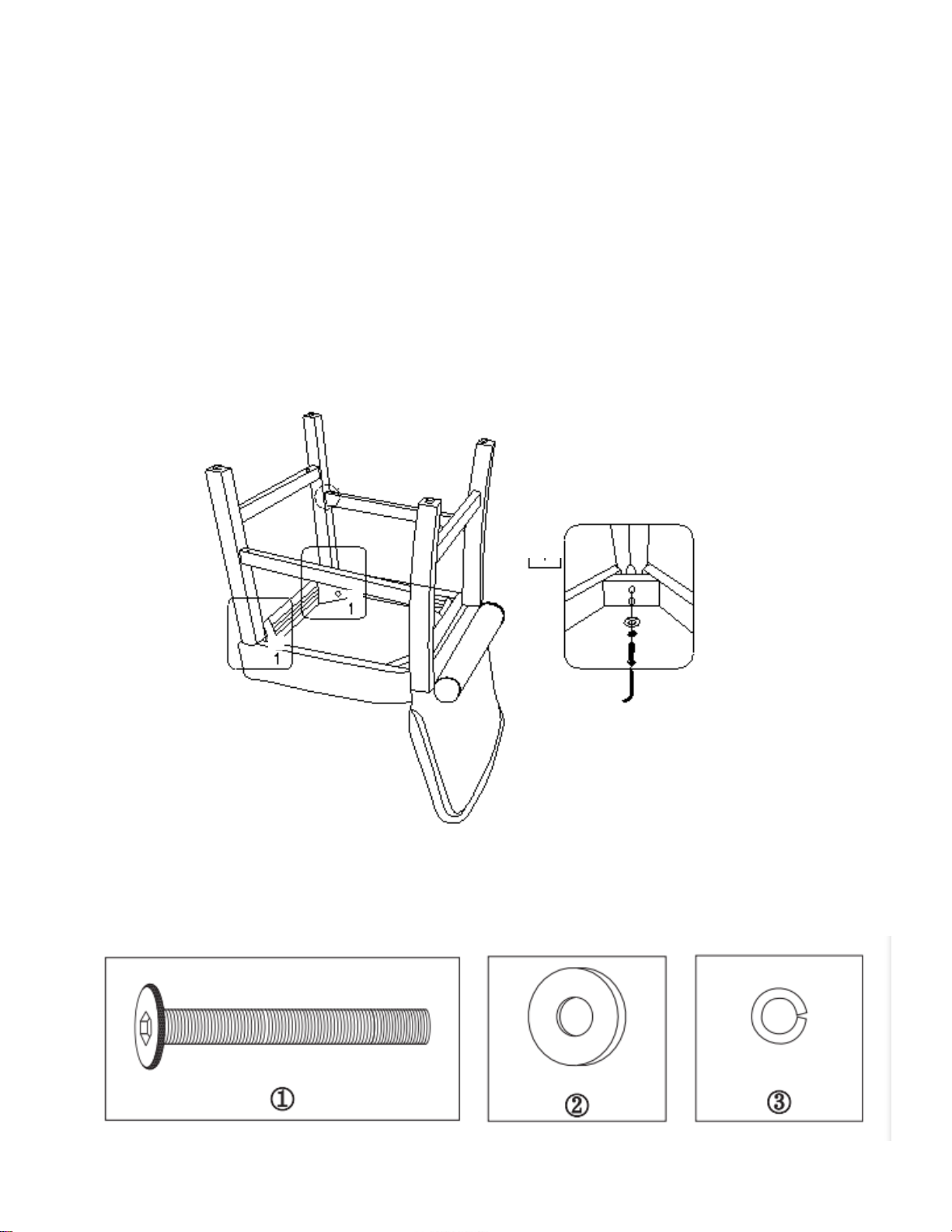

STEP 4
Attach legs (C & D) to seat frame (B) with bolts (1), flat washers (2) and spring washers (3) using
Allen key (6).
Note: Do not fully tighten the bolts. Leaving them slightly loose will facilitate assembly in the
following steps.
3
6
1
2
C
B
D

COUNTER STOOL
DL8440C-CH / DL8440C-PK / DL8440C-BG / DL8440C-BL
STEP 5
Attach stretchers (E, F, G) to legs (D, C, A) with screws (5). Use a Phillips head screwdriver (not
included) to tighten the screws.
⑤
3/16 " X 1-9/16"
SCREW
4 PCS
1

COUNTER STOOL
DL8440C-CH / DL8440C-PK / DL8440C-BG / DL8440C-BL

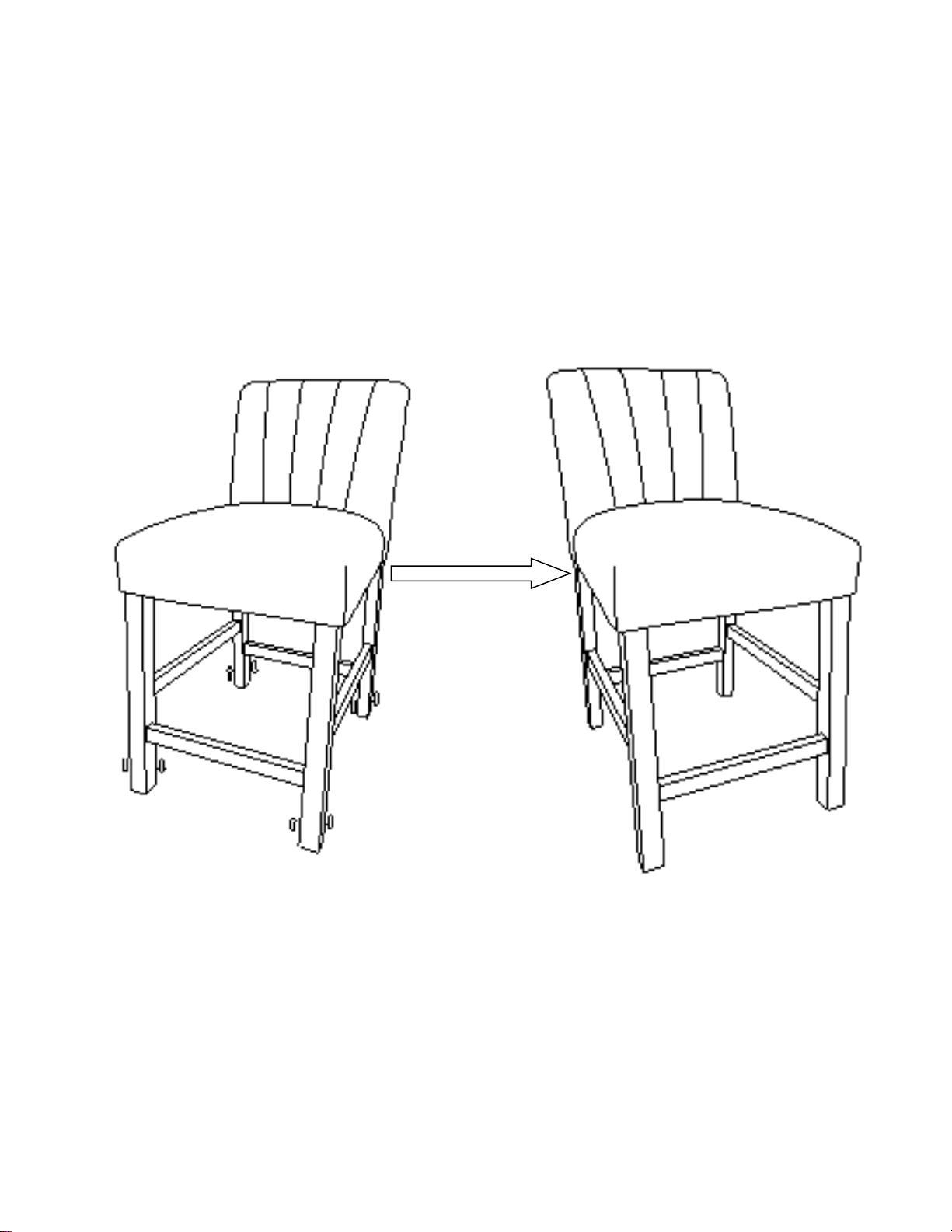

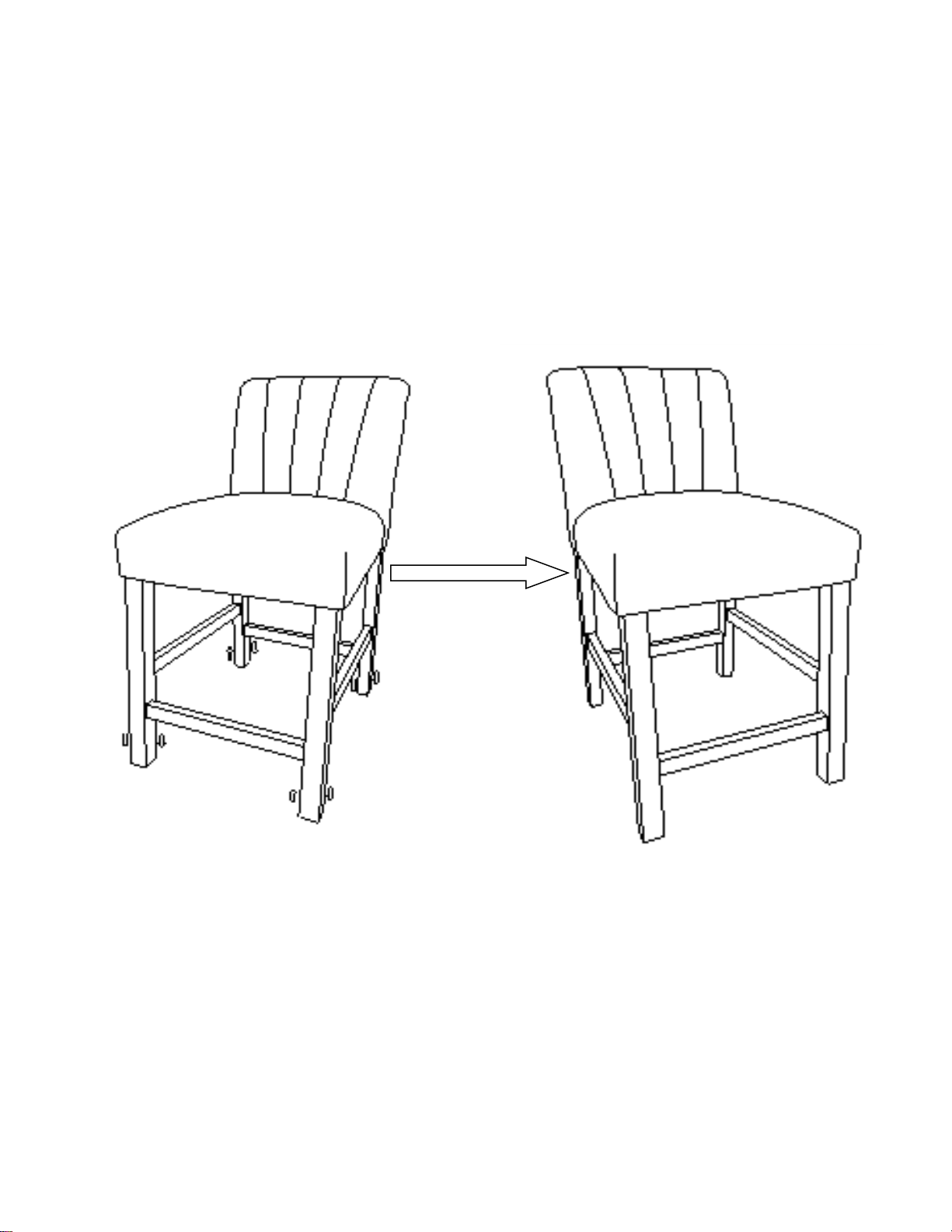

STEP 6
Turn the chair upright. Once leveled, tighten all bolts previously installed with Allen key (6) and place
the fabric lining back into place.
Note: Front legs are equipped with adjustable levelers. Before placing this item in the desired location,
make sure that the chair rests evenly on the floor by turning the adjustable levelers clockwise or
counterclockwise (as needed).

Maximum Weight = 225 lbs
COUNTER STOOL
DL8440-CH/DL8440-PK/DL8440-BG/DL8440-BL
CAUTION: This unit is intended for use only with the
products and/or maximum weights indicated. Use with other
products and/or products heavier than the maximum weights
indicated may result in instability or cause possible injury.
Dust regularly with a soft, dry
cloth to prevent soil build up.
Keep away from heat to
avoid glazing, melting or
scorching. Use a
professional cleaning service
to clean the fabric.
DO NOT RETURN PRODUCT TO THE RETAILER.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: [phone]
E-Mail: [email protected]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]
