Dorel Living DA7967-1 User manual

Model Number: UPC Code: Color:
DA7967-1
0-65857-17833-3 GRAY
DA7967-2
0-65857-17834-0 GRAY
Date of Purchase: _____ / _____ / _____ Lot Number:
(taken from carton)
DO NOT RETURN PRODUCT TO THE STORE. If a part is missing or damaged, contact our
customer service department. We will replace the part FREE of charge.
NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
TWIN OVER TWIN UPHOLSTERED BUNK BED
Congratulations on your latest furniture purchase! Dorel Living furniture has been developed with
quality, convenience and style in mind. We trust it will provide you with many years of exceptional
comfort and service.
Before beginning assembly, we encourage you to familiarize yourself with your new furniture piece by
taking a few minutes to go through this booklet. It contains important information on our warranty and
care tips to keep your furniture looking as good as new.
Customer satisfaction is important to us at Dorel Asia. Our agents are available Monday to Friday 8am
to 5pm (EST) to answer any question you may have. For faster service, always have the model number
ready when calling our toll free number 1-800-295-1980 or emailing us at [email protected] .
For more great furniture ideas, check out our website at www.dorelliving.com
You can also keep up to date on all the latest trends by liking our Facebook page.

*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
E-MAIL: [email protected]
WARNING
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact our customer service
representative first!
CALL 1-800-295-1980
You can also order parts by writing to the address listed below. Please include the product model
number, color and a detailed description of the part.
Customer Service Department No. 413
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada, H1G 3L1
USE ONLY COIL SPRING MATTRESSES ON BOTH THE UPPER AND LOWER BUNKS. FAILURE
TO DO SO CAN RESULT IN INJURY.
USE ONLY MATTRESSES WHICH ARE 74"-75" LONG AND 37 1/2" - 38 1/2" WIDE ON UPPER
AND ON LOWER BUNKS. ENSURE THICKNESS OF MATTRESS DOES NOT EXCEED 6".
SURFACE OF MATTRESS MUST BE AT LEAST 5" (127MM) BELOW THE UPPER EDGE OF
GUARDRAILS.
STRANGULATION HAZARD - NEVER ATTACH OR HANG ITEMS TO ANY PART OF THE BUNK
BED THAT ARE NOT DESIGNED FOR USE WITH THE BED; FOR EXAMPLE, BUT NOT LIMITED
TO HOOKS, BELTS AND JUMP ROPES.
ALWAYS USE THE RECOMMENDED SIZE MATTRESS OR MATTRESS SUPPORT, OR BOTH, TO
HELP PREVENT THE LIKELIHOOD OF ENTRAPMENT OR FALLS.
FOLLOW THE INFORMATION ON THE WARNINGS APPEARING ON THE UPPER BUNK END
STRUCTURE AND ON THE CARTON. DO NOT REMOVE WARNING LABEL FROM BED.
THE MATTRESS PLATFORM IS DESIGNED TO SUPPORT A MATTRESS WITHOUT THE NEED
FOR A POSTURE BOARD OR BOX SPRING.
DO NOT ALLOW CHILDREN UNDER 6 YEARS OF AGE TO USE THE UPPER BUNK.
ALWAYS USE GUARDRAILS ON BOTH LONG SIDES OF THE UPPER BUNK. IF THE BUNK BED
WILL BE PLACED NEXT TO THE WALL, THE GUARDRAIL THAT RUNS THE FULL LENGTH OF
THE BED SHOULD BE PLACED AGAINST THE WALL TO PREVENT ENTRAPMENT BETWEEN
THE BED AND WALL (APPLICABLE FOR BUNK BEDS WITH FULL LENGTH GUARDRAILS ON
ONE SIDE).
ALWAYS USE THE LADDER FOR ENTERING AND LEAVING THE UPPER BUNK.
KEEP THESE INSTRUCTIONS FOR FUTURE USE.
THE USE OF WATER OR SLEEP FLOTATION MATTRESSES IS PROHIBITED.
PROHIBIT MORE THAN ONE PERSON ON UPPER BUNK.
PERIODICALLY CHECK AND ENSURE THAT THE GUARDRAIL, LADDER AND OTHER
COMPONENTS ARE IN THEIR PROPER POSITION, FREE FROM DAMAGE, AND THAT ALL
CONNECTORS ARE TIGHT.
DO NOT ALLOW HORSEPLAY ON OR UNDER THE BED AND PROHIBIT JUMPING ON THE BED.
DO NOT USE SUBSTITUTE PARTS. CONTACT CUSTOMER SERVICE FOR REPLACEMENT
PARTS.
USE OF A NIGHT LIGHT MAY PROVIDE ADDED SAFETY PRECAUTION FOR A CHILD USING
THE UPPER BUNK.

*
*
*
*
*
*
*
*
Check bolts/screws periodically and tighten them if necessary.
A RUBBER MALLET (NOT INCLUDED) IS RECOMMENDED TO FACILITATE ASSEMBLY.
BED IS DESIGNED FOR CHILDREN RANGING FROM 6 YEARS OF AGE TO YOUNG
TEENAGERS.
NOTES
LIMITED WARRANTY
CARE AND CLEANING
Dust regularly with a soft, dry cloth. We do not recommend the use of chemical cleaners or wax on
our lacquered furniture as it may damage the finish. Keep solvents, alcohol, nail polish and polish
removers away from your hardwood furniture surfaces. Use a professional cleaning service to clean
the fabric.
DOREL warrants its product to be free from defects in material and workmanship and agrees to
remedy any such defect. This warranty covers 1 year from the date of original purchase. This
warranty is valid only upon presentation of proof of purchase. This is solely limited to the repair or
replacement of defective furniture components and no assembly labor is included. This warranty
does not apply to any product which has been improperly assembled, subjected to misuse or abuse
or which has been altered or repaired in any way. This warranty gives you specific legal rights and
you may also have other rights which vary from State to State
WARNING: Should this
product become damaged, and/or
components are broken or missing, DO
NOT USE.
READ EACH STEP CAREFULLY BEFORE STARTING. IT IS VERY IMPORTANT THAT EACH
STEP OF INSTRUCTION IS PERFORMED IN THE CORRECT ORDER. IF THESE STEPS ARE
NOT FOLLOWED IN SEQUENCE, ASSEMBLY DIFFICULTIES WILL OCCUR AND CAN RESULT IN
INJURY.
MAKE SURE ALL PARTS ARE INCLUDED. WORK IN SPACIOUS AREA, PREFERABLY ON A
SMOOTH SOFT SURFACE.
ASSEMBLY WILL REQUIRE TWO PEOPLE.
PHILLIPS SCREWDRIVER (NOT INCLUDED) IS REQUIRED.
CAUTION: ADULT ASSEMBLY REQUIRED
MOST BOARD PARTS ARE LABELED OR STAMPED ON THE RAW EDGE.
MAINTENANCE

1 2
3 4
5 6
7 8
9
FLAT HEAD WOOD SCREW
6 PCS
∅6.5mm x 100mm
DA7967-1 / DA7967-2
HARDWARE LIST
∅4mm x 30mm
TWIN OVER TWIN UPHOLSTERED BUNK BED
JOINT CONNECTOR (4mm HEX HEAD)
16 PCS
WOOD JOINT CONNECTOR (4mm HEX HEAD)
14 PCS
∅1/4" x 100mm
∅6.5mm x 48mm
∅4mm x 35mm
ALLEN KEY
1 PC
∅11.8mm x 15mm
WOOD DOWEL
30 PCS
∅10mm x 50mm
FLAT HEAD WOOD SCREW
24 PCS
WOOD DOWEL
4 PCS
∅19mm x 95mm
WOOD JOINT CONNECTOR (4mm HEX HEAD)
22 PCS
BARREL NUT
16 PCS

A B C
D E F
BOTTOM POST
2 PCS
HEADBOARD
2 PCS
BOTTOM POST
2 PCS
TWIN OVER TWIN UPHOLSTERED BUNK BED
TOP POST
2 PCS
TOP POST
1 PC
TOP POST
1 PC
PARTS LIST
DA7967-1 / DA7967-2

G H I
J K L
M N O
P Q R
S
LONG GUARDRAIL
2 PCS
SHORT GUARDRAIL
2 PCS
LADDER STEP
4 PCS
GUARDRAIL LEG
2 PCS
LONG LADDER END
1 PC
SLAT
4 PCS
SLAT
12 PCS
SHORT LADDER END
1 PC
TWIN OVER TWIN UPHOLSTERED BUNK BED
PARTS LIST
FOOTBOARD
2 PCS
TOP SIDE RAIL (WITH 3 HOLES)
1 PC
BOTTOM SIDE RAIL (WITH 2 HOLES)
1 PC
DA7967-1 / DA7967-2
TOP SIDE RAIL (WITH 1 HOLE) 1
PC
BOTTOM SIDE RAIL (WITH NO HOLES)
1 PC

TWIN OVER TWIN UPHOLSTERED BUNK BED
DA7967-1 / DA7967-2

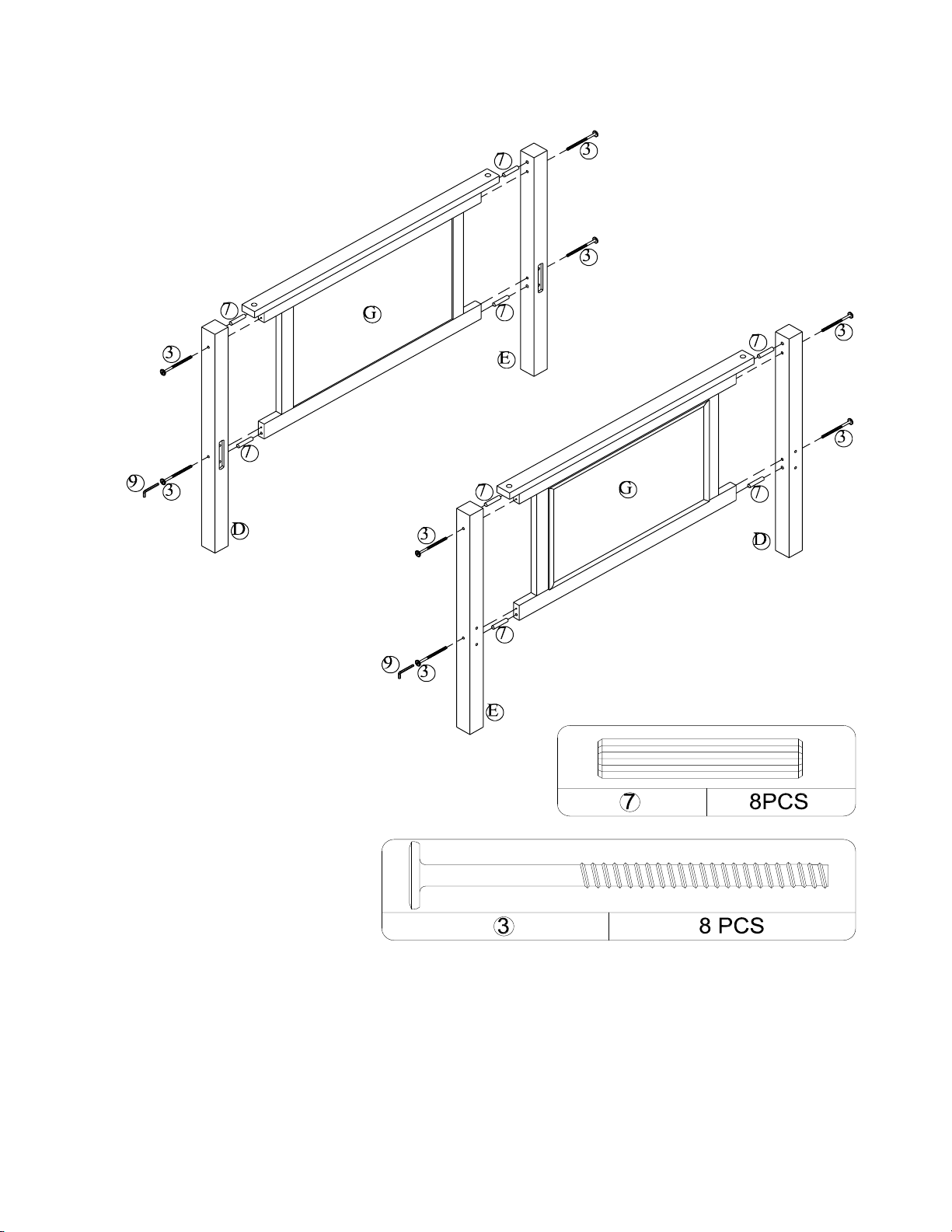

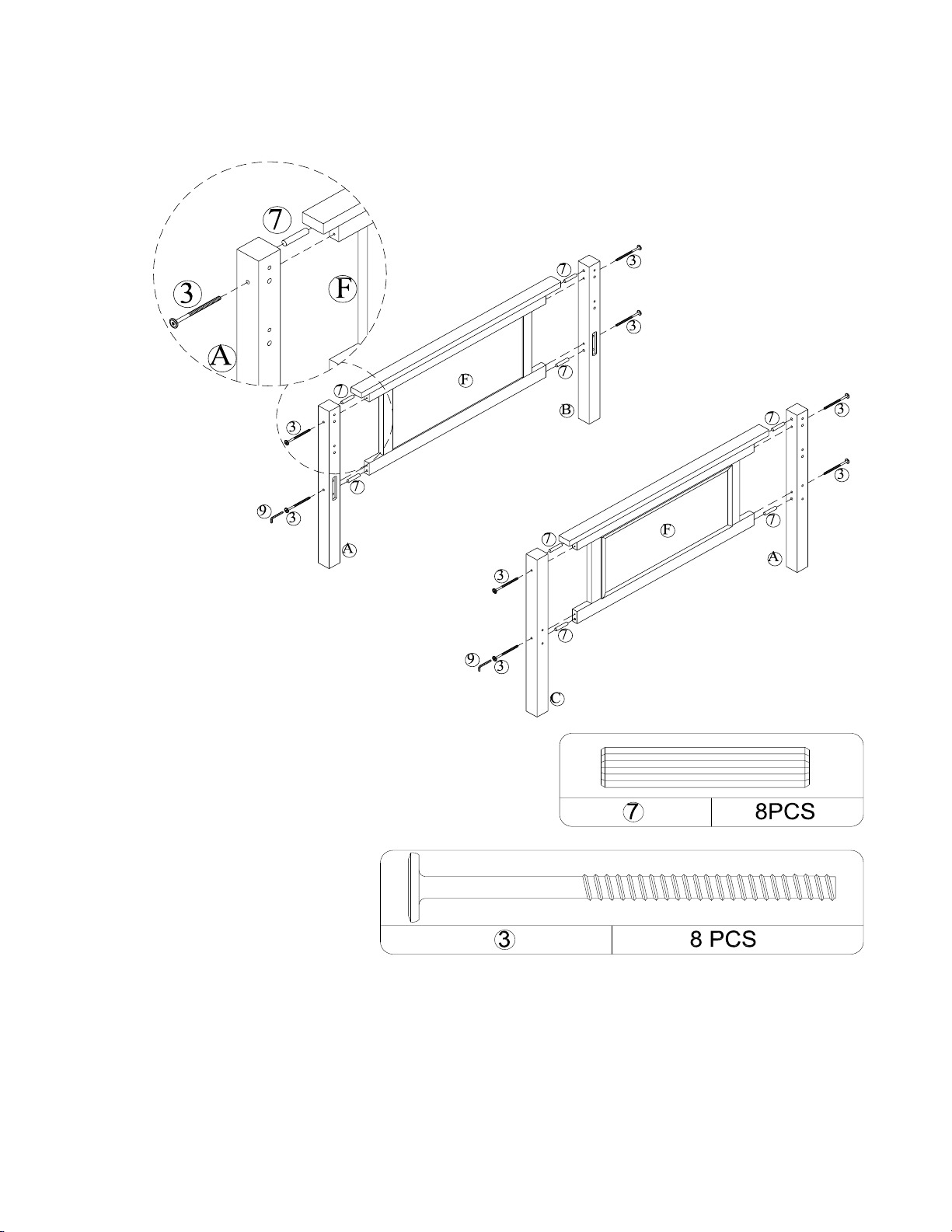

Insert wooden dowels (7) to both ends of the headboard (F)
Attach top post (A) and (B) to upper bed (F) using wood joint connector (3); attach the top
posts (C) and (A) for the last pair. Use the Allen Key (9) to tighten joint conector as shown.
STEP 1
NOTE: Be sure to use headboard (F) with label attached to it between the top posts (A) and
(C). See illustration for label orientation.

STEP 2
TWIN OVER TWIN UPHOLSTERED BUNK BED
DA7967-1 / DA7967-2
Repeat the previous step to assemble the remaining three sets of headboards. Be sure to
pair the bottom posts (D) and (E) for one pair; (E) and (D) for another. Use the Allen Key (9)
to tighten joint conector as shown.

TWIN OVER TWIN UPHOLSTERED BUNK BED
DA7967-1 / DA7967-2

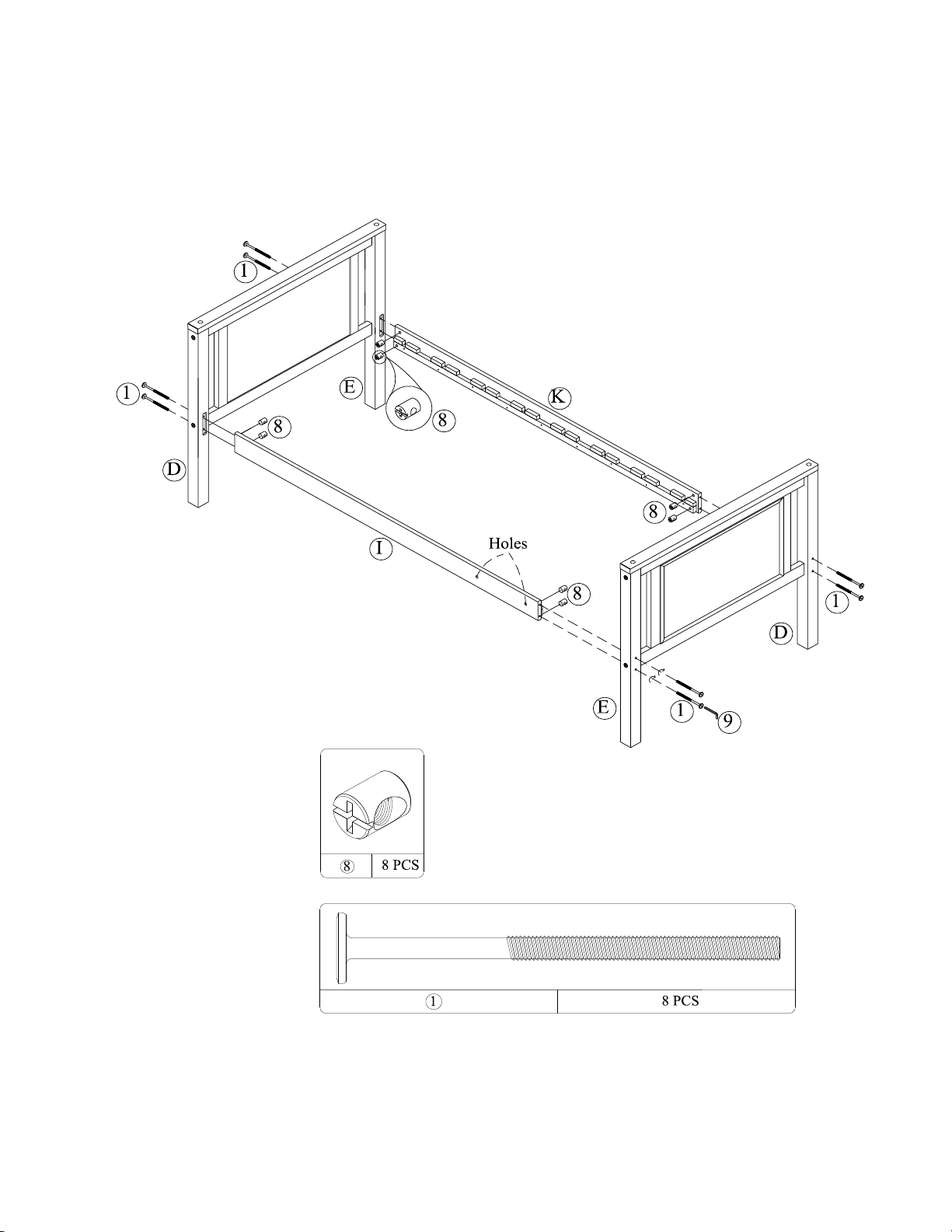

Insert the barrel nuts (8) to bottom side rails (I and K) as shown.
Attach the two headboards with bottom posts (E and D) to bottom side rails (I and K)
using joint connectors (1) and Allen Key (9).
Note: This is the lower bunk.
STEP 3
I
K
Holes
1
1
9
8
8
8
8
I
K
Holes
1
1
9
8
8
8
8

STEP 4
Insert wood dowels (7) into each end of the long guardrails (M). Attach two long guardrails
(M) and two top side rails (H and J) to top posts (A and B) & (A and C) as shown.
Fasten top side rails (H and J) with joint connectors (1) and barrel nuts (8). Fasten long
guardrails (M) with wood joint connectors (3) .
Use the Allen key (9) to tighten all joint connectors.
This is the upper bunk.
TWIN OVER TWIN UPHOLSTERED BUNK BED
DA7967-1 / DA7967-2
3
M
3
M
3
M

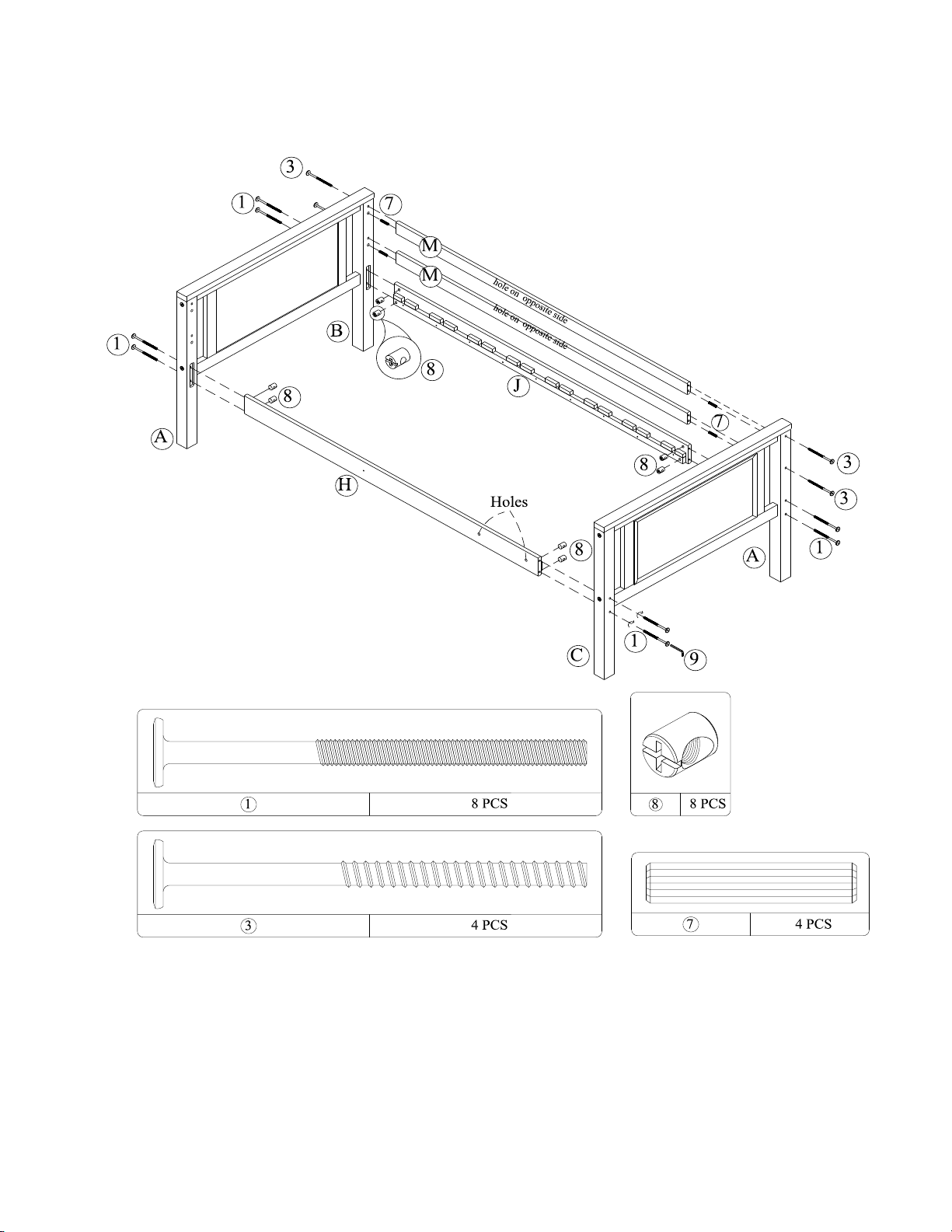

STEP 5
TWIN OVER TWIN UPHOLSTERED BUNK BED
DA7967-1 / DA7967-2

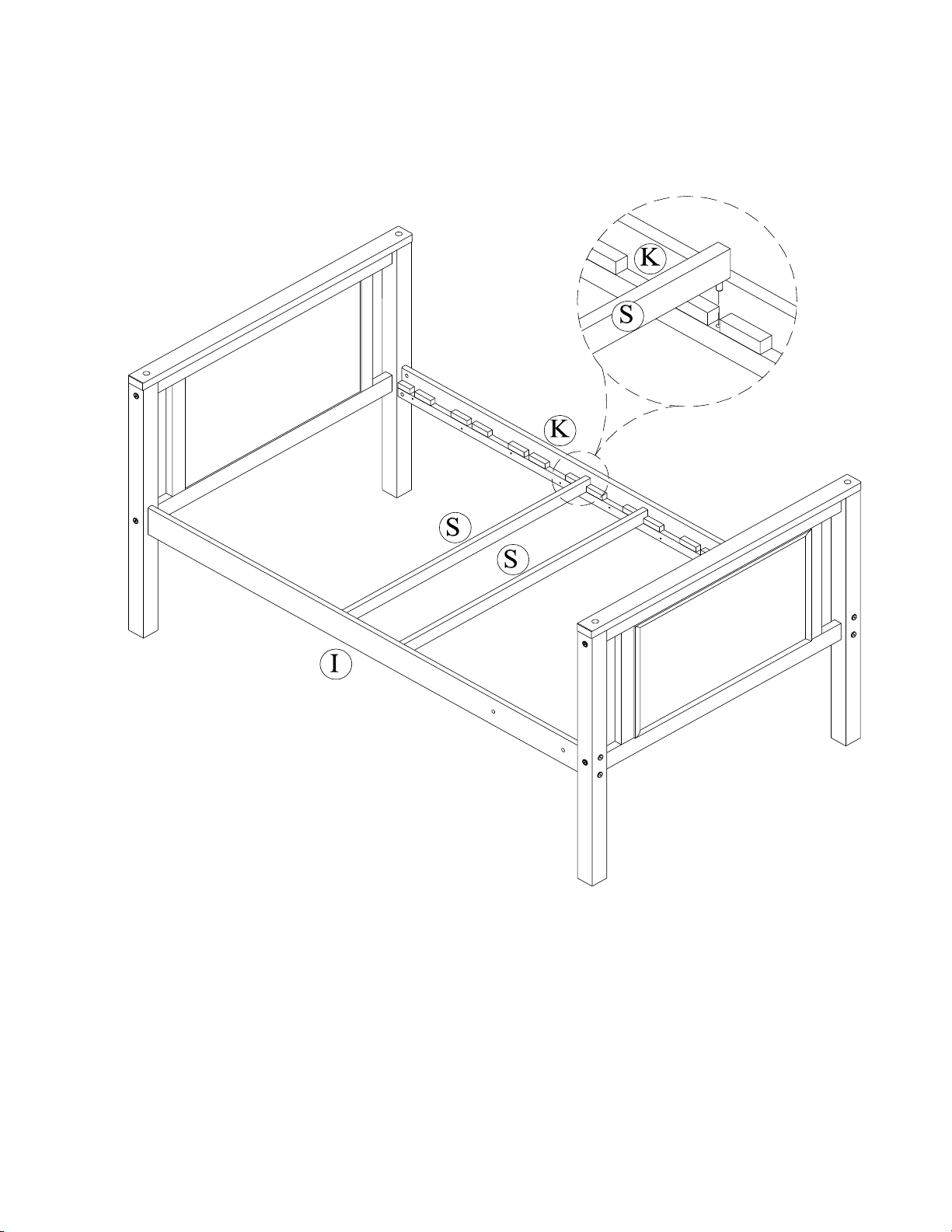

Insert two slats (S) into the center slots of the bottom side rails (I and K) of the bottom
bunk as show.
NOTE: Once inserted, there should be three empty spaces left on each side.

STEP 6
Insert slat (L) into remaining holes on the bottom side rails (I and K) on the lower bunk.
Secure salts (L) to the bottom side rails (I and K) with flat head wood screws (4) using a
phillips head screw driver (not included).
Repeat step 5 and 6 to attach slats (S and L) to the upper bunk.
NOTE:Slats (S and L) will be placed between two wooden blocks.
NOTE: If you notice that any slats (L) are not perfectly flat, be sure to assemble them so
that slats (L) curves up in the middle and down on the ends.
TWIN OVER TWIN UPHOLSTERED BUNK BED
DA7967-1 / DA7967-2

STEP 7

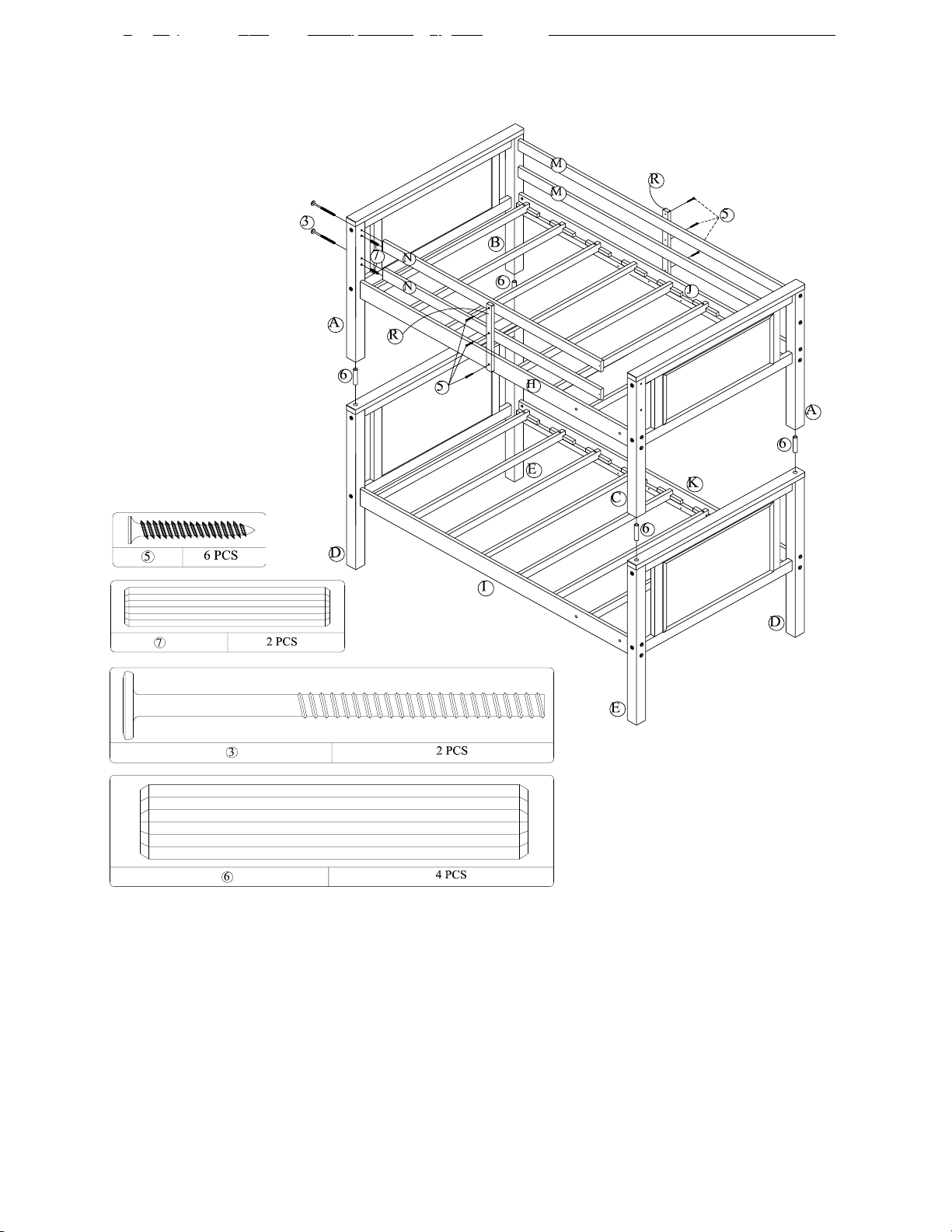

Insert wood dowels (7) in the ends of short guardrails (N). Attach short guardrails (N) to top
post (A) with wood joint connectors (3). Attach the guardrail leg (R) to the short guardrails
(N) and top side rail (H) with flat head wood screws (5). Attach another guardrail leg (R) to
long guard rails (M) and top side rail (J) with flat head wood screws (5).
Use a Phillps head screwdriver (not include) to install screws (5).
Place four wood dowels (6) into the holes in the bottom posts (D and E). Stack the top bunk
onto the bottom bunk with the help of another person.
TWIN OVER TWIN UPHOLSTERED BUNK BED
DA7967-1 / DA7967-2
5
5
7
3
R
R
N
M
K
J
I
H
C
B
A
6
6
5
5
7
3
R
R
N
M
K
J
I
H
C
B
A
6
6
5
5
7
3
R
R
N
M
K
J
I
H
C
B
A
6
6

STEP 8

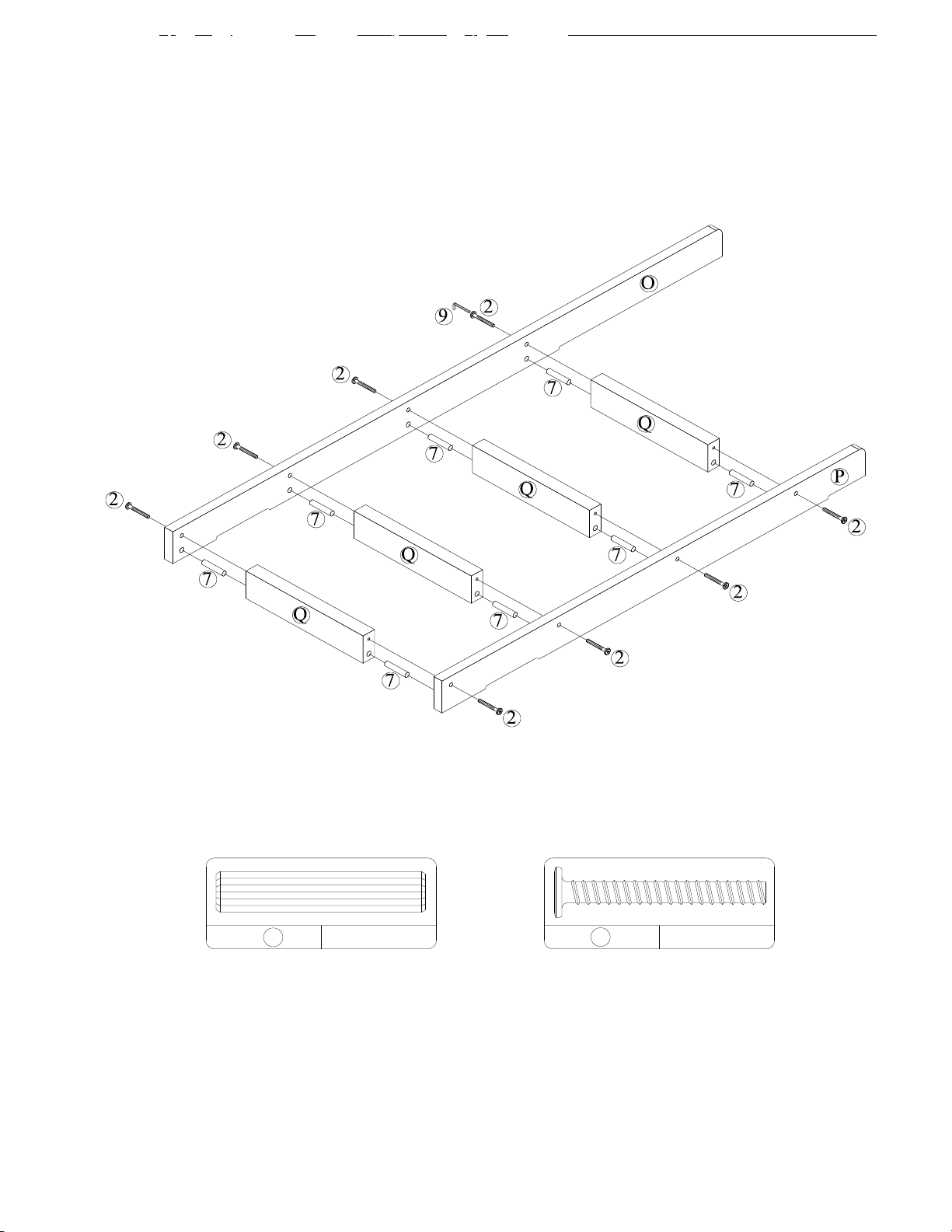

To assemble the ladder, insert wood dowels (7) into the end of the ladder steps (Q). Attach
long ladder end (O) and short ladder end (P) to ladder steps (Q) with wood joint connectors
(2) and Allen key (9).
TWIN OVER TWIN UPHOLSTERED BUNK BED
DA7967-1 / DA7967-2
8 PCS
2
78 PCS

STEP 9
Attach the ladder to the short guardrails (N), the top side rail (H) and bottom side rail (I)
with wood joint connectors (2) as shown.
NOTE: If slat (L) is covering the ladder mounting holes, remove slat (L) and replace after
the ladder is attached.
TWIN OVER TWIN UPHOLSTERED BUNK BED
DA7967-1 / DA7967-2
N
H
I
26PCS
2

2. Remove the top bunk from the lower bunk with another person.
Note: Switching the headboards will allow the two single beds to be identical (the headboards
will have taller posts and the footboards will have the shorter posts).
TWIN OVER TWIN UPHOLSTERED BUNK BED
5.Re-assemble the headboards (with tall posts) and footboards (with short posts) to side rails.
DA7967-1 / DA7967-2
3. Disassemble the side rails from all headboards (top and lower bunks).
1. Remove the ladder and all the guardrails.
4. Remove the screw on headboard posts and turn the panel showing fabric side inward, and then tighten the
screws as shown.

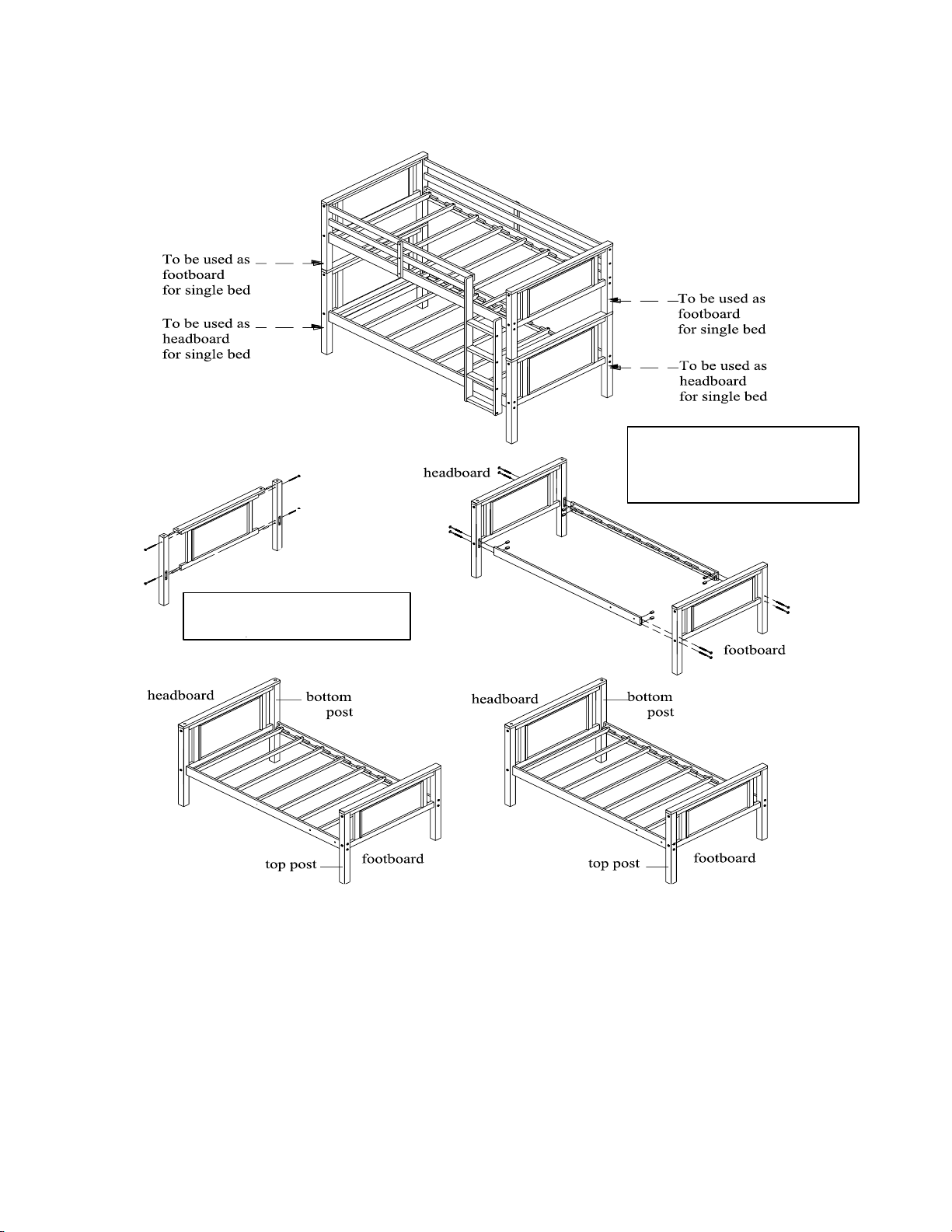

Instructions for converting the bunk bed into two single beds
Headboard panel with fabric
facing inside.
Footboard panel with fabric
facing outside.
Only Headboard panel with fabric
need to change facing inside.

That's it! You've finished assembling your bunk bed.
TWIN OVER TWIN UPHOLSTERED BUNK BED
DA7967-1 / DA7967-2
CAUTION: This unit is intended for use only with the products
and/or maximum weights indicated. Use with other products and/or
products heavier than the maximum weights indicated may result in
instability or cause possible injury.
DO NOT ALLOW HORSEPLAY ON
OR UNDER THE BED AND
PROHIBIT JUMPING ON THE BED.
DO NOT ALLOW CHILDREN UNDER 6
YEARS OF AGE TO USE THE UPPER
BUNK. BED IS DESIGNED FOR CHILDREN
RANGING FROM 6 YEARS OF AGE TO
YOUNG TEENAGERS.
USE ONLY COIL SPRING
MATTRESSES ON BOTH THE
UPPER AND LOWER BUNKS.
FAILURE TO DO SO CAN
RESULT IN INJURY.
USE ONLY MATTRESSES WHICH ARE 74"-75" LONG AND 37 1/2" - 38 1/2" WIDE ON
UPPER AND ON LOWER BUNKS. ENSURE THICKNESS OF MATTRESS DOES NOT
EXCEED 6".
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: [phone]
E-Mail: [email protected]om
Fax #: [phone]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]
MAXIMUM WEIGHT
CAPACITY: 165 LBS
(75KGS) PER LEVEL.

MODEL #: DA7967-1 / DA7967-2
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE
PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING
NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S).
Request Date:
Name:
Shipping Address:
Street & Number:
City & State:
Zip Code:
Day Time Phone Number:
(including area code)
Date & Place of Purchase:
Part(s) description and quantity: (Please be sure to list model number or SKN number)
Customer Service Representative Mailing Address:
Customer Service Department No. 413, 12345 Albert-Hudon Boulevard, Suite 100, Montreal, QC, Canada, H1G 3L1
Customer Service
Customer Service Phone Number 1-800-295-1980
Email: [email protected]
Customer Service Fax Number 514-353-7819

Modelo No: CODIGO UPC: Color:
DA7967-1
0-65857-17833-3 GRIS
DA7967-2
0-65857-17834-0 GRIS
Fecha de compra: _____ / _____ / _____ Número de lote:
(en la caja)
CAMA LITERA TAPIZADA DOBLE SOBRE
DOBLE
¡Felicitaciones por su nueva compra de un mueble! Los muebles de la línea Dorel Living han sido diseñados
con la calidad, la comodidad y el estilo en mente. Estamos seguros de que este mueble le servirá por muchos
años con su comodidad excepcional.
Le recomendamos que antes de comenzar a armarlo se familiarice con su nueva compra y tome unos minutos de
su tiempo para leer este manual. Contiene información importante sobre nuestra garantía y consejos de cuidados
para que su mueble siempre conserve su apariencia de nuevo.
Le damos mucha importancia a la satisfacción de nuestros clientes. Nuestros representantes están disponibles
de lunes a viernes de 8 h a 17 h (hora del este) para responder a todas sus preguntas. Con el fin de acelerar el
servicio, por favor tenga a mano el número de modelo cuando llame a nuestro número sin coste 1-800-295-1980
o por correo electrónico a [email protected].
Para obtener más ideas de muebles inspirantes, visite nuestro sitio web en www.dorelliving.com
También puede mantenerse informado de todas las últimas tendencias suscribiéndose a nuestra página en
Facebook.
NO DEVUELVA EL PRODUCTO A LA TIENDA. Si falta una pieza o está dañada, contacte nuestro
departamento de servicio a la clientela. Reemplazaremos la pieza SIN cargo.
NOTA: ESTE MANUAL DE INSTRUCCIONES CONTIENE INFORMACIÓN DE SEGURIDAD
IMPORTANTE. POR FAVOR, LÉALO Y CONSÉRVELO PARA CONSULTARLO EN EL FUTURO.

*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
SIEMPRE UTILICE LA ESCALERILLA PARA SUBIR A LA CUCHETA SUPERIOR O BAJAR DE ELLA.
PROHIBA QUE MÁS DE UN NIÑO SUBA A LA CUCHETA SUPERIOR.
CONSERVE ESTAS INSTRUCCIONES PARA REFERENCIA FUTURA.
SIEMPRE UTILICE LAS BARANDAS EN LOS DOS LADOS DE LA CUCHETA SUPERIOR. SI LA CUCHETA
ESTÁ COLOCADA CERCA DE UNA PARED, LA BARANDA QUE CUBRE EL LADO LARGO DE LA CUCHETA
DEBE SER COLOCADA CONTRA LA PARED PARA EVITAR QUE EL NIÑO QUEDE ATRAPADO ENTRE LA
CAMA Y LA PARED (ESTO SE APLICA A LAS CUCHETAS CON BARANDA LARGA DE UN SOLO LADO).
VERIFIQUE LA CAMA PERIÓDICAMENTE Y ASEGÚRESE DE QUE EL CUADRO, LA ESCALERILLA Y
OTROS COMPONENTES ESTÉN EN LA POSICIÓN CORRECTA, NO ESTÉN DAÑADOS Y TODAS LAS
UNIONES ESTÉN BIEN AJUSTADAS.
NO PERMITA QUE LOS NIÑOS HAGAN PAYASADAS SOBRE O DEBAJO DE LA CAMA Y PROHIBA QUE
SALTEN SOBRE ELLA.
NO UTILICE PIEZAS DE SUSTITUCIÓN. CONTACTE EL SERVICIO AL CLIENTE PARA OBTENER PIEZAS
PARA REMPLAZAR.
EL USO DE UNA VELADORA SIRVE COMO MEDIDA DE PRECAUCIÓN PARA EL NIÑO QUE UTILIZA LA
CUCHETA SUPERIOR.
SE PROHIBE EL USO DE COLCHONES DE AGUA O COLCHONETAS DE FLOTACIÓN.
LA BASE DEL COLCHÓN ESTÁ DISEÑADA PARA SOPORTAR UN COLCHÓN SIN NECESIDAD DE USAR
UNA TABLA PARA MANTENER LA POSICIÓN O UN SOPORTE CON RESORTES.
SIEMPRE UTILICE EL TAMAÑO DE COLCHÓN O DE SOPORTE DE COLCHÓN RECOMENDADO, O LOS
DOS, PARA EVITAR LA POSIBILIDAD DE CAÍDAS O QUE EL NIÑO QUEDE ATRAPADO.
UTILICE SOLAMENTE COLCHONES CON RESORTES EN ESPIRAL EN LAS DOS CUCHETAS. EL NO
RESPETAR ESTO PUEDE CAUSAR LESIONES.
UTILIZAR ÚNICAMENTE COLCHONES DE 74"-75" DE LARGO Y DE 37 1/2" - 38 1/2" DE ANCHO EN LA
LITERA SUPERIOR Y EN LA LITERA INFERIOR. ASEGÚRESE DE QUE EL ESPESOR DE LOS COLCHONES
NO SUPERE 6". LA SUPERFICIE DEL COLCHÓN DEBE QUEDAR POR LO MENOS 5" (127MM) POR
DEBAJO DEL BORDE SUPERIOR DEL MARCO DE LAS CUCHETAS.
NO PERMITA QUE NIÑOS MENORES DE 6 AÑOS DUERMAN EN LA CUCHETA SUPERIOR.
PESO MÁXIMO: 165 LBS (75 KGS) POR NIVEL.
Montreal, Quebec
Canada, H1G 3L1
CORREO ELECTRÓNICO: [email protected]
ADVERTENCIAS
PELIGRO DE ESTRANGULAMIENTO - NUNCA CUELGUE O ATE EN LA CAMA ARTÍCULOS QUE NO ESTÉN
DISEÑADOS PARA USARLOS CON LA CAMA; POR EJEMPLO, PERO NO LIMITADO A ESTO, GANCHOS,
CINTURONES Y CUERDAS DE SALTAR.
SIGA LA INFORMACIÓN DE LAS ADVERTENCIAS INSCRITAS EN LA ESTRUCTURA DE LA CUCHETA
SUPERIOR Y EN EL CARTÓN. NO RETIRE LA ETIQUETA DE ADVERTENCIAS DE LA CAMA.
SERVICIO AL CLIENTE
Si faltan piezas o si tiene alguna pregunta sobre este producto, ¡comuníquese con nuestro representante de servicio!
LLAME AL 1-800-295-1980
También puede pedir piezas escribiendo a la siguiente dirección. Por favor incluya el número de modelo, color y
una descripción detallada de la pieza.
Departamento de Servicio al Cliente No. 413
12345 Albert-Hudon Boulevard, Suite 100
