Dorel Living TWIN/FULL BUNK BED DA7499E User manual

Model Number: UPC Code: Color:
DA7499E 0-65857-17298-0 Espresso
DA7499W 0-65857-17299-7 White
DA7499G 0-65857-17755-8 Gray
Date of Purchase: _____ / _____ / _____ Lot Number:
(taken from carton)
NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Congratulations on your latest furniture purchase! Dorel Living furniture has been developed with quality,
convenience and style in mind. We trust it will provide you with many years of exceptional comfort and
service.
Before beginning assembly, we encourage you to familiarize yourself with your new furniture piece by taking
a few minutes to go through this booklet. It contains important information on our warranty and care tips to
keep your furniture looking as good as new.
Customer satisfaction is important to us at Dorel Asia. Our agents are available Monday to Friday 8am to
5pm (EST) to answer any question you may have. For faster service, always have the model number ready
when calling our toll free number 1-800-295-1980 or emailing us at [email protected] .
DO NOT RETURN PRODUCT TO THE STORE. If a part is missing or damaged, contact our
customer service department. We will replace the part FREE of charge.
TWIN/FULL BUNK BED
For more great furniture ideas, check out our website at www.dorelliving.com.
You can also keep up to date on all the latest trends by liking our Facebook page.

*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
FOLLOW THE INFORMATION ON THE WARNINGS APPEARING ON THE UPPER BUNK END
STRUCTURE AND ON THE CARTON. DO NOT REMOVE WARNING LABEL FROM BED.
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact our customer
service representative first!
CALL 1-800-295-1980
You can also order parts by writing to the address listed below. Please include the
product model number, color and a detailed description of the part.
Customer Service Department No. 413
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada, H1G 3L1
E-MAIL: [email protected]
WARNING
STRANGULATION HAZARD - NEVER ATTACH OR HANG ITEMS TO ANY PART OF THE BUNK BED
THAT ARE NOT DESIGNED FOR USE WITH THE BED; FOR EXAMPLE, BUT NOT LIMITED TO,
HOOKS, BELTS AND JUMP ROPES.
ALWAYS USE THE LADDER FOR ENTERING AND LEAVING THE UPPER BUNK.
THE MATTRESS PLATFORM IS DESIGNED TO SUPPORT A MATTRESS WITHOUT THE NEED
FOR A POSTURE BOARD OR BOX SPRING.
ALWAYS USE THE RECOMMENDED SIZE MATTRESS OR MATTRESS SUPPORT, OR BOTH, TO
HELP PREVENT THE LIKELIHOOD OF ENTRAPMENT OR FALLS.
USE ONLY COIL SPRING MATTRESSES ON BOTH THE UPPER AND LOWER BUNKS. FAILURE
TO DO SO CAN RESULT IN INJURY.
USE ONLY MATTRESSES WHICH ARE 74"-75" LONG AND 37 1/2" - 38 1/2" WIDE ON UPPER BED
AND 74"-75" LONG AND 53"-54" WIDE ON LOWER BED. ENSURE THICKNESS OF MATTRESS
DOES NOT EXCEED 6". SURFACE OF MATTRESS MUST BE AT LEAST 5" (127MM) BELOW THE
UPPER EDGE OF GUARDRAILS.
DO NOT ALLOW CHILDREN UNDER 6 YEARS OF AGE TO USE THE UPPER BUNK.
ALWAYS USE GUARDRAILS ON BOTH LONG SIDES OF THE UPPER BUNK. IF THE BUNK BED
WILL BE PLACED NEXT TO THE WALL, THE GUARDRAIL THAT RUNS THE FULL LENGTH OF THE
BED SHOULD BE PLACED AGAINST THE WALL TO PREVENT ENTRAPMENT BETWEEN THE BED
AND WALL (APPLICABLE FOR BUNK BEDS WITH FULL LENGTH GUARDRAILS ON ONE SIDE).
PERIODICALLY CHECK AND ENSURE THAT THE GUARDRAIL, LADDER AND OTHER
COMPONENTS ARE IN THEIR PROPER POSITION, FREE FROM DAMAGE, AND THAT ALL
CONNECTORS ARE TIGHT.
DO NOT ALLOW HORSEPLAY ON OR UNDER THE BED AND PROHIBIT JUMPING ON THE BED.
DO NOT USE SUBSTITUTE PARTS. CONTACT CUSTOMER SERVICE FOR REPLACEMENT
PARTS.
USE OF A NIGHT LIGHT MAY PROVIDE ADDED SAFETY PRECAUTION FOR A CHILD USING THE
UPPER BUNK.
THE USE OF WATER OR SLEEP FLOTATION MATTRESSES IS PROHIBITED.
PROHIBIT MORE THAN ONE PERSON ON UPPER BUNK.
KEEP THESE INSTRUCTIONS FOR FUTURE USE.

*
*
*
*
*
*
*
*
Check bolts/screws periodically and tighten them if necessary.
CARE AND CLEANING
NOTES
READ EACH STEP CAREFULLY BEFORE STARTING. IT IS VERY IMPORTANT THAT EACH STEP
OF INSTRUCTION IS PERFORMED IN THE CORRECT ORDER. IF THESE STEPS ARE NOT
FOLLOWED IN SEQUENCE, ASSEMBLY DIFFICULTIES WILL OCCUR AND CAN RESULT IN
INJURY.
CAUTION: ADULT ASSEMBLY REQUIRED.
MAKE SURE ALL PARTS ARE INCLUDED. WORK IN SPACIOUS AREA, PREFERABLY ON A
SMOOTH SOFT SURFACE.
ASSEMBLY WILL REQUIRE TWO PEOPLE.
MOST BOARD PARTS ARE LABELED OR STAMPED ON THE RAW EDGE.
PHILLIPS SCREWDRIVER (NOT INCLUDED) IS REQUIRED.
A RUBBER MALLET (NOT INCLUDED) IS RECOMMENDED TO FACILITATE ASSEMBLY.
BED IS DESIGNED FOR CHILDREN RANGING FROM 6 YEARS OF AGE TO YOUNG TEENAGERS.
Dust regularly with a soft, dry cloth. We do not recommend the use of chemical cleaners
or wax on our lacquered furniture as it may damage the finish. Keep solvents, alcohol,
nail polish and polish removers away from your hardwood furniture surfaces.
MAINTENANCE
LIMITED WARRANTY
Dorel warrants its product to be free from defects in material and workmanship and
agrees to remedy any such defect. This warranty covers 1 year from the date of original
purchase. This warranty is valid only upon presentation of proof of purchase. This is
solely limited to the repair or replacement of defective furniture components and no
assembly labor is included. This warranty does not apply to any product which has been
improperly assembled, subjected to misuse or abuse or which has been altered or
repaired in any way. This warranty gives you specific legal rights and you may also have
other rights which vary from State to State
WARNING: Should this product become
damaged, and/or components are broken or
missing, DO NOT USE.

1 2
3 4
5 6
7 8 9 10
11 12 13
TWIN/FULL BUNK BED
DA7499E / DA7499W / DA7499G
HARDWARELIST
JOINT CONNECTOR
(4mm HEX HEAD)
16 PCS
WOOD JOINT CONNECTOR
(4mm HEX HEAD)
8 PC
∅1/4" x 100mm
∅6.5mm x 48mm
∅6.5mm x 100mm
∅4mm x 35mm
WOOD JOINT CONNECTOR
(4mm HEX HEAD)
24 PCS
FLAT HEAD WOOD SCREW
26 PCS
∅19mm x 95mm
∅4mm x 30mm
WOOD DOWEL
4 PCS
FLAT HEAD WOOD SCREW
6 PCS
∅9mm x 17mm
∅1/4" x 32mm
∅10mm x 50mm
HEX CAP
2 PCS
HEX SOCKET HEAD BOLT
5 PCS
WOOD DOWEL
48 PCS
STOPPER
26 PCS
ALLEN KEY
1 PC
∅11.8mm x 15mm
∅4mm x 19mm
BARREL NUT
16 PCS
FLAT HEAD SCREW
2 PCS

A B C
D E F
TWIN/FULL BUNK BED
DA7499E / DA7499W / DA7499G
PARTS LIST
TOP POST
2 PCS
TOP POST
1 PC
TOP POST
1 PC
BOTTOM POST
2 PCS
BOTTOM POST
2 PCS
HEADBOARD TOP CROSS
2 PCS

G H I
J K L
M N O
P Q R
TWIN/FULL BUNK BED
DA7499E / DA7499W / DA7499G
PARTS LIST
HEADBOARD BOTTOM CROSS
2 PCS
TOP SIDE RAIL
(WITH 3 HOLES)
1 PC
TOP SIDE RAIL
(WITH 1 HOLE)
1 PC
BOTTOM SIDE RAIL
2 PCS
TOP SLAT
6 PCS
LONG GUARDRAIL
2 PCS
SHORT GUARDRAIL
2 PCS
LEFT LADDER END
1 PC
RIGHT LADDER END
1 PC
LADDER STEP
4 PCS
GUARDRAIL LEG
2 PCS
TOP HEADBOARD SLAT
10 PCS

S T U
V W X
Y Z A1
TWIN/FULL BUNK BED
DA7499E / DA7499W / DA7499G
PARTS LIST
SHORT GUARDRAIL POST
1 PC
BOTTOM HEADBOARD TOP
CROSS
2 PCS
BOTTOM HEADBOARD SLAT
16 PCS
BOTTOM HEADBOARD TOP
CROSS
2 PCS
SUPPORT POST
3 PCS
BOTTOM SLAT WITHOUT HOLE
4 PCS
BOTTOM SLAT WITH 1 HOLE
3 PCS
TOP SLAT
2 PCS
SPACE BLOCK
2 PCS

TWIN/FULL BUNK BED
DA7499E / DA7499W / DA7499G
STEP 1
One of the headboard top crosses (F) has a label on it, do not use it in this step.
Insert stoppers (10) and top headboard slats (R) into each hole of the headboard
bottom cross (G) and push with a downward force to secure them into place.
Attach the headboard top cross (F) to the top headboard slats (R). Insert wood dowels
(9) into the ends of headboard top cross (F) and headboard bottom cross (G).
Attach top posts (A & B) with wood joint connectors (3). Use Allen key (13) to tighten
the joint connectors as shown.

TWIN/FULL BUNK BED
DA7499E / DA7499W / DA7499G

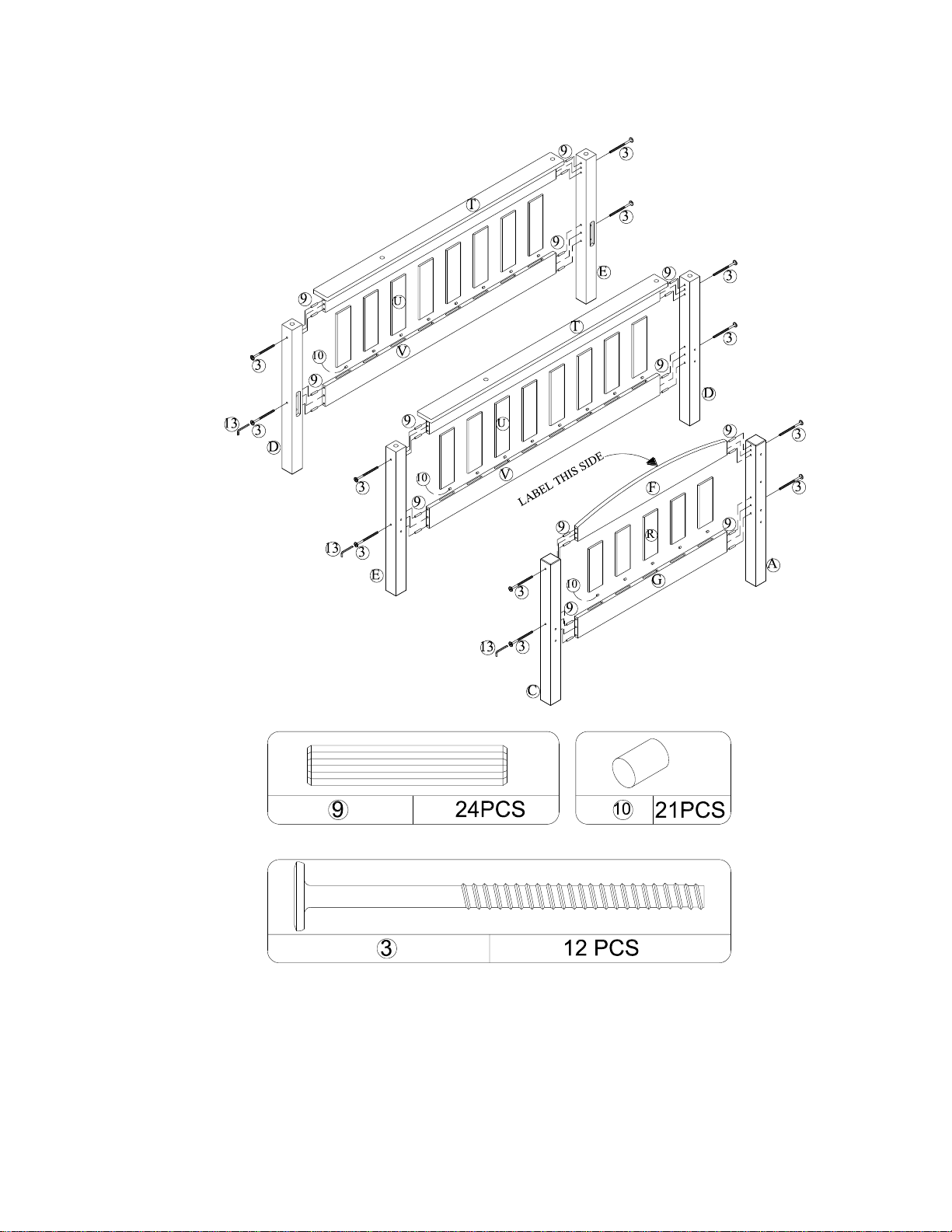

Repeat the previous step to assemble the remaining three sets of headboards. Be sure
to pair the bottom posts (D) and (E) for one pair; (E) and (D) for another; and the top
posts (C) and (A) for the last pair.
NOTE: Use headboard top cross (F) with the label attached to it between top posts (A)
and (C). See illustration for label orientation.
STEP 2

TWIN/FULL BUNK BED
DA7499E / DA7499W / DA7499G
STEP 3
Insert barrel nuts (11) into the bottom side rails (J) as shown.
Attach the two headboards with bottom posts (D & E) to bottom side rails (J) with
joint connectors (1) and Allen key (13).
Note: This is the lower bunk.

STEP 4
TWIN/FULL BUNK BED
DA7499E / DA7499W / DA7499G
Attach the support posts (W) to bottom slats (Y) of the bottom bunk with hex socket
head bolts (8) as shown.
Attach a bottom slat (X) to bottom side rails (J) with flat head wood screws (4). Make
sure the slat touches the corner posts (as close to the headboard as possible).
Attach the other slats (X & Y) to the bottom side rails (J) with flat head wood screws
(4) using a Phillips head screw driver (not included). Use space block (A1) to space
them out evenly as shown.
NOTE: If you notice that any of the slats (X & Y) are not perfectly flat, make sure to
assemble them so that the slats (X & Y) curves up in the middle and down on the
ends.
14 PCS
4
8 3 PCS

STEP 5
TWIN/FULL BUNK BED
DA7499E / DA7499W / DA7499G
Insert wood dowels (9) into each end of the long guardrails (L).
Insert barrel buts (11) into the side rails (H & I).
Attach two long guardrails (L) and two top side rails (H & I) to the top posts (A & B)
and (A & C) with wood joint connectors (1) & (3).
Use Allen key (13) to tighten all joint connectors.
This is the upper bunk.

STEP 6
TWIN/FULL BUNK BED
DA7499E / DA7499W / DA7499G
Insert the dowels (9) into each end of short guardrails (M). Attach the short guardrail
post (S) and one guardrail leg (Q) to the short guardrails (M) with wood joint
connectors (3) and flat head wood screws (6).
2

STEP 7
TWIN/FULL BUNK BED
DA7499E / DA7499W / DA7499G
Attach assembled short guardrail to the top post (A) with wood joint connectors (3), and to the
top side rail (H) with hex socket head bolts (8) and hex caps (7) as shown. Use Allen key (13) to
tighten the hex caps (7).
Attach a top slat (K) into the top side rails (H & I) of the top bunk with flat head wood screws (4).
Make sure the slat touches the corner posts (as close to the headboard as possible). Attach the
other slats (K) into the top side rails (H & I) with flat head wood screws (4) and place the slats (Z)
into the top side rails (H & I) as shown.
NOTE: Slats (K & Z) must be attached so that they curve up in the middle and down on the ends.
2

STEP 8
TWIN/FULL BUNK BED
DA7499E / DA7499W / DA7499G
Place four wood dowels (5) into the holes in the bottom headboard top crosses (T).
With the help of another person, stack the top bunk onto the bottom bunk.
Attach the other guardrail leg (Q) to long guardrails (L) and top side rail (I) with flat
head wood screws (6).
Secure the guardrail leg (Q) (done in step 6) to the top side rail (H) with flat head
wood screw (6) as shown.

STEP 9
TWIN/FULL BUNK BED
DA7499E / DA7499W / DA7499G
Insert wood dowels (9) into the ends of the ladder steps (P).
Attach left ladder end (N) and right ladder end (O) to ladder steps (P) with wood joint
connectors (2). Use Allen key (13) to tighten the joint connectors as shown.

STEP 10
TWIN/FULL BUNK BED
DA7499E / DA7499W / DA7499G
Attach the ladder to the top side rail (H) with flat head screw (12) as shown.

TWIN/FULL BUNK BED
DA7499E / DA7499W / DA7499G
Instructions for converting the bunk bed into two single beds
Remove the ladder and all the guardrails.
CONVERTING THE BUNK BED INTO A FULL BED AND A TWIN BED
With the help of another person, detach the top bunk from the lower bunk and
remove the wood dowels from the posts.

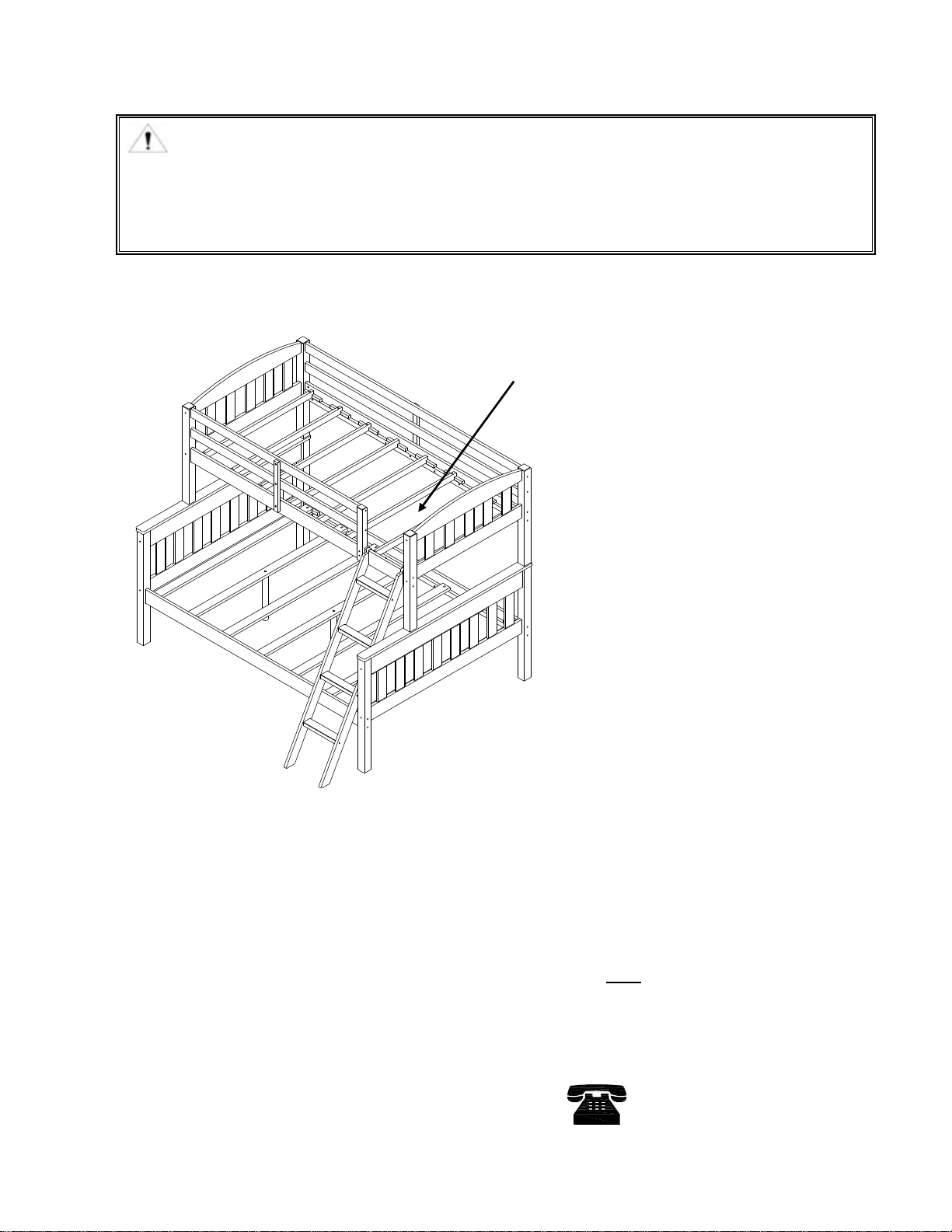

That's it! You've finished assembling your bunk bed.
TWIN/FULL BUNK BED
DA7499E / DA7499W / DA7499G
CAUTION: This unit is intended for use only with the products
and/or maximum weights indicated. Use with other products
and/or products heavier than the maximum weights indicated may
result in instability or cause possible injury.
DO NOT ALLOW HORSEPLAY ON
OR UNDER THE BED AND PROHIBIT
JUMPING ON THE BED.
DO NOT ALLOW CHILDREN UNDER 6
YEARS OF AGE TO USE THE UPPER BUNK.
BED IS DESIGNED FOR CHILDREN
RANGING FROM 6 YEARS OF AGE TO
YOUNG TEENAGERS.
USE ONLY COIL SPRING
MATTRESSES ON BOTH THE
UPPER AND LOWER BUNKS.
FAILURE TO DO SO CAN
RESULT IN INJURY.
USE ONLY MATTRESSES WHICH ARE 74"-75" LONG AND 37 1/2" - 38 1/2" WIDE ON
UPPER BED AND AT LEAST 74"-75" LONG AND 53"-54" WIDE ON LOWER BED. ENSURE
THICKNESS OF MATTRESS DOES NOT EXCEED 6".
DO NOT RETURN PRODUCT TO THE
STORE.
If a part is missing or damaged, contact our
customer service department. We will replace
the part FREE of charge.
Tel #: [phone]
E-Mail: [e-mail]
Fax #: [phone]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]

MODEL #: DA7499E / DA7499W / DA7499G
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE
PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING
NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S).
Request Date:
Name:
Shipping Address:
Street & Number:
City & State:
Zip Code:
Day Time Phone Number:
(including area code)
Date & Place of Purchase:
Part(s) description and quantity: (Please be sure to list model number or SKN number)
Customer Service Department No. 413, 12345 Albert-Hudon Boulevard, Suite 100, Montreal, QC, Canada, H1G 3L1
Customer Service
Customer Service Phone Number 1-800-295-1980
Email: d[email protected]
Customer Service Fax Number 514-353-7819
Customer Service Representative Mailing Address:
