Dorel DA7319-7BLS User manual

Model No:
UPC CODE:
Lot number:
(TAKEN FROM CARTON)
_____________________________________
THIS INSTRUCTION BOOKLET
KEEP FOR FUTURE REFERENCE.
Date of purchase:
_______ / _______ / _______
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
NOTE:
0-65857-17222-5 (BLUE)
0-65857-17226-3 (WHITE)
INSTRUCTION MANUAL
DA7319-7WS (WHITE)
DA7319-7BLS (BLUE)

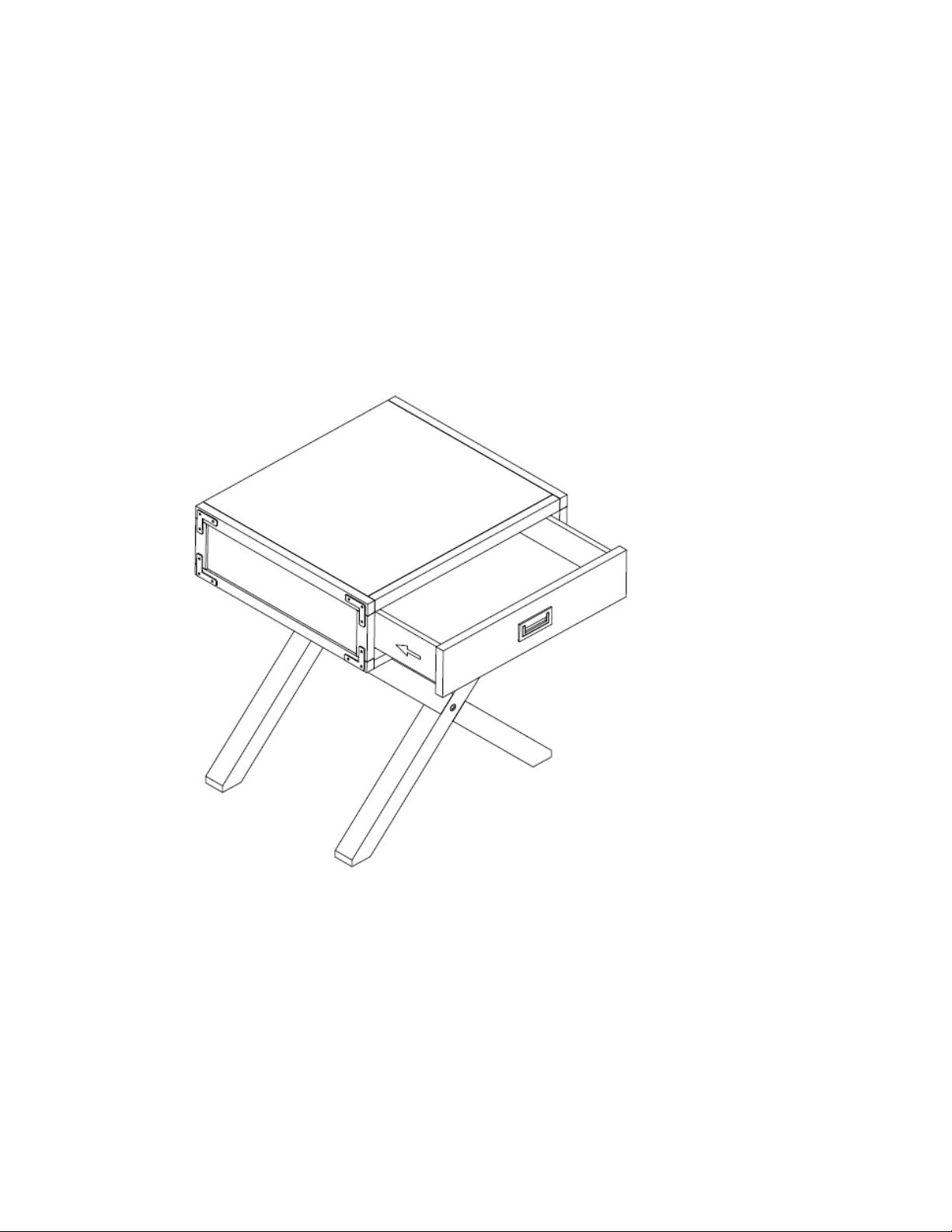

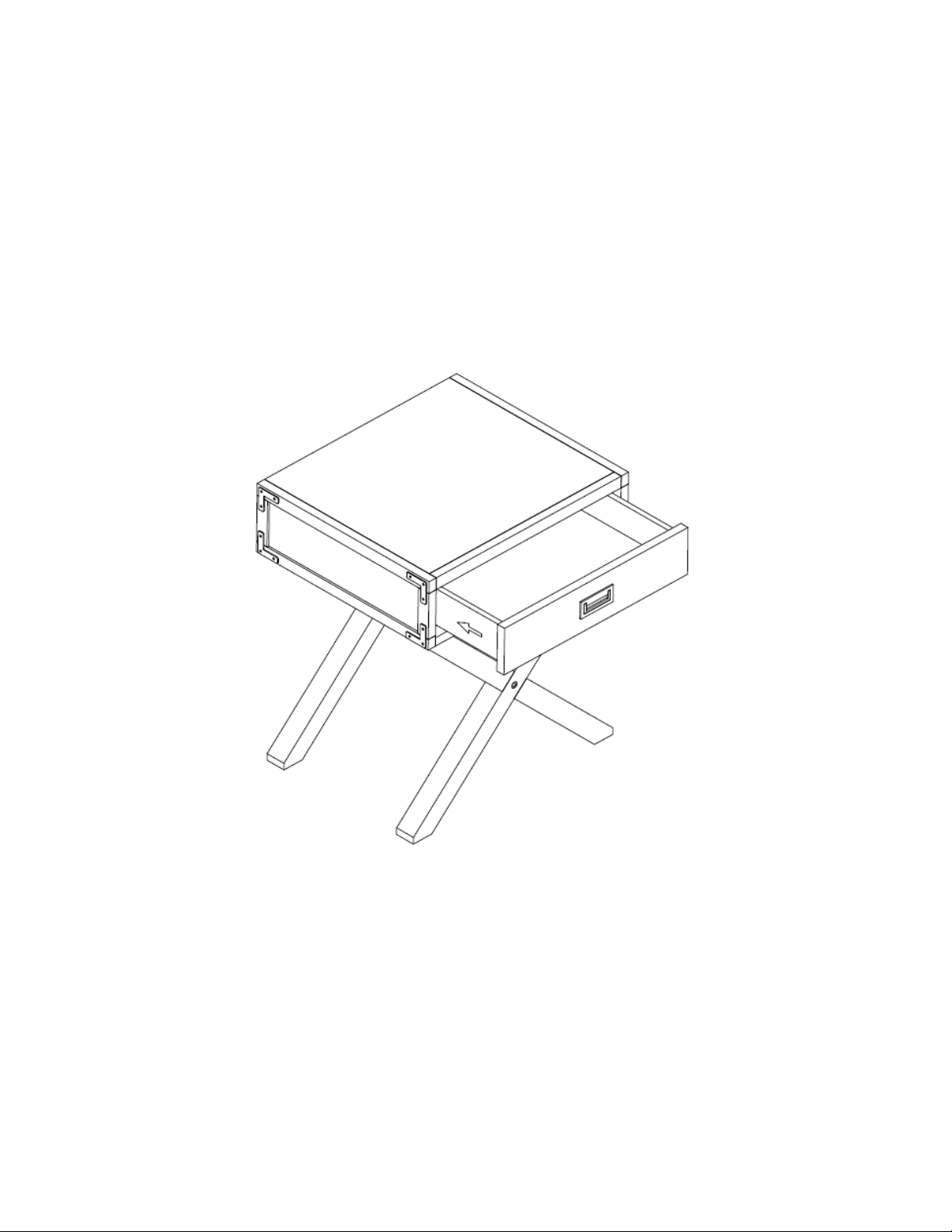

NIGHTSTAND
DA7319-7G (GREY)
0-65857-20605-0 (GREY)
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our
customer service department. We will replace the
part FREE of charge.
Tel #: [phone]
E-Mail: [email protected]m

*
*
*
*
*
*
12345 Albert-Hudon Boulevard, Suite 100
CAUTION: Adult assembly required.
DO NOT use power tools.
Montreal, Quebec
E-MAIL: [email protected]
Canada H1G 3L1
NOTES
Do not use the unit if it is damaged or broken.
To avoid unnecessary damage, DO NOT drag across surface when moving. Be sure to lift and carry
the item to its location.
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact our customer service
representative first!
CALL 1-800-295-1980
Customer Service Department No. 413
You can also order parts by writing to the address listed below. Please include the product model
number, color and a detailed description of the part.
CARE AND CLEANING
Assembly will require two people.
Estimated assembly time: 20 minutes.
WARNING: Should this product become damaged,
and/or components are broken or missing, DO NOT
USE.
Check bolts/screws periodically and tighten them if necessary.
Dust regularly with a soft, lint-free cloth to prevent soil build-up. A damp cloth may be used
occasionally to clean surface. Dry immediately. Do not use any abrasives that may damage finish.
Excessive exposure to sunlight and extreme changes in temperature and moisture can damage wood
furniture.
MAINTENANCE
Dorel warrants its product to be free from defects in material and workmanship and agrees to remedy
any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid
only upon presentation of proof of purchase. This is solely limited to the repair or replacement of
defective furniture components and no assembly labor is included. This warranty does not apply to any
product which has been improperly assembled, subjected to misuse or abuse or which has been
altered or repaired in any way. This warranty gives you specific legal rights and you may also have
other rights which vary from State to State.
LIMITED WARRANTY

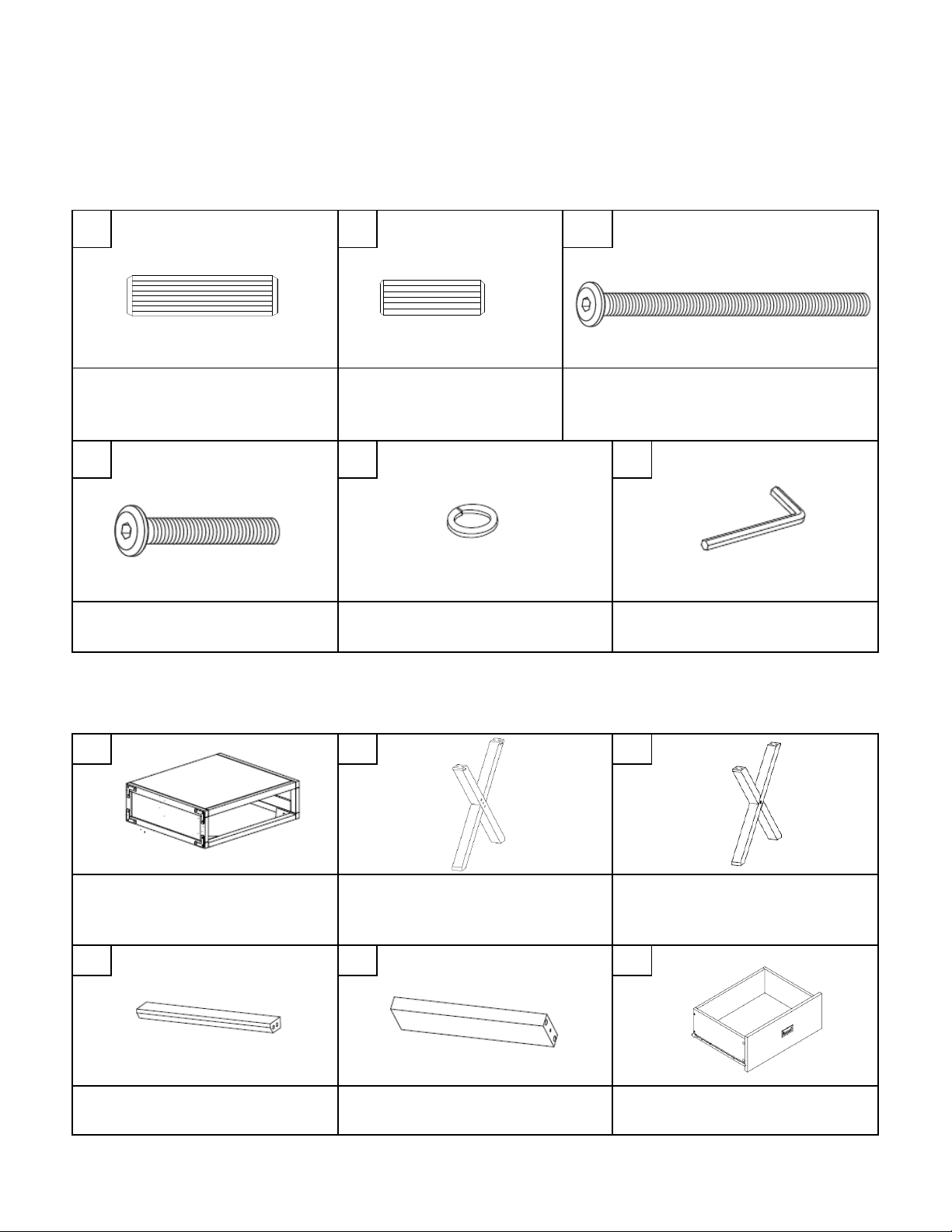

HARDWARE LIST
1 2 3
4 5 6
PARTS LIST
A B1 B2
C D E
Ø8 X 30mm
SMALL WOOD
DOWEL
12 PCS
Ø1/4 X 75mm
LARGE BOLT
2 PCS
Nightstand
DA7319-7BLS / DA7319-7WS / DA7319-7G
Ø10 X 40mm
LARGE WOOD DOWEL
4 PCS
Ø1/4 X 32mm
NIGHTSTAND TOP
1 PC
SPRING WASHER
6 PCS
SMALL BOLT
4 PCS
ALLEN KEY
1 PC
BACK LEG
1 PC
FRONT LEG
1 PC
TOP RAIL
2 PCS
BOTTOM RAIL
1 PC
DRAWER
1 PC

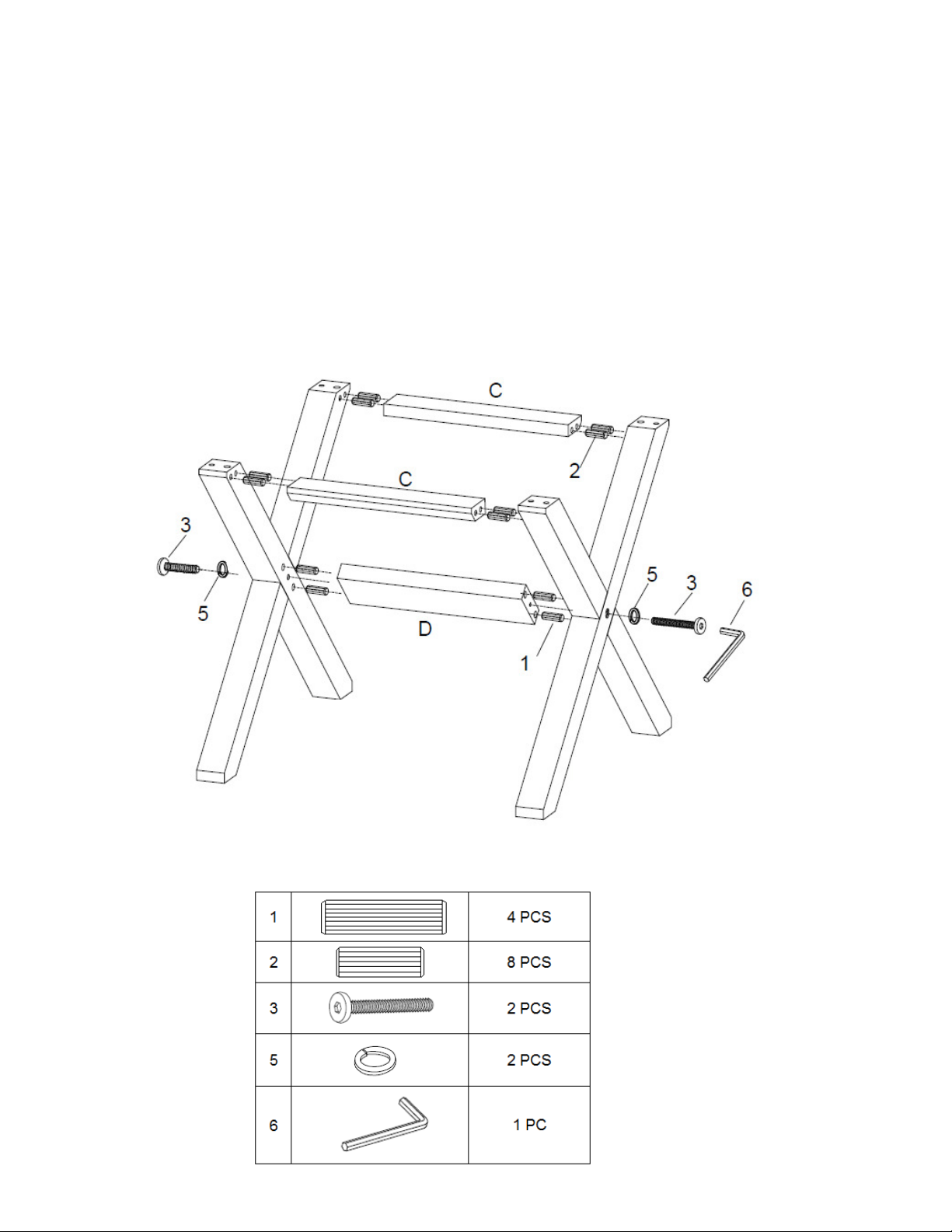

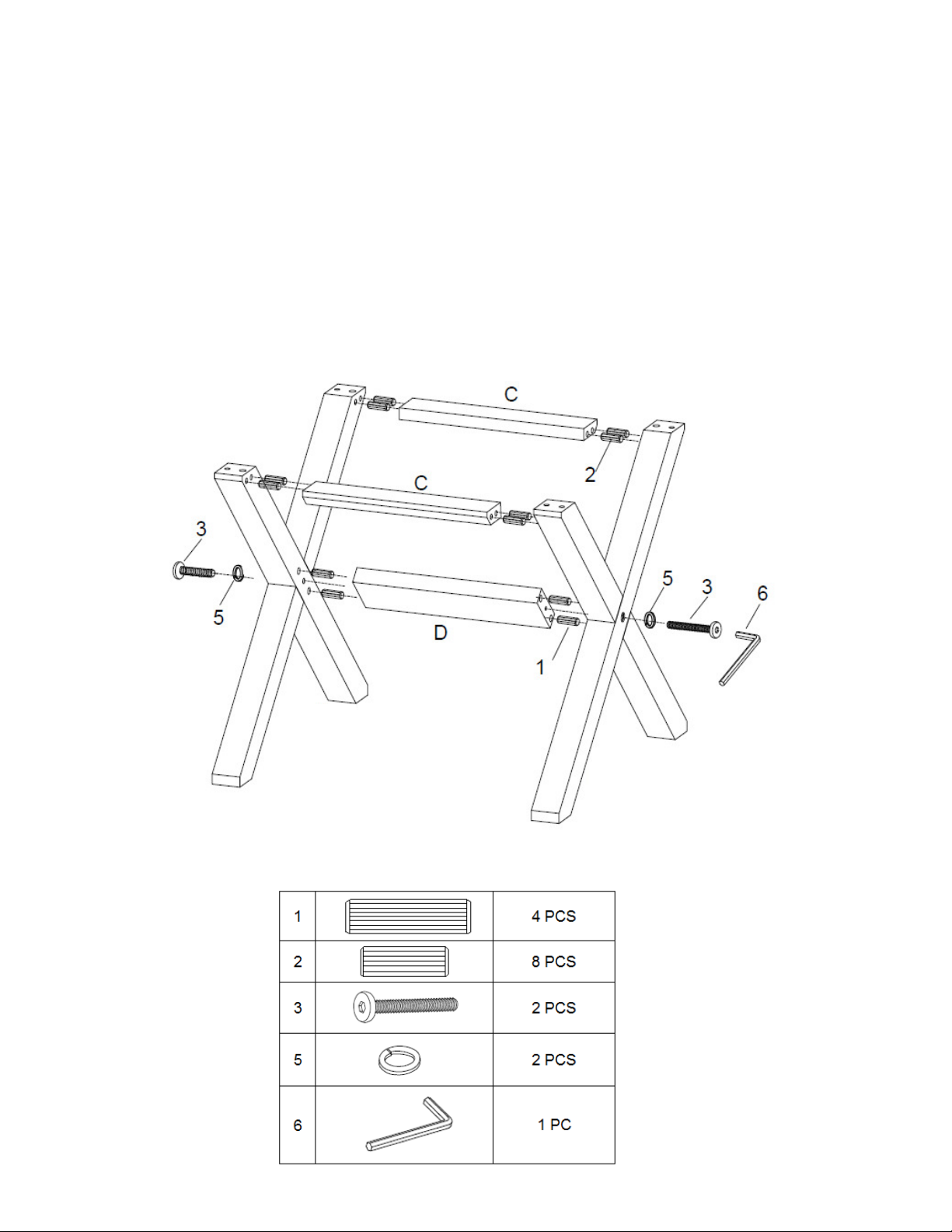

STEP 1
Nightstand
DA7319-7BLS / DA7319-7WS / DA7319-7G
Insert large wood dowels (1) into the bottom rail (D).
Insert small wood dowels (2) into the top rails (C).
Attach legs (B1 & B2) to the rails (C & D) as shown.
Further secure bottom rail (D) to the legs (B1 & B2) with large bolts (3) and spring washers (5)
using Allen key (6).
B
1
B2

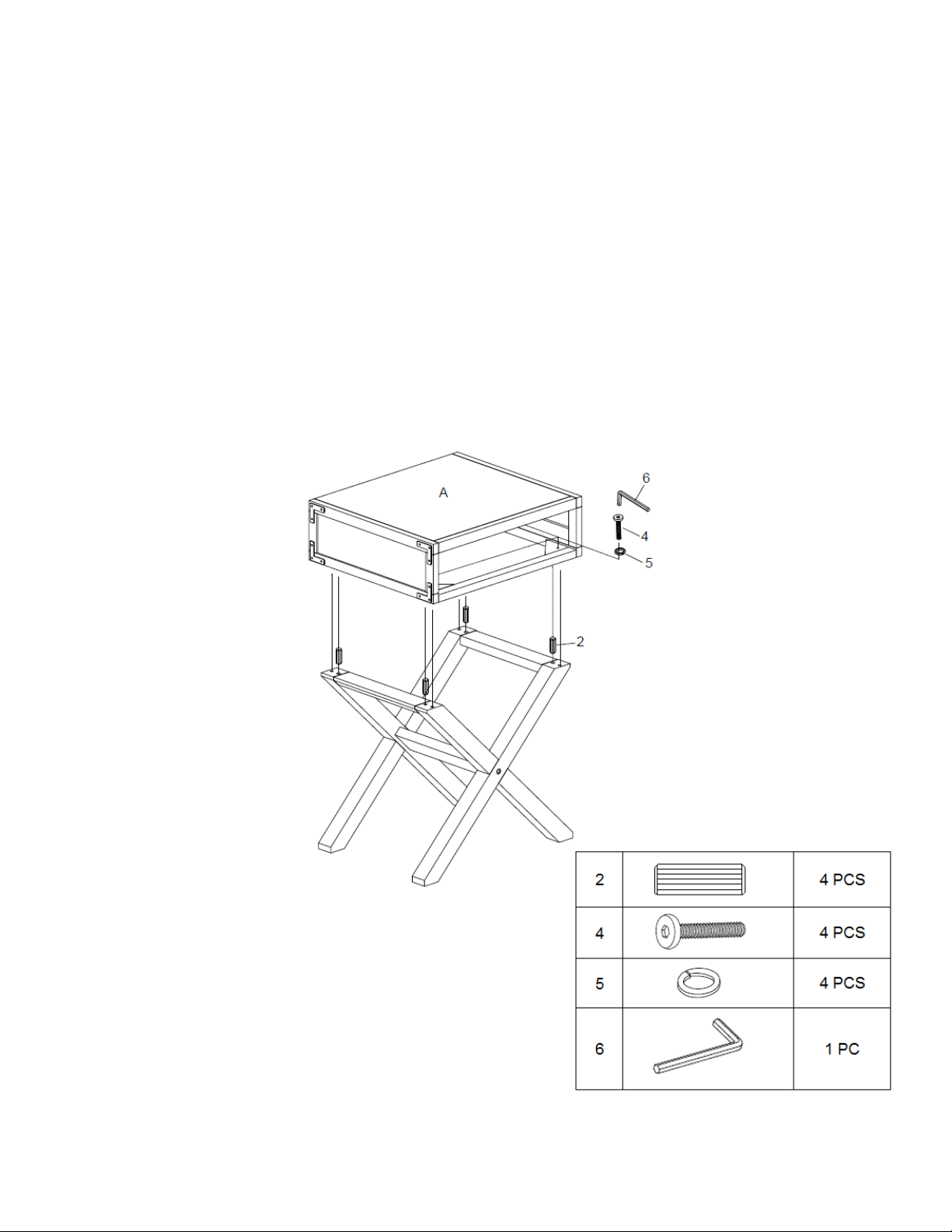

STEP 2
Nightstand
DA7319-7BLS / DA7319-7WS / DA7319-7G
Insert small wood dowels (2) into the legs (B1 & B2).

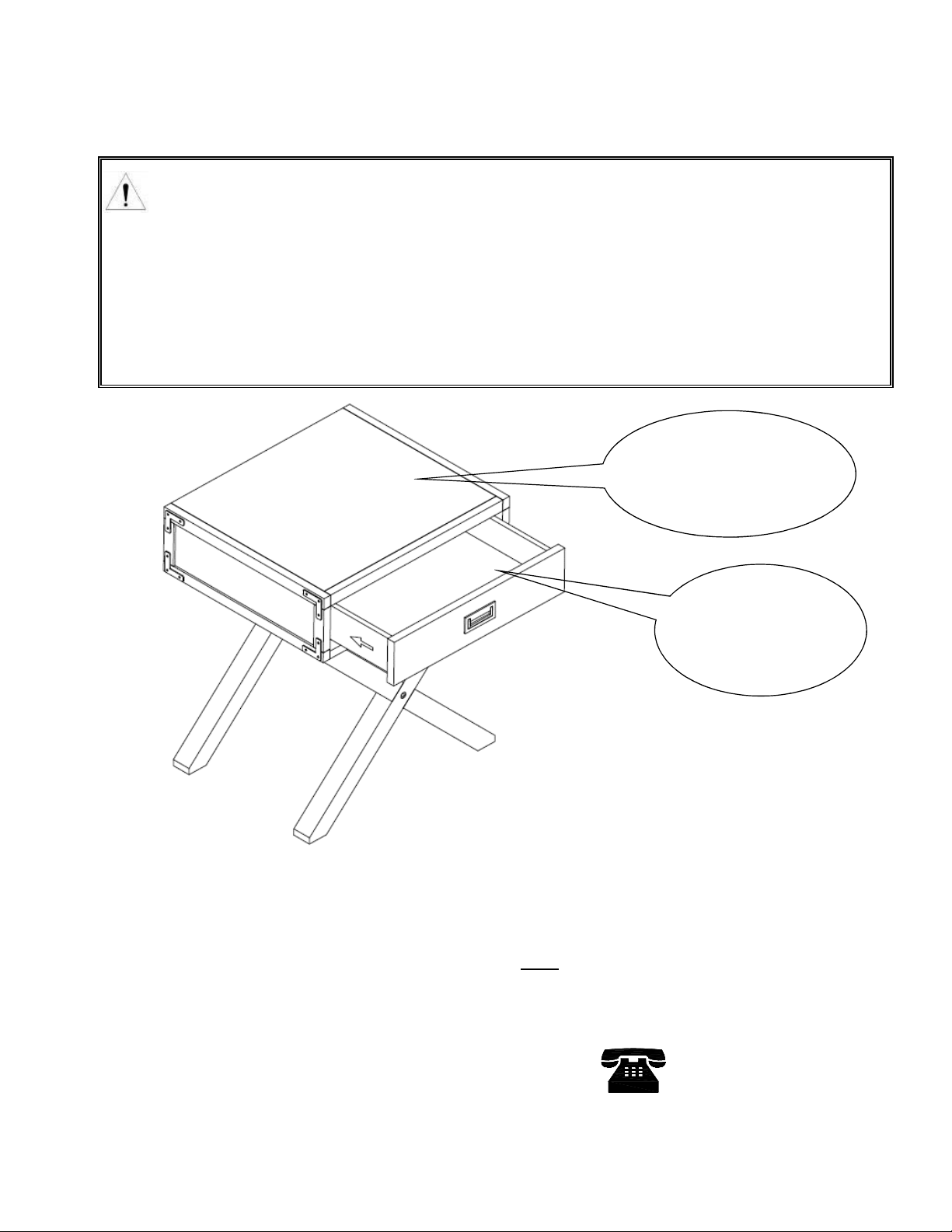

Drawer (E) is pre-installed in the nightstand top (A). Extend and pullout drawer (E) to facilitate
assembly in this step.
Place nightstand top (A) on the assembled unit as shown below.
Secure nightstand top (A) to the legs (B1 & B2) with small bolts (4) and spring washers (5) using
Allen key (6).
B
B
B1
B2
